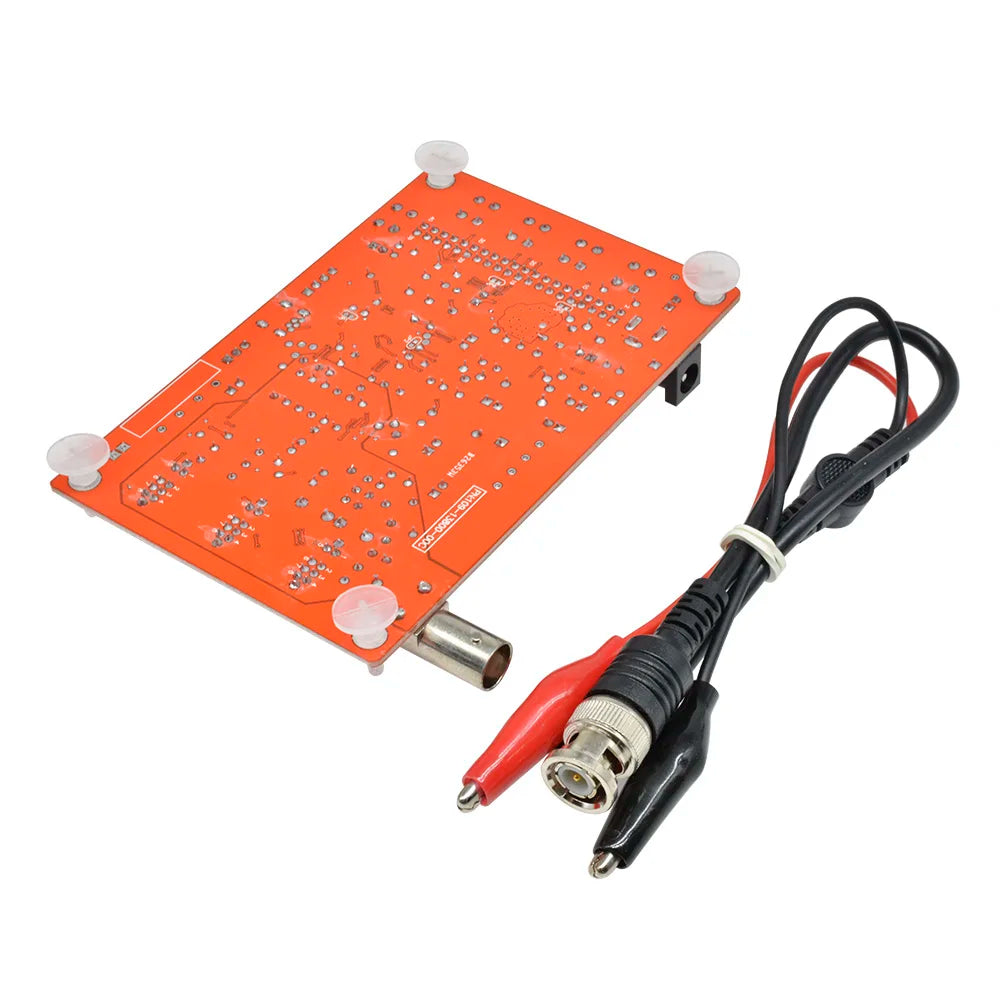

Assembled DSO138 Digital Oscilloscope 2.4" TFT LCD Digital Oscilloscope with Alligator Probe Test Clip Transparent Acrylic Case
Product selling points:
1. The product is compact and small
2. Widely used
3. Suitable for DIY enthusiasts
4. Long service life
5. Multiple choices
Product parameters:
Maximum real-time sampling rate: 1Msps
Accuracy: 12 bits
Sampling buffer depth: 1024 bytes
Simulated bandwidth: 0-200KHz
Vertical sensitivity: 10mV/Div-5V/Div (1-2-5 progressive mode)
Adjustable vertical displacement with instructions
Input impedance: 1M Ω
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling modes include DC/AC/GND
Horizontal time base range: 10 μ s/Div-50s/Div (1-2-5 progressive mode)
Equipped with automatic, regular, and one-time modes, easy to capture torque waveforms
Available rising or falling edge triggers
Adjustable trigger horizontal position with instructions
Previously observable trigger waveform (negative delay)
Can freeze waveform display at any time (hold function)
Comes with 1Hz/3.3V square wave test signal source
detailed list:
Oscilloscope kit * 1
Assembled DSO138 Digital Oscilloscope 2.4" TFT LCD Digital Oscilloscope with Alligator Probe Test Clip Transparent Acrylic Case
$62.36
Sale price
$62.36
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: Gaqqee
Certification: CE
DIY Supplies: Electrical
Display Size: 3.0 - 4.9 Inches
High-concerned chemical: none
Model Number: DSO138 Oscilloscope
Origin: Mainland China
Assembled DSO138 Digital Oscilloscope 2.4" TFT LCD Digital Oscilloscope with Alligator Probe Test Clip Transparent Acrylic Case
Product selling points:
1. The product is compact and small
2. Widely used
3. Suitable for DIY enthusiasts
4. Long service life
5. Multiple choices
Product parameters:
Maximum real-time sampling rate: 1Msps
Accuracy: 12 bits
Sampling buffer depth: 1024 bytes
Simulated bandwidth: 0-200KHz
Vertical sensitivity: 10mV/Div-5V/Div (1-2-5 progressive mode)
Adjustable vertical displacement with instructions
Input impedance: 1M Ω
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling modes include DC/AC/GND
Horizontal time base range: 10 μ s/Div-50s/Div (1-2-5 progressive mode)
Equipped with automatic, regular, and one-time modes, easy to capture torque waveforms
Available rising or falling edge triggers
Adjustable trigger horizontal position with instructions
Previously observable trigger waveform (negative delay)
Can freeze waveform display at any time (hold function)
Comes with 1Hz/3.3V square wave test signal source
detailed list:
Oscilloscope kit * 1
