SPECIFICATIONS

Brand Name: Keshy

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

is_customized: Yes

1. Support for the Arduino IDE 1.0 + (OSX/Windows/Linux).
2. Power via USB or External Source or 7-16 v to 5 v (automatic selection).
3. The On - board, 150 ma 5 v Regulator.
4. Built - in USB and serial was debugging).
5. 6 I/O Pins (2 are informs the for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
6. 8 k Flash Memory (about 6 k after bootloader).
7. The I2C and SPI (vis USI).
8. PWM on 3 pins (more possible with Software PWM).
9. The ADC on 4 pins.
10. The Power LED and the Test/Status leds.
The Specs:

1. Support for the Arduino IDE 1.0+ (OSX/Win/Linux).
2. Power via USB or External Source - 5v or 7-16v (automatic selection).
3. On-board 150ma 5V Regulator.
4. Built-in USB (and serial debugging).
5. 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
6. 8k Flash Memory (about 6k after bootloader).
7. I2C and SPI (vis USI).
8. PWM on 3 pins (more possible with Software PWM).
9. ADC on 4 pins.

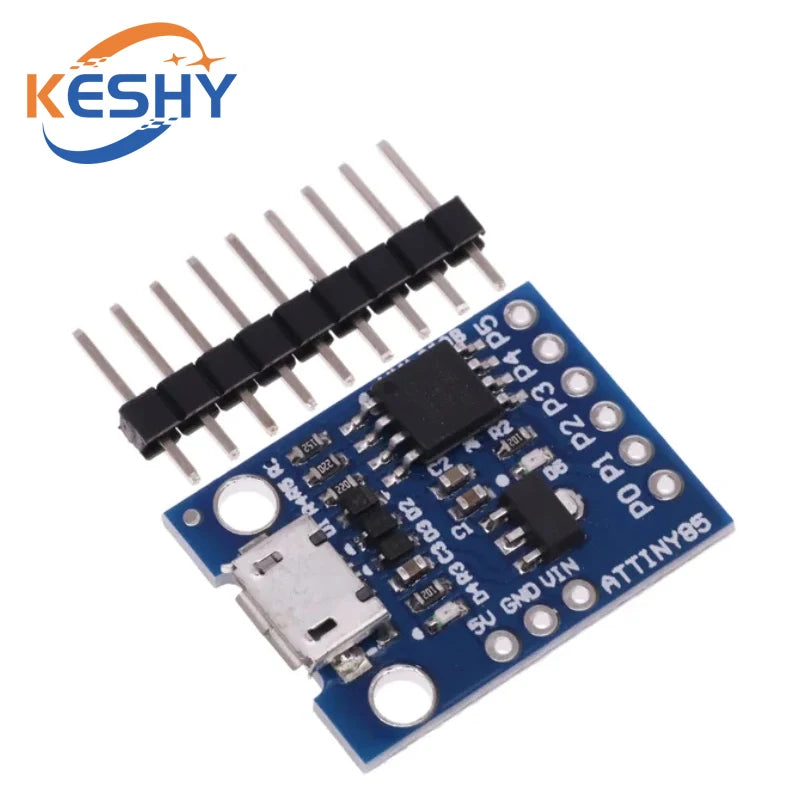

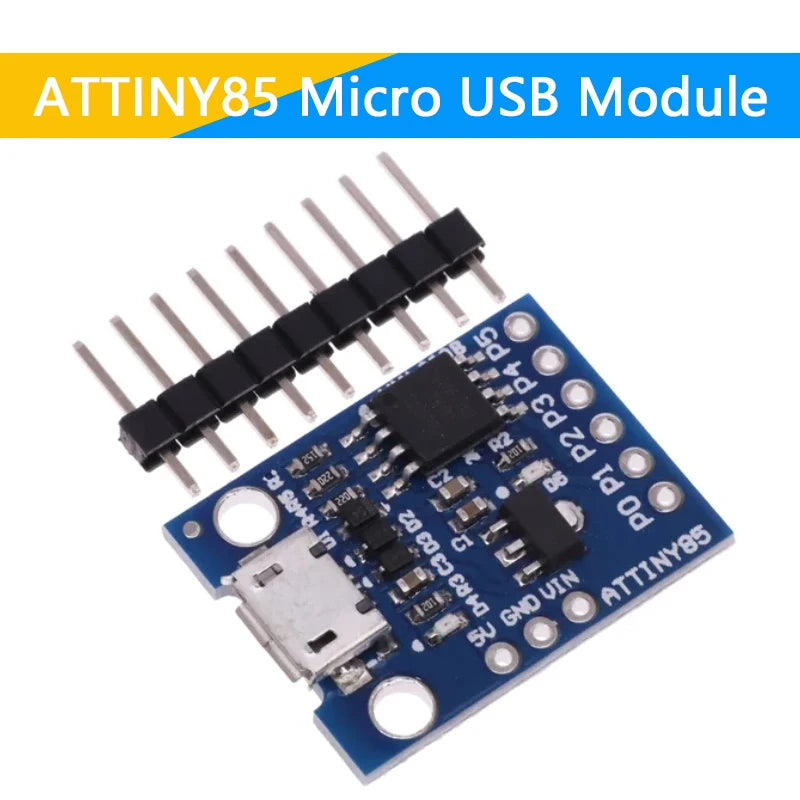

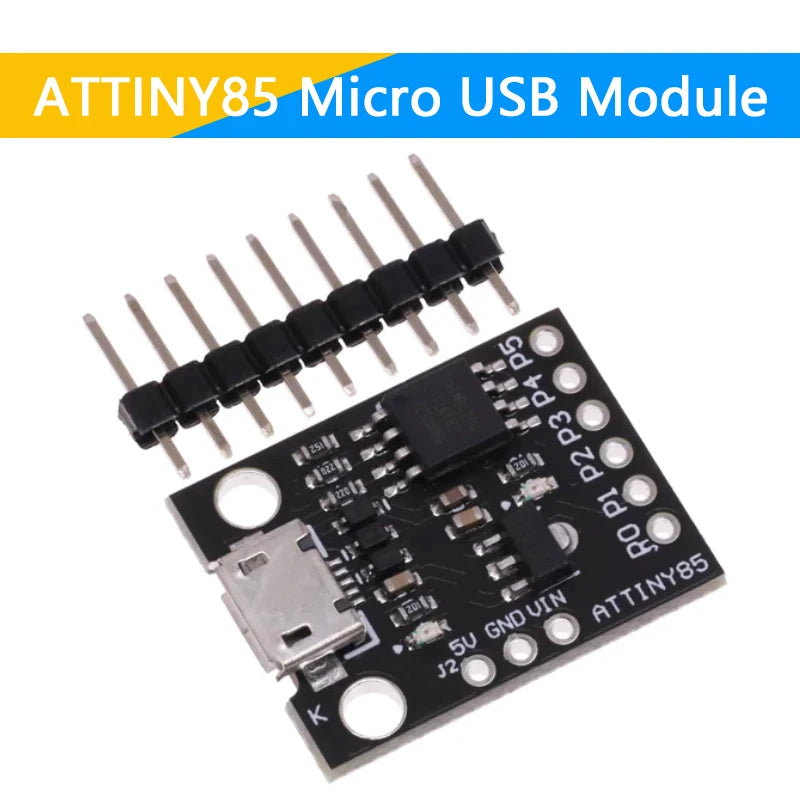

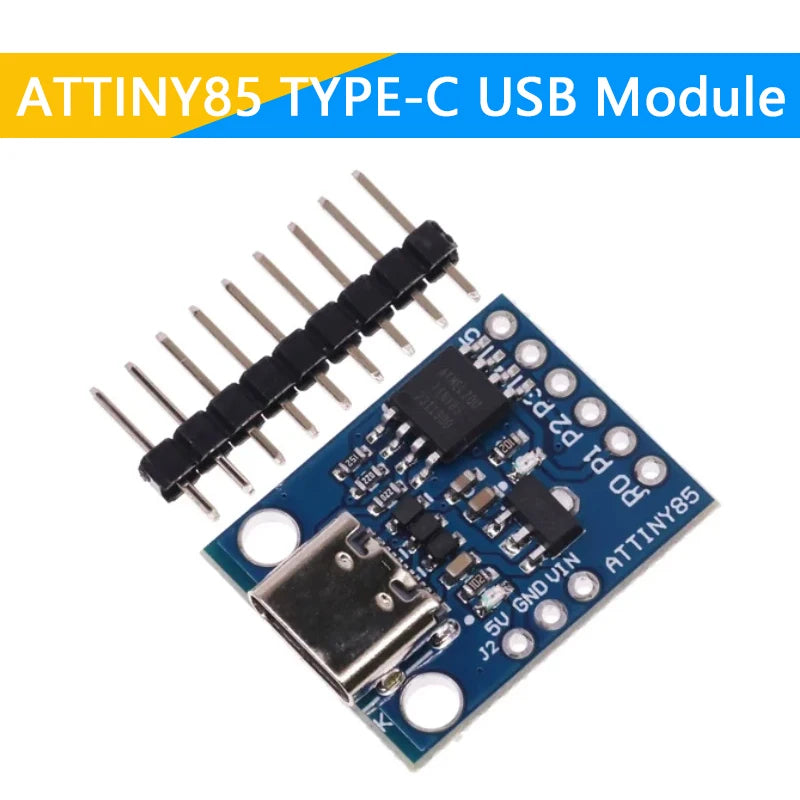

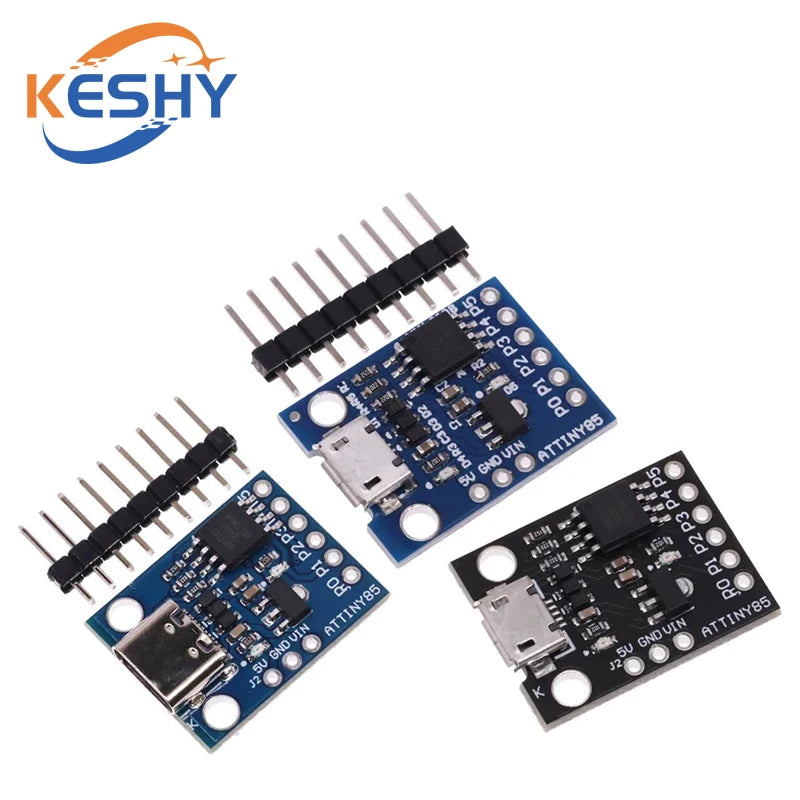

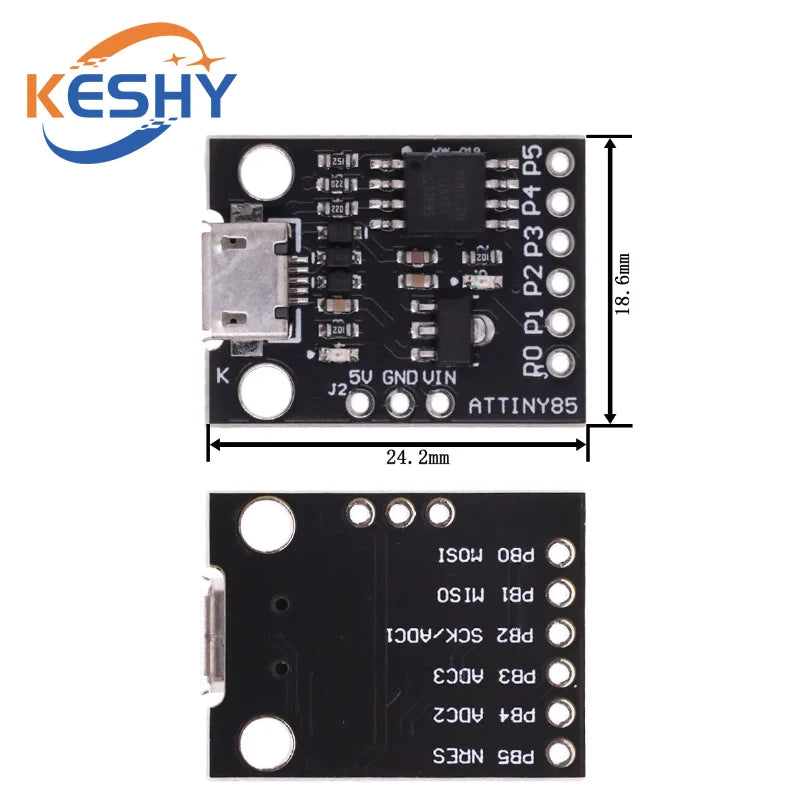

ATTINY85 Digispark USB Development Board

The Digispark is an Attiny85 based microcontroller development board similar to the line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar IDE the Digispark is a great way to jump into electronics, or perfect for when an is too big or too much.

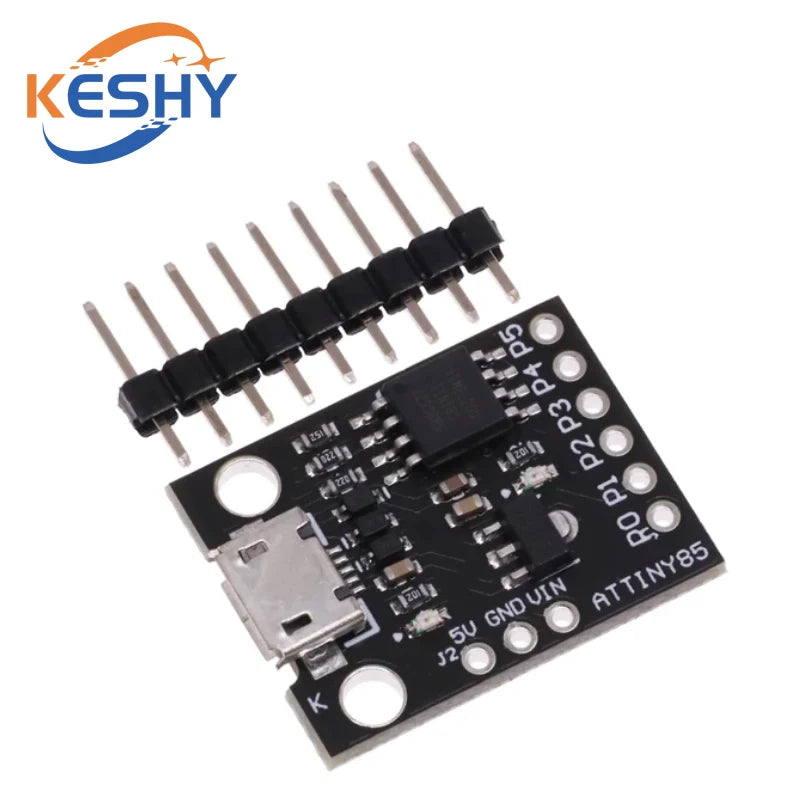

The Digispark is shipped fully assembled except for the two included and easy to solder headers.

Here are the specs:

Support for the IDE 1.0+ (OSX/Win/Linux)

Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection)

On-board 500ma 5V Regulator

Built-in USB

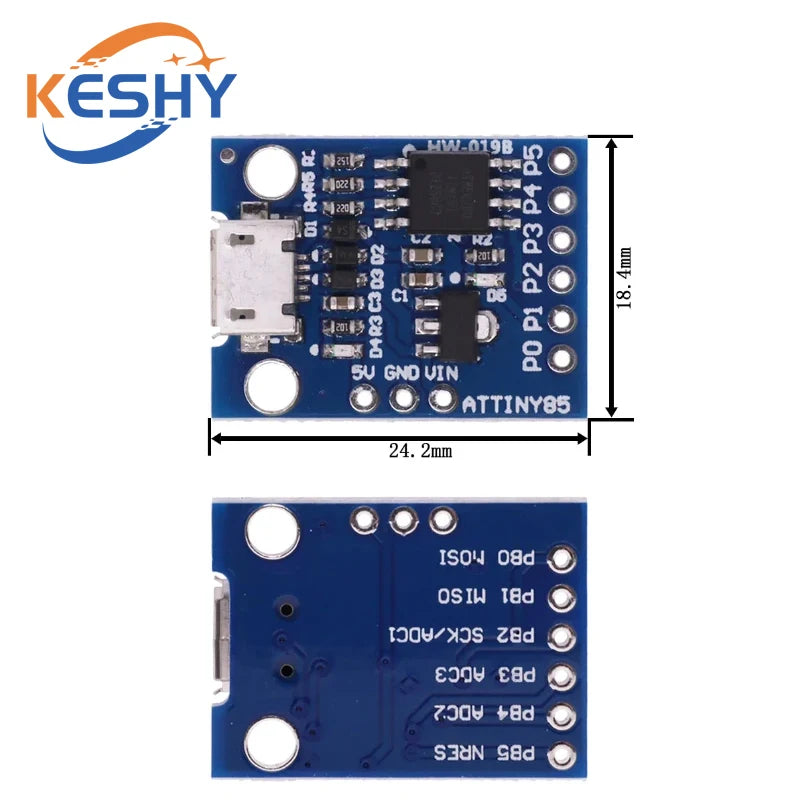

6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)

8k Flash Memory (about 6k after bootloader)

I2C and SPI (vis USI)

PWM on 3 pins (more possible with Software PWM)

ADC on 4 pins

Power LED and Test/Status LED
