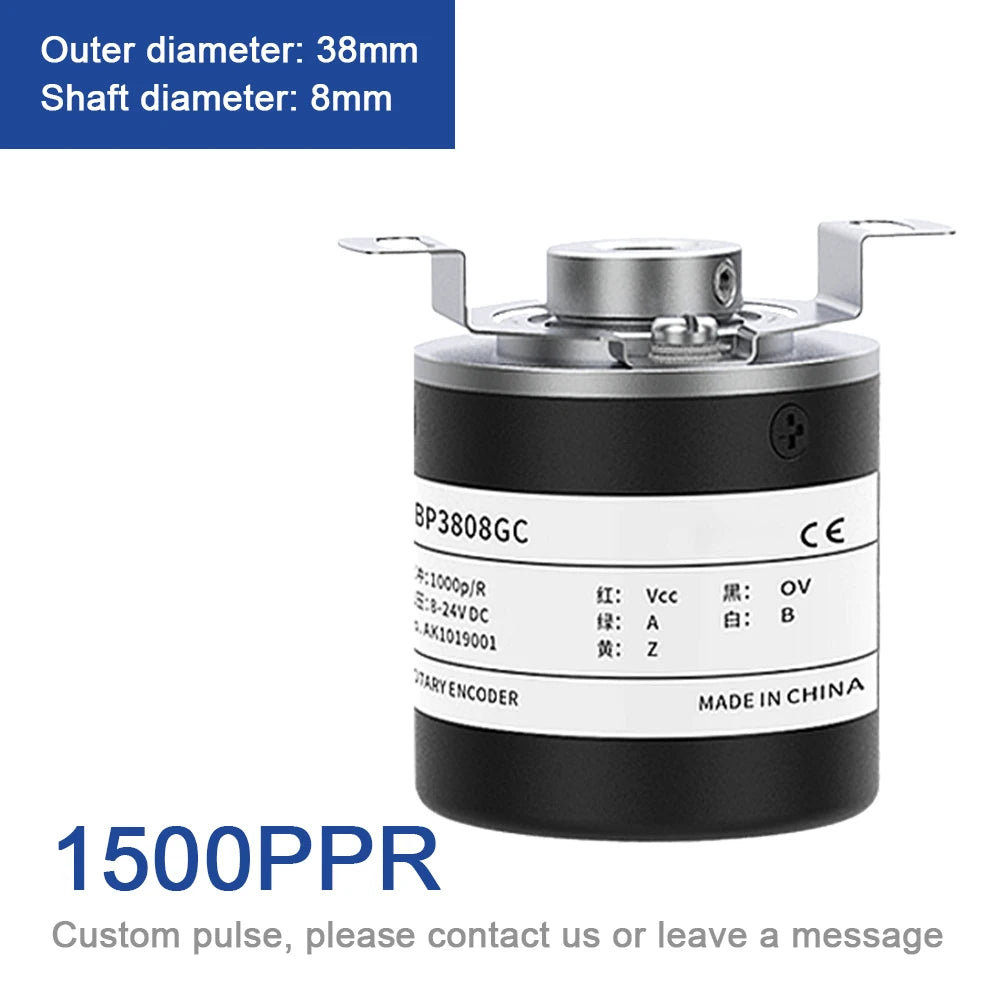

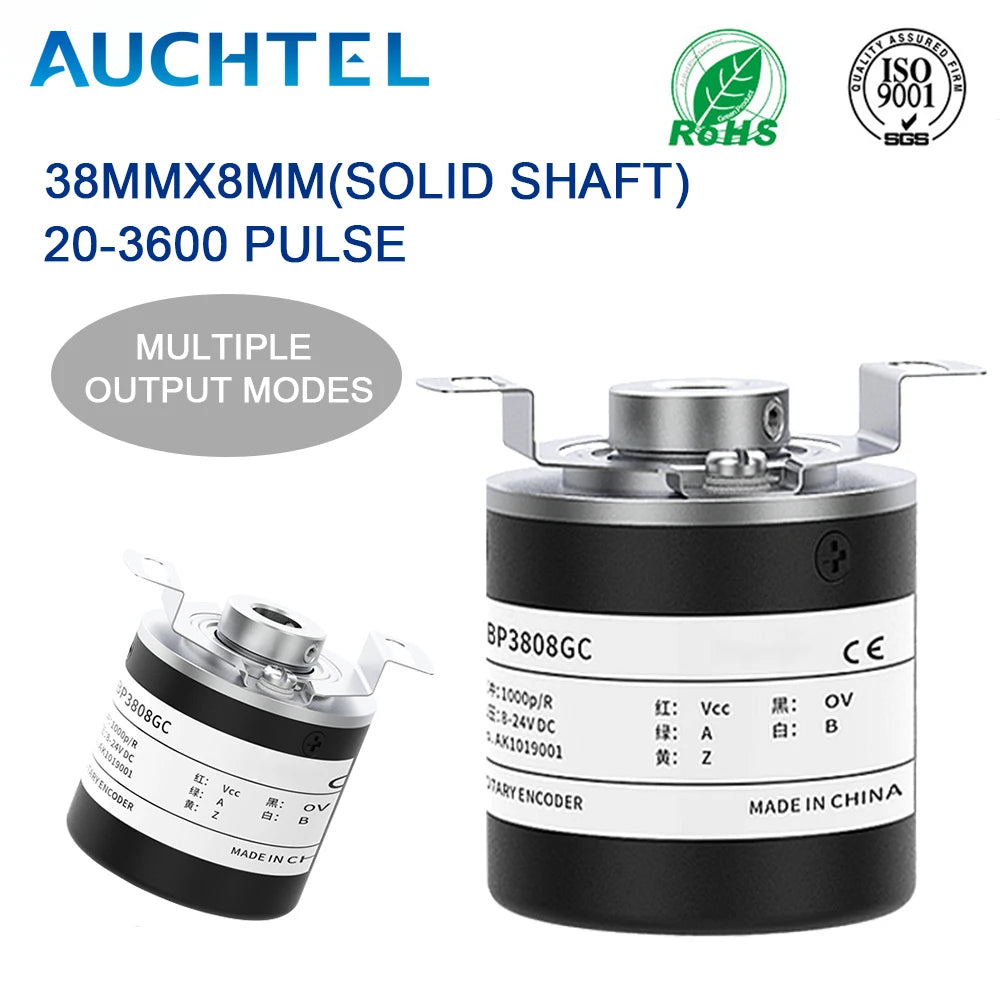

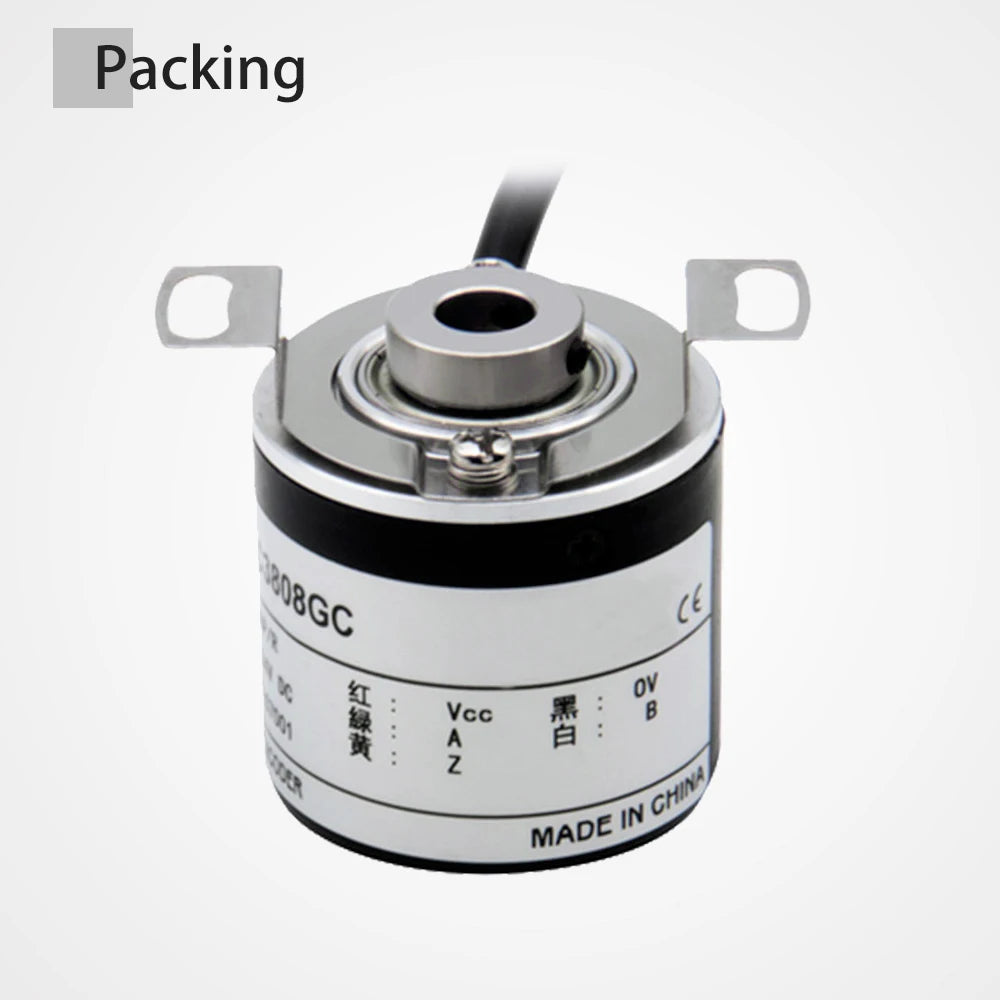

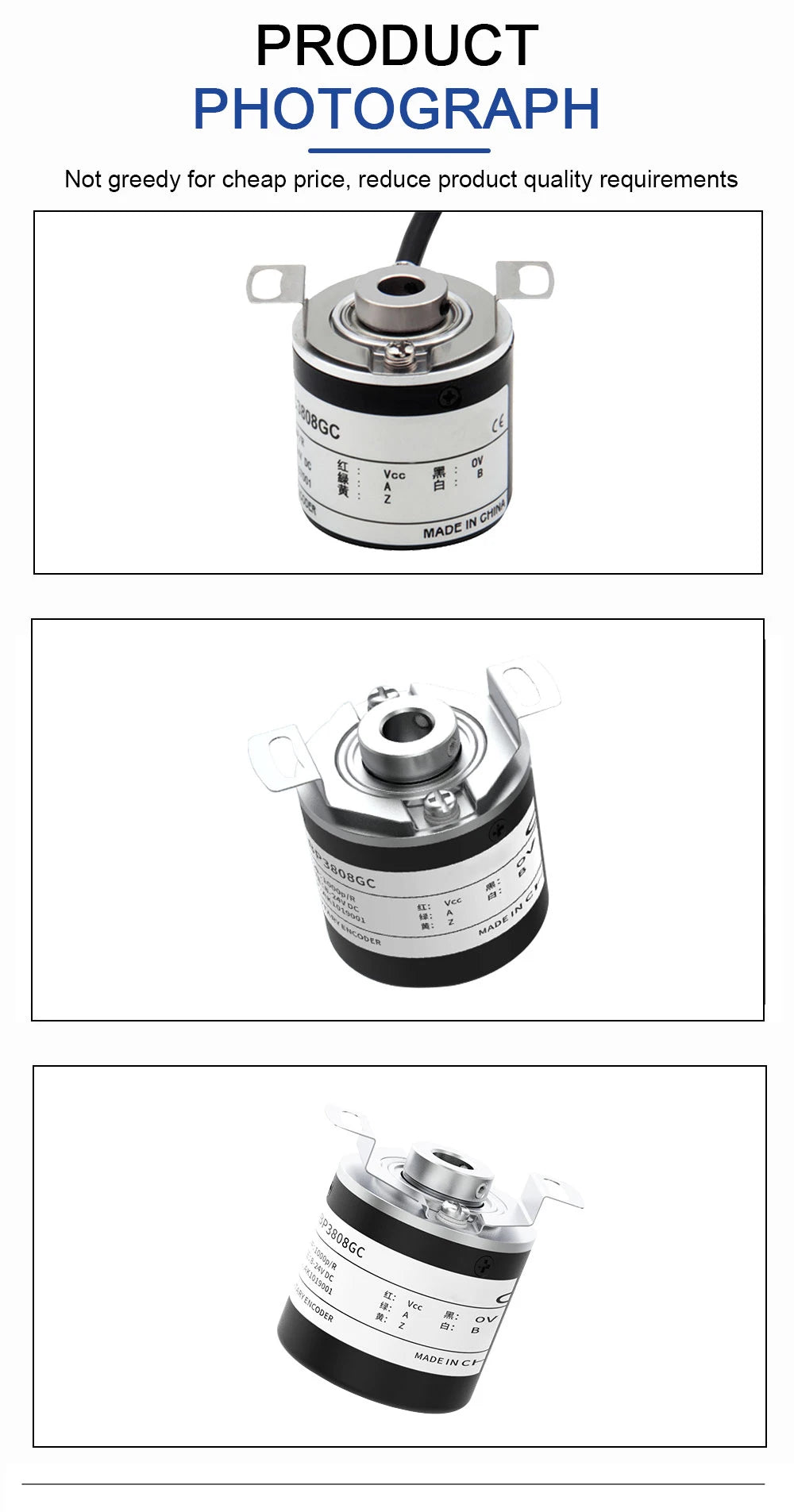

AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
  • AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
AUCHTEL 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC
$242.55
$242.55 $0.00
Color
Standardnote pulse
Voltage
Description

SPECIFICATIONS

Brand Name: AUCHTEL

Cable length: 2m

Certification: ce

Current consumption: 100mA

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Incremental Rotary encoder

Frequency response: 0-100kHz

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

Material: Aluminium alloy

Maximum mechanical speed: 5000r/min

Model Number: zbp3808

Origin: Mainland China

Power supply voltage: DC5V~24V,DC5V

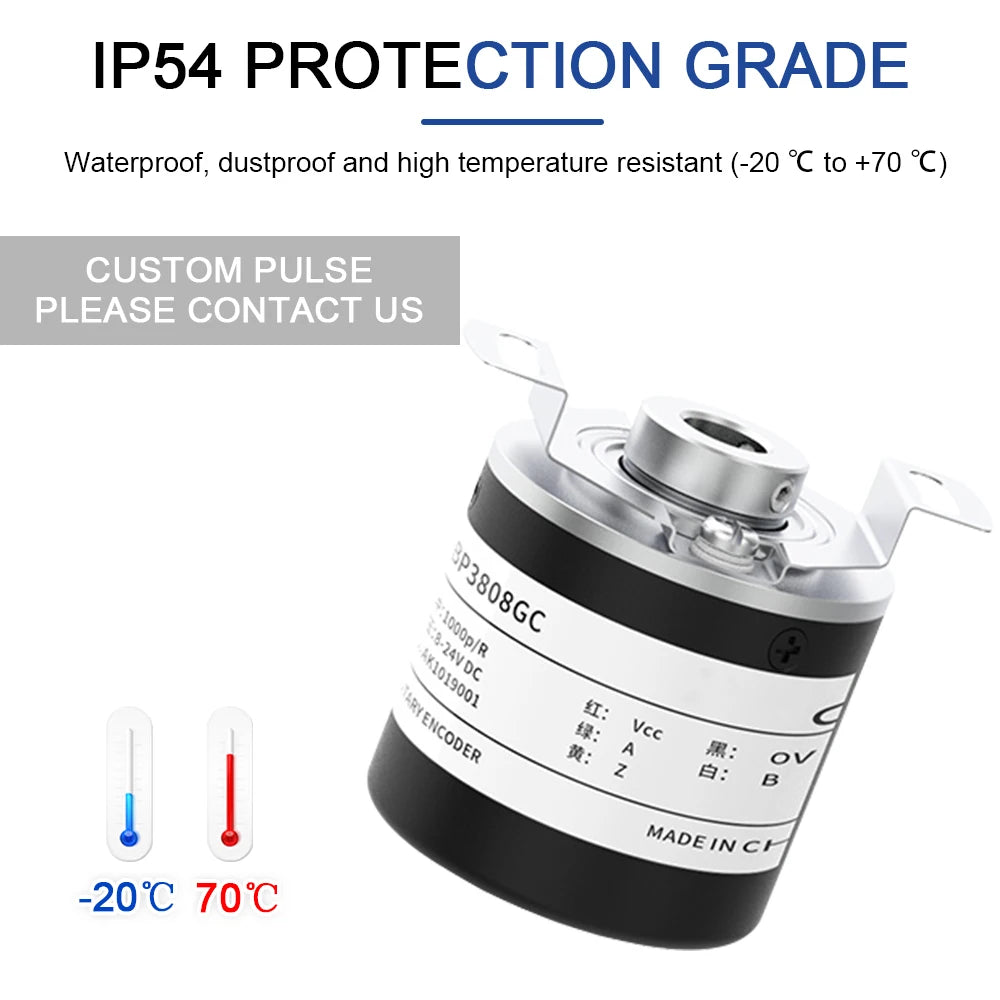

Protection grade: IP65

Switch Type: Photoelectric Switch

Warranty: 1 year

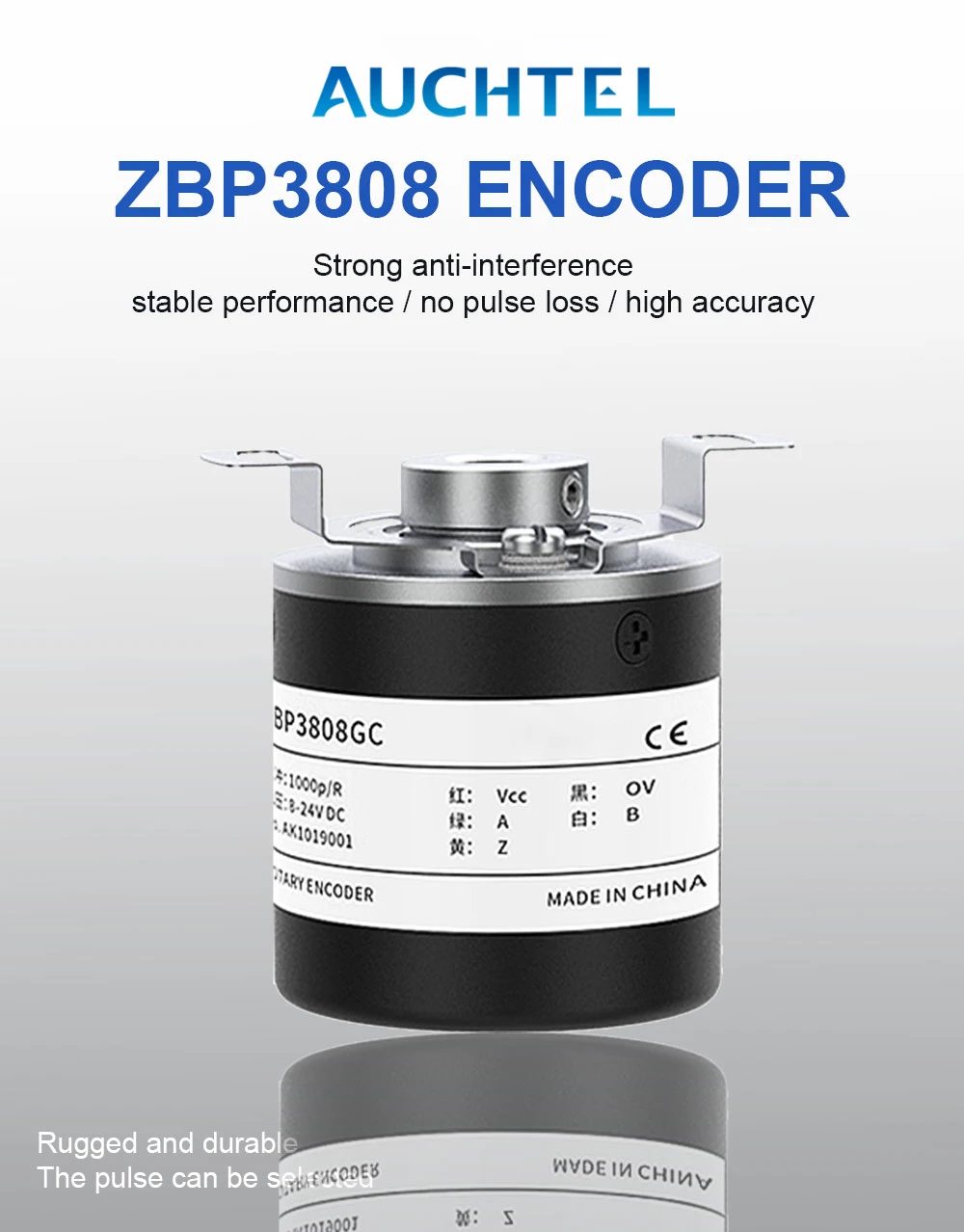

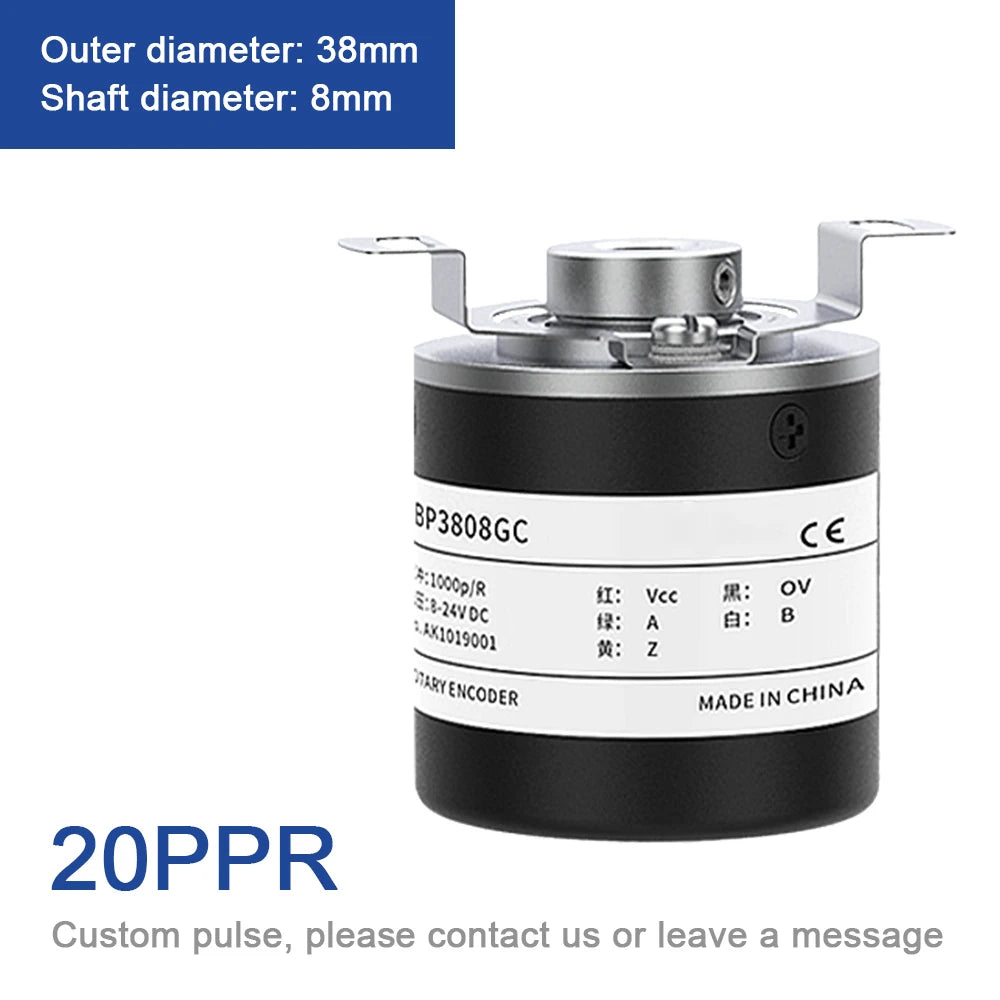

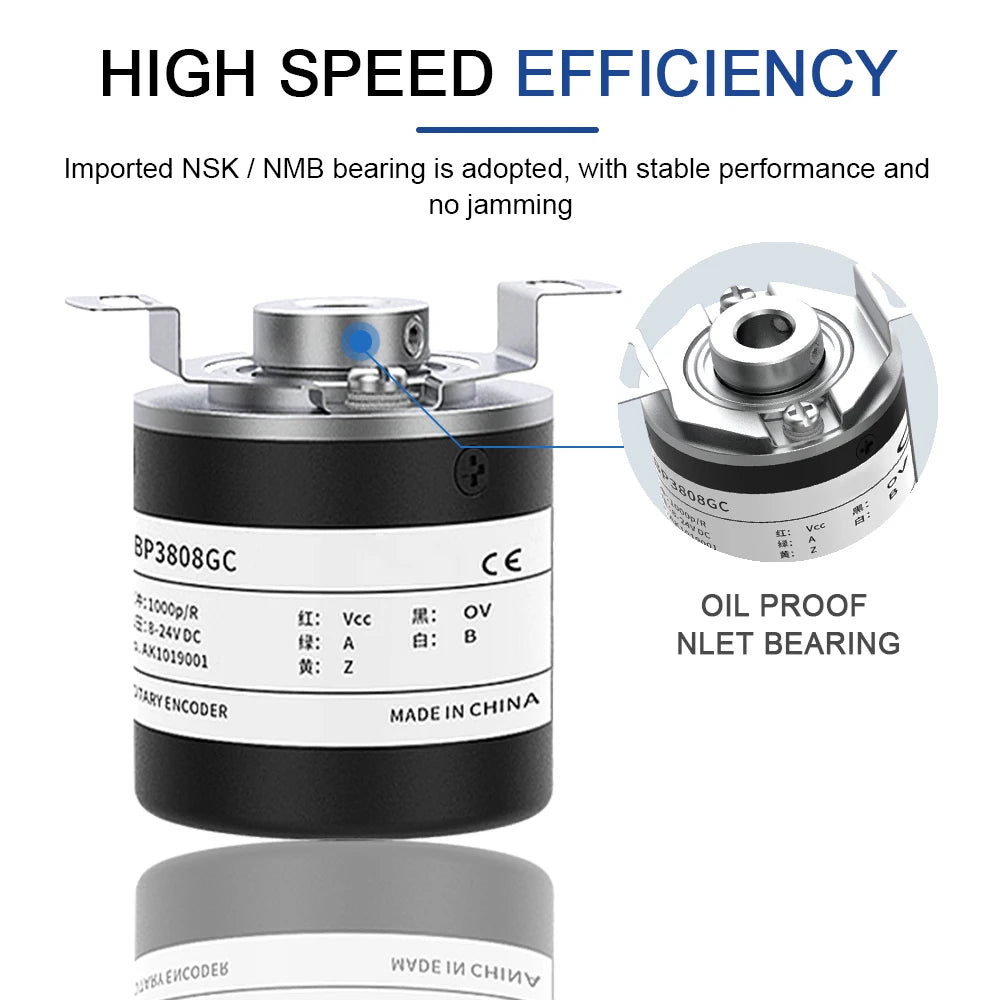

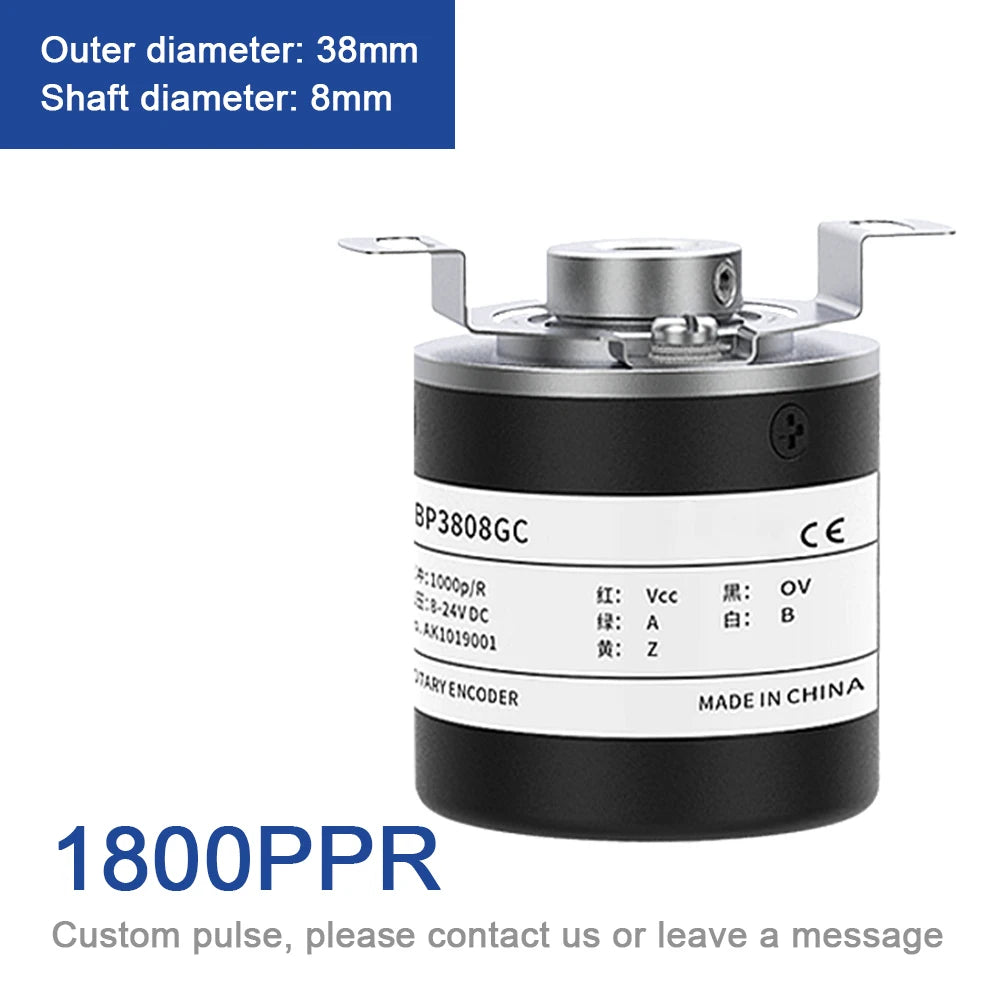

CHBG 38mm Incremental Rotary Encoder 8mm Half Hollow Shaft Photoelectric Optical Switch 10-1024-1800-2500-3600 PPR 5-24VDC

Reminder:

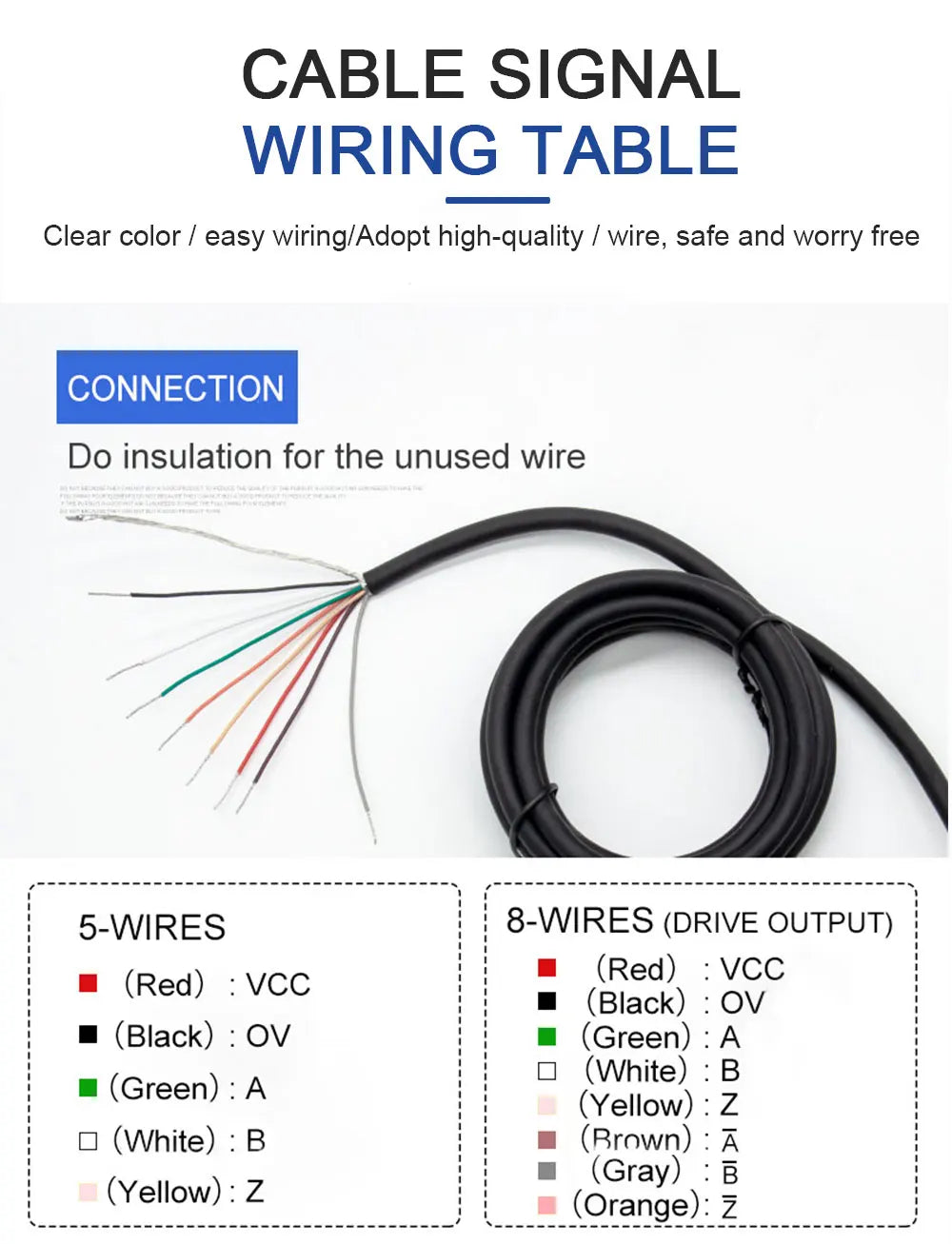

1.As the wiring standards of each factory are different, please strictly follow the wiring diagram

2.If you are not a professional, please do not connect the wires randomly If you have any questions, please contact our customer service

3.The outer core (shield) of the shielded wire shall not be linked with the inside and the shell

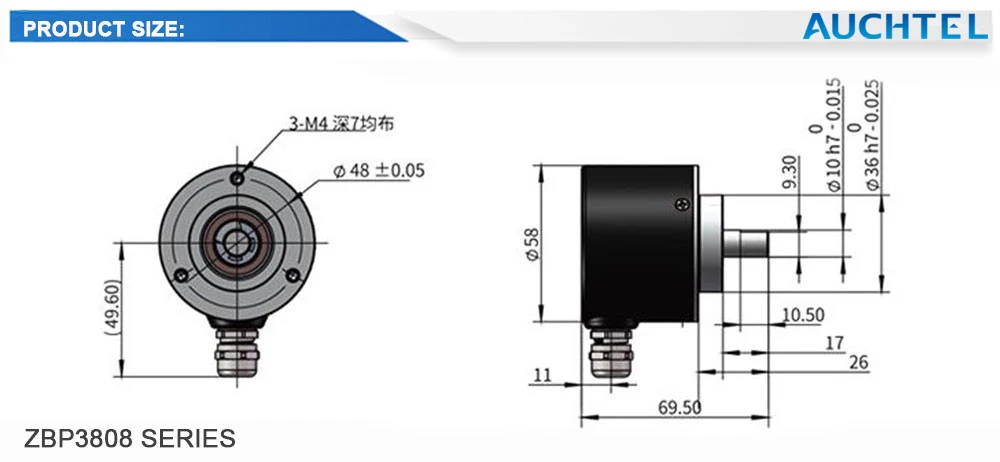

ZBP

38

08

G

C

/

PULSE

B

M

□

□

①

②

③

④

⑤


⑥

⑦

⑧

⑨

⑩

①Model: (Z: incremental B:Half Hollow Shaft P: Universal type)

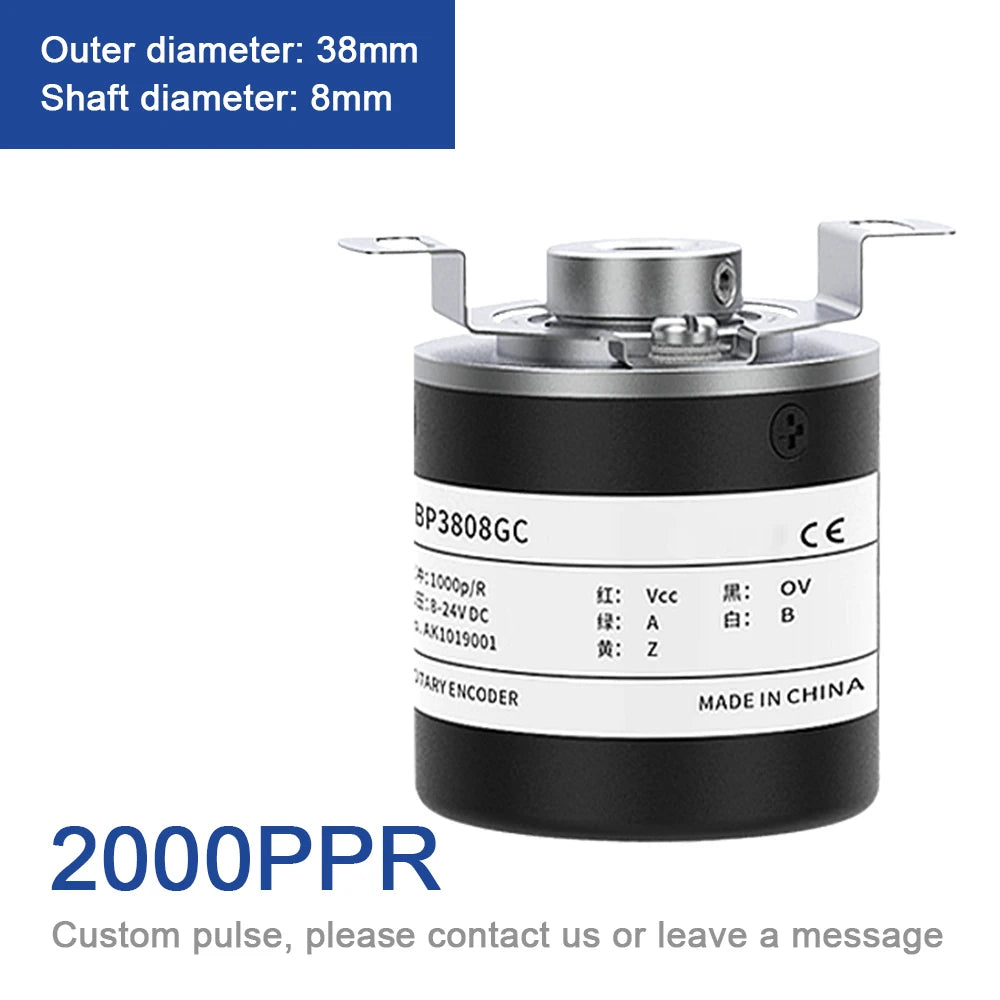

②Outer diameter: 38mm

③Shaft diameter: 8mm

④Outgoing mode: ( G: Cable side out、E：Cable back out)

⑤Model output mode:
(C: open collector output E: voltage output F: Push–pull output L:Drive output(5V) T: Drive output(8-24V))

⑥Pulse number:
20.25.30.40.50.60.80.90.100.200.240.250.256.300.360.400.500.600.720.800.1000.1024.1200.1500.1800.2000.2048.2500.3000.3600
(special specifications can be customized)

⑦Output model: B = a, phase B

⑧Voltage selection: (M: 8-24, blank: 5V)

⑨Positive and negative zero position: (blank: positive zero position F: negative zero position)

⑩Cable length: Standard 2m (other sizes can be customized)

Electrical parameters

Mechanical parameters

Number of pulses：

Maximum 3600P/R

Starting force cabinet：

2x10-3N ·M（±25℃）

Current consumption：

≤100mA

Allowable load of shaft：

Axial 9.8N, radial 9.8N

Response frequency：

0~100KHZ

Moment of inertia：

4x10-8KGM²

working temperature：

-20℃~+70℃

Maximum revolutions：

5000r/min

Storage temperature：

-20℃~+80℃

Protection level：

IP65

Output item：


Anti vibration：

50m/S²（10~200Hz x，y，z 2 hours in each of the three directions）

Output voltage VH：

≥VCC-2.5V

Impact resistance：

980m/S²

Output voltage VL：

≤0.5V

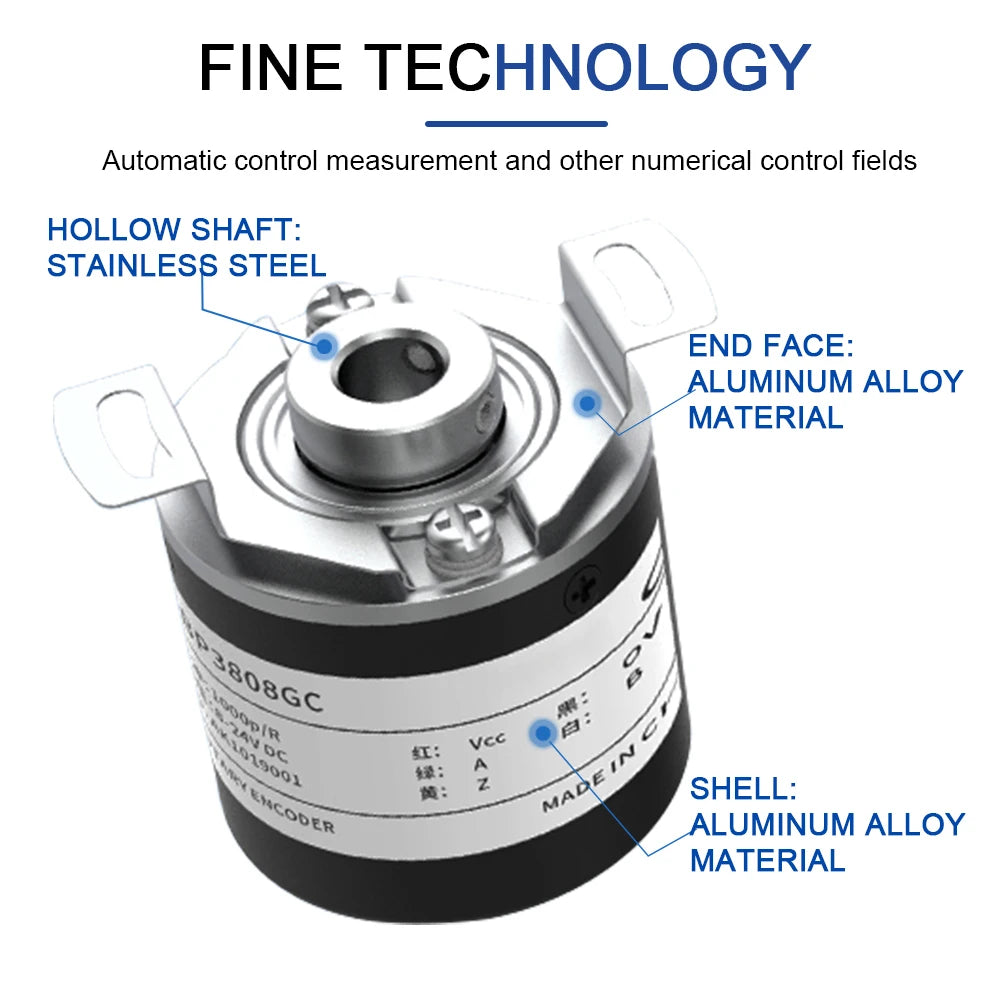

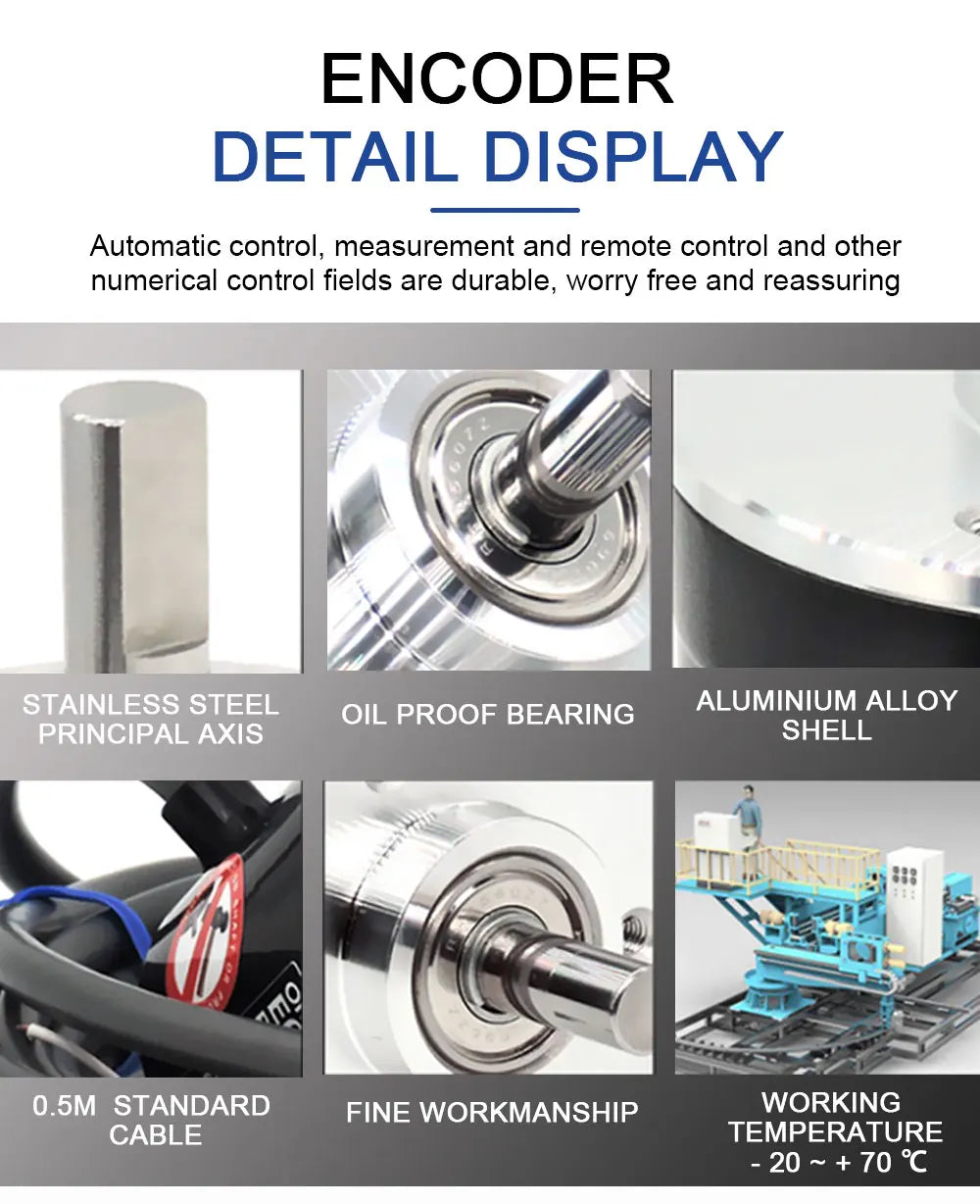

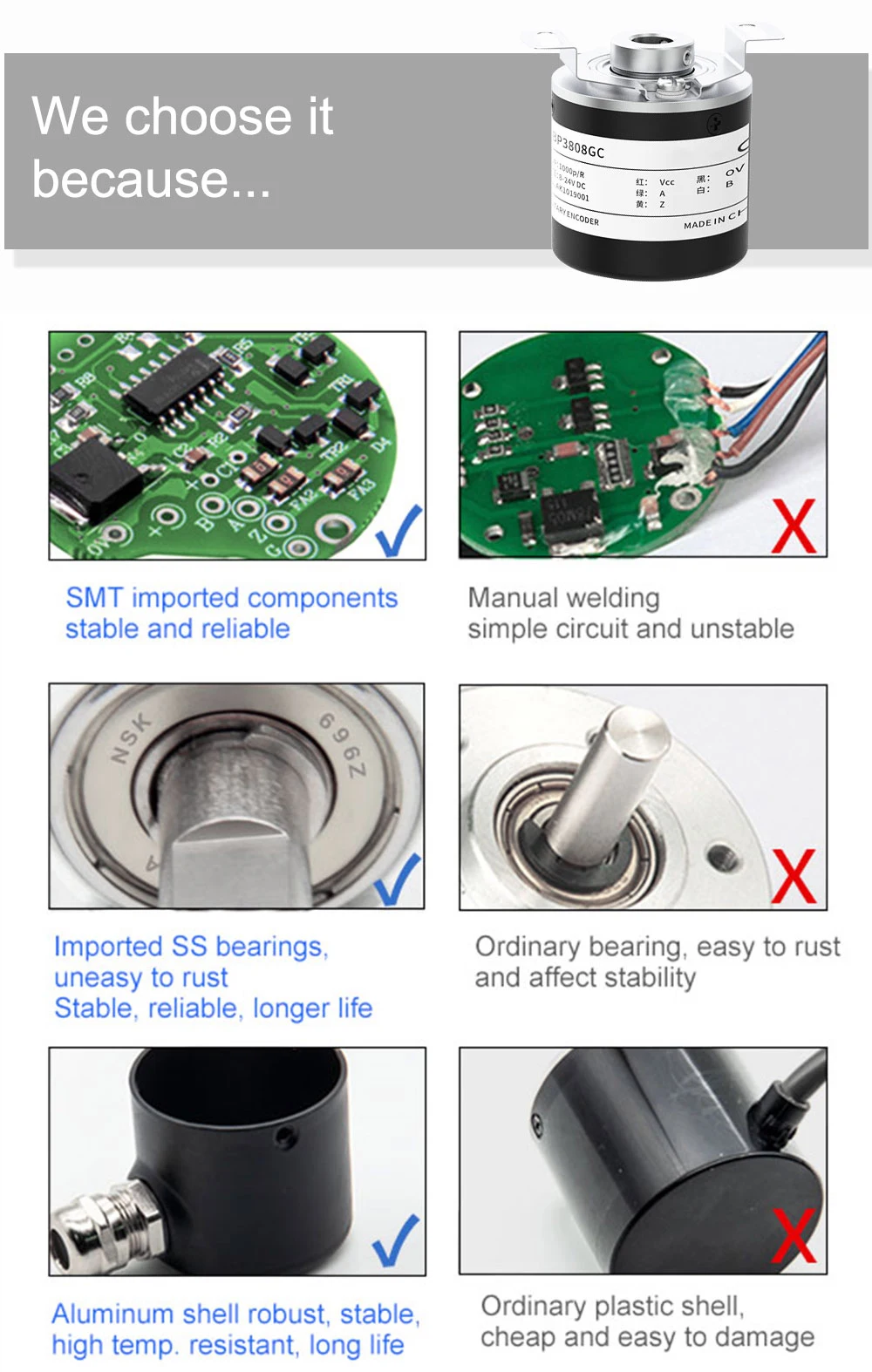

Material Science：

Shaft: stainless steel

End face: aluminum alloy

≤1.0V

Shell: aluminum alloy spray powder

supply voltage：

DC5V

weight：

220g

DC8V-24V

Rise / fall time：

5V driver ≤ 0.1us



24V＜1US
