Parameter:

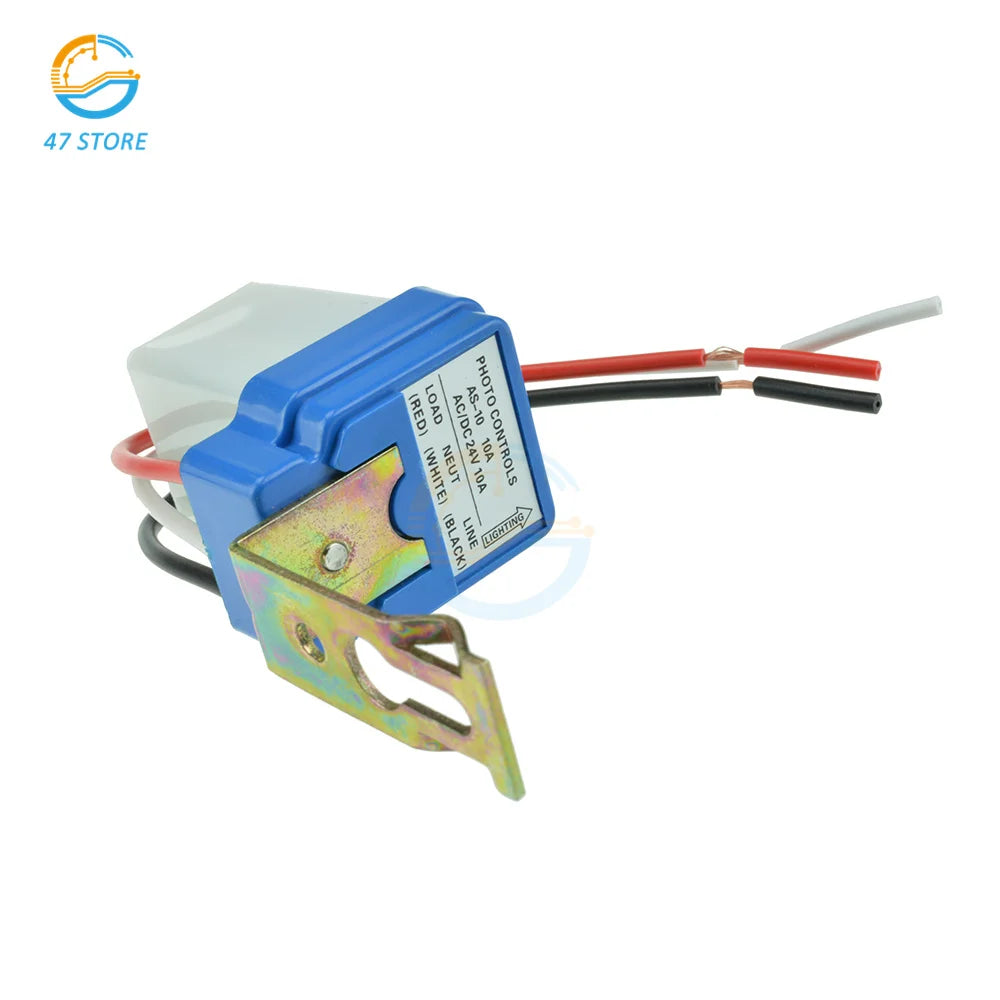

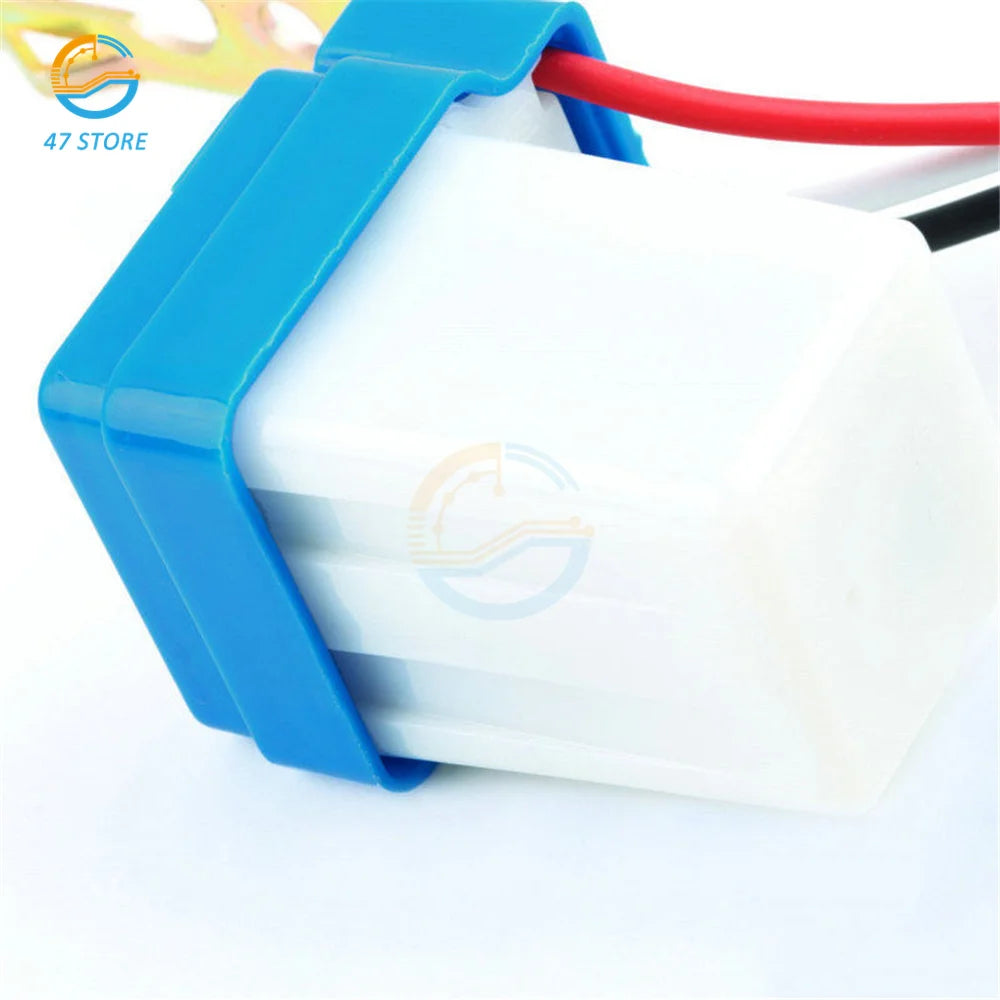

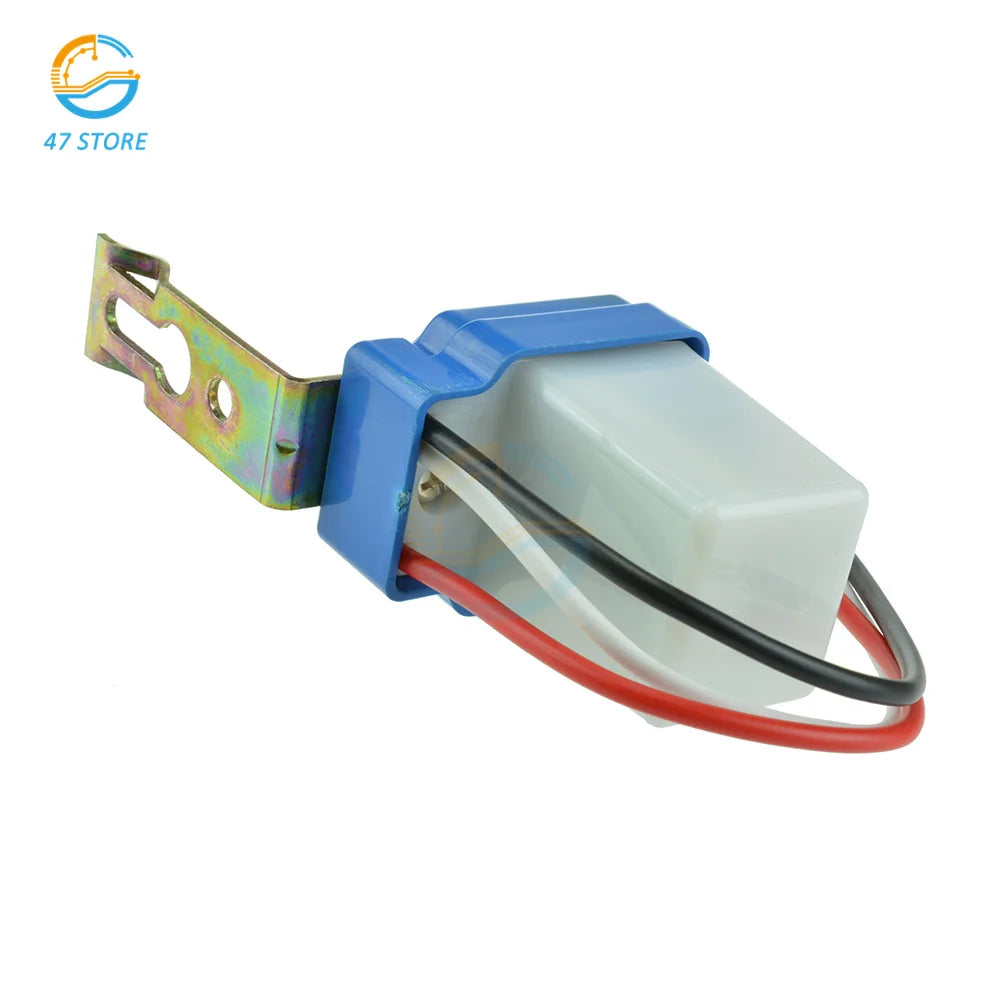

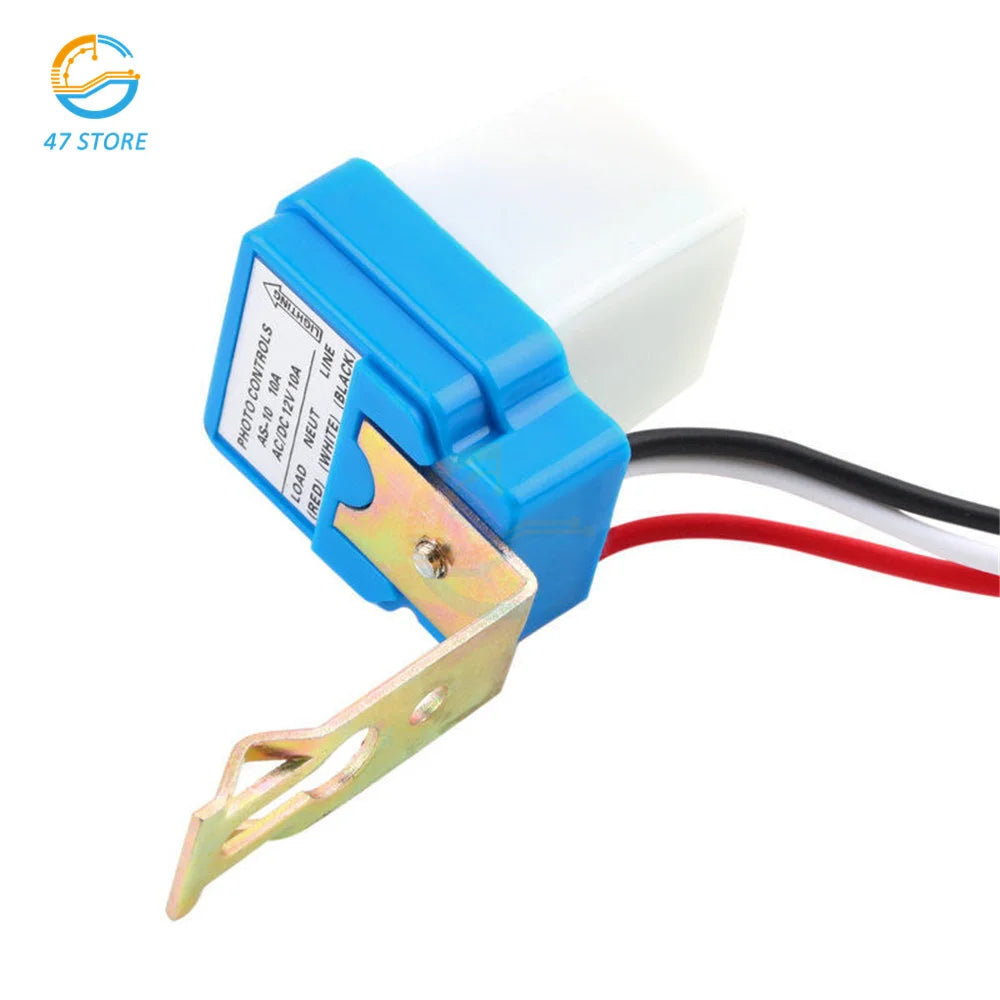

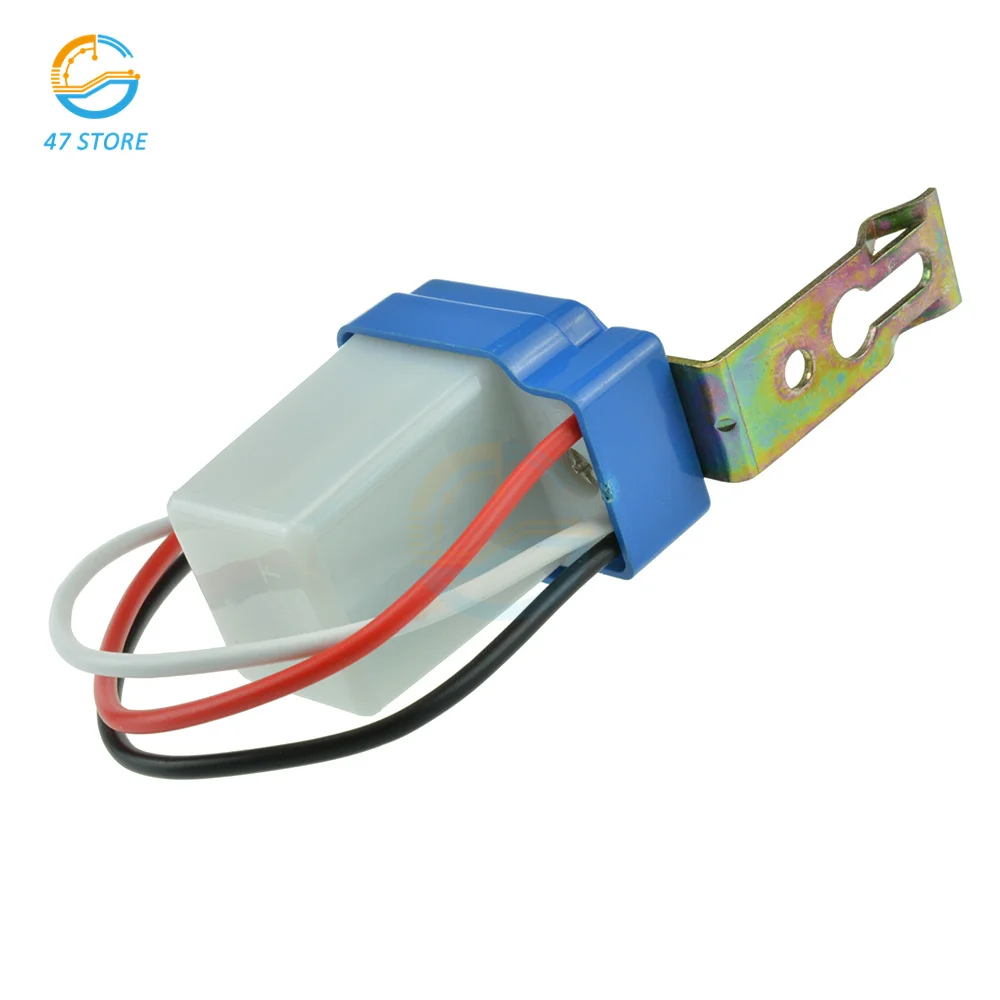

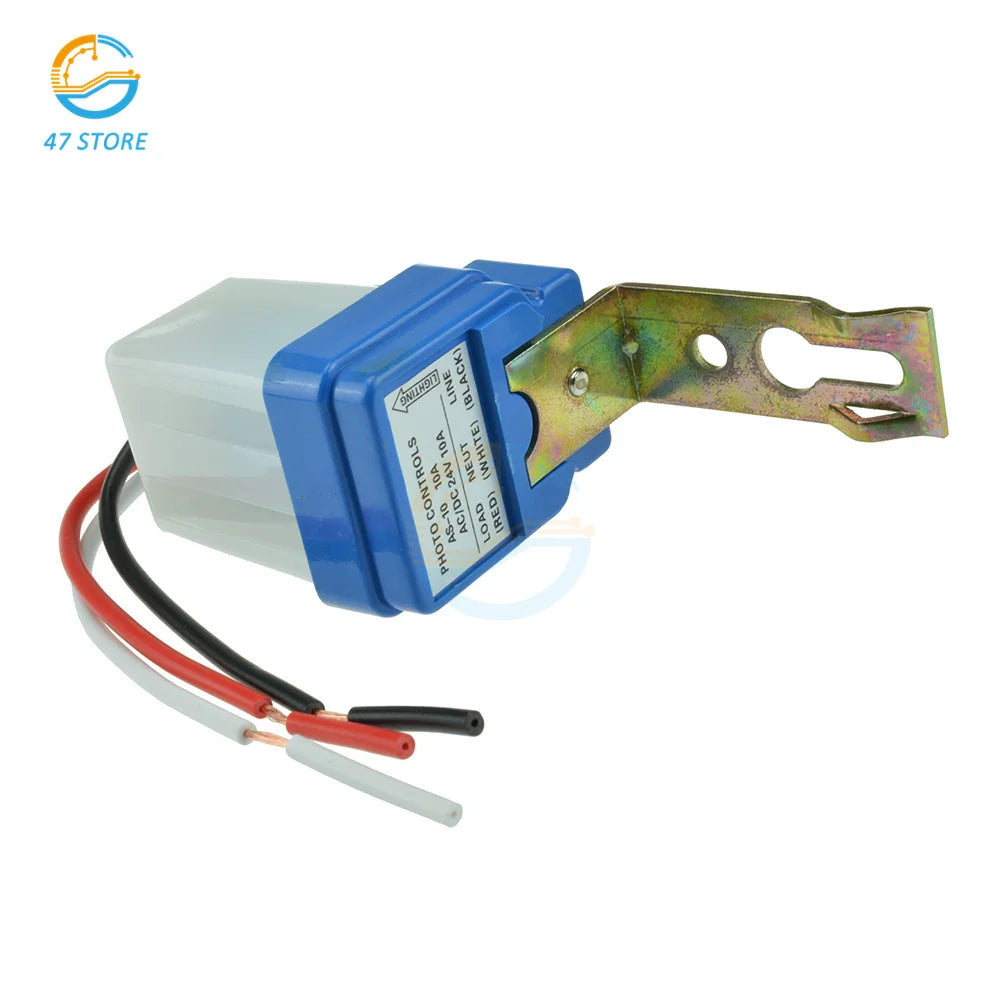

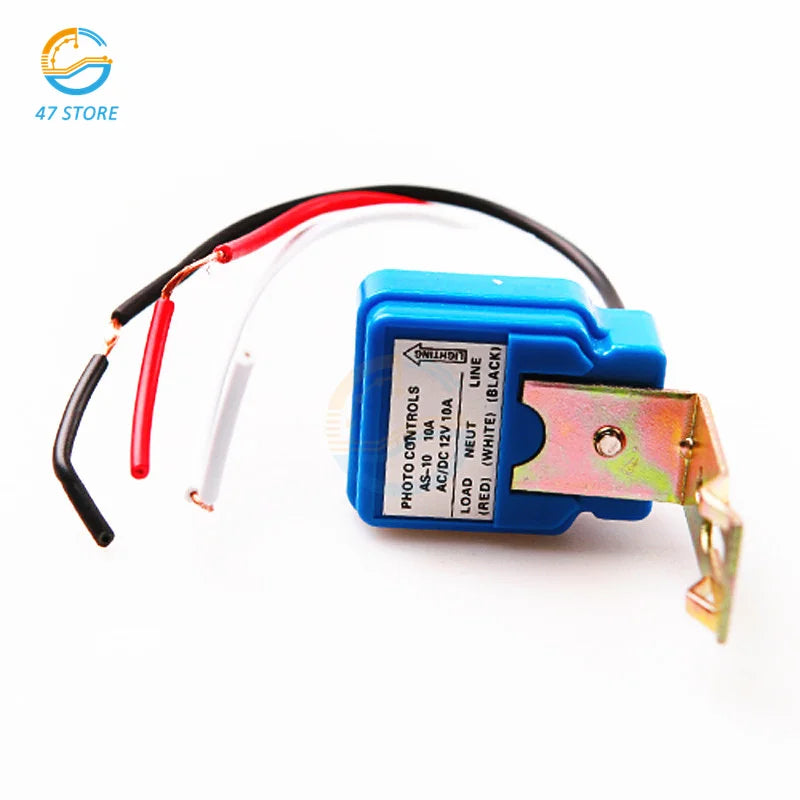

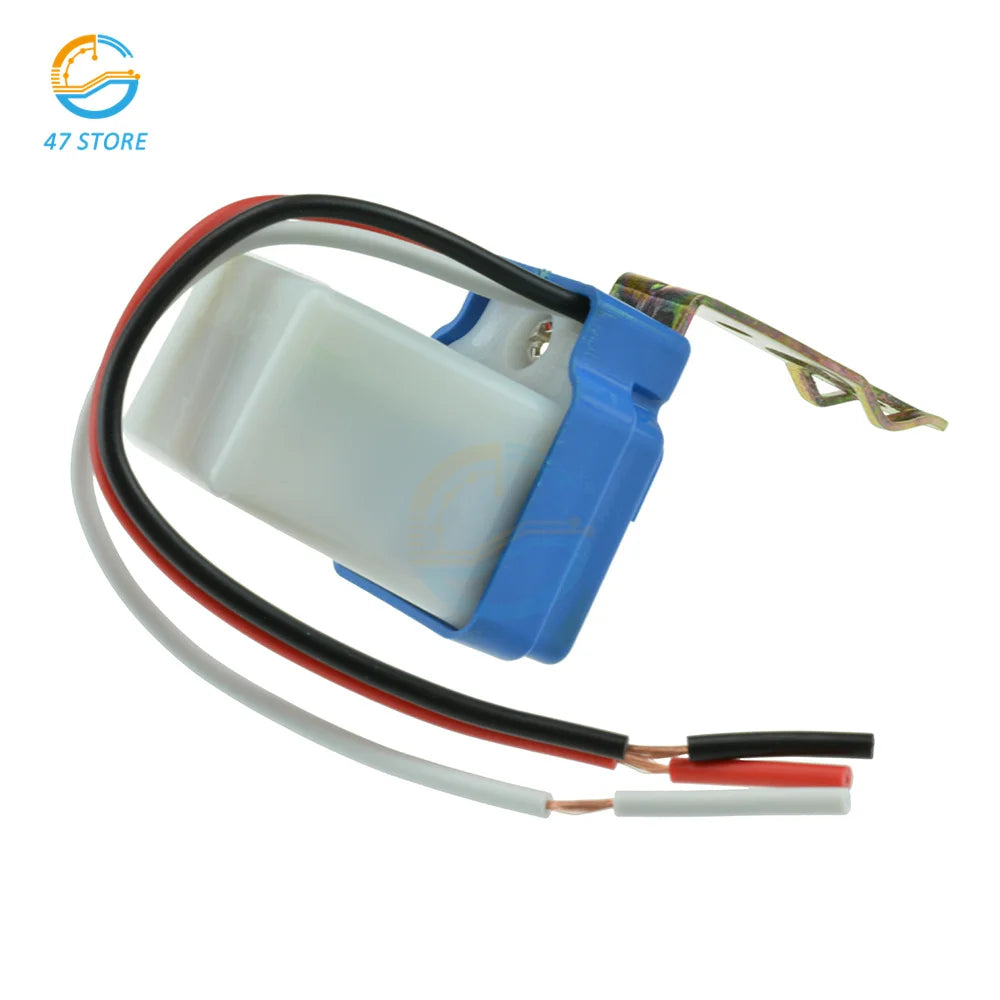

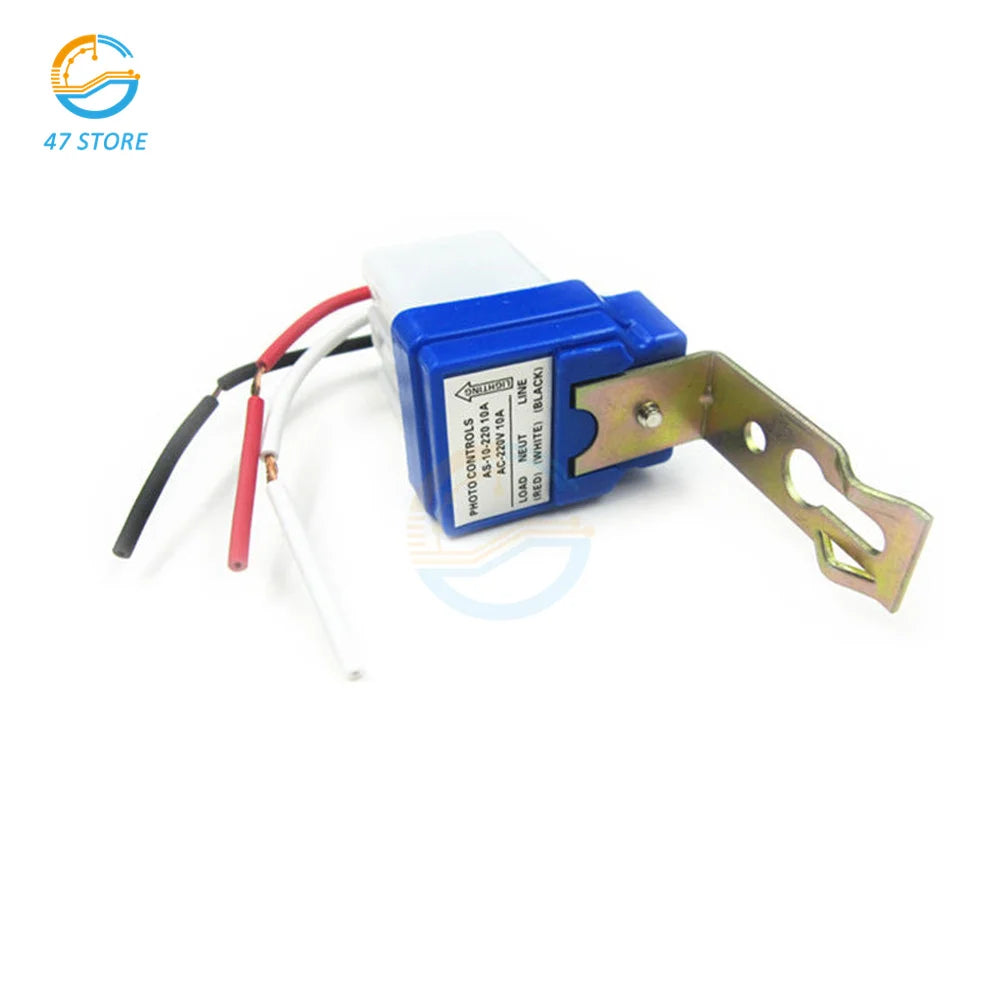

Product name: light control switch
Product Model: AS-10
Rated voltage: 12V/24V/110V/220V
Load voltage: 10A
Load power: 2200W
Delay closing time: 0.1S
Frequency: 50-60HZ
Induction principle: light control
Induction range: 10M
Frame size (H*L*W) 4.3*4.2*3.5CM

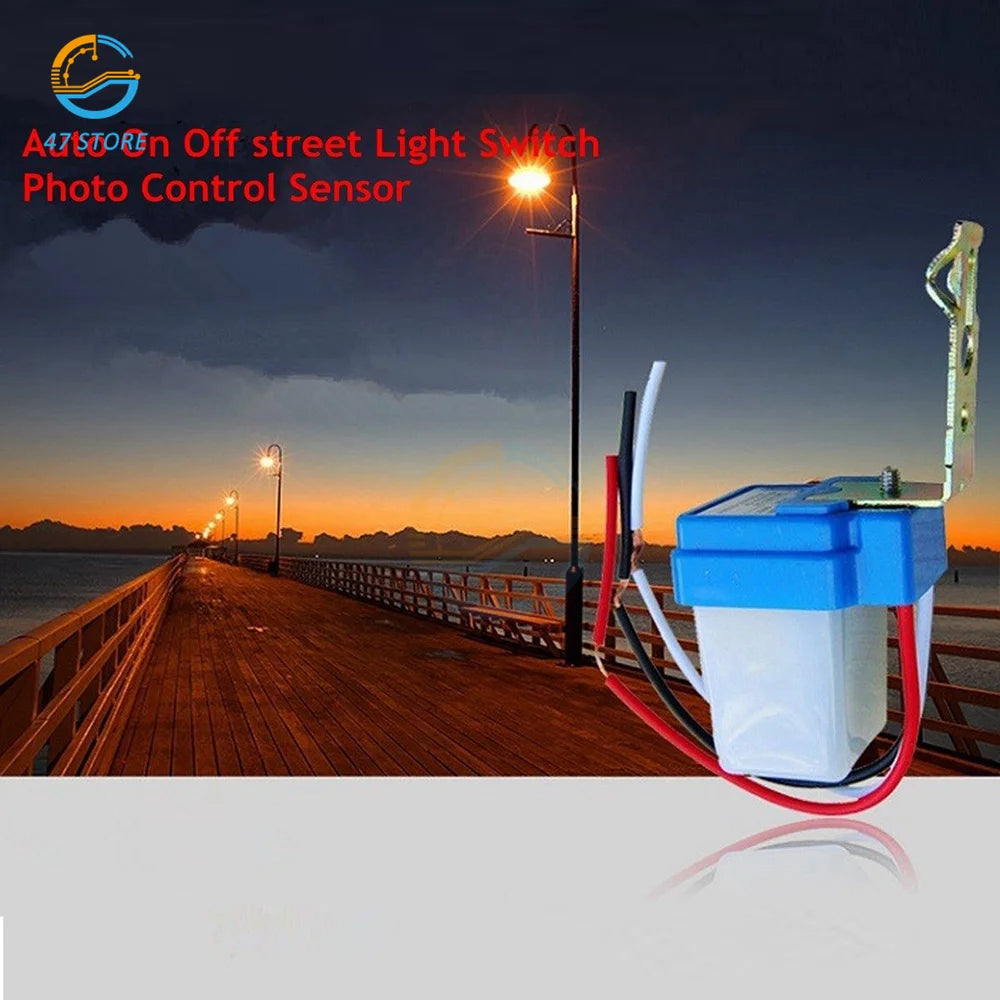

Product function: automatically turn on the lights when it is dark, and automatically turn off the lights when it is bright

Working Principle and Structure:
The circuit is equipped with a delay circuit, which has the anti-interference ability to prevent accidental lightning or manual torches, automobiles, and other lights from irradiating the photoelectric head, and falling leaves flying low to temporarily block the wrong switching of the photoelectric power source.
The street light automatic switch is composed of a power-off conversion device, that is, a power-off switch head integrated block, electronic components, and an executive relay.
During the day, the light is strong, and the current of the photosensitive element increases, so that the relay of the integrated circuit is released, and the street light does not light up. When it gets dark in the evening to a certain degree, due to the weakening of the light, the voltage generated by the photosensitive element is low, and the relay pulls in the street light until the light is turned on. In the morning of the next day, the integrated trigger of light enhancement will automatically act again, and the street light will go out.

Installation Precautions:

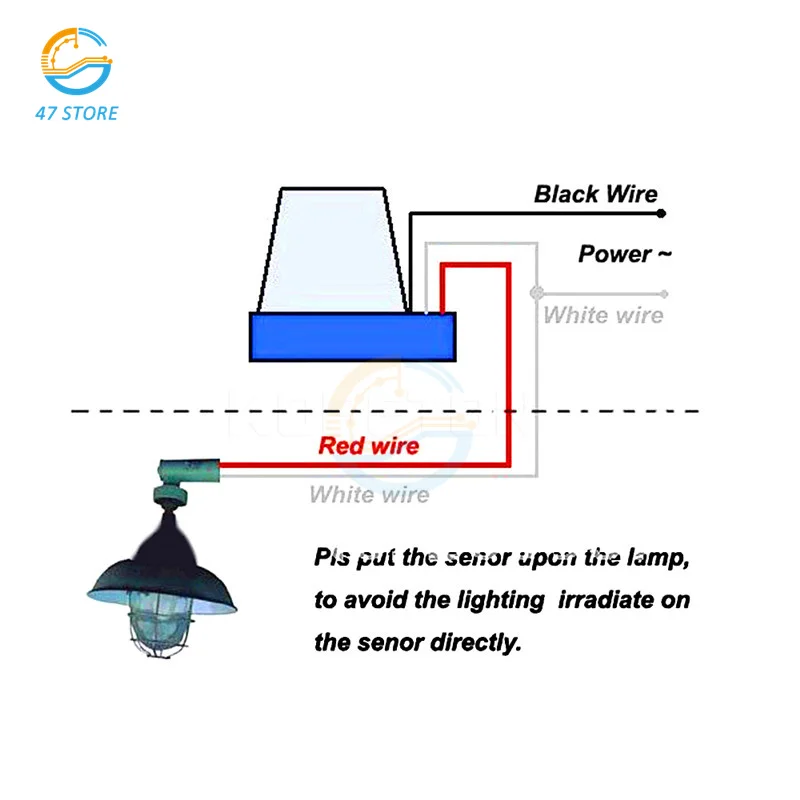

1. Do not install the secondary device in a particularly dark place during the day or a place where it is directly irradiated by normally closed lights.

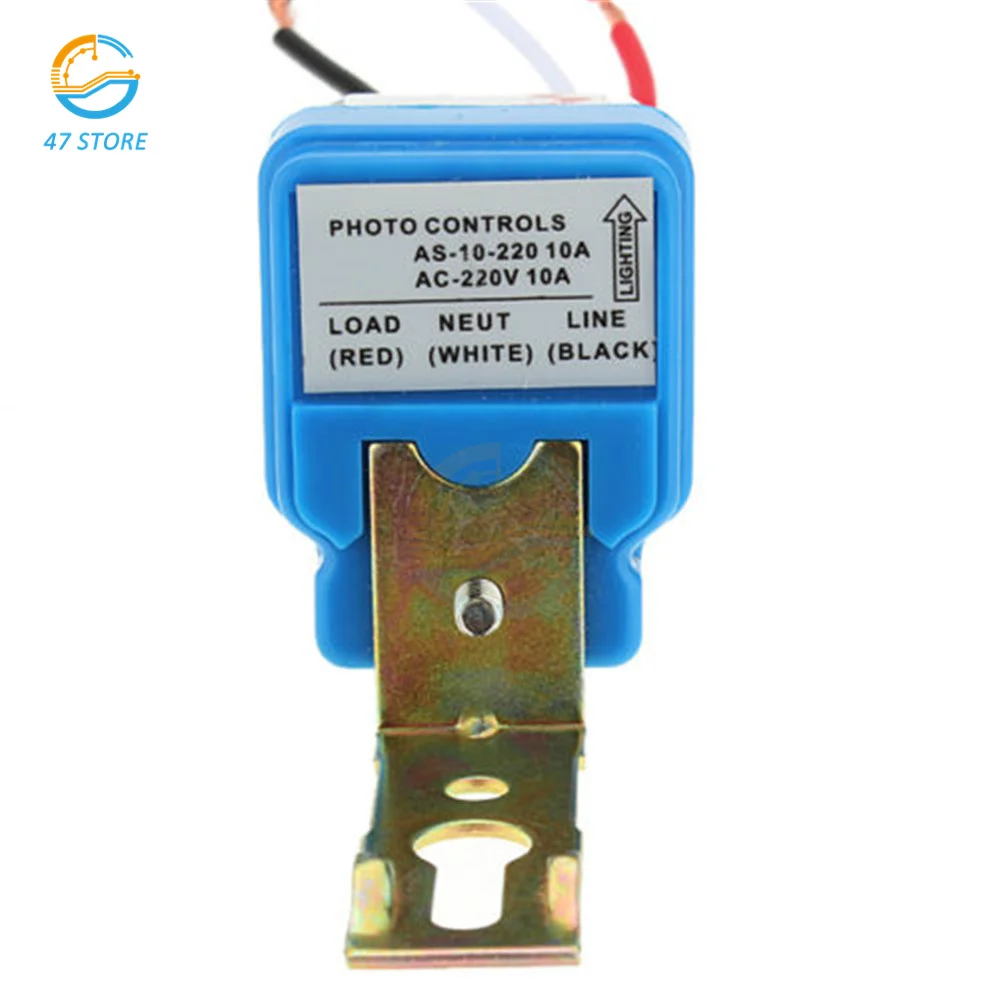

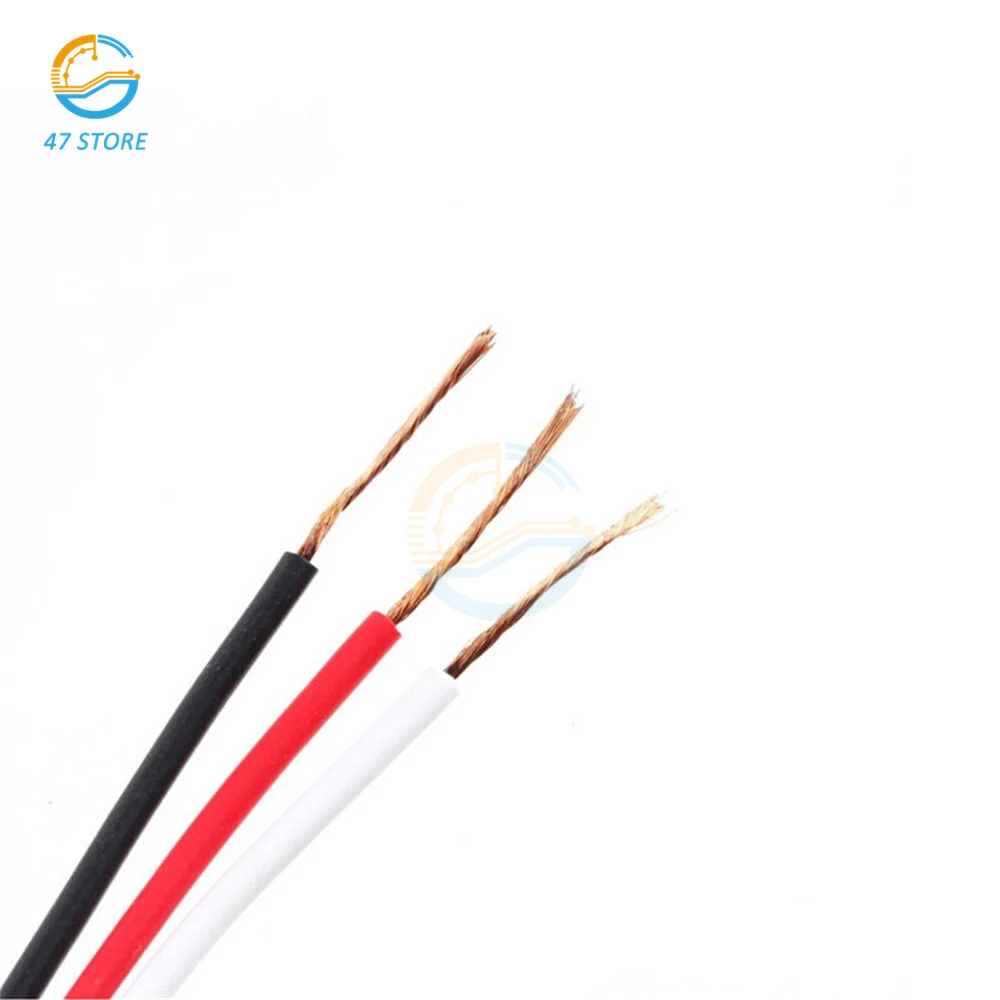

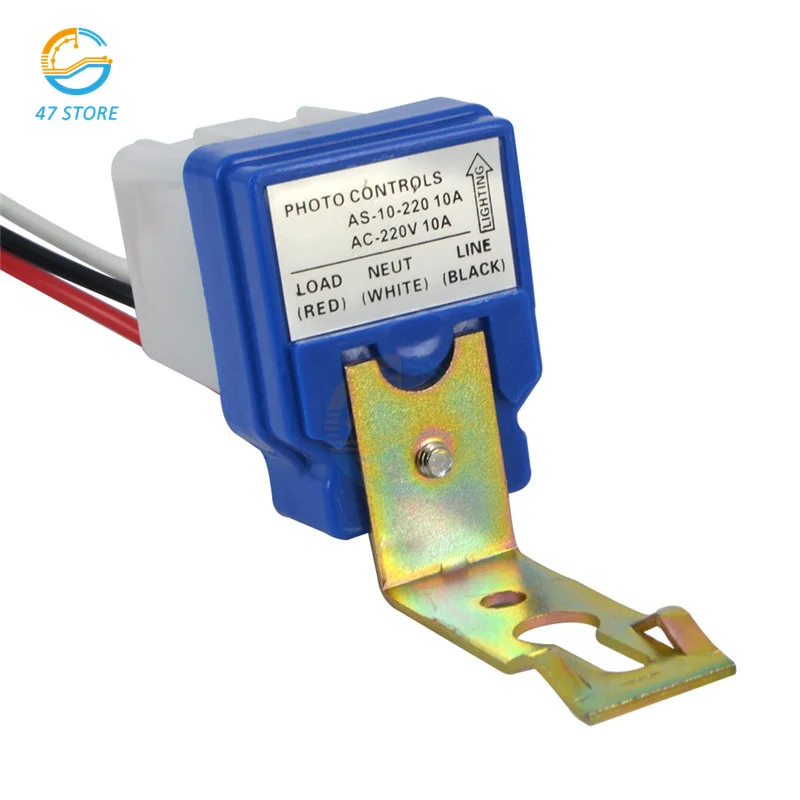

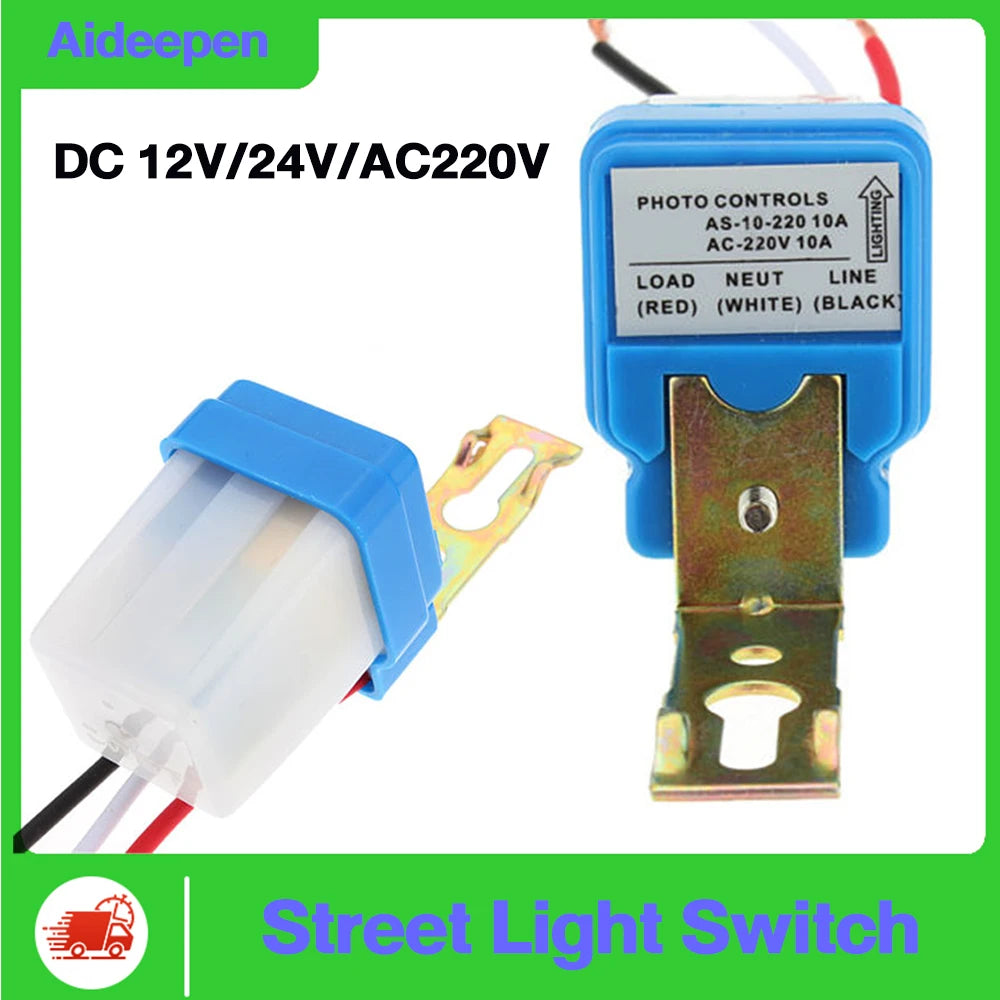

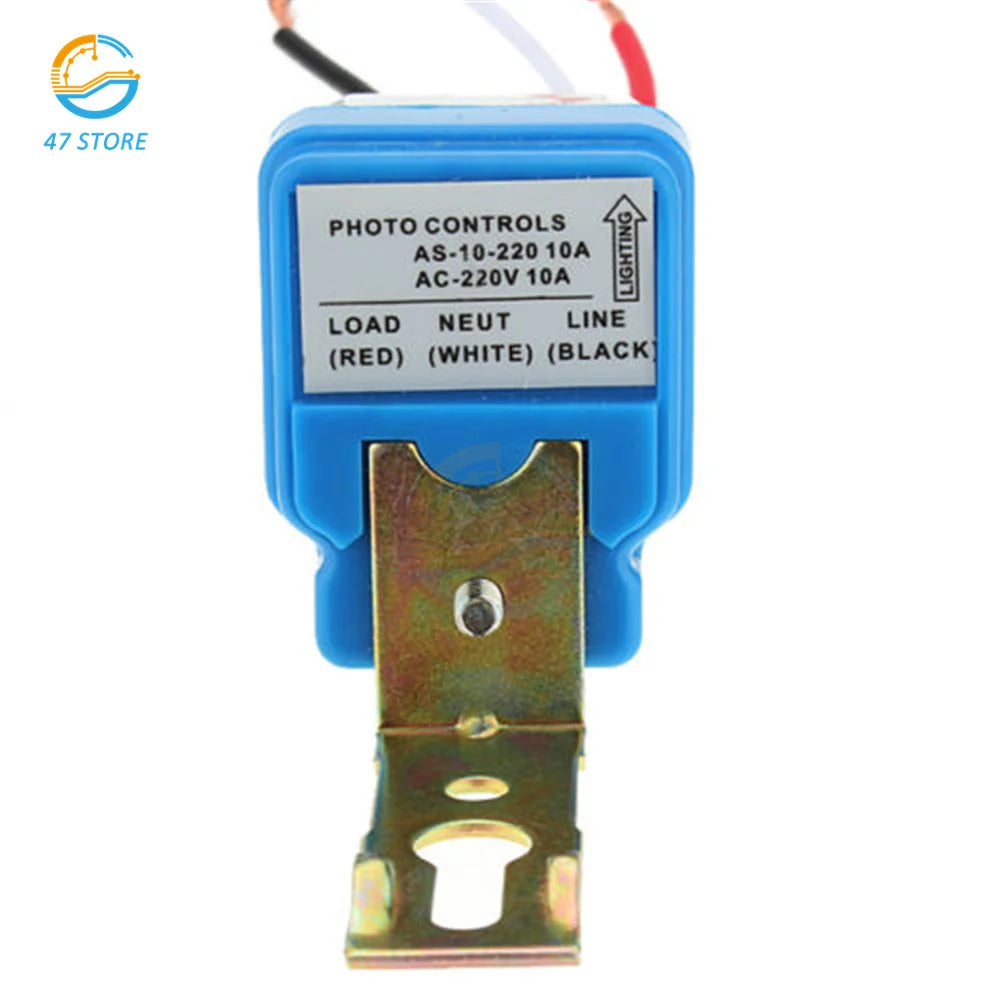

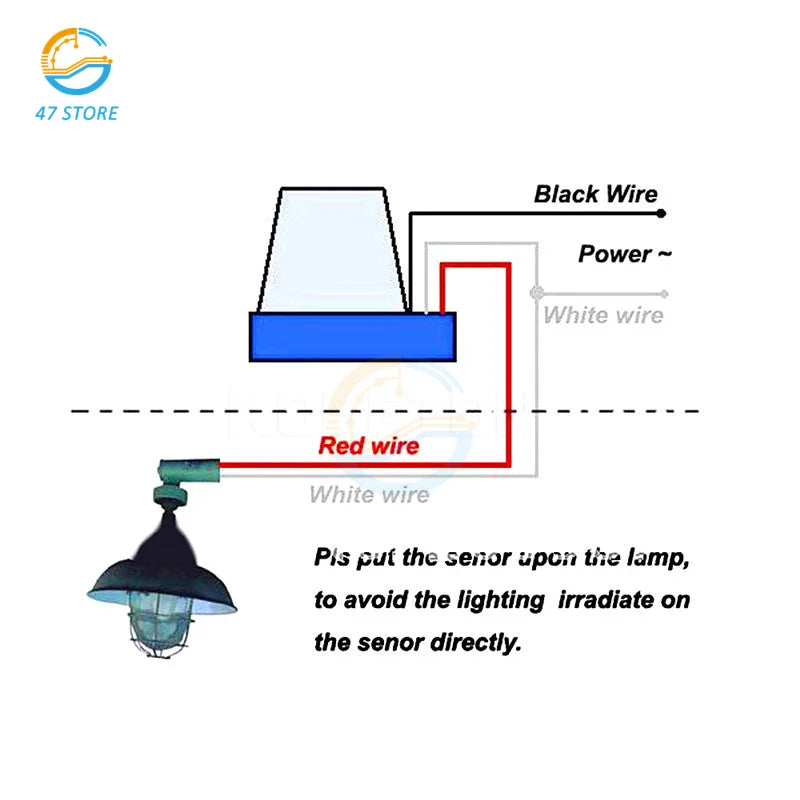

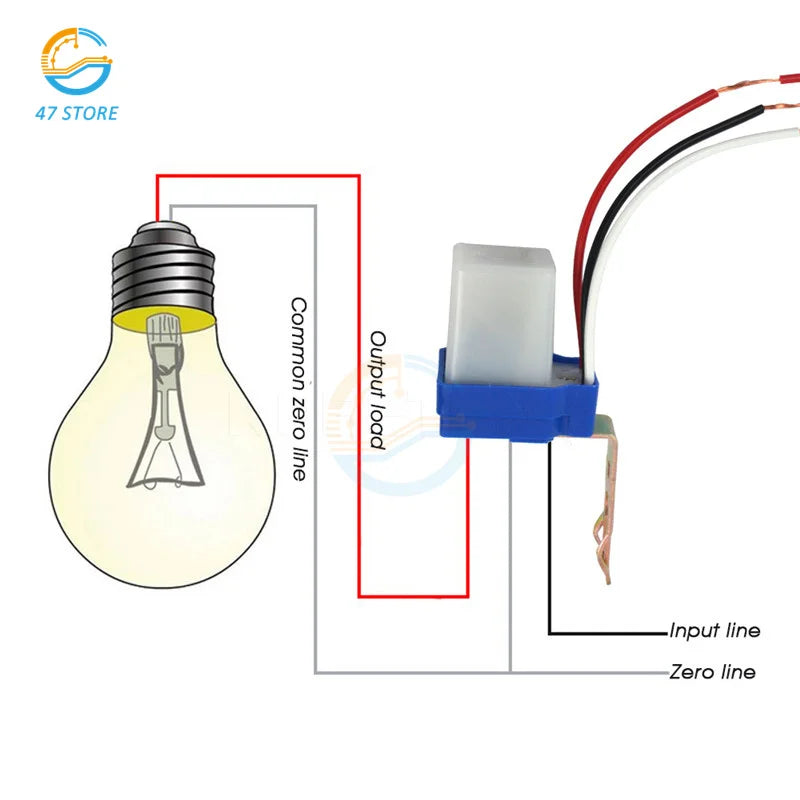

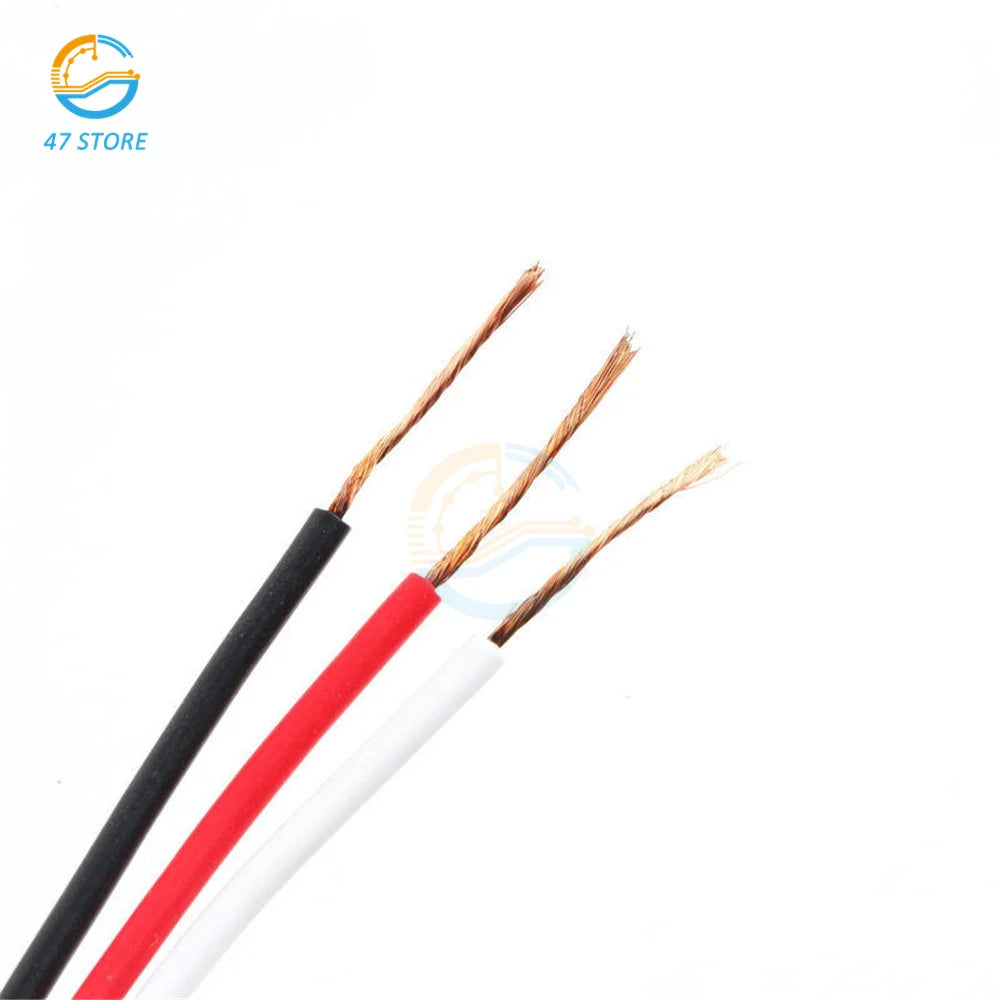

2. Automatically switch the white wire and the black wire to the power supply, and the white wire and the red wire to the load.
