SPECIFICATIONS

Application: Automotive

Brand Name: NONE

Certification: NONE

Delivery: 3-7days

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Housing material: Bakelite

Material: PA66+PC

Model Number: FB057

Origin: Mainland China

Place of Origin: Guangdong, China

Product name: Fuse Holder

Rated voltage: DC32V or less

Type: Fuse Holder

Usage: Automotive Fuse Blcok

Voltage Rating: 100A

Warranty: 3years



Specification

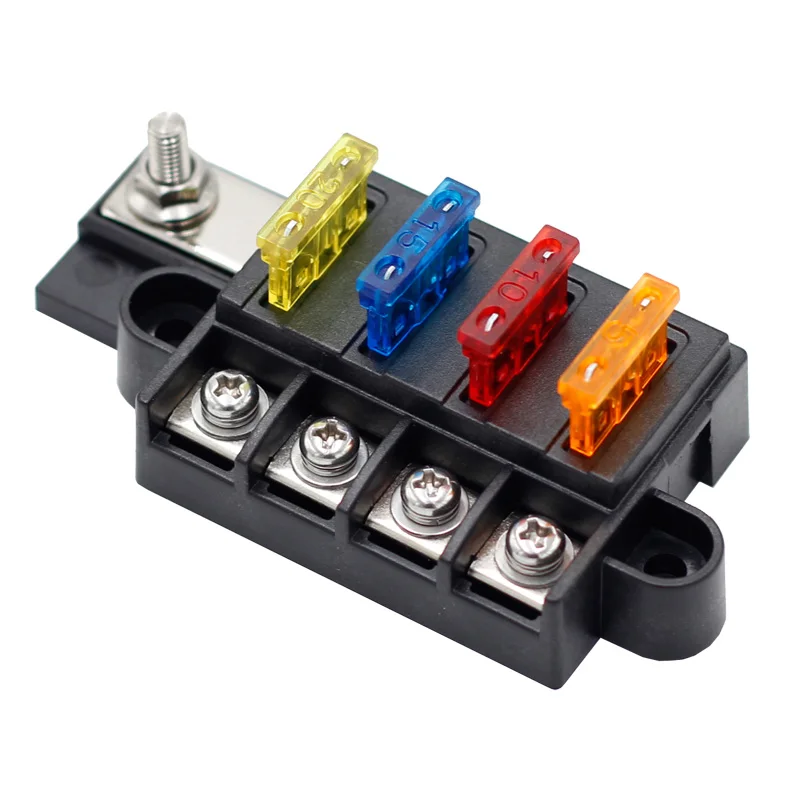

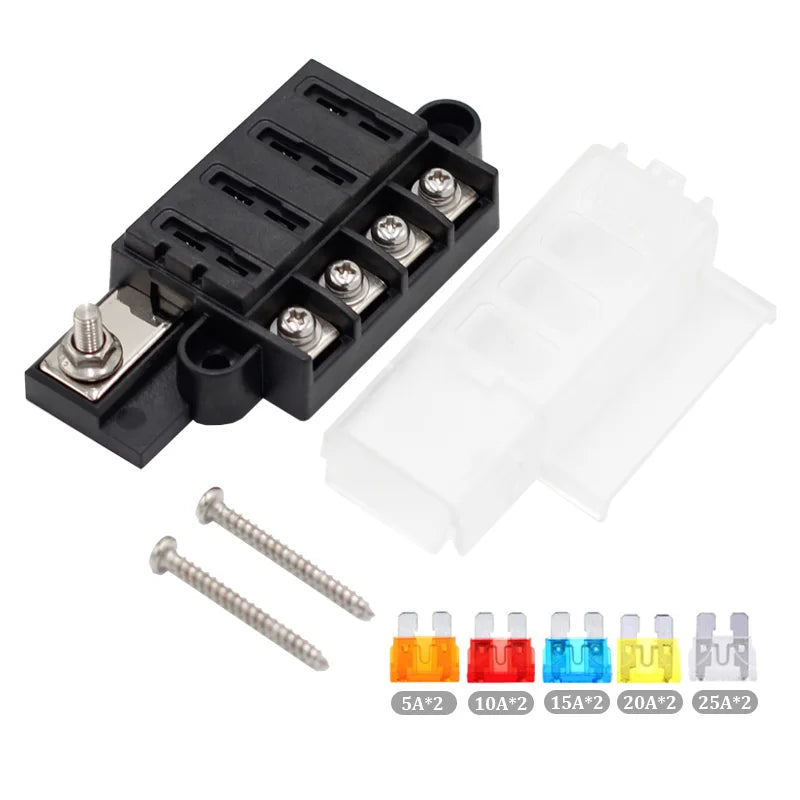

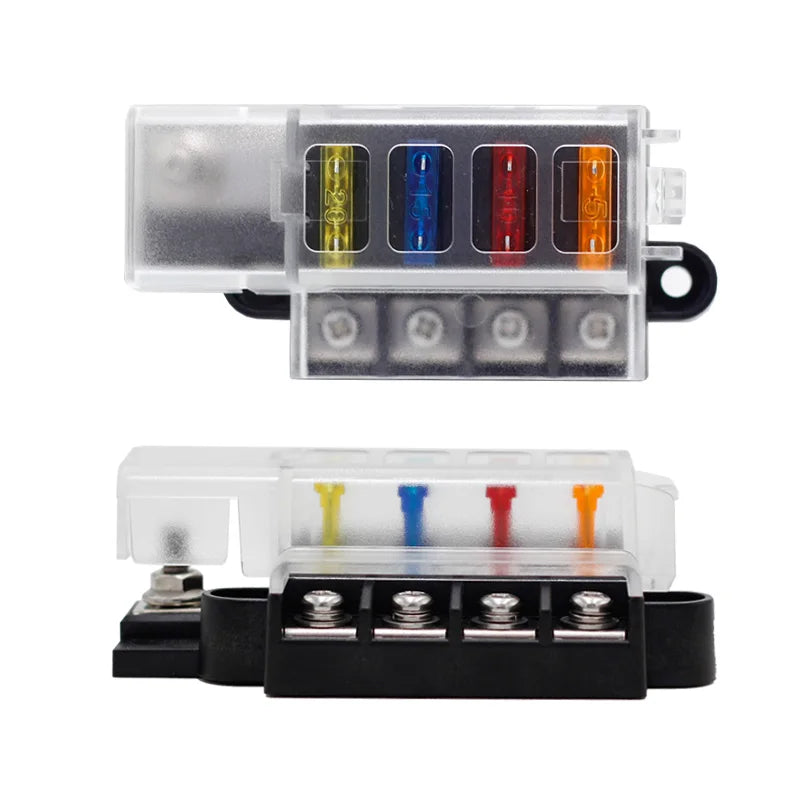

Automotive Boat Marine 4 Way Blade Fuse Box 12~32V 4 Circuit Fuse Block with Cover

A 4 circuit fuse block that will fit almost anywhere

Fuse Blocks are an effective method of protection to prevent damage to wiring and possible fire in the event of an over-loaded or short circuit. This Blue Sea Systems space-saving fuse block can provide protection for new installations or when the panel has run out of breakers. Often used for electronic installations, these fuse blocks can be fed by one breaker from the distribution panel and supply power to 4 additional circuits. Terminals are located on one side to concentrate wiring and minimize the overall footprint of the fuse block.

Maximum Amperage	100A per block/ 30A per circuit
Maximum Voltage	32V DC
Mounting	# 8 screw

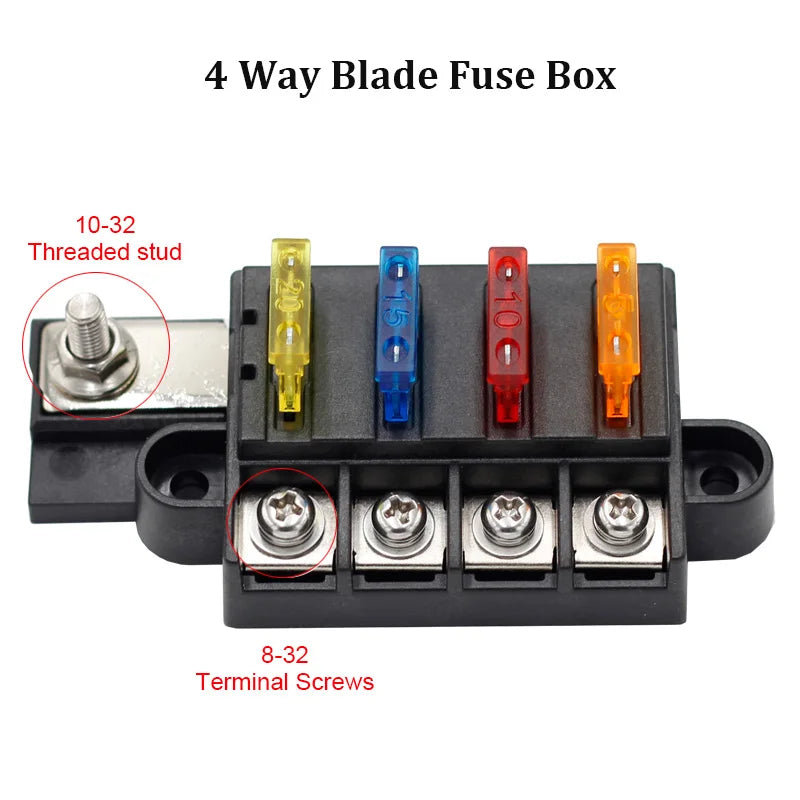

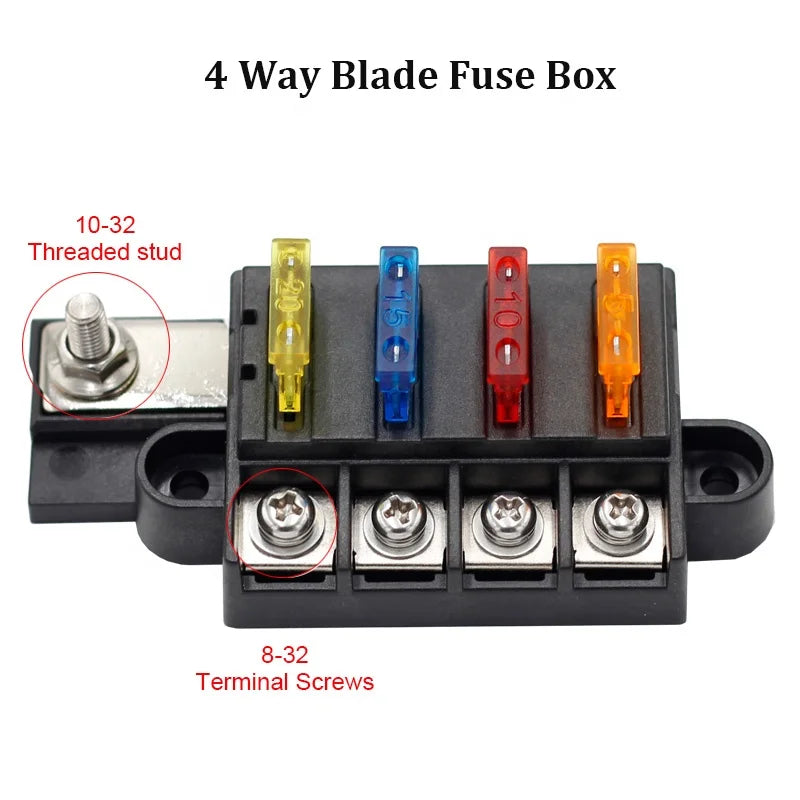

Terminal stud	#10-32

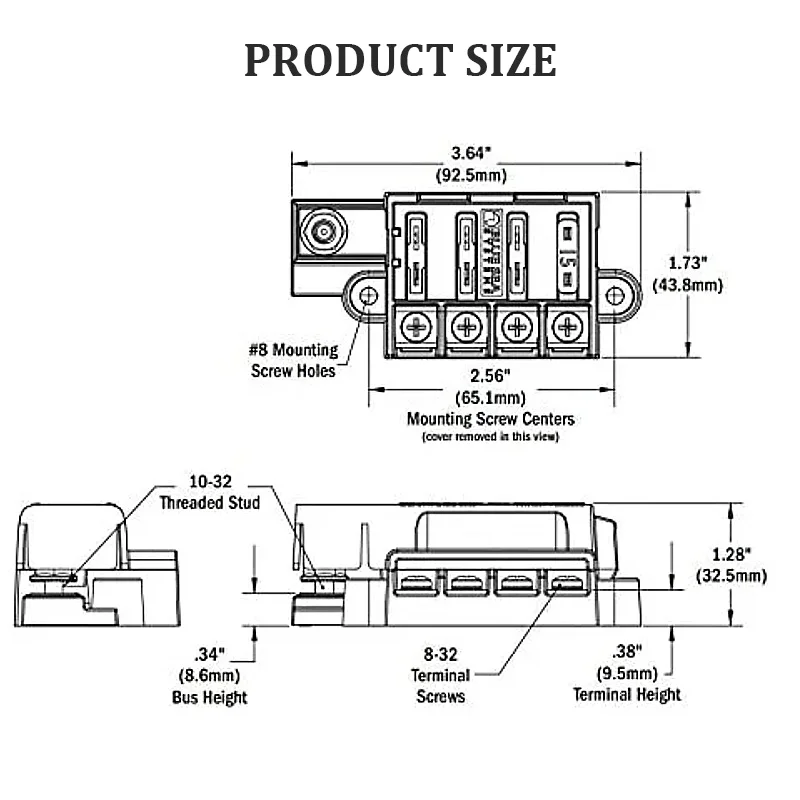

Dimensions	3 11/16"L x 1 3/4"W x 1 5/16"D
