SPECIFICATIONS

Brand Name: NONE

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Origin: Mainland China

Features:

• Integrated Diode: Each relay includes a built-in diode that suppresses induced voltage during switching, safeguarding your electrical components from potential damage.

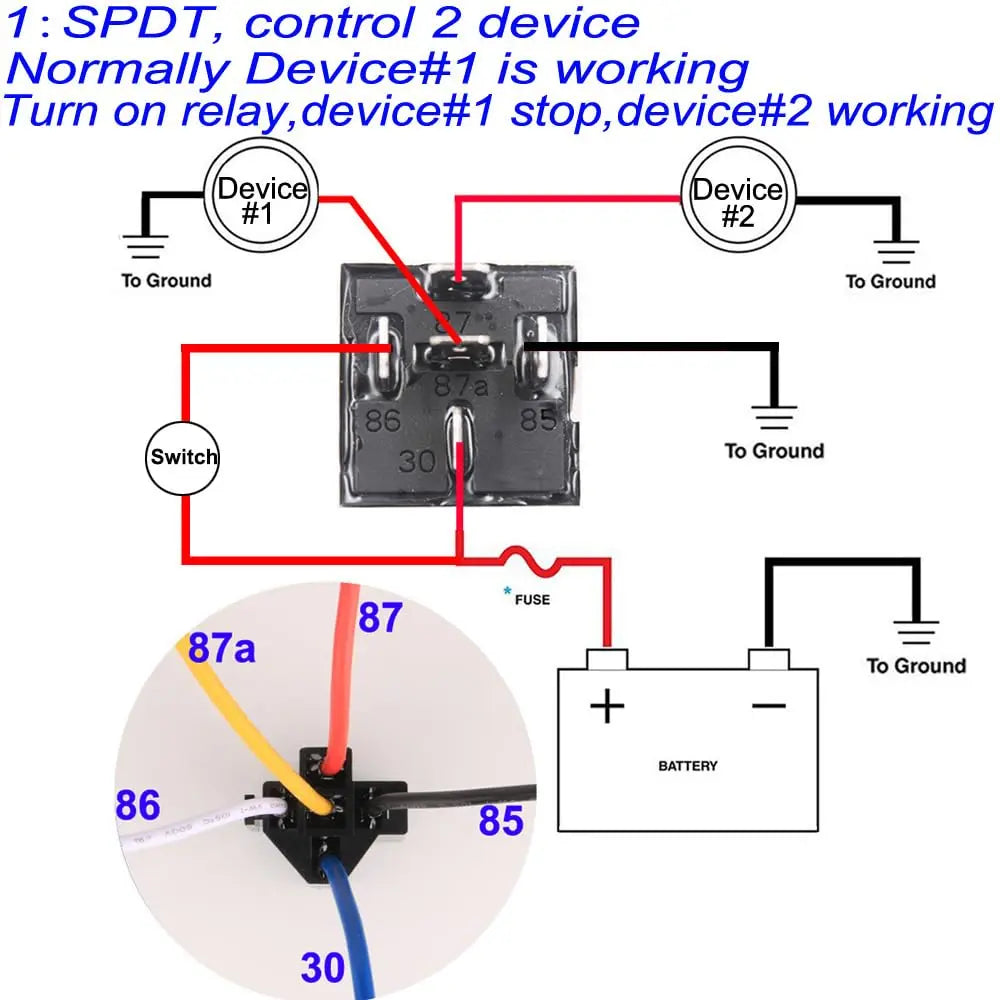

• Brand new heavy duty SPDT(Single Pole Double Throw) relays.

• Small size/Low power consumption/High contact voltage/ High sensitivity.

• Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.

• Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ. Life Expectancy Electrical: 100,000 Operations, Life Expectancy Mechanical: 10,000,000 Operations

Specification:

• Nominal Coil Voltage: 12 V DC

• Coil Power: 1.8 W

• Coil Resistance: 80 Ω

• Must Operate Voltage: 6~8 V DC

• Must Release Voltage: 0.6~3.6 V DC

• Maximum Applied Voltage: 15.6 V DC

• Contact Ratings: NO 40A 14V DC

• Contact Resistance: 100mMAX (at6VDC 1A)

• Max Switching Current: 40A

• Max Switching Power: 560 W

• Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute)

• Life Expectancy Machanical: 10,000,000 Operations

• Temperature Range: -30 ~ +80 degrees Celsius

• Vibration Resistance: 10~55Hz, 1.5mm

• Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g

• Hunidity: 40% ~ 85%

• Insulation Resistance: 100mΩ Min at500VDC

• Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)

• Between Contactw and coil: 750AC (for one minute/sec)

• Operate Tice: 7ms

• Release Tice: 5ms

Package Include:

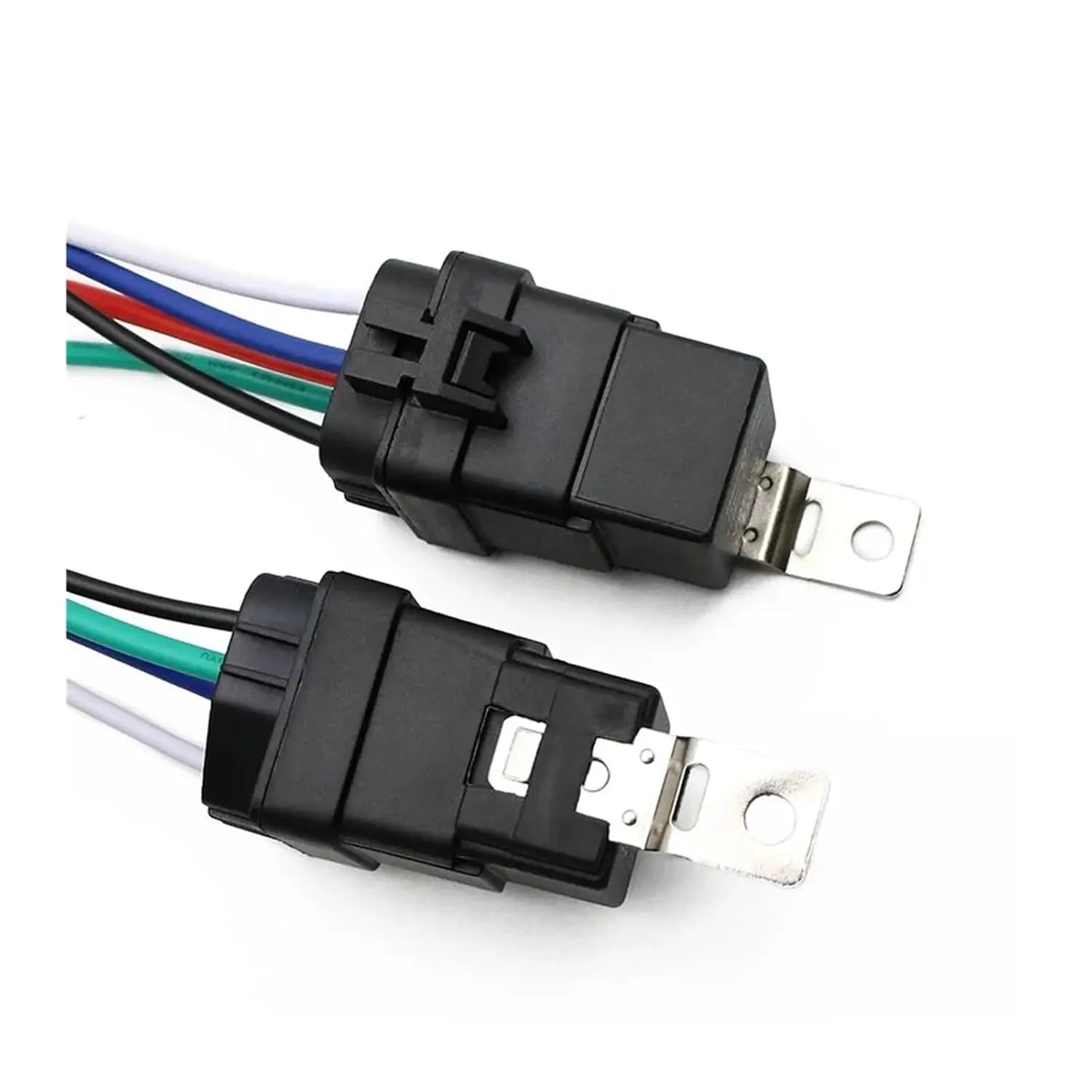

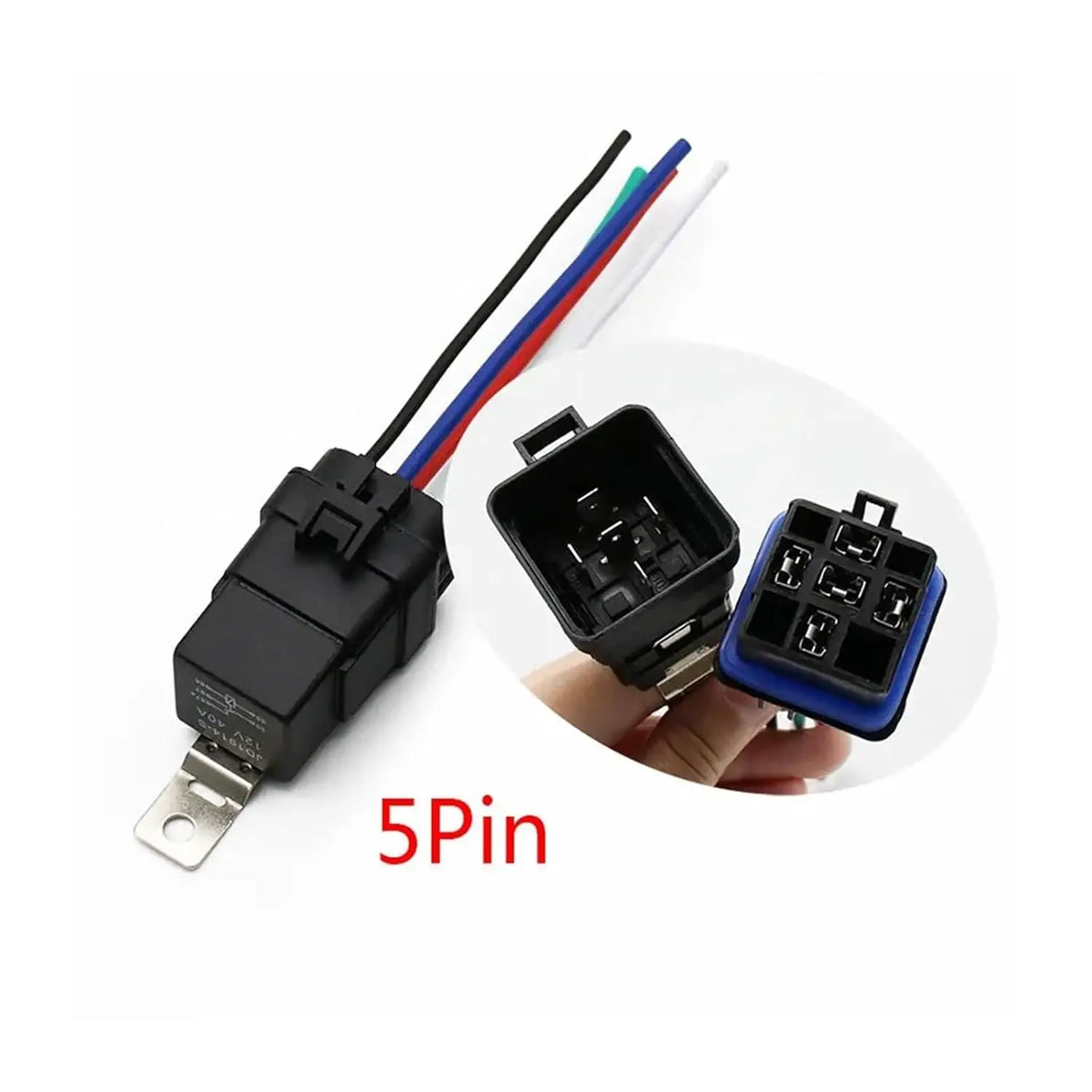

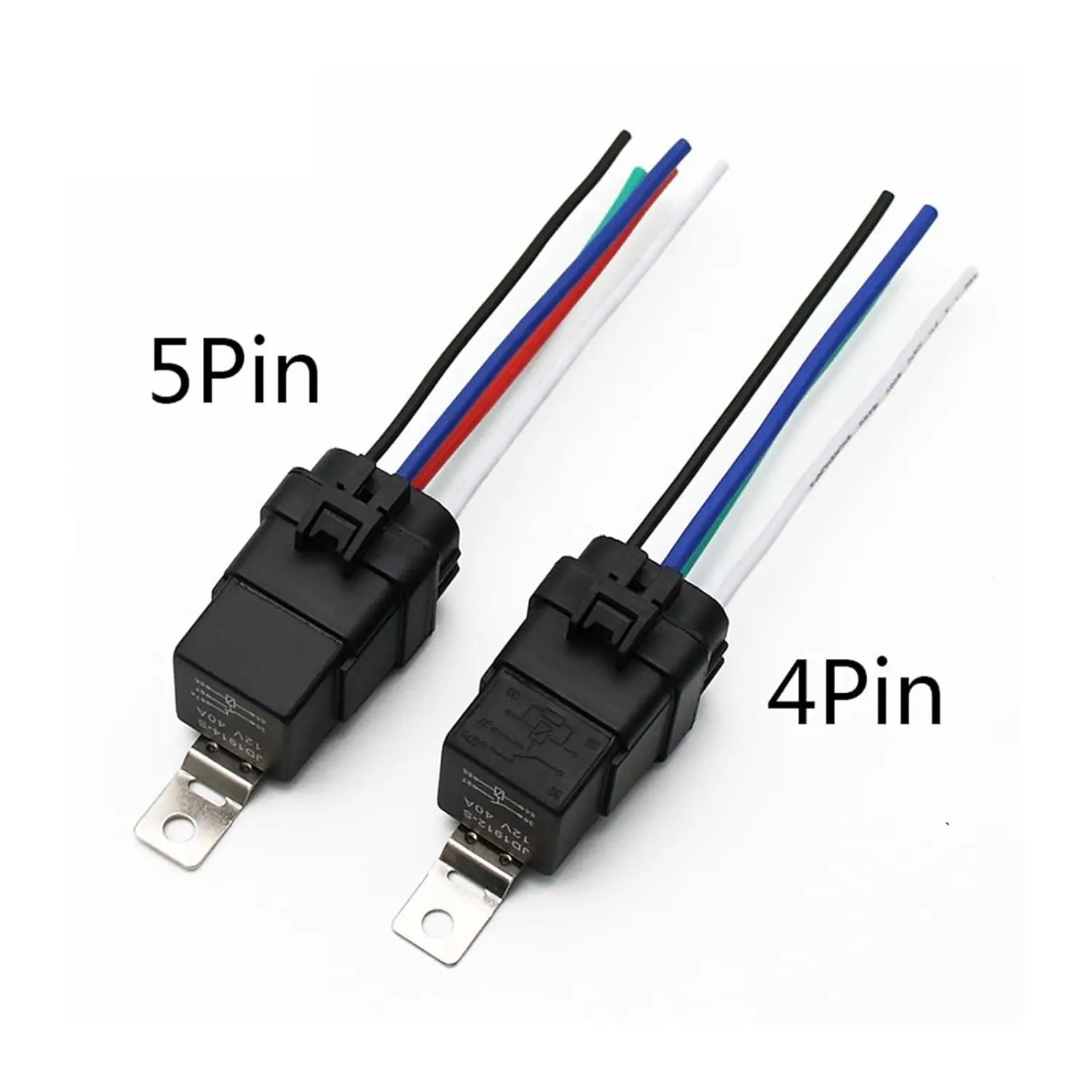

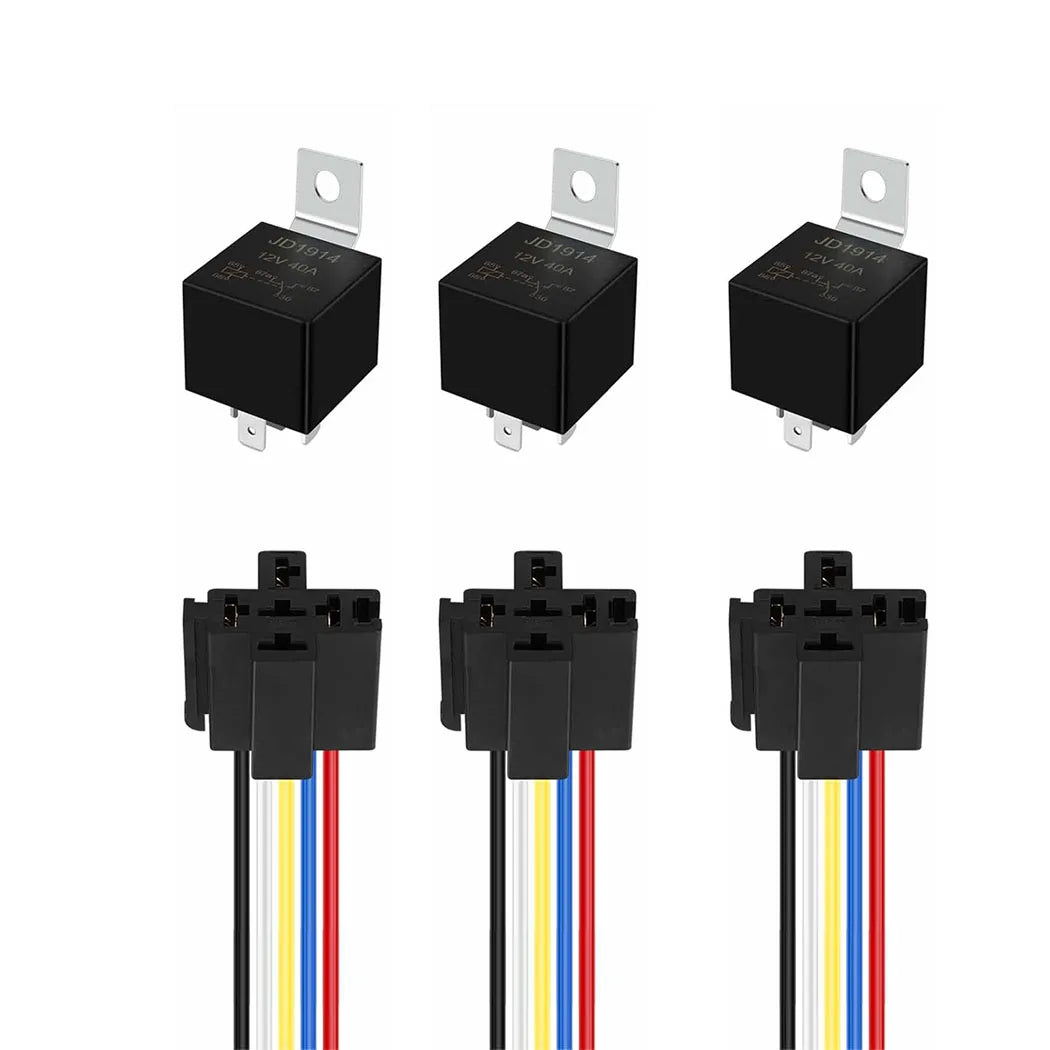

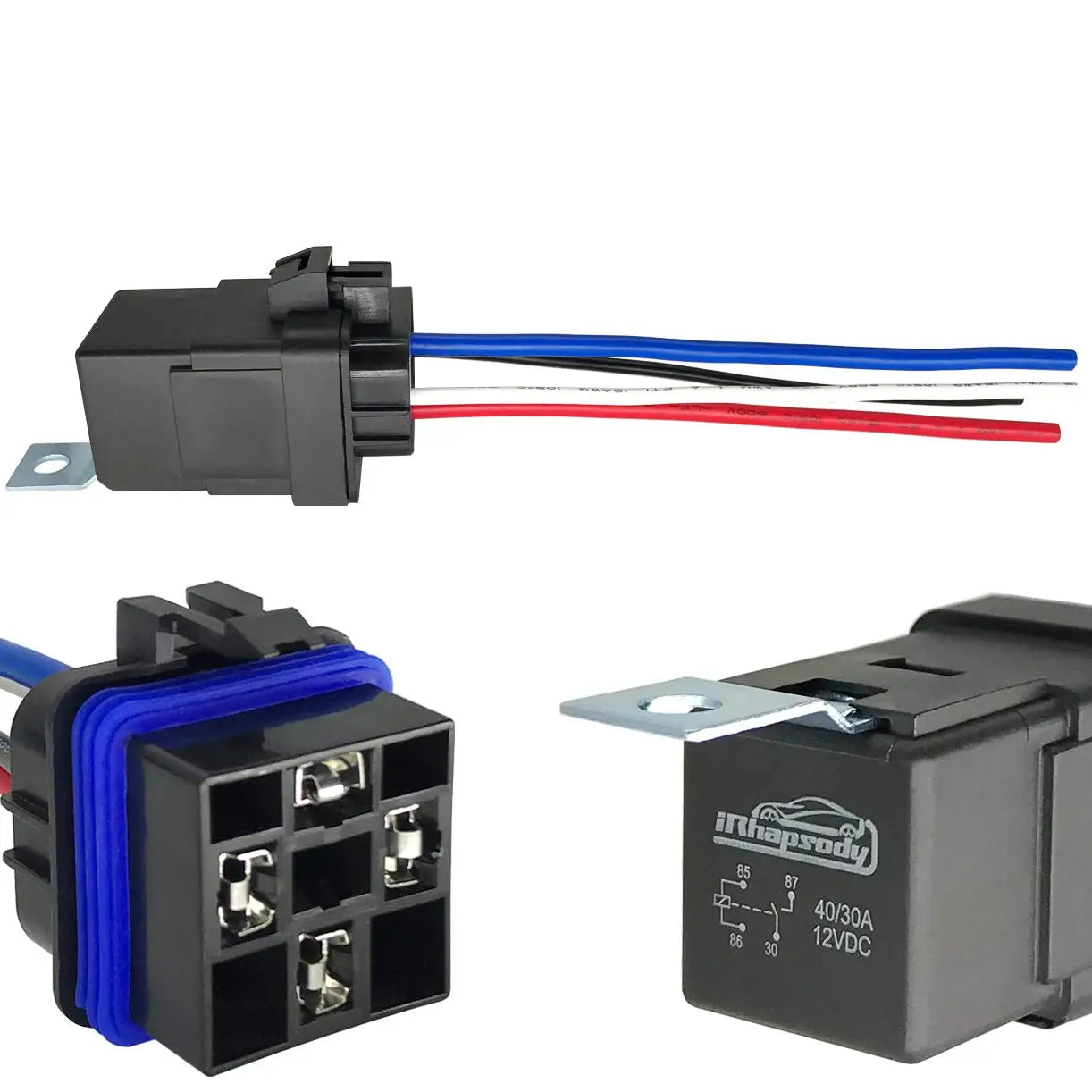

• 1PCS DC 12V waterproof relay kit

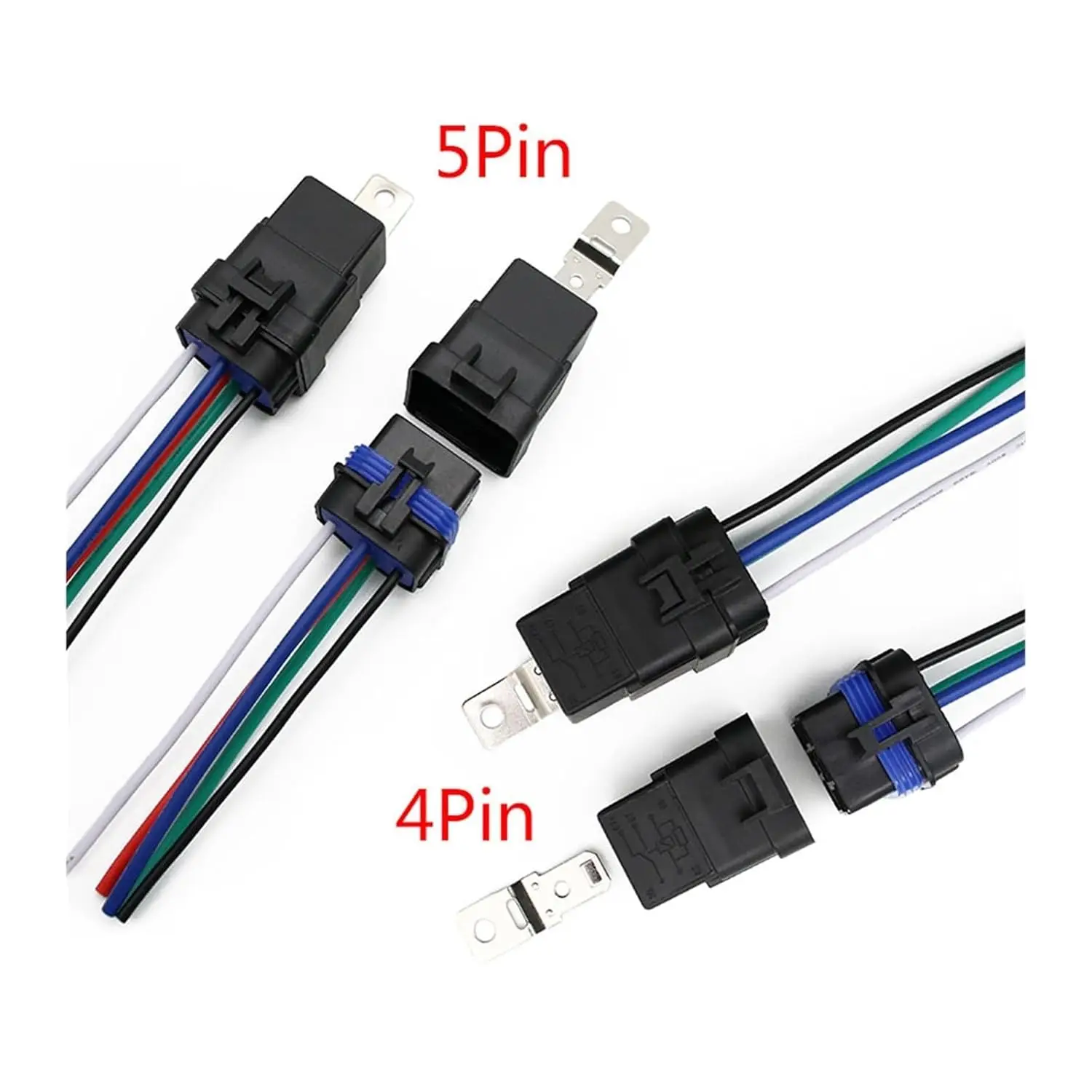

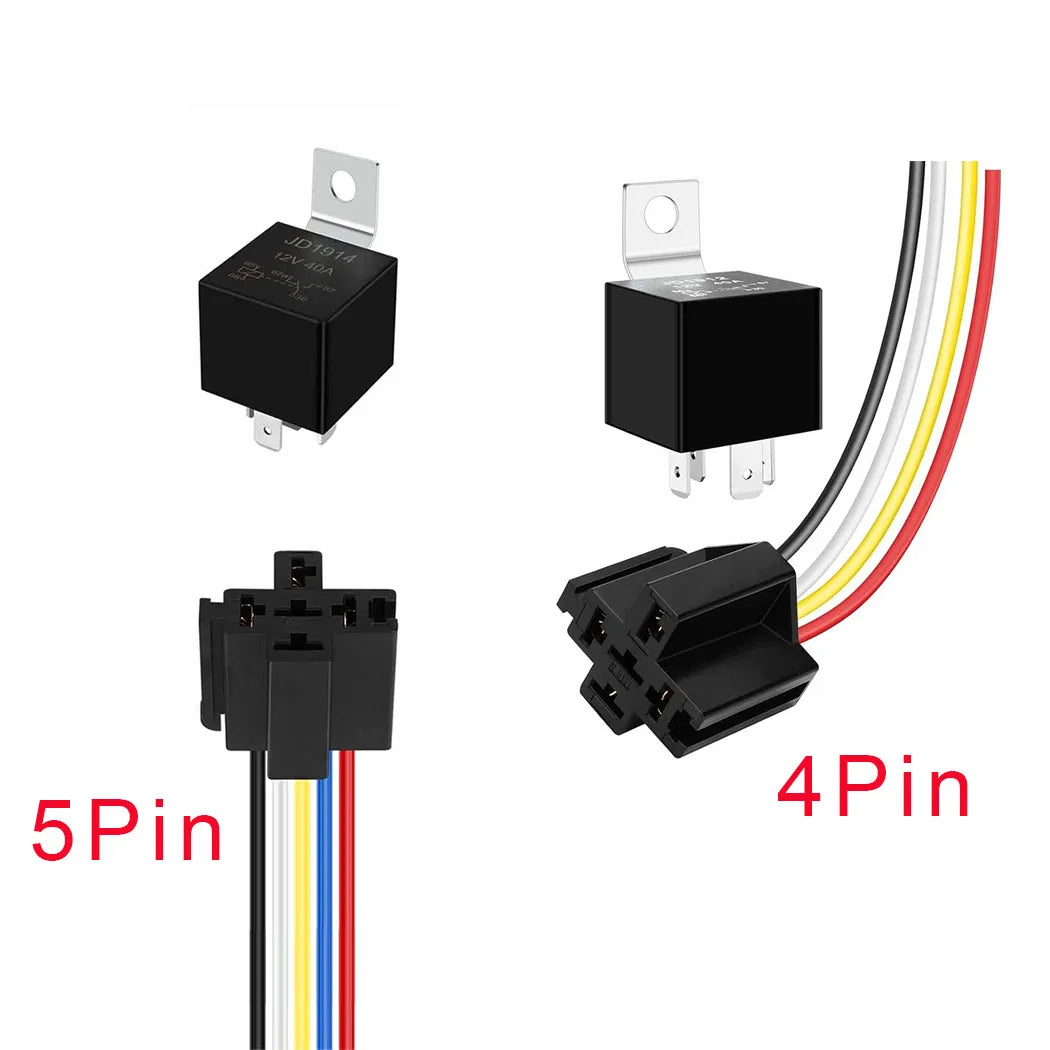

(Please choose the model and quantity you need,we will send the goods according to your choice.)
