SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

Circuit Type: 1 Way

Contact Type: Normally Open / Normally Closed

DIY Supplies: Electrical

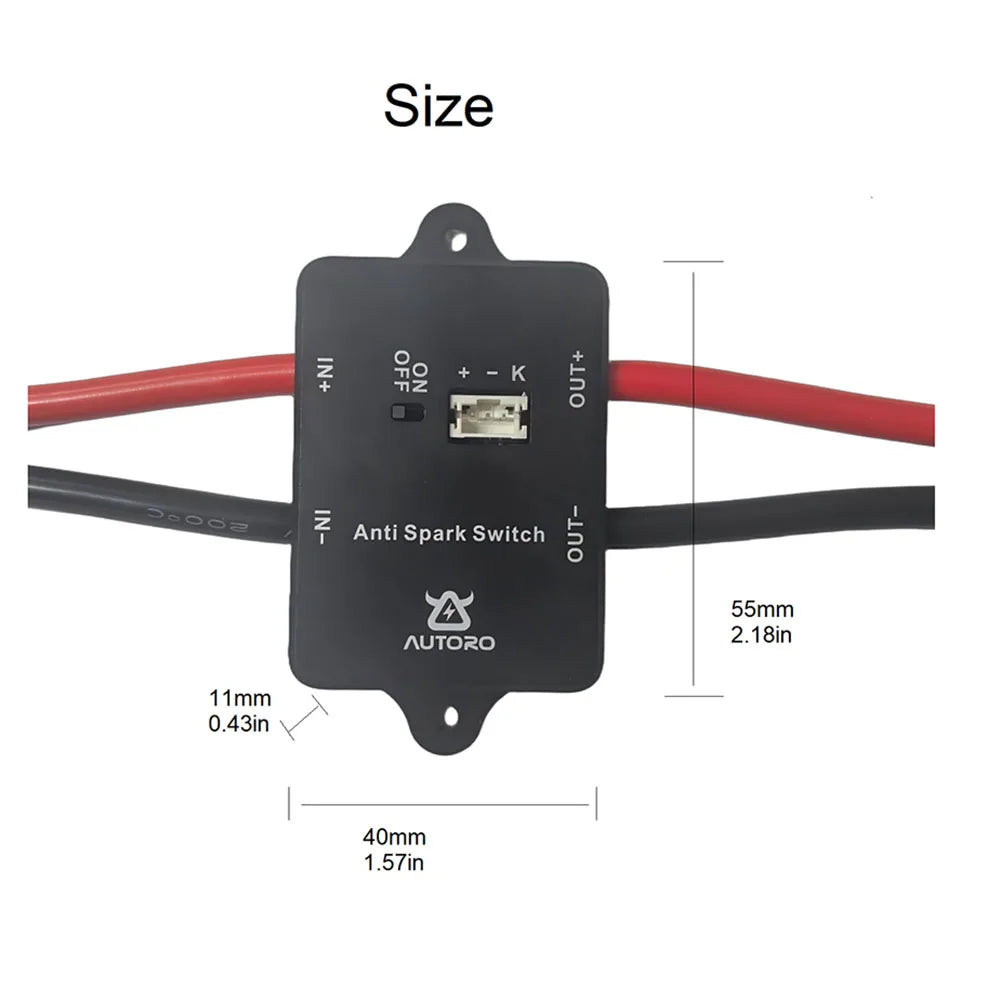

Dimensions(with metal shell: 74mm*40mm*12mm

Dual Start: Power Button or Turn ON Switch

High-concerned chemical: none

LED Button Diameter: 16mm

Max Continuous Current: 100A

Max current: 200A

Max voltage: 84V 20S

Model Number: AS100

Mounting Type: Through Hole Mount

Operating Voltage: 2S-20S (6V-84V)

Operation Mode: ON-OFF

Origin: Mainland China

Peak Current: 300A

Weight of the Anti Spark Switch: 84.2g

is_customized: Yes

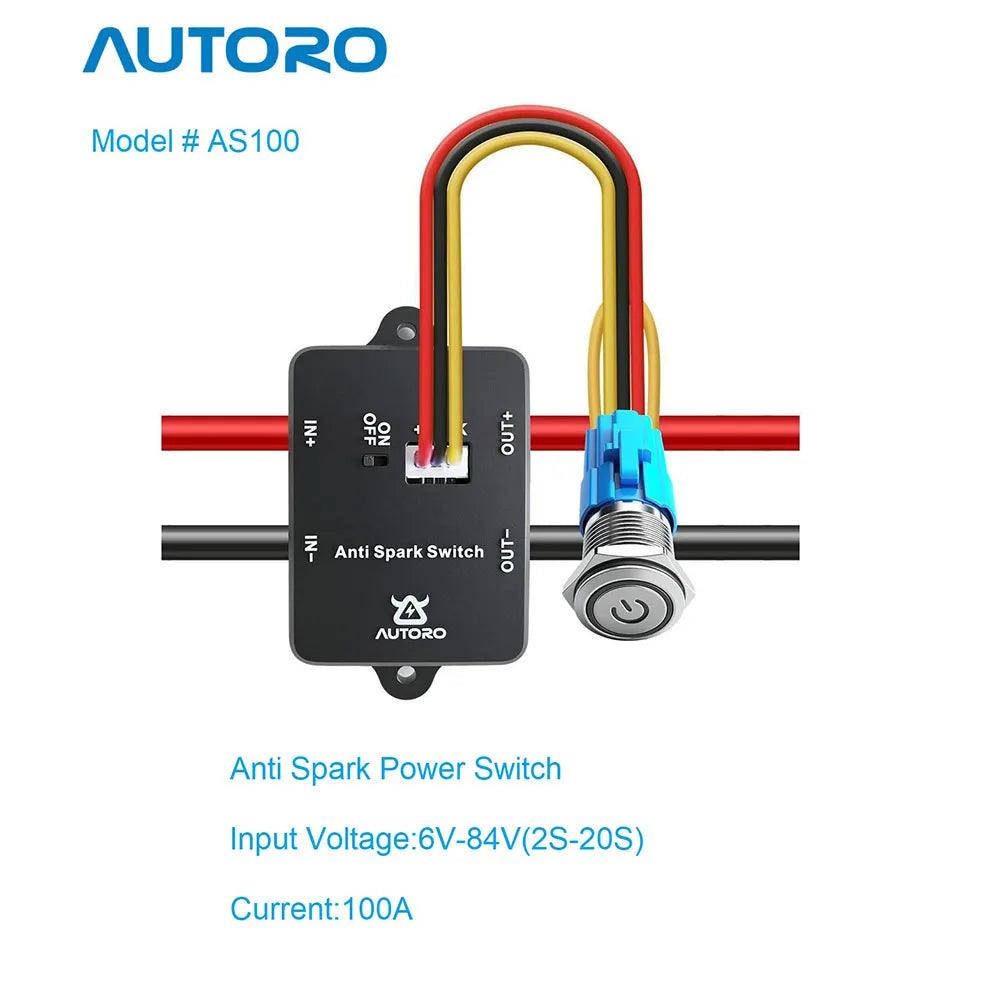

Autoro AS100 Anti Spark Power Switch – Safeguard Your High-Power DC Systems

The Autoro AS100 is a professional-grade auto anti-spark switch with 360° aluminum heatsink enclosure, designed to eliminate hazardous sparks when connecting batteries to ESCs (Electronic Speed Controllers). Perfect for DIY skateboard electric scooter, scooters, RC cars, boats, e-bikes and robotics, it ensures smooth, oxidation-free connections while protecting your expensive electronics. Built for 100A/84V systems with XT90 connectors. It's compatible with Autoro , Benjamin VESC, AESC, FSESC,V4, V4 Pro, V6, V6 Pro, V75 series controllers.

Key Features:

Voltage Range: 6V-84V (2S-20S LiPo/Li-ion batteries).

High Current Capacity:

With a rating of 100A and 84V DC, this power switch is designed to handle high currents, making it ideal for electric skateboards, scooters, RC balance RC cars, boats, and e-bikes, etc.

High-Current Handling: 100A continuous, 300A peak current.

Dual Modes:

Toggle between manual control (via included 16mm illuminated metal latching switch) or direct anti-spark mode.

XT90 Connector Ready:

Includes XT90 male/female connectors with sheath. Features XT90 connectors designed for high-current applications.

Robust Build:

10AWG silicone wires and constructed fromaerospace-grade aluminum housing for heat dissipation, this power switch withstands the rigors of daily use, ensuring long-lasting performance and reliability

Advanced Cooling:

The 360° full-wrap aluminum heatsink spark-resistant plate design enables dual-side cooling: thermal silicone pads bridge MOSFETs to top cover; PCBA directly contacts baseplate. Supports larger heatsinks with massively reduced temperatures for electric skateboard ESC controllers,etc.

Easy Installation:

Designed for easy installation, this power switch can be quickly and easily integrated into your existing electrical setup, saving you time and effort.

Ideal For:

Electric skateboards/scooters

RC vehicles (cars, drones, boats).

DIY e-bikes, robots, and industrial DC systems.

Package Includes:

1x AS100 Anti Spark Switch, 1x 16mm Metal Latching Switch includes 1x250mm Cable, 1x XT90 Male, 1x XT90 Female.

Support & Warranty: Lifetime email technical support.
