SPECIFICATIONS

Brand Name: NONE

Choice: yes

Circuit Type: 1 Way

Connector Type: Plug in

Contact Type: Normally Open / Normally Closed

DIY Supplies: Electrical

Dimensions(with metal shell: 74mm*40mm*12mm

Dual Start: Power Button or Turn ON Switch

High-concerned chemical: none

LED Button Diameter: 16mm

Max Continuous Current: 100A

Max voltage: 84V 20S

Model Number: Autoro AS100A Anti Spark Switch

Mounting Type: Through Hole Mount

Net Weight: 84.2g

Operating Voltage: 2S-20S (6V-84V)

Operation Mode: ON-OFF

Origin: Mainland China

Peak Current: 200A

is_customized: Yes

Autoro AS100A Anti Spark Switch – The Ultimate Sparkproof Solution for High-Power DC Systems

Tired of dangerous sparks and damaged connectors every time you power up your ride? The Autoro AS100A is your professional-grade, auto anti-spark switch engineered to eliminate arc damage for good. Designed for demanding DIY and professional applications—from electric skateboards and RC cars to drones, e-bikes, and industrial robotics—this switch ensures a smooth, safe, and oxidation-free connection every time. Built to handle extreme power (100A continuous, 200A peak) and high voltage (up to 84V / 20S LiPo), it actively protects your expensive ESC, battery, and connectors, extending the life of your entire electronic system. Stop worrying about fried components and start enjoying reliable, spark-free performance.

Built for Extreme Performance & Reliability
Engineered with a robust 360° aluminum heatsink enclosure and high-grade 10AWG silicone wires, the AS100 manages heat efficiently even under continuous 100A loads. Its advanced thermal design—featuring direct PCB-to-baseplate contact and silicone thermal padding—ensures massively reduced operating temperatures for sustained high-power output. The included 16mm illuminated metal latching switch (Autoro S16) gives you manual control with clear LED status indication, while the slide switch allows quick toggling between manual and auto spark-proof modes. Ready to use right out of the box with included XT90 male and female connectors, it delivers plug-and-play compatibility and rock-solid connections built for high-current applications.

Two Simple, Flexible Operating Modes

1. Auto Spark-Proof Mode (Slide Switch ON): For simple, automatic protection. Set the slide switch to ON after applying power for direct, spark-free continuous output. Ideal for setups where manual switch control is not required.

2. Manual Controlled Mode (Slide Switch OFF): For ultimate control and safety. Install the included Autoro S16 latching switch. Press and lock to turn the circuit ON (LED illuminates); press again to release and turn OFF (LED off). This mode keeps your system completely disconnected until you intentionally power it on.

Key Technical Specifications

• Operating Voltage: 6V–84V DC (compatible with 2S–20S LiPo/Li-ion battery packs)

• Current Rating: 100A Continuous, 200A Peak (300A Instantaneous)

• Connector Type: XT90 (Includes Male & Female with Protective Sheath)

• Wiring: 10 AWG High-Temp Silicone Wire

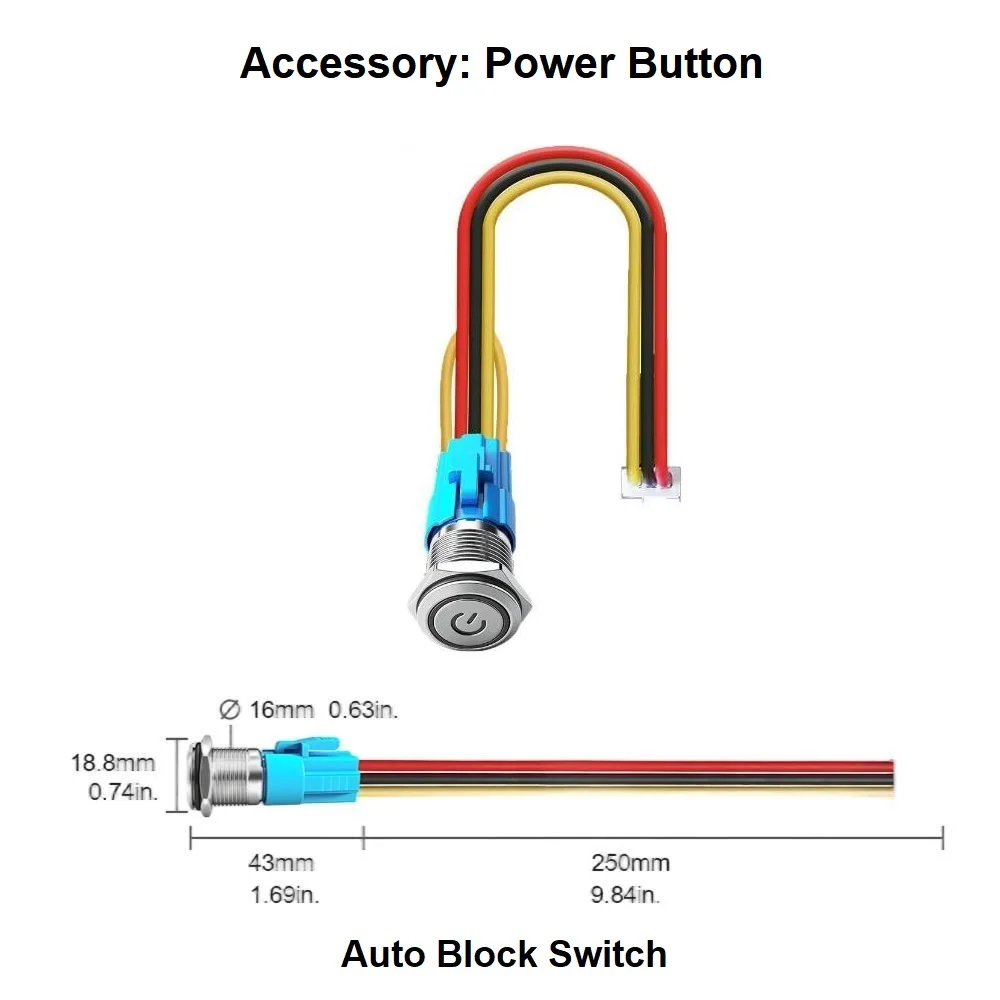

• Switch: Included 16mm Illuminated Metal Latching Switch (S16) with 250mm Cable

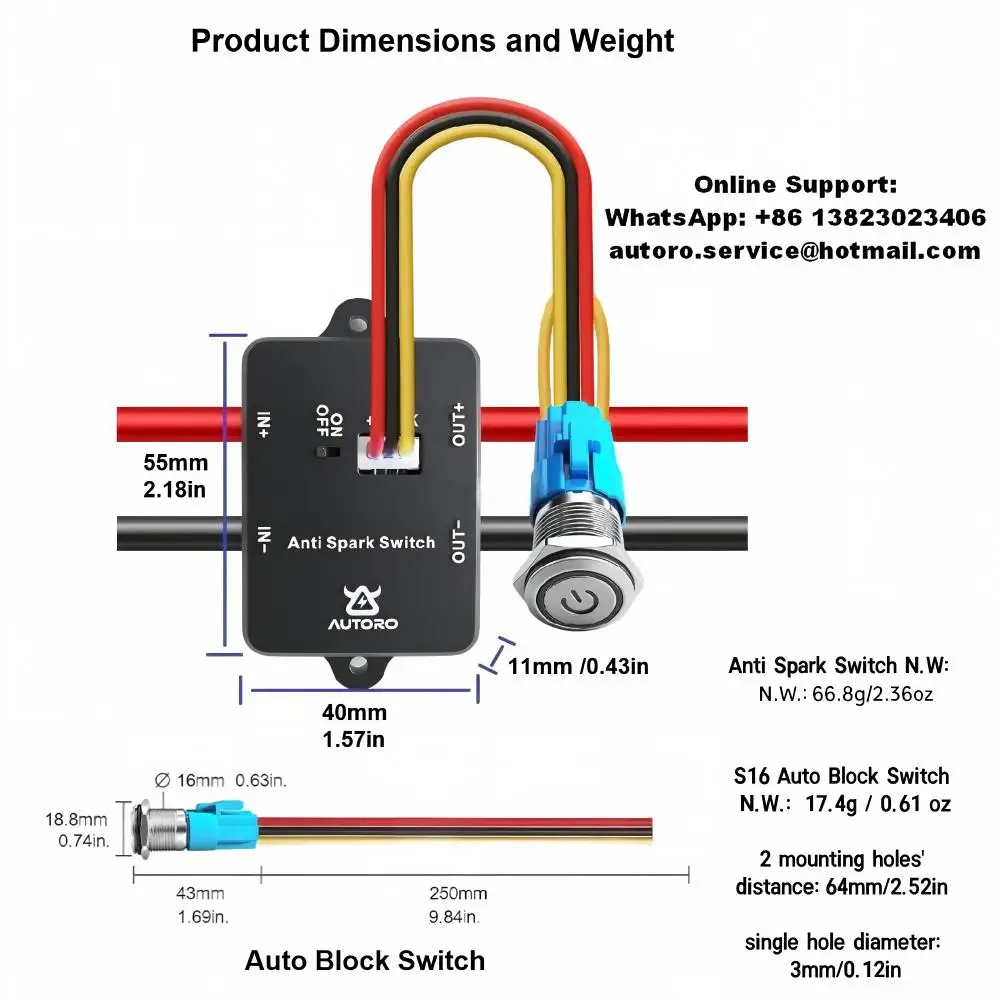

• Dimensions (Unit): 50mm x 35mm x 9.5mm

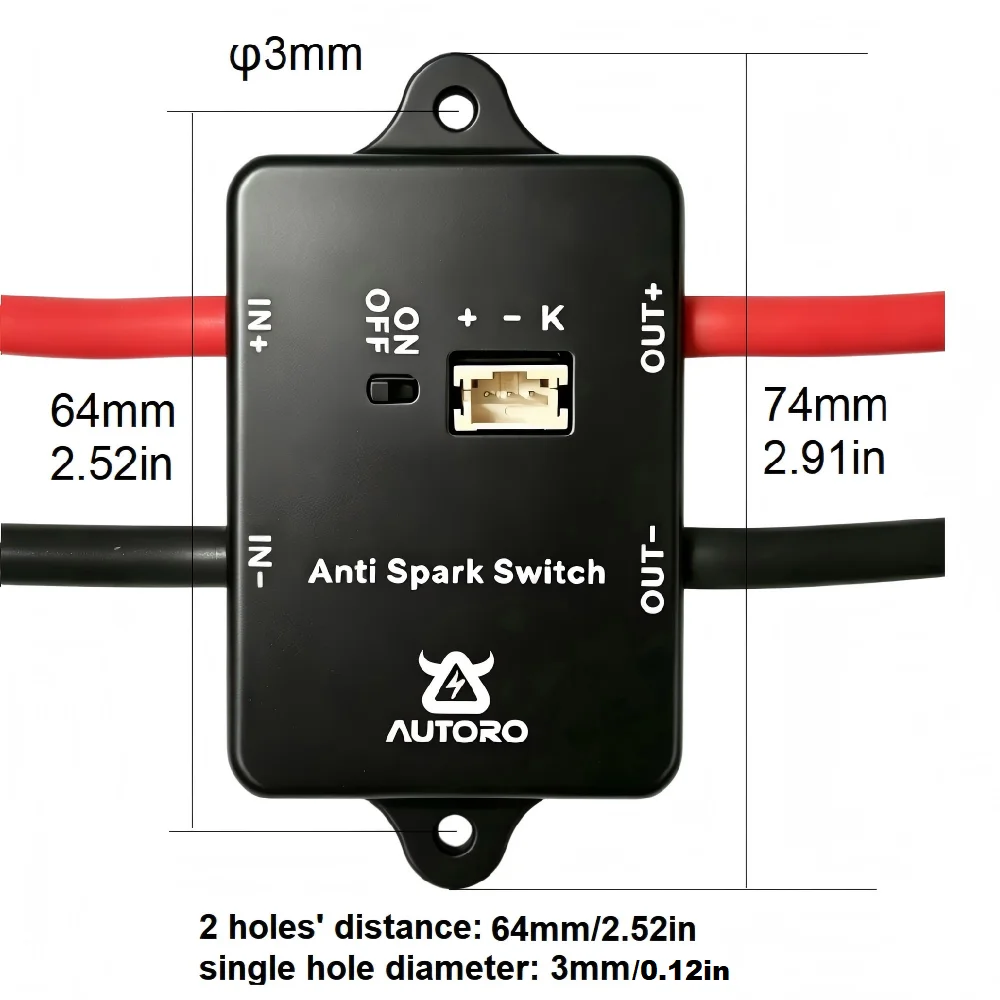

• Dimensions (with Enclosure): 74mm x 40mm x 12mm

• Mounting: Through-Hole & PCB Mount Options

Universal Compatibility:

The AS100 works seamlessly with a wide range of ESCs and controllers including VESC, FSESC, Flipsky, Benjamin, AESC, and Autoro models (V4, V4 Pro, V6, V6 Pro, V75 series). It’s the perfect spark-proof upgrade for:

• Electric Skateboards & E-Scooters

• RC Cars, Boats, and Drones

• DIY E-Bikes & Electric Vehicles

• Robotics & Industrial DC Power Systems

Package Includes:

• 1x AS100 Anti Spark Switch

• 1x 16mm Autoro S16 Metal Latching Switch with LED (pre-wired with 250mm cable)

• 1x XT90 Male Connector

• 1x XT90 Female Connector

⚠️ Important Safety Notice: Always ensure the slide switch is in the OFF position before initial power connection. Disconnect all power before installation or maintenance. High-voltage DC systems require careful handling.

As a direct source manufacturer, Zhuhai Baoge Technology Co., Ltd. specializes in reliable power solutions. Our products are engineered for durability, safety, and ease of use – giving you peace of mind in any power situation.

Autoro welcomes collaboration with all distributors and buyers.
