SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Origin: Mainland China

Specification 1: Hbridge PWM output module

Specification 2: dualchannel DC motor driver module

Specification 3: DC brushed motor driver

Specification 4: 12V24V 12A DC brushed motor driver

Specification 5: DC motor driver

Type: Other Motor Controls

Multi protection:built-in over voltage protection,under voltage protection,over temperature protection circuit.
Control signal full isolation,compatible 3-5V voltage input.
Large power,can drive 2PCS 300W motor
High speed PWM isolation input,the minimum pulse width:3us,isolation bandwidth:10MHz
Support full duty cycle input,can off MCU,external switch control,series connecting limit switch.

Driver operating voltage:6.5-29V,support 7-24V voltage grade DC brush motor
Double color turn LED indicator indicating motor operation direction
Dual channel DC brush motor driver,MOSFET H bridge,each channel outputs 12A current.can dive the max 300W power DC motor.
Application areas:Automatic robot,mechanotronics,Equipment manufacturing,Scientific research and production,electronic competition.

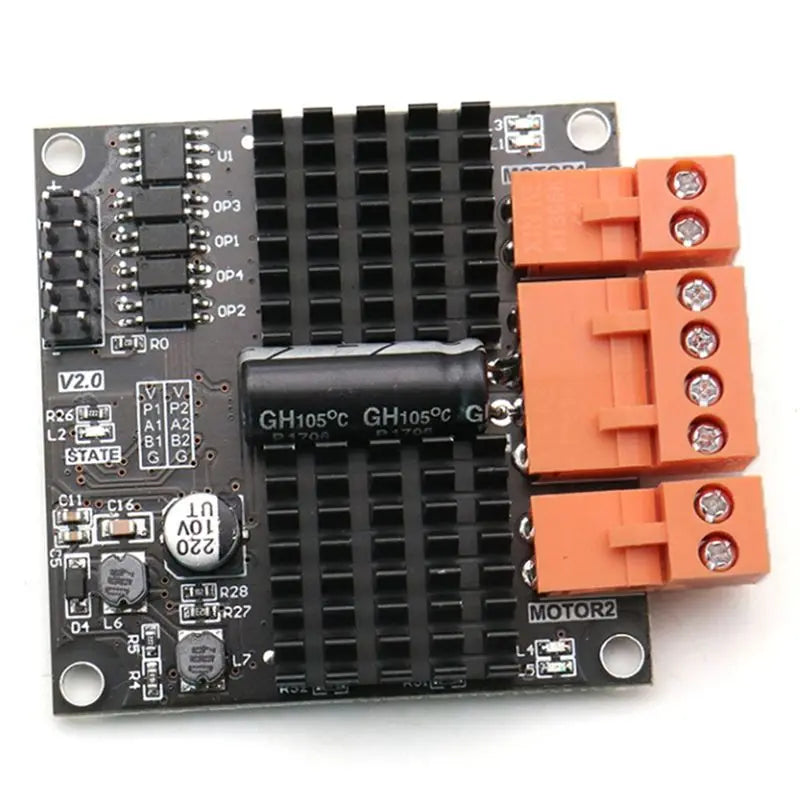

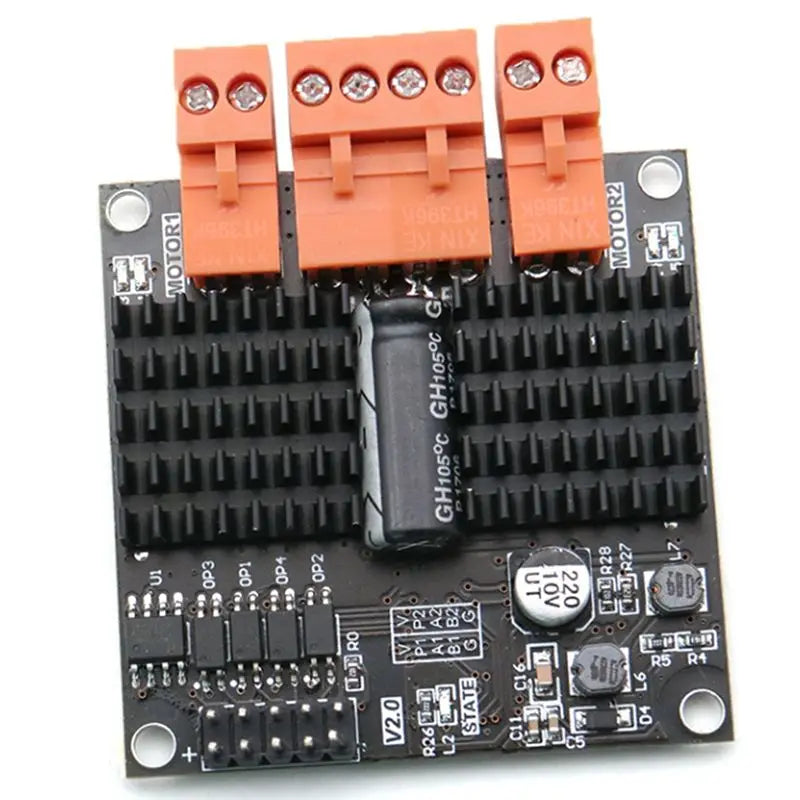

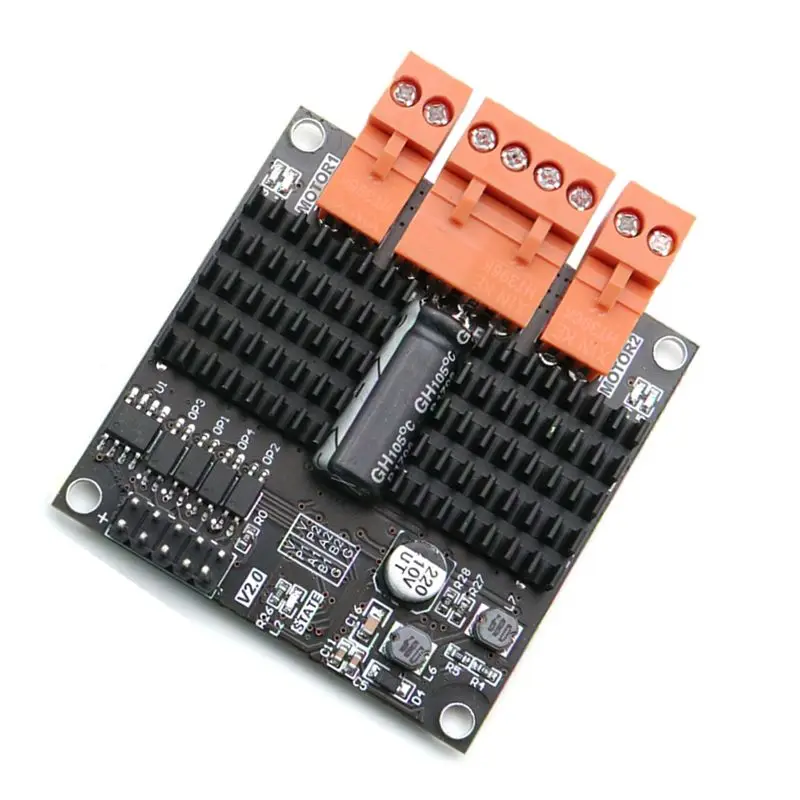

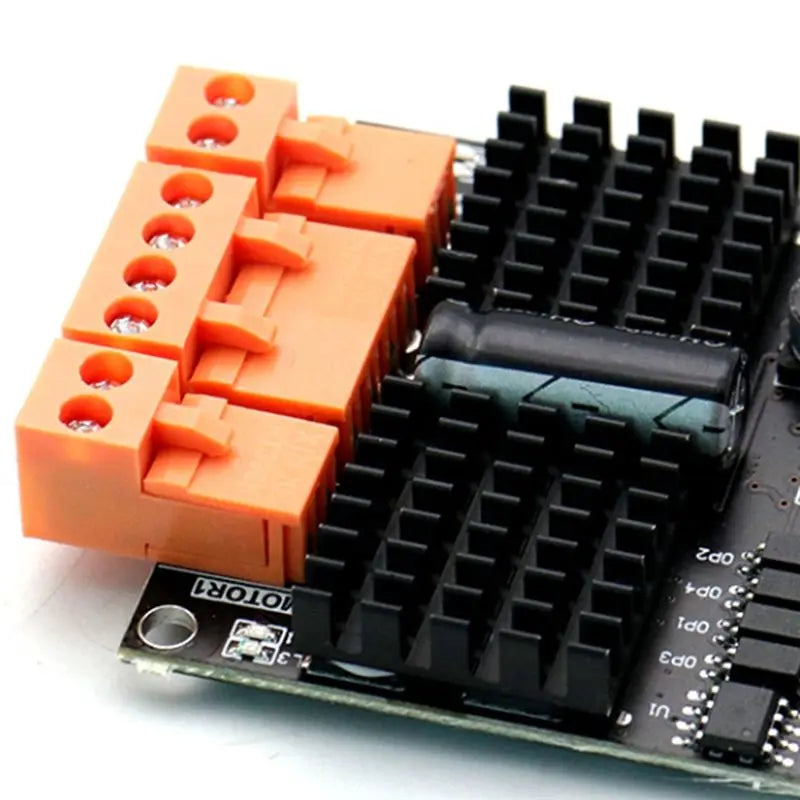

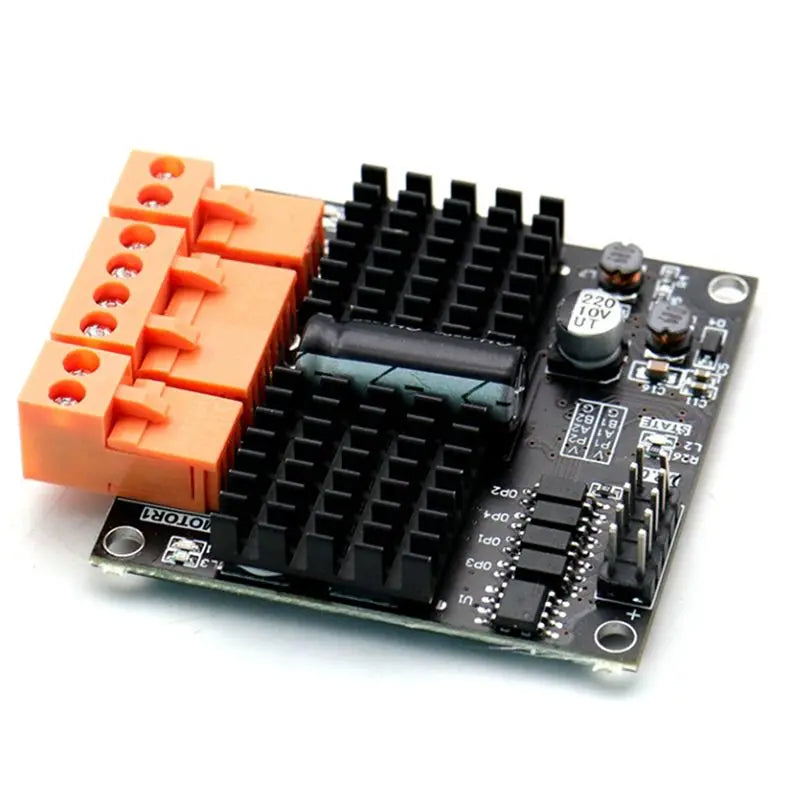

the orange parts is the interface for motor and power supply.
Color: As shown
Material: PCB

Package Contents:
1 x 12V 24V 12A dual-channel DC motor driver module board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
