SPECIFICATIONS

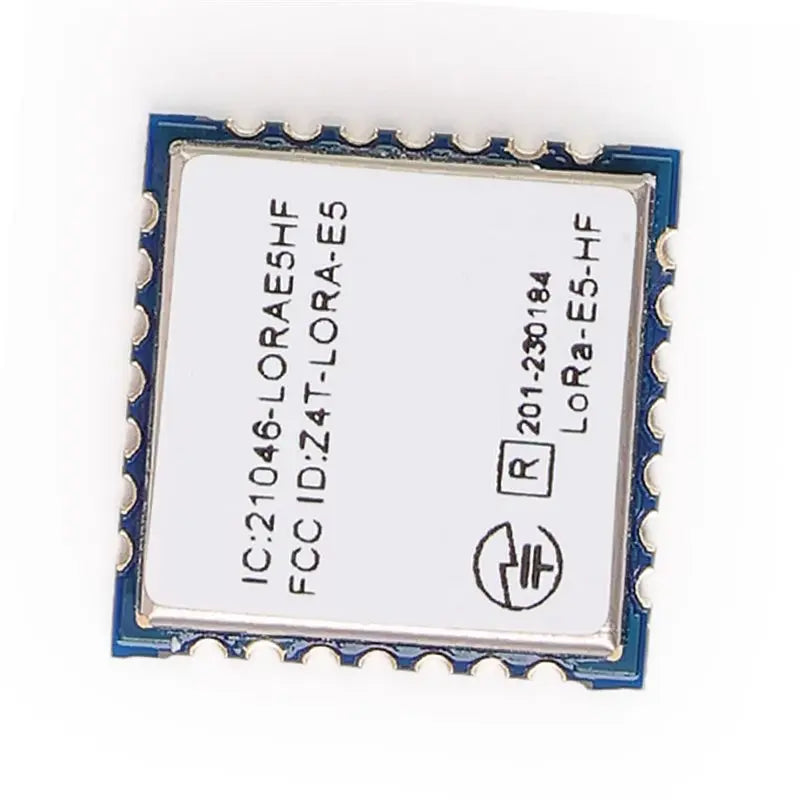

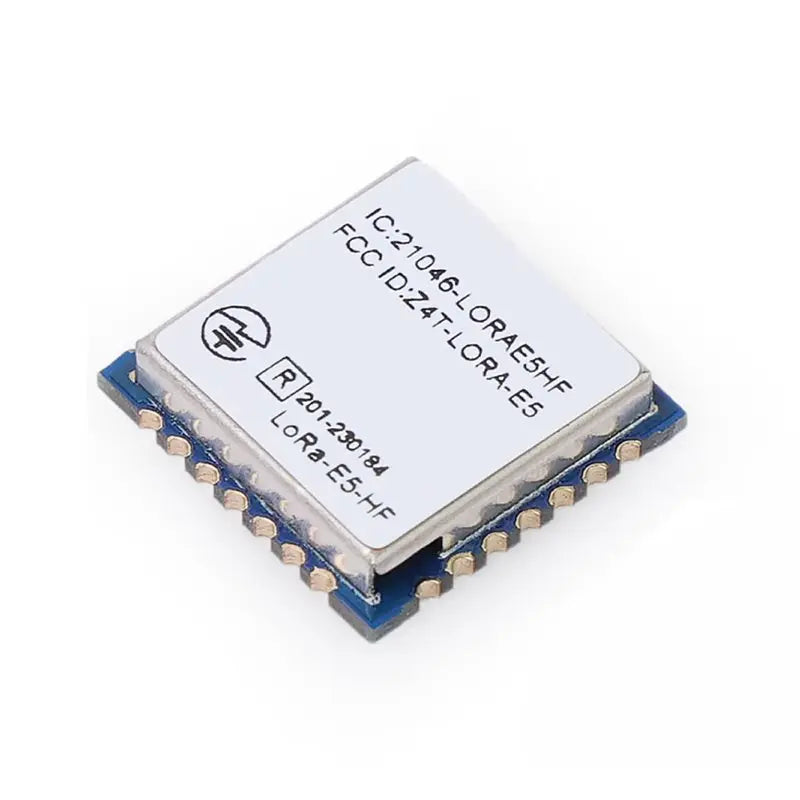

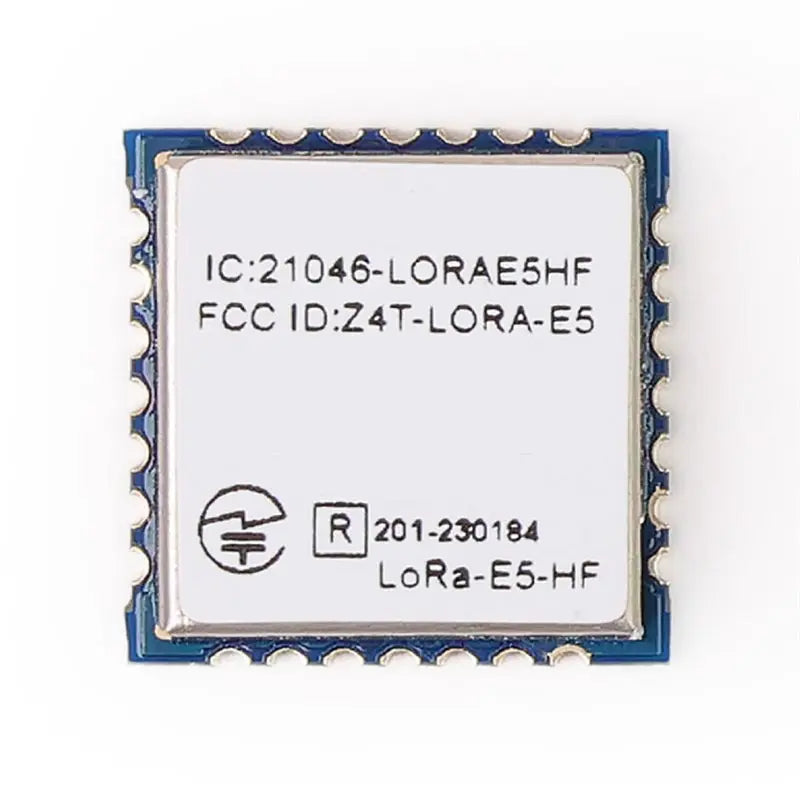

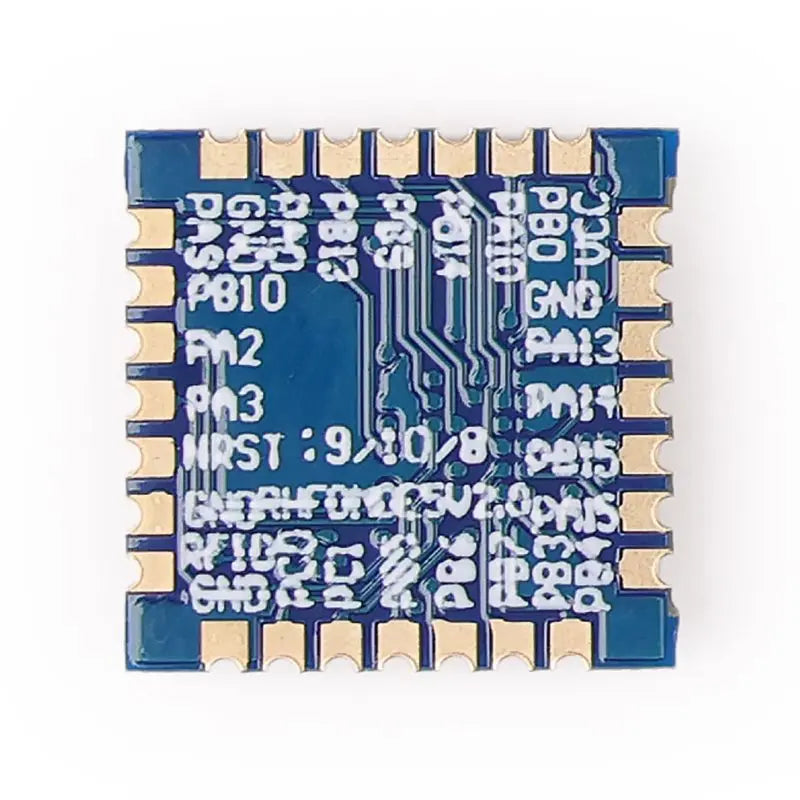

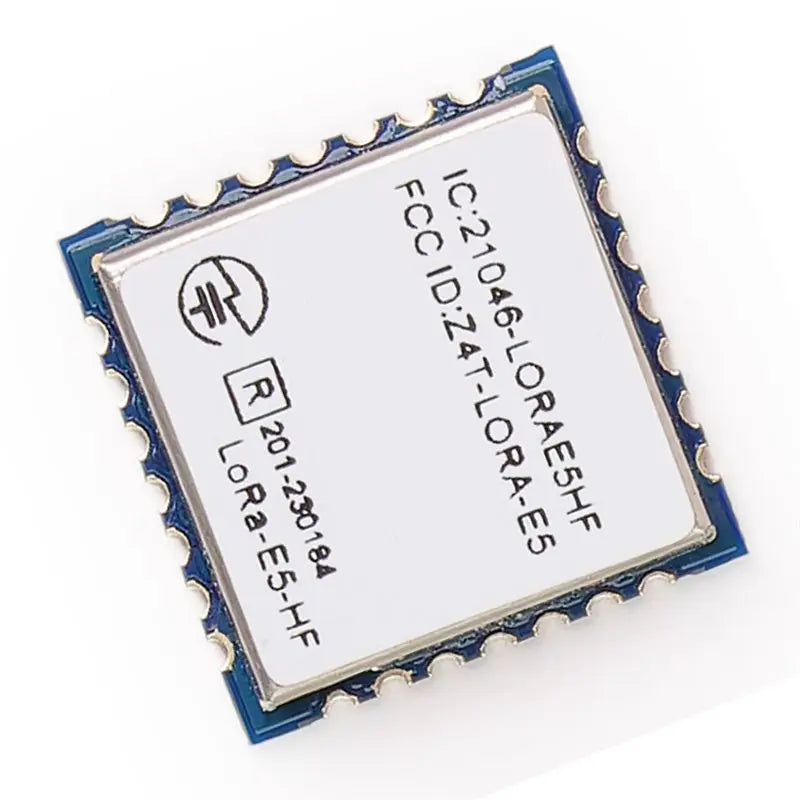

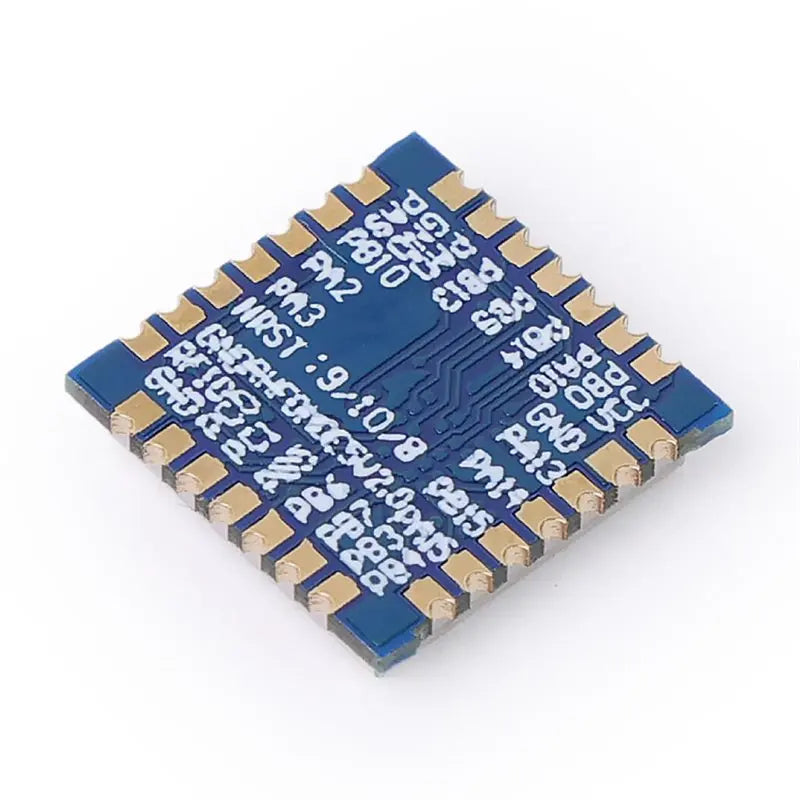

The Wio-E5 wireless module is embedded with chip STM32WLE5JC, Cortex ultra-low-power MCU, and Long Range SX126X. It supports LoRaWAN frequency plan on EU868, US915 and more, making it suitable for wireless sensor networks and other IoT devices that require battery power, low power consumption and long range.
This ultra-compact module has extremely low power consumption and is capable of supporting both (G)FSK and Long Range. Its built-in AT command firmware, makes it easy for developers to build their prototypes or applications.
It can easily support LoRaWAN protocols and a variety of frequency plans, making it an ideal solution for Long Range sensor nodes and a range of wireless communication applications. Whether you need to set up Wireless Meter Reading, IoT Nodes, or a Sensor Network, the Wio-E5 is perfectly suited for low power wide area IoT scenarios.
With this module, you can connect to different LoRaWAN server platforms like TheThingsStack, Chirpstack, and others.

High Performance: The transmit power up to 22dBm @868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW.
Long Distance Use: 158dB link budget.
Wireless Connectivity: Embedded Long Range protocol, supports global Long Range frequency plan.
Abundant peripherals: Equipped with a variety of GPIO interfaces like UART, I2C, and ADC, this module offers great flexibility for developers looking to expand peripherals.
Easy to Use: Has built-in AT command firmware and supports custom product development using an SDK.
Specification:
MCU: for Cortex
Storage: 256KB Flash, 64KB SRAM
power supply: 3.3V type
Minimum sleep current: 2.1uA(SOC)
Working Temperature: -40℃ ~ 85℃
Color: Blue
Material: PCB+Metal

Package Contents:
1 * Wio-E5 Wireless Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
