B29C-STM32H7 Development Board STM32H743IIT6 Core Board Onboard SDRAM Open Source LVGL Support Small System Board
$124.44
Sale price
$124.44
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Origin: Mainland China
Specification 1: STM32H7 Development Board
Specification 2: STM32H743IIT6 Core Board
Specification 3: Development Board
Specification 4: Development Board LVGL
Specification 5: Development Board STM32H7
Type: ESP Series
Core board size 55MMx85MMx1.6MM
Main control chip: STM32H743IIT6, Cortex-M7@
External expansion: 16MB FLASH+32MB SDRAM+EEPROM+SD
Onboard CH340USB serial port, supports ISP download and debugging printing
SWD debugging simulation interface: 2.0mm Pitch-4Pin dedicated port
Feature:
Core board size 55MMx85MMx1.6MM
Main control chip: STM32H743IIT6, Cortex-M7@ ;
Main frequency 480MHz, 176Pin built-in 2MBFLASH+1MB SRAM;
External expansion: 16MB FLASH+32MB SDRAM+EEPROM+SD;
Onboard CH340USB serial port, supports ISP download and debugging printing;
LCD1 interface: 40PRGB
LCD2 interface: 20P, hardware SPI display+I2C touch;
SWD debugging simulation interface: 2.0mm Pitch-4Pin dedicated port;
Core board LCD1 driver 4.3-inch RGB parallel port capacitive screen application example
Color: Black
Material: PCB

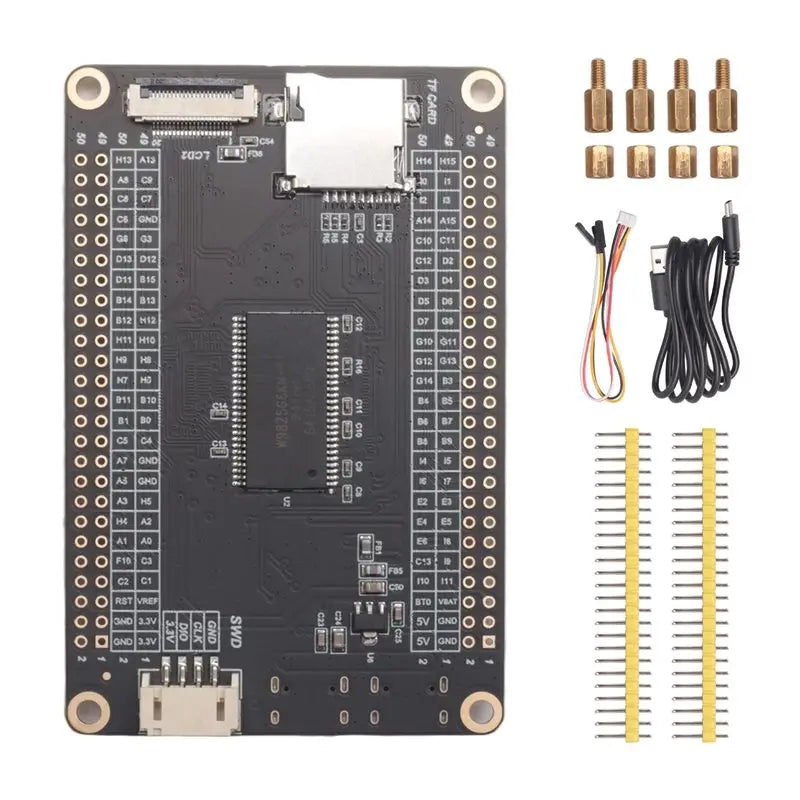

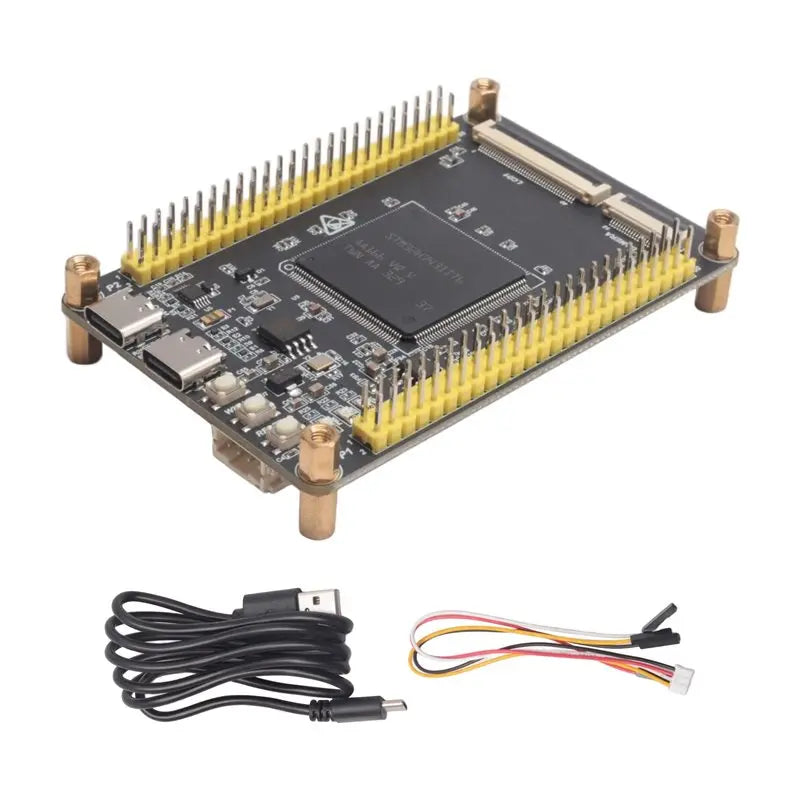

Package Contents:
1*Development board
1*Charging cable
1*DuPont cable
2*Pin headers
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Main control chip: STM32H743IIT6, Cortex-M7@
External expansion: 16MB FLASH+32MB SDRAM+EEPROM+SD
Onboard CH340USB serial port, supports ISP download and debugging printing
SWD debugging simulation interface: 2.0mm Pitch-4Pin dedicated port
Feature:
Core board size 55MMx85MMx1.6MM
Main control chip: STM32H743IIT6, Cortex-M7@ ;
Main frequency 480MHz, 176Pin built-in 2MBFLASH+1MB SRAM;
External expansion: 16MB FLASH+32MB SDRAM+EEPROM+SD;
Onboard CH340USB serial port, supports ISP download and debugging printing;
LCD1 interface: 40PRGB
LCD2 interface: 20P, hardware SPI display+I2C touch;
SWD debugging simulation interface: 2.0mm Pitch-4Pin dedicated port;
Core board LCD1 driver 4.3-inch RGB parallel port capacitive screen application example
Color: Black
Material: PCB
Package Contents:
1*Development board
1*Charging cable
1*DuPont cable
2*Pin headers
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
