SPECIFICATIONS

Input voltage: DC 3V-5V;Output frequency voltage: 0 ~ 5V;Use bright white LED lights;can be connected directly with Microcontroller;Static detection of the measured object color;Best detection distance: 10mm

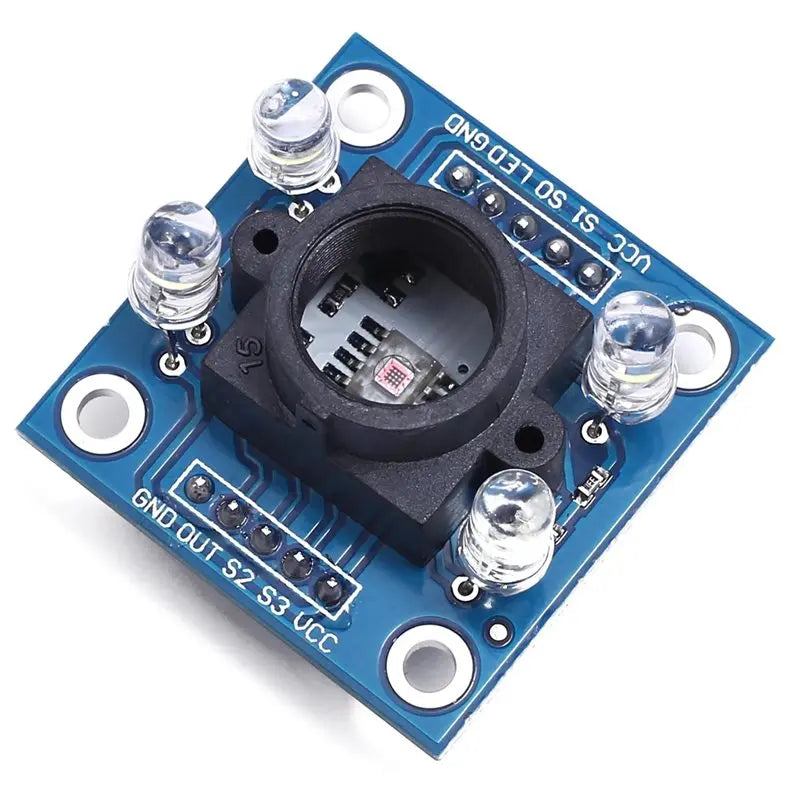

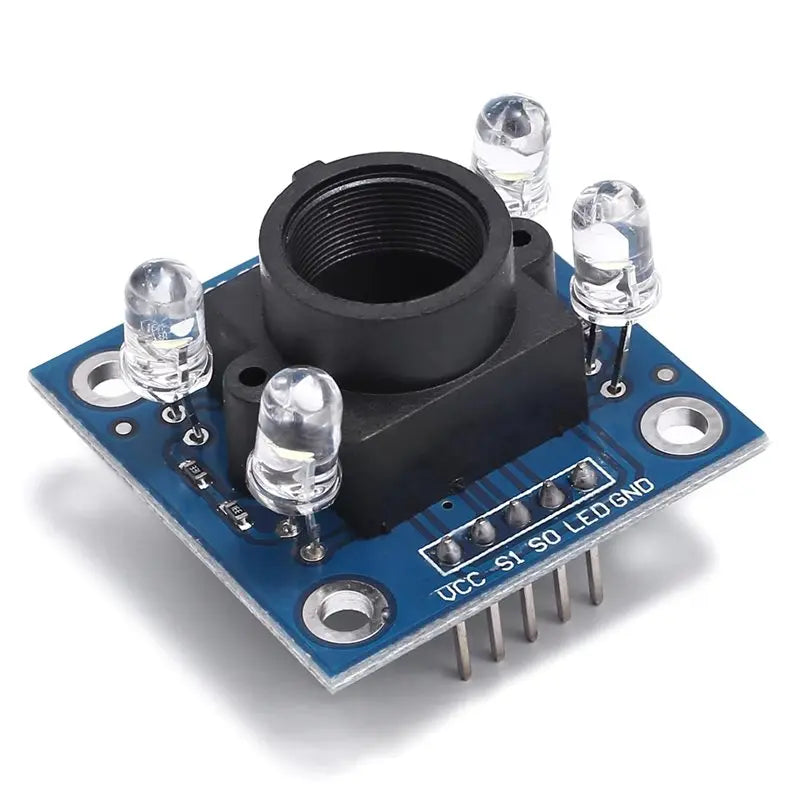

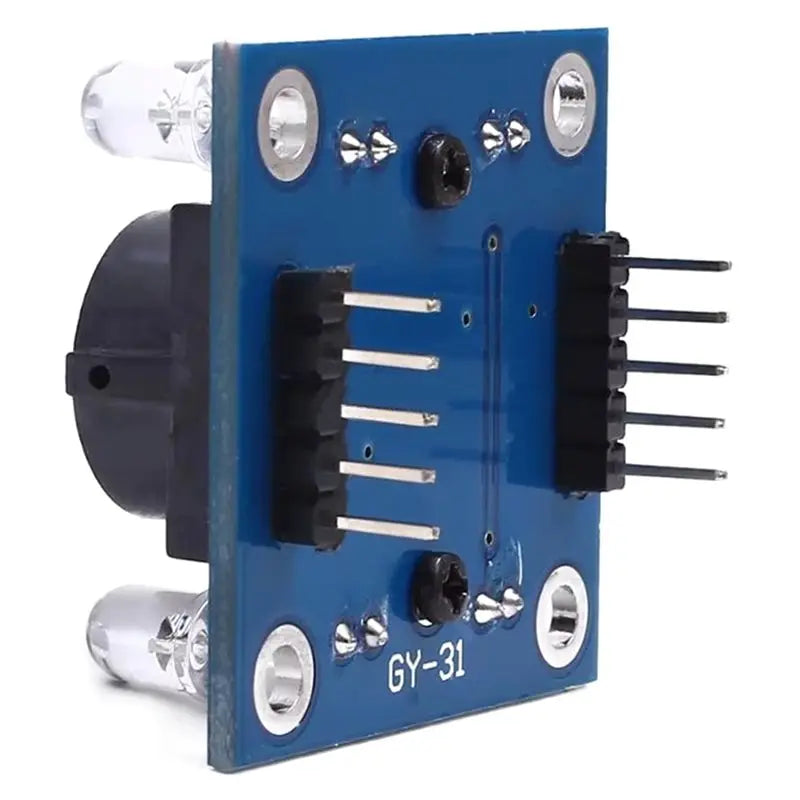

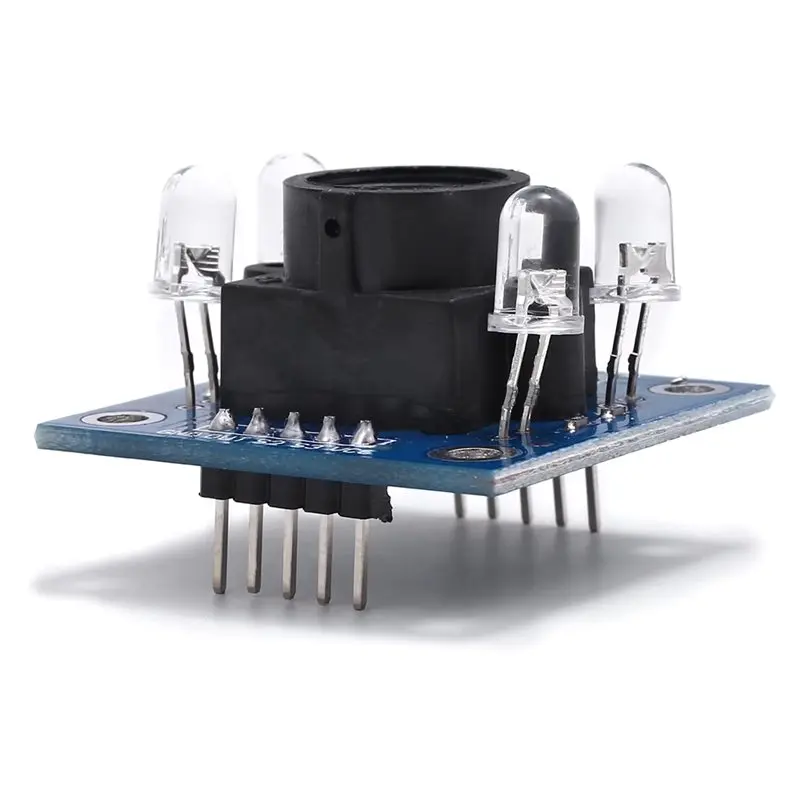

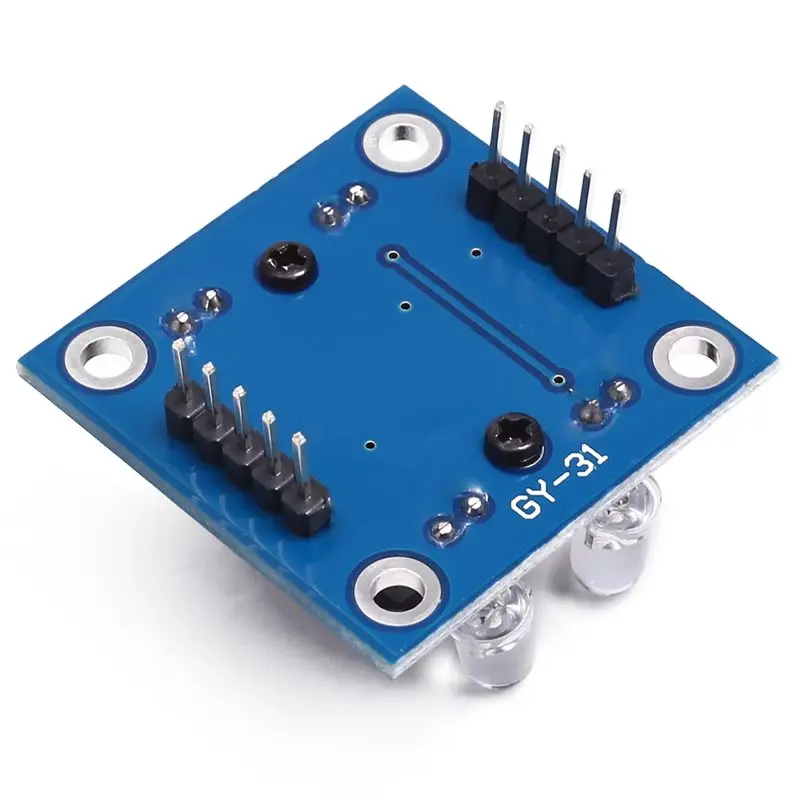

Advanced Color Recognition: Integrated TCS230/TCS3200 color sensor chip for accurate detection of red, green, and blue components of ambient light or object surface color.
TCS230 8-pin SOIC surface mount package, on a single chip has 64 photodiodes. These diodes are divided into four types. 16 of the photodiode with a red filter; 16 photodiodes with a green filter; 16 photodiodes with a blue filter; the remaining 16 without any filter, may all the optical information through.
on the other hand, the same color of the photodiode 16 is connected in parallel, uniformly distributed in the diode array, you can eliminate the position error color. Work by two programmable pins to dynamically select the desired filter.
Typical output frequency range of the sensor from 2 Hz ~ 500 kHz, users can also select two programmable pins to 100%, 20% or 2% of the output scale factor, or power-off mode. Output scale factor so that the output of the sensor can be adapted to different measurement range and increases its ability to adapt.

Color: Blue
Material: plastic

Package Contents:

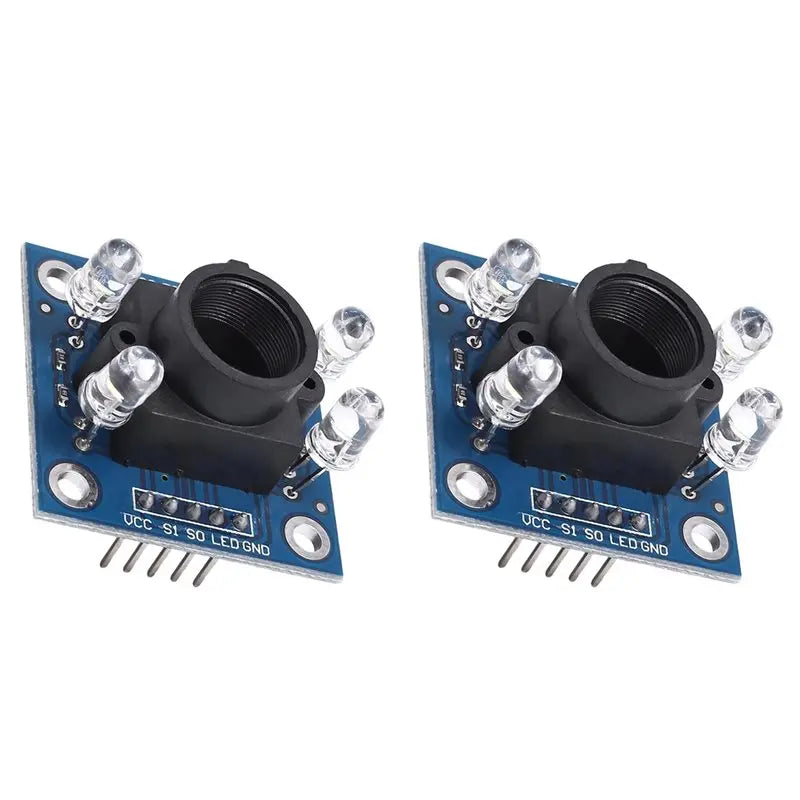

2*color sensor module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
