SPECIFICATIONS

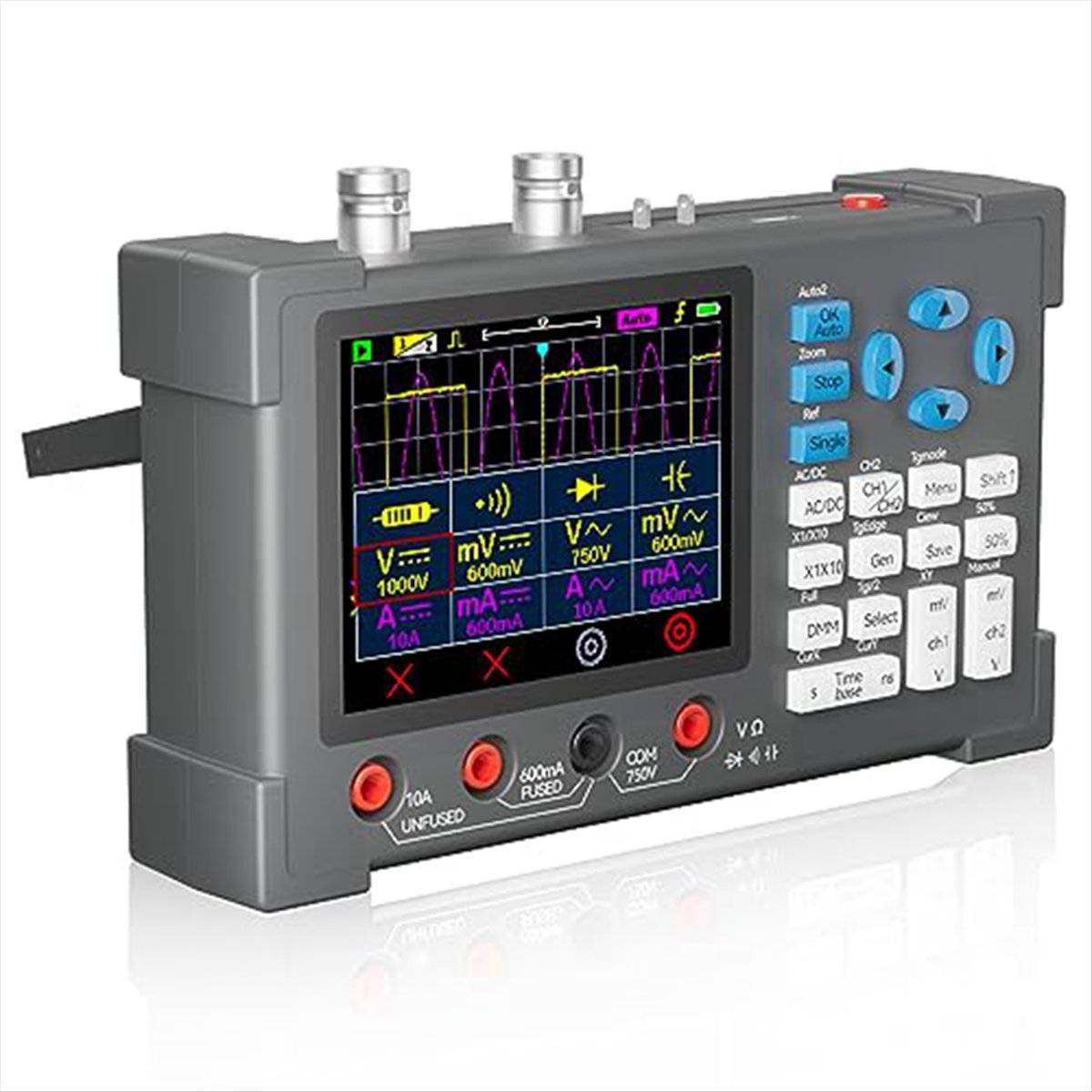

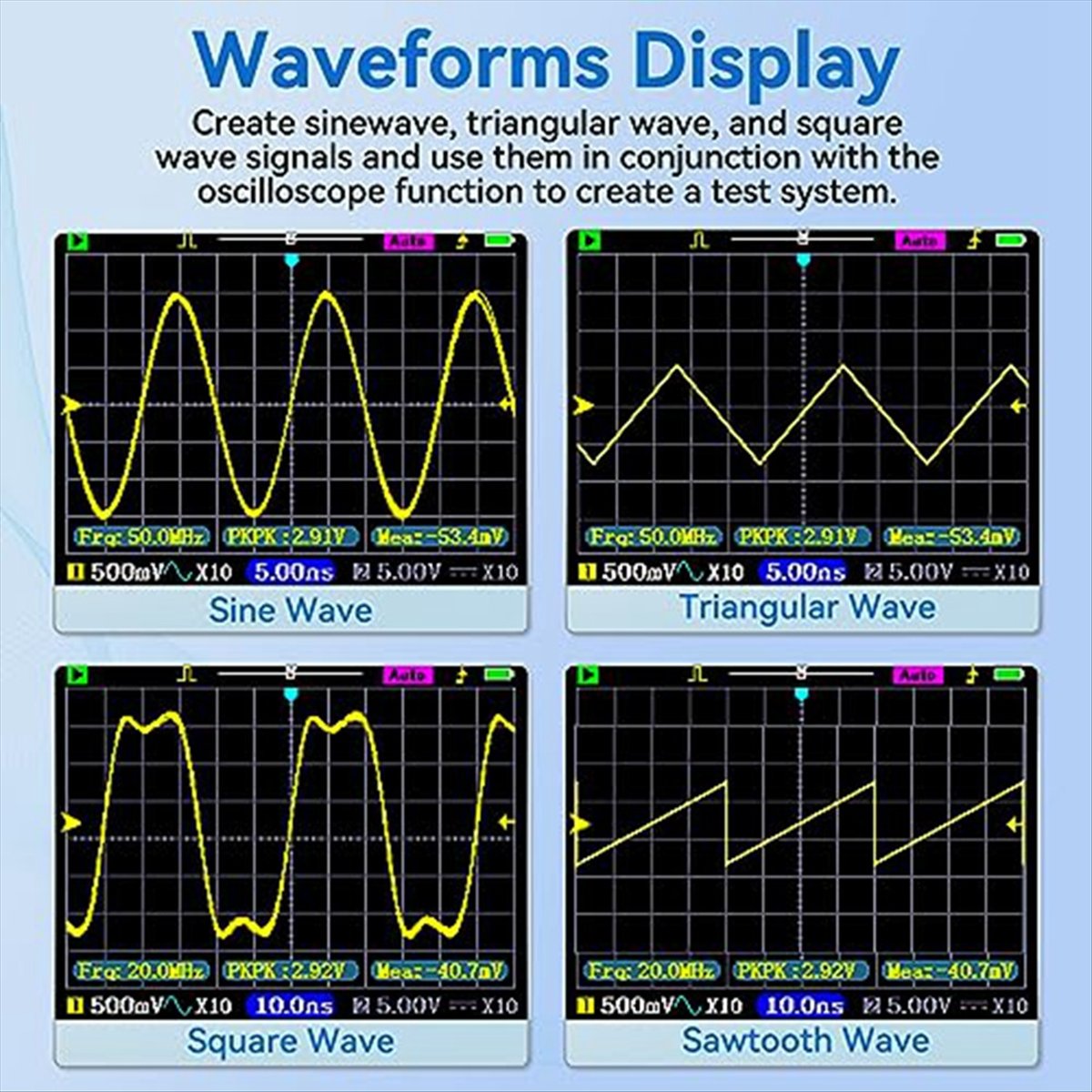

[3-in-1 Function]A tester that cleverly combines digital oscilloscope, multimeter, signal source and other functions. Digital oscilloscope 2 channels -- bandwidth 120MHz (single channel), 60MHz (dual channel), digital multimeter -- 6000 counts auto-range. Dual-channel oscilloscope: 2CH oscilloscope, 120/60MHz bandwidth, minimum measurement range 10mV/div, 250MSa/s sampling rate, 500-meter equivalent sampling, advanced digital trigger system. Easily handles measurements in various fields. Perfect trigger function: With complete trigger function, 3 trigger mode designs, automatic, normal and single mode, meet your needs. Trigger type: rising/falling, trigger level: manual/automatic, trigger source: CH1/CH2 Signal generator: The bottom of the oscilloscope can output various waveforms, such as sine waves, square waves, and triangle waves. The frequency adjustment range of the sine wave is 0~2MHz, and the accuracy is as high as 0.1Hz. The voltage amplitude is 2.5V. Frequency and amplitude can be set independently. Supports one-click automatic and fully automatic: supports waveforms to automatically adapt to the screen with one click, fully automatic supports continuous automatic execution, no need to press buttons, no need to adjust parameters, convenient and accurate measurement, and can meet your different measurement needs. Colour:grey Material:Metal Package Contents: 1 x 3 in 1 Oscilloscope 1 x Dual Injection Test Probe 1 x Scope Probe 1 x Signal Output Clip 1 x Type-C USB Cable 1 x English manual Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
