SPECIFICATIONS

Brand Name: HengyRandian

Certification: CE

High-concerned chemical: none

Maximum Power Per Channel: NO POWER

Model Number: 1541

Origin: Mainland China

Package: Yes

Version 1: NOS Configuration Standard Version

Version 2: OS Configuration Standard Version

Version 3: OS configuration standard version (supports external clock version)

Version 4: NOS configuration standard version (supports external clock version)

Version 5: Advanced version (supports external clock version)

package configuration instructions are as follows:

Standard version:

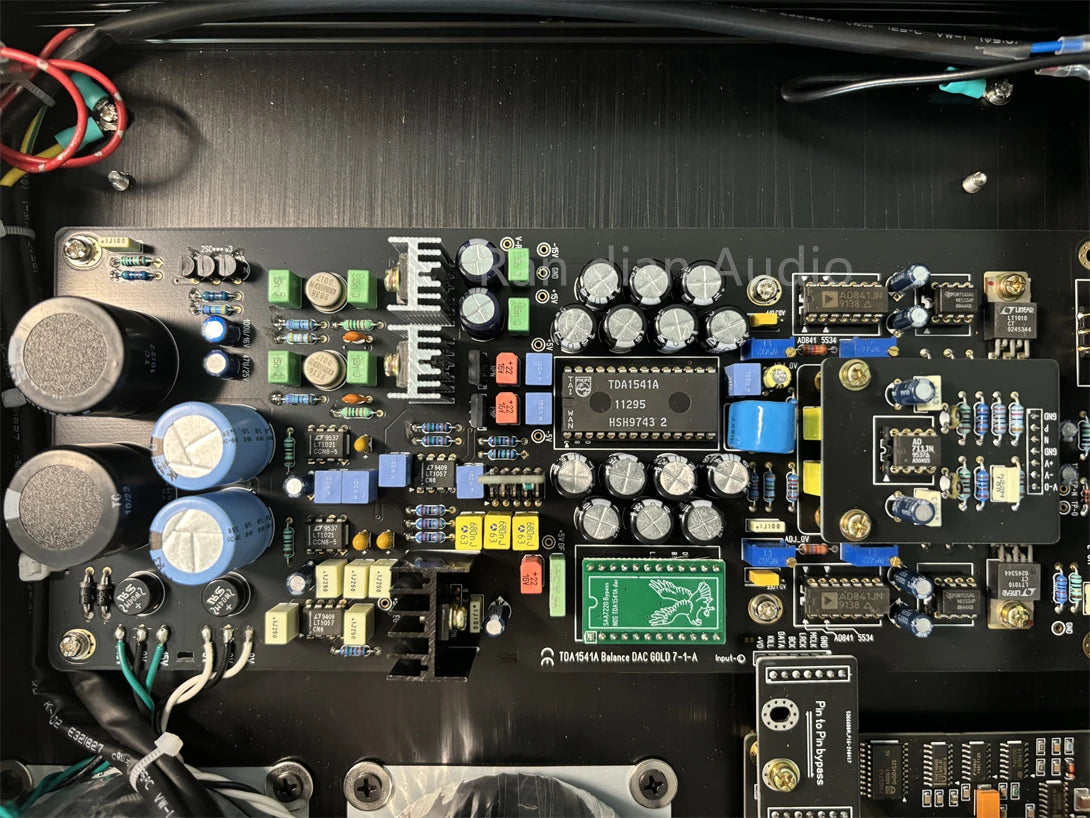

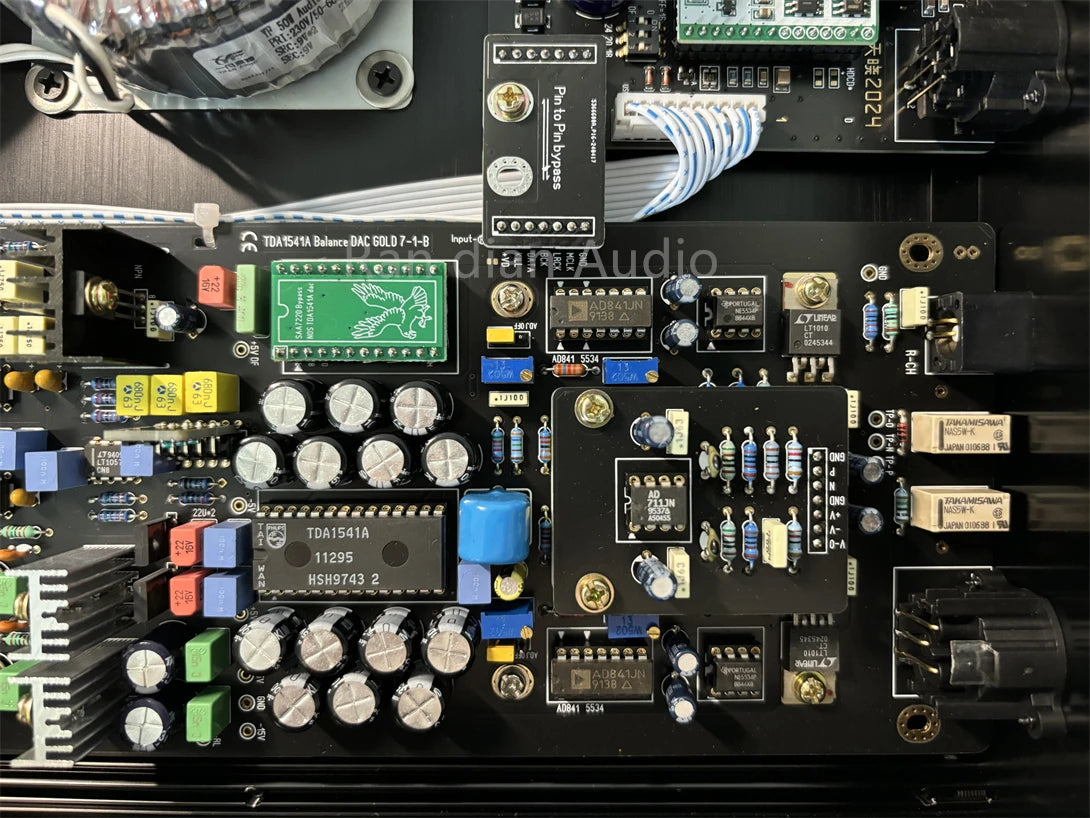

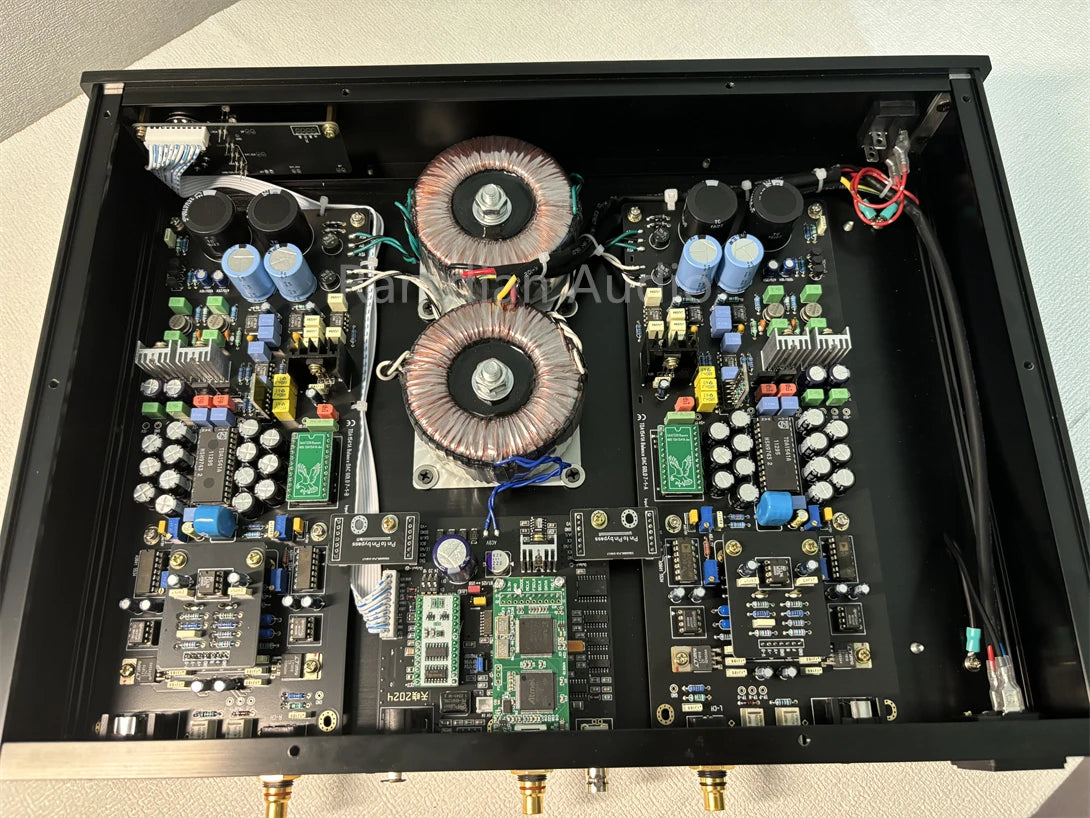

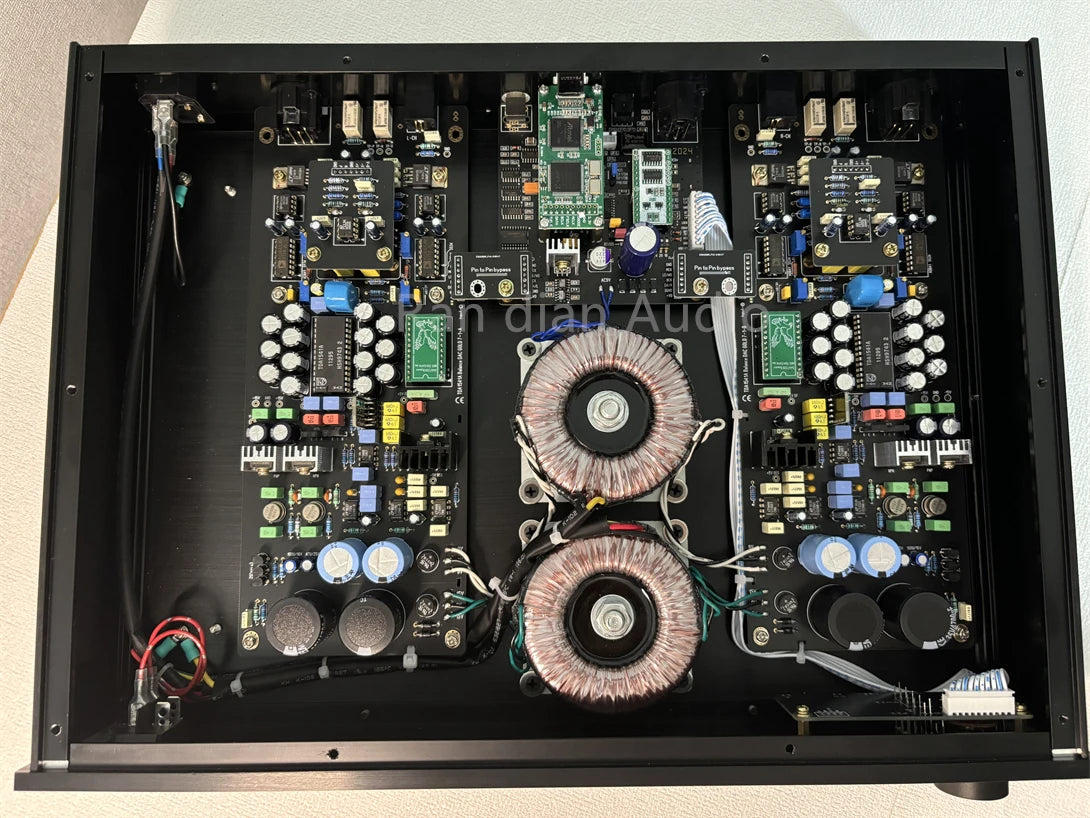

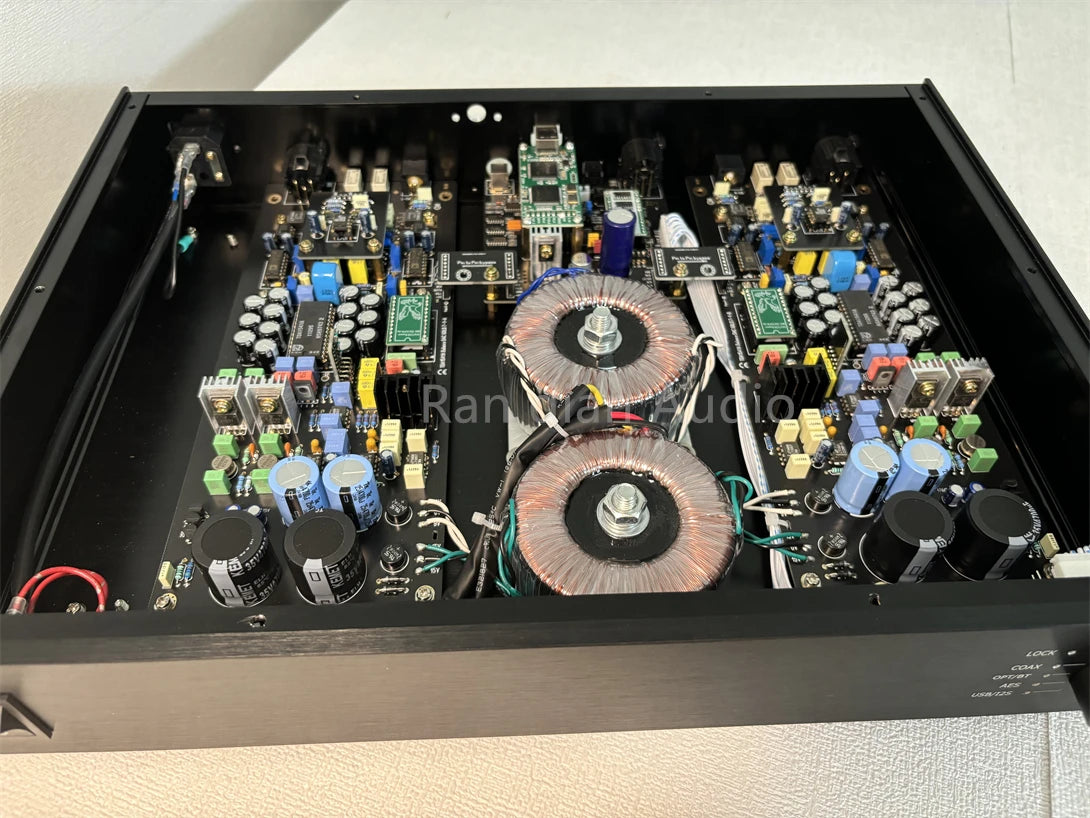

OS configuration default: CS8412CS+2 * SAA7220PC+2 * TDA1541A

NOS configuration default: CS8412CS+2 * TDA1541A

Supports external clock version:

0S configuration default: 2 * SAA7220PC+2 * TDA1541A

NOS configuration default: 2 * TDA1541A

Support for high-end external clock version: default configuration 2 * SAA7220PB+2 * TDA1541A, gold-plated IC socket for professional aging testing

Support external clock frequencies of 11.2896MHz&12.288MHz. Depending on the input signal with different sampling frequencies, we have a matching clock box. Please contact us.

All the above packages do not include USB or HDMI interfaces, I2S input cards, or Bluetooth by defaul!!!

Send silver panel machines by default. (If you need a black panel machine, please contact us)!!!!!!

Internal accessories are occasionally updated. No further notification. Thank you for your understanding!

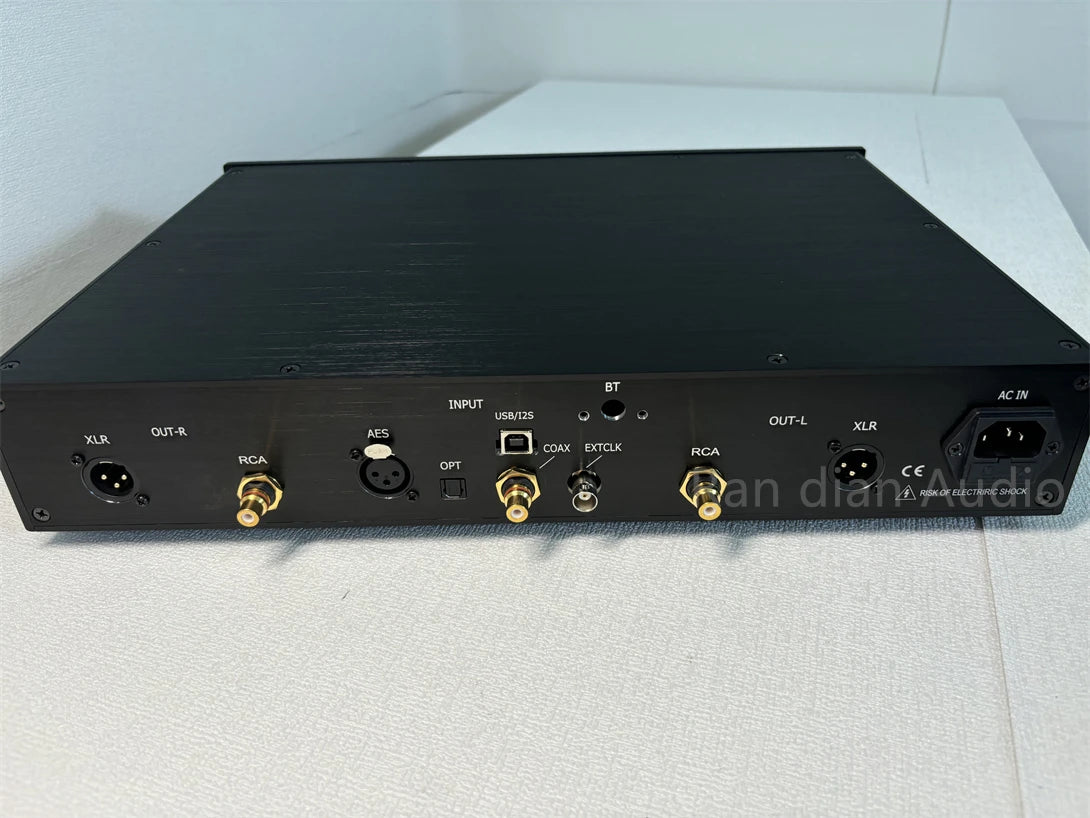

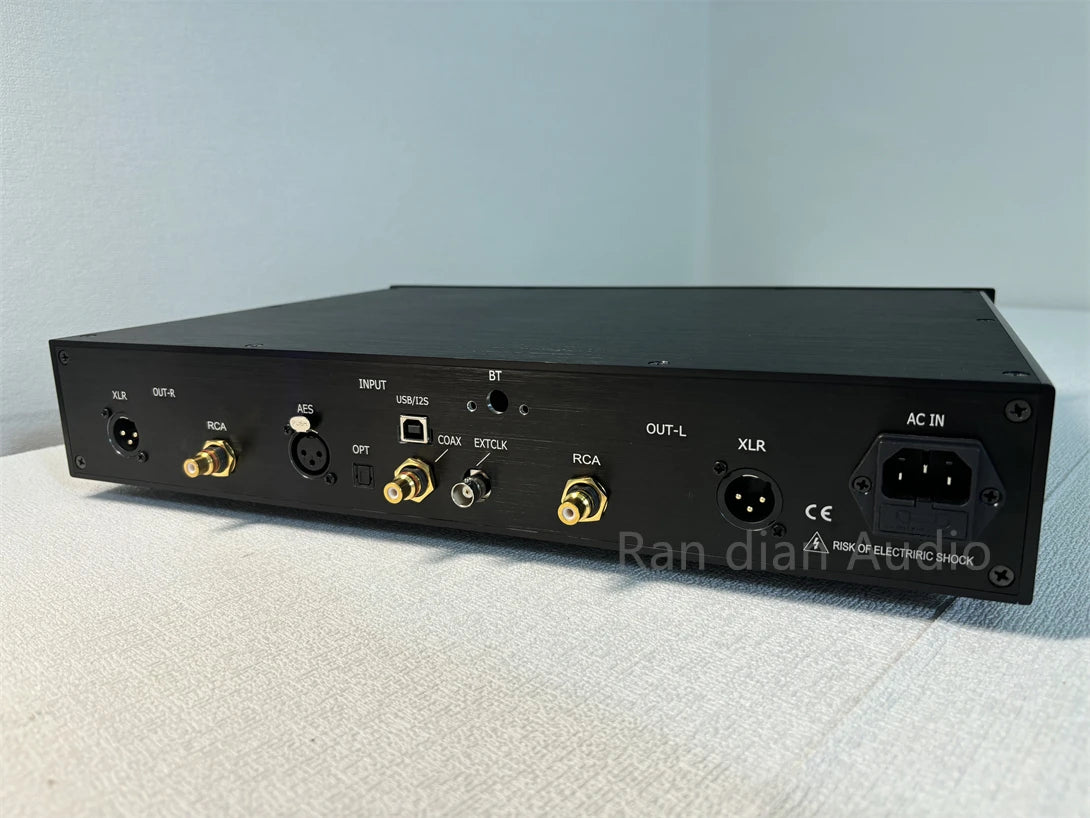

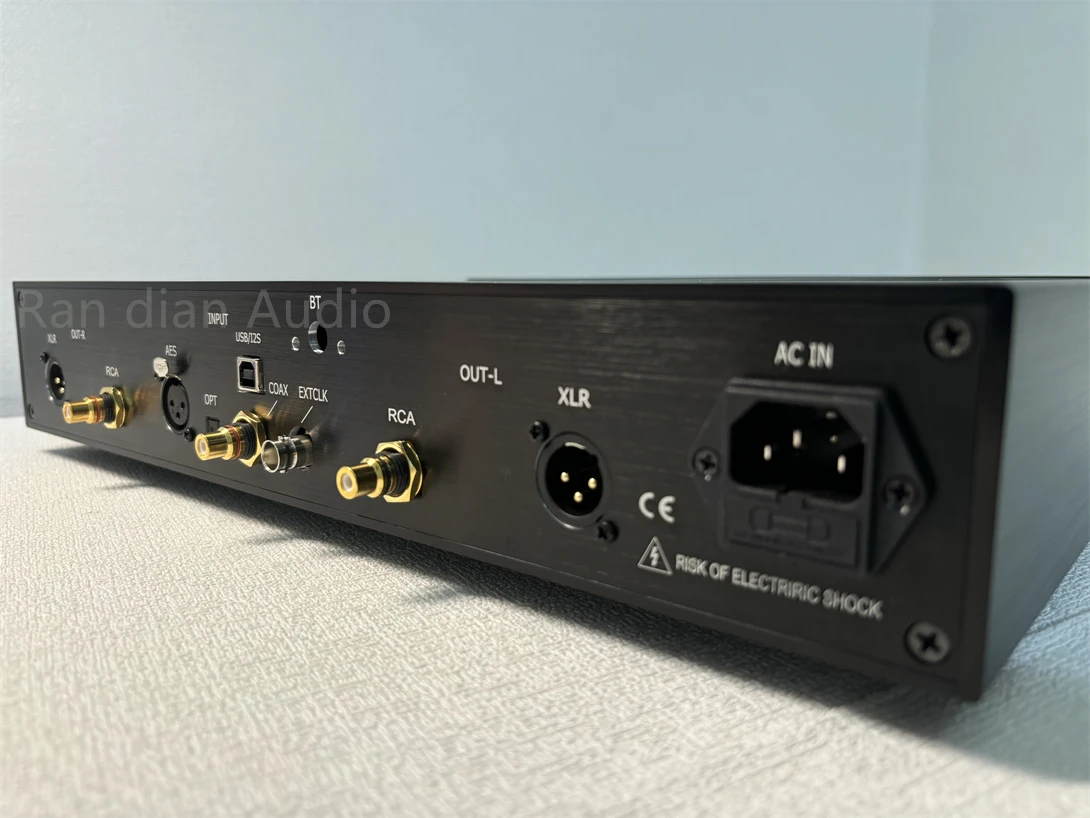

4 sets of signal inputs:

Coaxial, fiber optic, AES, USB

2 sets of analog audio outputs:

Single ended (RCA), balanced (XLR)

The standard version supports sampling rates of 44.1K and 48K (note: upgrading the N0S configuration to CS8412 can support up to 96K)

The external clock version supports a sampling rate of 44.1K, 48K, and NOS supports up to 96K in the conventional application mode 0S configuration;

The external clock version supports up to 192K in coaxial, fiber optic, and AES input modes for external clock applications

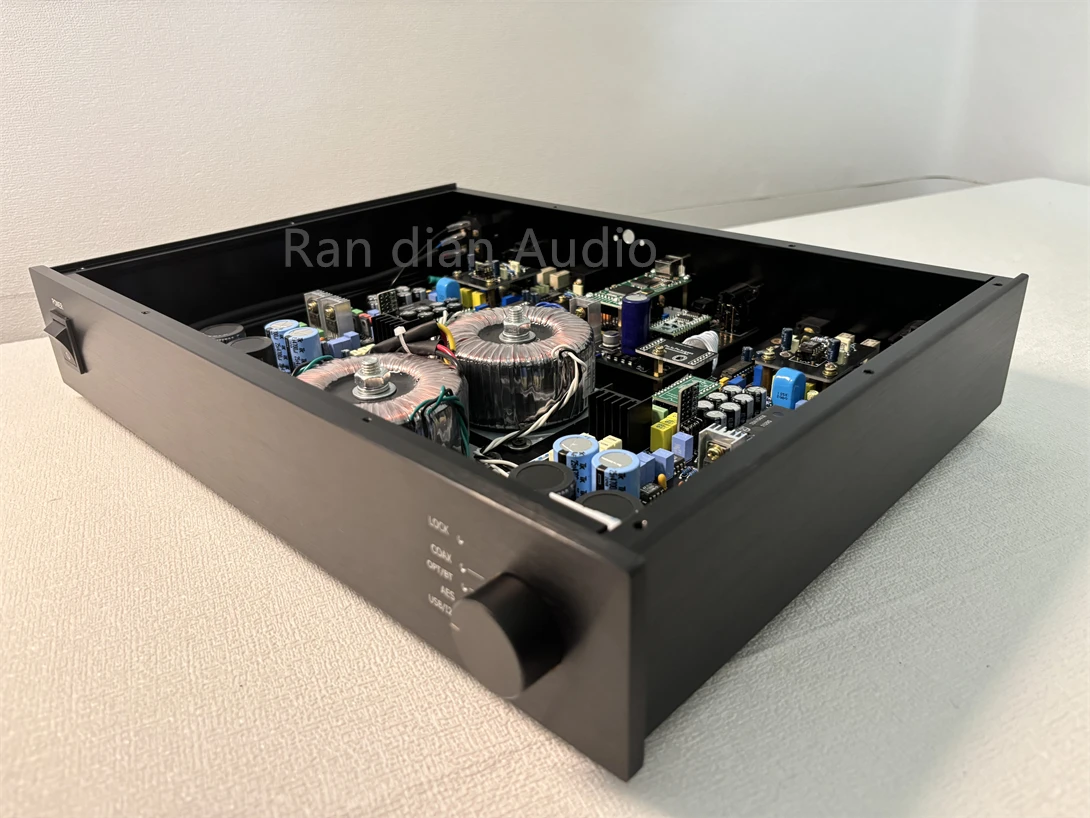

Case size reference (excluding dimensions of foot pads, connectors, and protruding knobs)

External dimensions: 430 wide x 63 high x 248mm deep

Weight: Approximately 6.6KG.
