SPECIFICATIONS

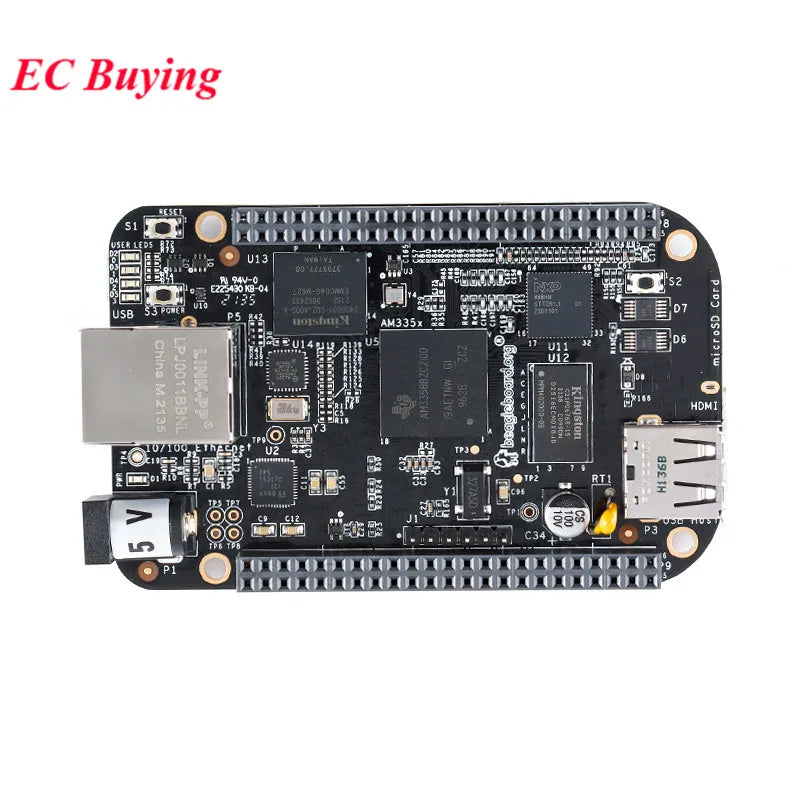

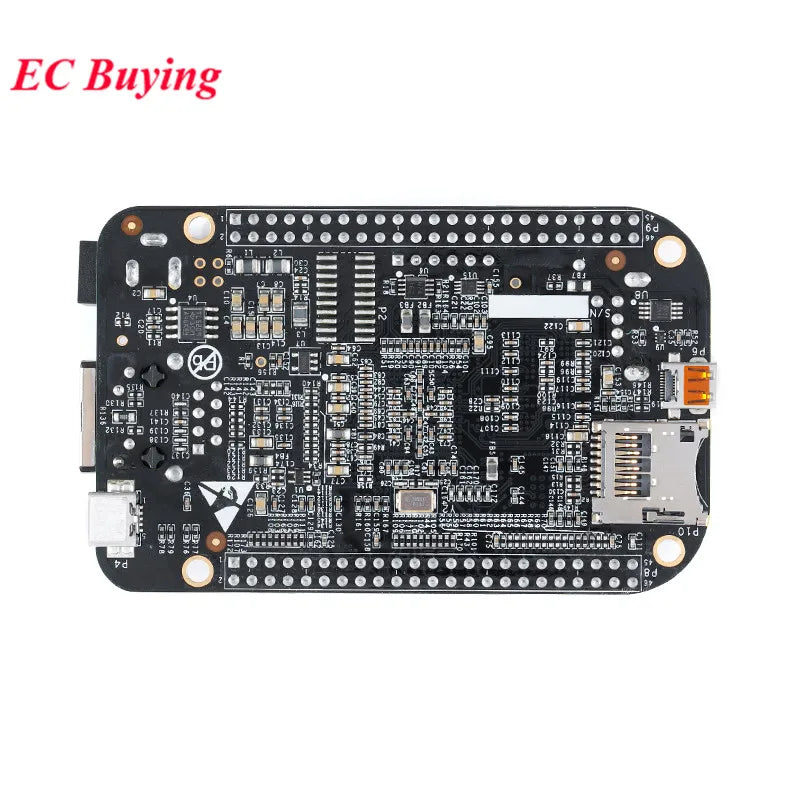

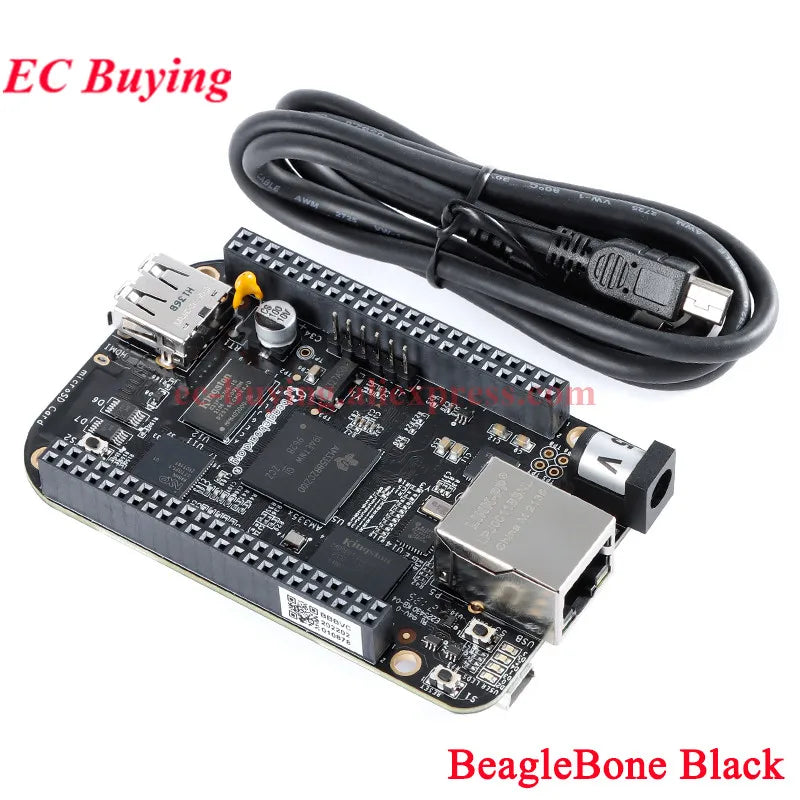

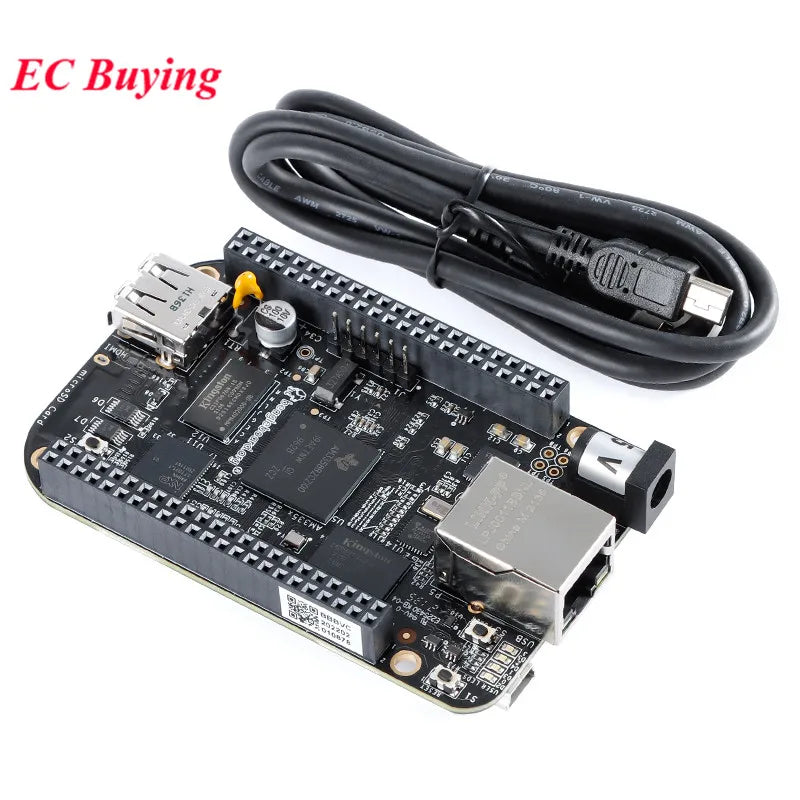

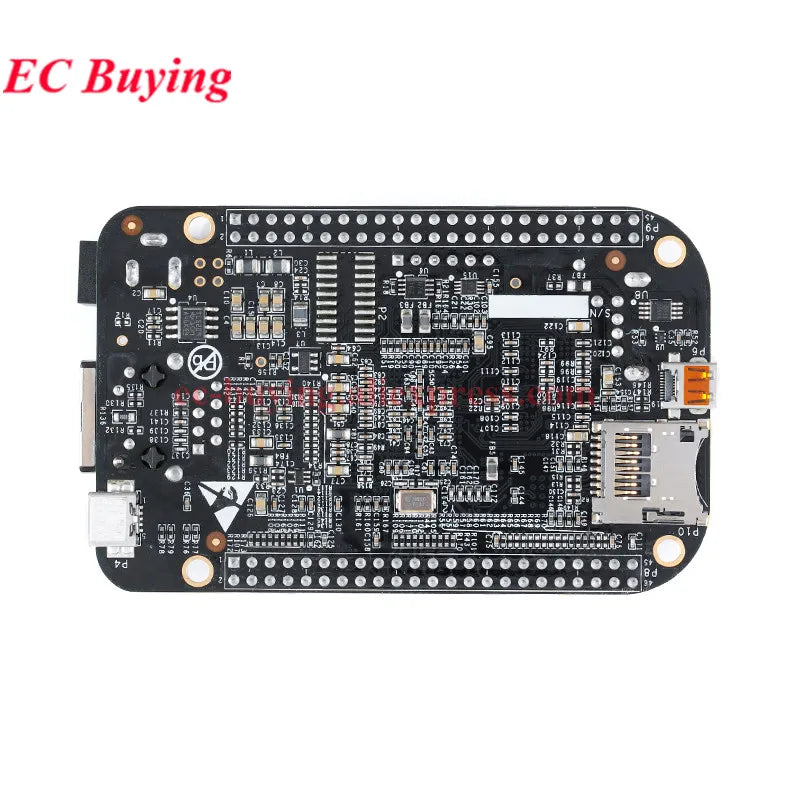

BeagleBone Black Rev.C is a development kit based on AM335x processor, it integrates ARM Cortex™-A8 core, processing speed up to 1GHz, and rich peripherals. Extensible interfaces are Ethernet, USB, OTG, TF card, serial port, JTAG, D-type HDMI, ADC, I2C, SPI, PWM and LCD. Embest BeagleBone Black Rev.C can be used to meet the needs of various scenarios, such as home industrial automation, consumer medical electronics, printers, smart toll systems, vending machine weighing systems, educational terminals, and high-end toys.

General parameters:

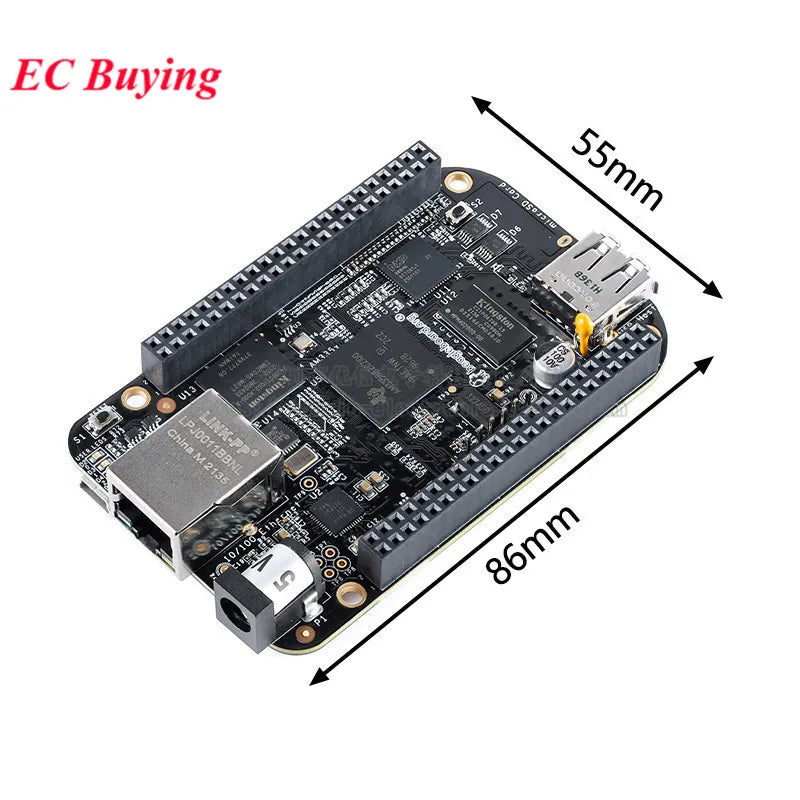

 Dimensions: 86.36mm×54.61mm

 Working temperature: 0 ~ 70℃

 Working humidity: 20% ~ 90% (Non-Condensing)

 Supply voltage 5V/0.35A

 AM335x processor

Integrated 1GHz ARM Cortex™-A8 core

 Integrated NEON™ SIMD coprocessor

 Integrated SGX530 graphics engine

 Integrated real-time programmable subsystem unit

 Integrated 32KB instruction cache and 32KB data cache with one parity bit

 Integrated 256KB second-level fast memory with error detection code Onboard memory

 4GB 8-bit eMMC onboard flash

 512MB DDR3 SDRAM

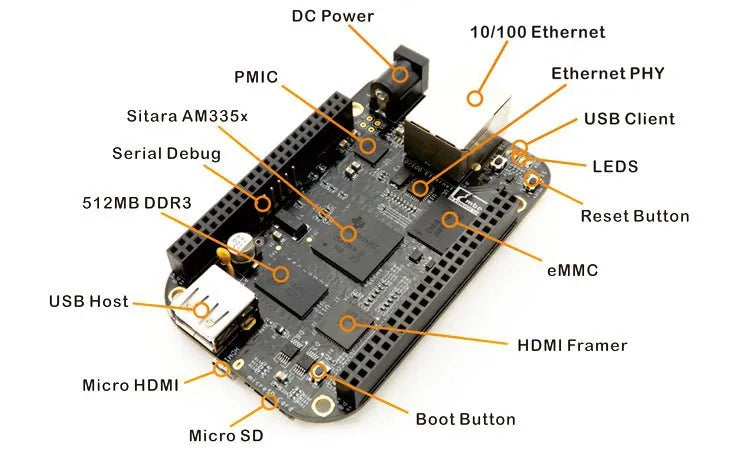

Onboard Interface:

 1 D-type HDMI connector (16-bit color and audio output)

 1 LCD port (24-bit output, P8 port output)

 1 10/100M Ethernet interface (RJ45 connector)

 1 high-speed USB 2.0 OTG interface with PHY (Mini USB type-B connector)

 1 high-speed USB 2.0 HOST interface with PHY (USB type-A connector)

 1 TF card slot (SD/MMC)

 1 3-wire debug serial port (6-pin 2.54 connector)

 1 D-type HDMI port

 1 expansion interface, can connect LCD, UART, eMMC, ADC, I2C, SPI and PWM

 1 JTAG interface (optional, 20-pin standard interface, not soldered by default)

Keys & Lights:

 1 power-on selection button

 1 power switch

 1 reset switch

 1 LED power indicator

 4 regular indicators System block diagram

 Operating System: Debian, Angstrom, Ubuntu, Android

Device driver:

 Uart: Uart driver

Ehternet: 10/100 IEEE1588

 Display: HDMI Driver  mmc/sd: SD 2.0 /eMMC driver

 USB: Hi-Speed USB Driver

 Led: User LED driver supports Debian system

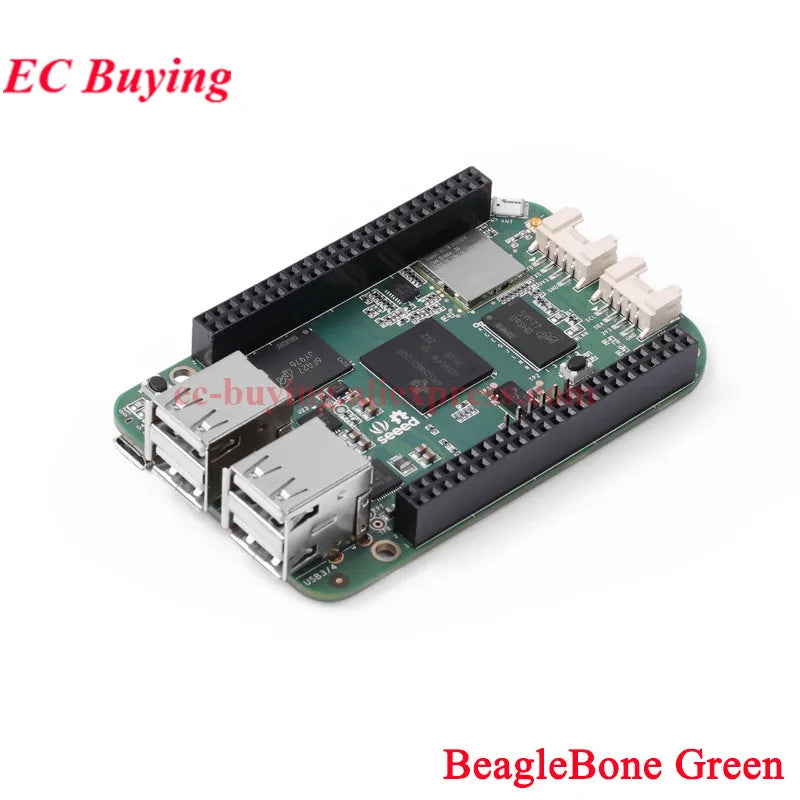

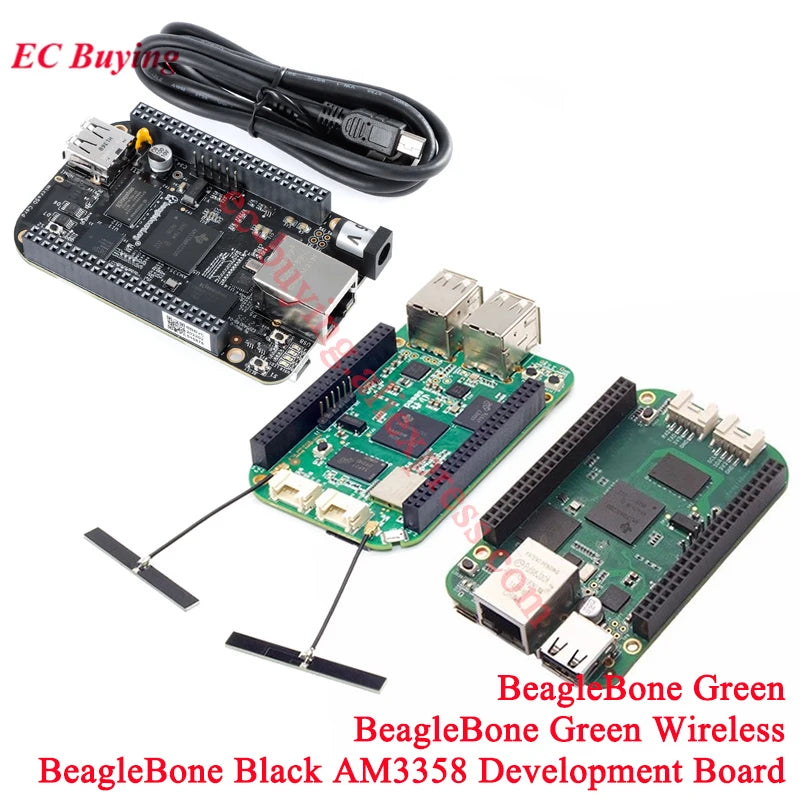

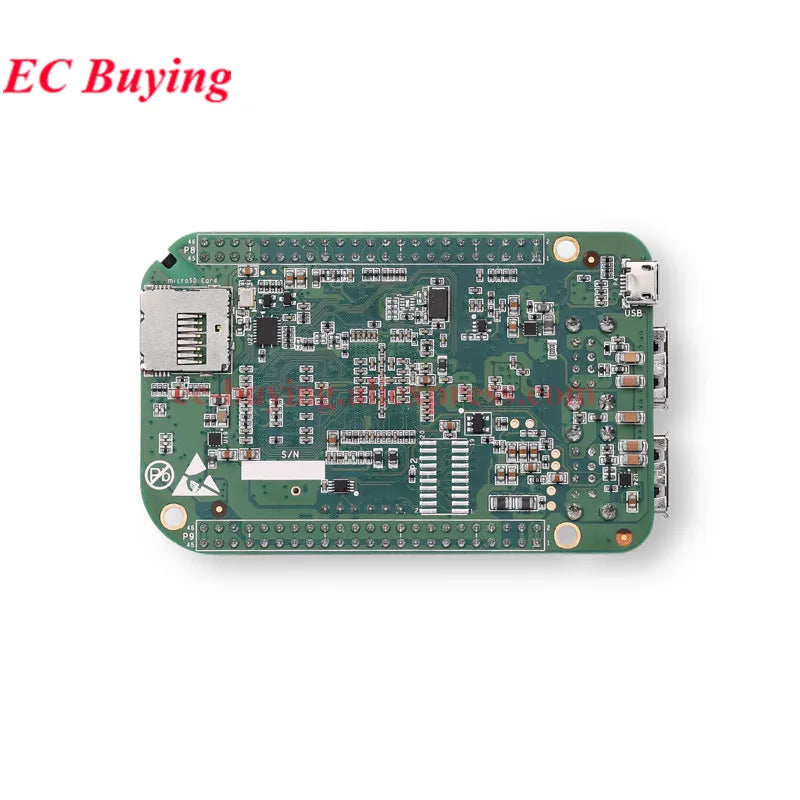

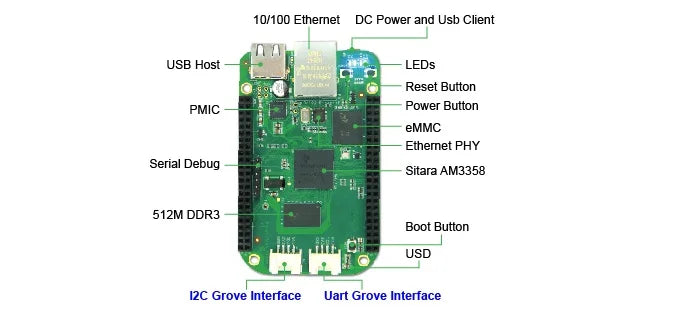

BeagleBone Green Development Board

USB Host - USB Host

DC Power and USB Client - Power the board and act as client

LEDs

D2 is configured at boot to blink in a heartbeat pattern

D3 is configured at boot to light during microSD card accesses

D4 is configured at boot to light during CPU activity

D5 is configured at boot to light during eMMC accesses

Boot button

When there's a SD card insert, the system will boot from SD card first, if you want to boot from eMMC, press this button and then power on.

Use as a normal button after boot, connect to GPIO_72

I2C Grove Interface - Connected to I2C2

Uart Grove Interface - Connected to UART2

Serial Debug - Connect to UART0, PIN1~PIN6: GND, NC, NC, RX, TX, NC, note that pin1 is near to the USB.

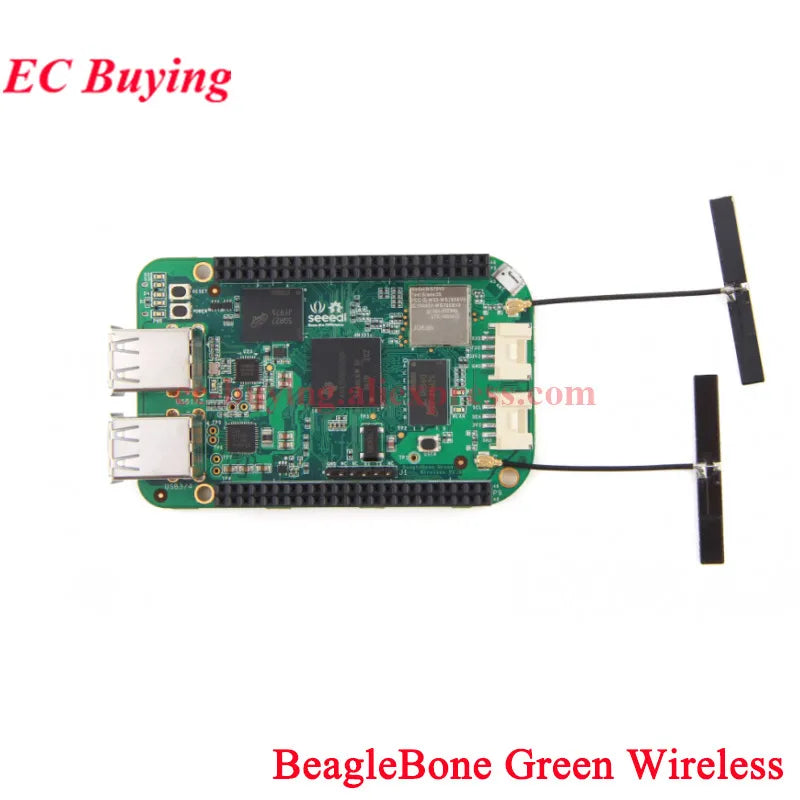

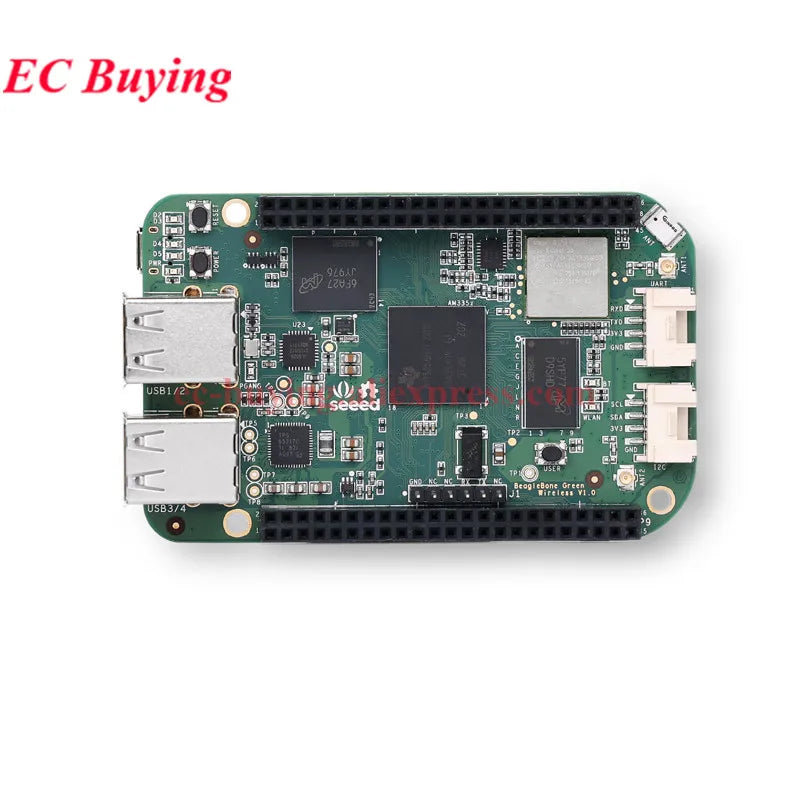

BeagleBone Wireless Development Board
