SPECIFICATIONS

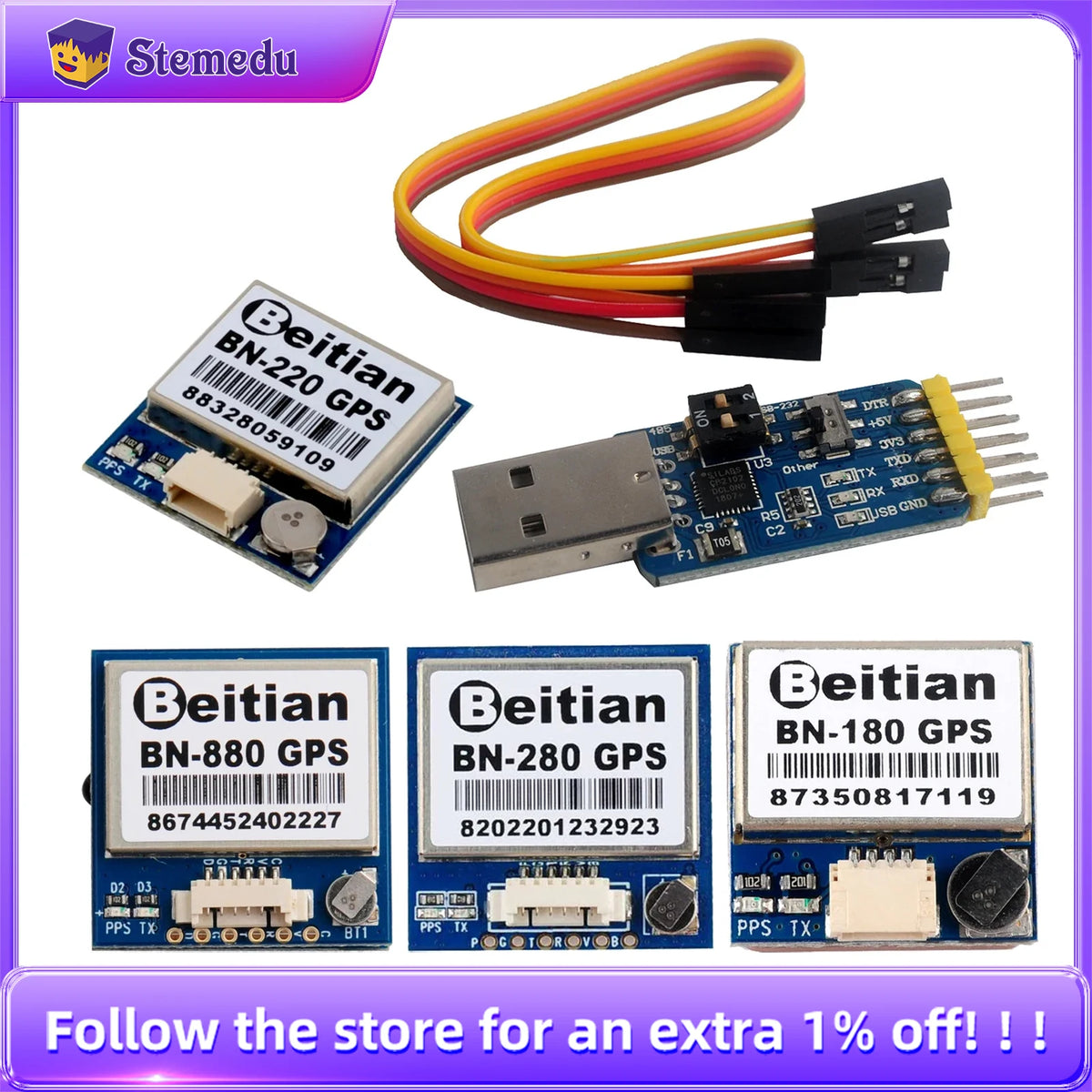

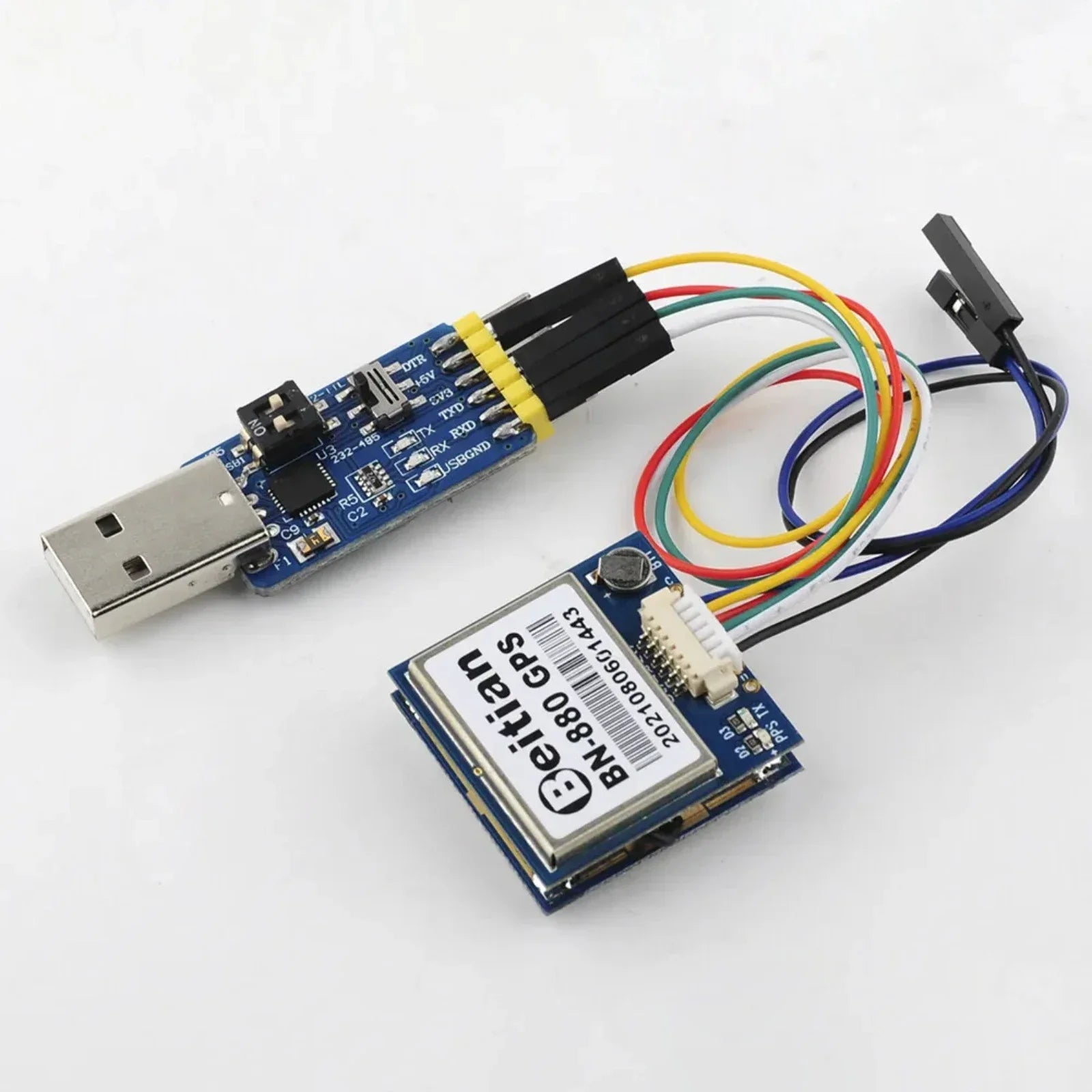

Beitian BN-180~880 GPS module GLONASS antenna module TTL level with CP2102 serial port module USB to TTL flight control

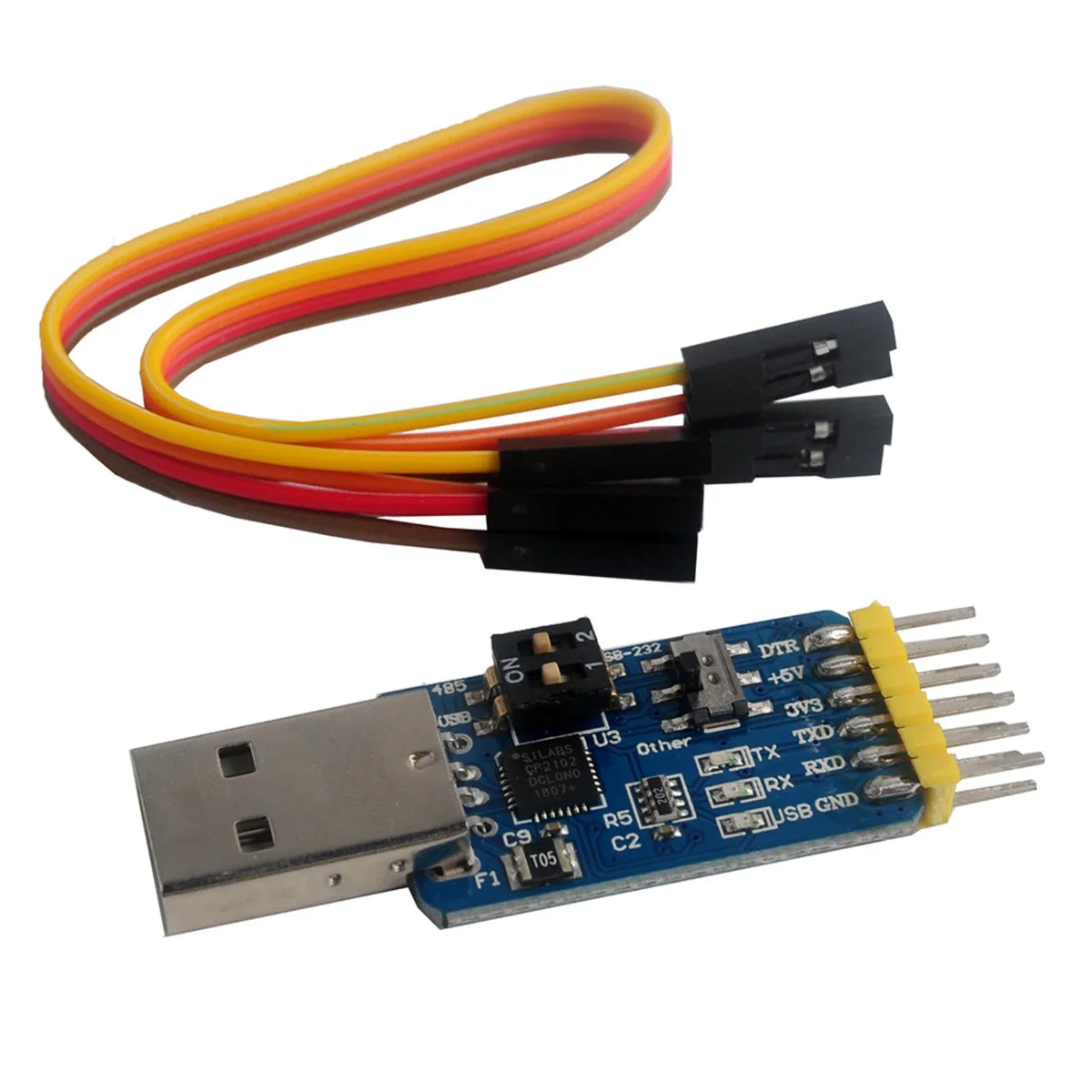

Serial Module

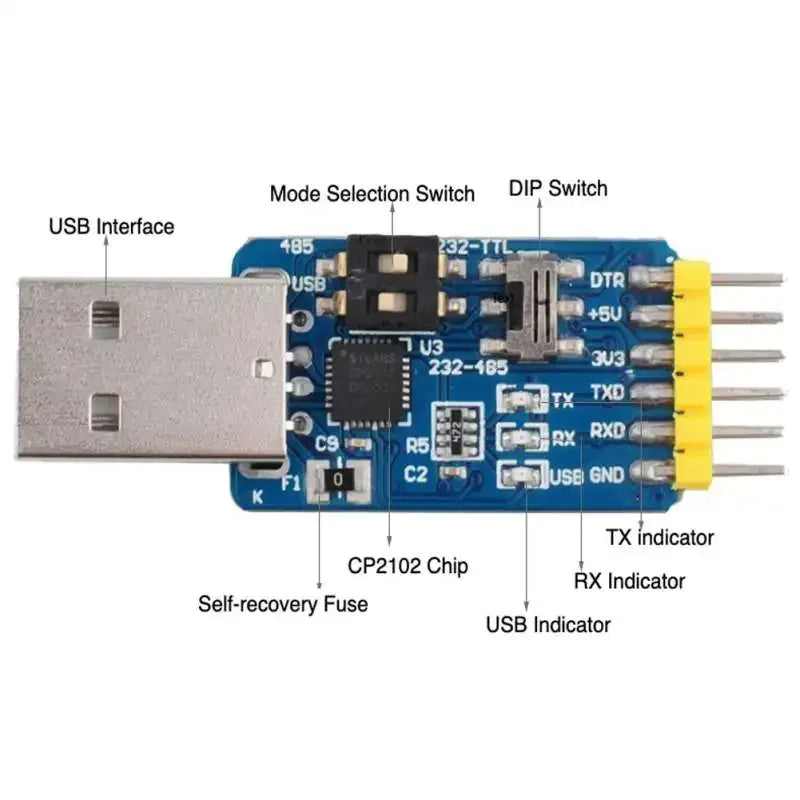

6 in 1 CP2102 Serial Module USB to TTL 485 3.3V 5V
Description:
Core chip: CP2102
Small size:3.1 X 1,8CM
Compatible with 3.3V and 5V
Power suppy output
Overcurrent protection

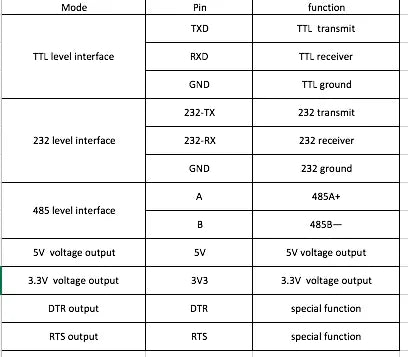

TTL level interface
RS232 level interface
RS485 level interface
Four level can exchange freely
High-speed communication
DTR,RTS signal

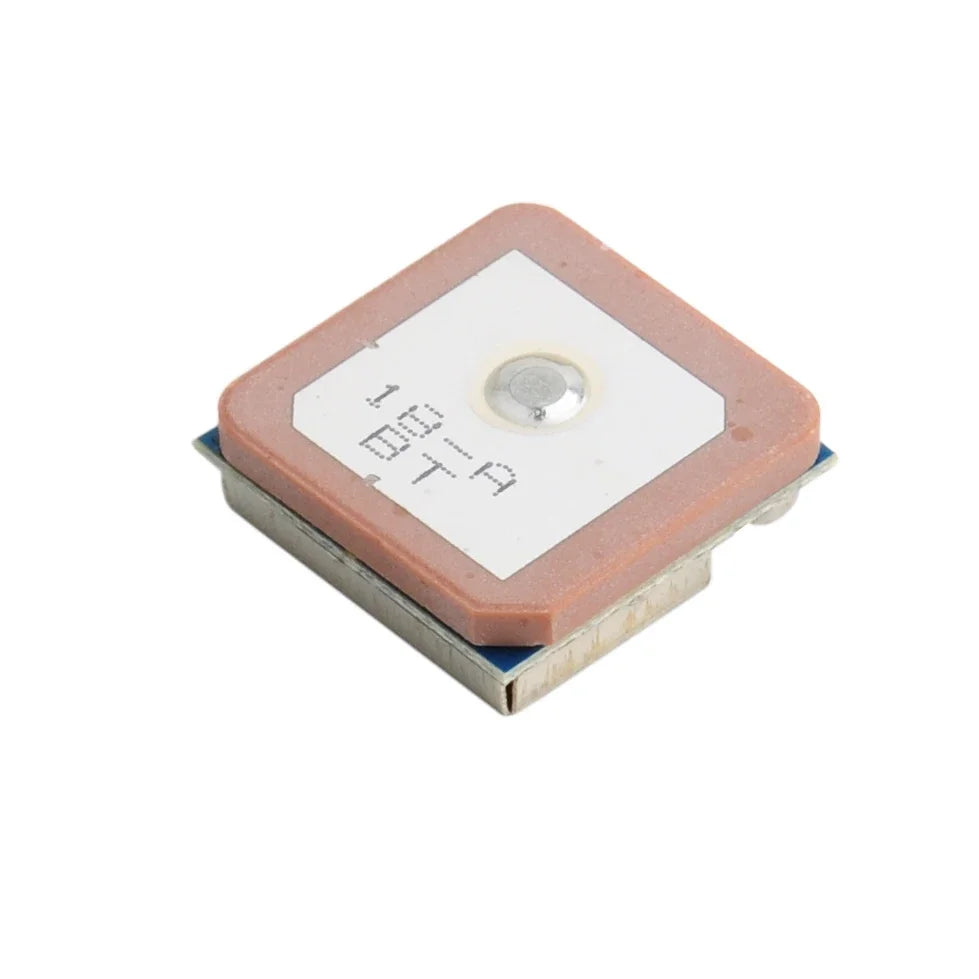

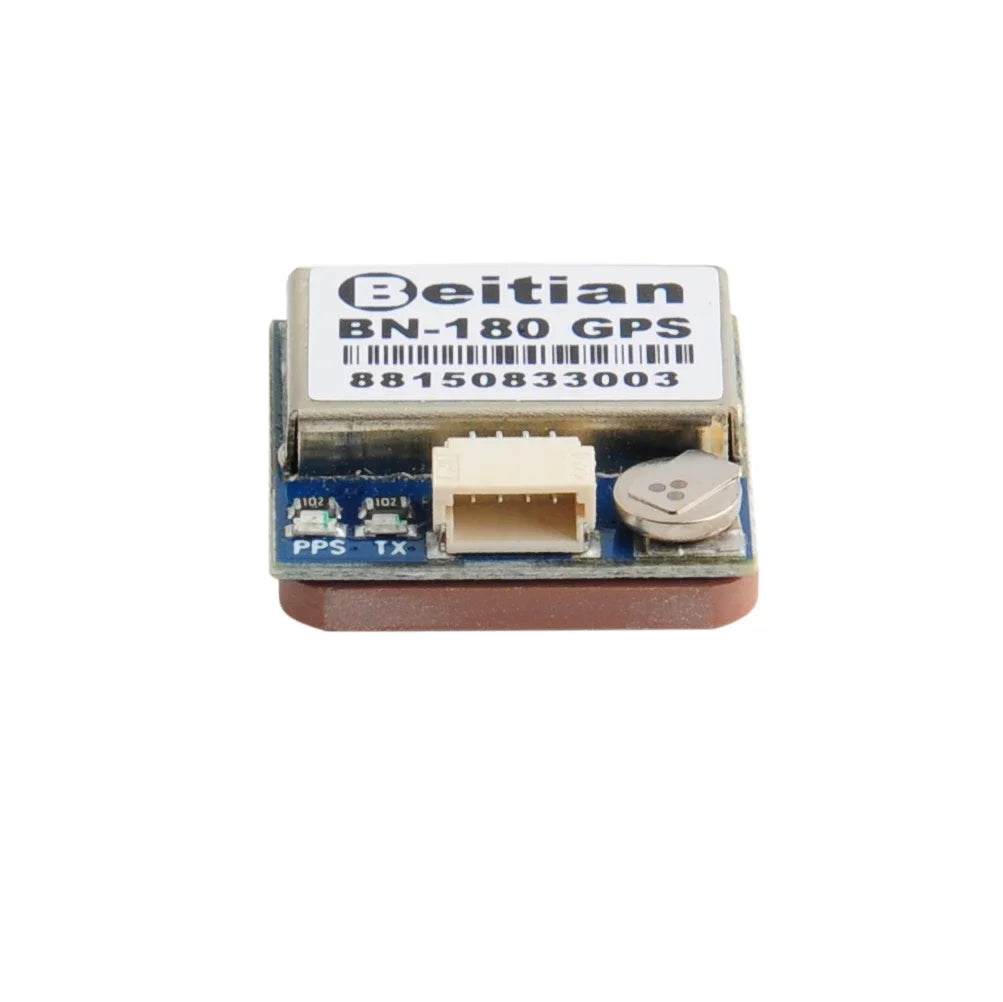

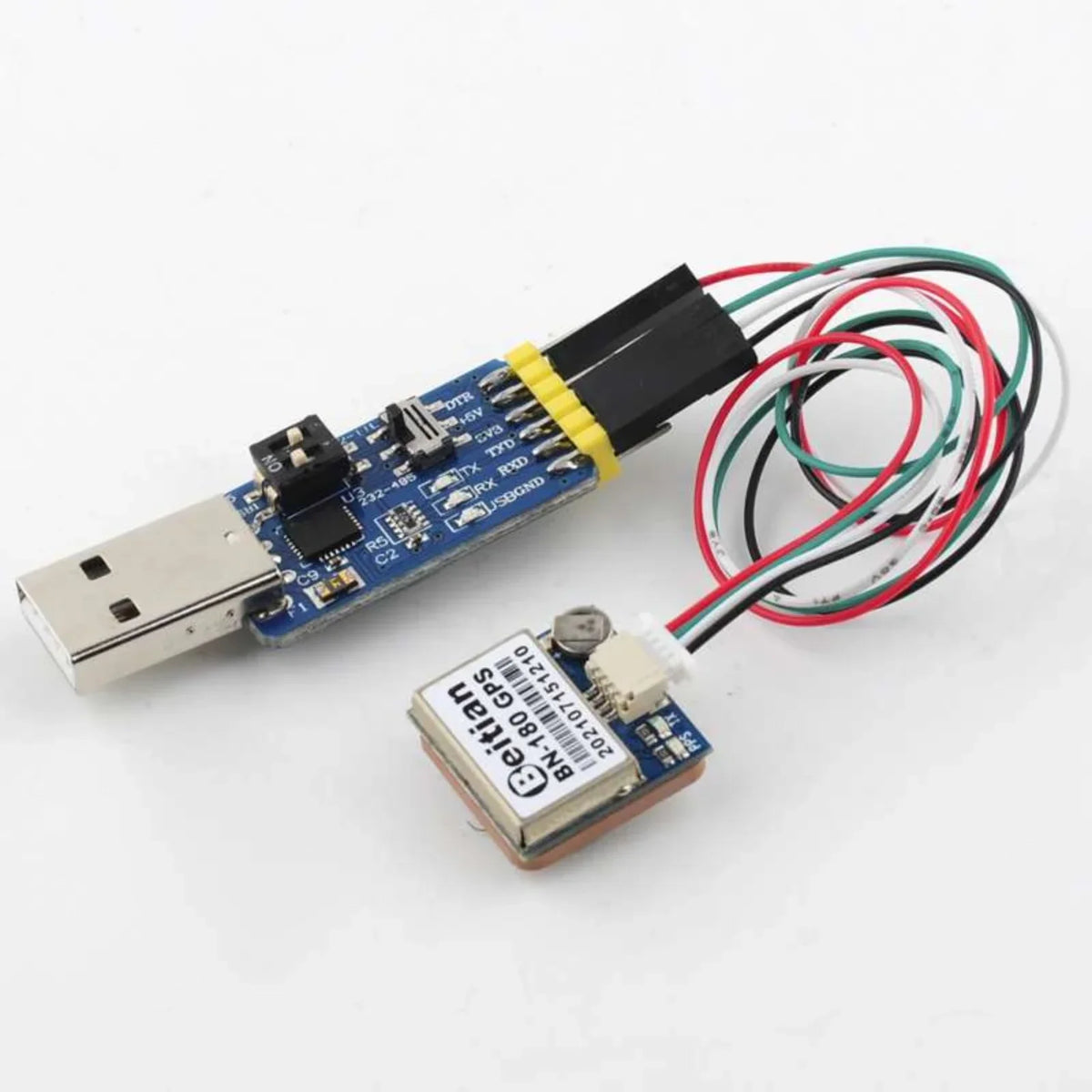

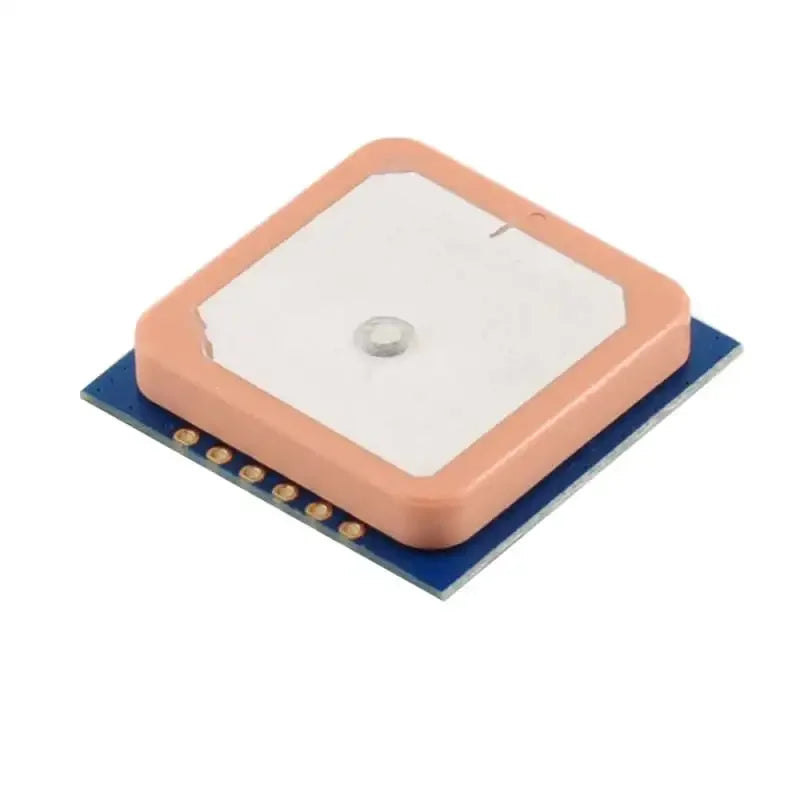

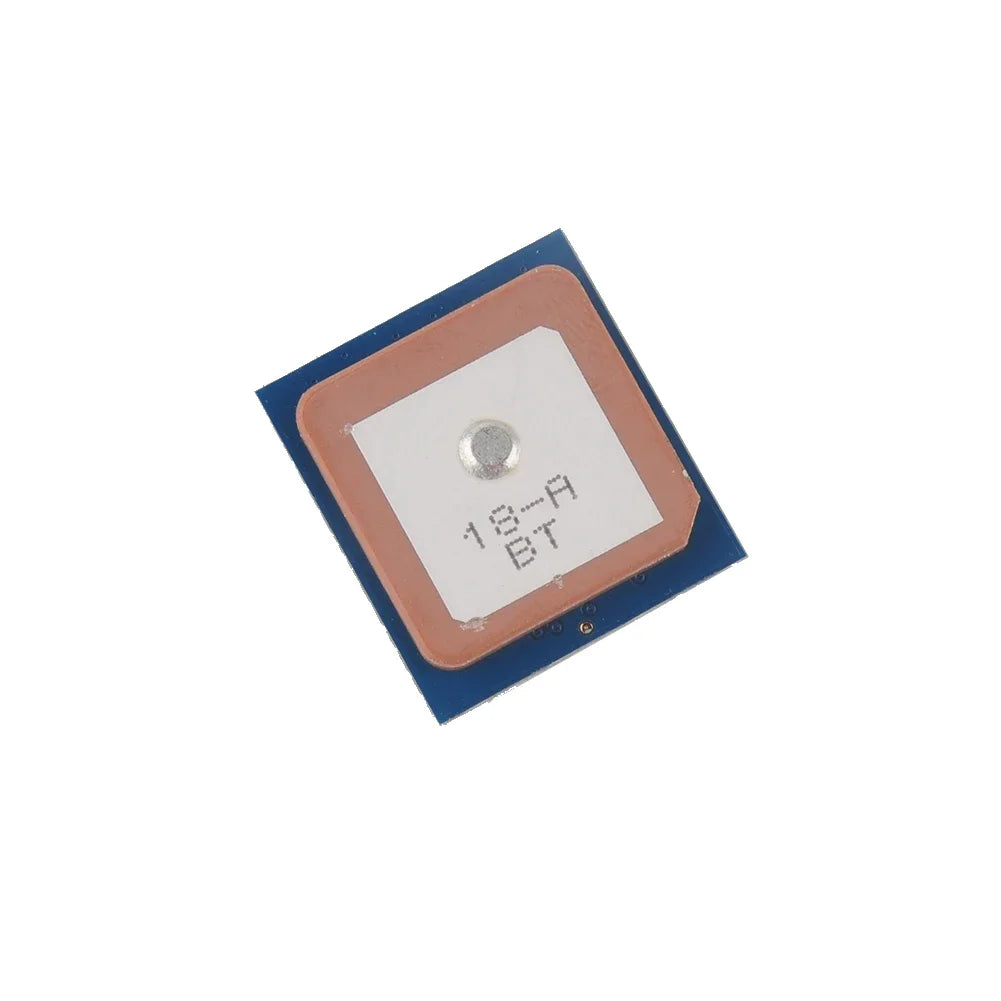

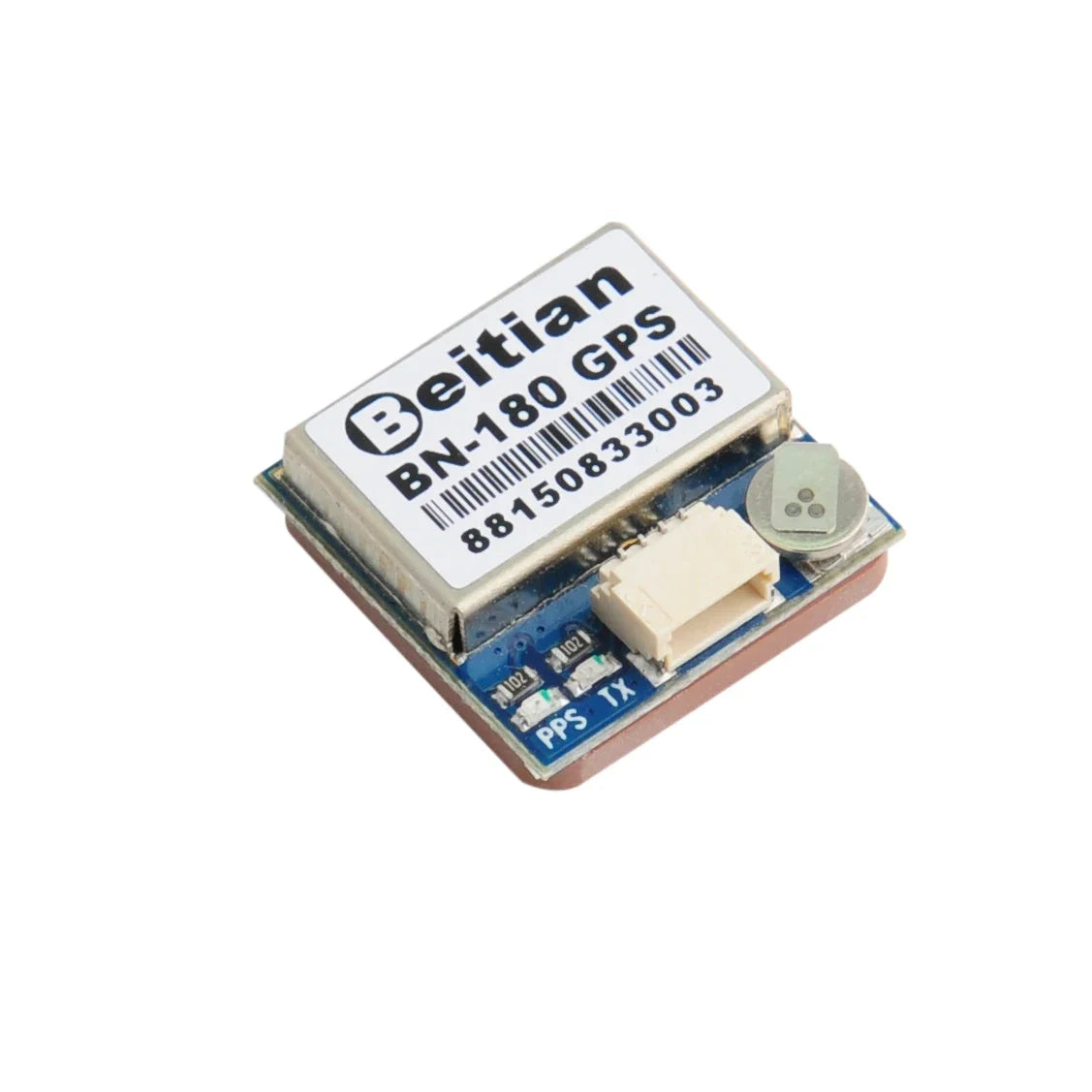

BN-180 GPS Kit

Mini GPS Module Dual GLONASS+GPS Micro Double Antenna U-blox M8030-KT UART TTL For CC3D F3 Flight Controller BN-180 without flash and compass

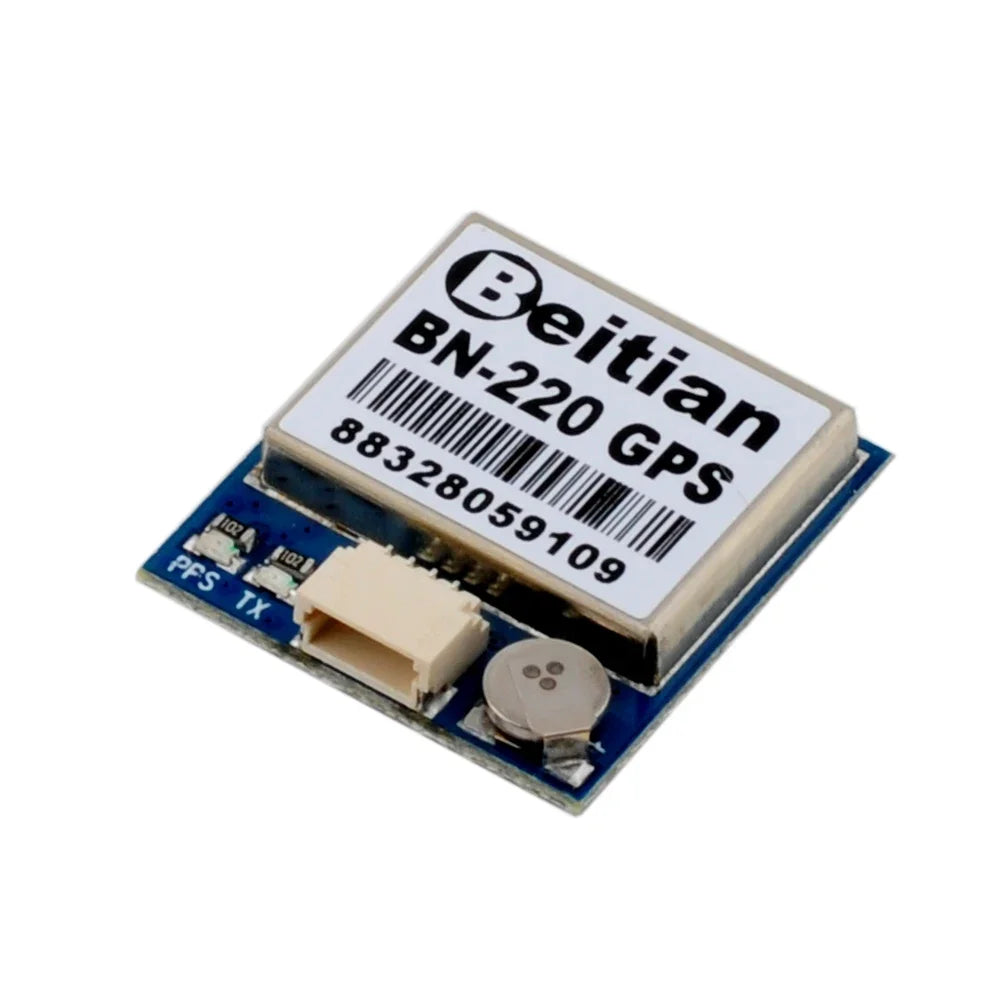

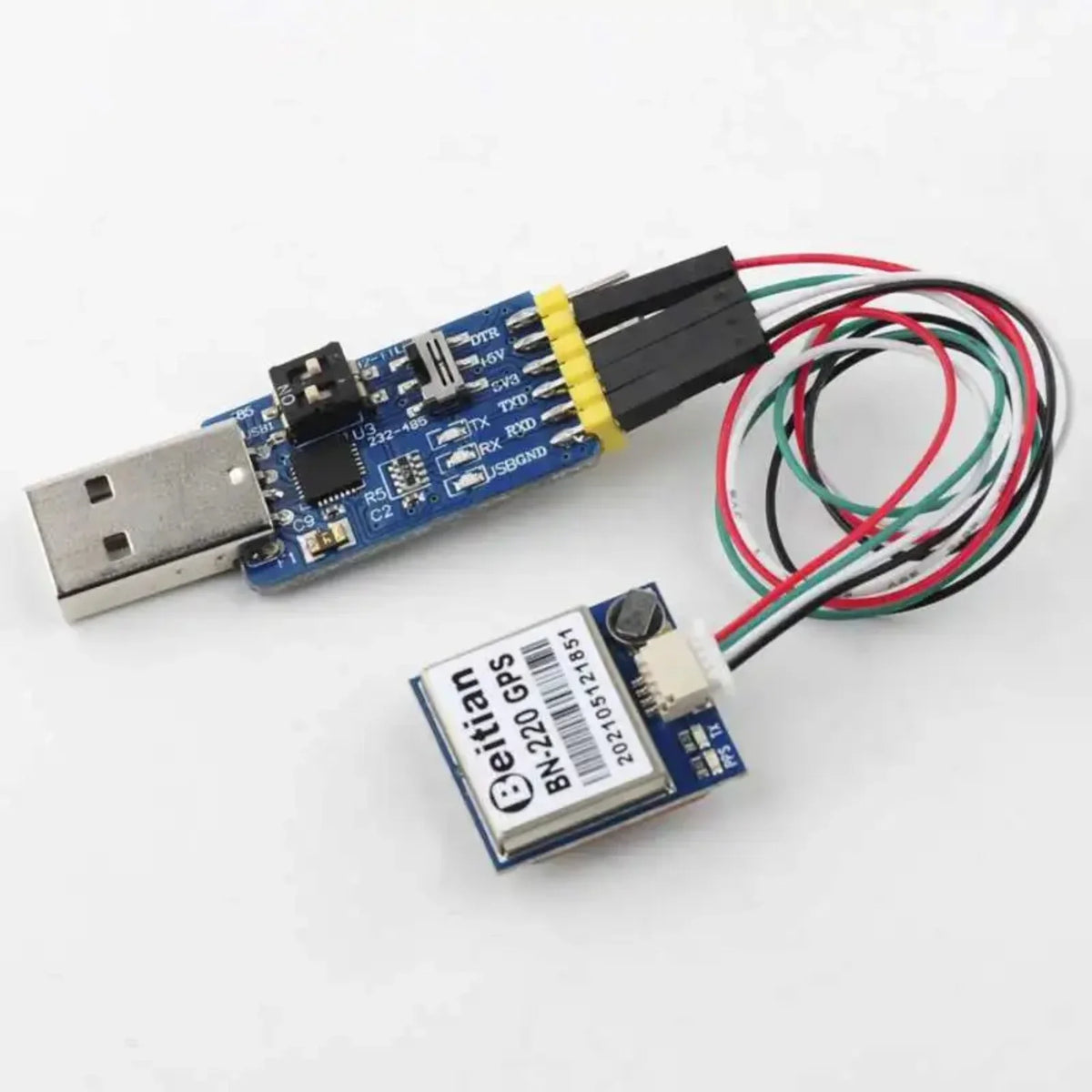

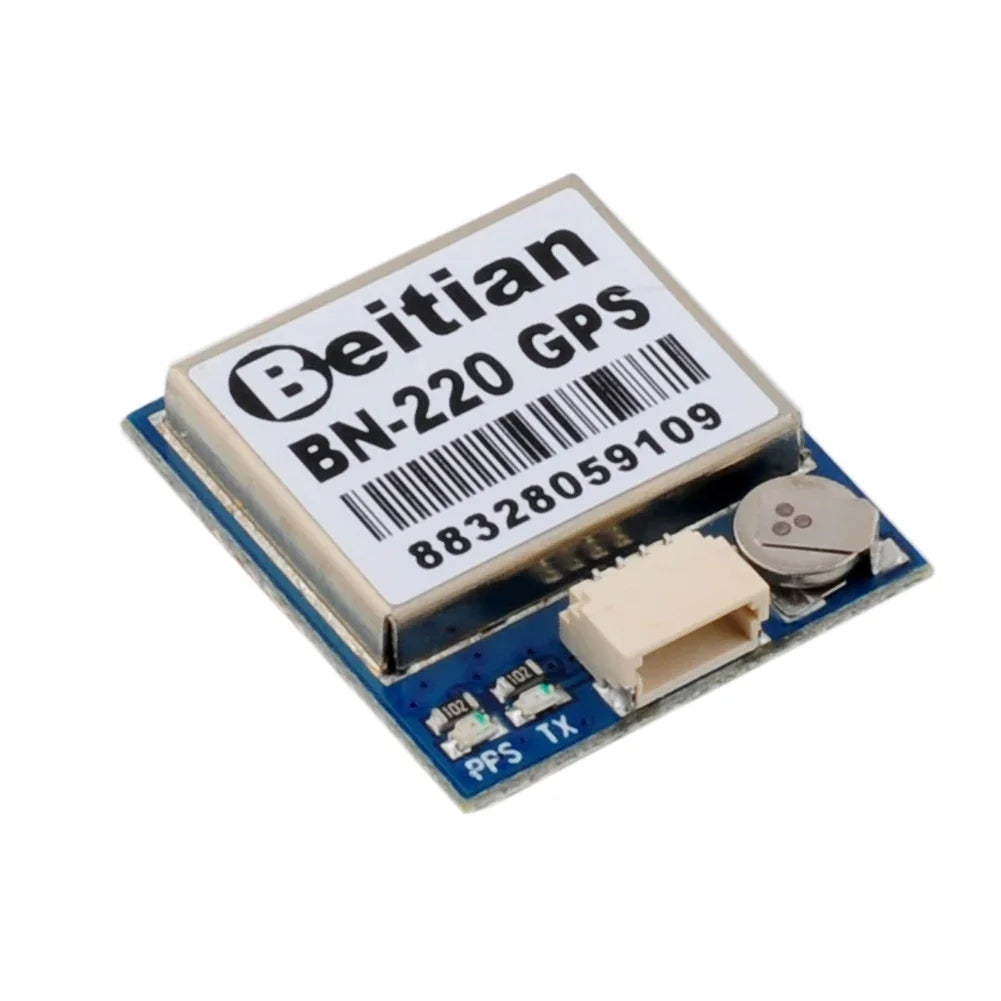

BN-220 GPS Kit

Beitian BN-220 GPS Module GLONASS Antenna Module TTL Level for Flight Controller
Description:
Dimension : 22mm*20mm*6mm
Module Weight : 5.3g
Connector : 1.00mm spacing between the 4pins patch seat
Specification
Electrical Characteristics
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel

Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm

Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time
Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 515m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

Indicator :
TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

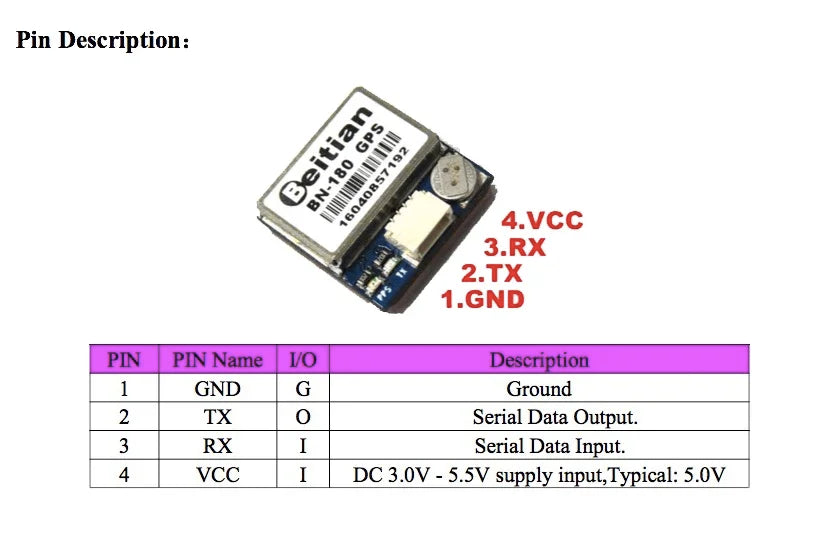

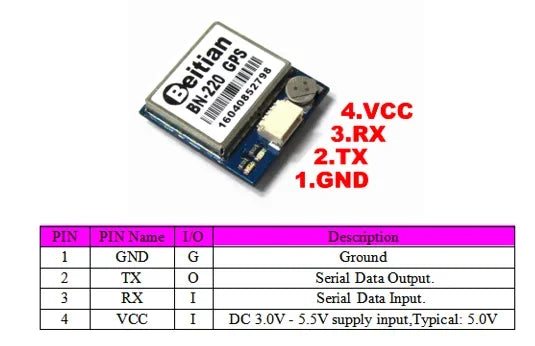

Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)

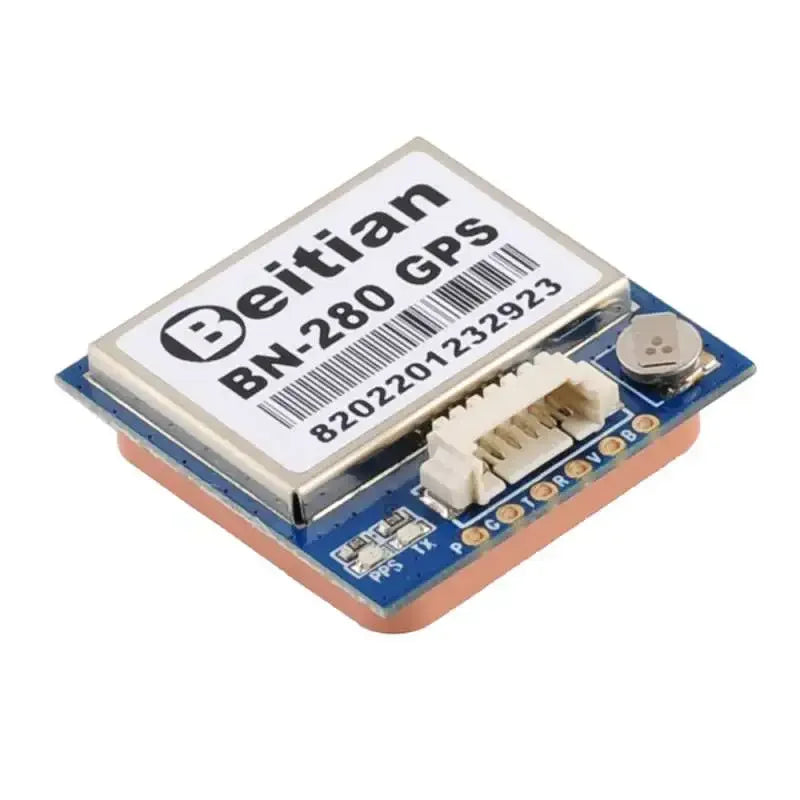

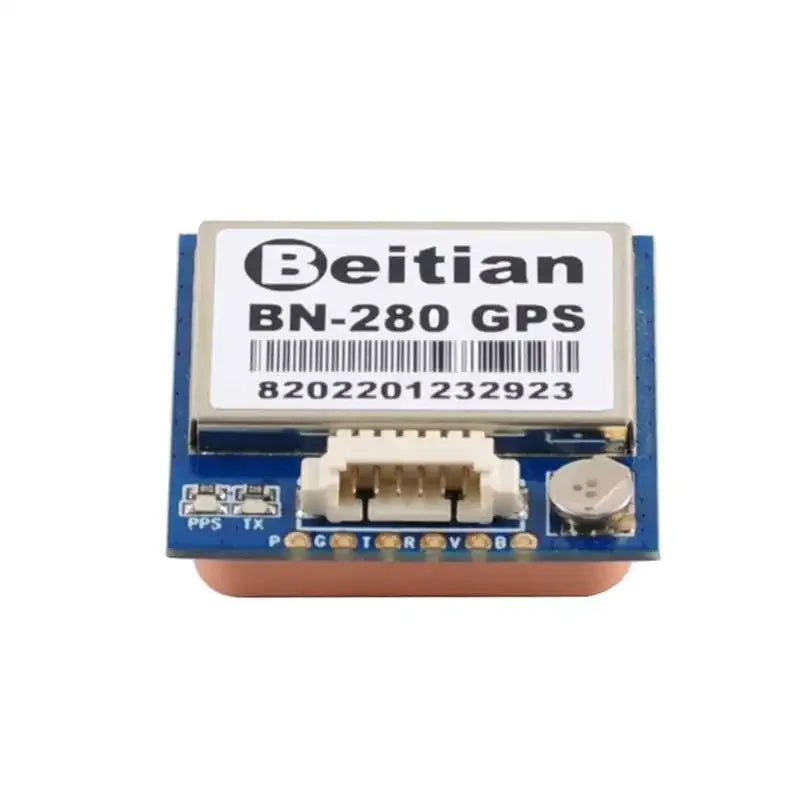

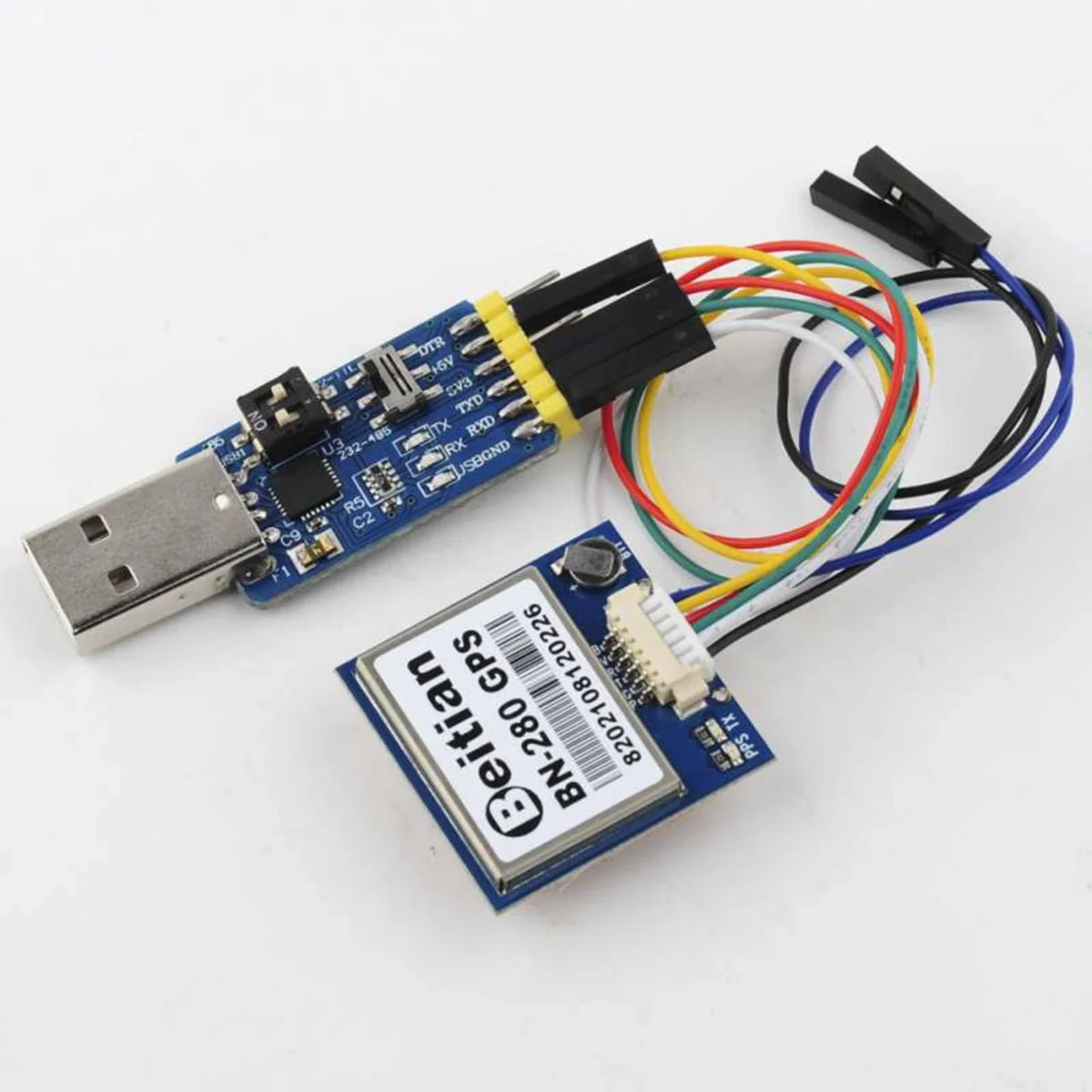

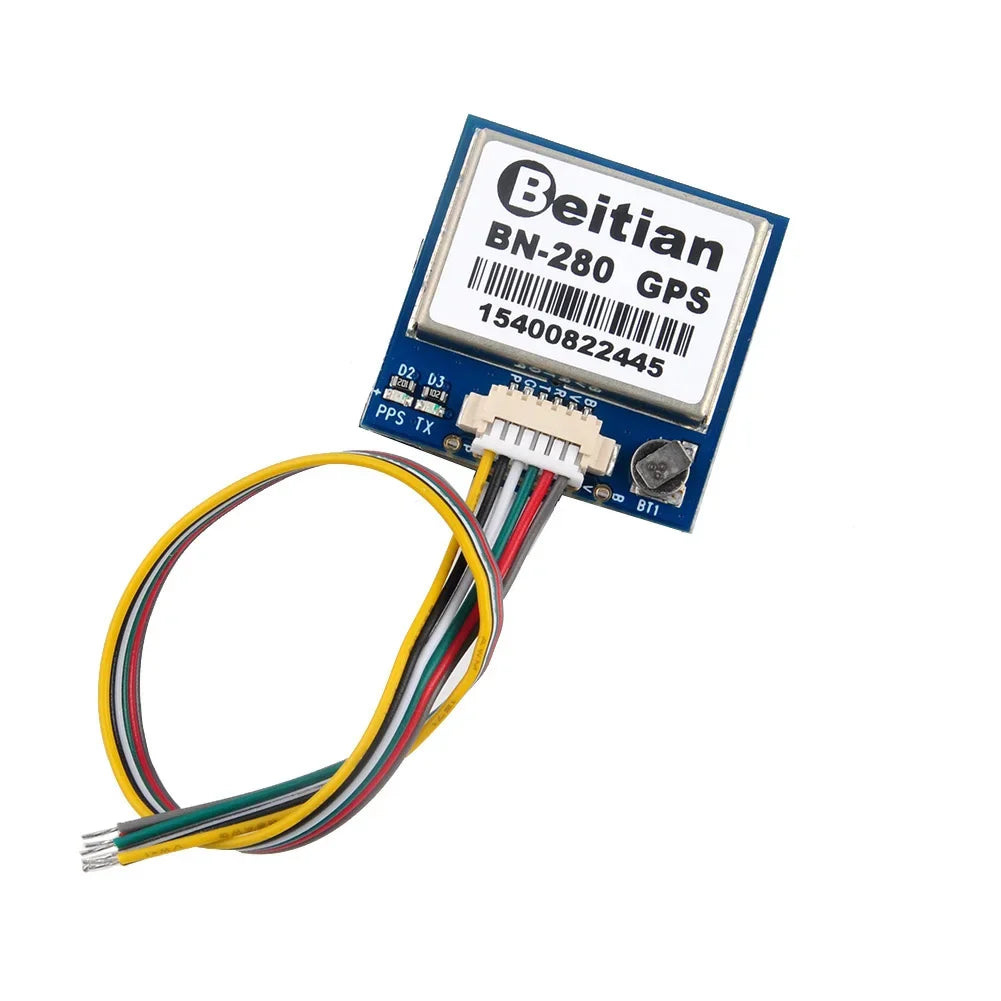

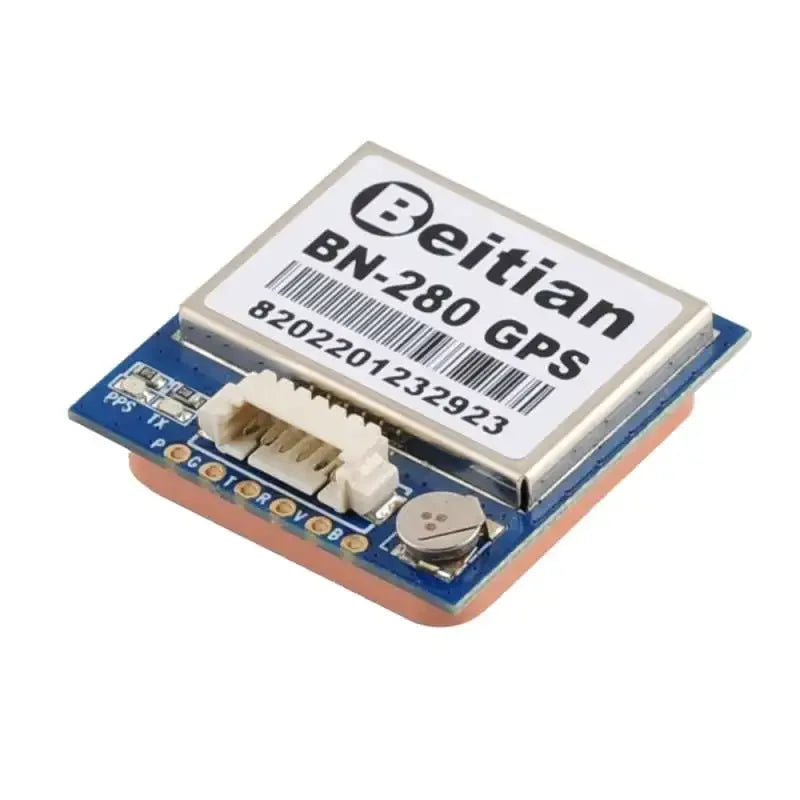

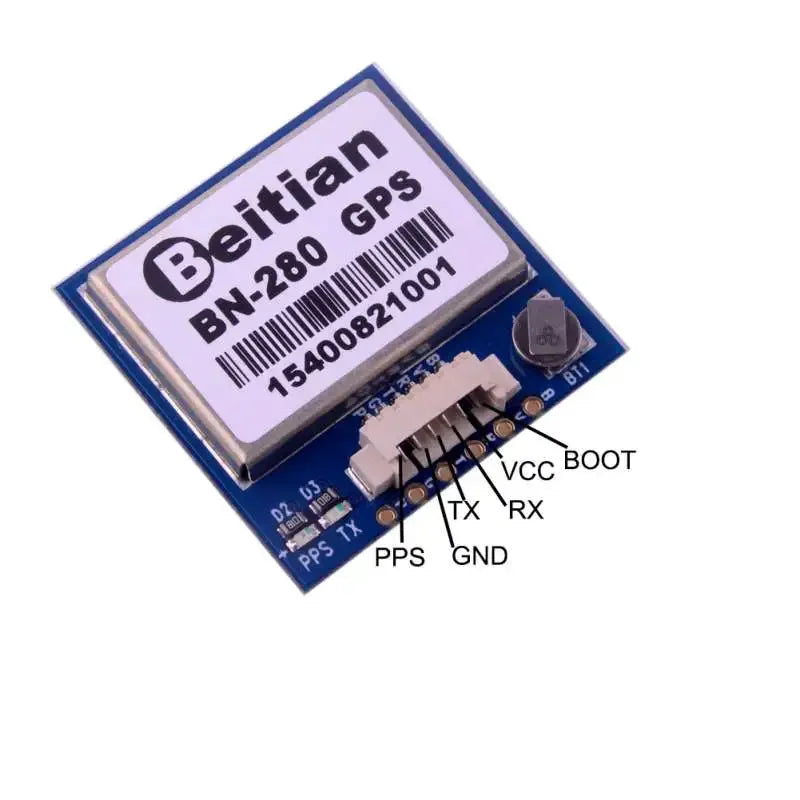

BN-280 GPS Kit

BN-280 10HZ GPS Module Dual Module Compass for Pixhawk

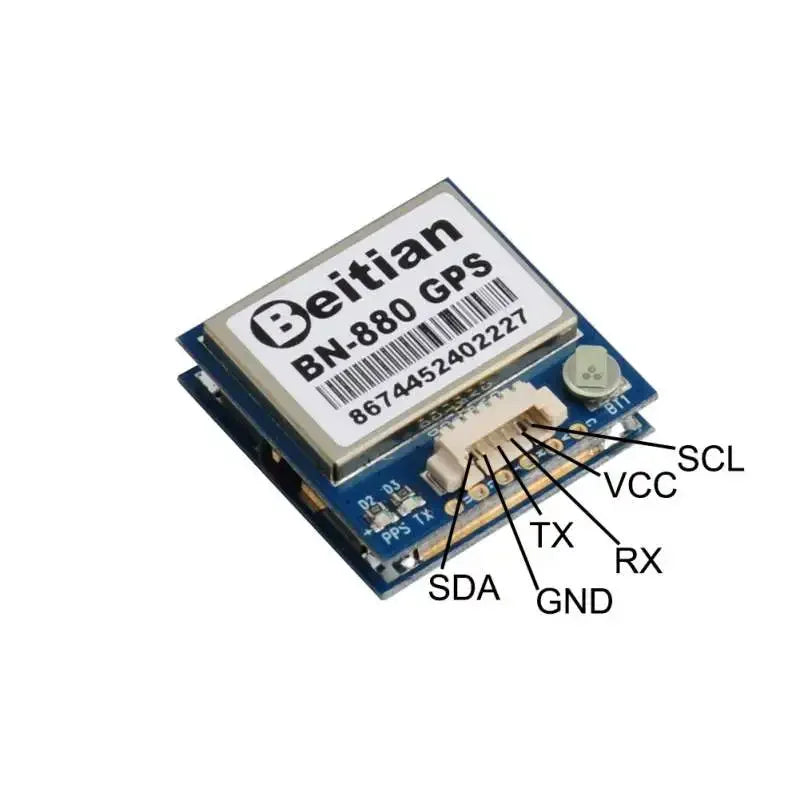

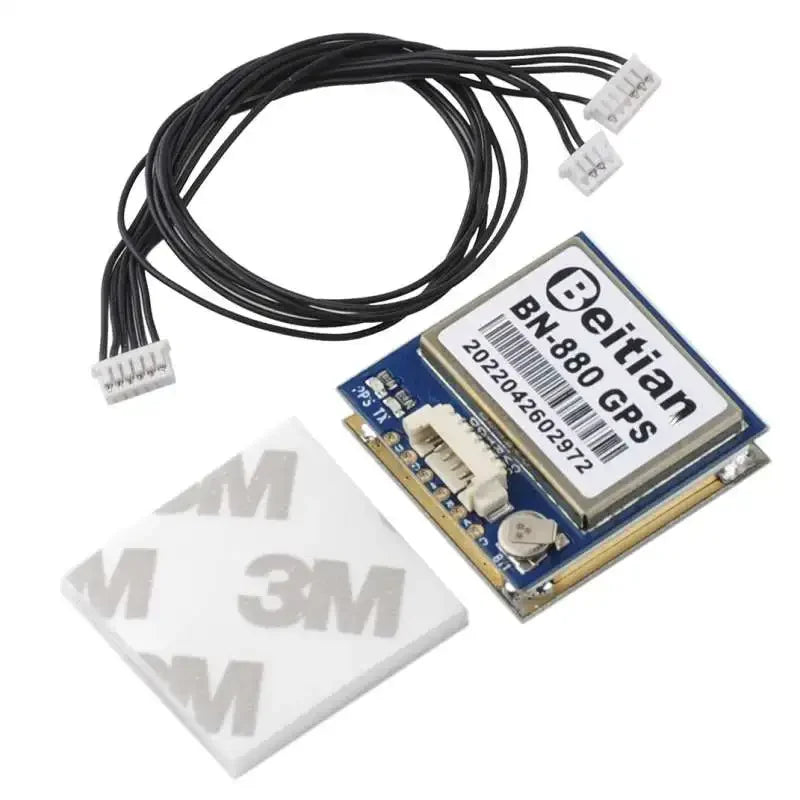

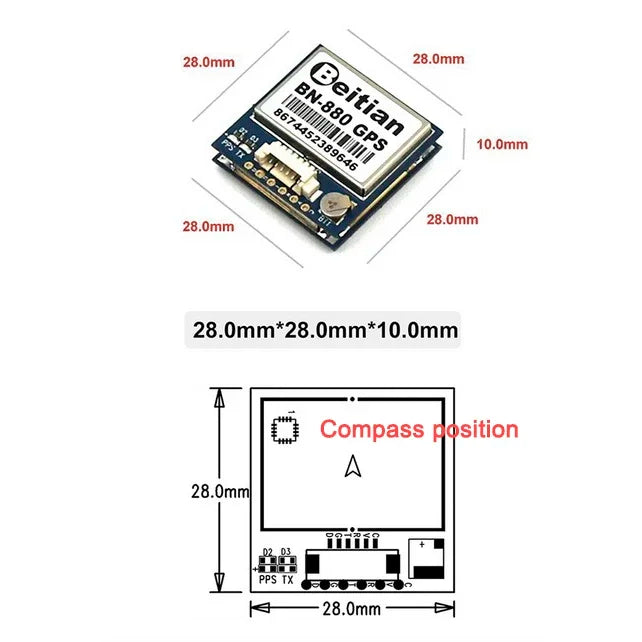

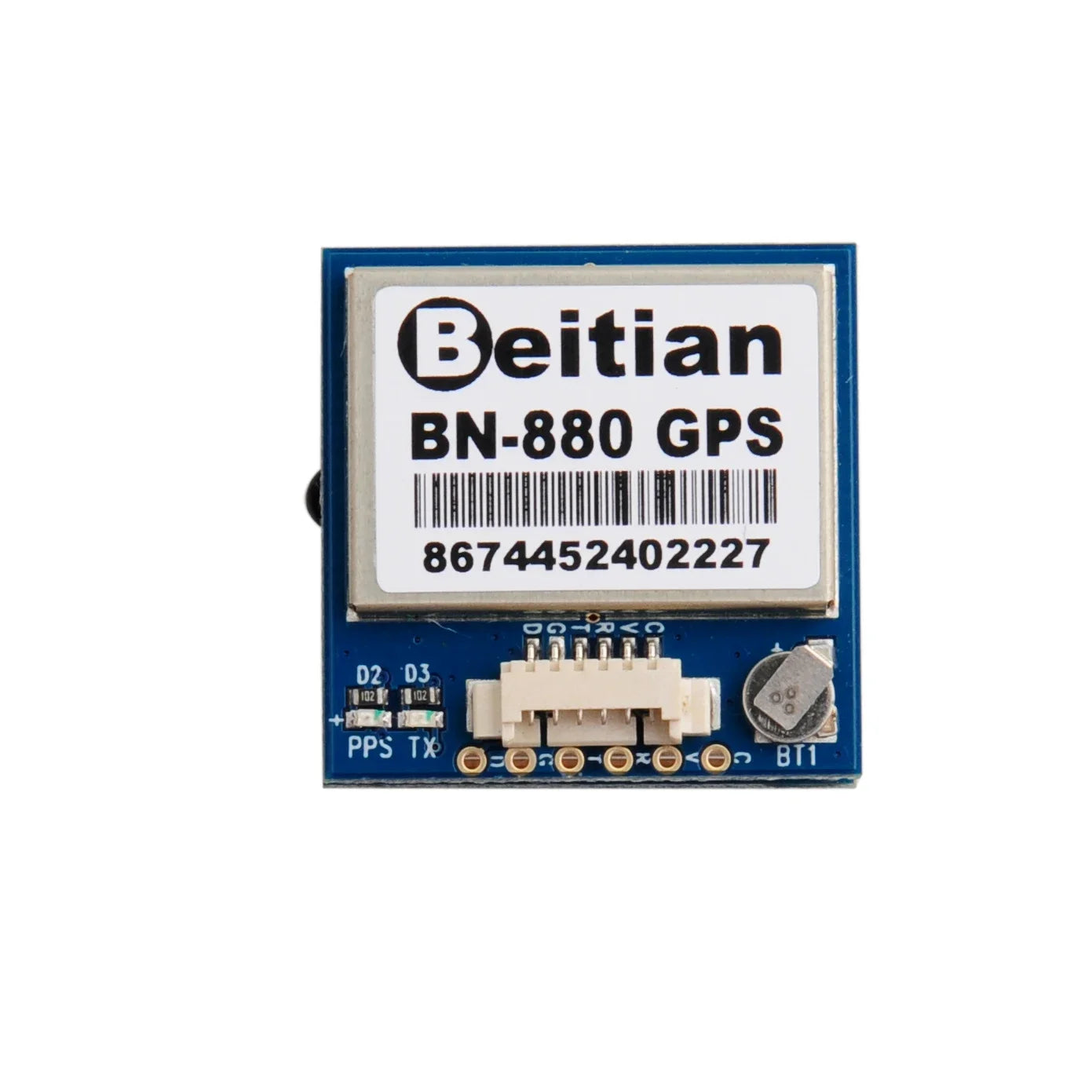

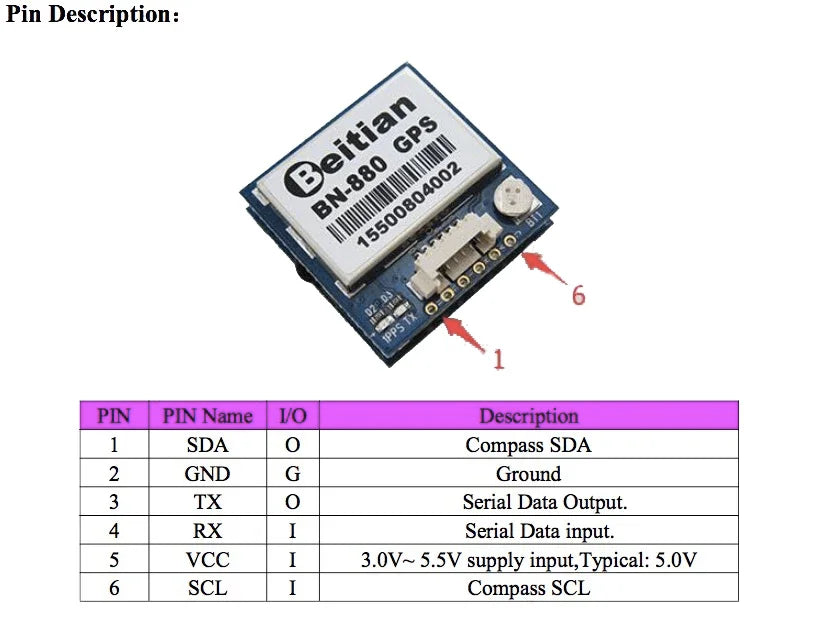

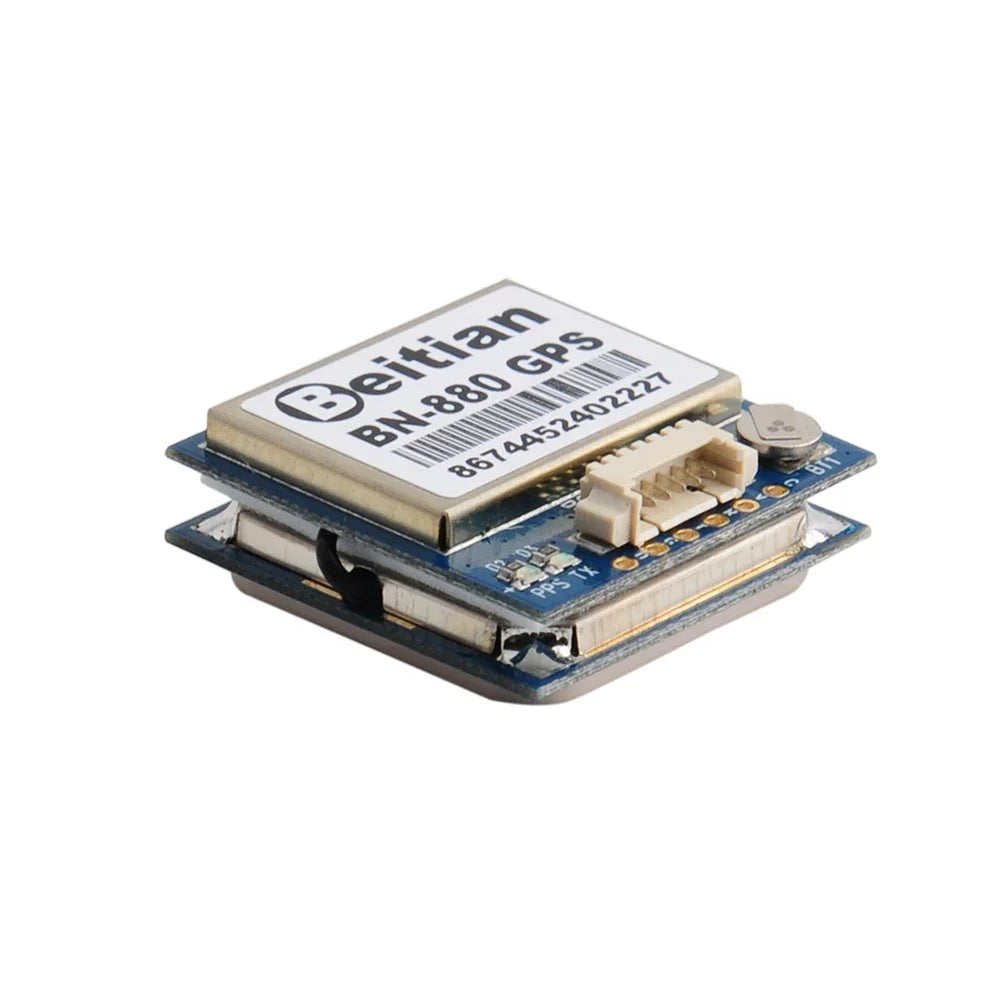

BN-880 GPS Kit

GPS Module Ublox U-blox M8030 NEO-M8N BN-880 Support GPS GLONASS BeiDou For Pixhawk APM Flight Controller with flash and compass
