SPECIFICATIONS

Brand Name: stemedu

Certification: NONE

High-concerned chemical: none

Model Number: FZ2920

Note: with compass and flash

Origin: Mainland China

Product Name: BN-880 GPS Module

Recommend Age: 14+y

Beitian BN-880 GPS Module with Flash Compass GPS Glonass BeiDou Active Antenna for Arduino Aircraft FPV RC Flight Controller

Description:
Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption:Capture 50mA@5V
Receiving Format: GPS, GLONASS,Galileo,BeiDou,QZSS and SBAS
Receiving Channel:72 Searching Channel
Receiving Sensitivity:Trace -167dBm , Capture-148dBm
Positioning Time:Cold Start: avg26s , Warm Start: avg25s, Hot Start: avg3s
Level Positioning Precision: 2m At Open Wind
Output Frequency:1Hz-10Hz,Default 1Hz
Speed Precision: 0.1 m/s (Without Aid)
Acceleration Precision :0.1 m/s (Without Aid)
Dynamic Characteristics:Max Height:18000m, Max Speed:5153m/s,Max Acceleration:4G
UART Interface:UART Port:TXDA and RXDA
Support Rate:4800bps to 115200bps,Default 38400dps
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+85℃

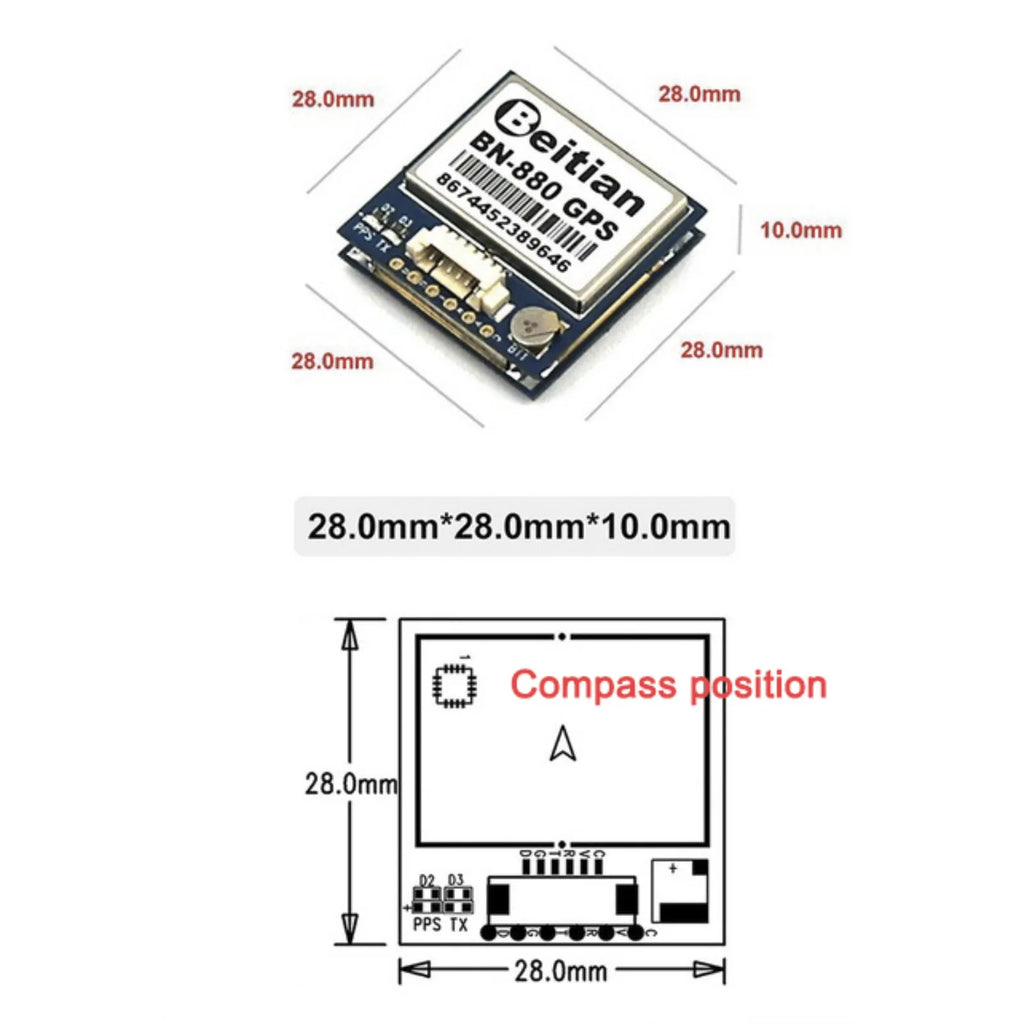

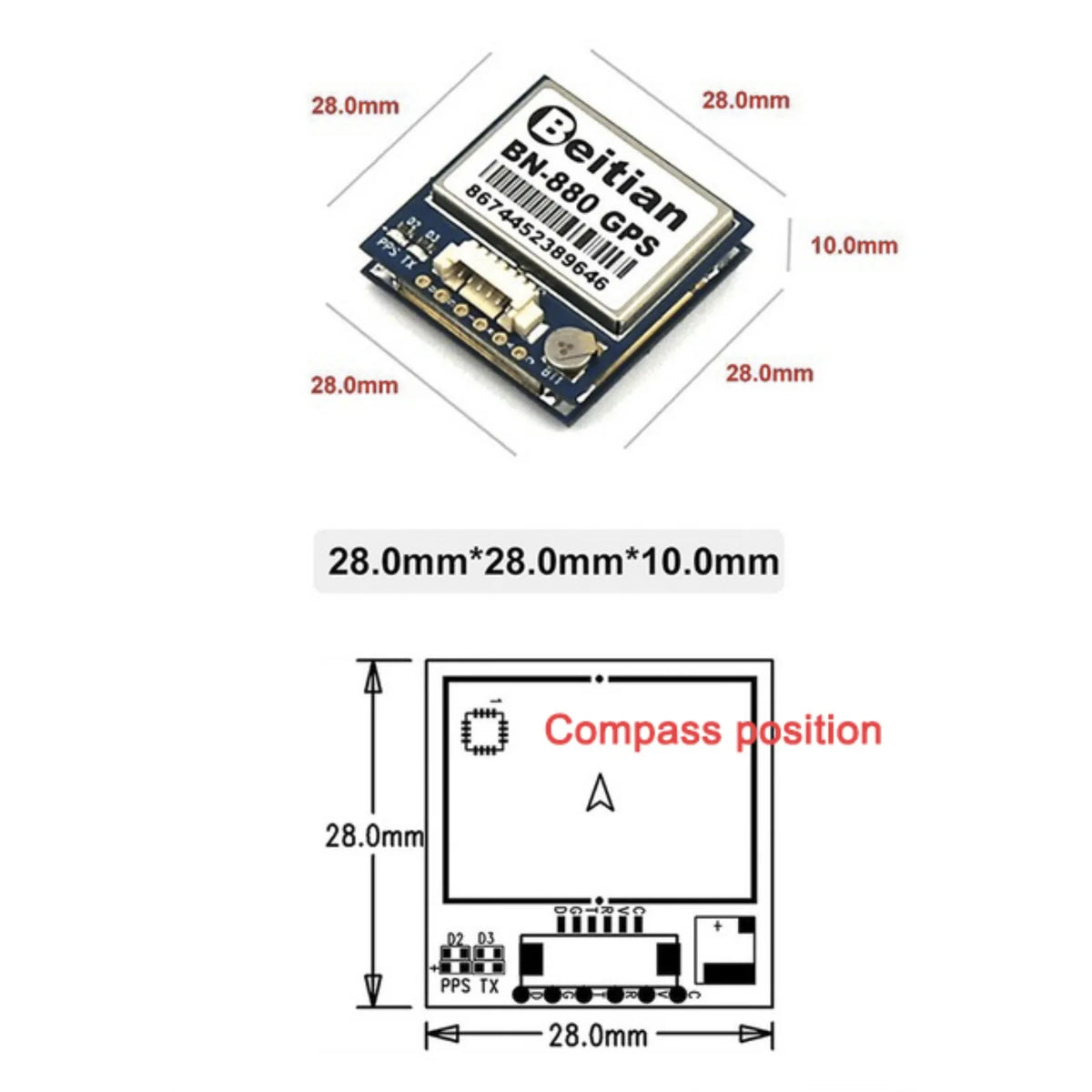

Size:28mm x 28mm x 10mm
Weight:10g

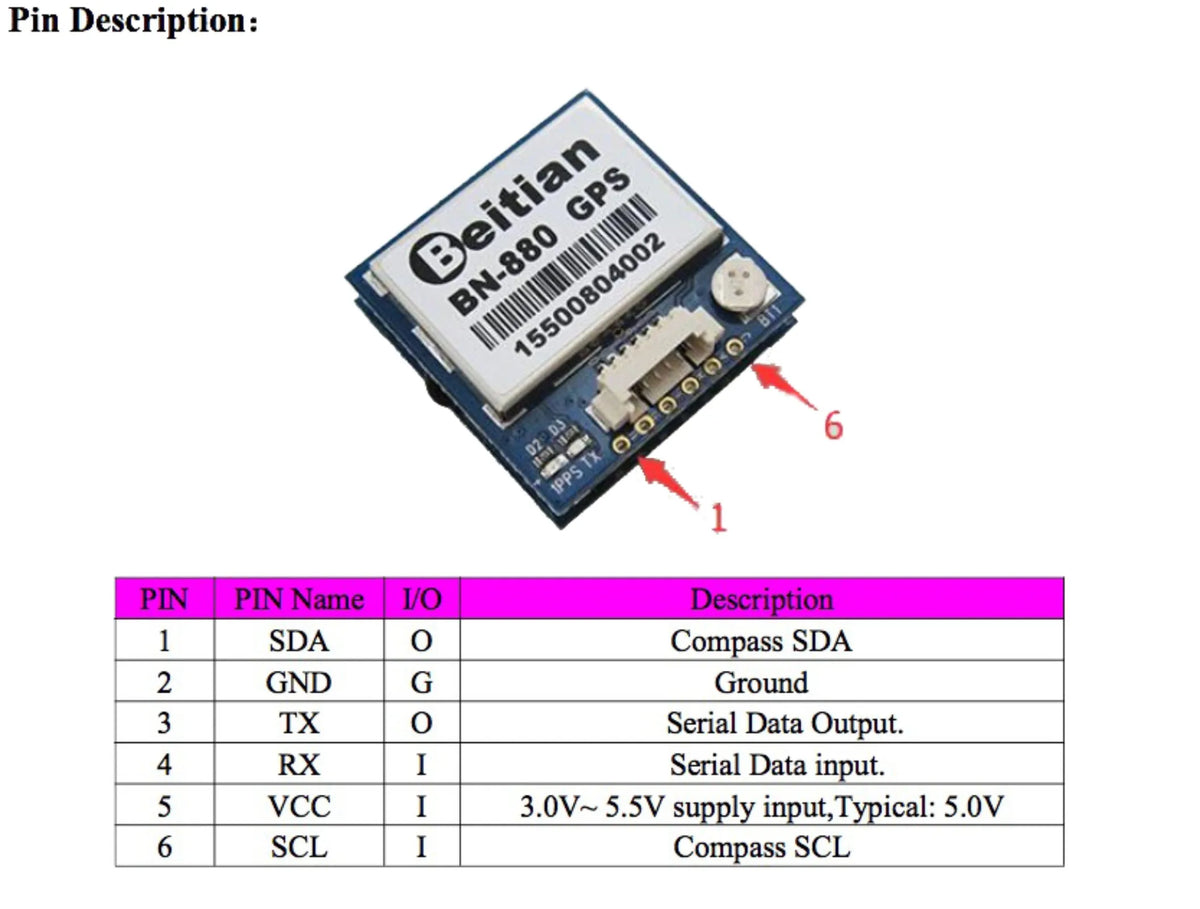

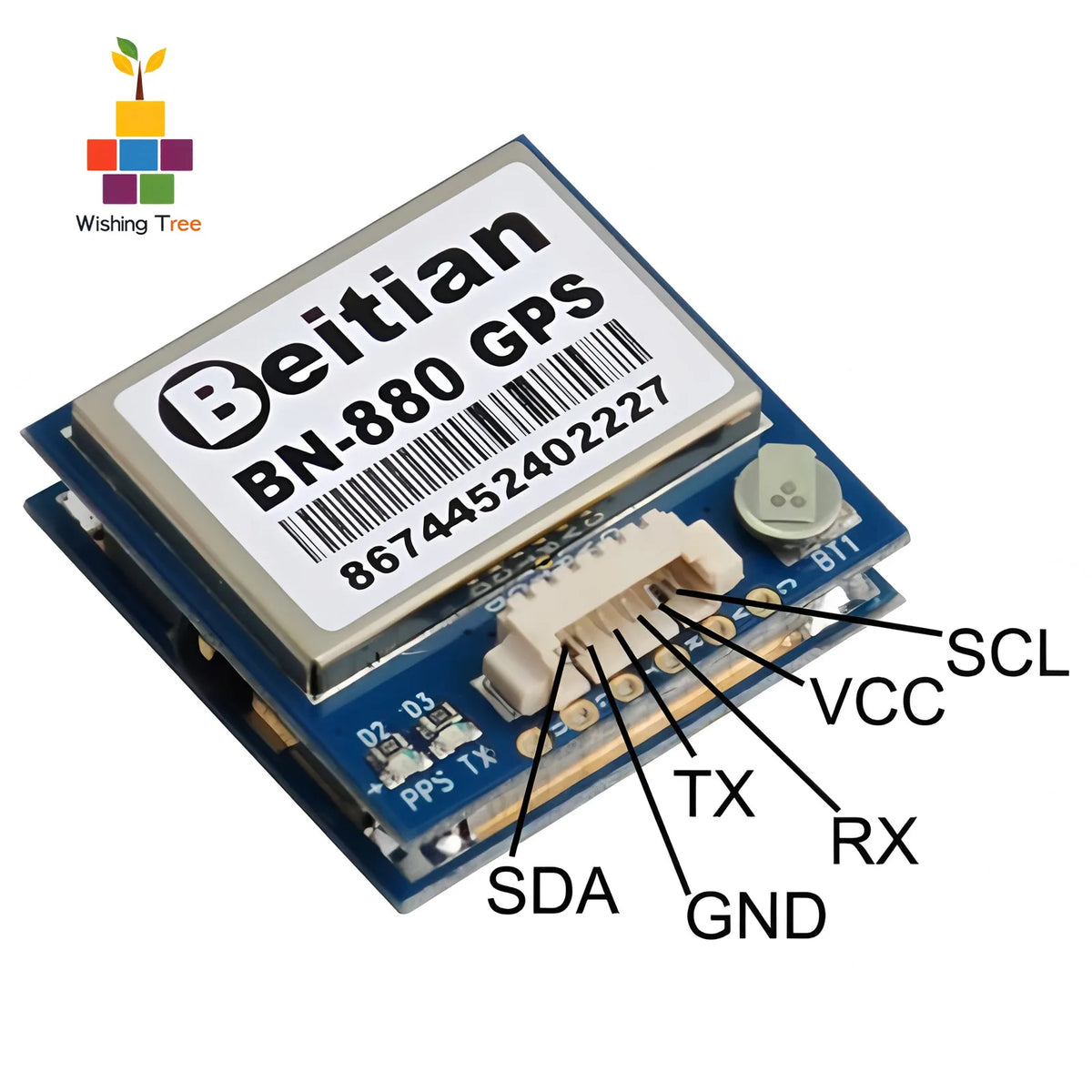

The Module’s Pins:SDA,GND,TX,RX,VCC,SCL

Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat
Note: Can not use for flight control with SCM, but it is suitable for Open source flight controller.

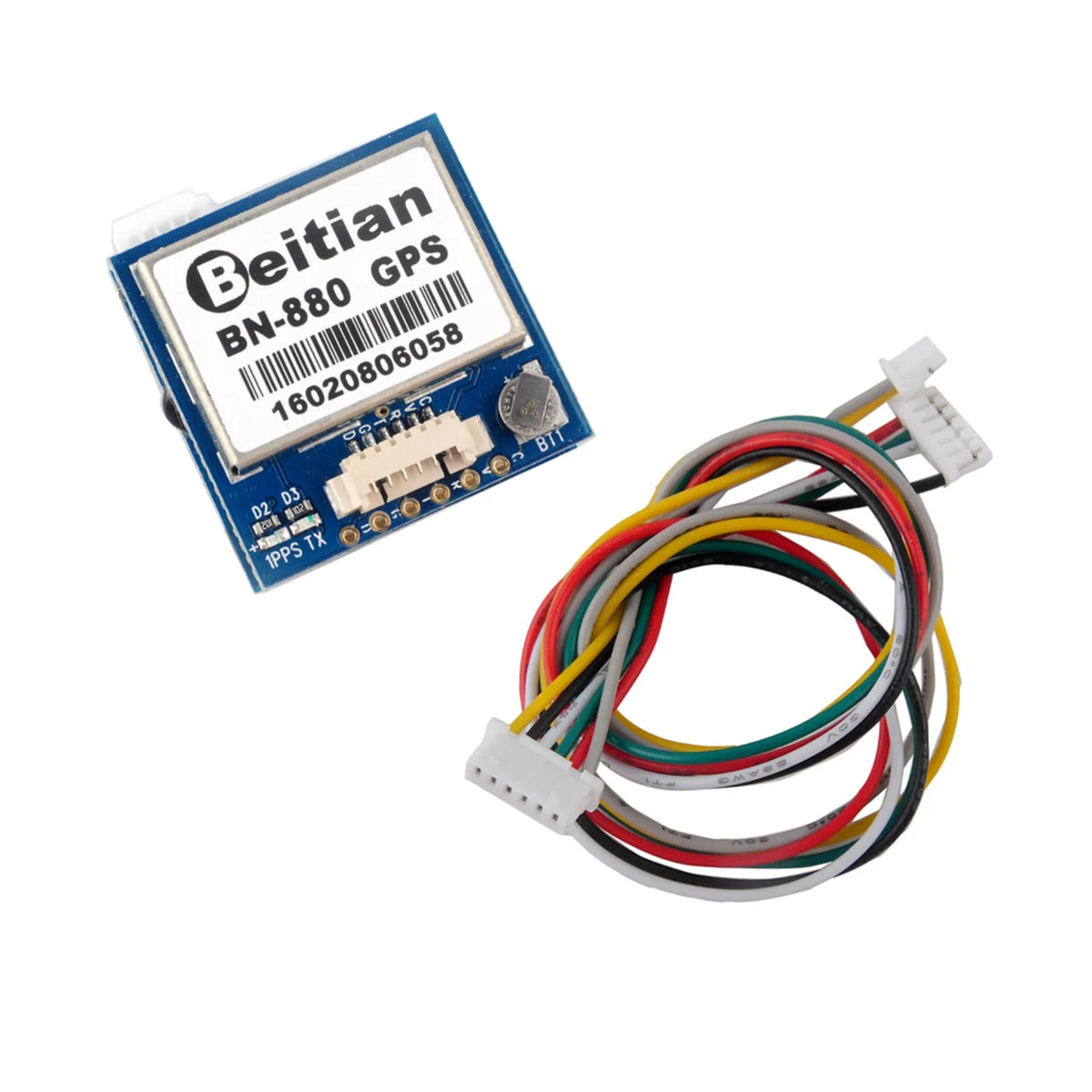

Package Included:
1 x BN-880 GPS Module
1 x 15cm Cable
