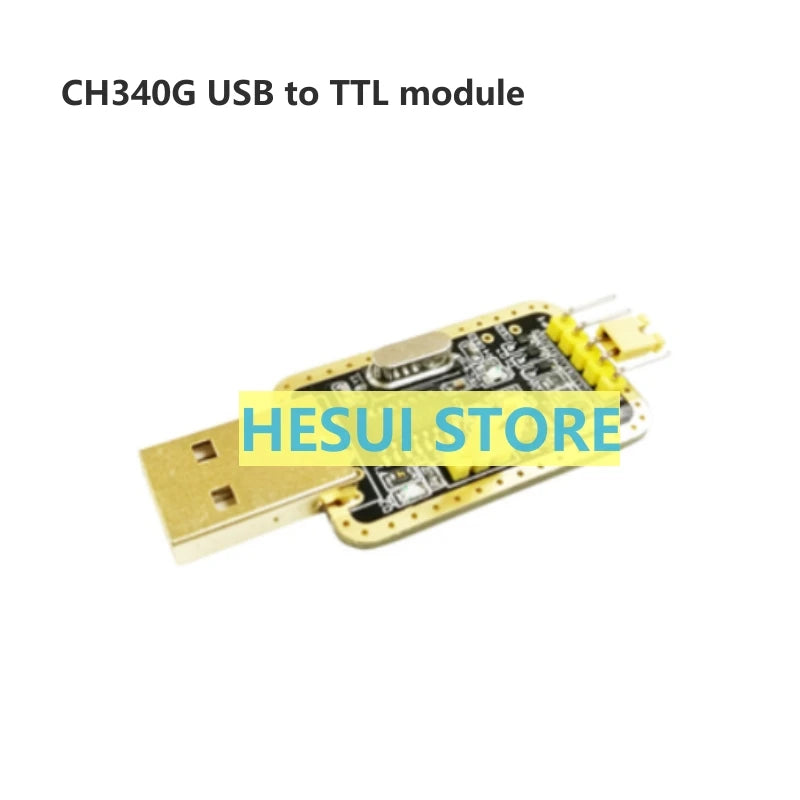

USB to TTL / Model 1 / China Mainland
$23.45
Sale price
$23.45
Regular price
$0.00
Skip to product information
BH1750 Light sensor Module Digital light intensity Illuminance module Light detector control relay
$23.45
Sale price
$23.45
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Condition: New
Dissipation Power: standard
High-concerned chemical: none
Operating Temperature: standard
Origin: Mainland China
Package: DIP
Supply Voltage: standard
Type: Module
is_customized: Yes
Basic information

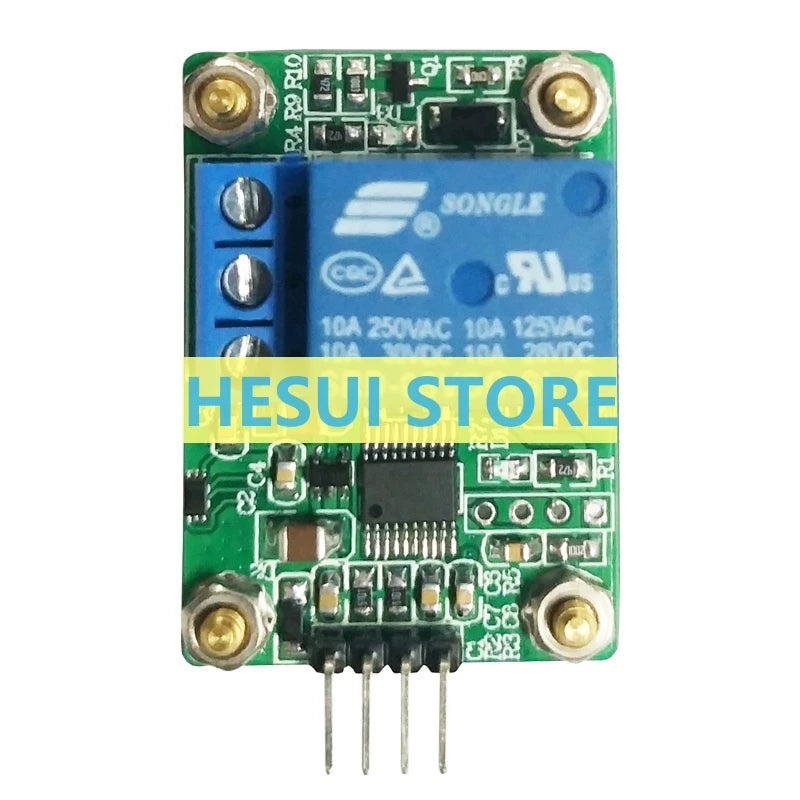

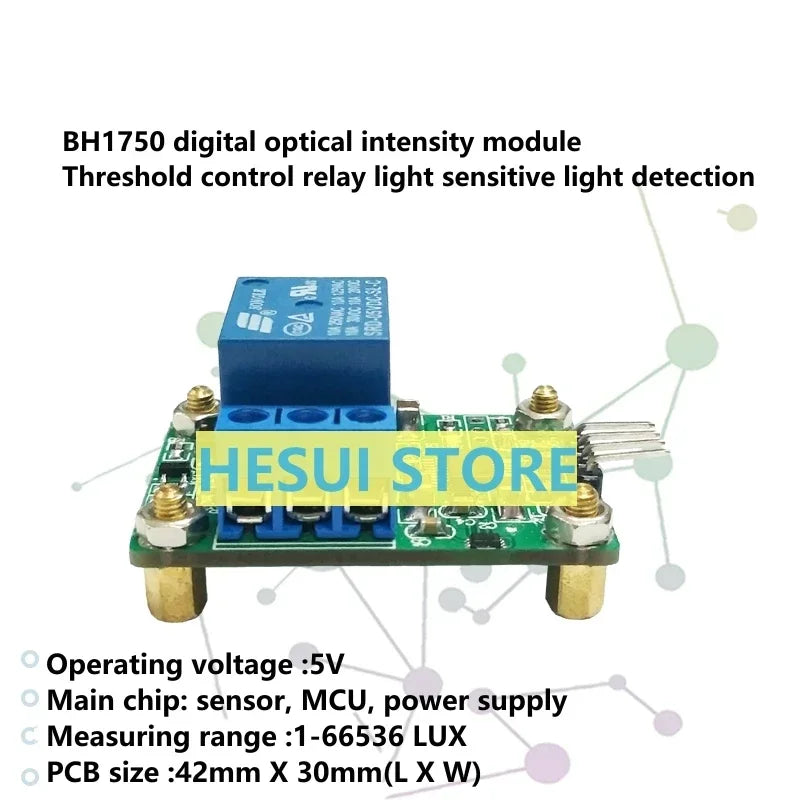

Name :BH1750 digital optical intensity module
Main chip: sensor, MCU, power supply
Operating voltage :5V
Measuring range :1-66536 LUX

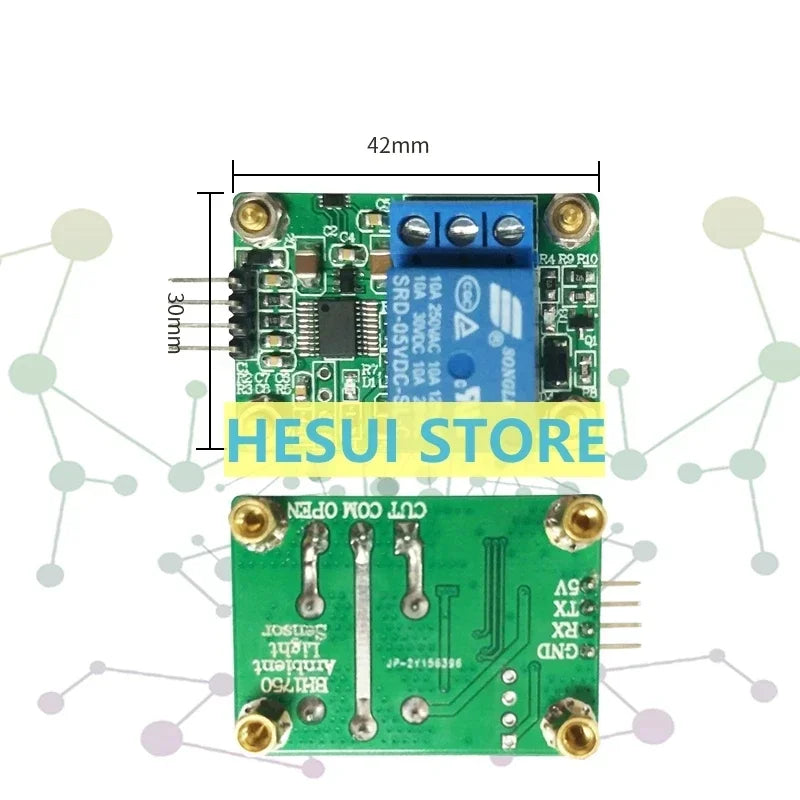

PCB size :42mm × 30mm(L X W)

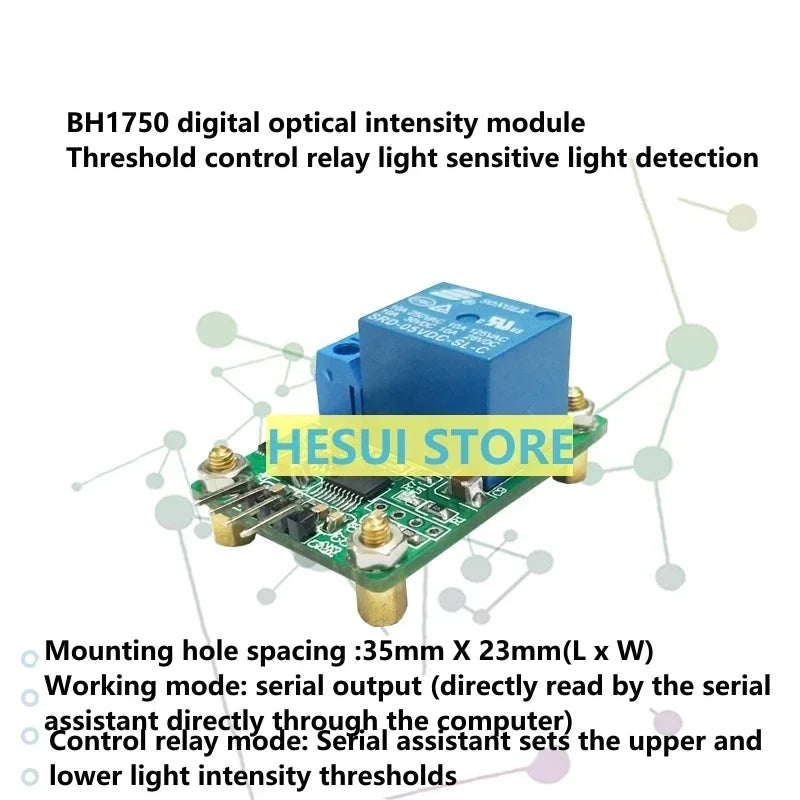

Mounting hole spacing :35mm × 23mm(length × width)
Working mode: Serial port output person directly through the computer by the
serial port assistant direct reading)
Control relay mode: Directly through the serial assistant to set the upper and
lower light intensity threshold to control the relay switch

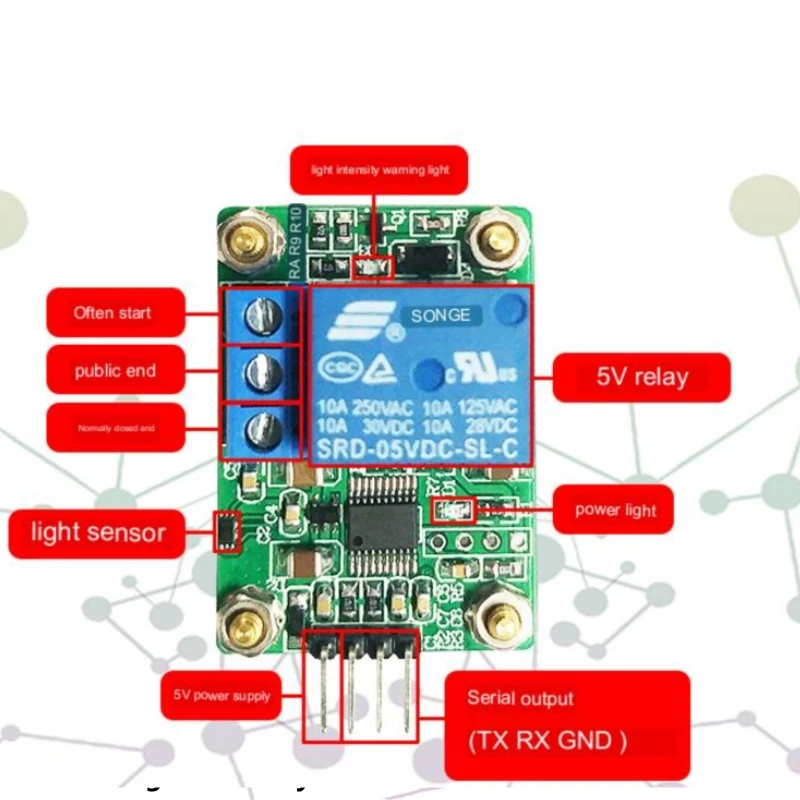

Wiring instructions
TXD: indicates the sending end. Generally, it is its own sending end. In normal
communication, it must connect to the RXD of another device.
RXD: indicates the receiving end, which is generally represented as its own
receiving end. In normal communication, it must connect to the TXD of another
device.
In normal communication, the TXD is always connected to the RXD of the device!
