Description

SPECIFICATIONS

Brand Name: PRONCH

Certification: CE,CCC,CCC,ce

Current: ≤3A

Customization: Yes , please leave a message to us

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: self-recovery and self-lock

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

LED Color: Red Yellow Blue White Green

LED Voltage: 3-6V;9-24V;110-220V

Material: Alloy

Model Number: Push button switch

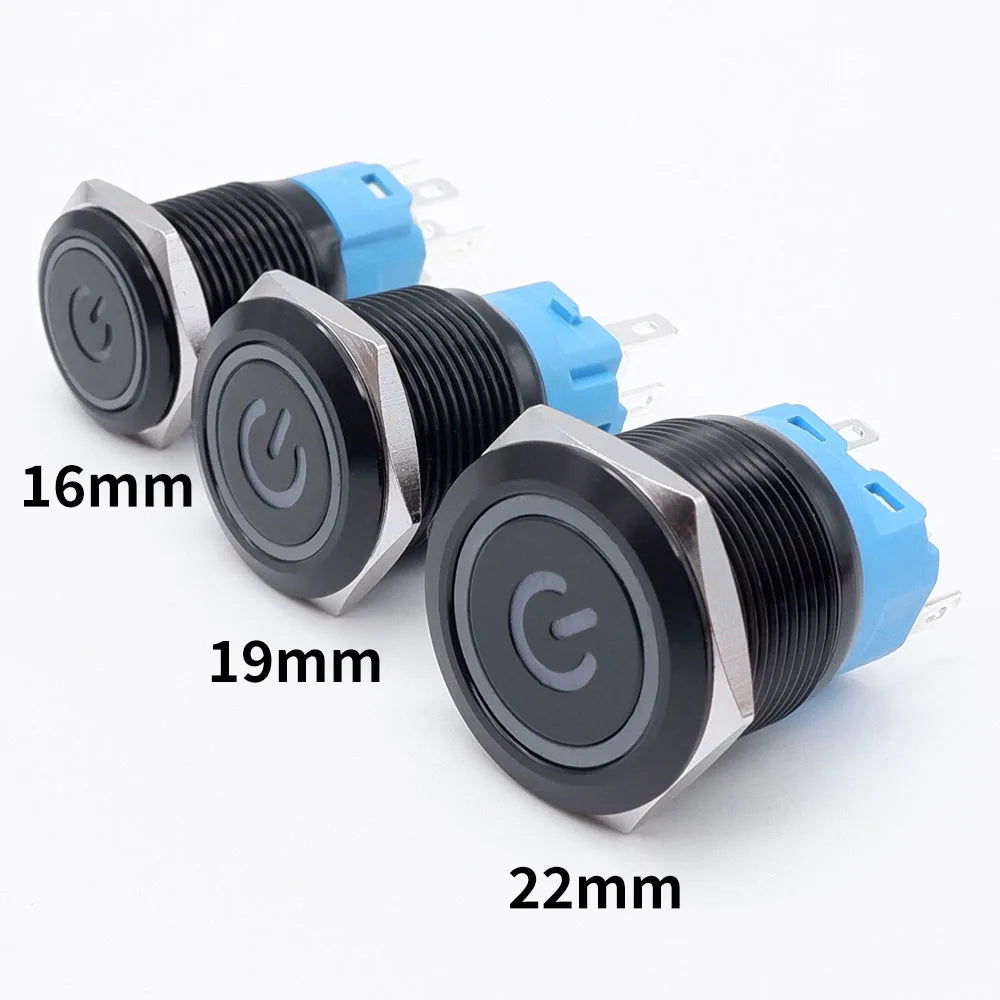

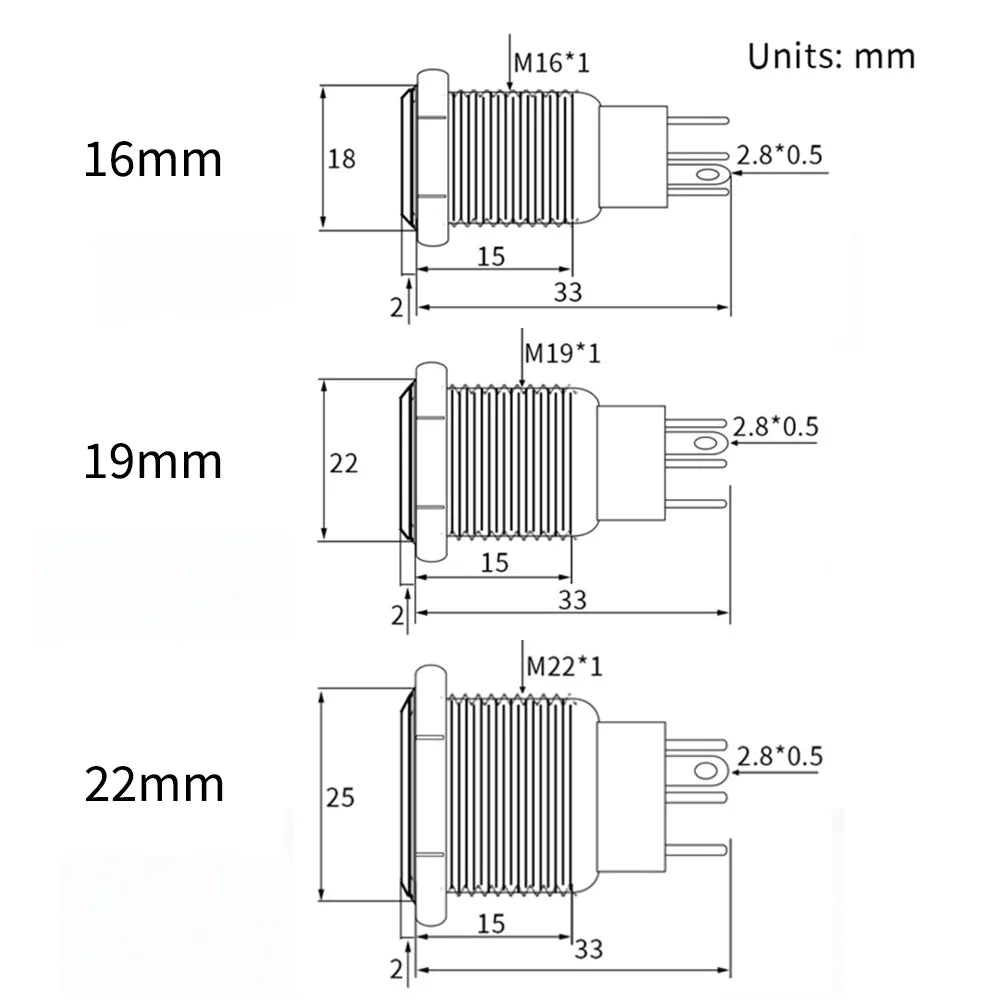

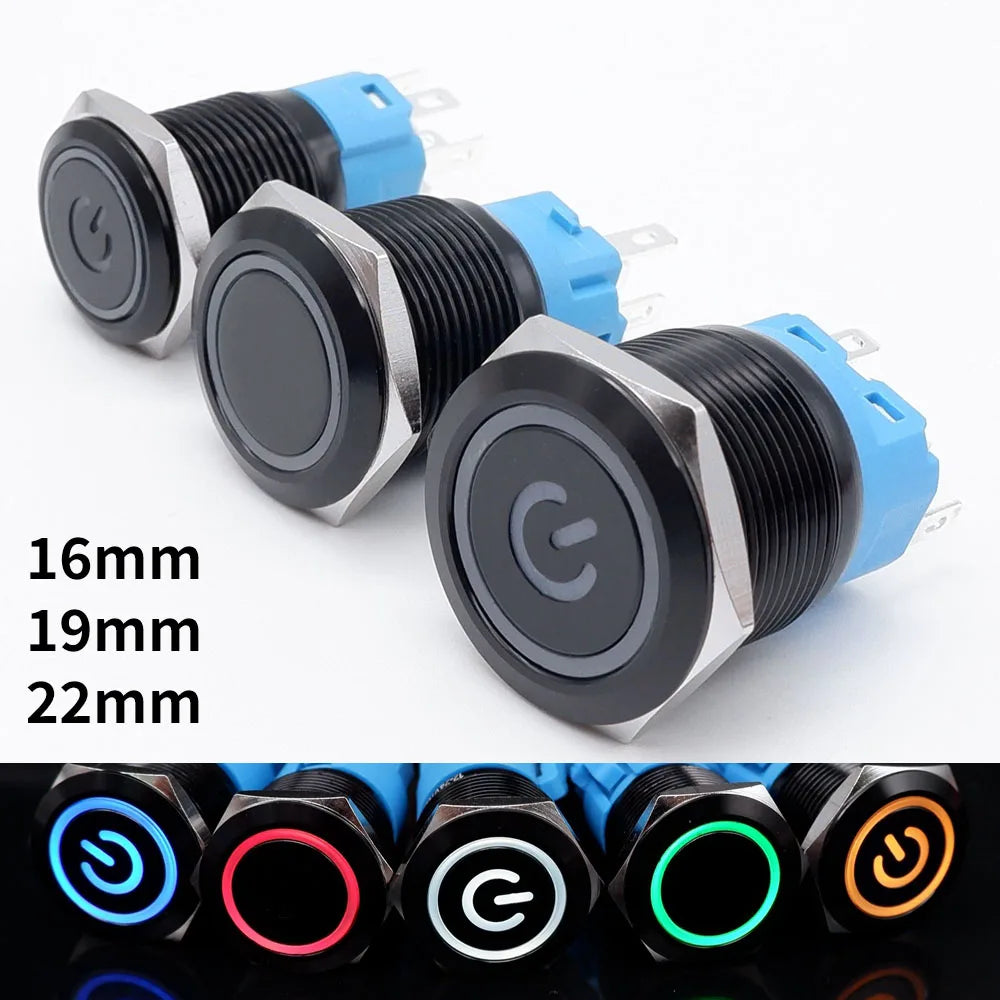

Opening Diameter: 16mm/19mm/22mm

Origin: Mainland China

Shell Material: Alumina

Switch Type: Push Button Switch,1NO1NC

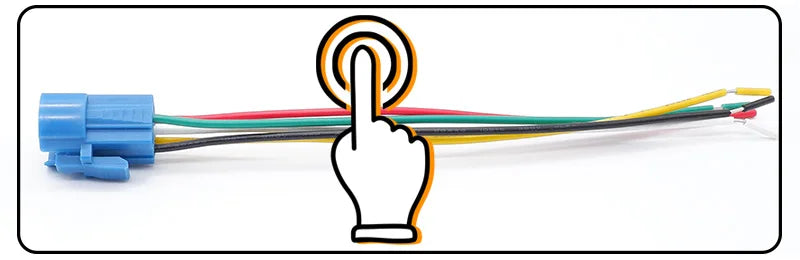

Note: Connectors need to be purchased separately, you can click the following image to purchase.

Product Name: Push Button Switch
Switch Combination: 1NO1NC
Opening Diameter:16mm/19mm/22mm
Max Current: 3A
Operation Type: Self-recovery 、Self-lock
LED Colors: Red Yellow Blue White Green
LED Voltage: 3-6V;12-24V;110-220V
Waterproof Level: IP65

Due to manual measurement, please allow a little error.

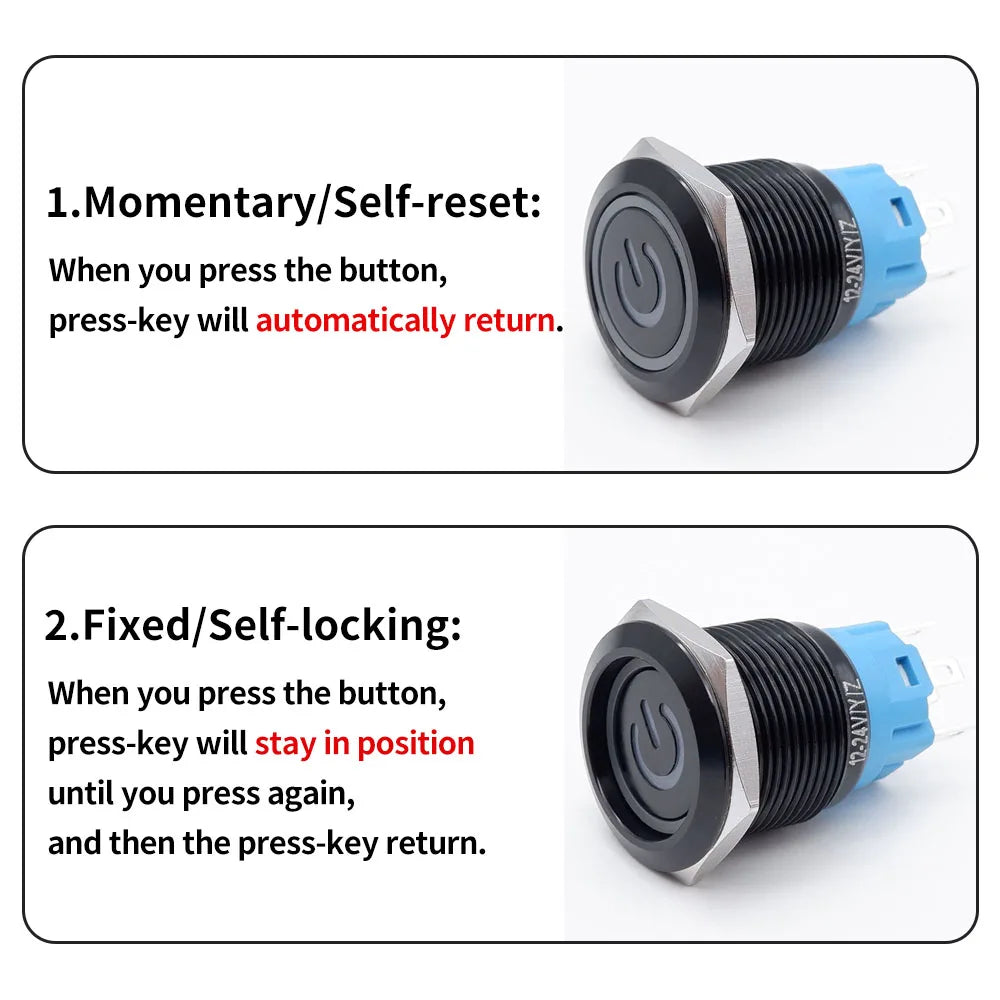

Switch Tip

1.Momentary/Self-reset: When you press the button, press-key will automatically return.

2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then t he press-key return.

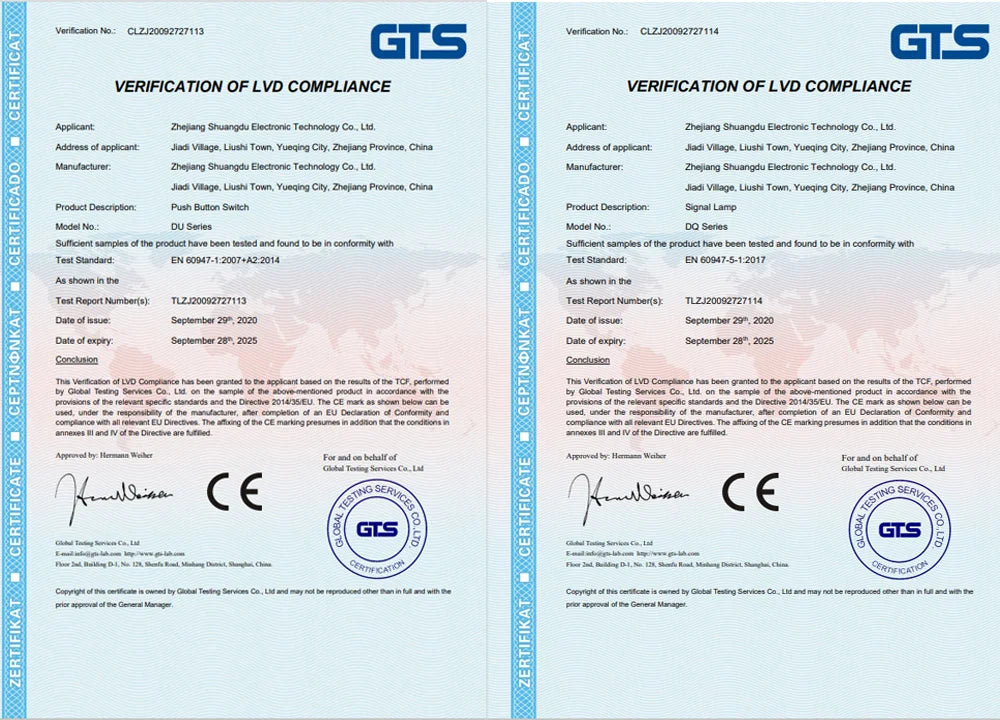

Certificate

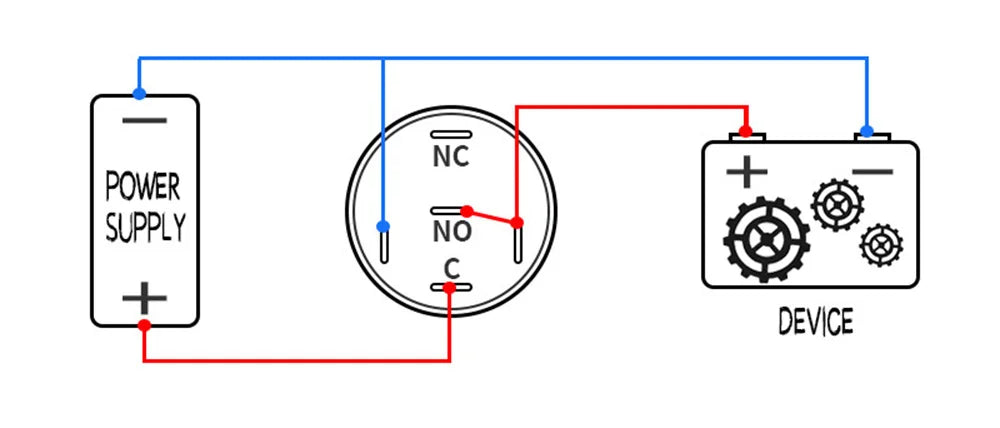

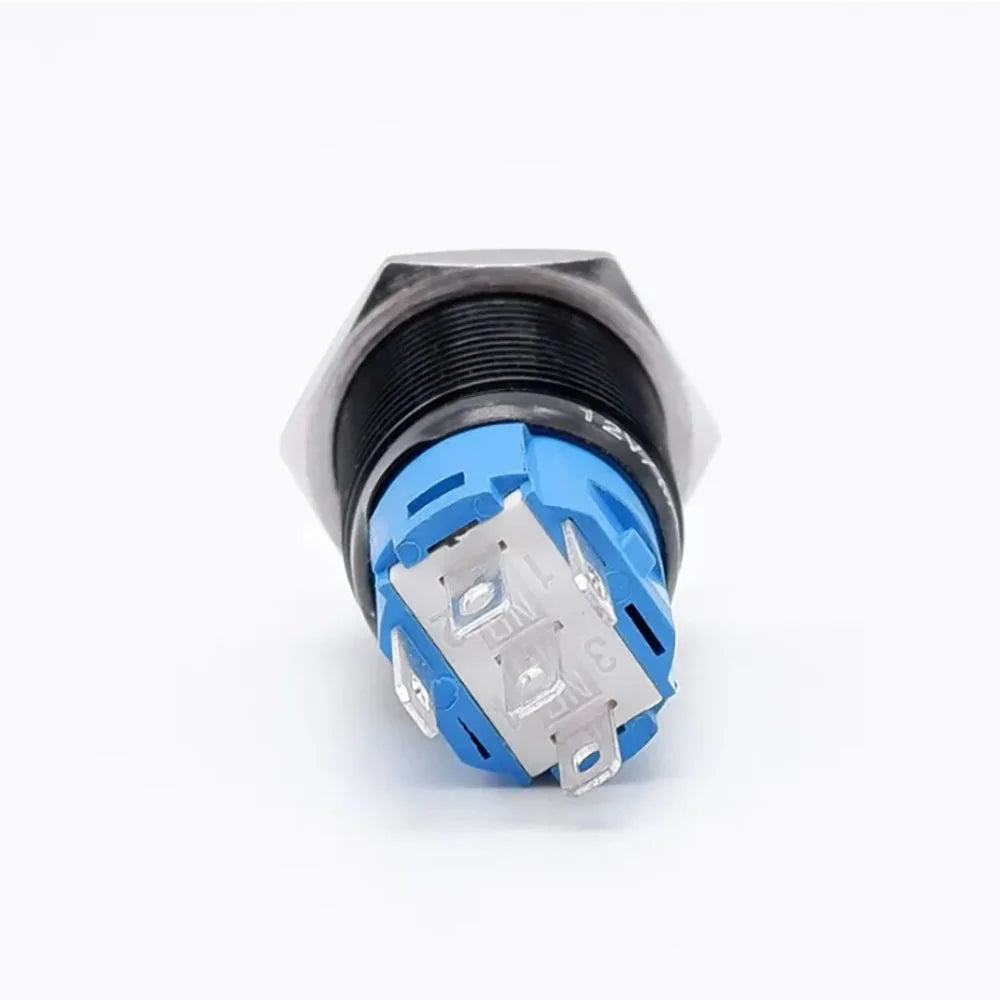

Wiring Instructions

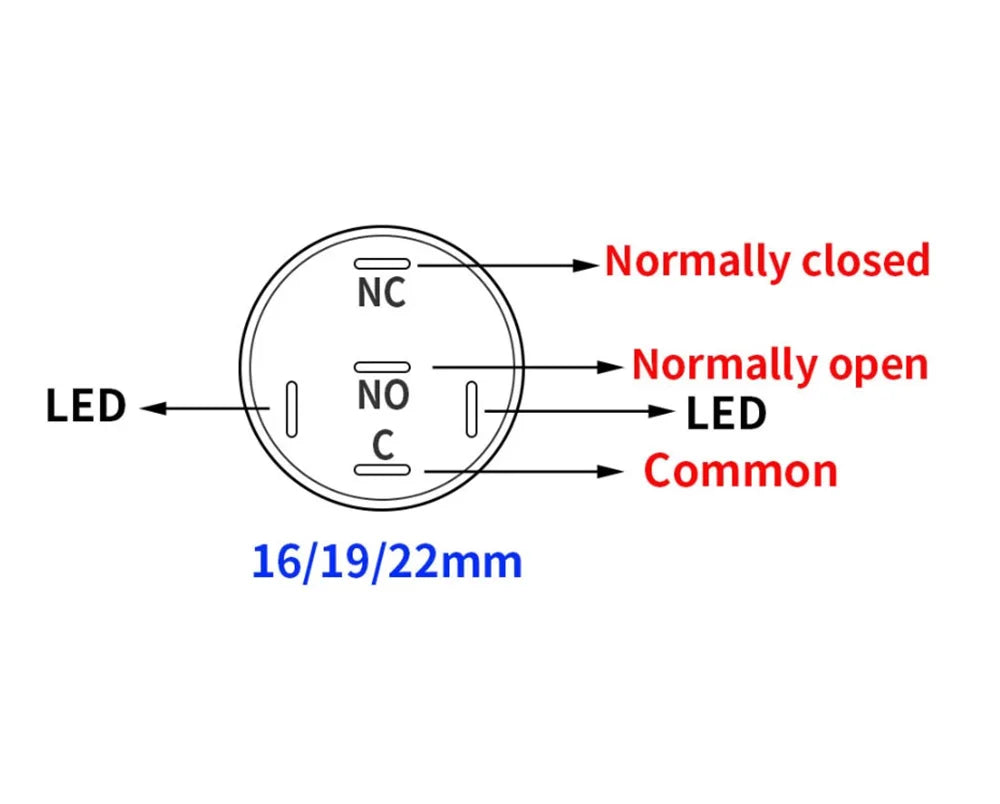

1.What does the signal “C”、"NC" and "NO" means?

" NC ": Normal Close
" NO ": Normal Open
" C " : Common

2.How to connect?

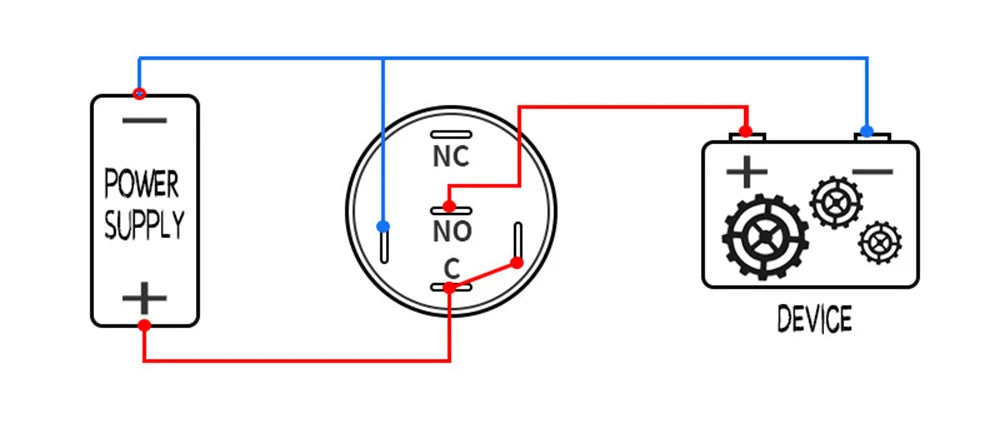

(1).Connect " NO " and " C " : The circuit is alway open unless press the button.

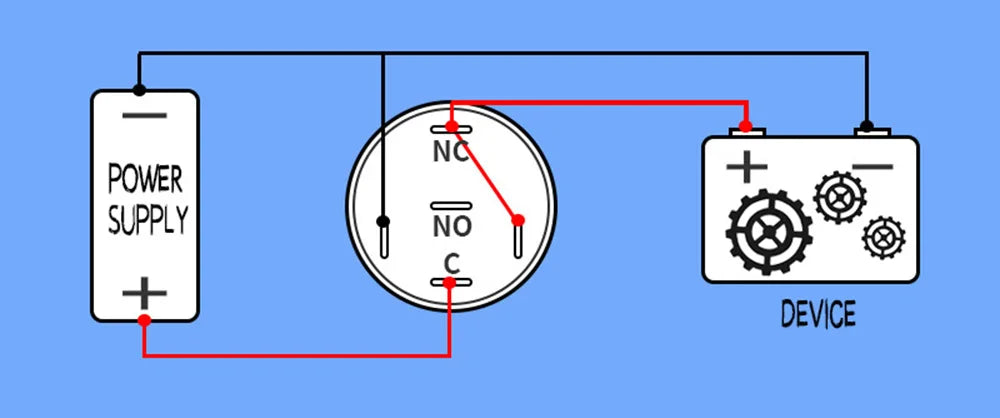

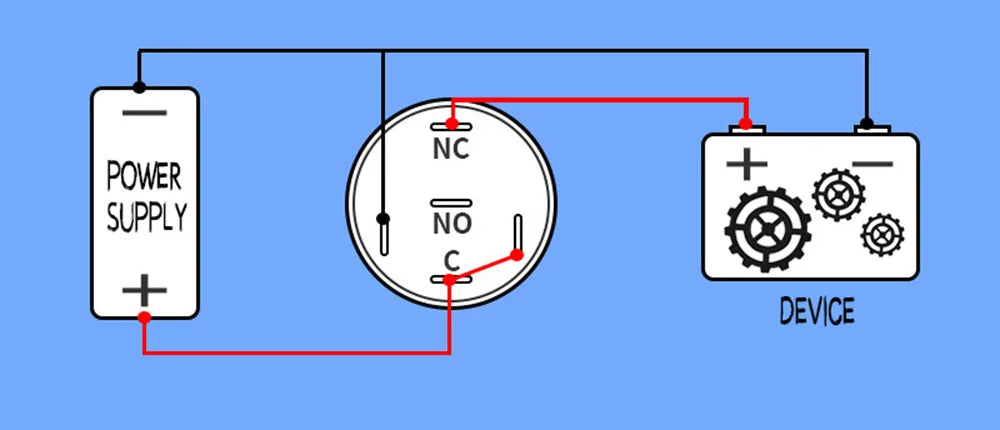

(2).Connect " NC " and " C " : The circuit is alway close unless press the button.

3.Do lights and switches have electrodes?

The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.
