SPECIFICATIONS

Tips before purchase:

①. This controller is only suitable for 3pin pixel LED strips
②.

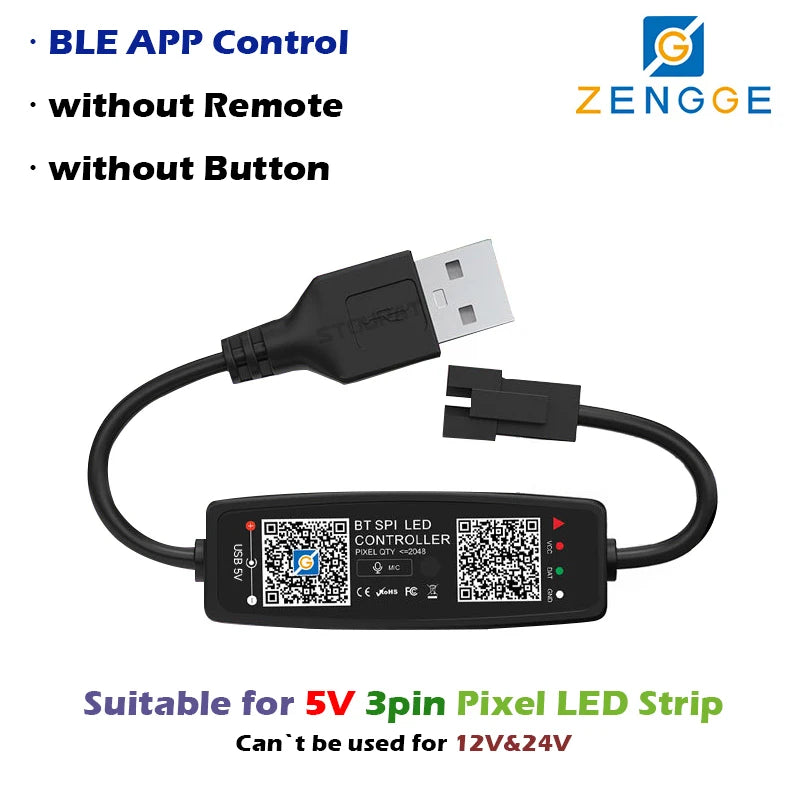

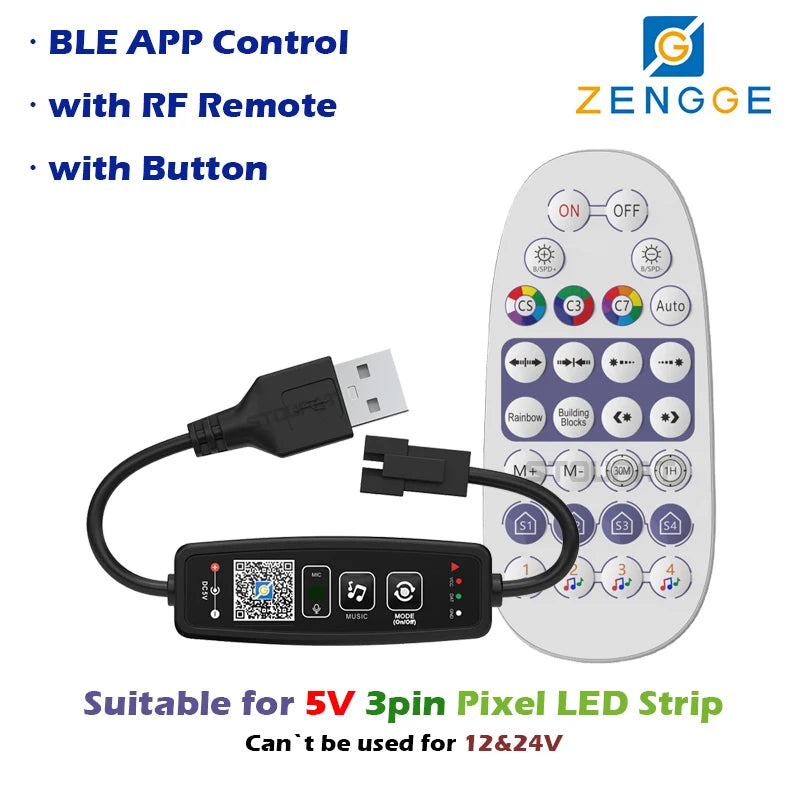

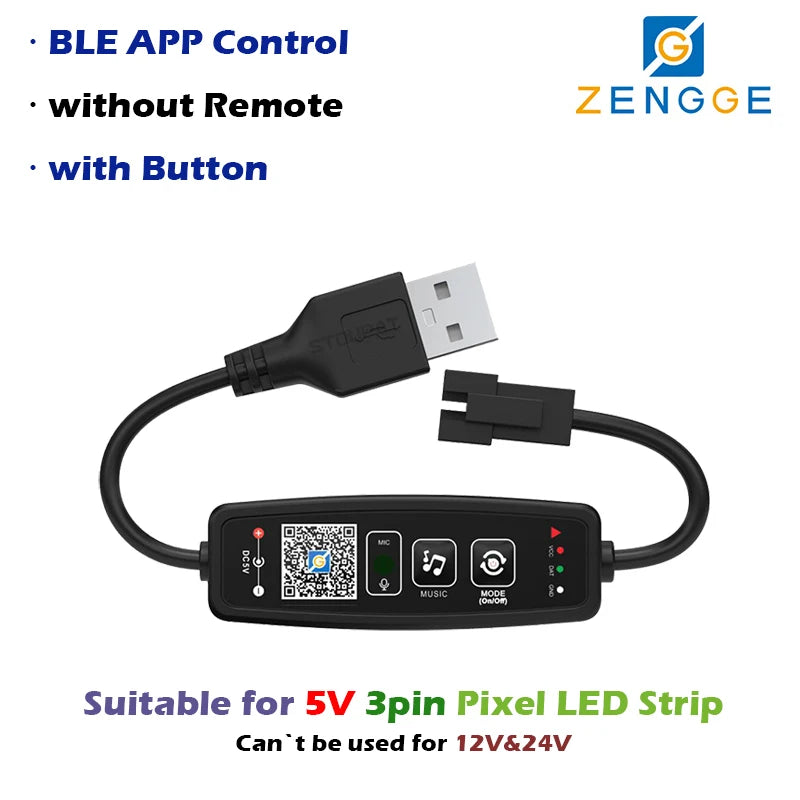

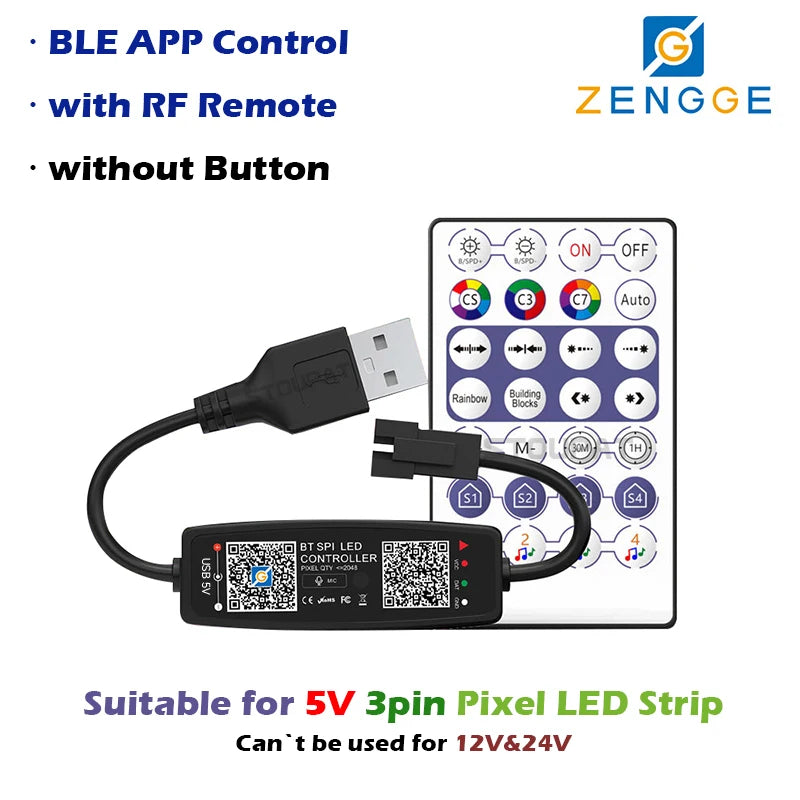

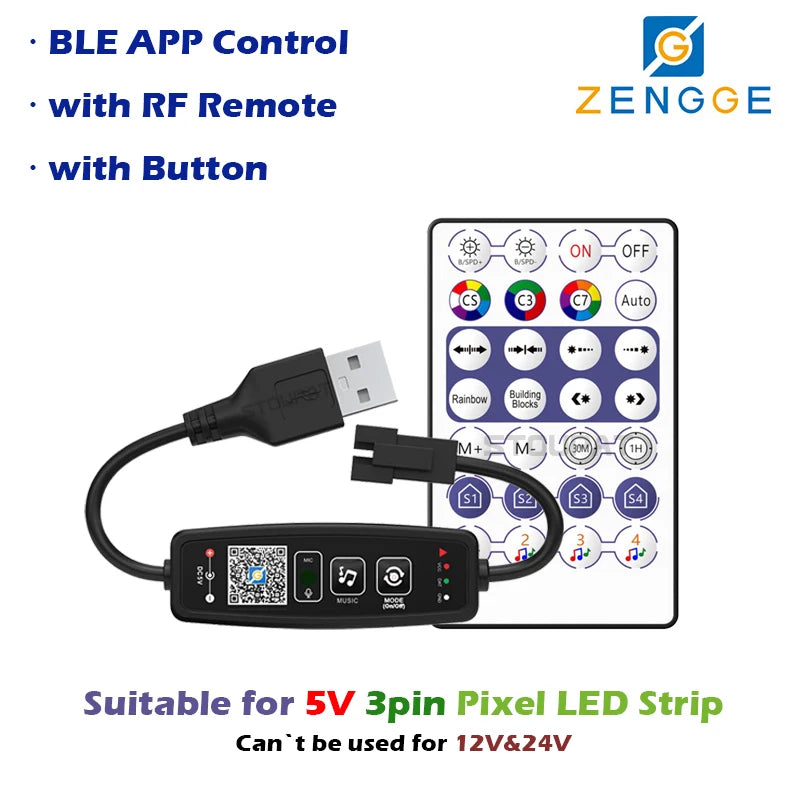

- Controller with USB cable is only suitable for 5V pixel LED strips(Output voltage of USB interface is ONLY 5V)

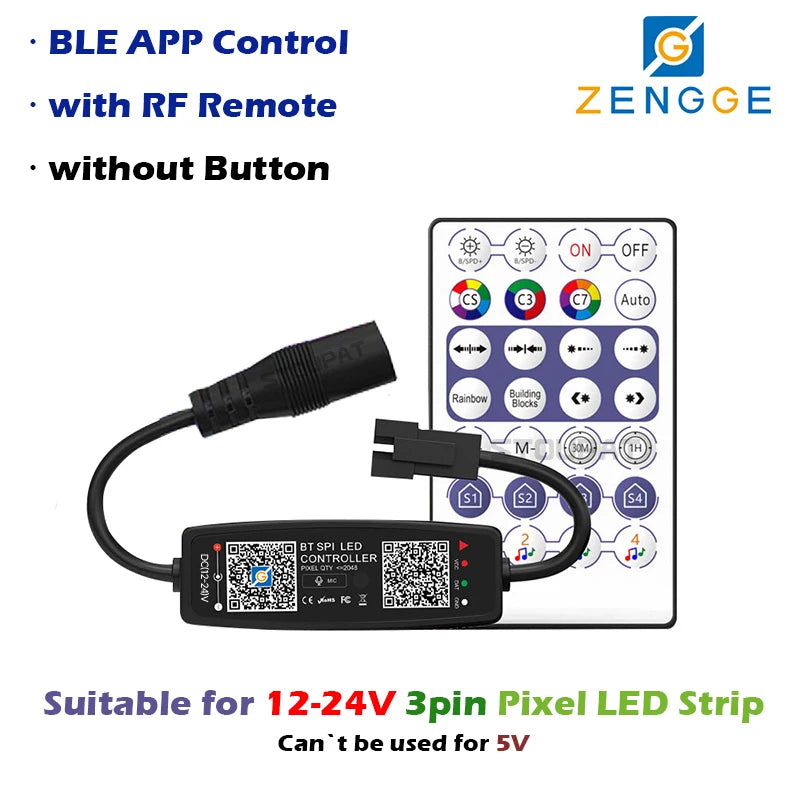

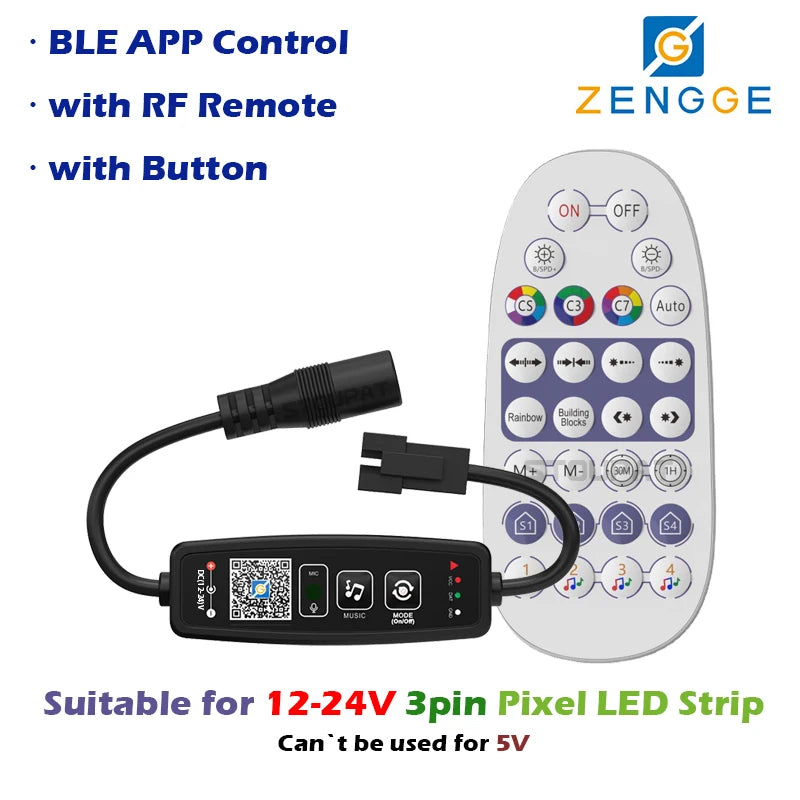

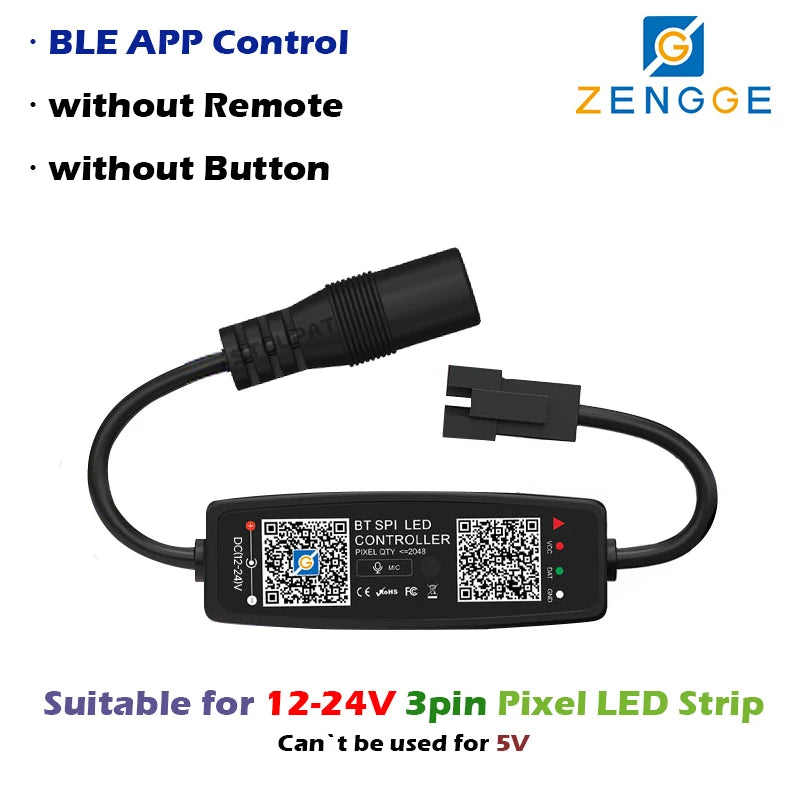

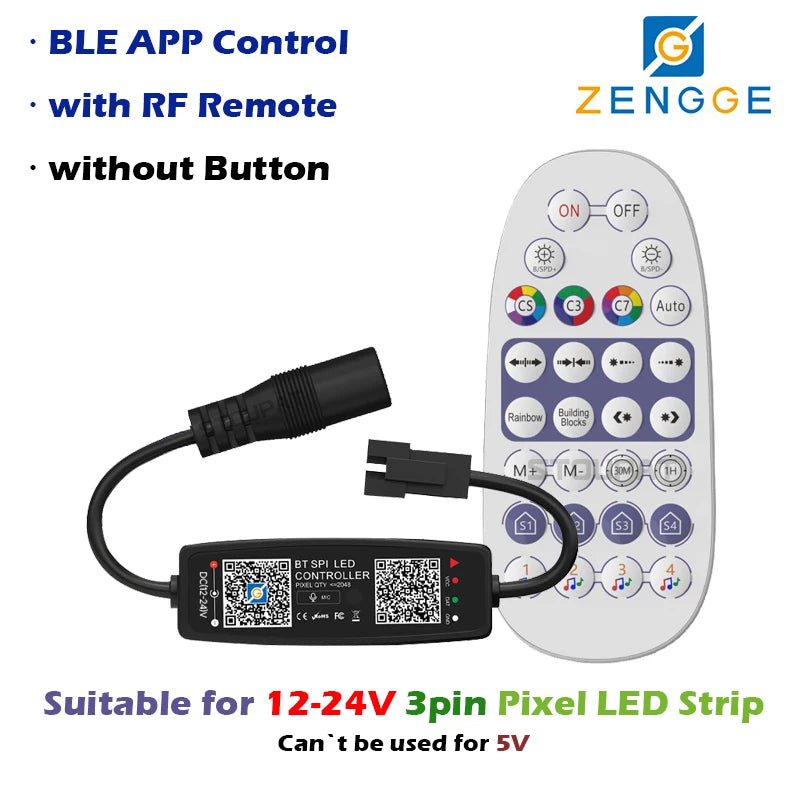

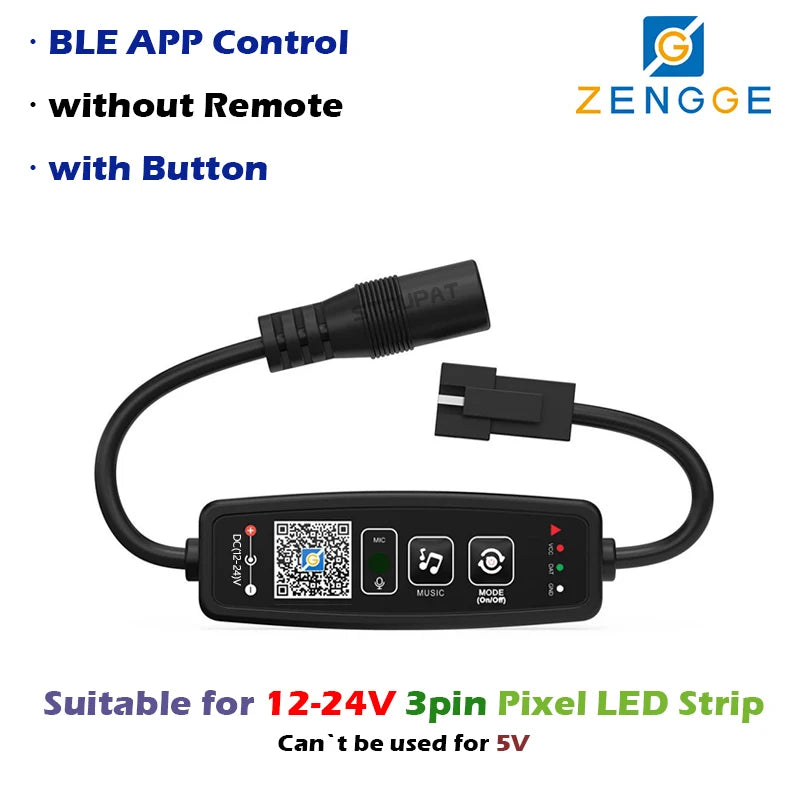

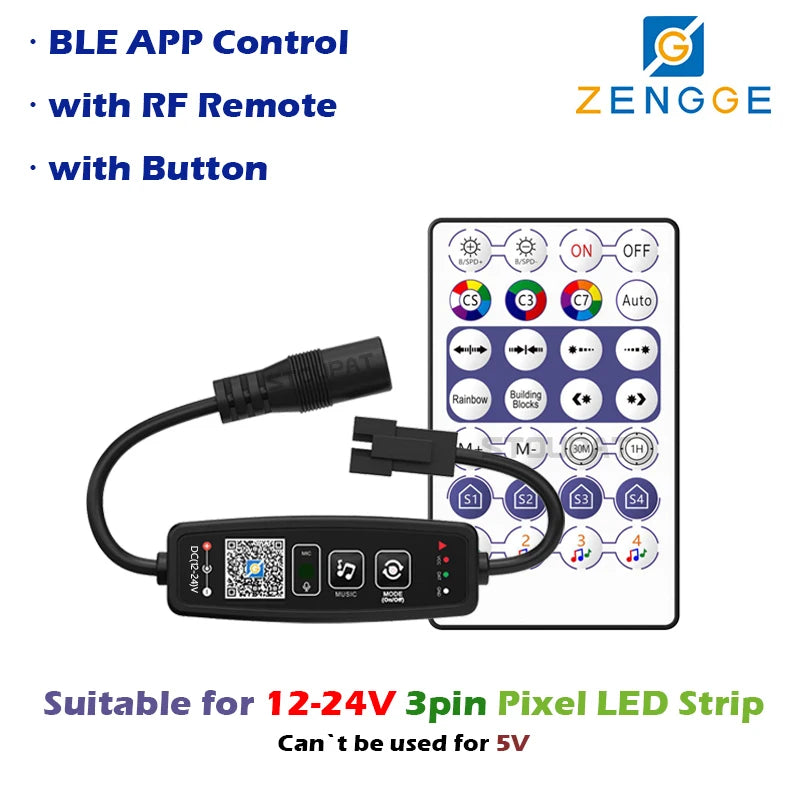

- Controller with DC female cable is only suitable for 12-24V pixel LED strips
③. This controller cannot be used simultaneously with other dimmers or controllers in the same LED system
④. DC version: output voltage of your power adapter needs to be consistent with the voltage of your LED strip(such as 24V power supply work with 24V LED strip)
⑤. DC version: output power of your power adapter cannot exceed the acceptable range of the LED strip and controller
⑥. APP Name: ZENGGE (Apple App Store/Google Play Store)
⑦. Setting the IC model and IC numbers(Must be set, otherwise it will not work properly):
Long press the device name → Change LED Strip Type

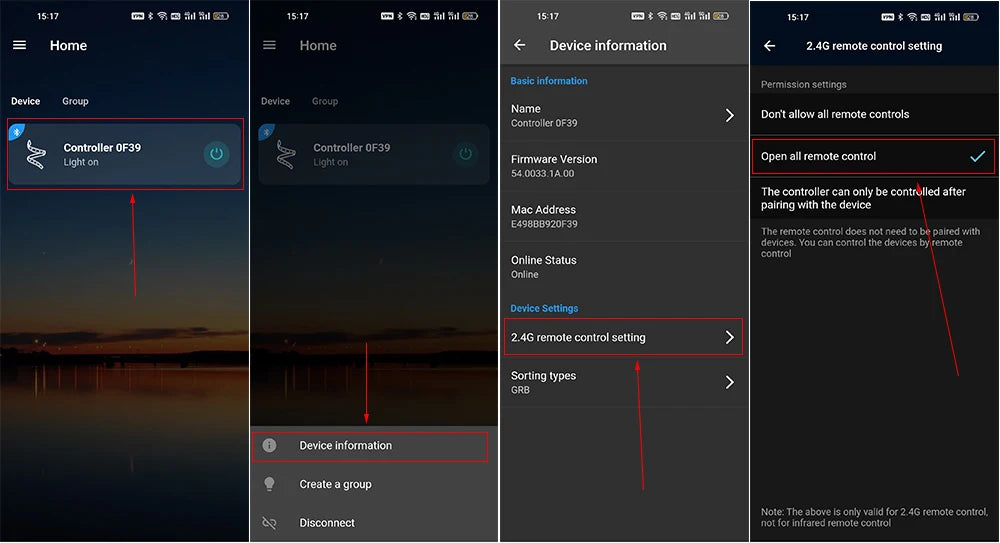

⑧. Setting the remote in the APP(if include):
Long press the device name → Device information → 2.4 remote control setting
⑨. Please ensure that the connection between the LED strip and the controller is unobstructed (some LED strips may have poor contact due to the use of inferior connectors)
⑩. This controller work with 3pin pixel LED strips, can`t work with 4pin pixel LED strips

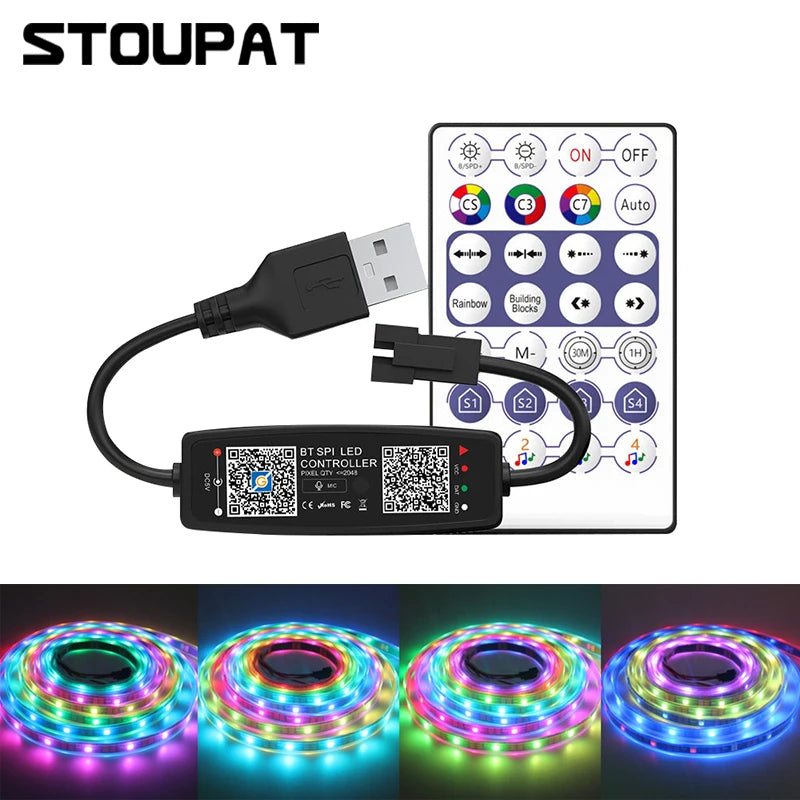

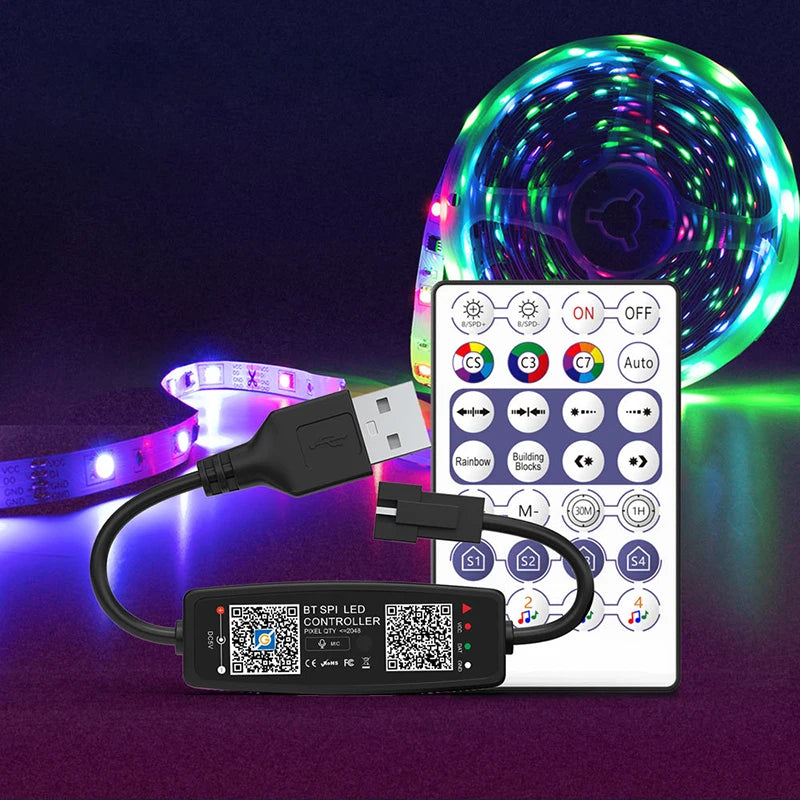

WS2812B Controller Bluetooth Music for Pixel LED Strip Light SK6812 WS2811 WS2812 LED Light Strip USB 5V APP Remote Controller

Product Parameter
Rated voltage: USB-5V, DC-12~24V
Rated Power: 144W
Controllable points: max 2048 points
Support IC: 2812, 2811, 16703, 16704, 1903, 6812, 1003, 2904, etc.
Remote control battery: 1* CR2025 (not included)

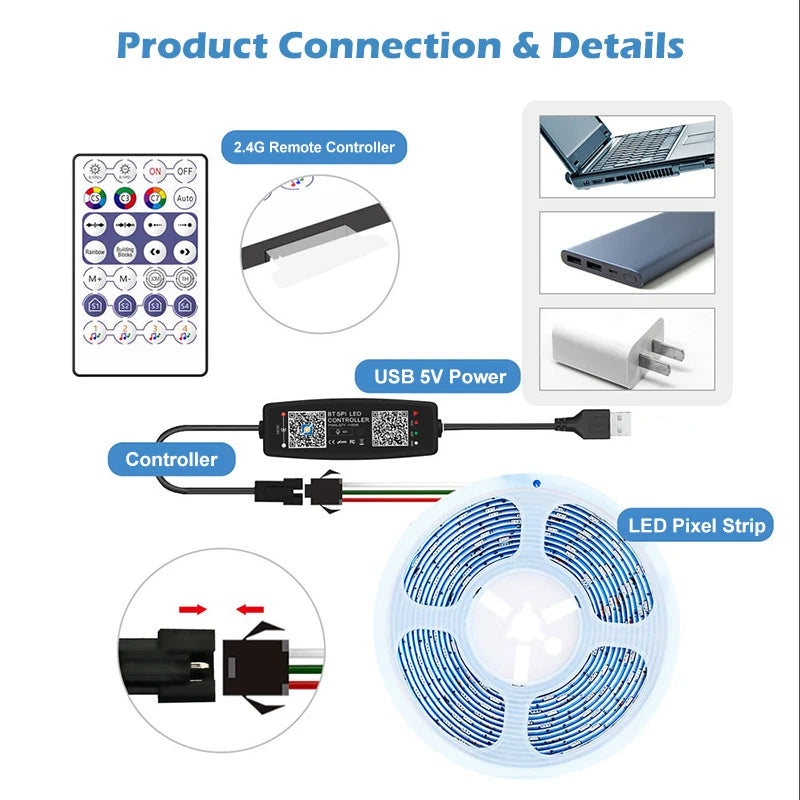

Connection method: USB / DC
Control method: mobile phone APP remote control

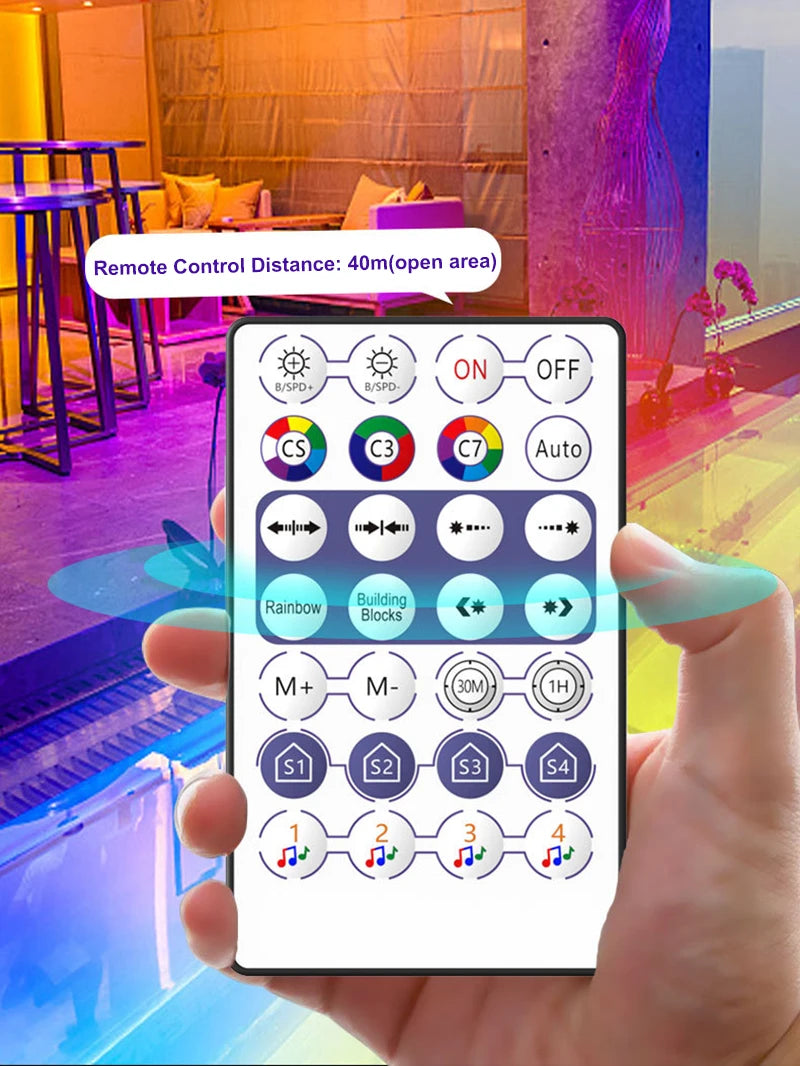

Control range: 40m(open area)

Product Feature

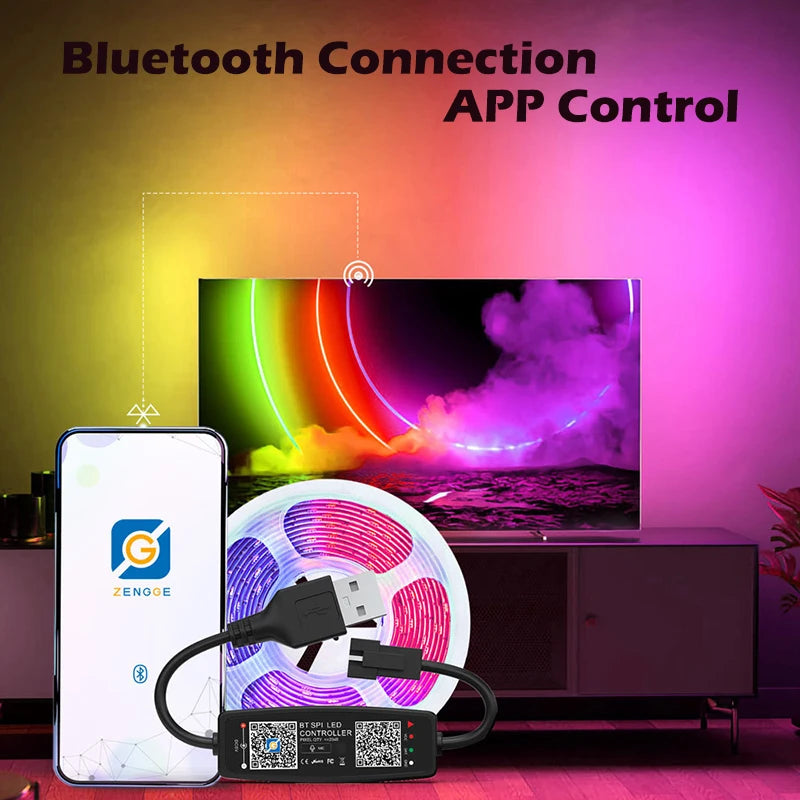

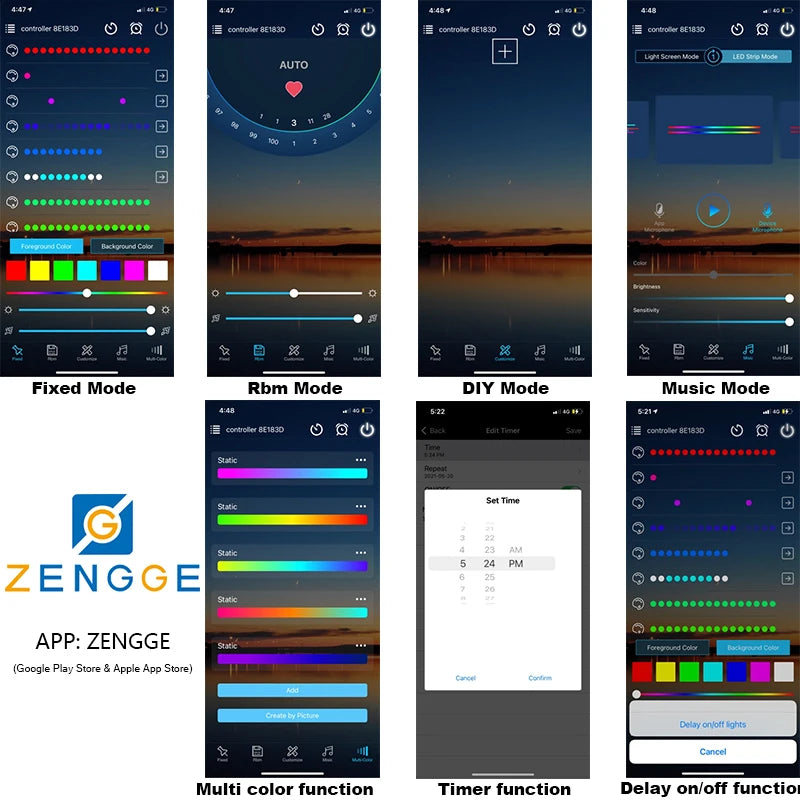

1. Can use the app to control and adjust the color and brightness of the light strip through the smart bluetooth
2. Built-in 100 kinds of jump mode, DIY mode, rainbow running water mode, meteor mode, turn on/off curtain mode, music mode
3. Timing delay switch, the number of segments set at will
4. Can be equipped with wireless 2.4G remote control, the distance is farther and more stable

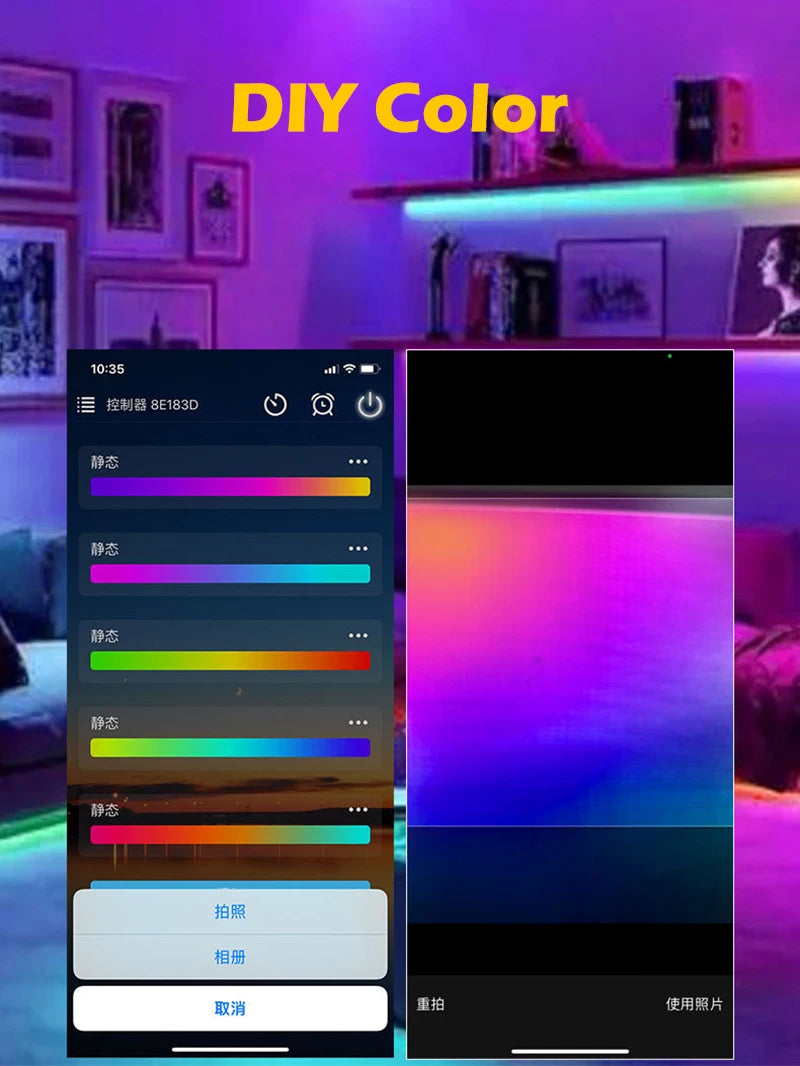

5. The color and dynamic effect of each point can be set freely, the color can be selected as color block gradient or mixed gradient
6. The visible distance is up to 40m, the signal is stable, the power consumption is low, and it is easy to use

Package Include
1* LED Strip Light Controller (Remote not including CR2025 battery)

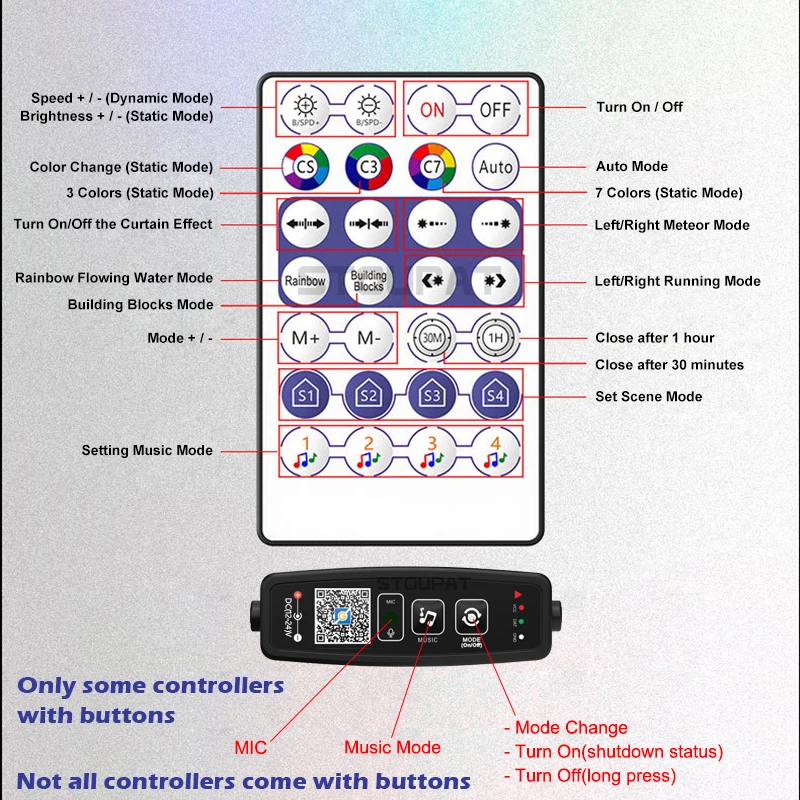

Setting of the remote(if include)

Long press the device name → Device information → 2.4 remote control setting

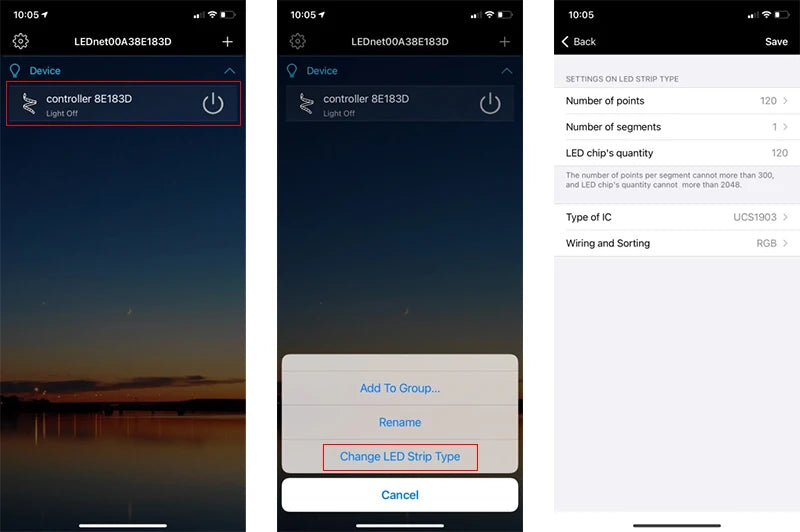

How to set the IC model and IC numbers:

Long press the device and click on "Change LED Strip Type" to set the IC model, Wiring and Sorting, Number of points, Number of segment(Total number of points can not exceed 300 in each segment and total LED chip's quantity can not exceed 2048). On music mode, the total number of points in each segment and the total number of segment should be less than 150 points and 64 segments, the total LED Chip's quantity should be less than 960.
