SPECIFICATIONS

Application: Computer

Baud Rate: 2400bps-115200bps

Brand Name: BLIIOT

Condition: New

Configuration: PC software configuration, support WIN 7, WIN 8, WIN 10 and WIN11

Dissipation Power: Normal: 70mA@12V, Max: 168mA@12V

High-concerned chemical: none

Input Voltage: DC 9-36V

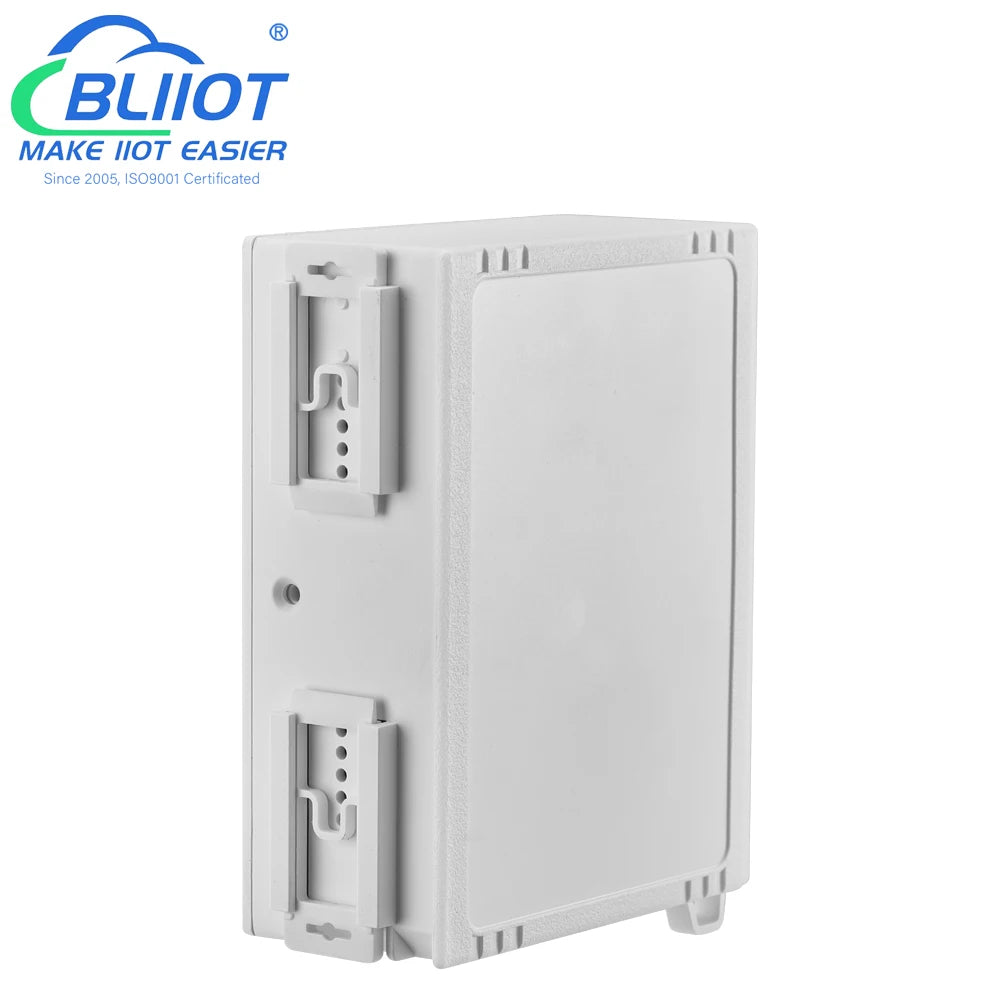

Mounting: DIN Rail Mounting/Wall-mounting

Net Weight: 171g/133g

Operating Temperature: -40-80°

Origin: Mainland China

Package: SOP

Protection: ESD: ±6kV(Contact), ±8kV(Air),IP30

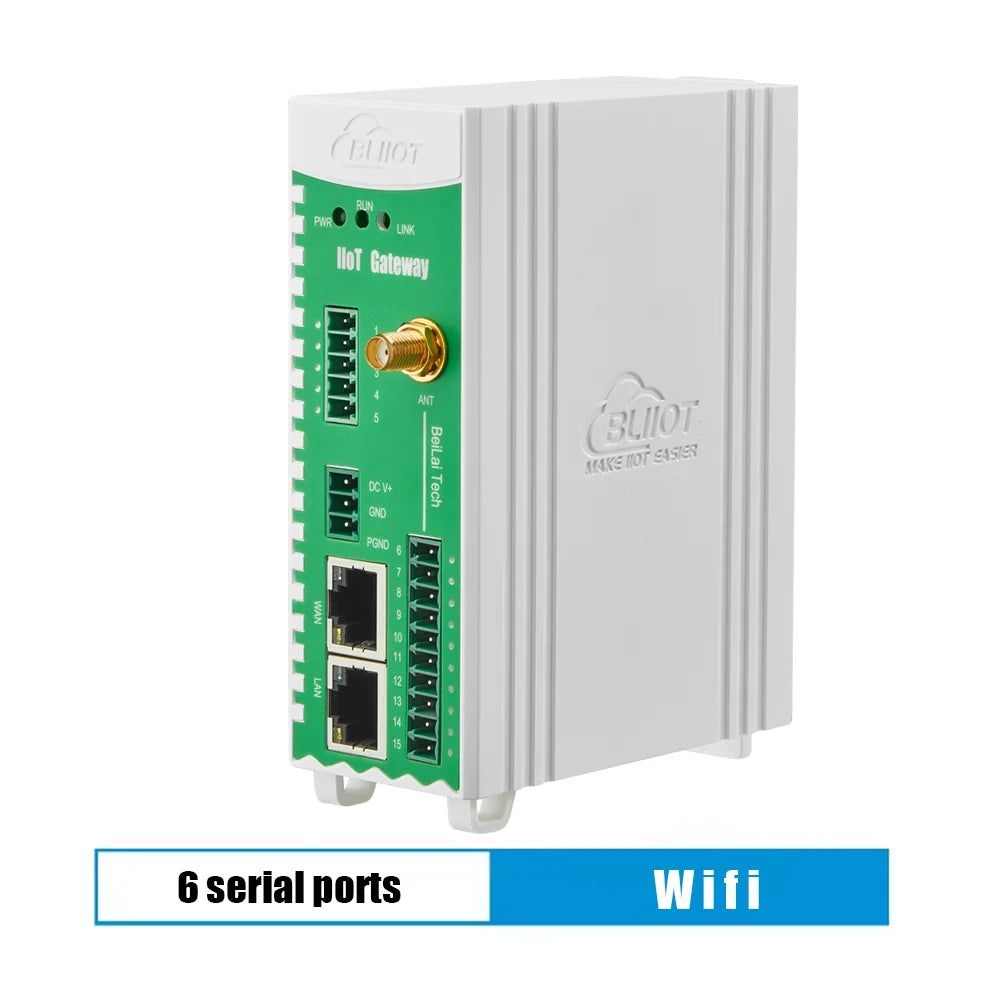

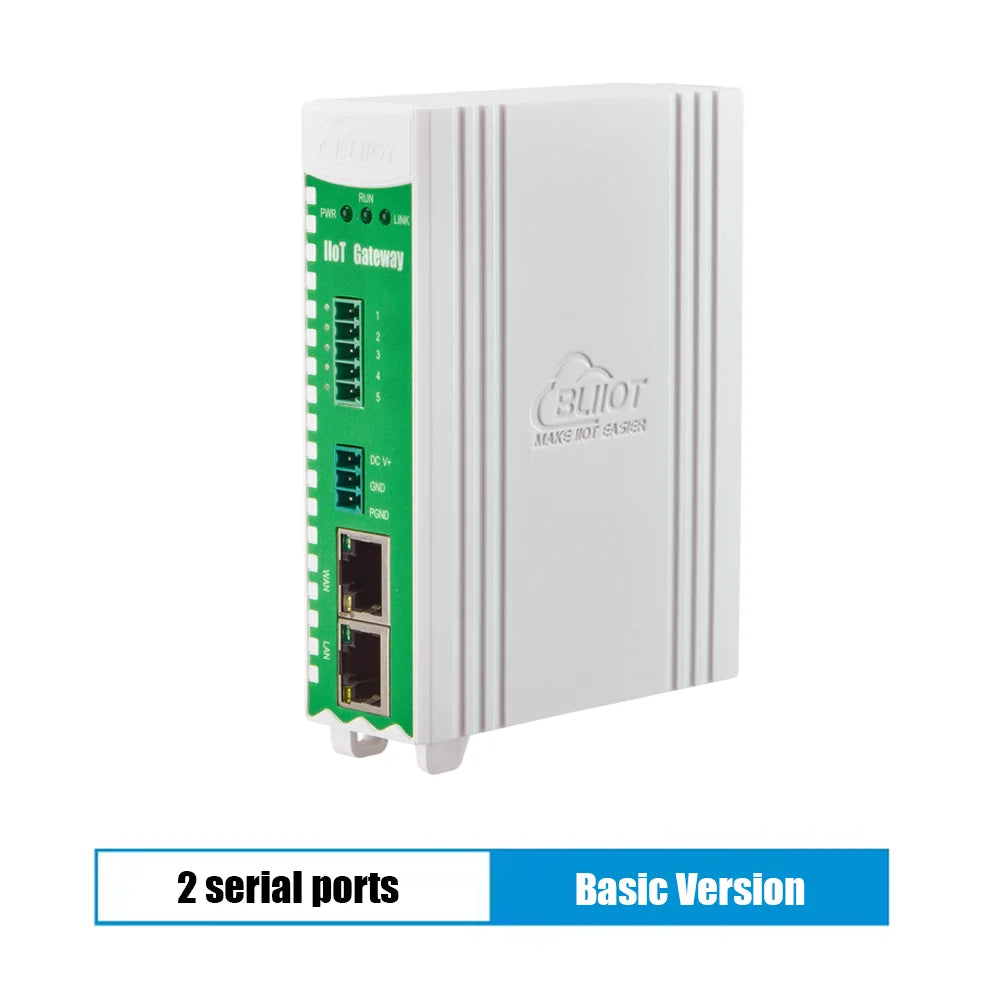

QTY: 2CH or 6CH RS485/RS232

Remote configuration: support

Specification: 2 x RJ45, 10/100Mbps, adaptive MDI/MDIX

Supply Voltage: DC 9~36V

Type: Module

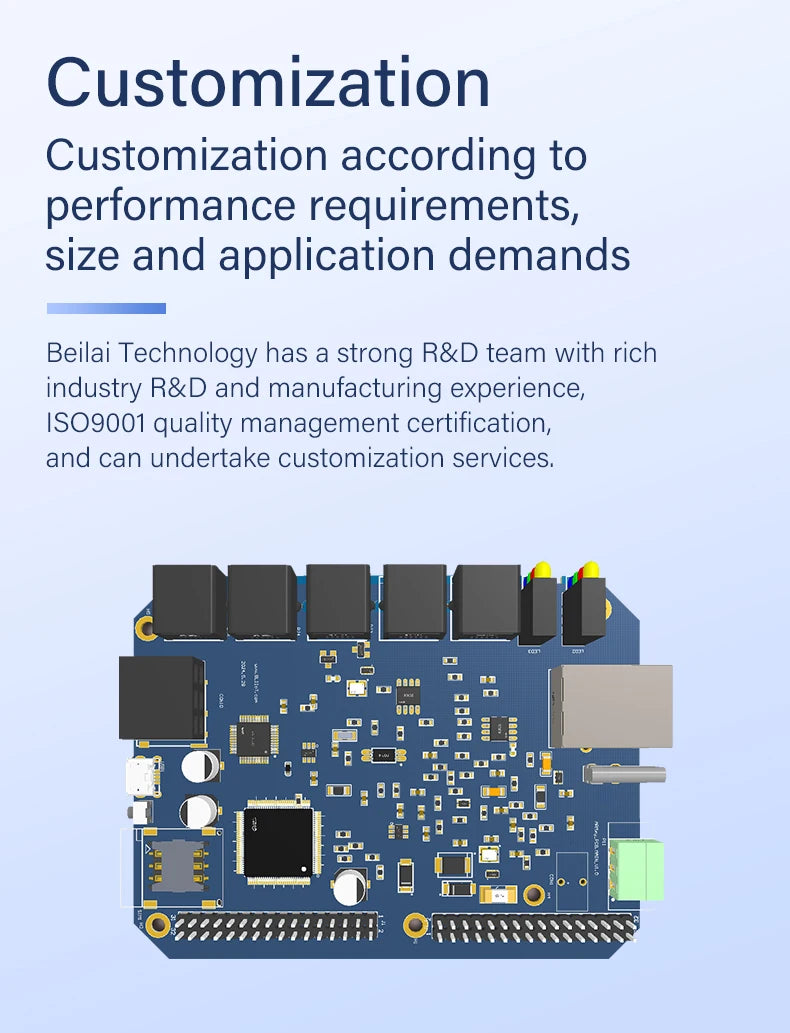

is_customized: Yes

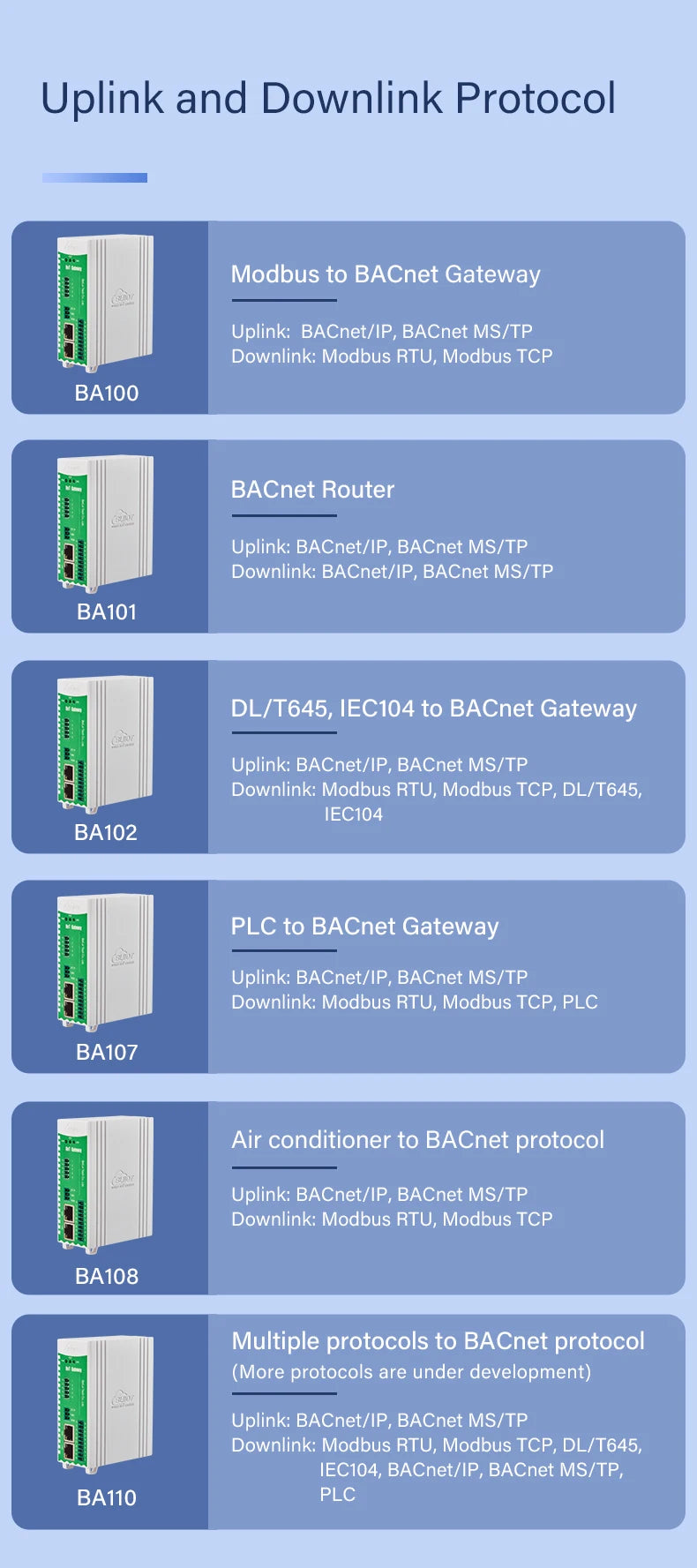

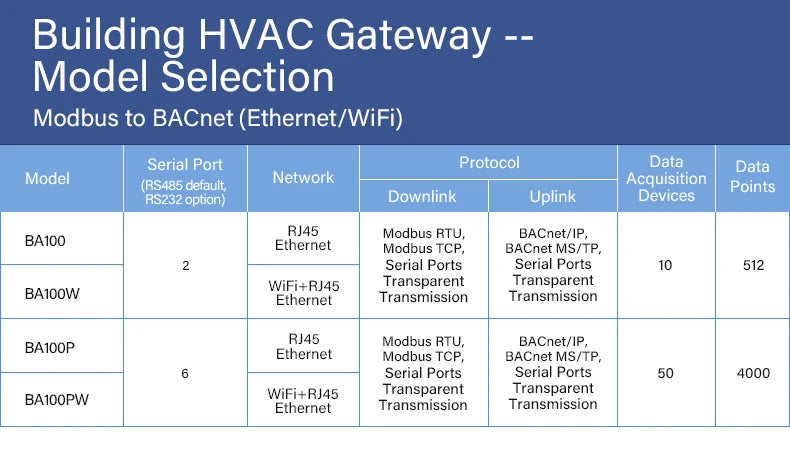

Model List

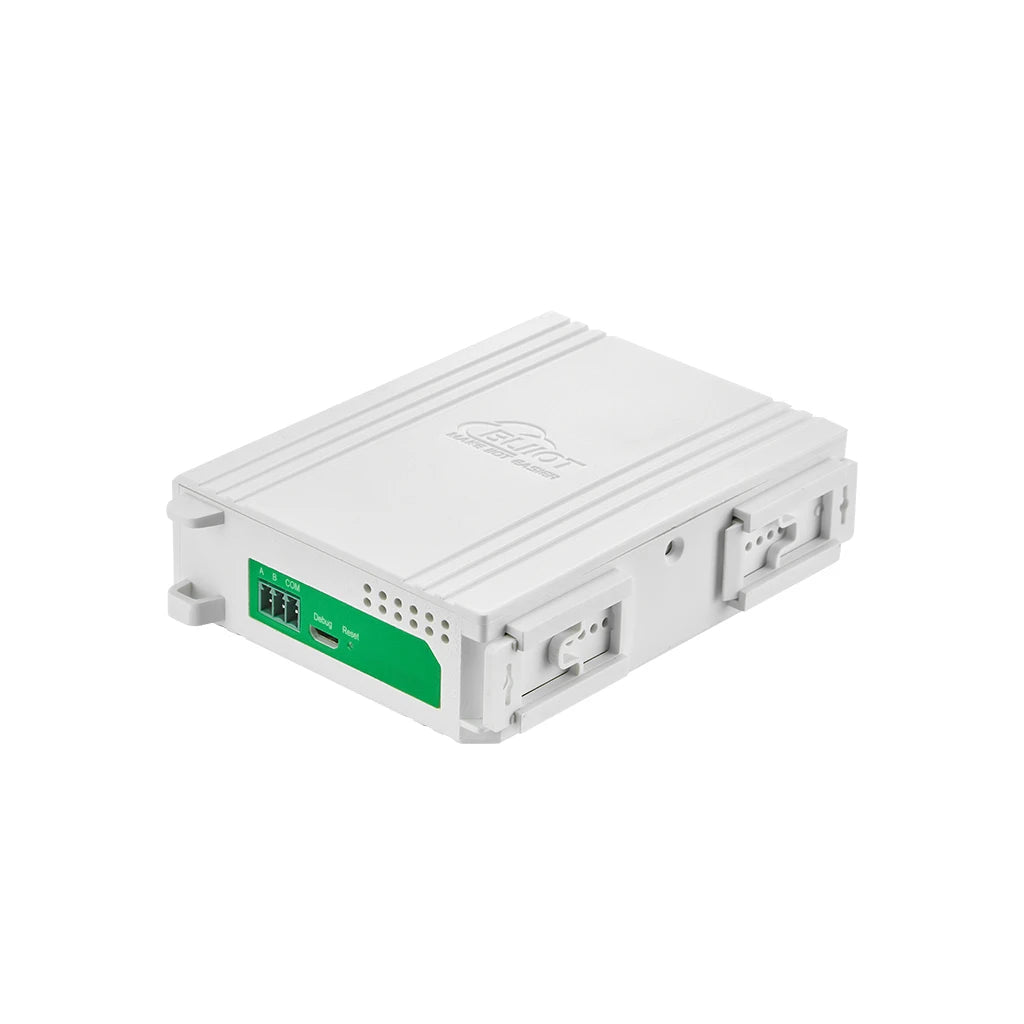

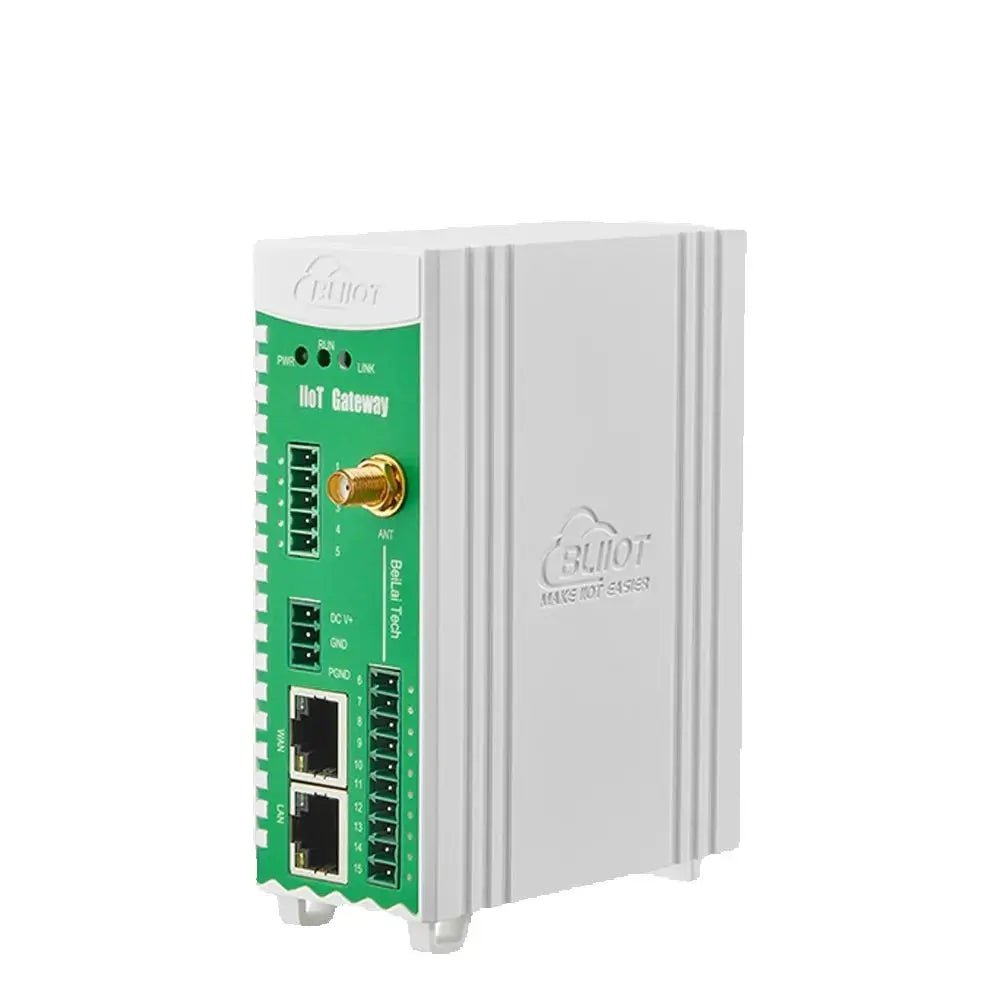

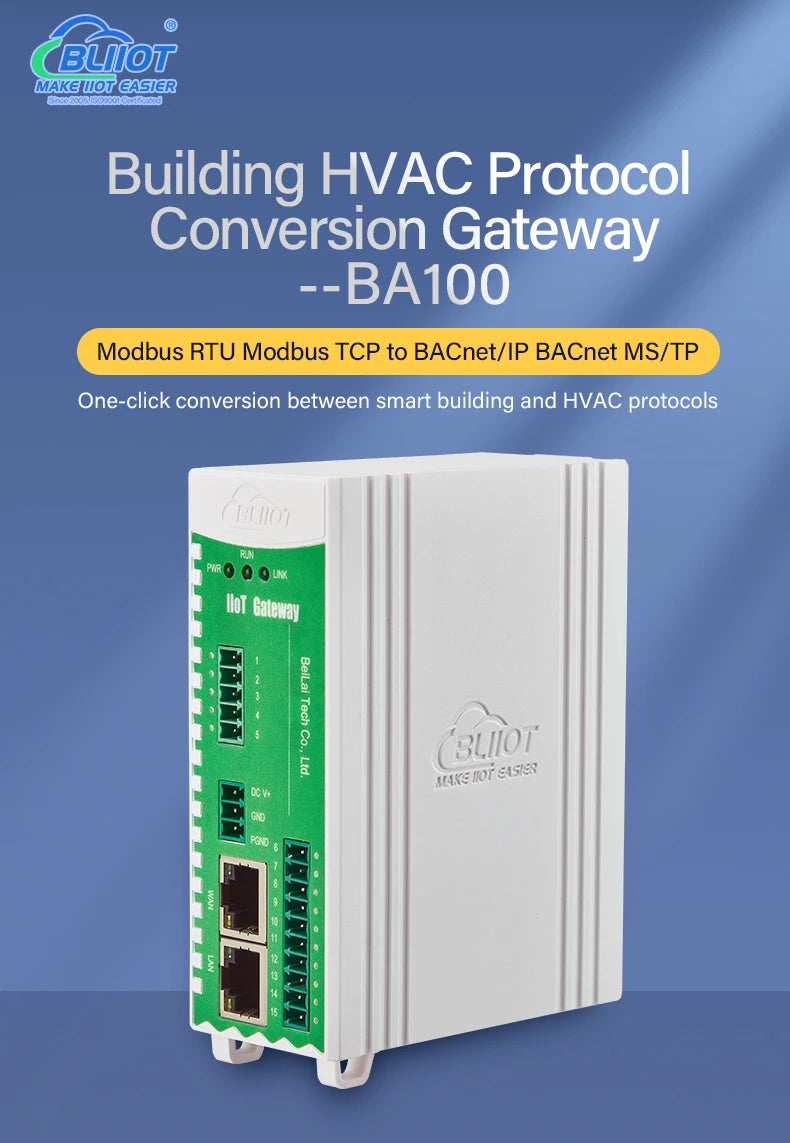

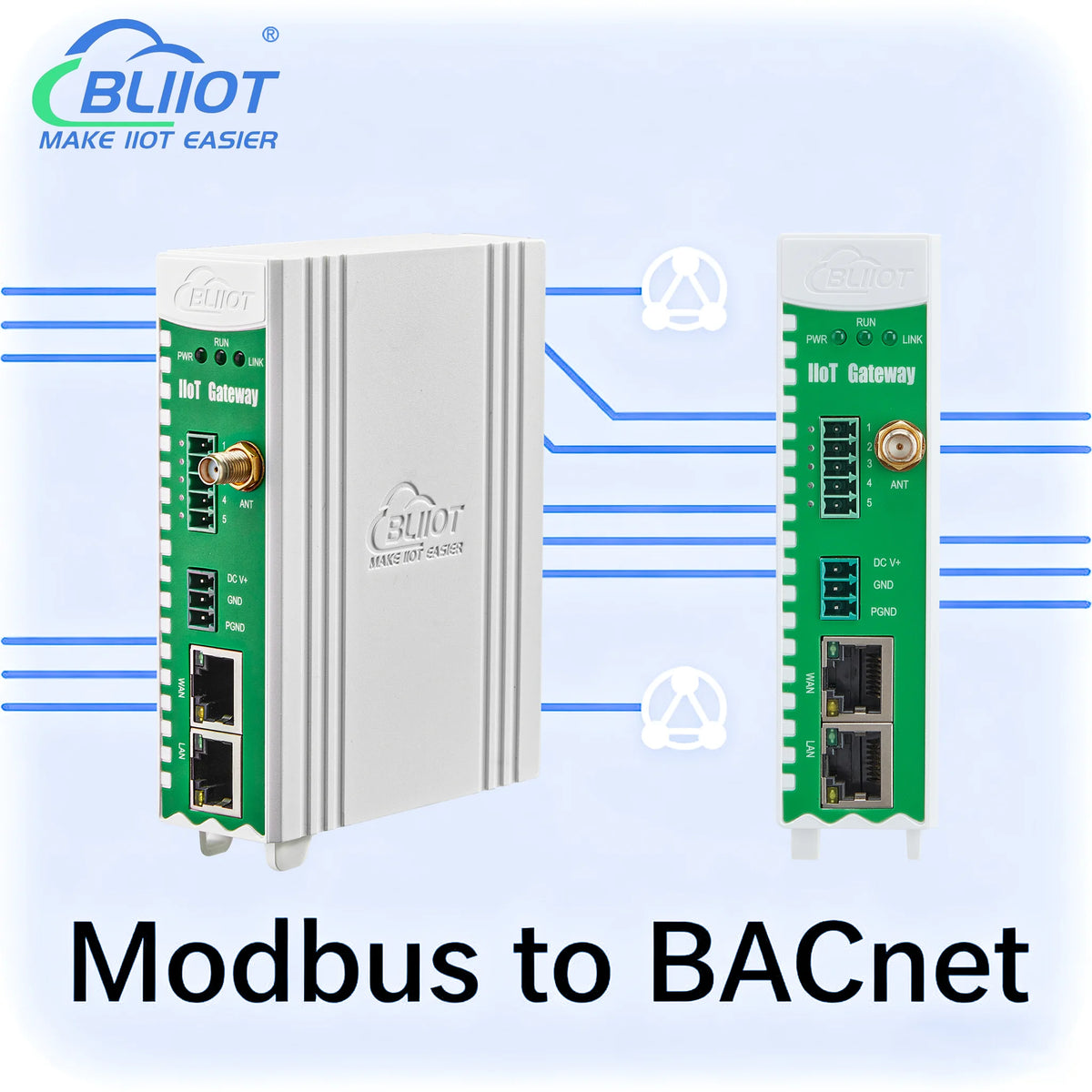

Modbus RTU/TCP to BACnet /IP building automation BAS Heating Ventilation Air Conditioning Refrigeration Control Equipment BA100

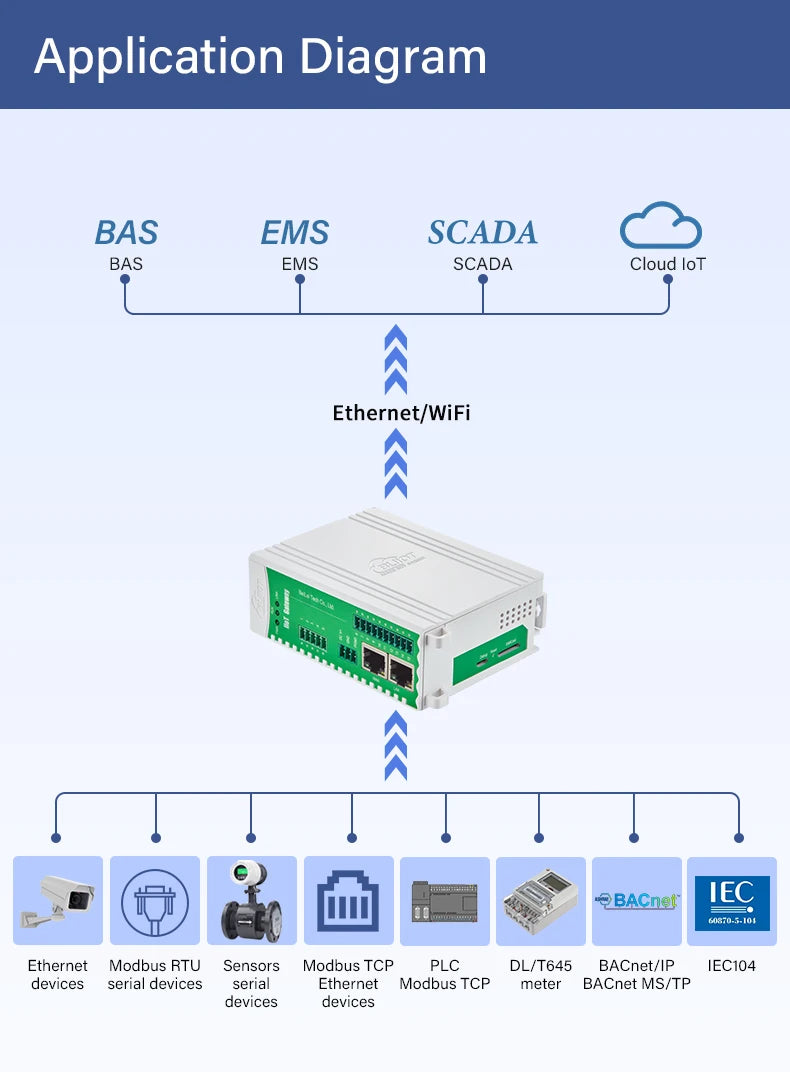

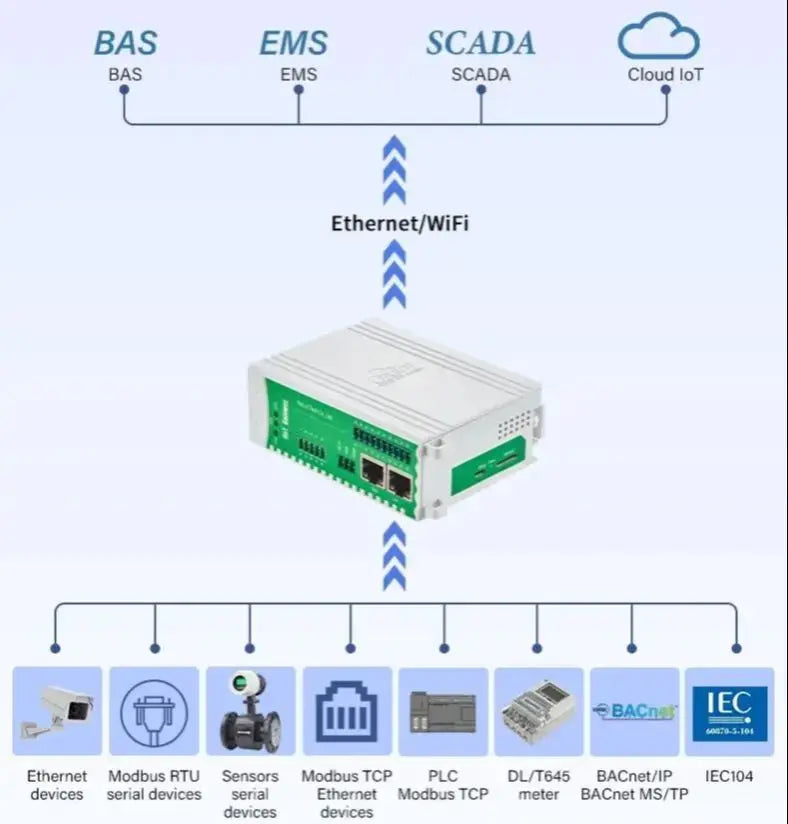

Modbus to BACnet Protocol Gateway is a device used to implement communication conversion between Modbus networks and BACnet networks. It provides efficient solutions for building automation, industrial control, energy management and other fields.

Downstream collection protocol supports:

Downlink: Modbus RTU/TCP Master (connects PLCs, sensors, etc.)

Uplink: BACnet MS/TP, BACnet/IP (seamless integration with BMS)

Transparent Transmission: Bidirectional conversion between Modbus RTU and Modbus TCP

Remote configuration:

BA100 supports remote configuration, providing users with convenient management and monitoring methods, ensuring that devices can be flexibly configured and adjusted in various application scenarios.

Application areas:

BA100 is widely used in the power industry, industrial control systems, and other fields, providing users with reliable and flexible protocol conversion and data acquisition solutions.
