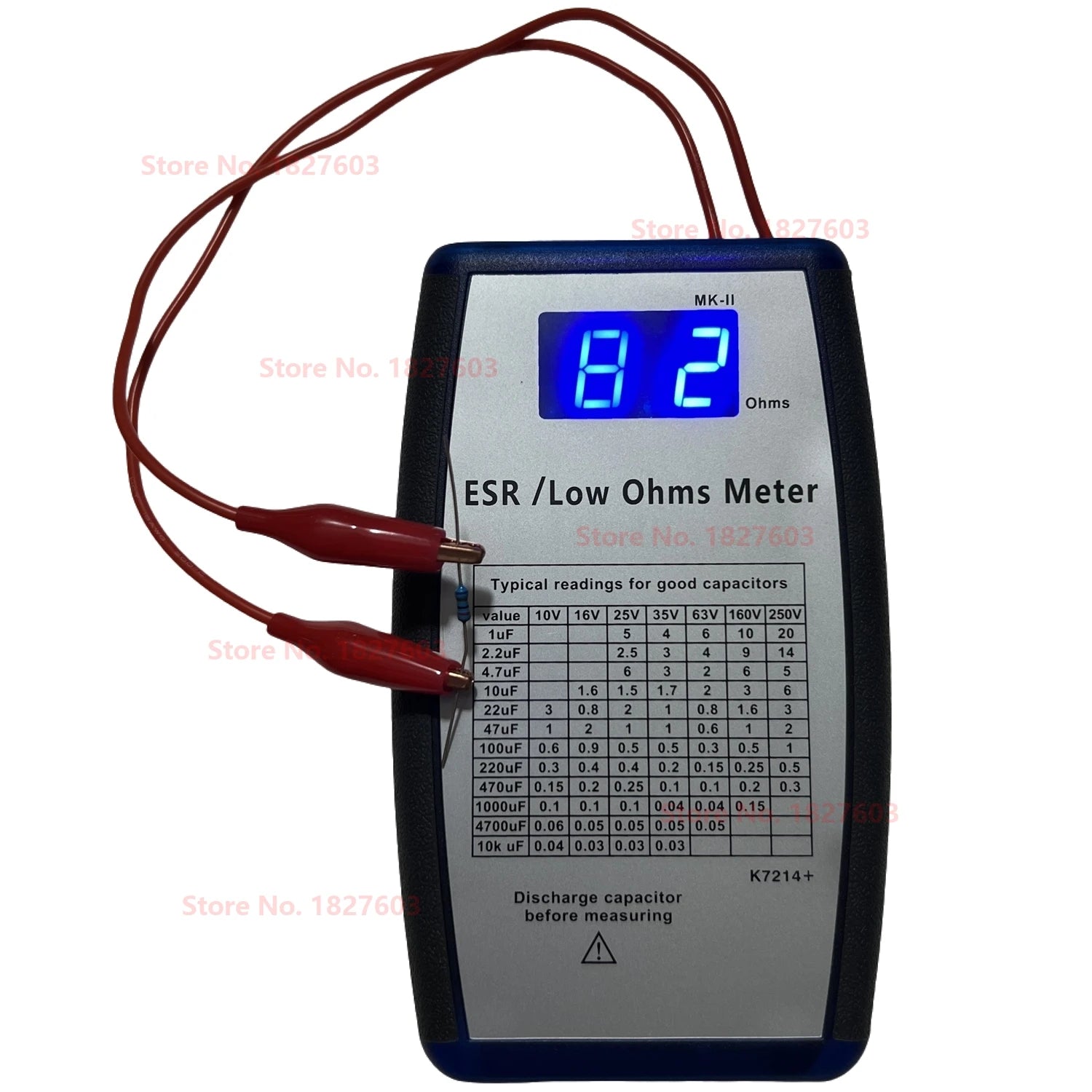

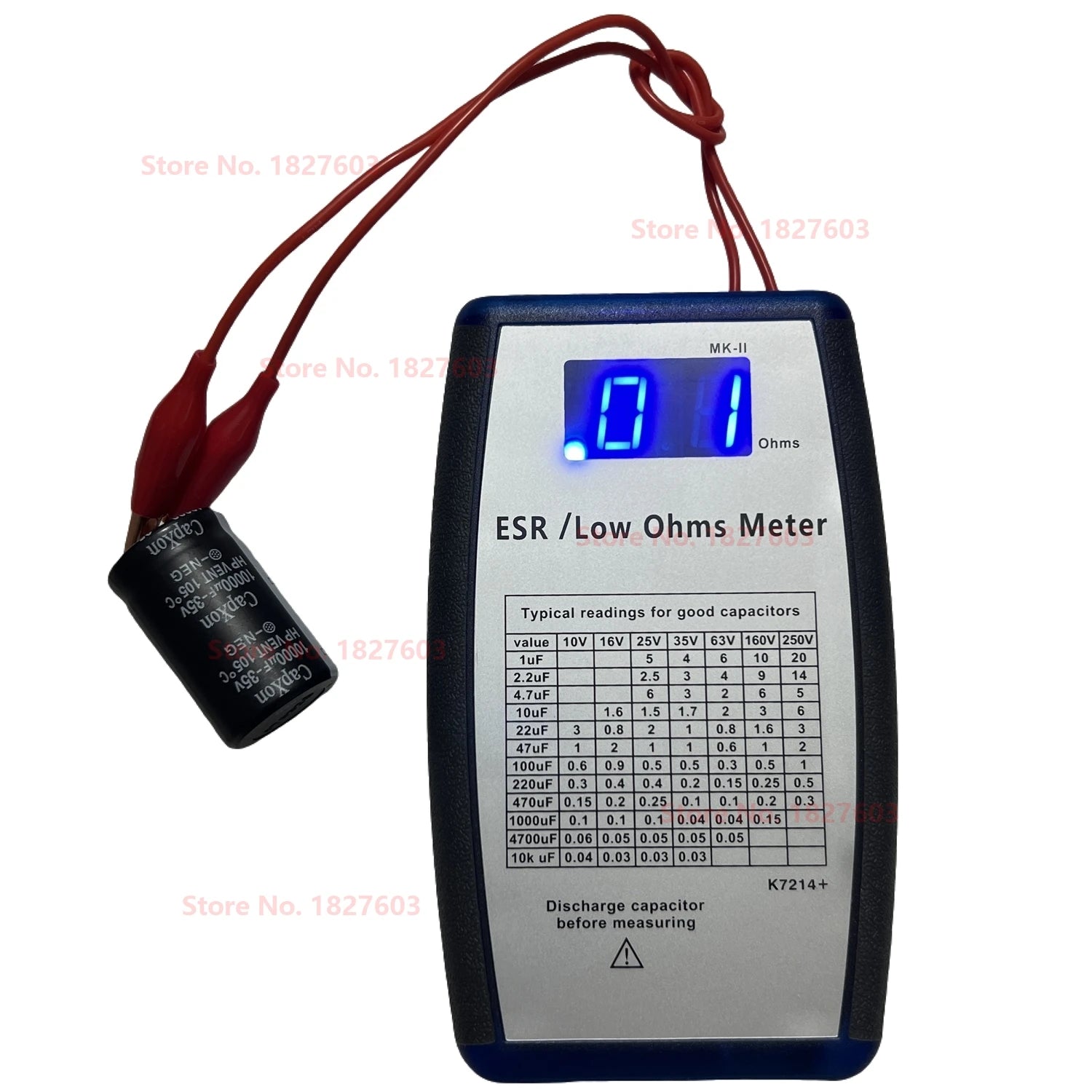

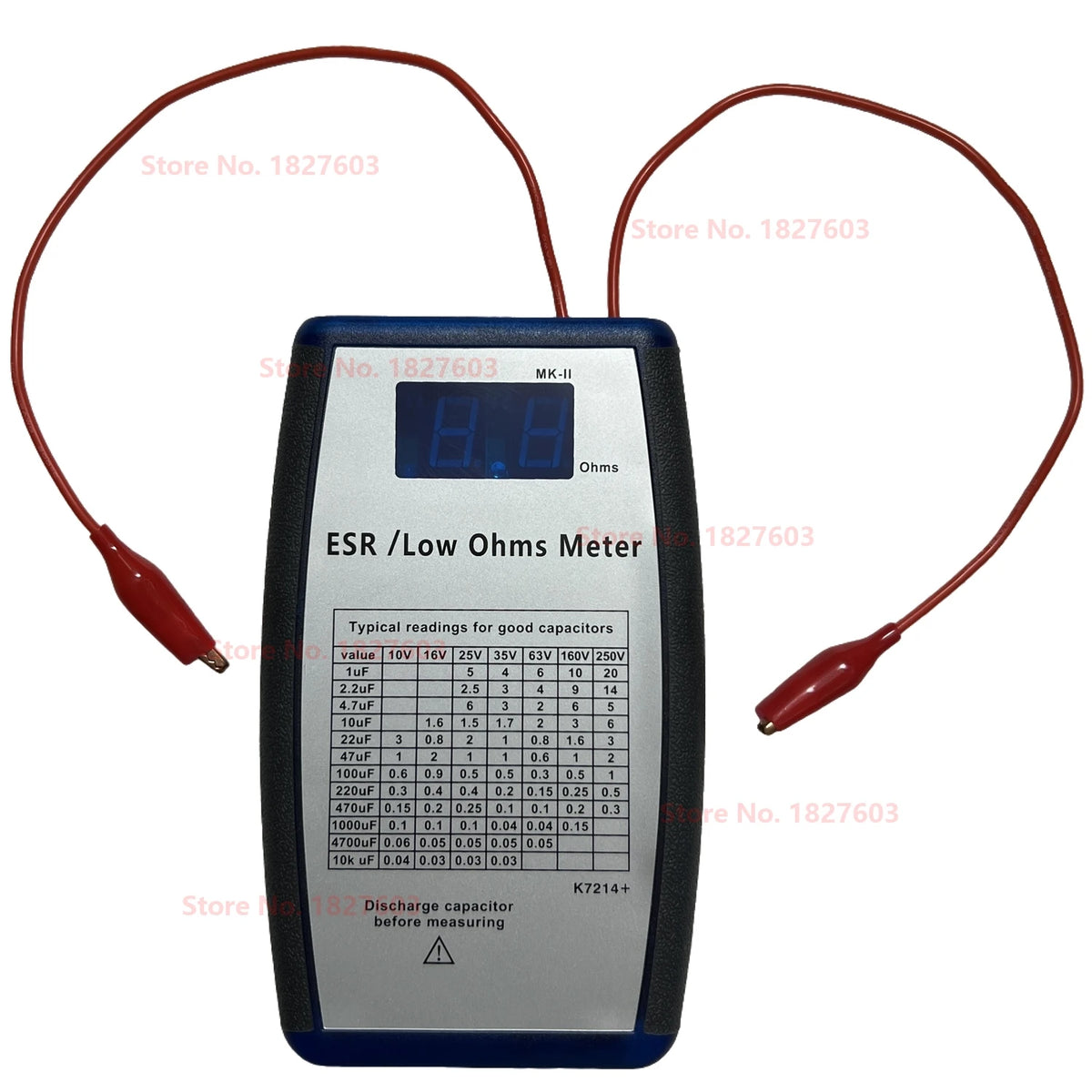

NEW Blue K7214+ ESR Meter classic circuit same as Blue ESR Meter, EVB ESR Meter, Dick Smith MKII ESR and Low Ohms Meter with translucent blue case

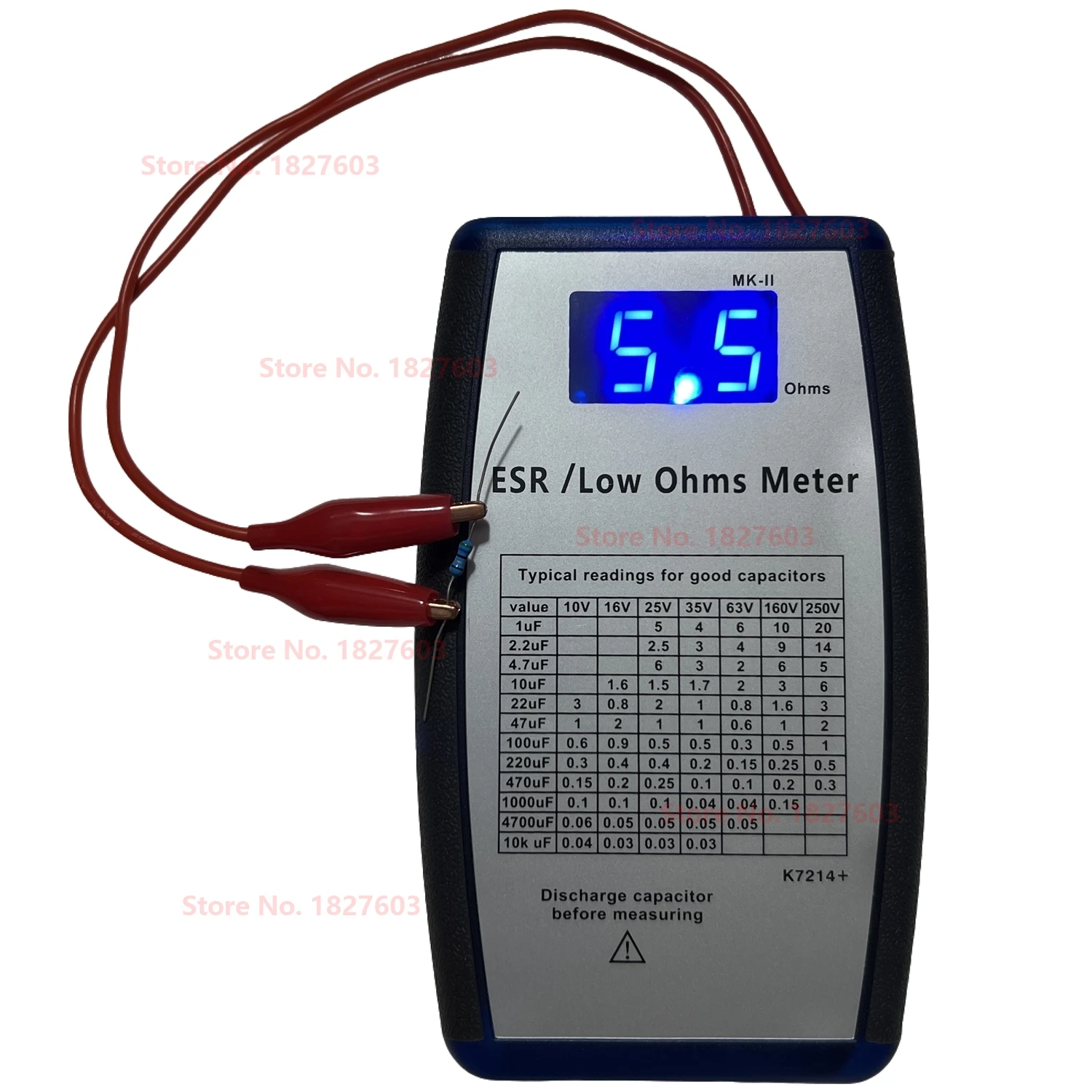

Please note: The picture is just to show the measurement result. The package does not include any batteries.

This K7214+ ESR METER is based on the famous BLUE ESR METER classic circuit, using a new low-power MCU to replace the original ZILOG Z86E0412 microprocessor, a new design of firmware, in addition to the original BLUE ESR METER all the functions, you can test hook zeroing data saved to the microcontroller EEPROM, so you do not have to do zeroing operations every time you turn on the computer.

You can set the automatic shutdown time of the meter, and the shutdown can indicate the battery voltage, the battery life is much higher than the model using ZILOG Z86E0412 microprocessor. Red ultra-high brightness LED display, measurement results can be displayed more clearly.


Note:Blue ESR Meter has been popular since 2007. This is the latest Bob Parker design and successor to the famous Dick Smith MKII ESR and Low Ohms Meter. This handy and cost-effective meter, can measure capacitor equivalent series resistance (ESR) in the circuit. ESR is a very important quality and performance characteristic of capacitors greater than 1uF. This meter makes quality measurements which are usually not possible to check with capacitance meters.

For more ESR meter knowledge, you can visit:
https:// zilogbob.com/esr_meter/k7214.pdf

ESR Meter (Mark II) Features

* Tests electrolytics in-circuit <100mV test voltage, & test leads are non-polarized

* Auto-ranging to cover 0.01 - 99 ohms

* Update speed: 4 readings/second

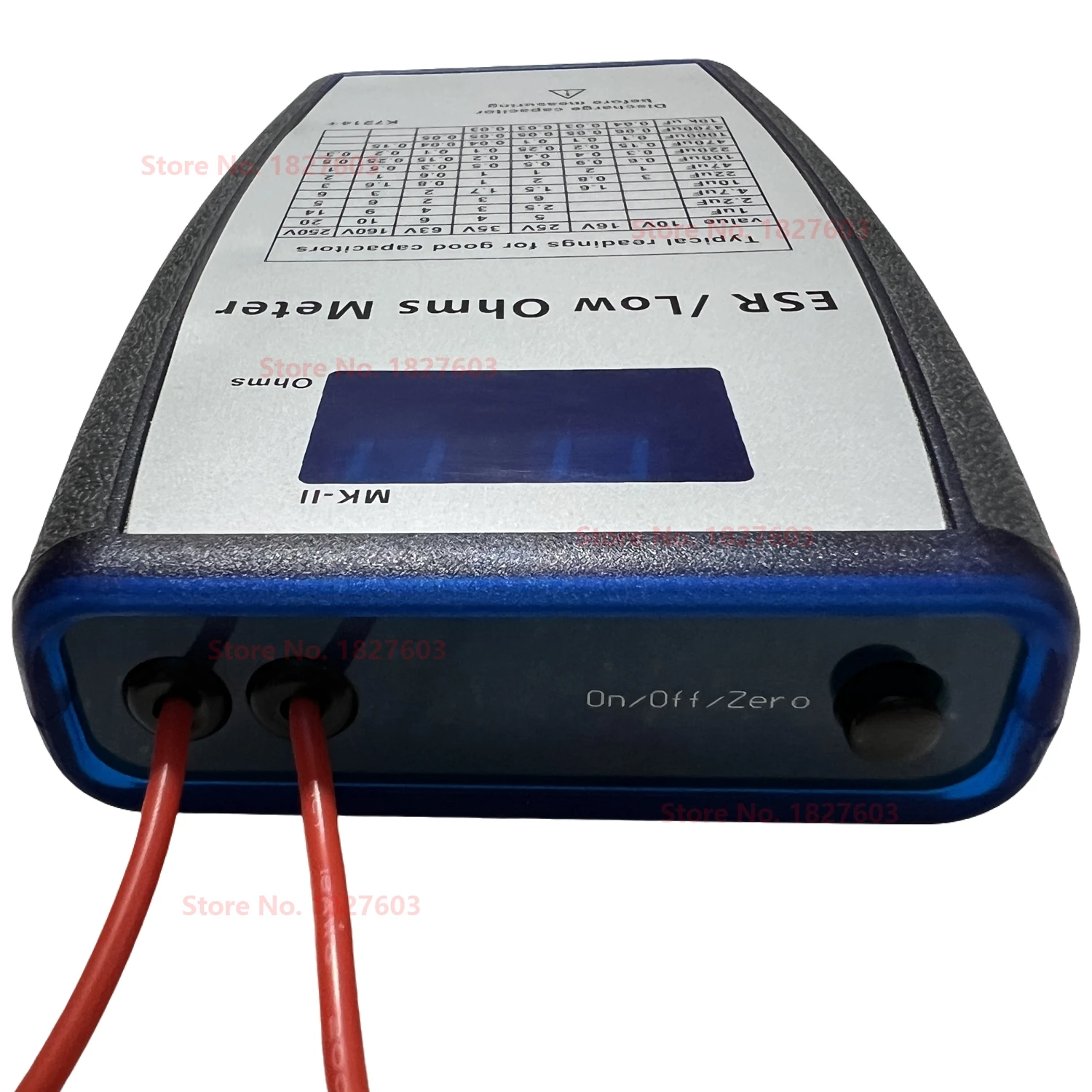

* Single push button to easily control all functions
* Test lead resistance zeroing compensation is stored in non-volatile memory, You don't have to zero the test leads after every turn on
* Automatic power off time adjustable from 1 to 9 minutes (0: clear auto power off)

* Low battery voltage warning ('b' flashes on right-hand digit),Displays battery voltage for a few moments before shutdown
* Big, easy to read 0.5 inch (13mm) high brightness LED displays

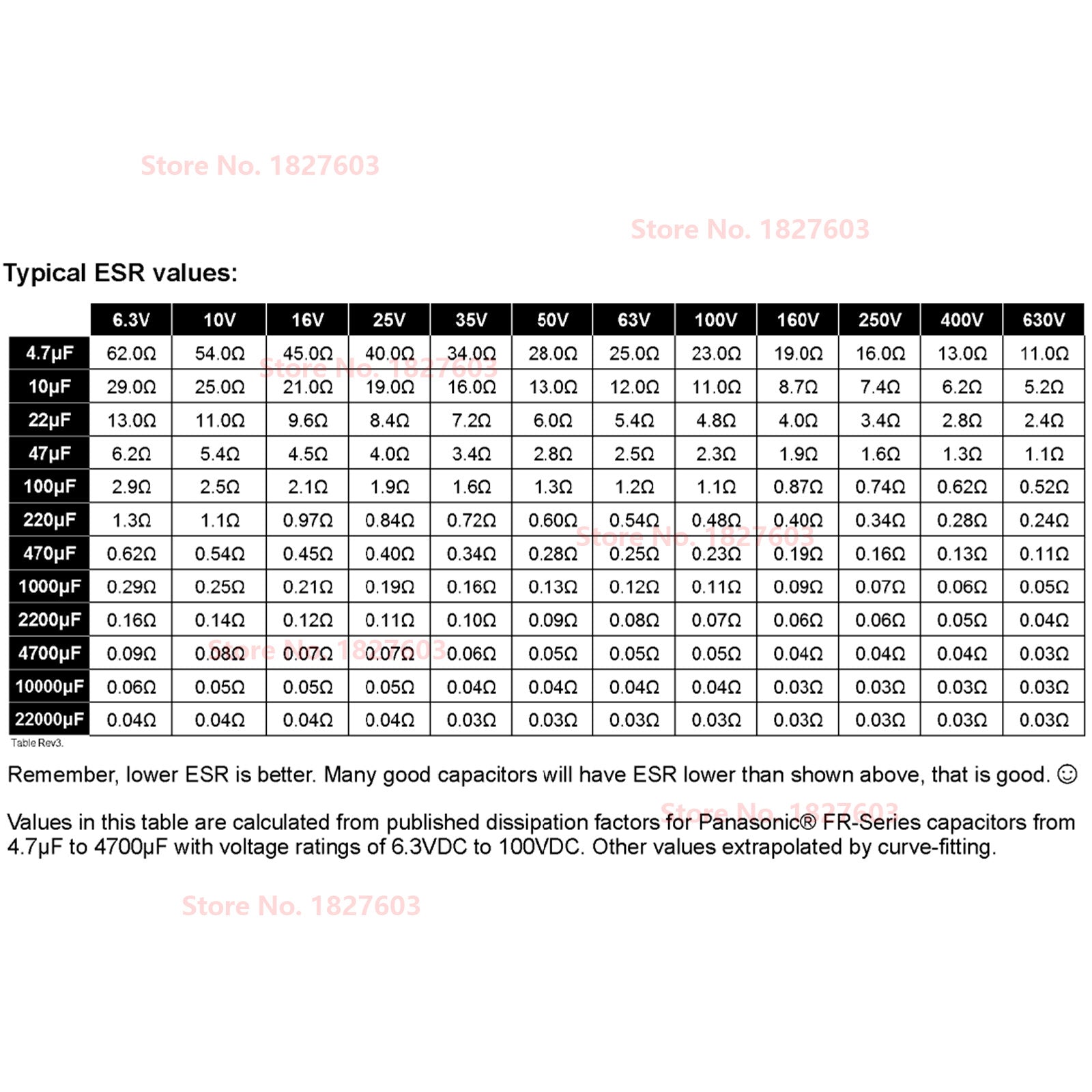

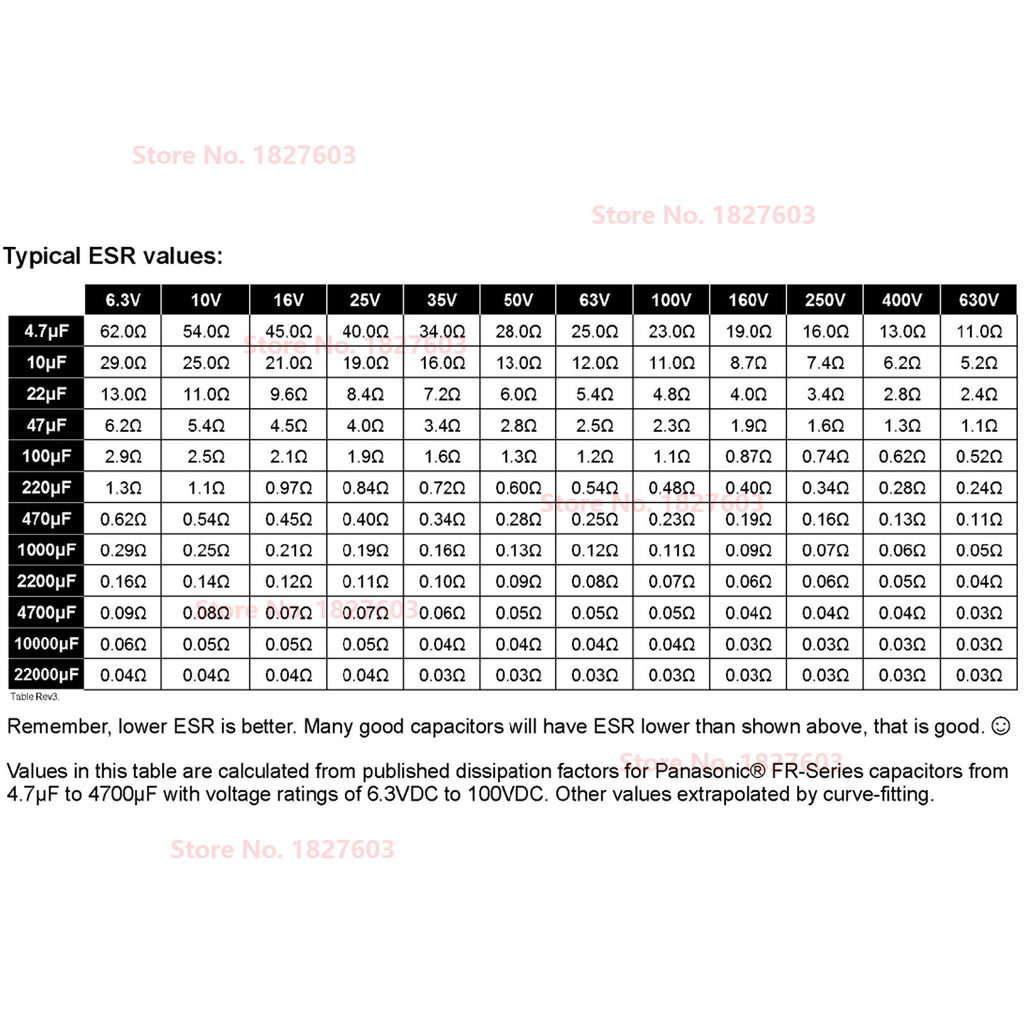

* Table of typical good capacitor ESR readings on the front panel
