SPECIFICATIONS

Brand Name: UICPAL

High-concerned chemical: none

Material: Mixture

Origin: Mainland China

Output: Digital Sensor,I2C or RS485

Theory: Capacitance Sensor

Type: Humidity Sensor

Use: Temperature Sensor

is_customized: Yes

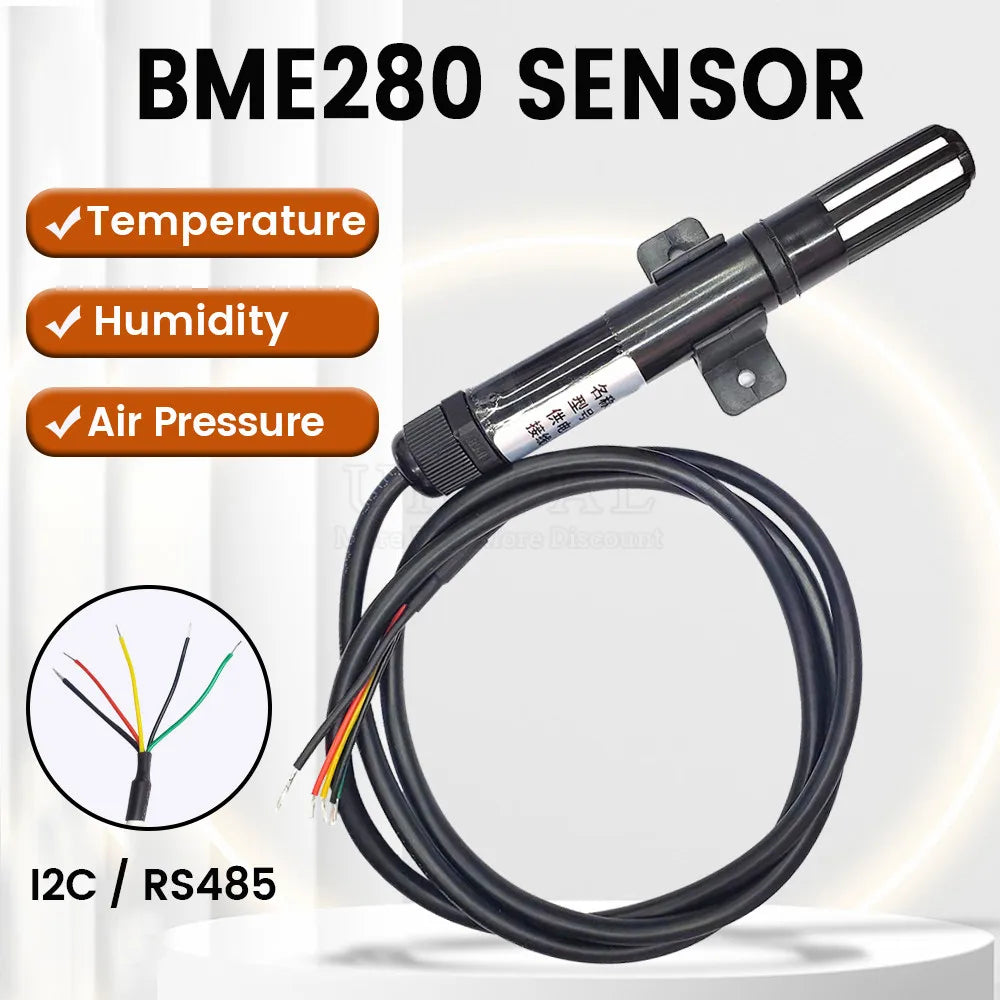

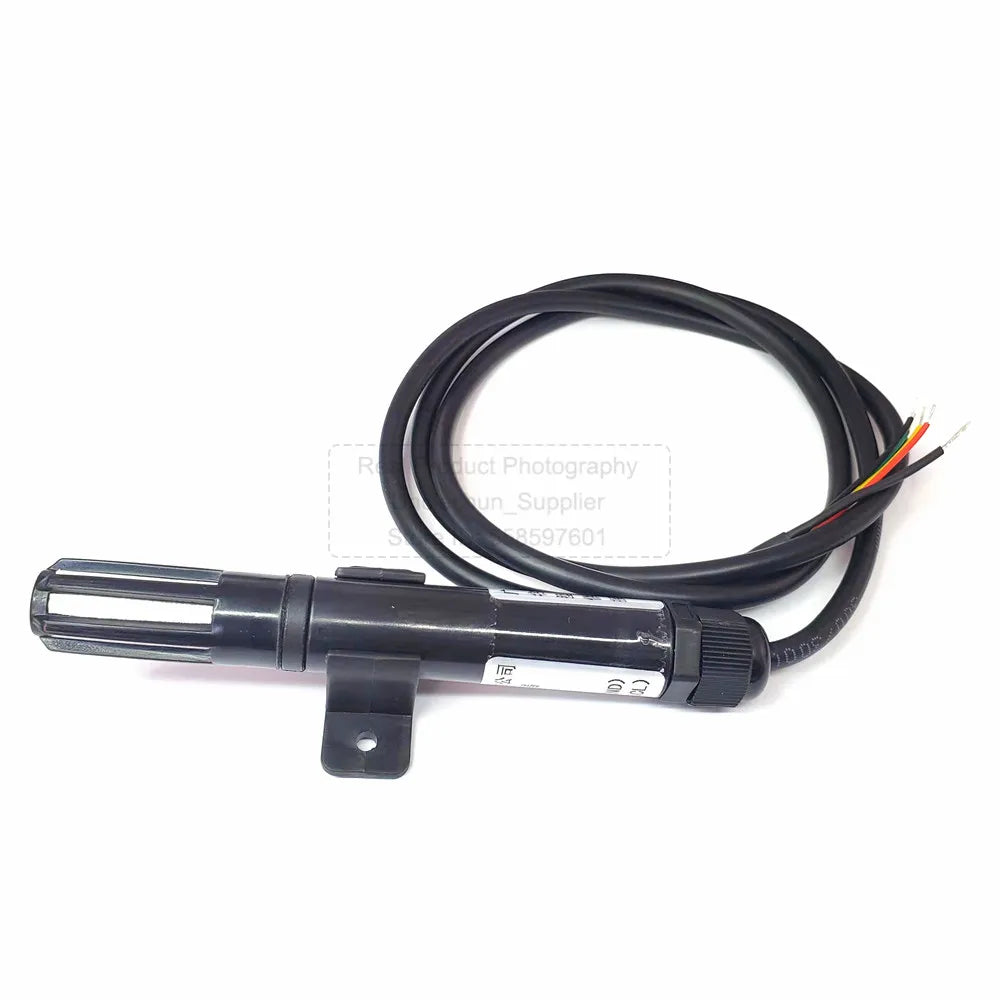

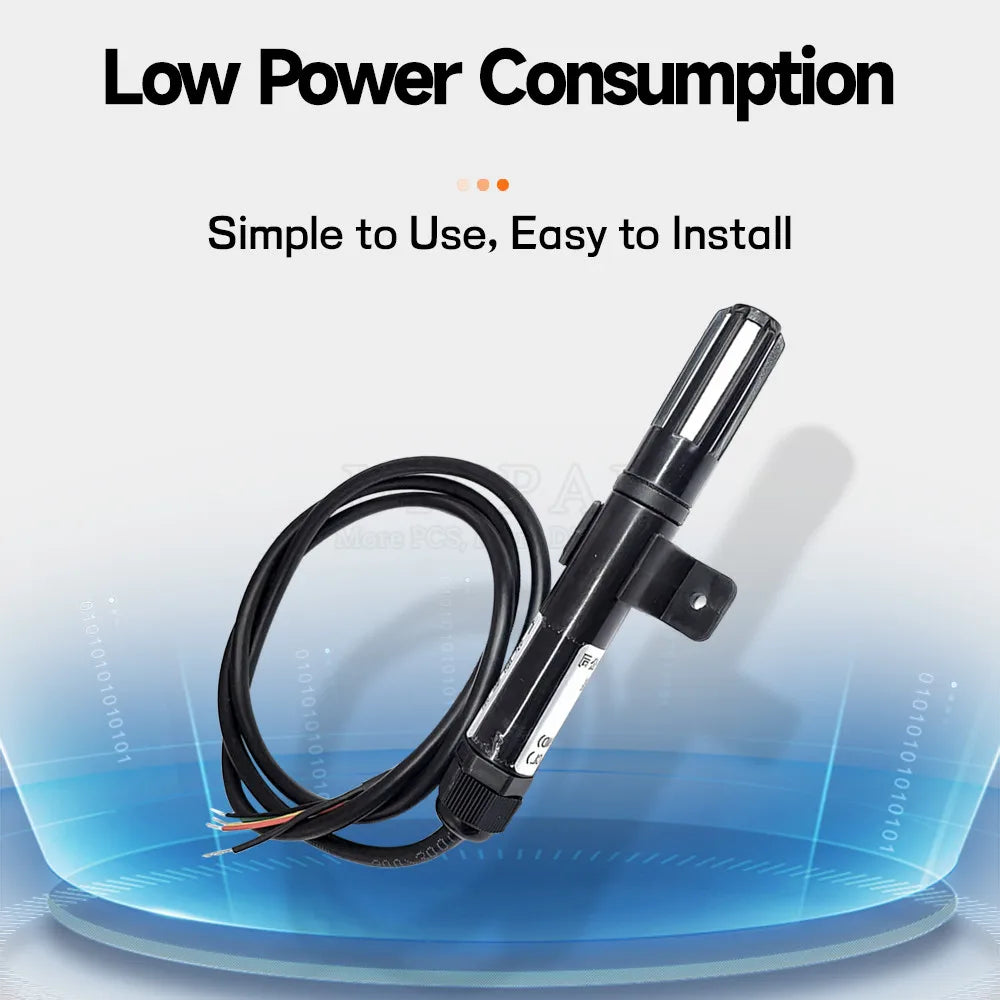

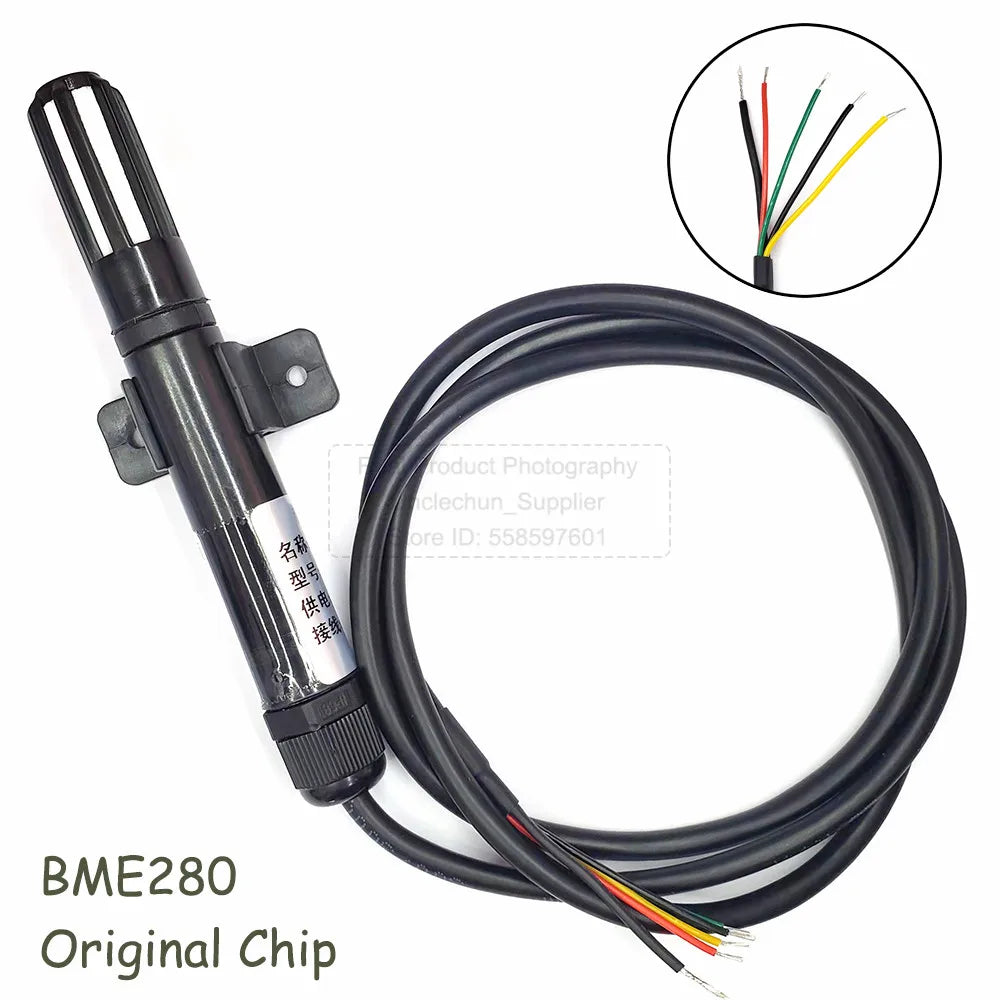

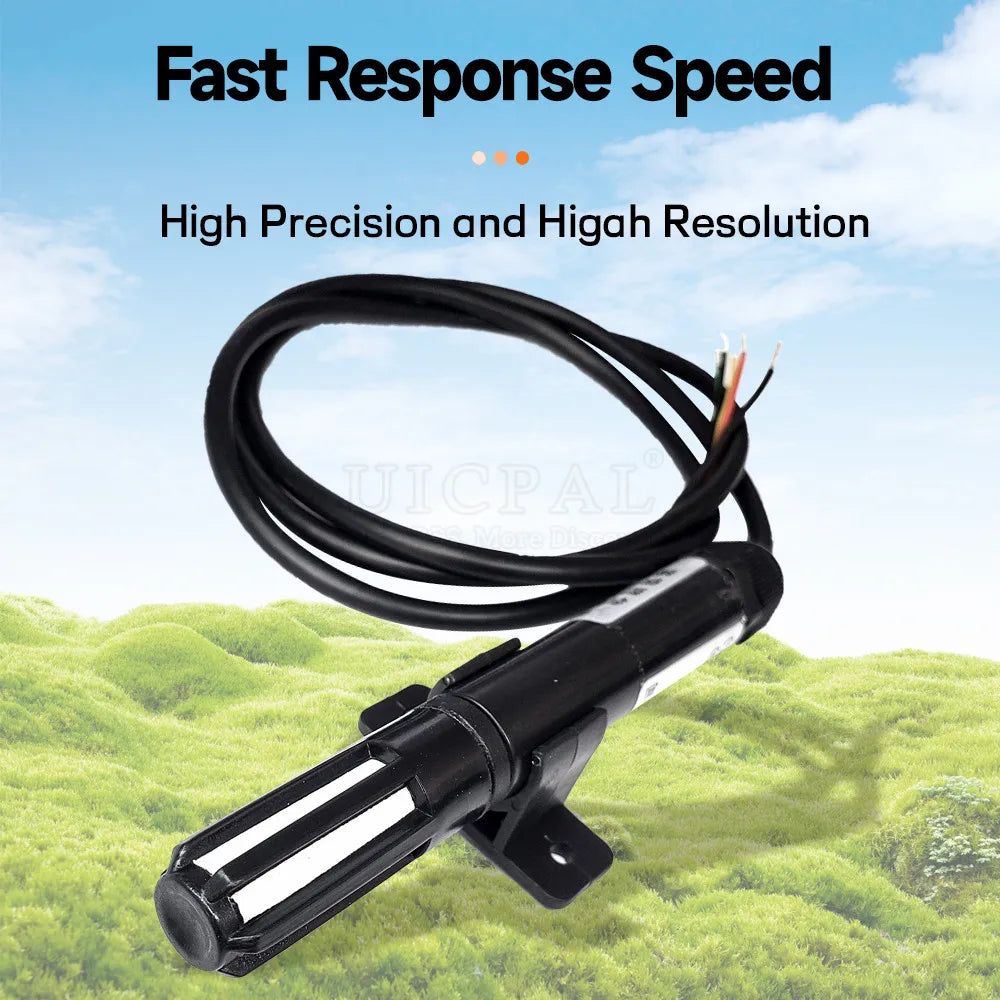

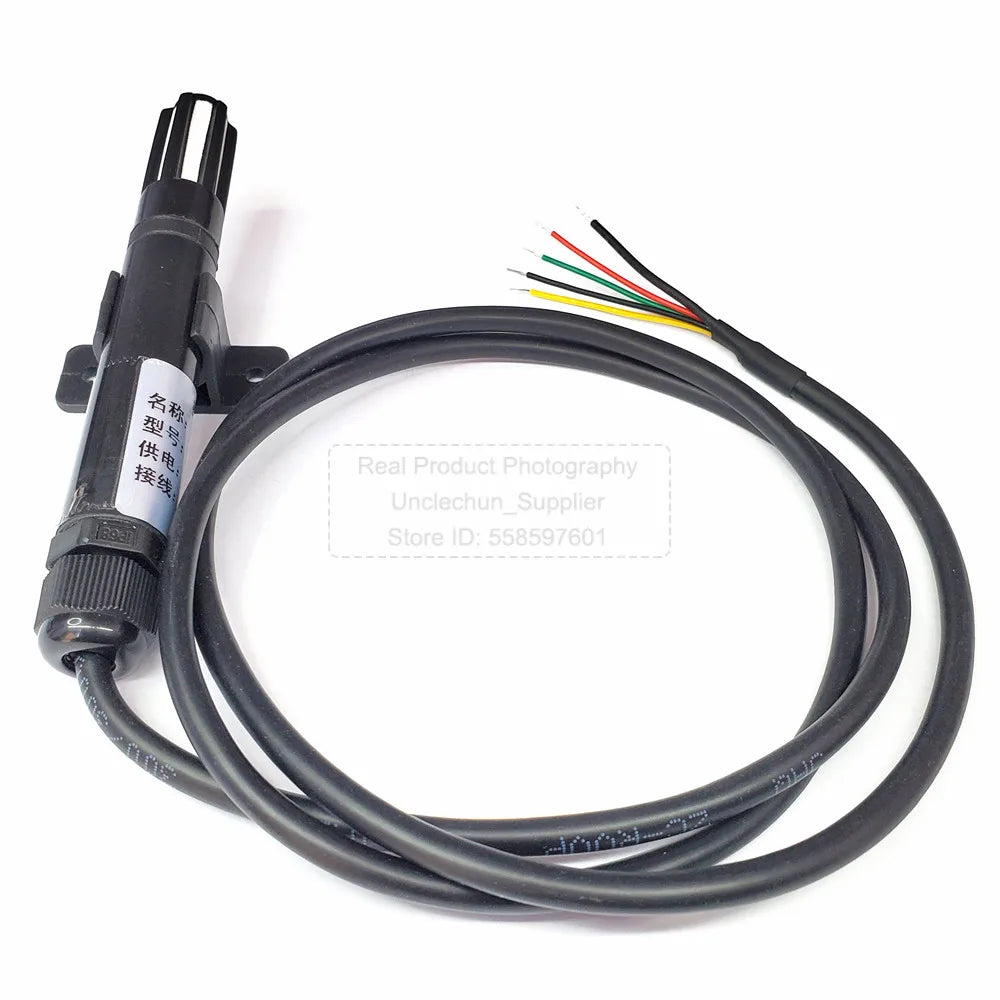

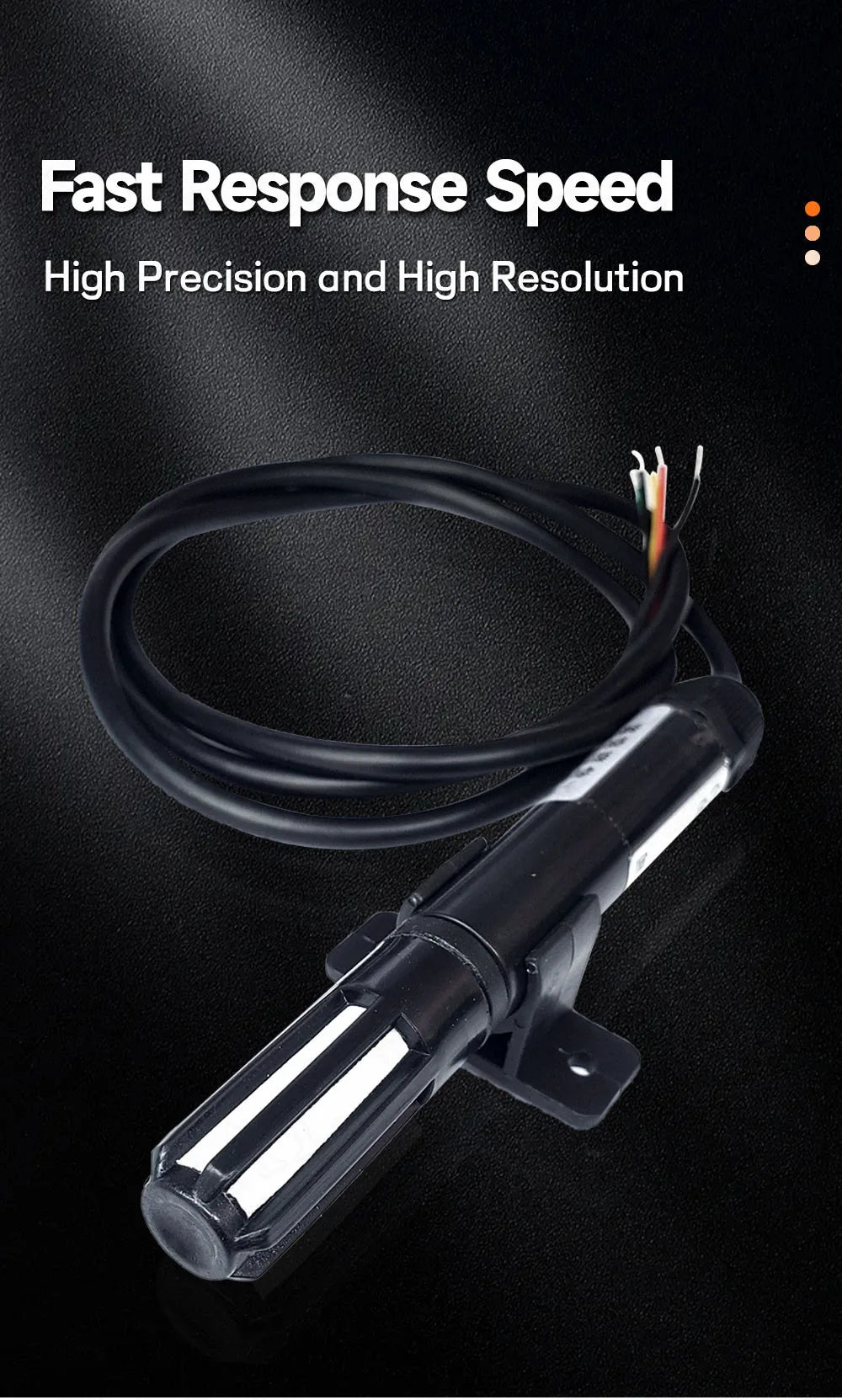

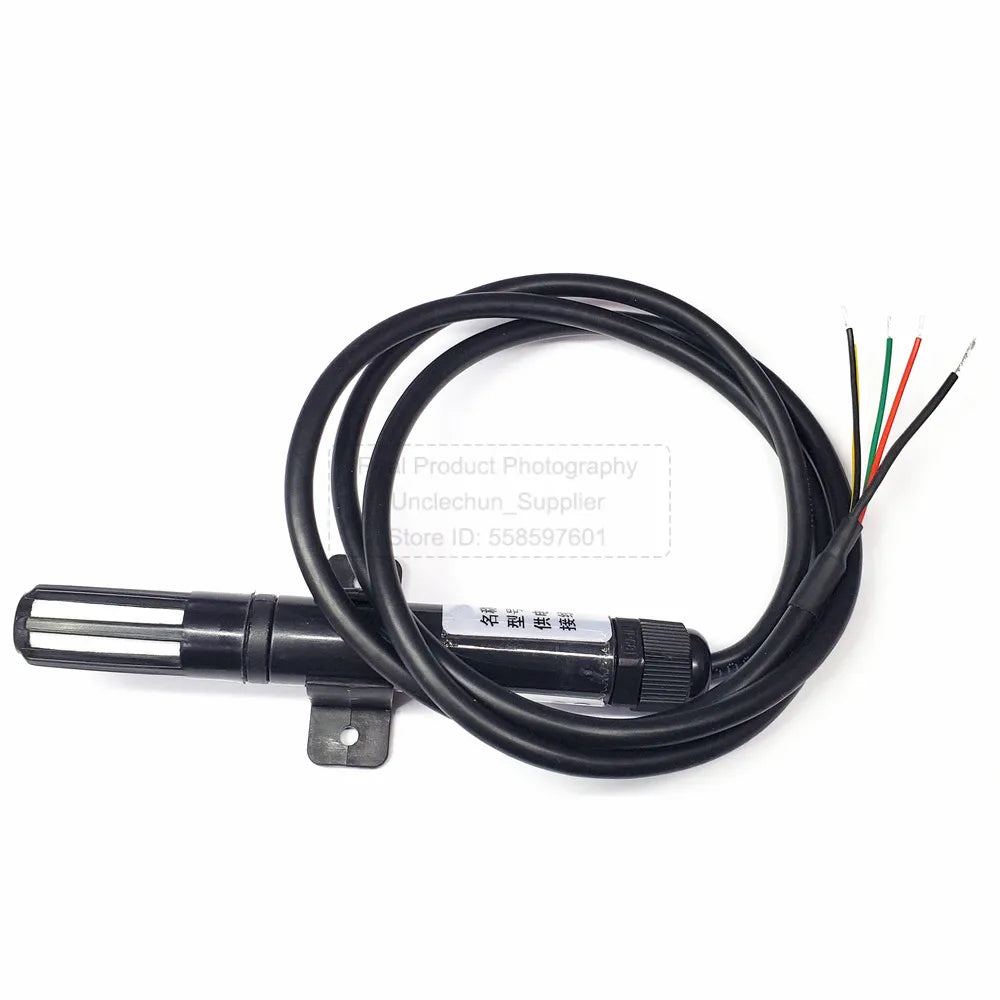

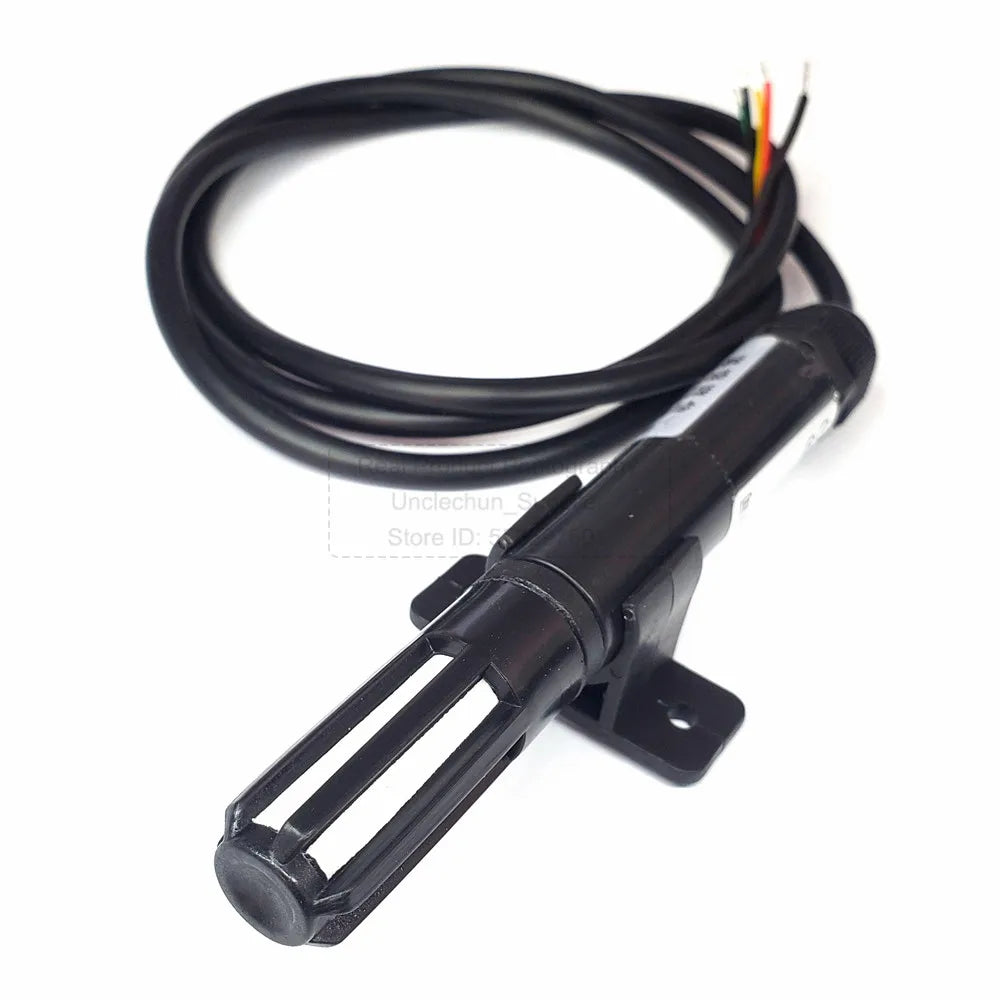

BME280 High Precision Temperature and Humidity Sensor Probe Cable OEM 1M 2M 3M 5M Digital Sensor I2C Interface Waterproof Shield

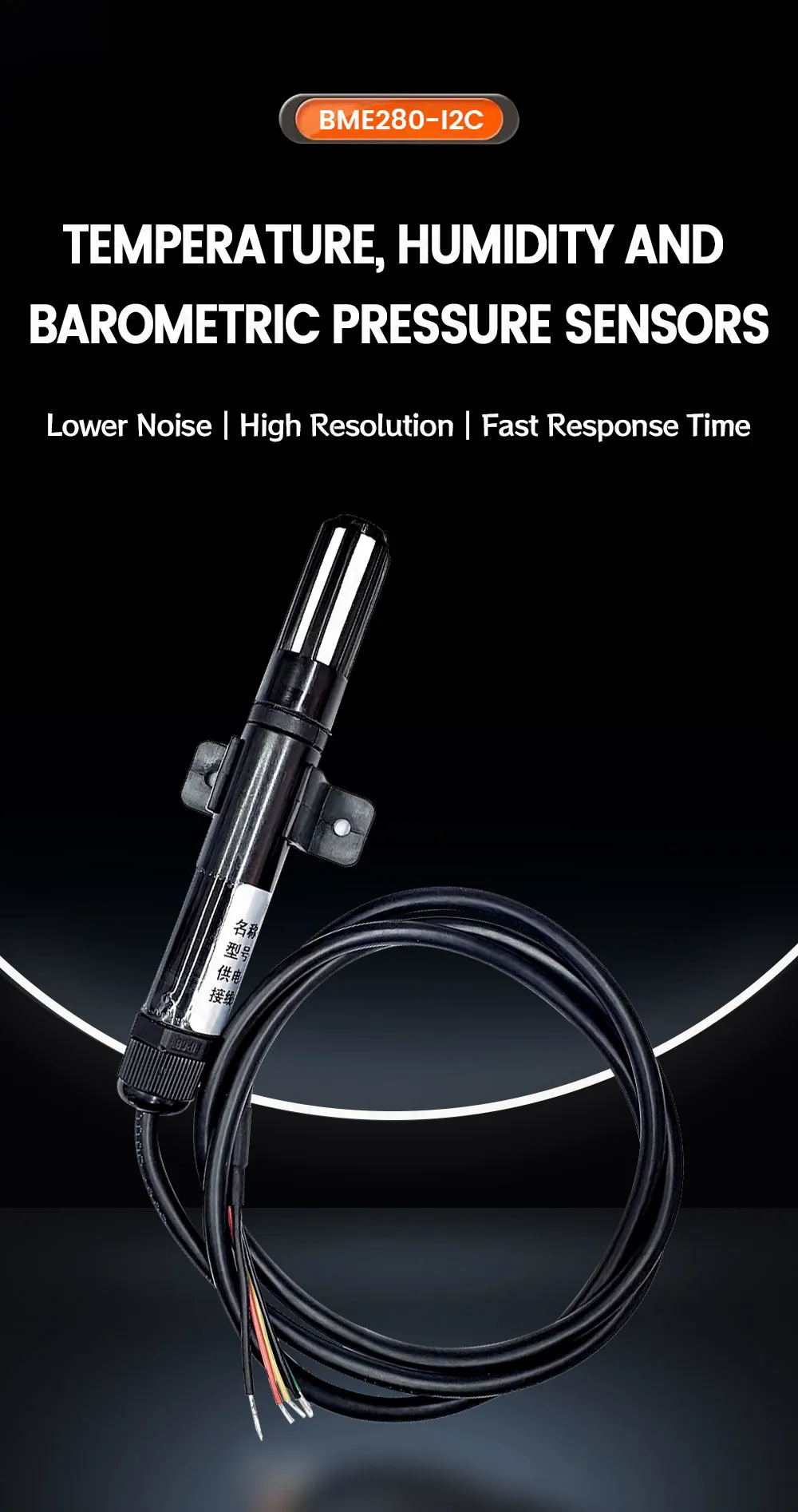

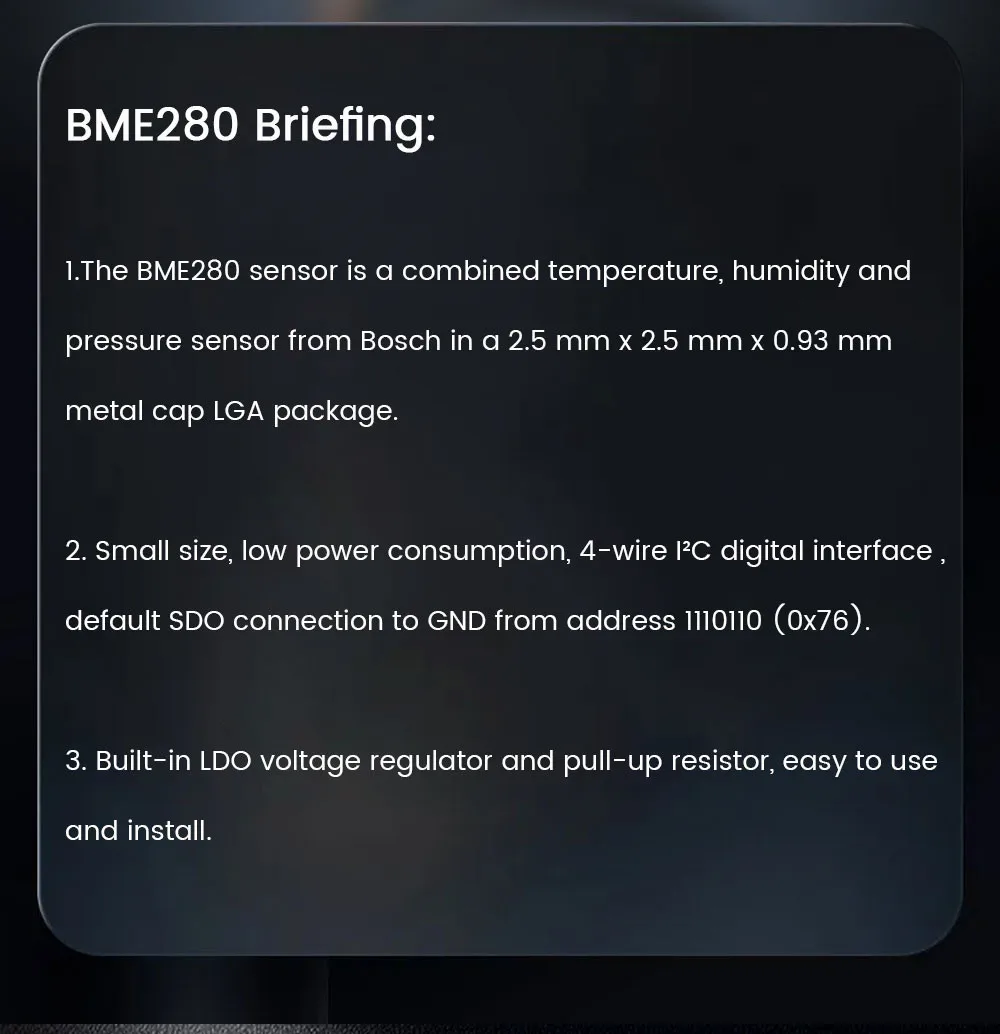

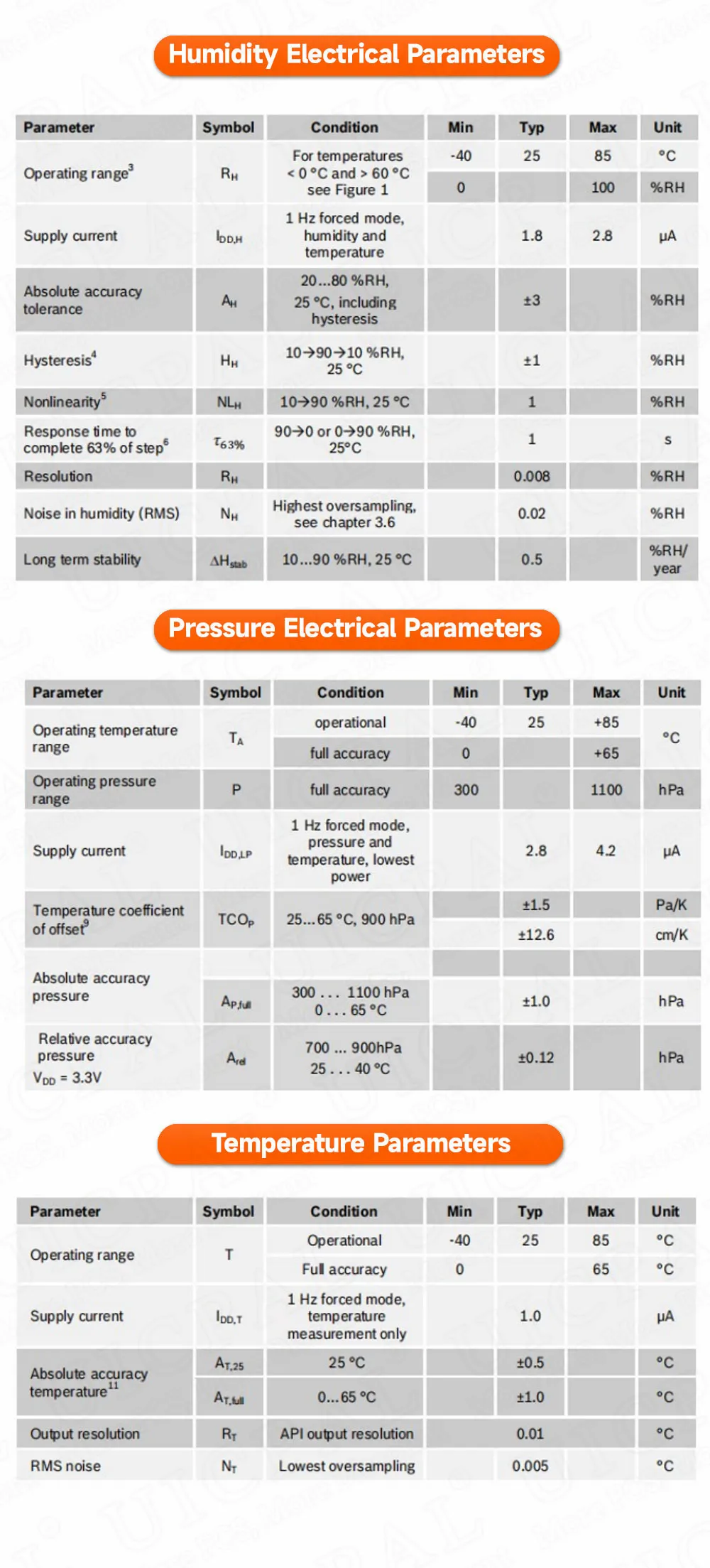

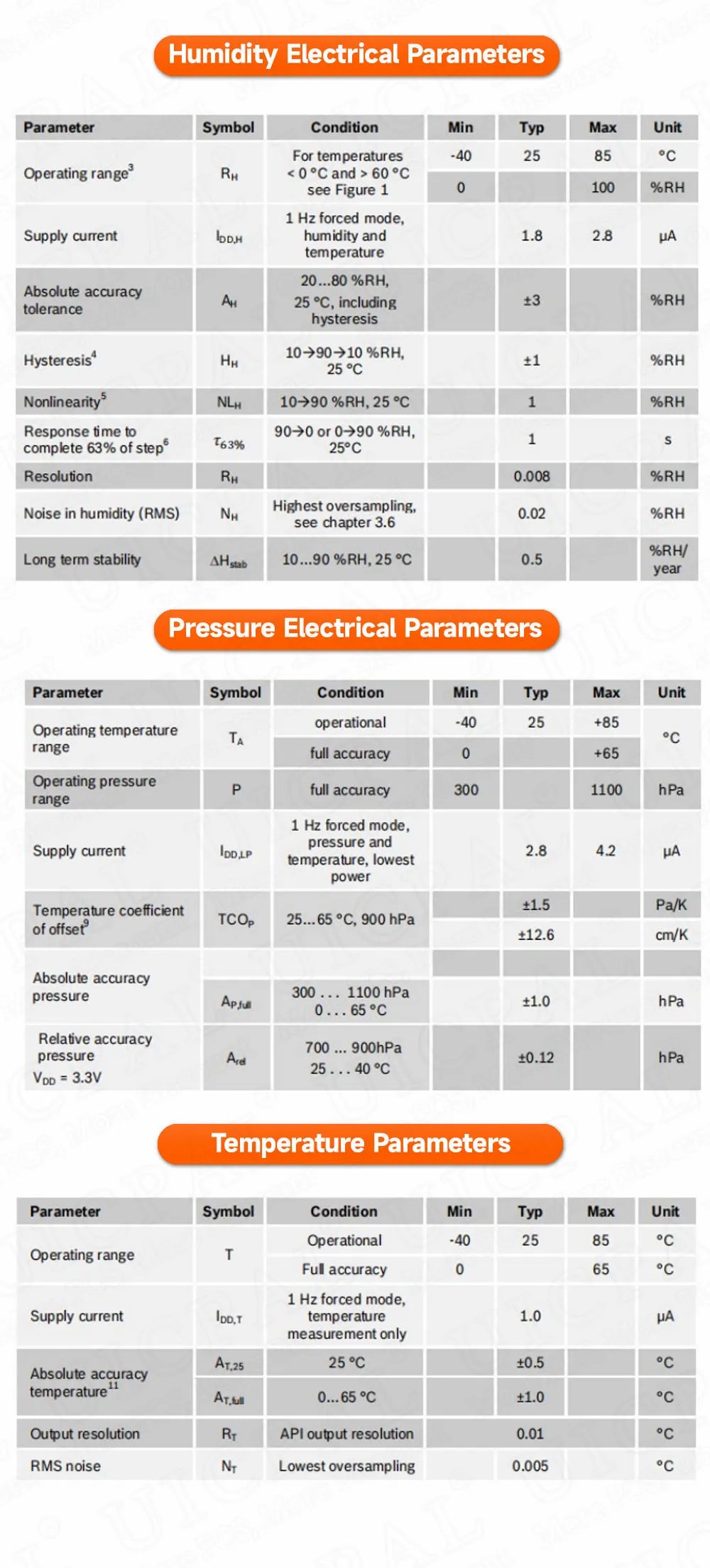

The BME280 is a digital humidity, pressure and temperature sensor. The BME280 achieves high performance in all applications requiring humidity and pressure measurement. These emerging applications for home automation control, in-door navigation, fitness and GPS refinement require both high accuracy and low TCO. Humidity sensors provide extremely fast response times for fast context-aware applications with high overall accuracy over a wide temperature range. This pressure sensor is a barometric pressure sensor with extremely high accuracy and resolution, and much lower noise than the Bosch Sensortec BMP180. The integrated temperature sensor has been optimized for low noise and high resolution. Its output is used for temperature compensation of pressure and humidity sensors, and can also be used for ambient temperature estimation.

Two kinds of signal output:

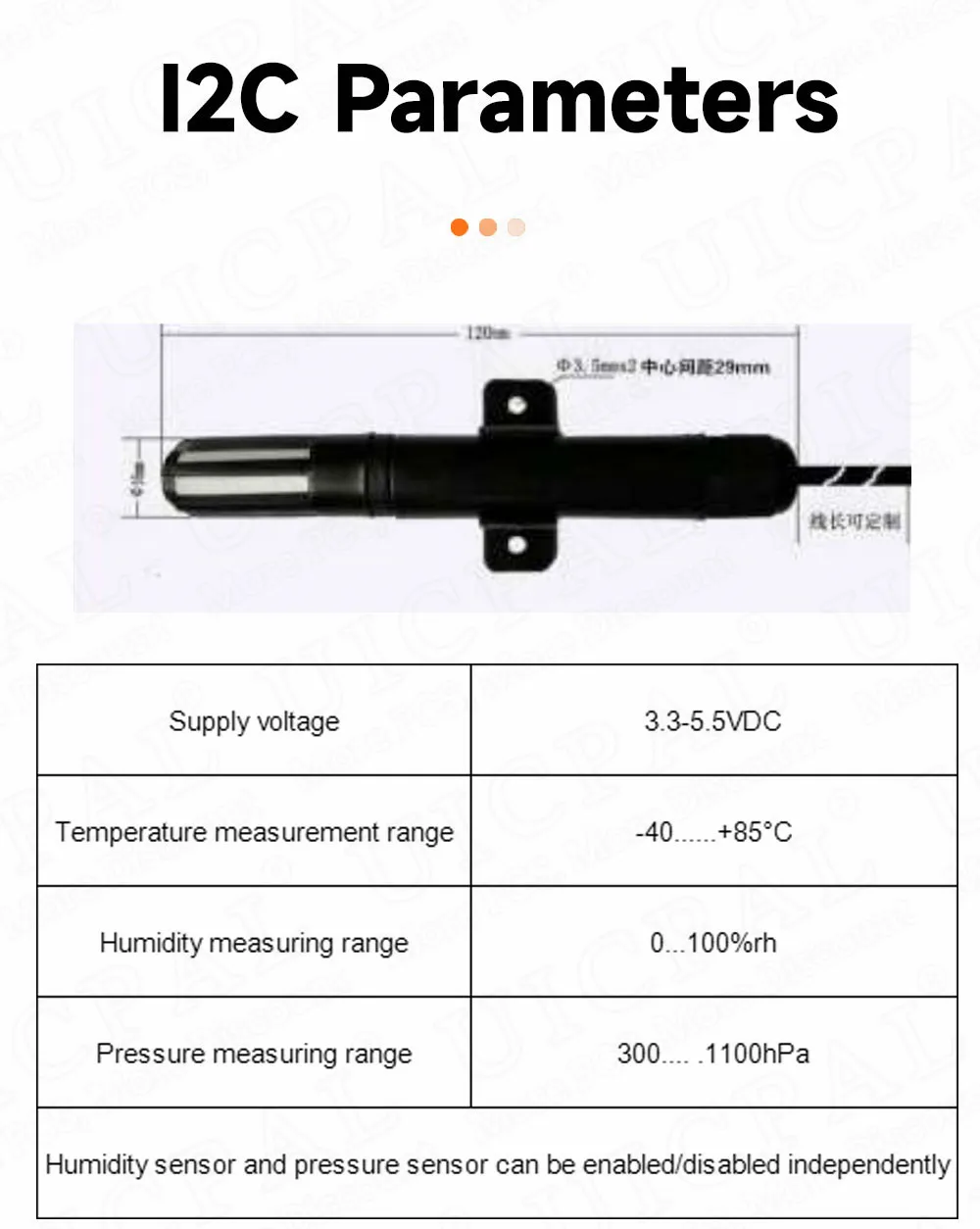

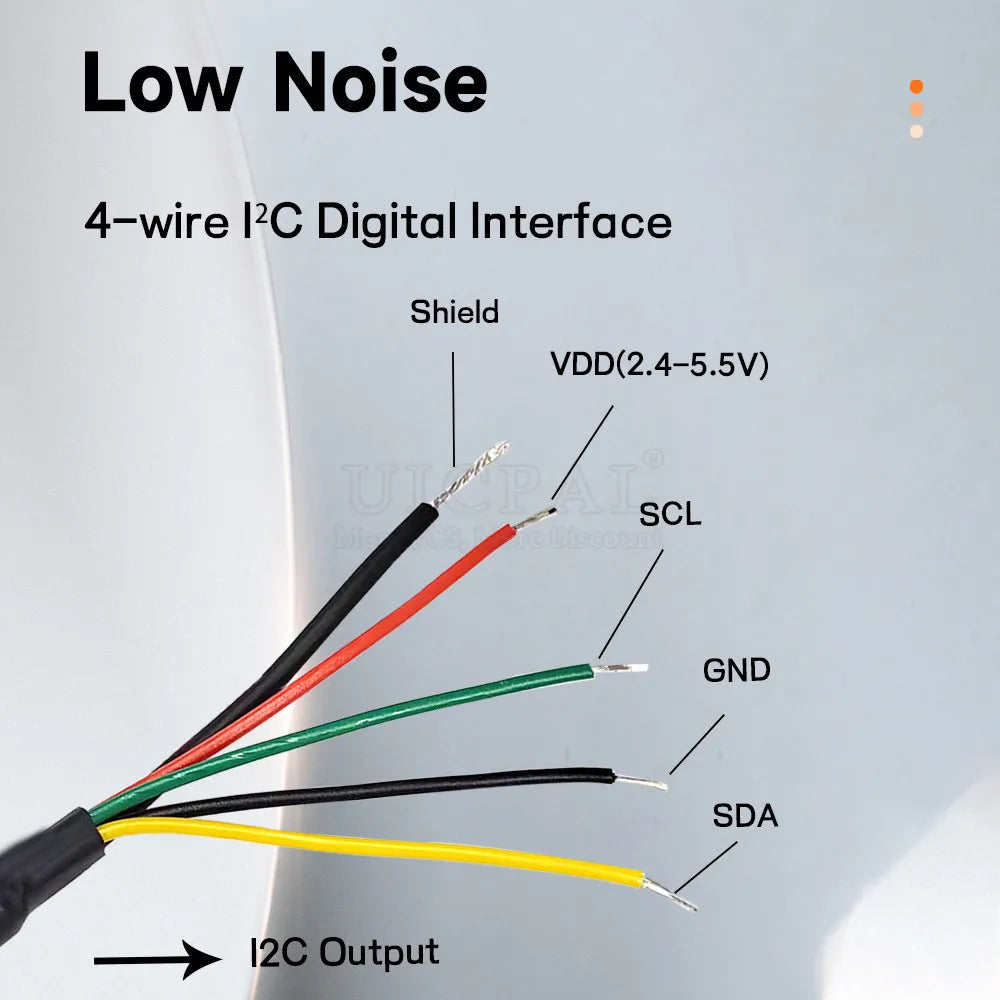

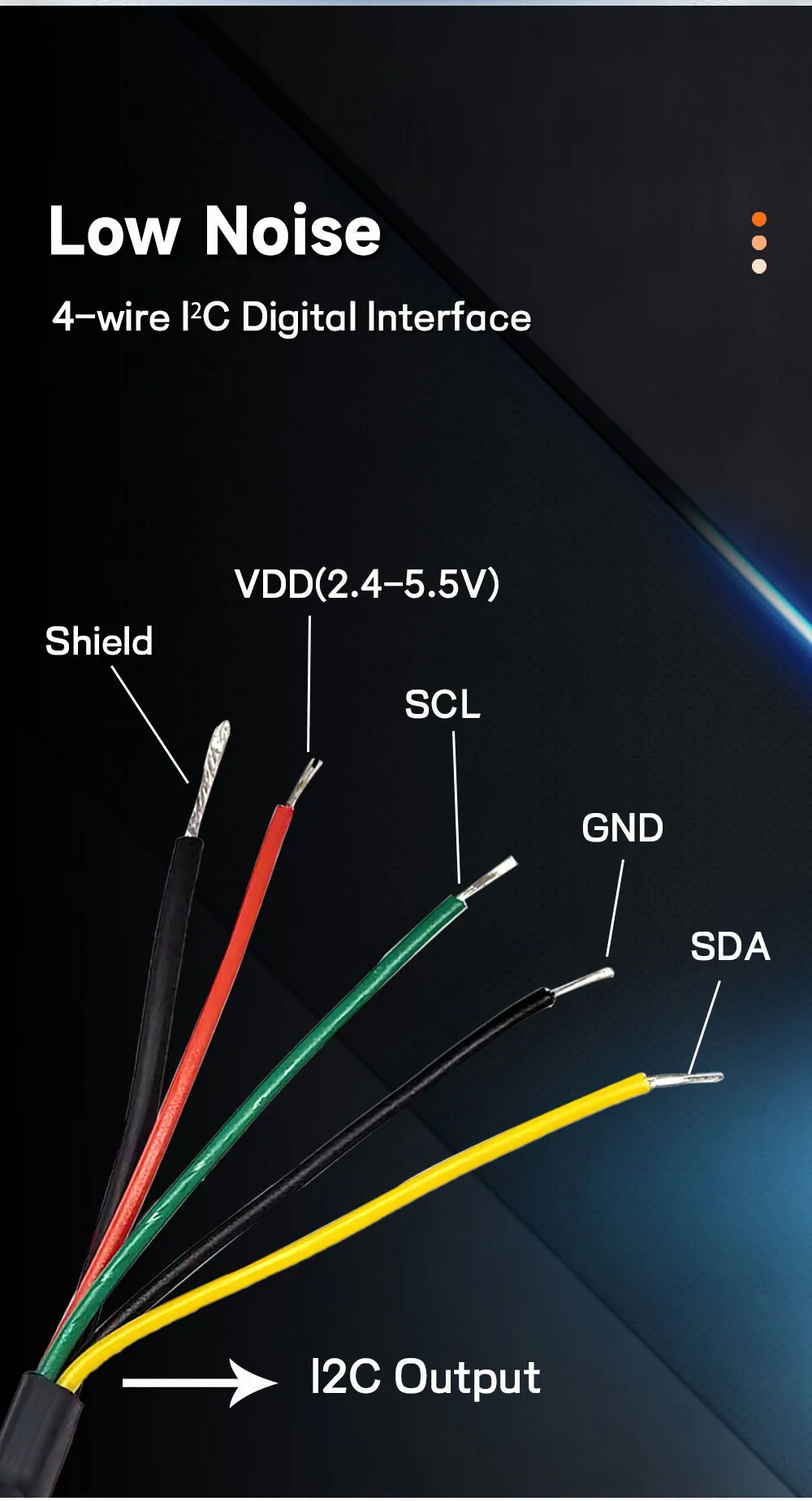

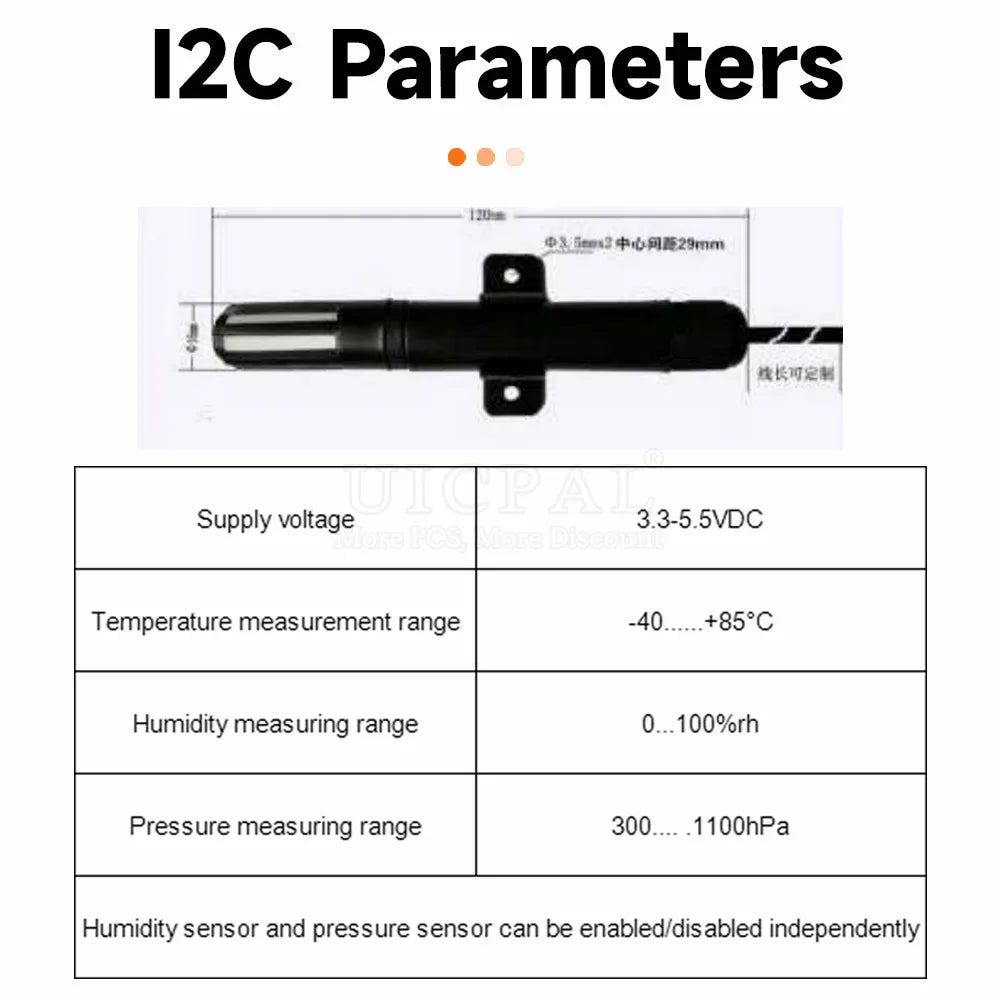

1. Standard I2C interface. The default address is 0x76

(If you need the 0x77 address, please contact us.)

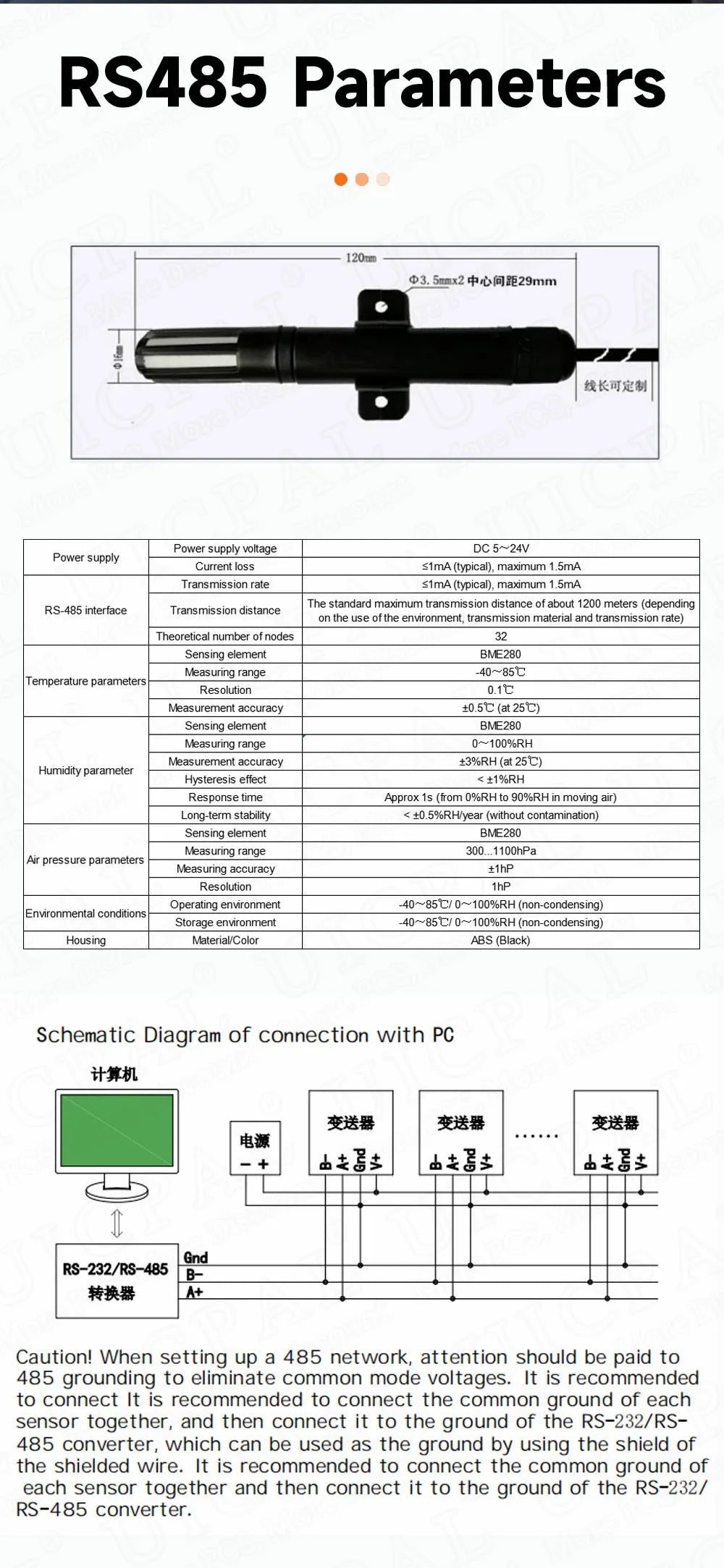

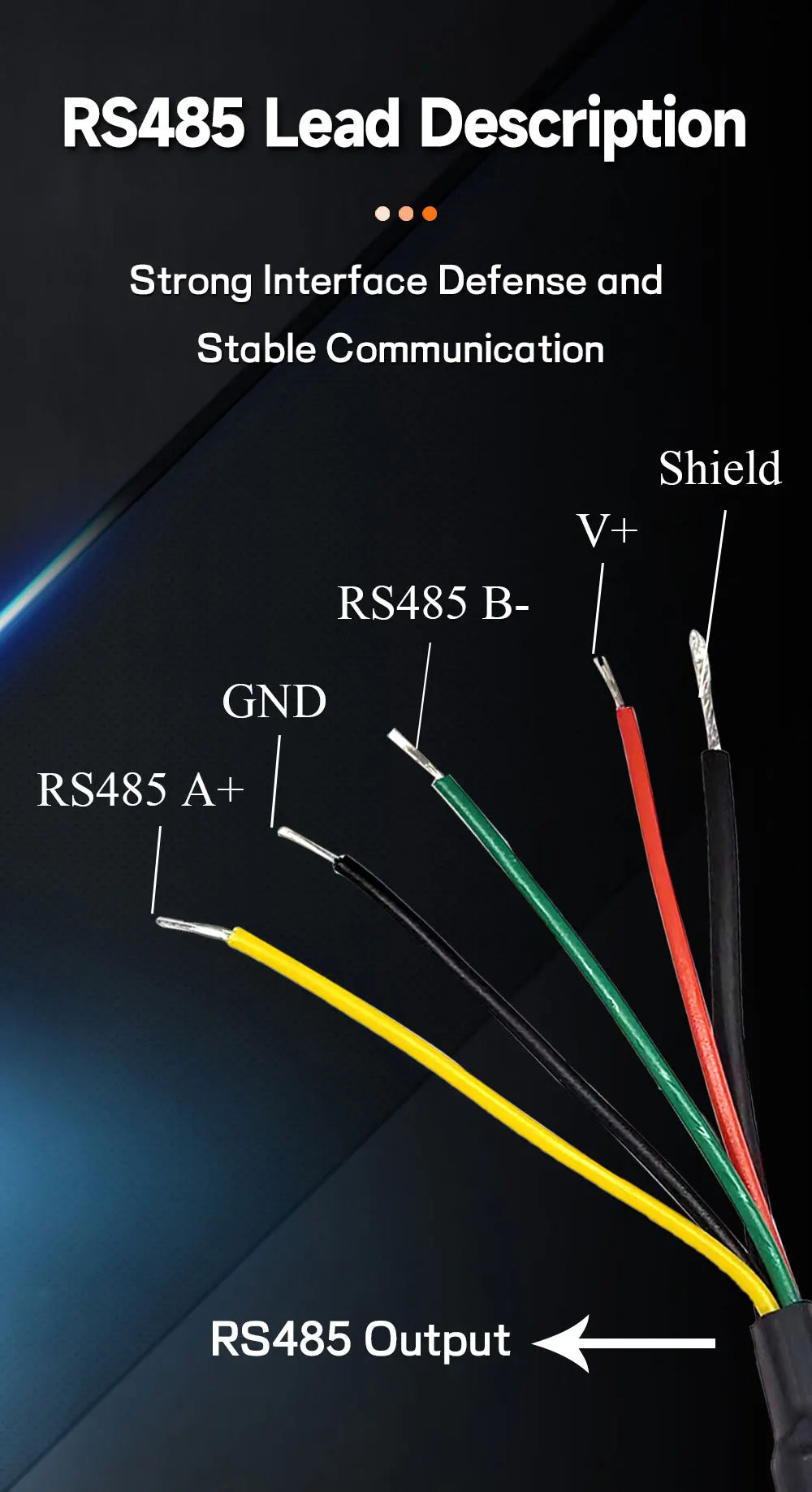

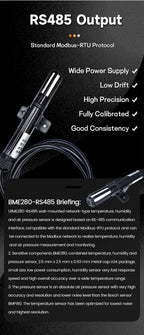

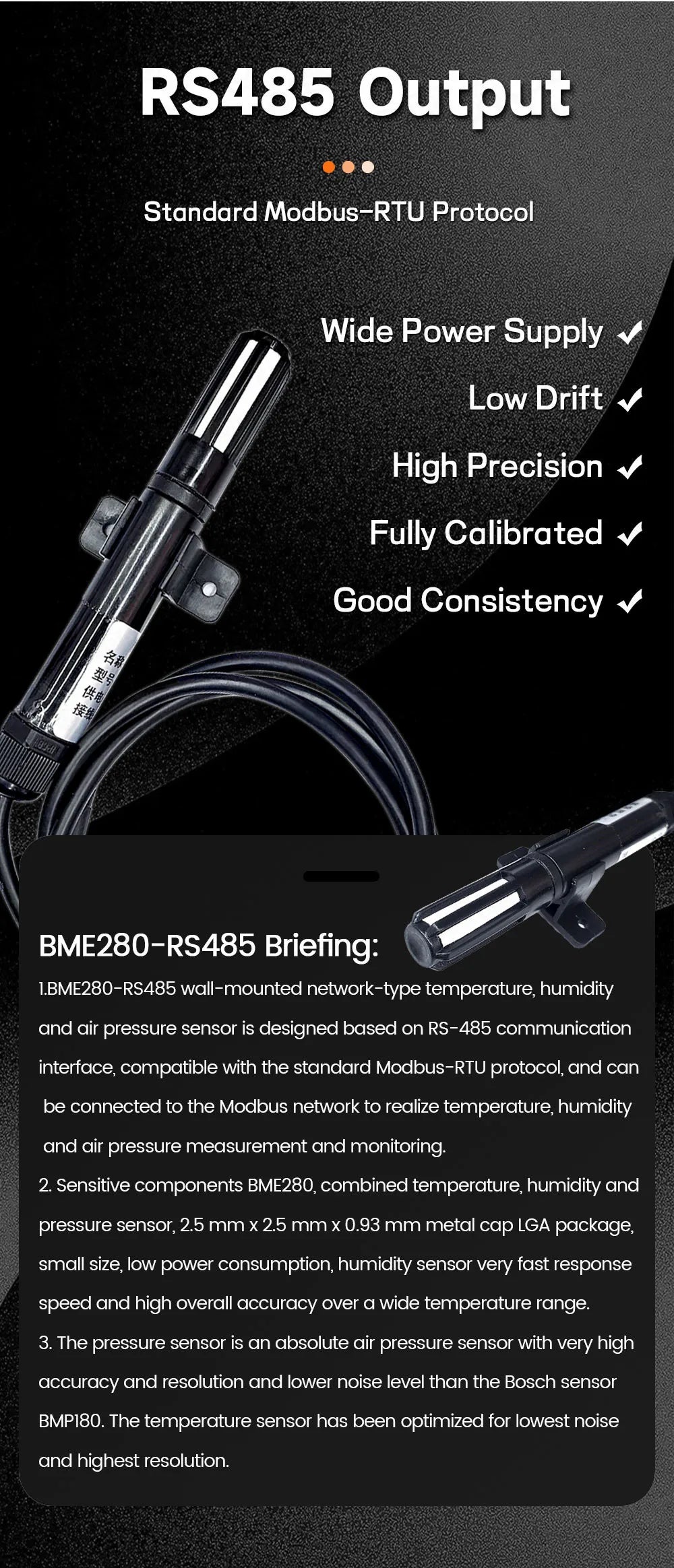

2, RS485 signal output. (The sensor allows the host to use function code 03 to read the temperature and humidity measurement values of the sensor. The address of humidity is 0, the address of temperature is 1, and the address of air pressure is 2.)
