SPECIFICATIONS

Brand Name: UICPAL

High-concerned chemical: DDE (Dichlorodiphenyl-dichloroethylene)

Material: Polymer

Origin: Mainland China

Output: Analog Sensor

Theory: Capacitance Sensor

Type: Humidity Sensor

Use: Humidity Sensor

is_customized: Yes

Product Introduction:

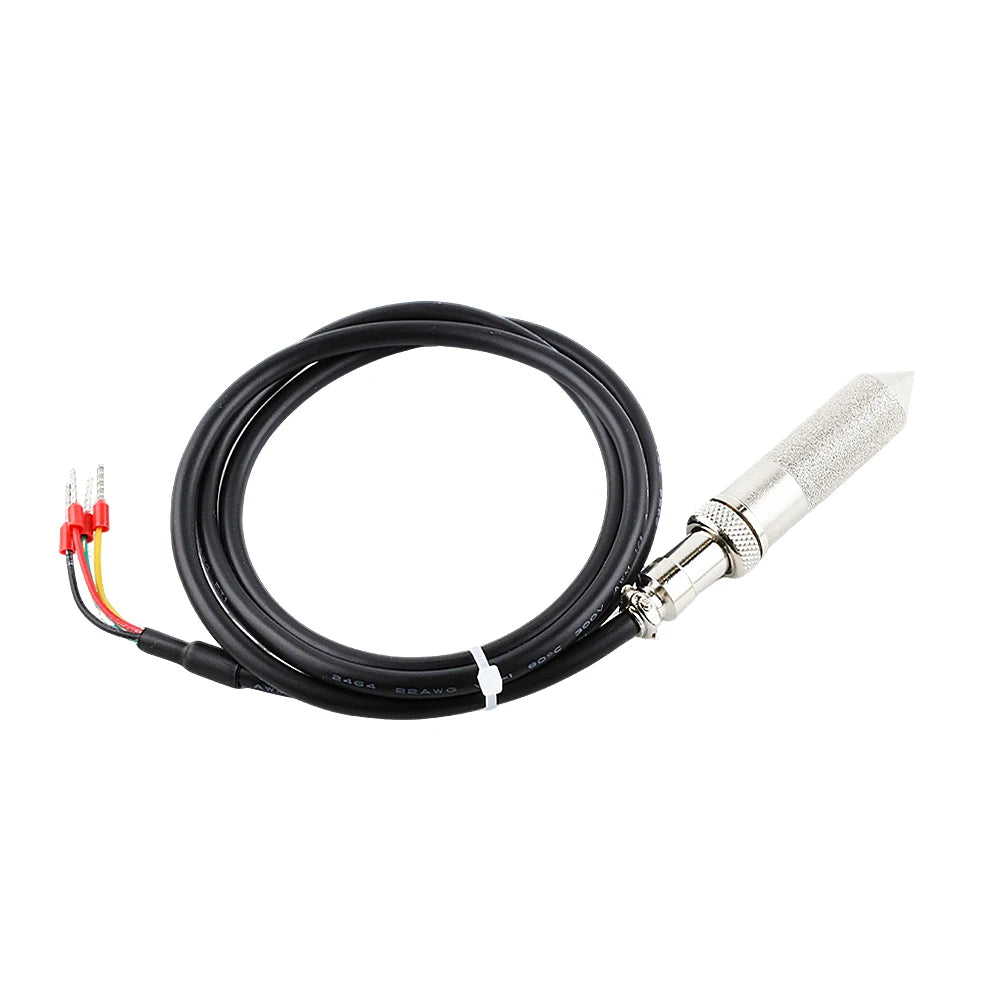

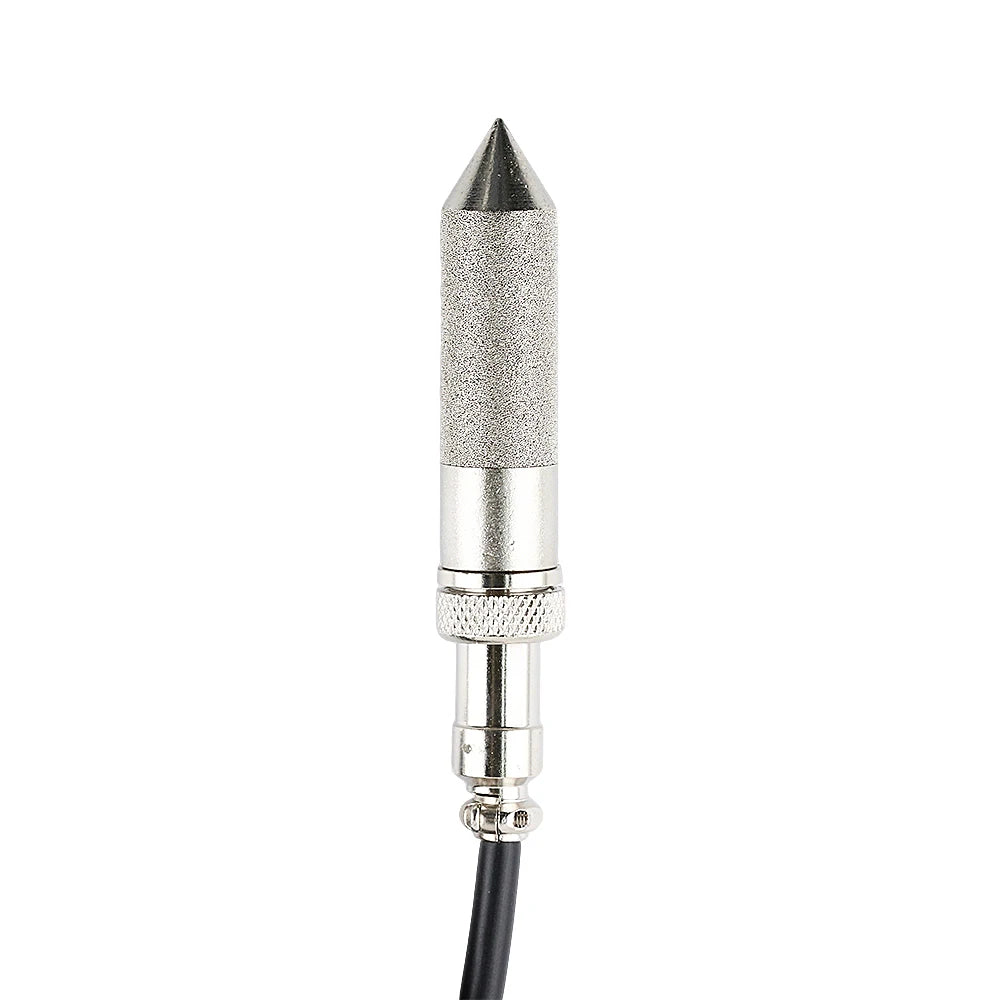

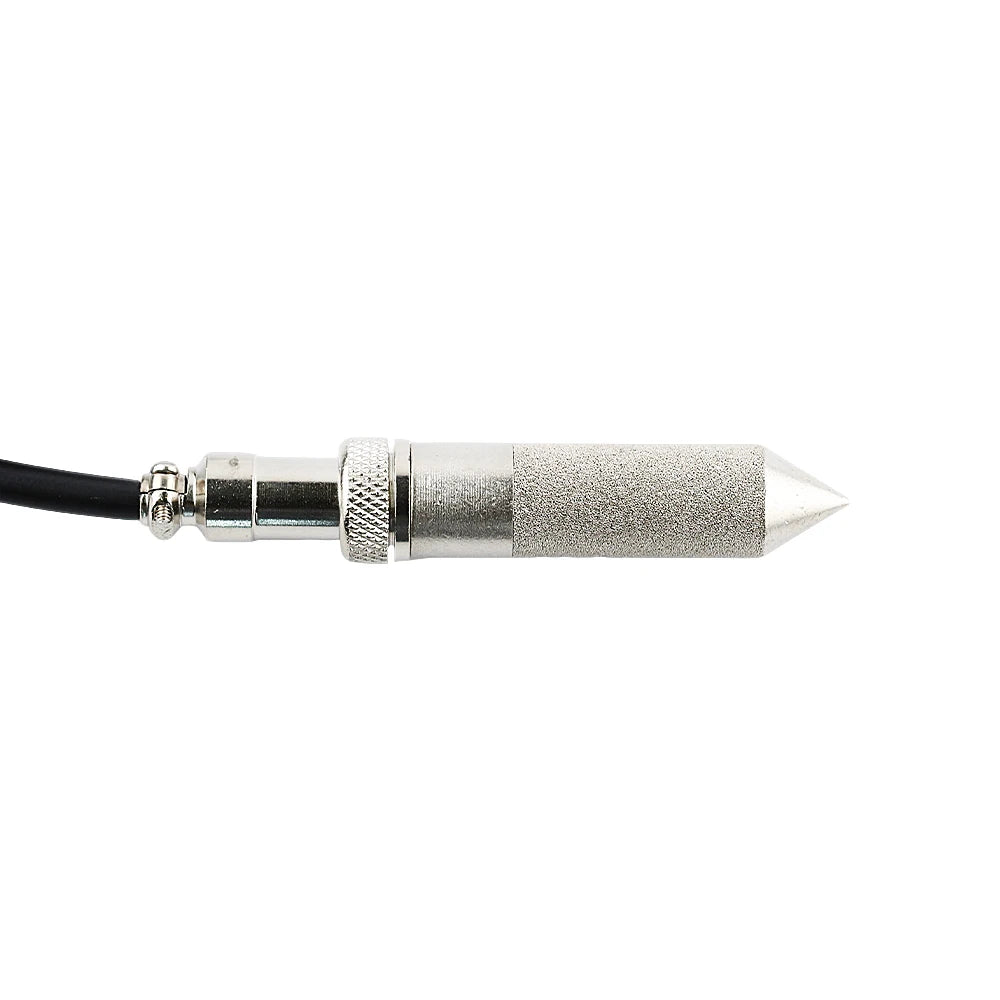

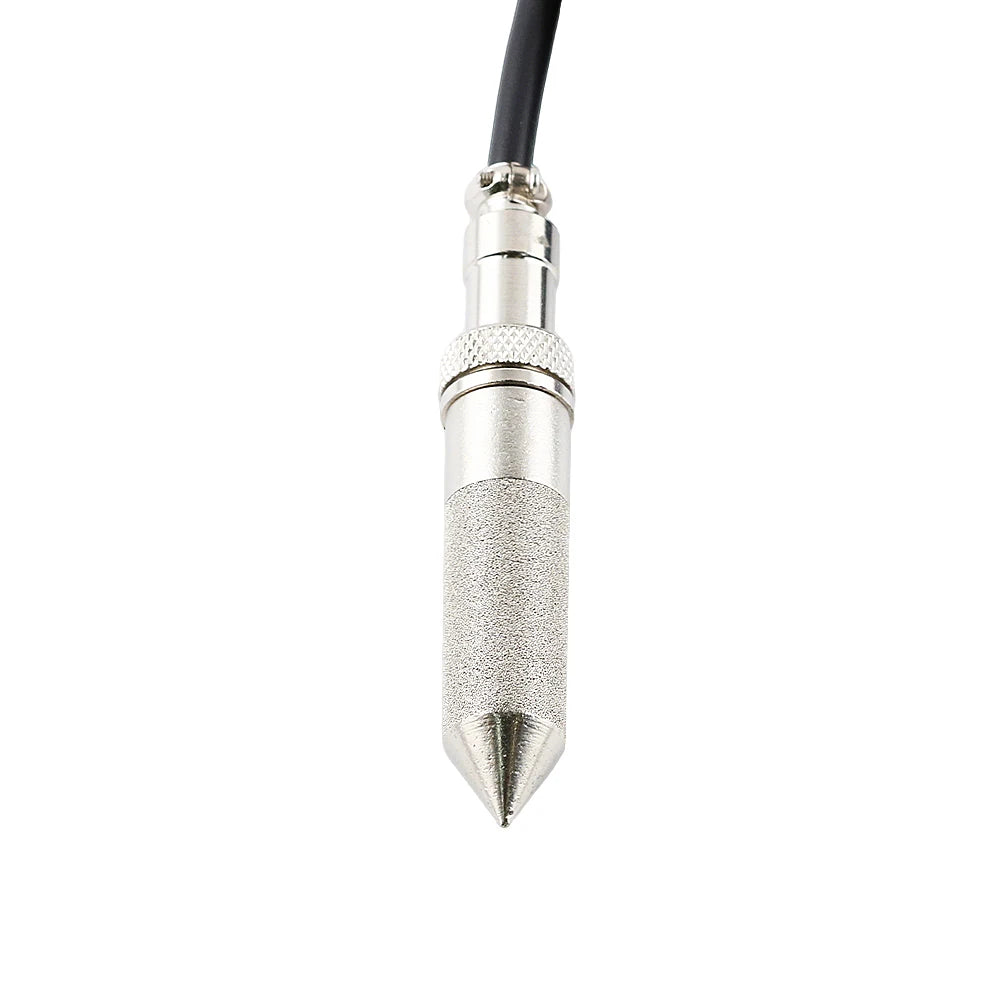

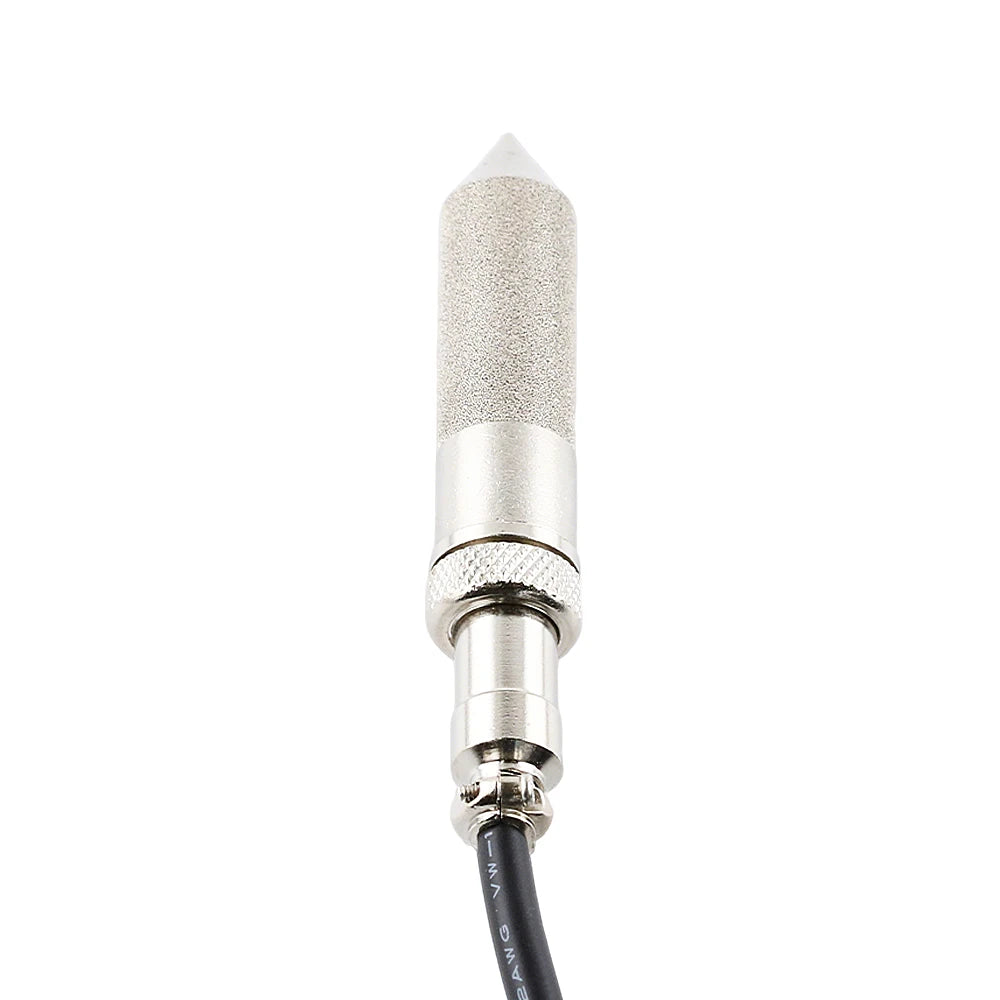

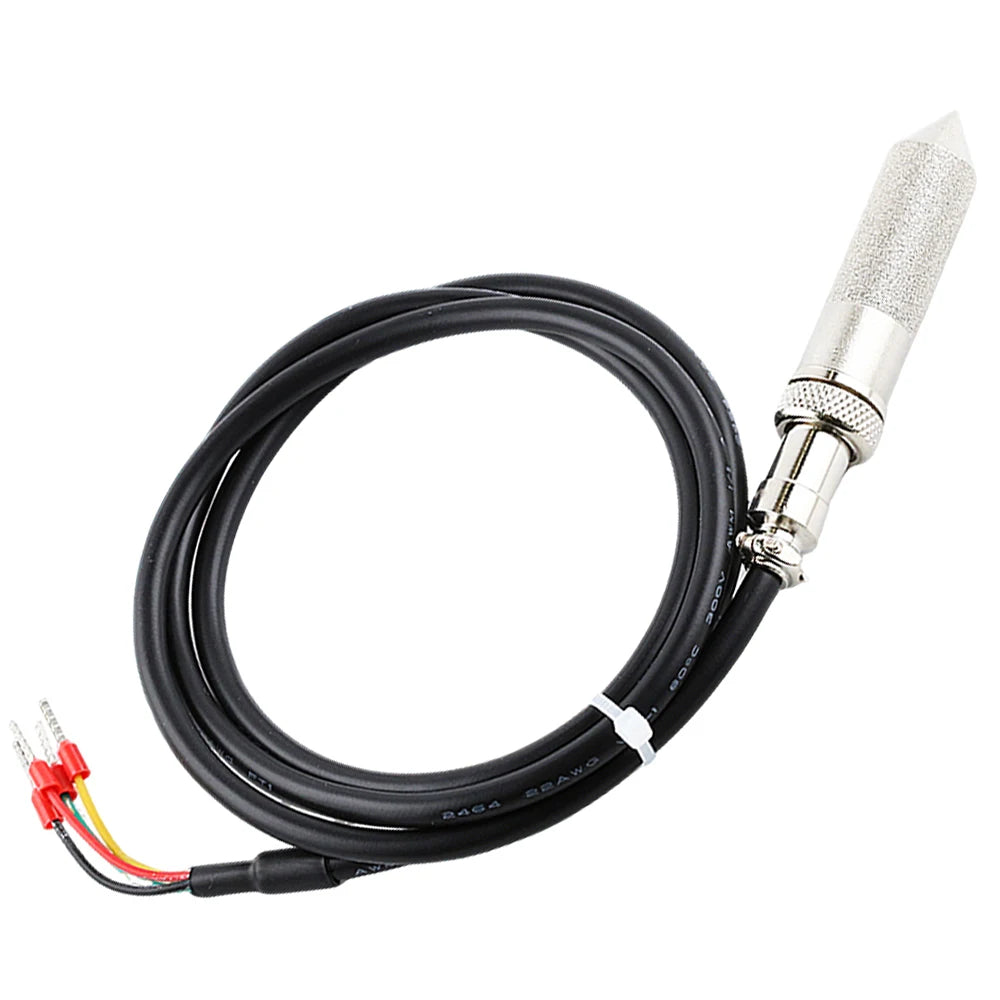

The BME280 temperature, humidity and atmospheric pressure combined transmitter uses the sensor from Bosch (BOCH) of Germany. It can simultaneously collect temperature, humidity and atmospheric pressure data, featuring high accuracy, low power consumption and good consistency. It can output through the RS485 interface. It adopts Modbus-RTU communication and can be networked with PLC, human-machine interface, DCS and various configuration software to achieve temperature, humidity and atmospheric pressure data collection. This product can be used in vegetable greenhouses, animal breeding, industrial environment monitoring, grain warehouse temperature and humidity monitoring, various environmental temperature and humidity and atmospheric pressure data collection and control, etc.

Product Features:

1) The unique ultra-small and highly integrated temperature and humidity sensor module is easy to install and convenient for system networking and wiring.

2) It uses the imported BME280 sensor from Bosch in Germany, with high collection accuracy and good consistency.

3) It adopts the standard Modbus-RTU protocol, which can easily achieve interfaces with PLC, human-machine interface, DCS, and various configuration software, etc.

4) Communication protection: The RS485 communication signal output interface uses TVS protection.

5) Supports online upgrade function via IAP.

6) 4.5V to 28V wide voltage input, power polarity protection, with anti-reverse connection function.
