SPECIFICATIONS

Brand Name: NONE

Condition: New

Dissipation Power: standard

High-concerned chemical: none

Operating Temperature: standard

Origin: Mainland China

Supply Voltage: standard

Type: Module

is_customized: Yes

Product Introduction

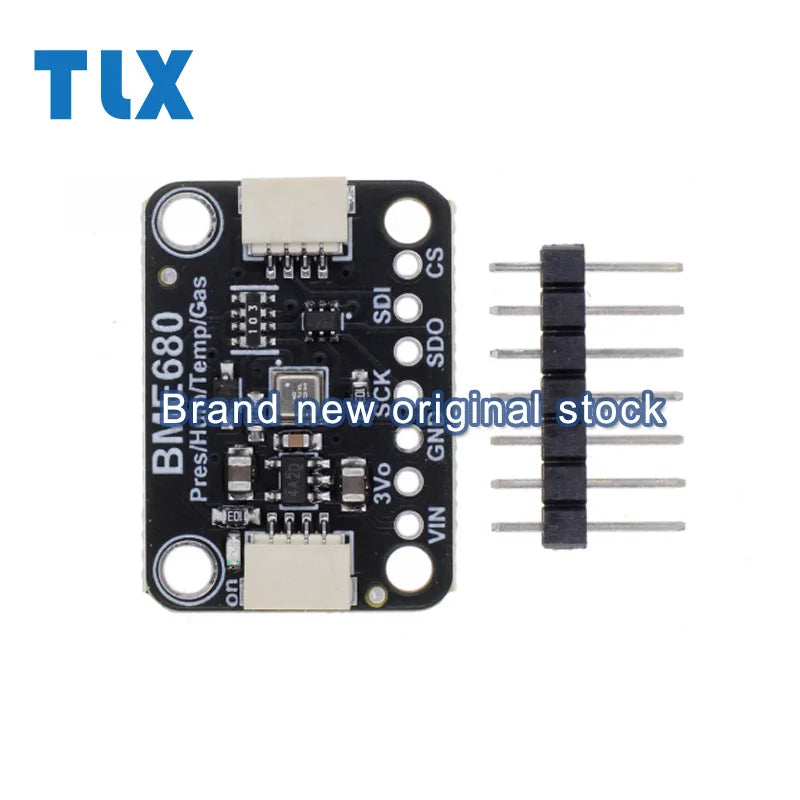

️ BME680/BME688 is a four-in-one environmental sensor launched by Bosch Sensortec, integrating temperature, humidity, air pressure (barometer) and gas (VOC) detection functions. It features a low-power design and is suitable for Internet of Things (IoT), smart homes, weather stations and wearable devices.

The module is equipped with STEMMA QT/Qwiic interfaces, supporting plug-and-play I²C communication without soldering. It can be directly connected to Adafruit, SparkFun, Raspberry Pi, Arduino (QWiIC-compatible devices).

Core function

✅ four-in-one sensor:

Temperature (±1.0°C accuracy)

Humidity (± 3%RH accuracy

Air pressure (±1 hPa accuracy, altitude can be calculated)

Gas detection (VOC/IAQ - Indoor Air Quality Index)

✅ digital interface:

I²C (default address: 0x76/0x77)

SPI (Supported by some modules

STEMMA QT/Qwiic interface (Solder-free)

✅ low power mode:

Standby current < 1μA

Suitable for battery-powered devices (such as portable detectors)

✅ Bosch high-precision algorithm:

BSEC Software Library (Optimizing Temperature, Humidity, Air Pressure, and VOC Calculations)

Operating voltage: 3.3V to 5V (3.3V is recommended)

I²C address: 0x76 (default), 0x77 (adjustable)

Communication protocols I²C (Qwiic), SPI (some versions)

Temperature range: -40°C to +85°C

The humidity range is 0% to 100% RH

The air pressure range is 300hPa to 1100hPa

Gas detection VOC/IAQ (BME688 supports AI gas recognition)

Dimensions: approximately 25.3mm × 17.6mm (standard Qwiic module)
