BME688 Sensor Module BME680 Air Quality Sensor VOC Temperature Humidity Pressure Sensor Low‑Power I2C Gas Sensor For Smart Home

BME688 Sensor Module BME680 Air Quality Sensor VOC Temperature Humidity Pressure Sensor Low‑Power I2C Gas Sensor For Smart Home

$22.77

$22.77 $0.00

Description

SPECIFICATIONS

Brand Name: diymore

Condition: New

High-concerned chemical: none

Operating Temperature: -40℃ to +85℃

Origin: Mainland China

Package: SOP

Quantity: 1

Supply Voltage: 3.3V-5.0V

Type: Module

is_customized: Yes

Features:

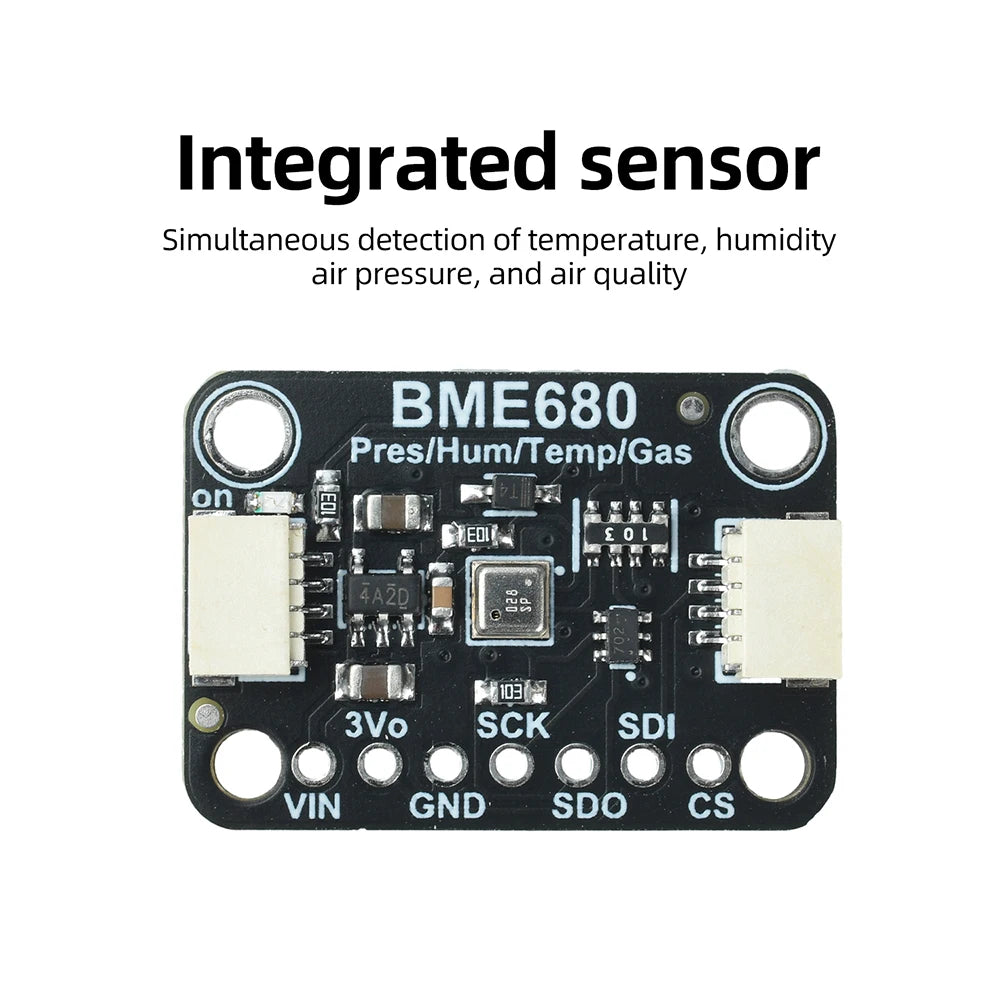

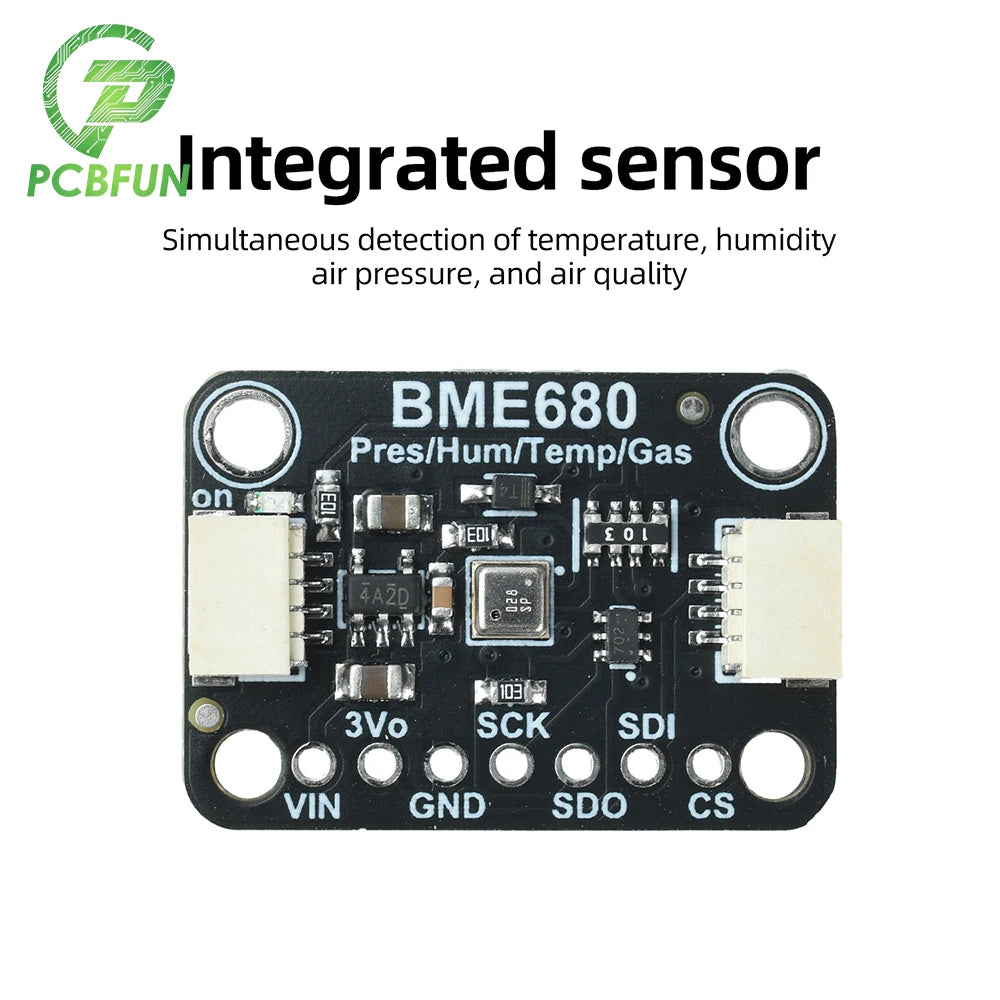

1. Integrated sensors to synchronously detect temperature, humidity, air pressure, and air quality

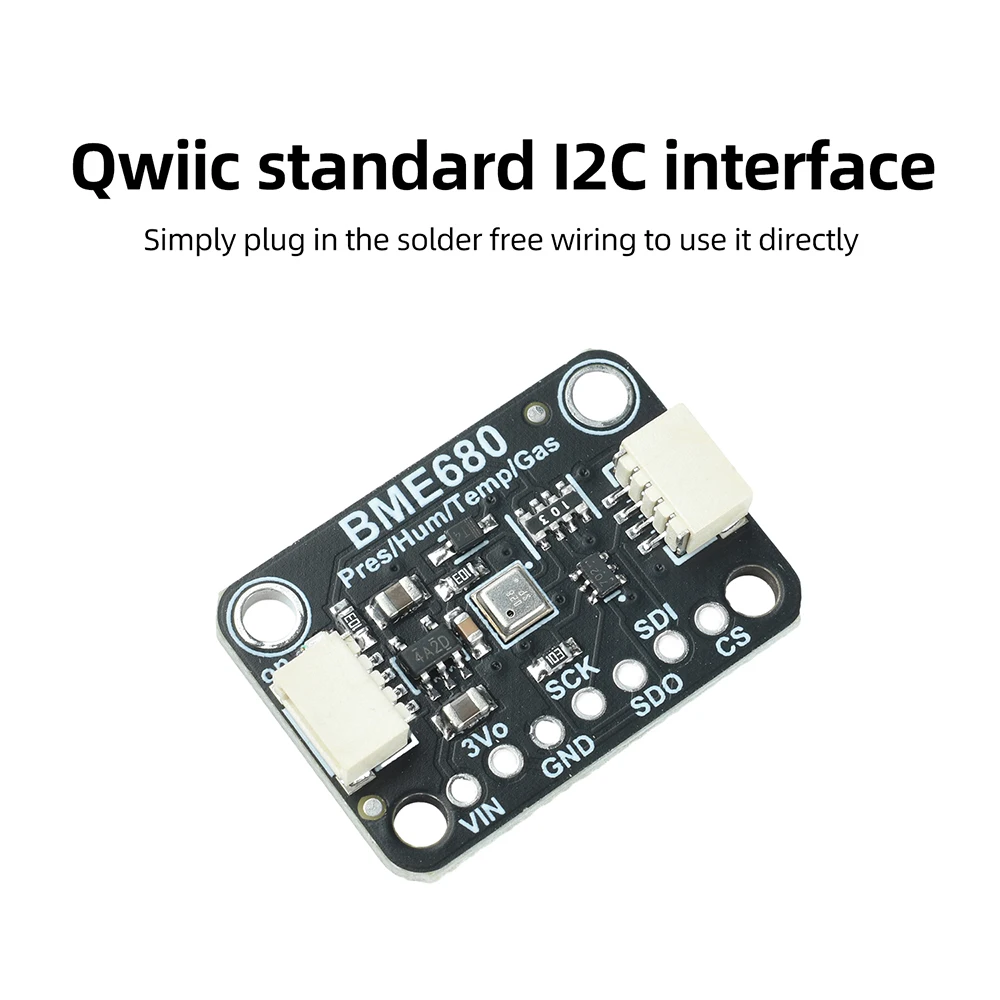

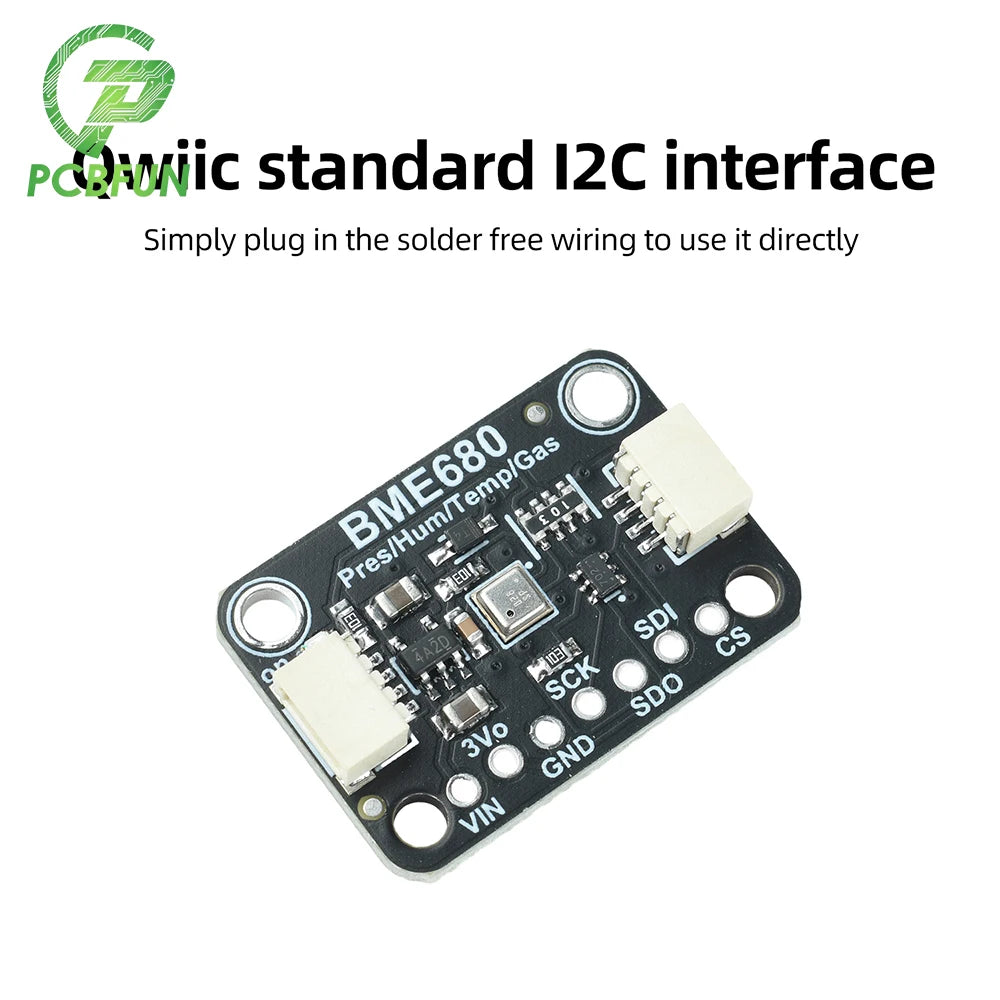

2. Qwiic standard I2C interface, can be directly used by inserting solder free wiring

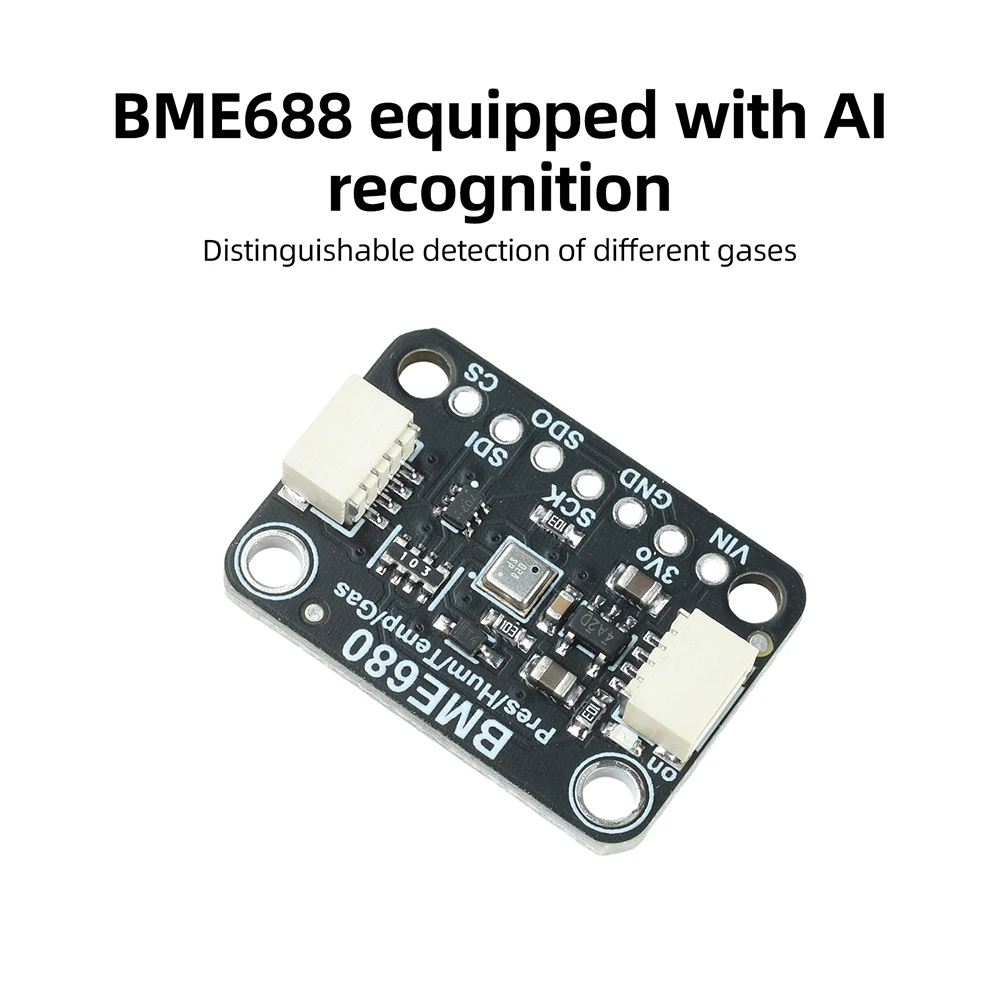

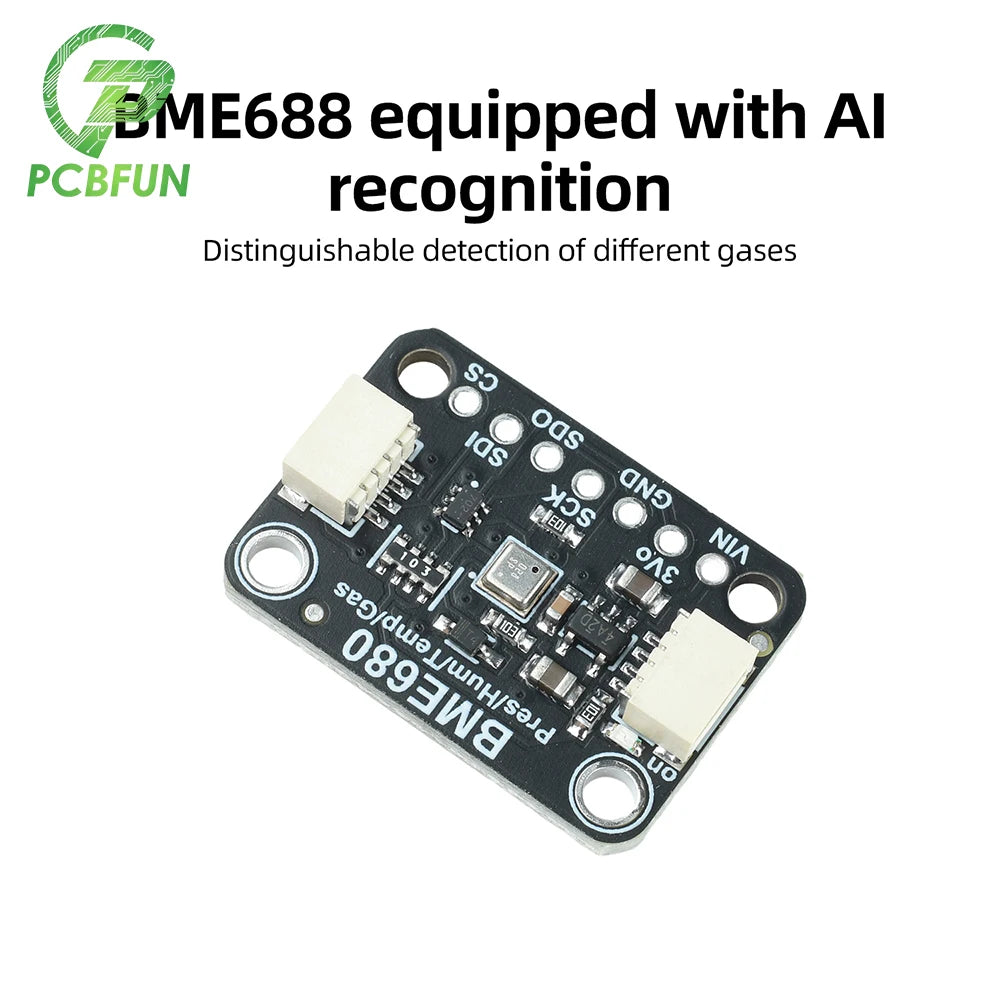

3. BME688 is equipped with AI recognition, which can distinguish different gas detections

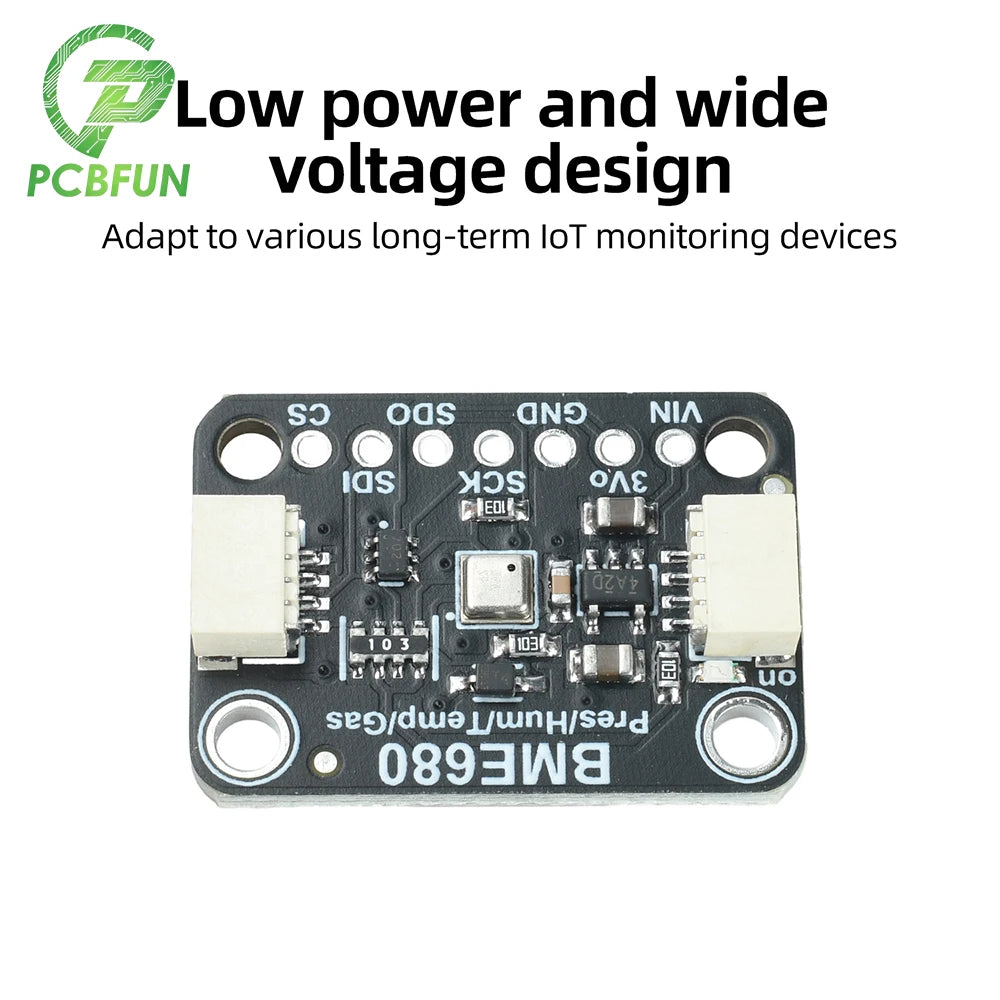

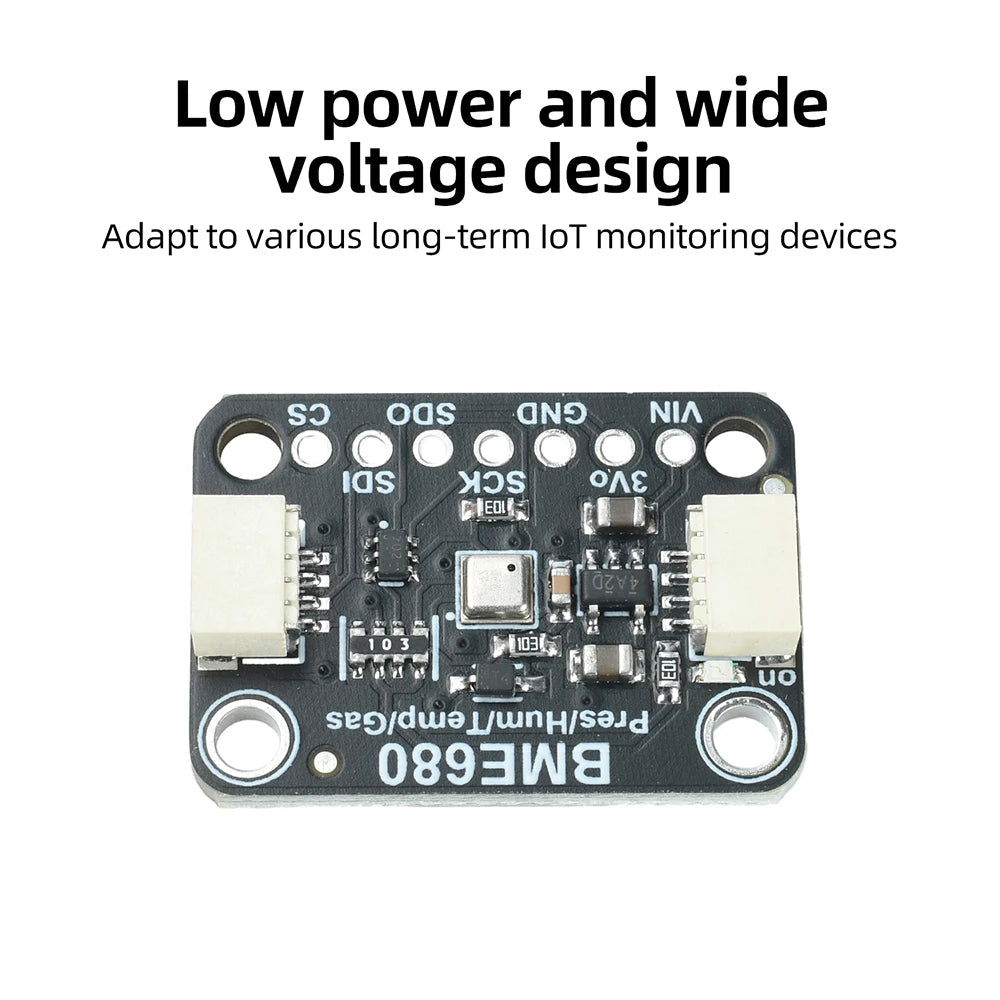

4. Low power and wide voltage design, suitable for various long-term IoT monitoring devices

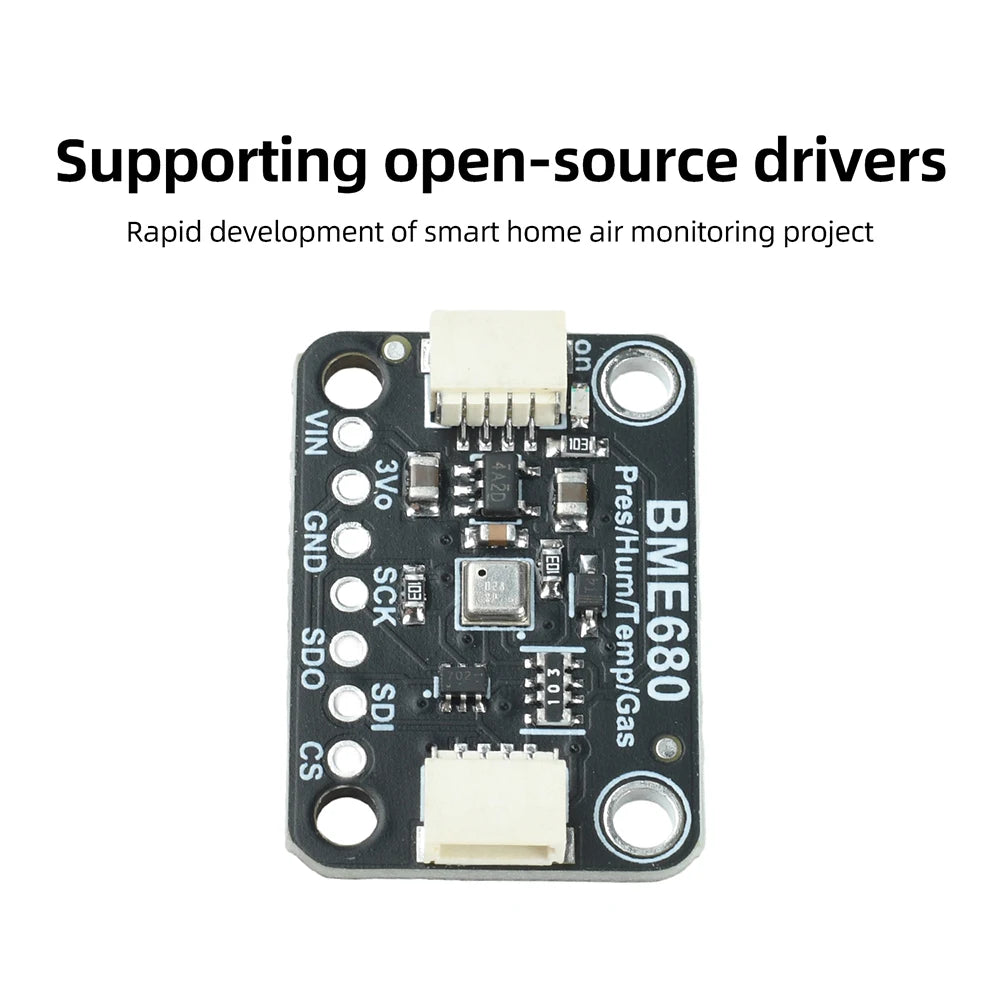

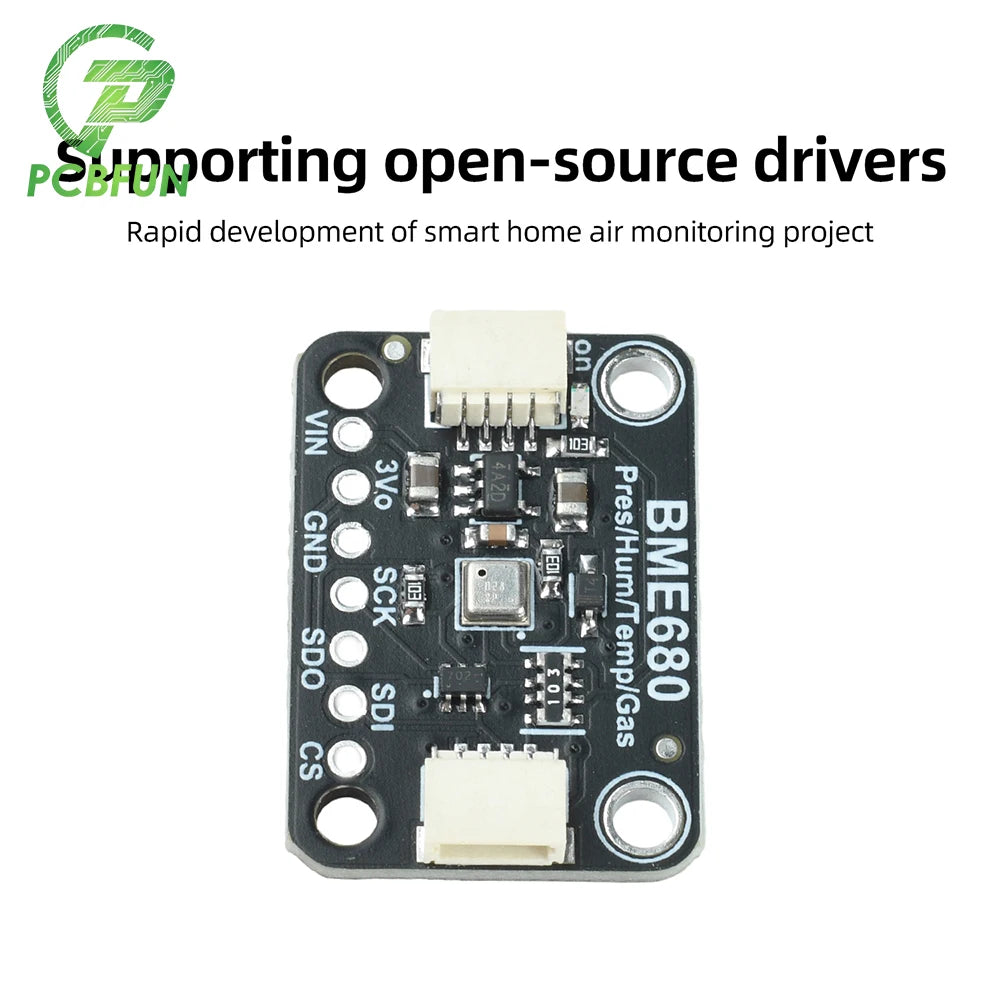

5. Supporting open-source drivers to quickly develop smart home air monitoring projects

Parameters ：
Supply voltage: 3.3V-5.0V (recommended 3.3V)
Working current: 5mA (after opening VOC measurement, the working current is 25mA)
Style: BME680/BME6688
Temperature measurement range: -40 ℃~+85 ℃
Temperature measurement accuracy: ± 1.0 ℃ (0-65 ℃)
Humidity measurement range: 0-100% r. H.
Humidity measurement accuracy: ± 3% relative humidity (20-80% relative humidity at 25 ℃)
Pressure measurement range: 300-1100hPa
Pressure measurement accuracy: ± 0.6hPa (300-1100hPa~65 ℃)

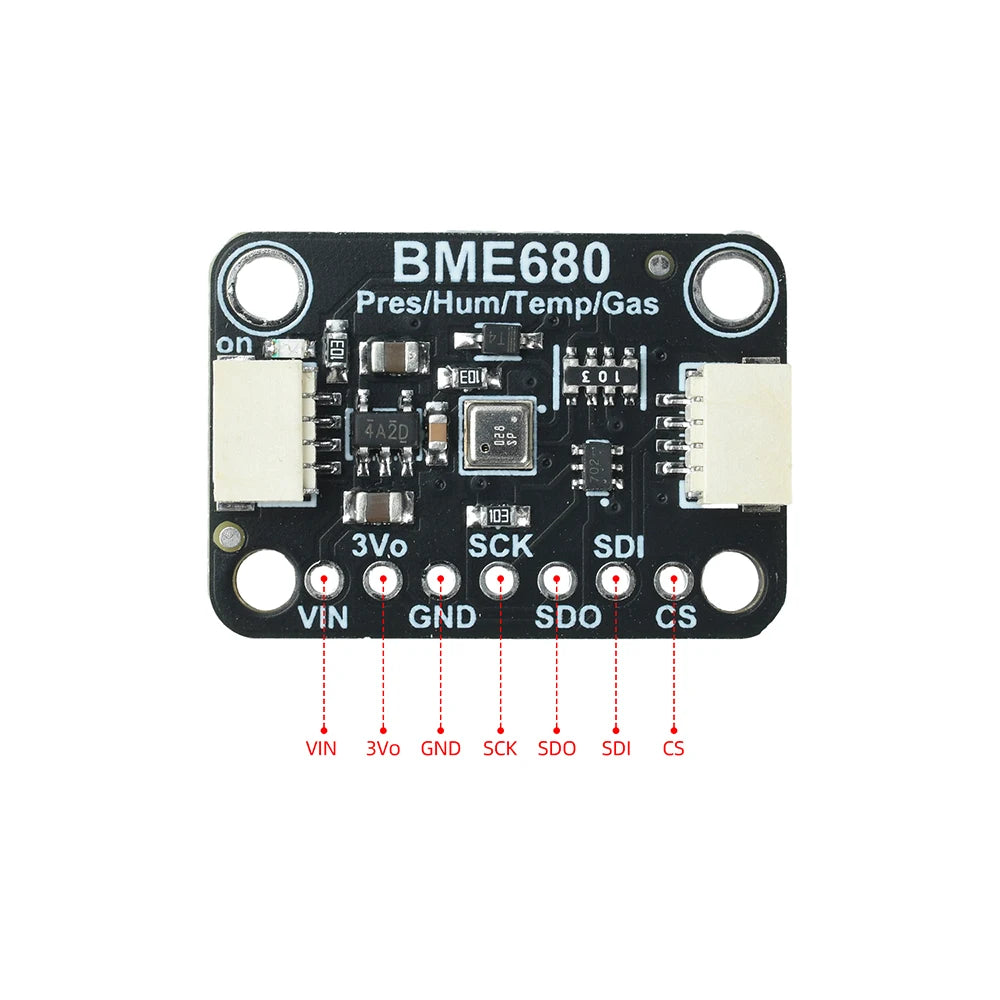

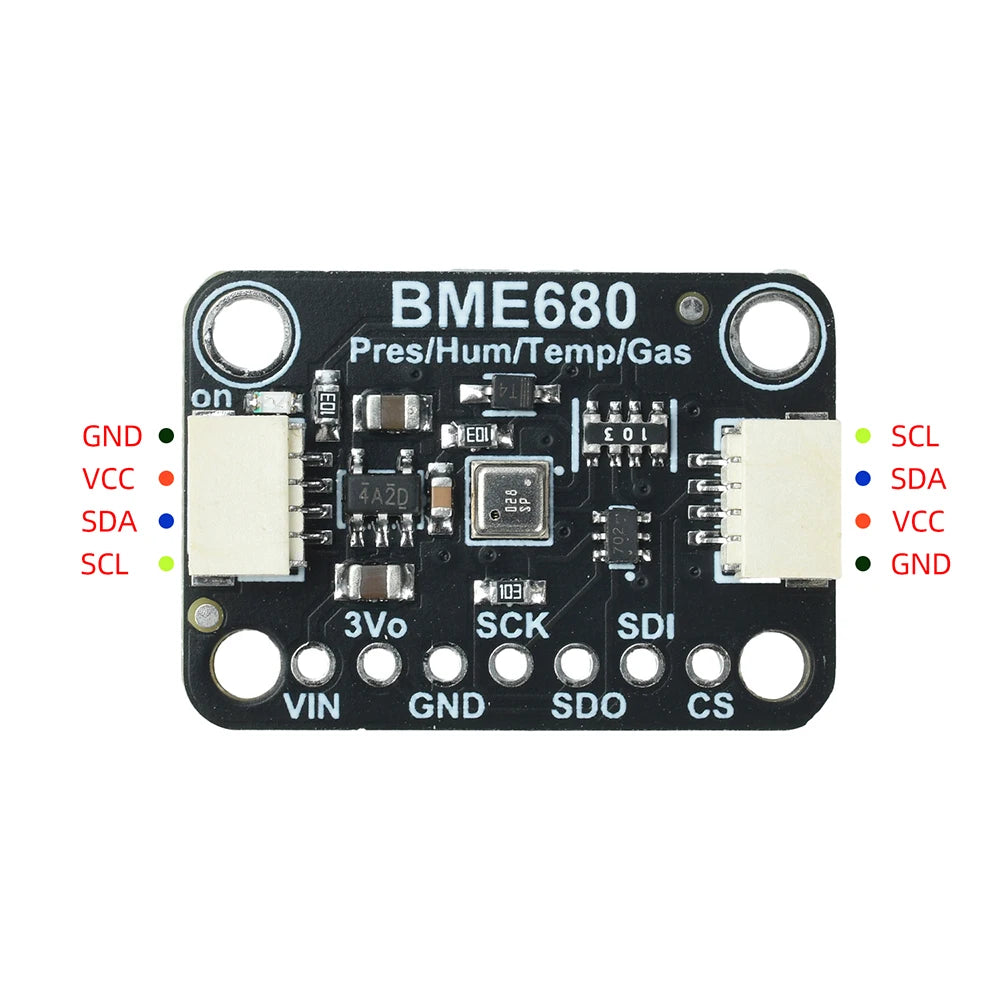

Interface: STEMMA QT/Qwiic (I2C address 0x76/0x77)

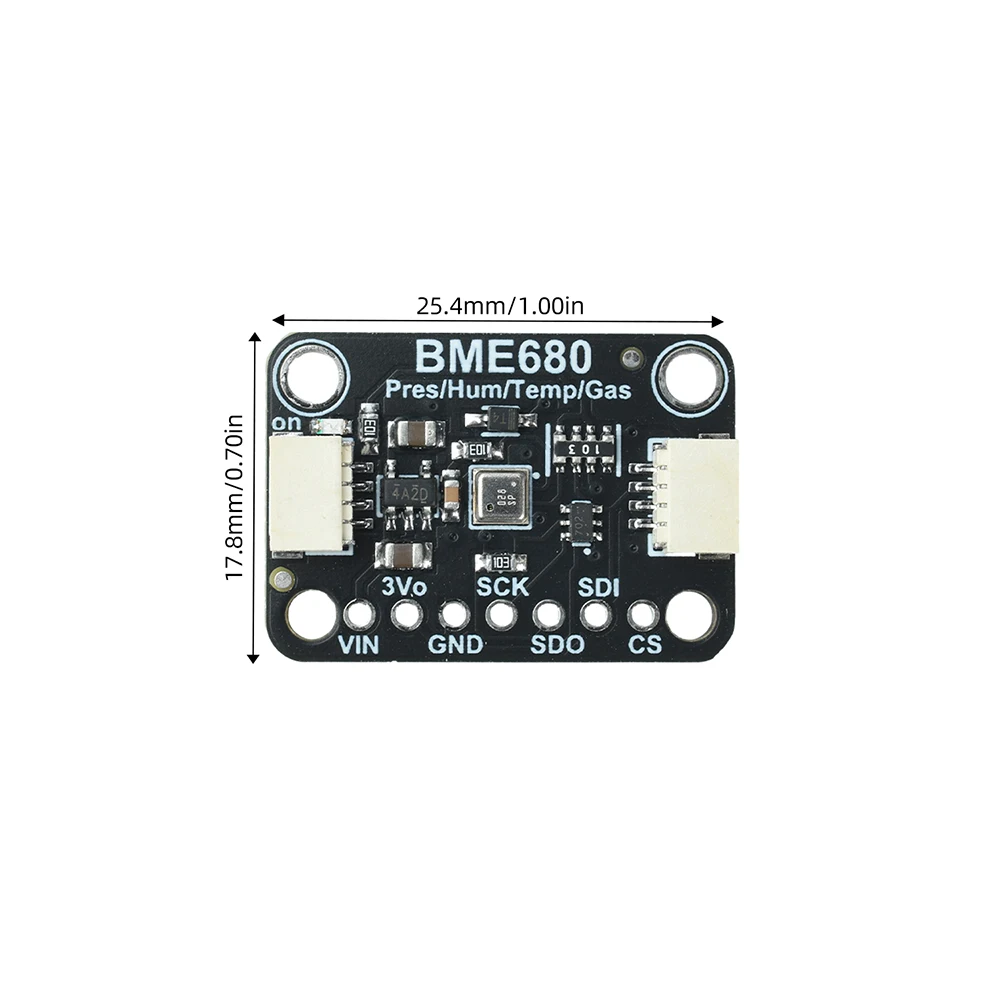

Module size: 25.4mmx17.8mm x5mm

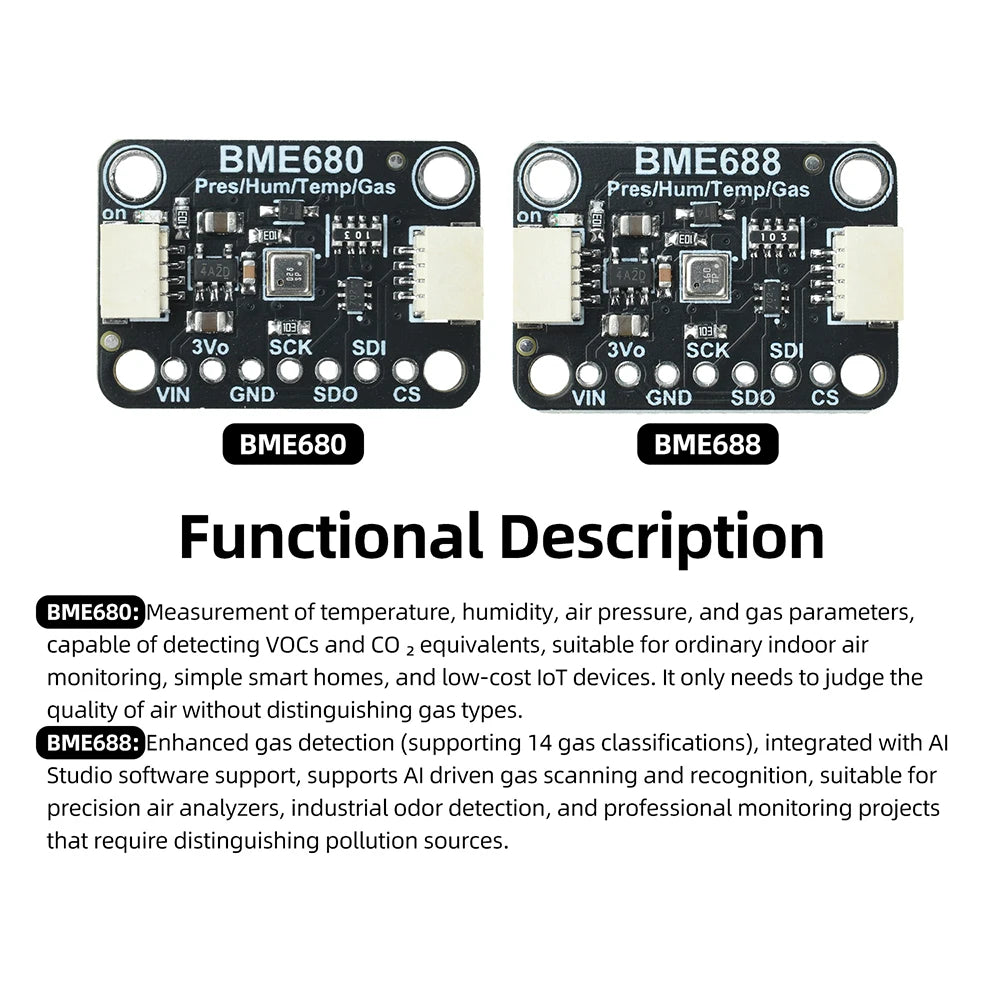

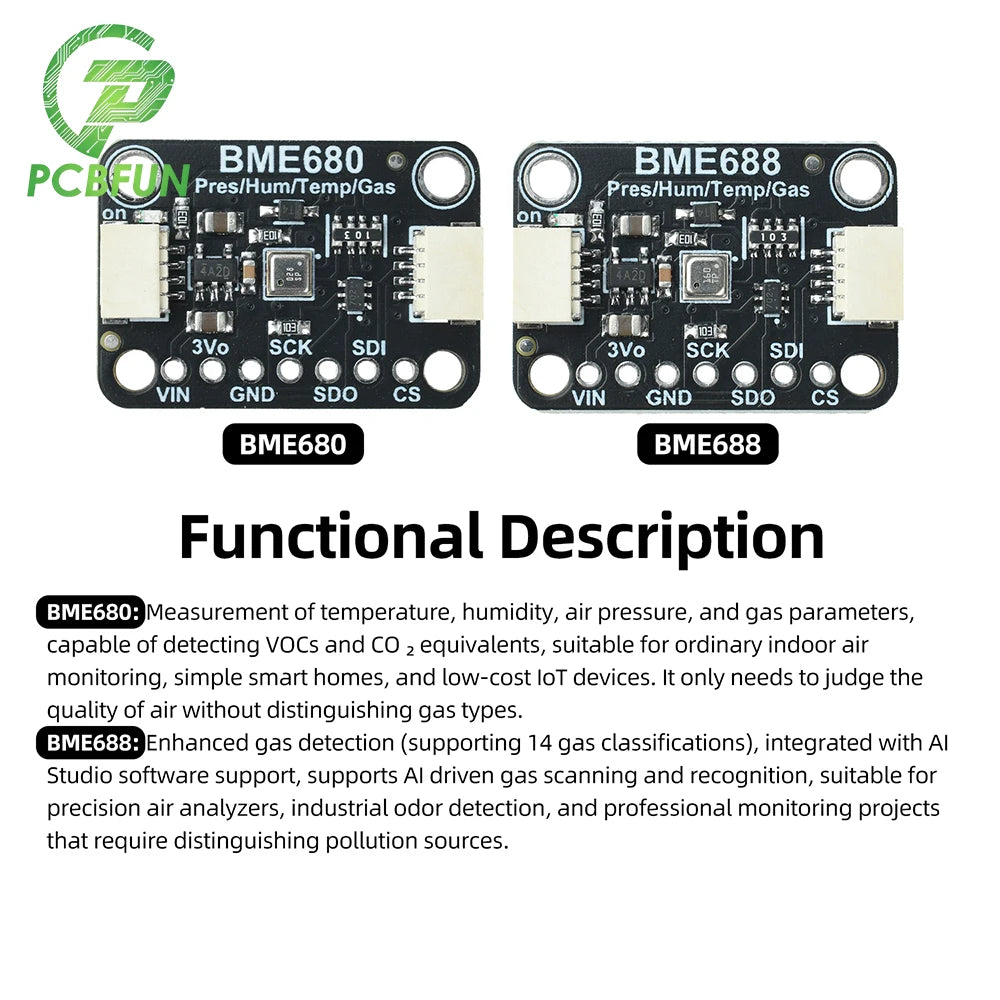

Function Description:

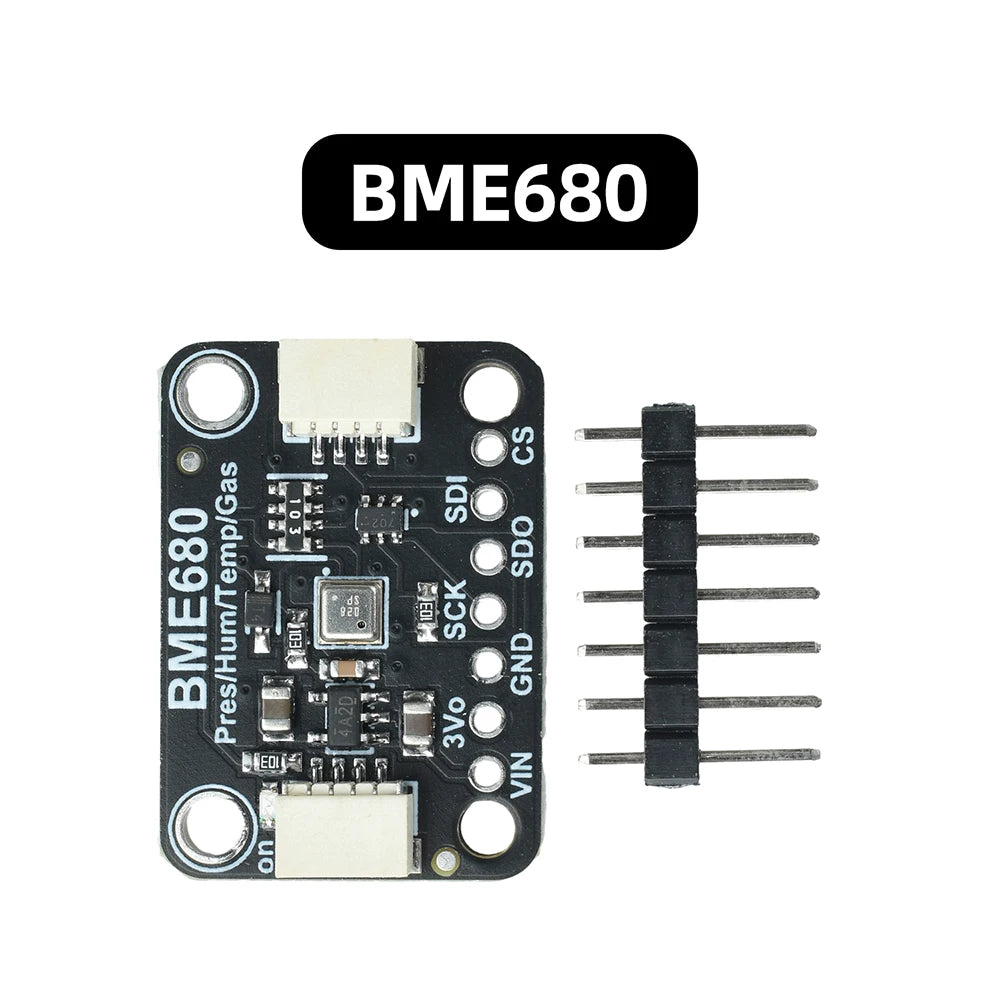

BME680: Measurement of temperature, humidity, air pressure, and gas parameters, capable of detecting VOCs and CO ₂ equivalents, suitable for ordinary indoor air monitoring, simple smart homes, and low-cost IoT devices. It only needs to judge the quality of air without distinguishing gas types.

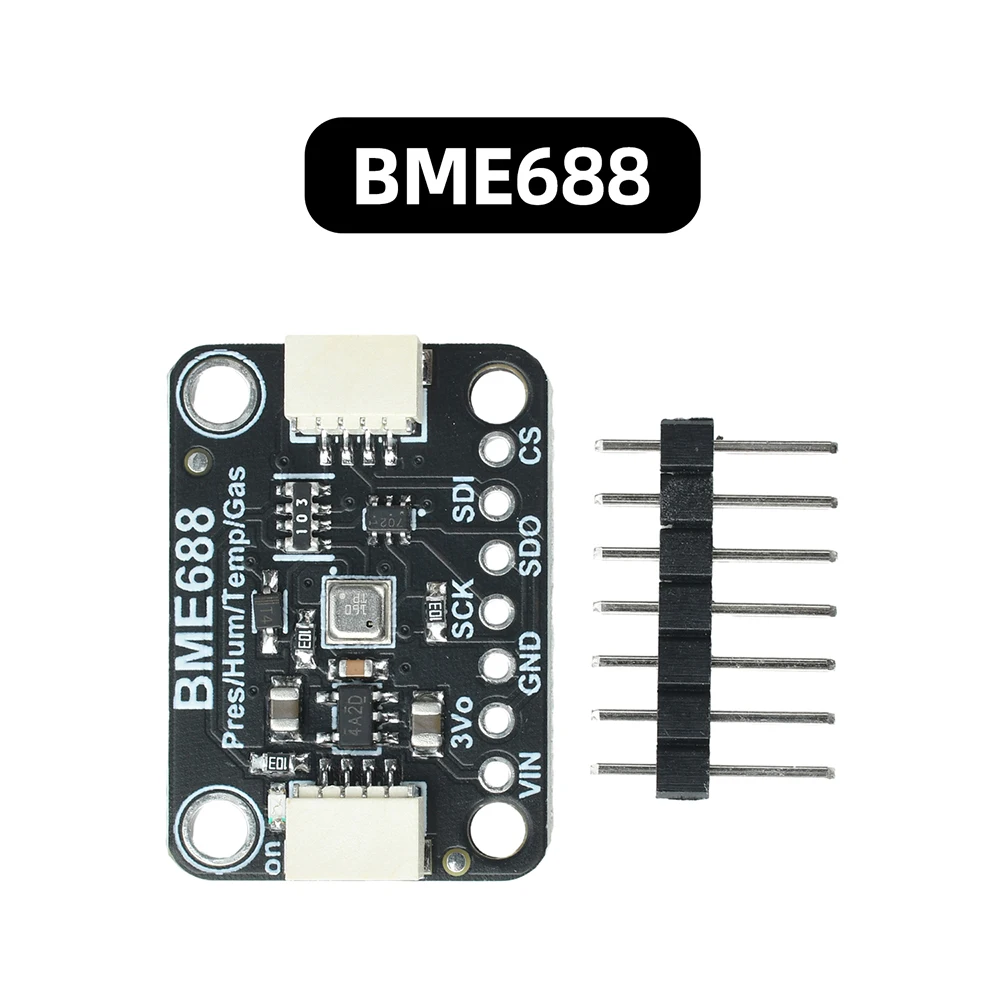

BME688: Enhanced gas detection (supporting 14 gas classifications), integrated with AI Studio software support, supports AI driven gas scanning and recognition, suitable for precision air analyzers, industrial odor detection, and professional monitoring projects that require distinguishing pollution sources.

Main purpose:
Comprehensive monitoring of indoor air quality
Smart home environment perception
IoT environment monitoring node
Health and safety monitoring equipment

Product List:
1X module
1X needle arrangement
