SPECIFICATIONS

Application: 1

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: 1

Model Number: BMI160

Origin: Mainland China

Package: SMD

Supply Voltage: 1

Type: Voltage Regulator

is_customized: Yes

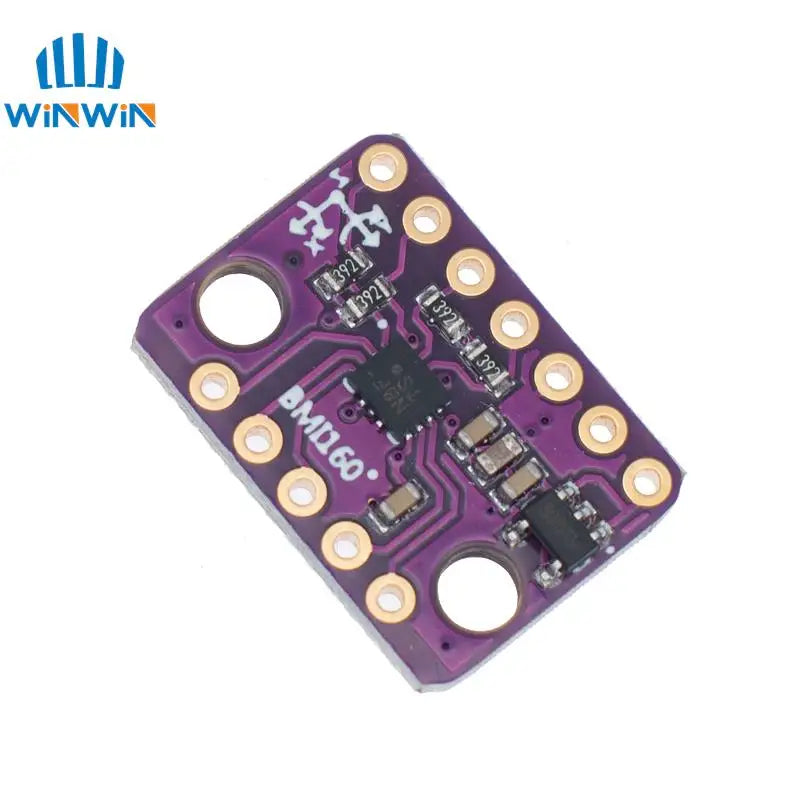

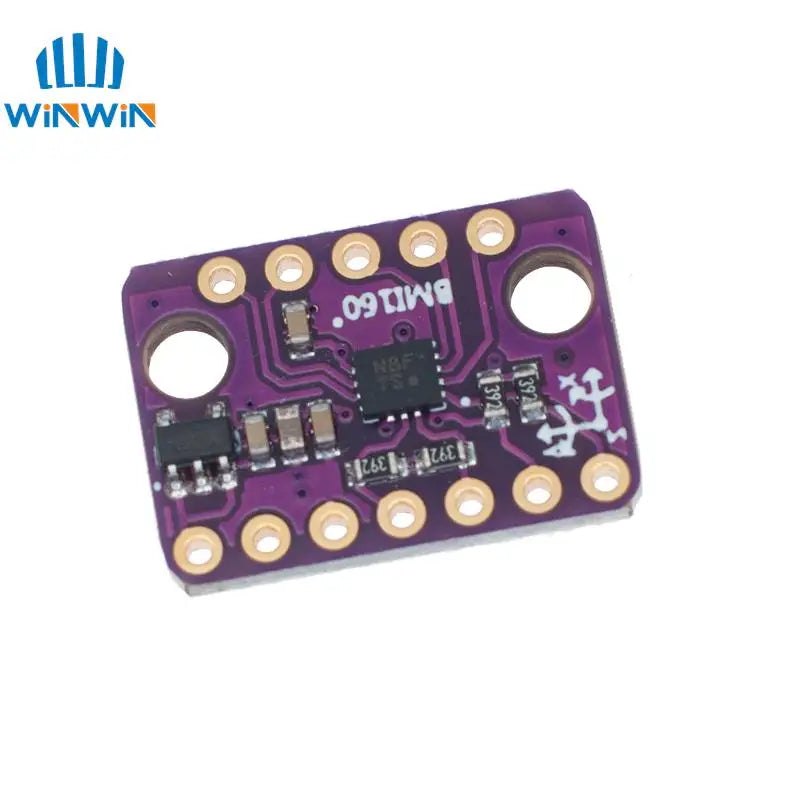

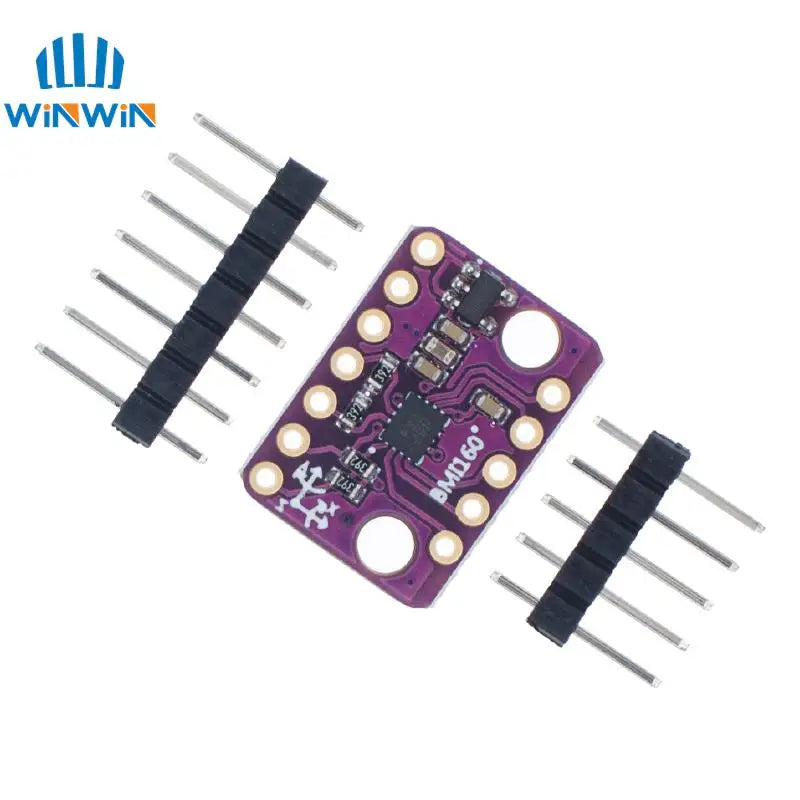

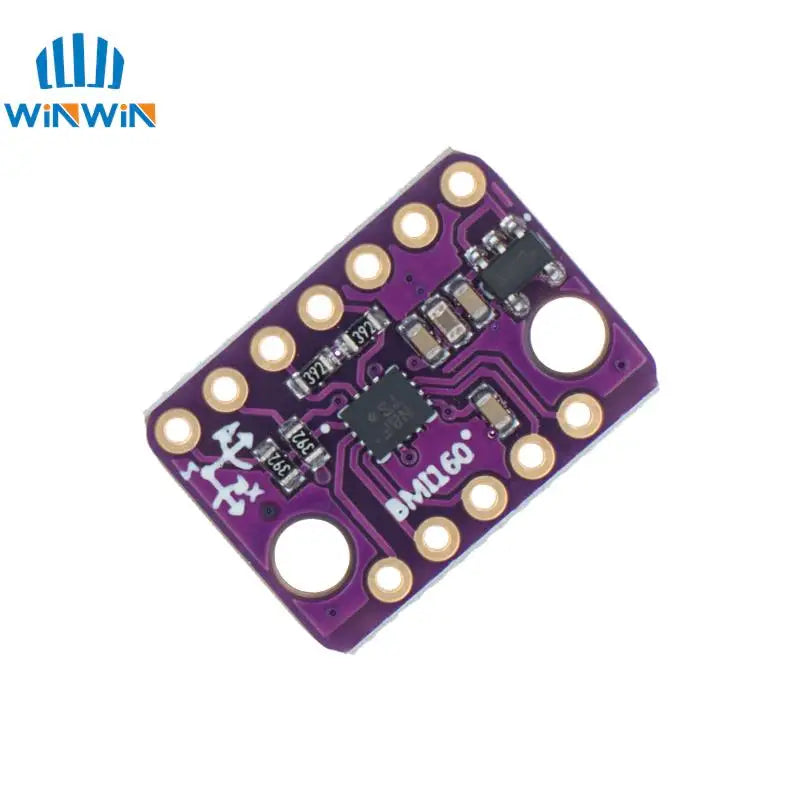

GY-BMI160 module (three-axis gyroscope + three-axis acceleration)
Chip used: BMI160
Power supply: 3-5v (internal low pressure difference voltage regulator)
Communication mode: Standard IIC/SPI communication protocol
Chip built-in 16bit AD converter,16 bit data output
Gyro range: ±125 ±250 ±500 ±1000 ±2000 °/s
Acceleration range: ±2±4±8±16g
Metal-sunk PCB, machine welding process to ensure quality

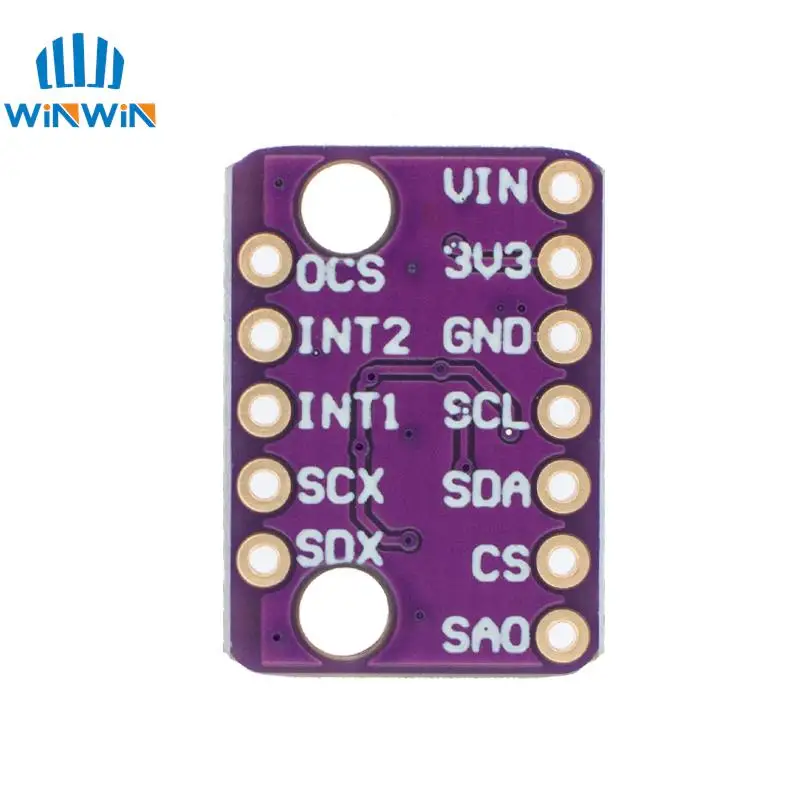

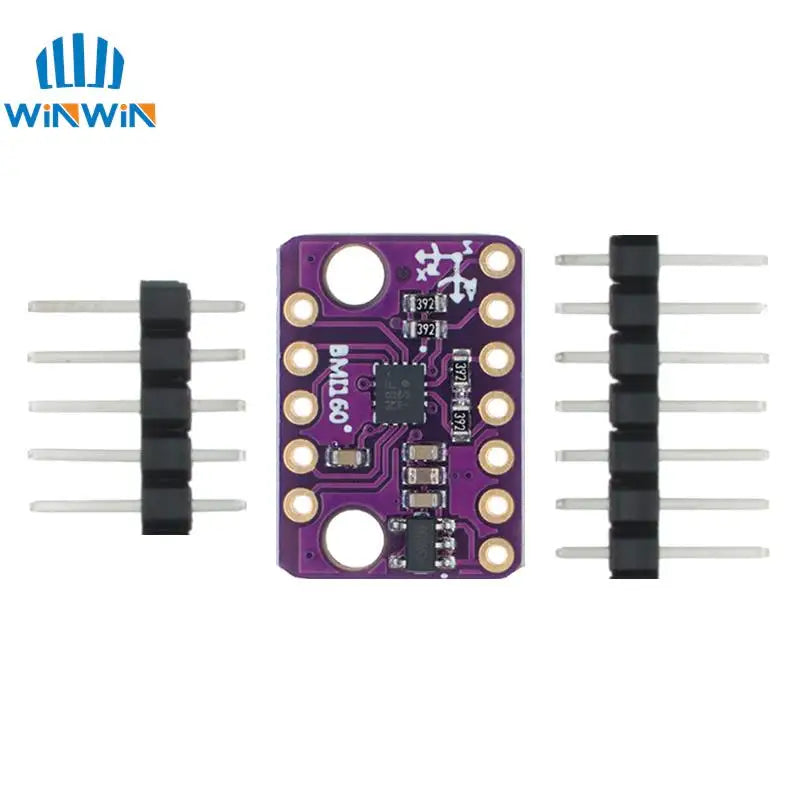

Pin spacing 2.54mm
Module size 13mm*18mm

The BMI160 is a small, low power, low noise 16-bit inertial measurement unit designed for use in mobile applications like augmented reality or indoor navigation which require highly accurate, real-time sensor data.

In full operation mode, with both the accelerometer and gyroscope enabled, the current consumption is typically 950 μA, enabling always-on applications in battery driven devices. It is available in a compact 14-pin 2.5 x 3.0 x 0.8 mm3 LGA package."

Applications

- Augmented reality and immersive gaming

- 3D-scanning and indoor mapping

- Indoor navigation, pedestrian dead-reckoning, step-counting

- 6- and 9-axis sensor fusion, air mouse applications
