SPECIFICATIONS

Brand Name: NONE

Certification: CE

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: GPS Module

High-concerned chemical: none

Material: Composite Material

Model Number: BN880 GPS

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: GPS Module

Recommend Age: 14+y

Remote Control Peripherals/Devices: RECEIVERS

Size: BN 880 GPS

Technical parameters: value 2

Tool Supplies: GPS Module

Upgrade Parts/Accessories: GPS Module

Use: Vehicles & Remote Control Toys

modname=ckedit

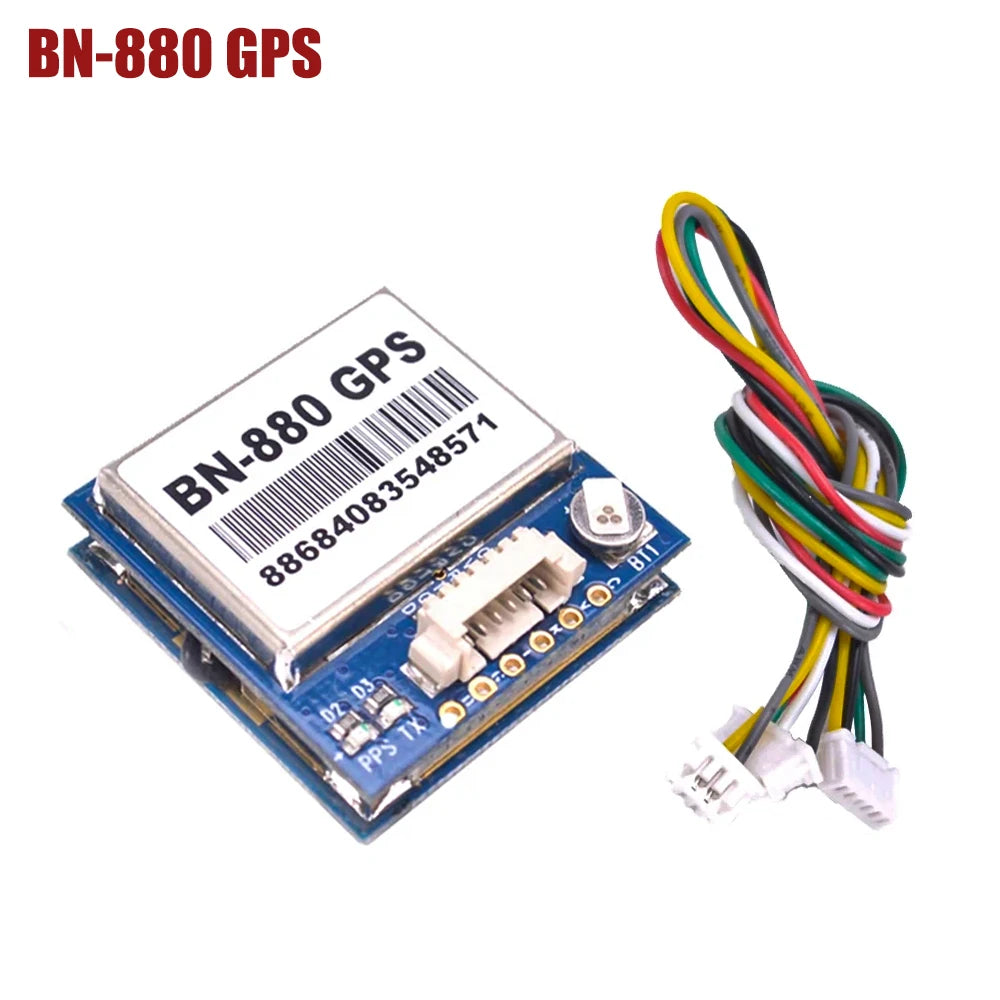

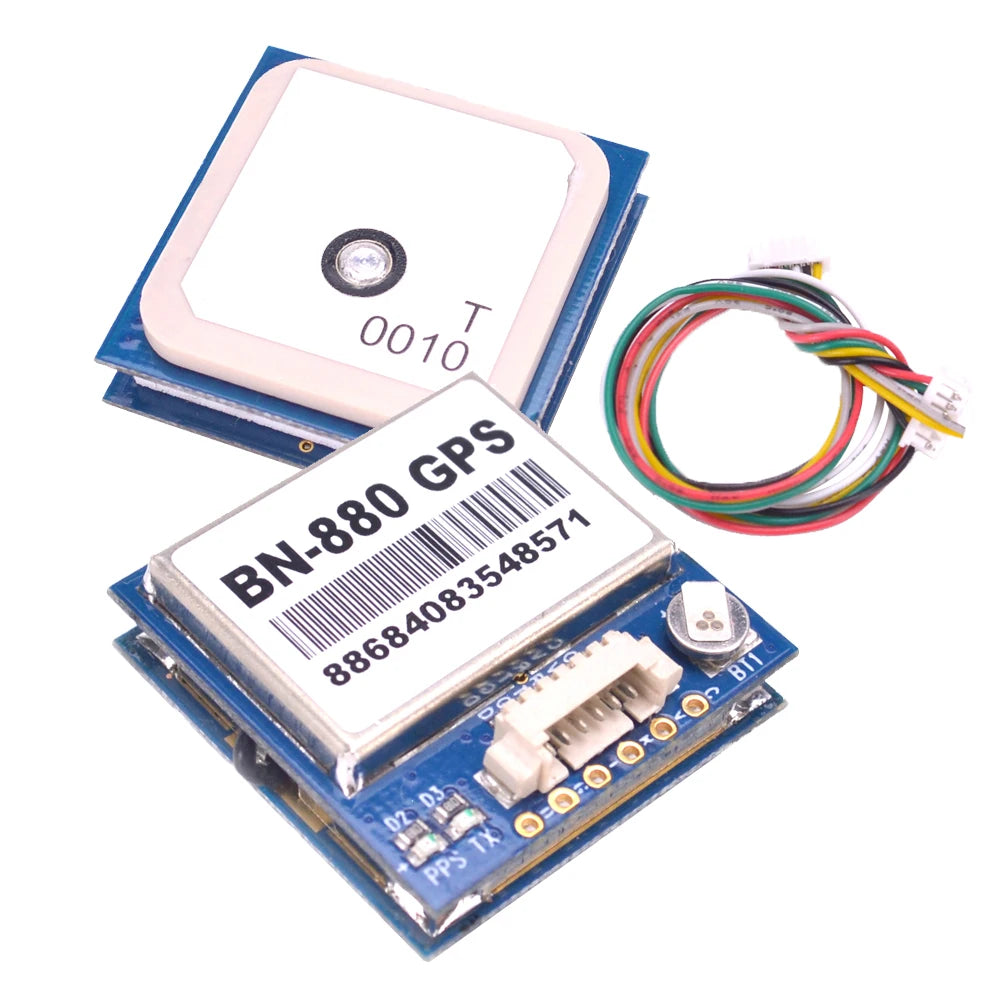

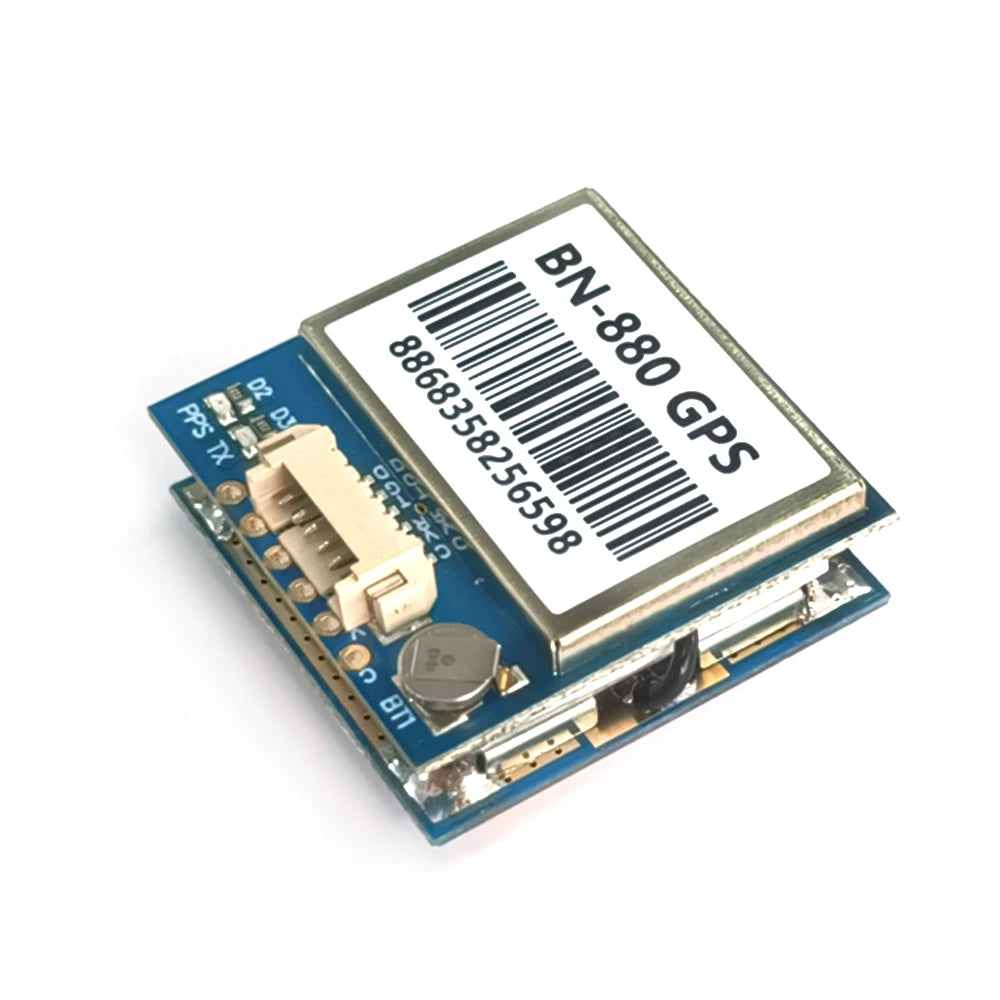

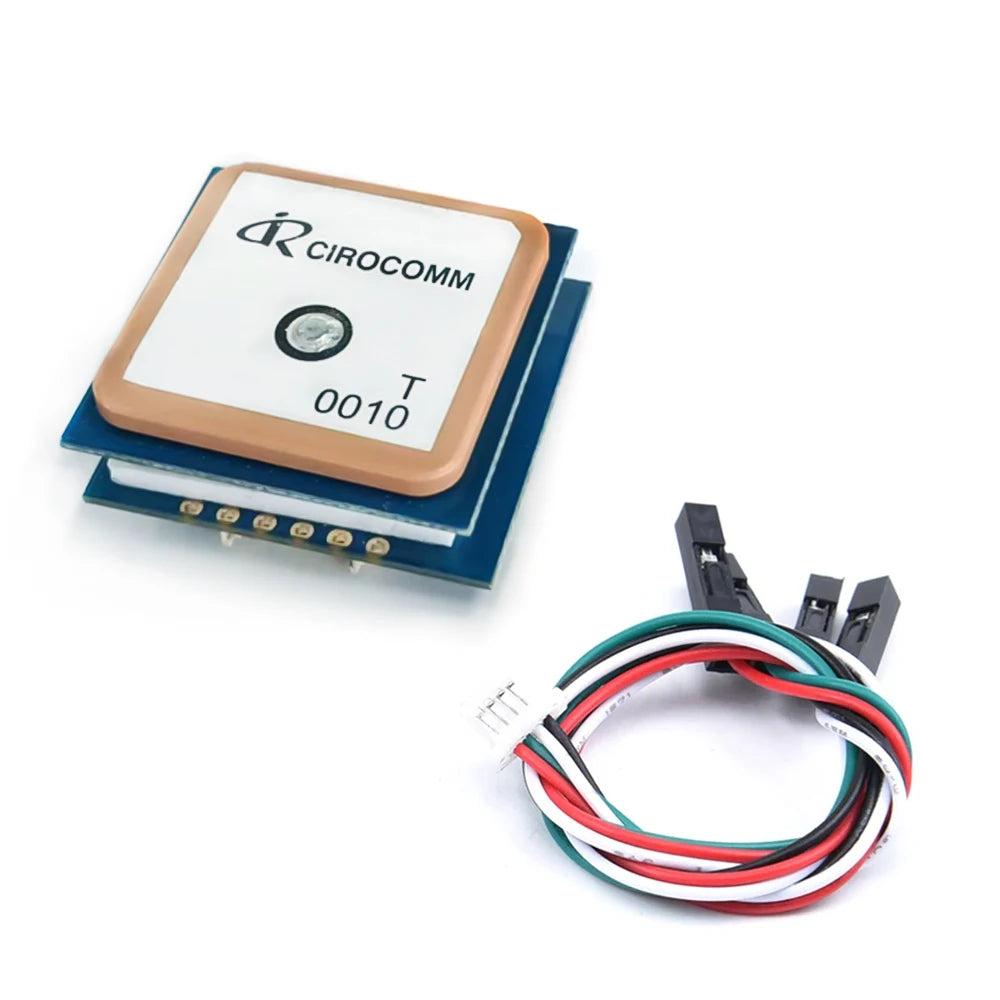

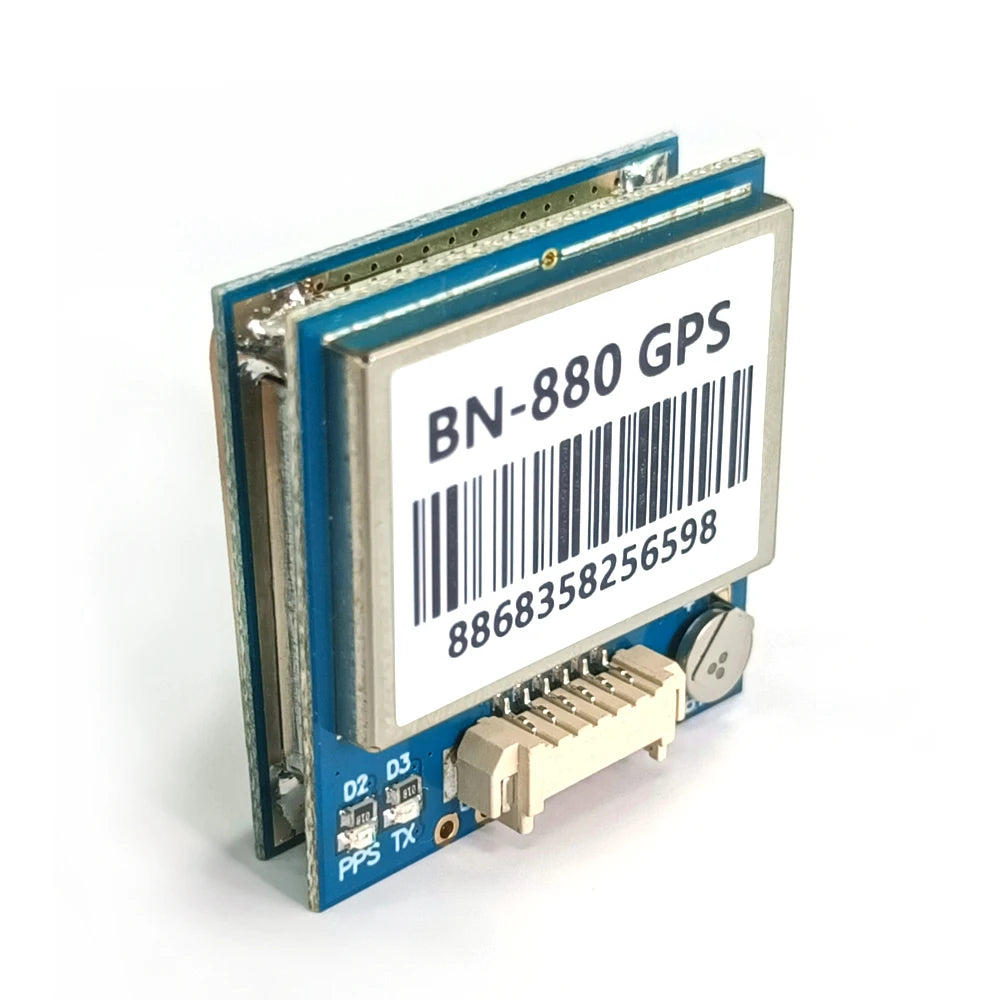

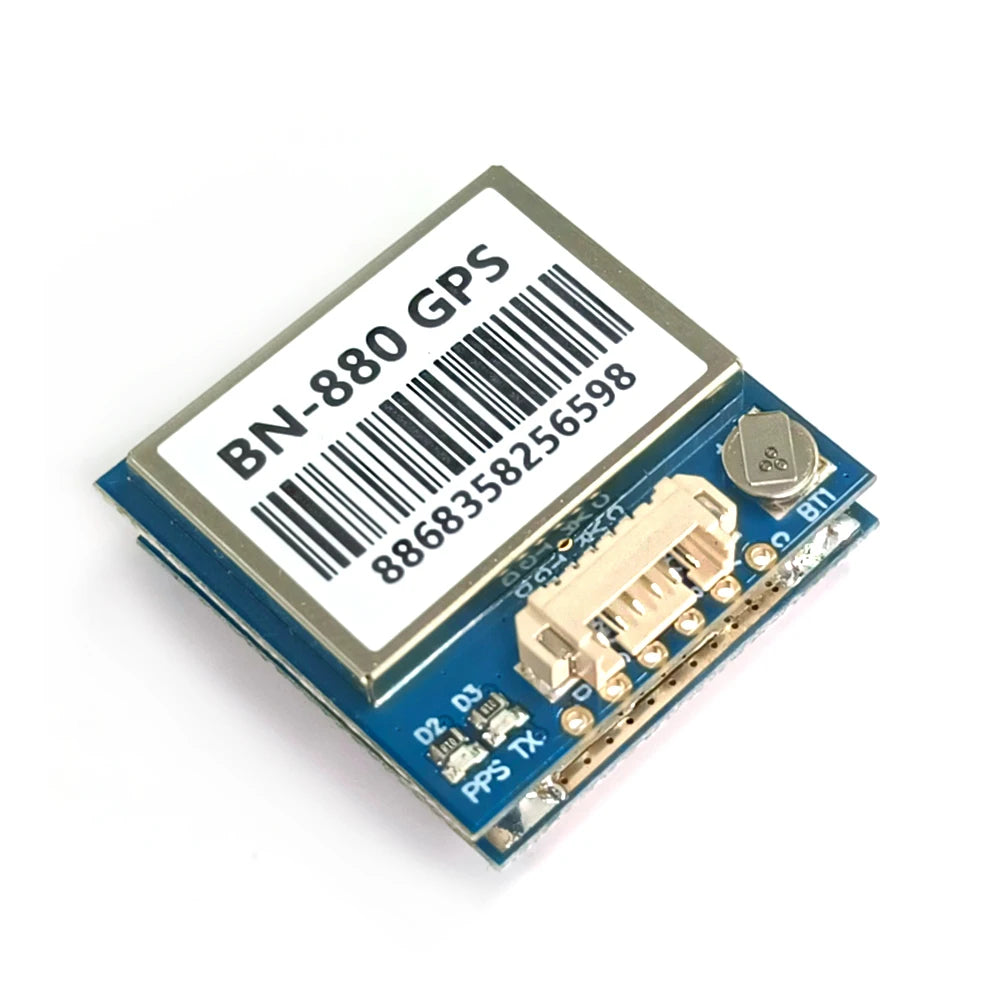

BN-880 GPS Module:

Model:BN-880

Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V

Consumption:Capture 50mA@5V

Receiving Format:GPS,GLONASS,BeiDou,QZSS and SBAS

Receiving Channel:72 Searching Channel

Receiving Sensitivity:Trace -167dBm

Capture-148dBm

Positioning Time:Cold Start:avg26s

Warm Start:avg25s

Hot Start:avg3s

Level Positioning Precison:2m At Open Wind

Output Frequency:1Hz-10Hz,Default 1Hz

Speed Precison:0.1 m/s (Without Aid)

Acceleration Precison:0.1 m/s (Without Aid)

Dynamic Characteristics:Max Height:18000m

Max Speed:5153m/s

Max Acceleration:4G

UART Interface:UART Port:TXDA and RXDA

Support Rate:4800bps to 115200bps,Default 38400dps

Working Temperature:-40-+85

Storage Temperature:-40-+85

Size:28mm x 28mm x 10mm

Weight:10g

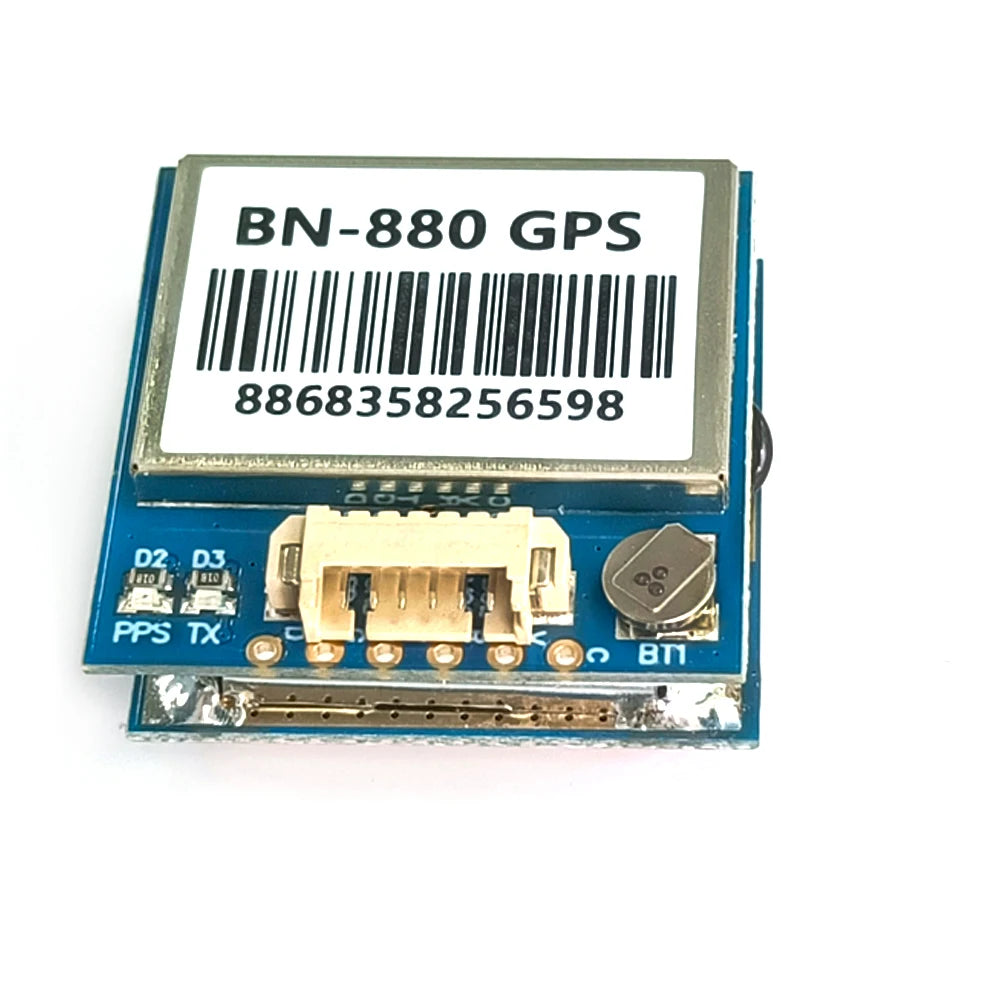

The Module's Pins:SDA,GND,TX,RX,VCC,SCL

Features:

GPS Module,Dual Module Compass

With electronic compass IC HMC5883

1.25mm spacing between the 6pins patch seat

Package Included:(Send it as your choice)

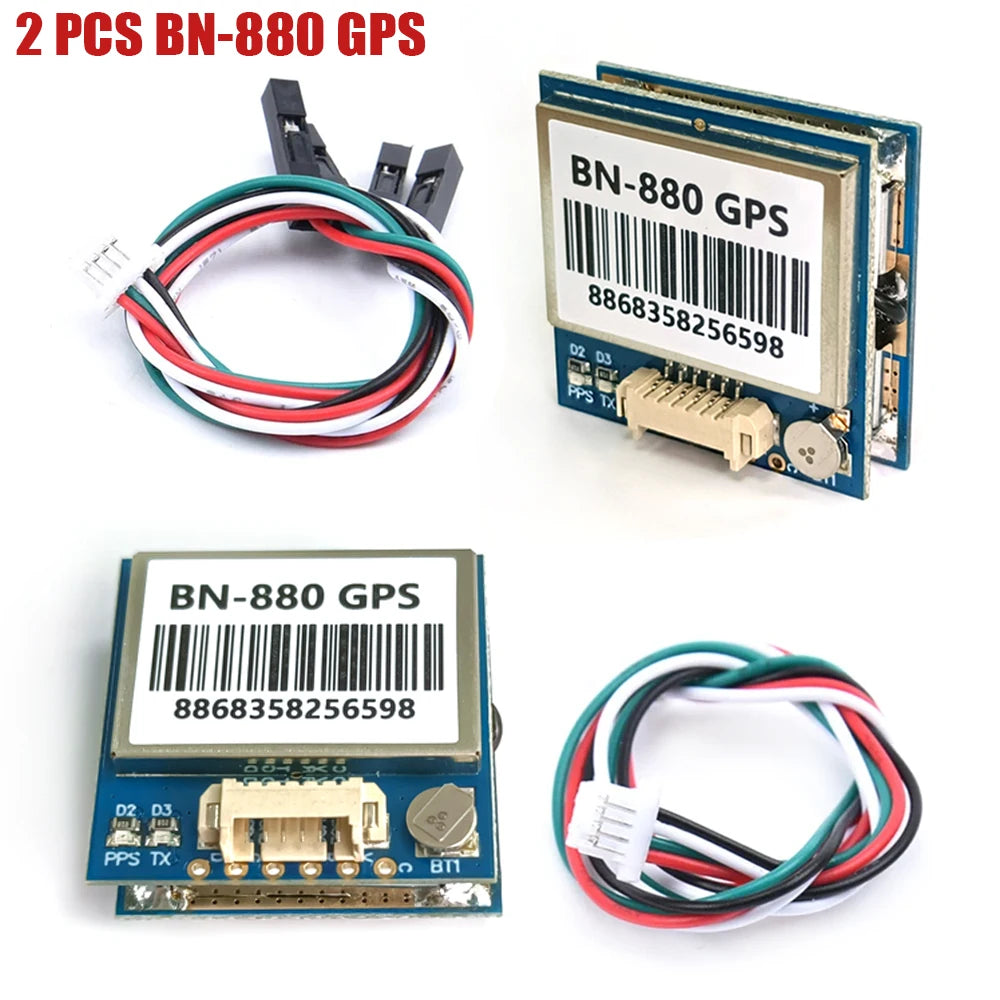

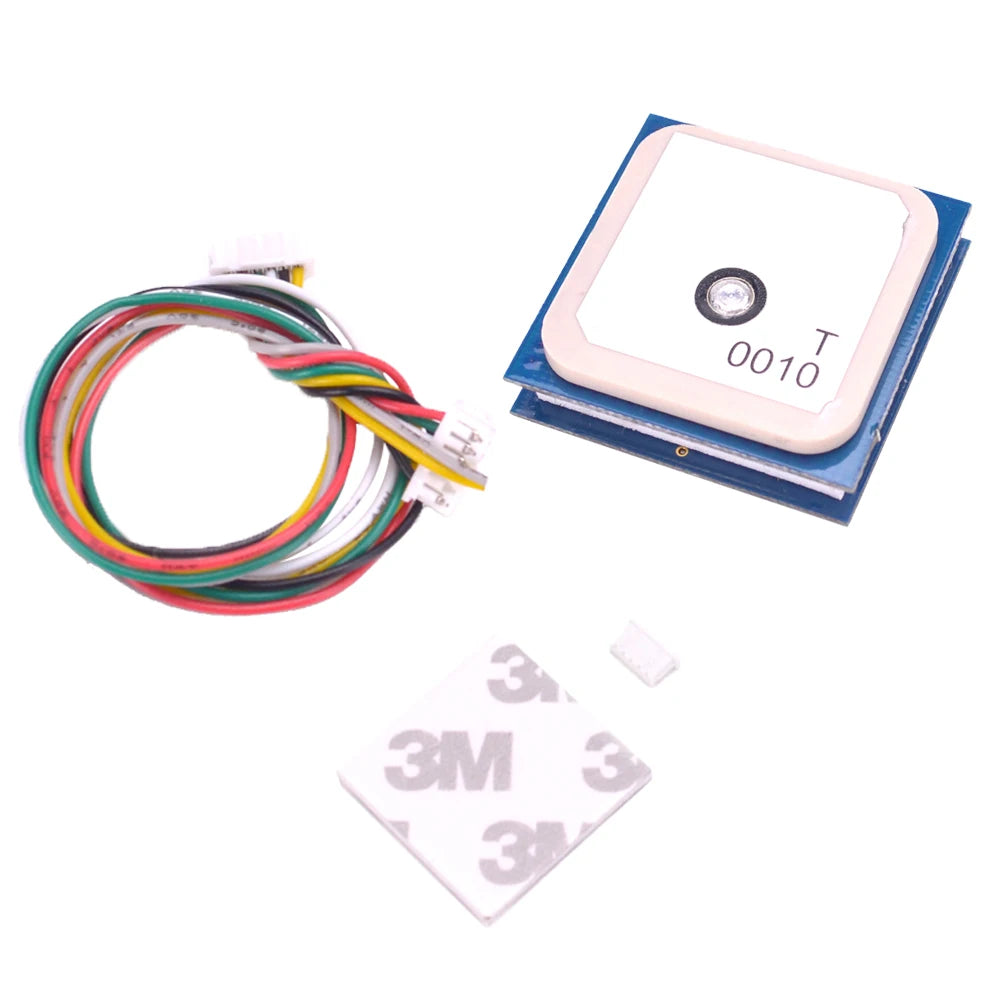

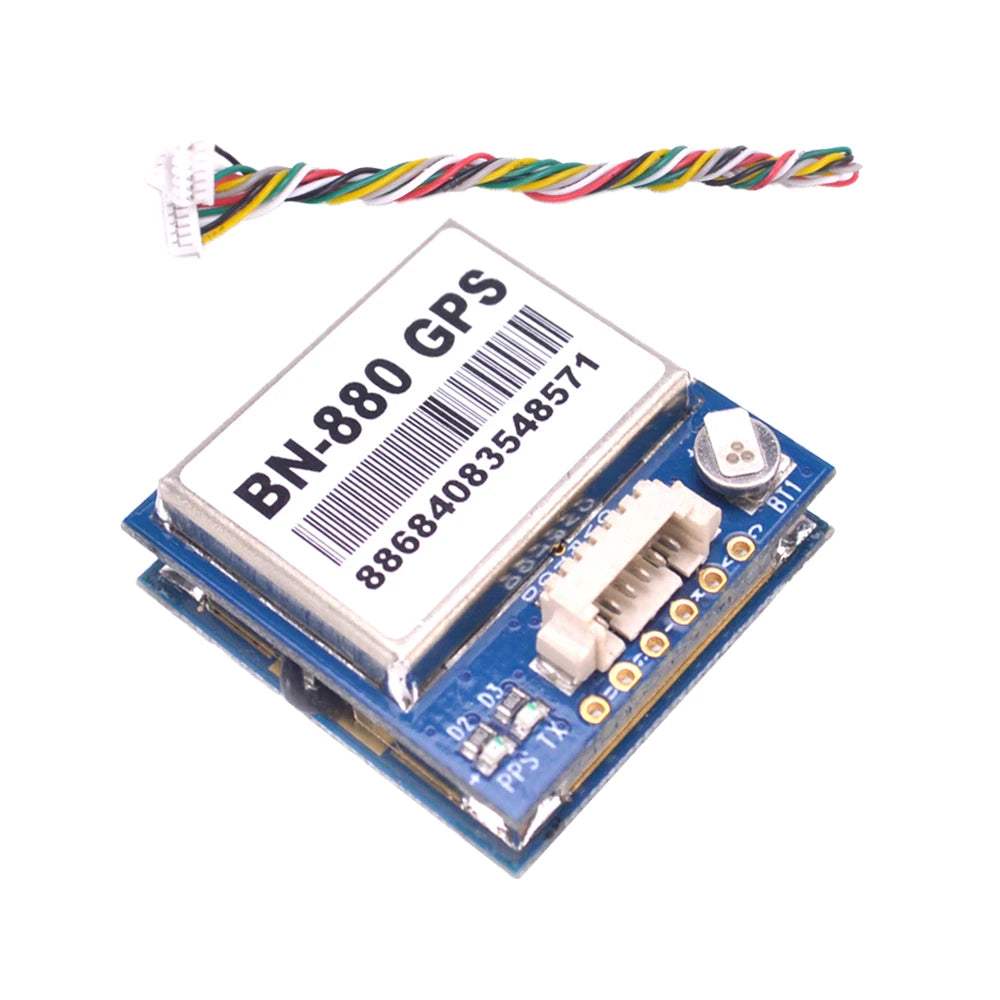

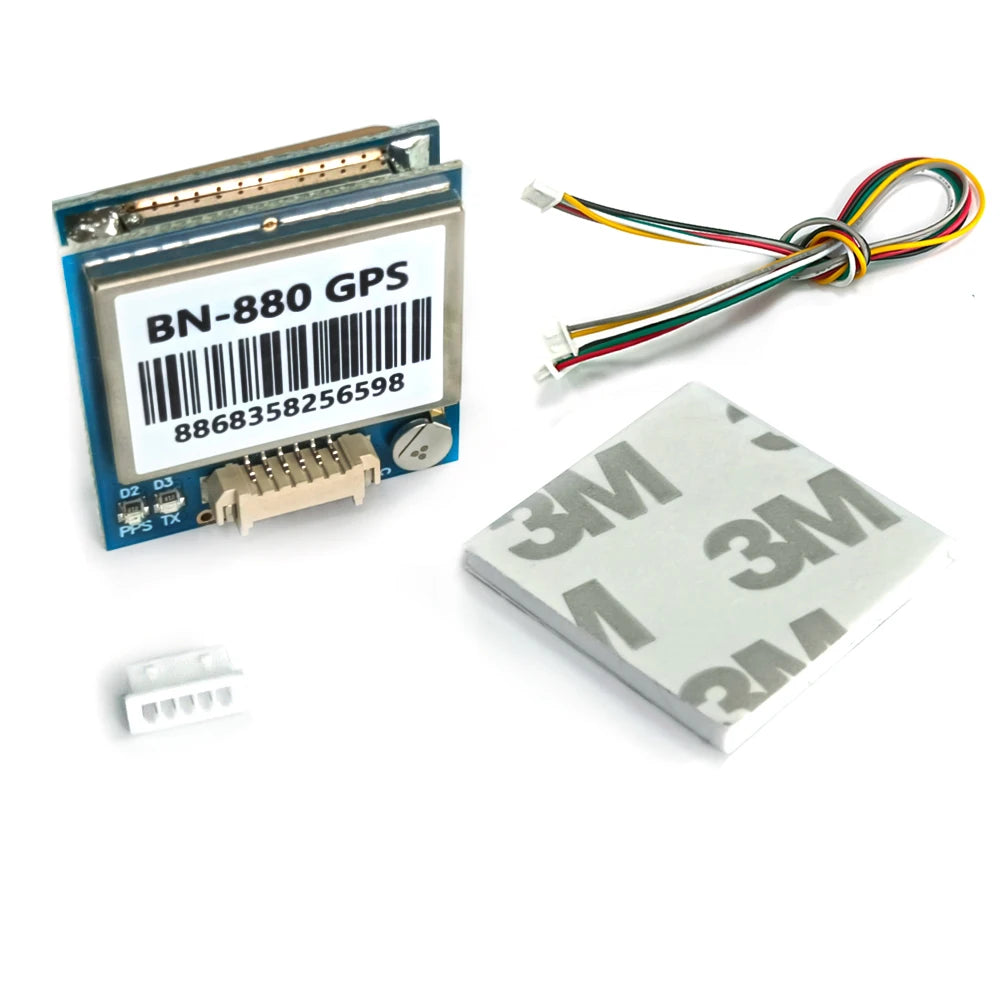

1PCS / 2PCS BN-880 GPS Module with cables
