SPECIFICATIONS

Features:

*Advanced Motion Tracking: The BNO085 IMU integrates a high-performance 9-system, providing exceptional motion tracking capabilities that enhance augmented reality (AR), virtual reality (VR), and robotics applications with precise data.

*Compact Design: This sensor  features a small  factor, making it for IDEAL for integration into a wide range of IoT devices without sacrificing performance, enabling seamless incorporation into various projects.

*Low Power Consumption: Powered by a 32- ARM Cortex M0+ MCU, the BNO085 is designed for efficiency,long operational life in -powered devices while delivering robust performance for complex calculations.

* Comprehensive Sensor  for Fusion: Leveraging sensor hub software, it fuses data from the accelerometer, gyroscope, and magnetometer to provide precise orientation and motion  for insights, minimizing  for Drift for reliable performance.

*Interface Options: The BNO085  for supports I2C,  for SPI, and UART interfaces, providing flexible connectivity options for easy integration into different platforms and allowing developers to implement it in a variety of applications effortlessly.

Specifications:

*Part Name: 9DOF Sensor

*Material: None

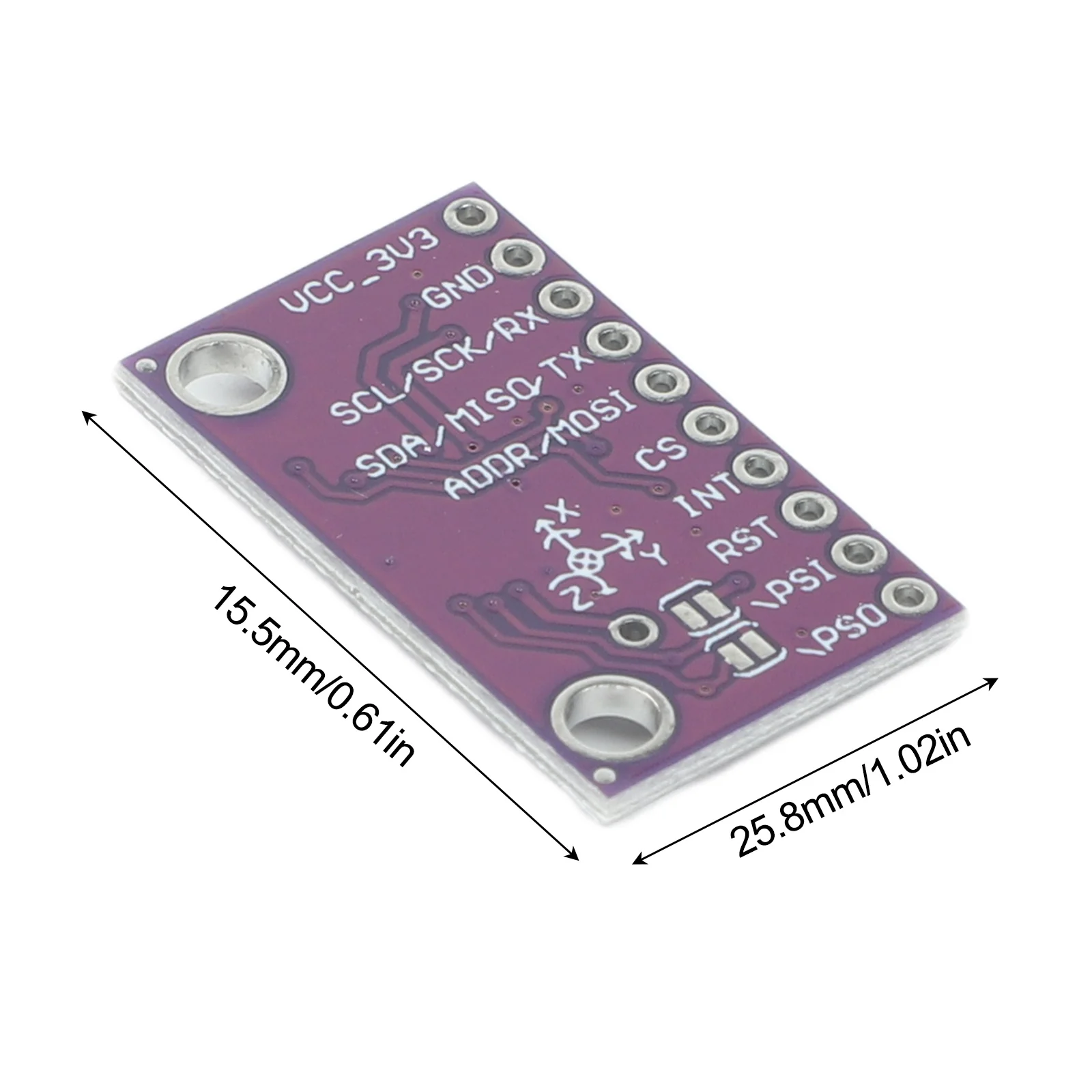

*Size: 25.8*15.5mm

*Color: Purple

I2C (default): Up to 400kHz

for SPI: Up to 3MHz

UART: 3Mbps

UART-RVC (Robot Vacuum Cleaner): 115200kbps

Dynamic Error: 3.5°

Static Error: 2.0°

Game Rotation Vector

Dynamic Error: 2.5°

Static Error: 1.5°

Heading  for Drift: 0.5°/minute

Geomagnetic Rotation Vector

Dynamic Rotation Error: 4.5°

Static Rotation Error: 3.0°

Gravity Angle Error: 1.5°

Linear Acceleration Accuracy: 0.35m/s²

Accelerometer Accuracy: 0.3m/s²

Gyroscope Accuracy: 3.1°/s

Magnetometer Accuracy: 1.4μT

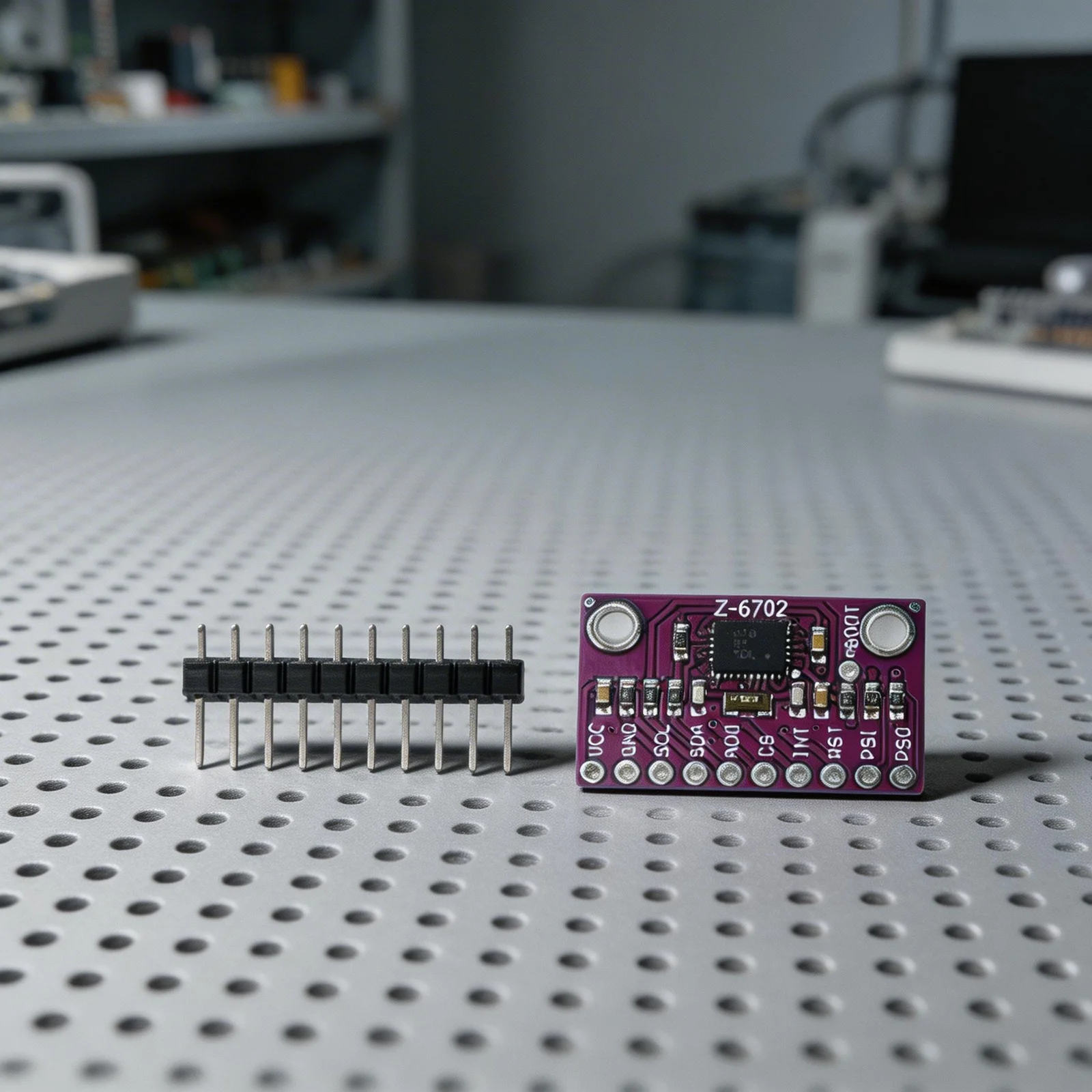

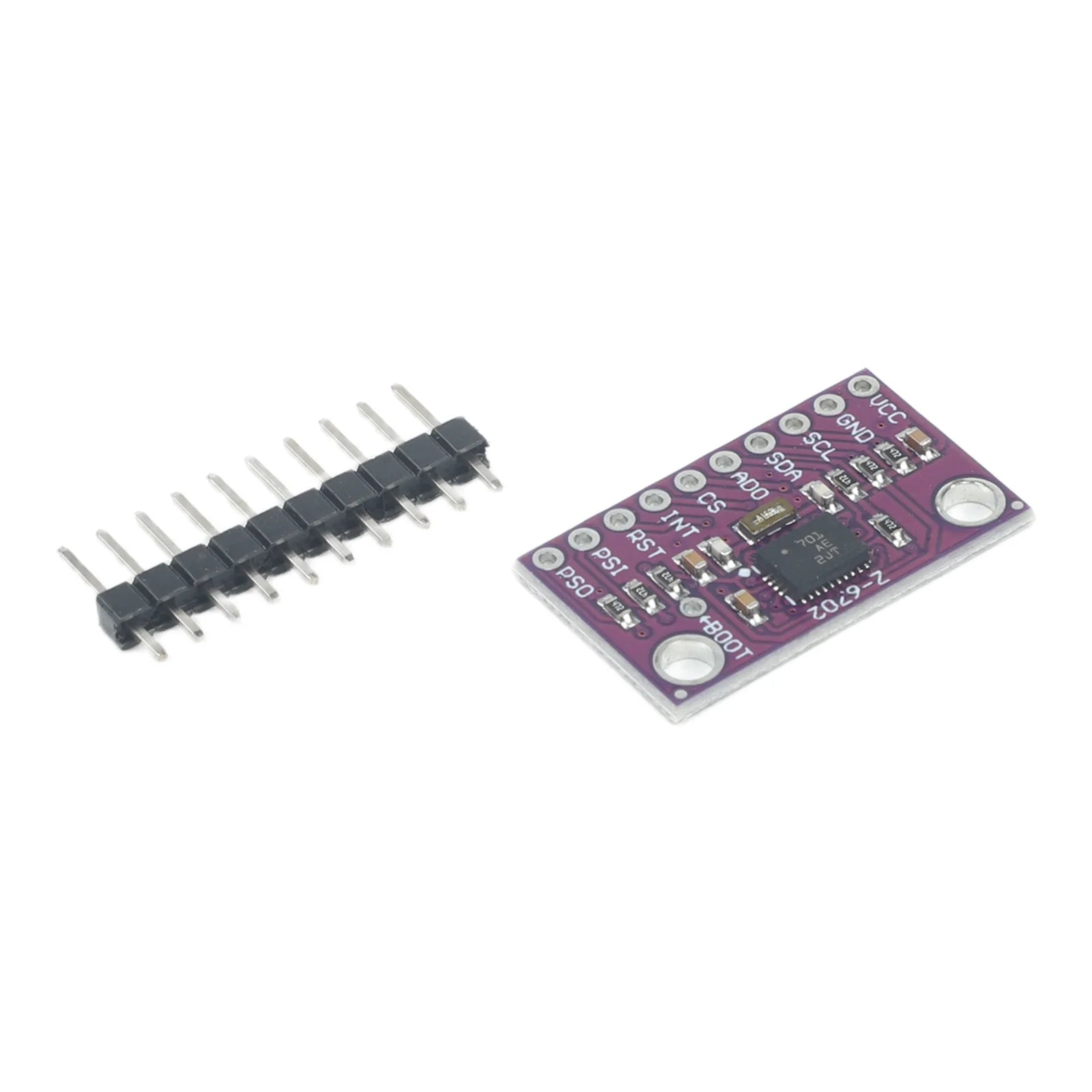

Package Content:

1*

1*Pin header

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
