SPECIFICATIONS

Brand Name: NONE

Communication method: Bluetooth-Compatible

High-concerned chemical: none

Origin: Mainland China

Specification 1: color recognition sensor

Specification 2: TCS34725

Specification 3: RGB sensor

Specification 4: Light recognition module

Specification 5: Light Sensor support Arduino STM32

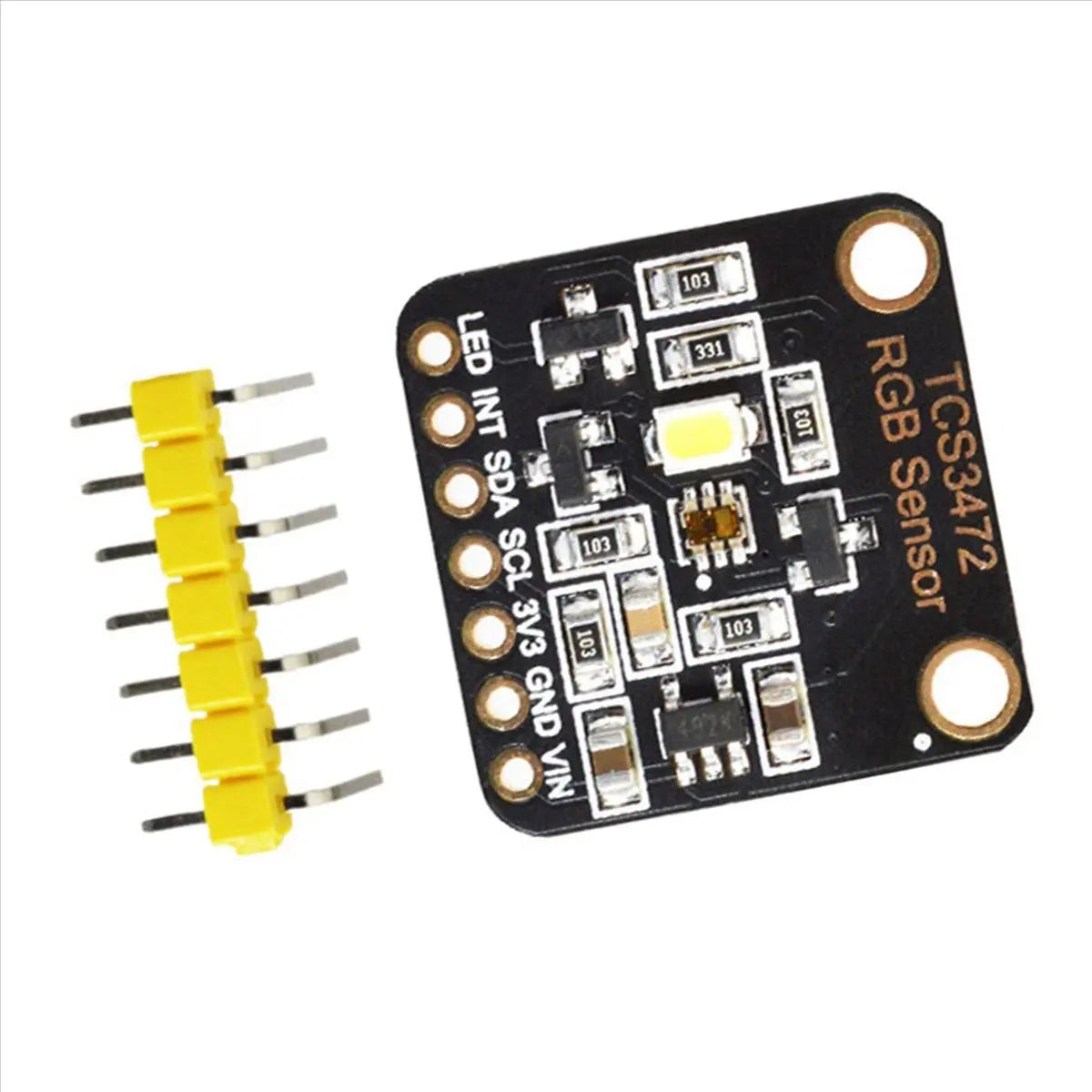

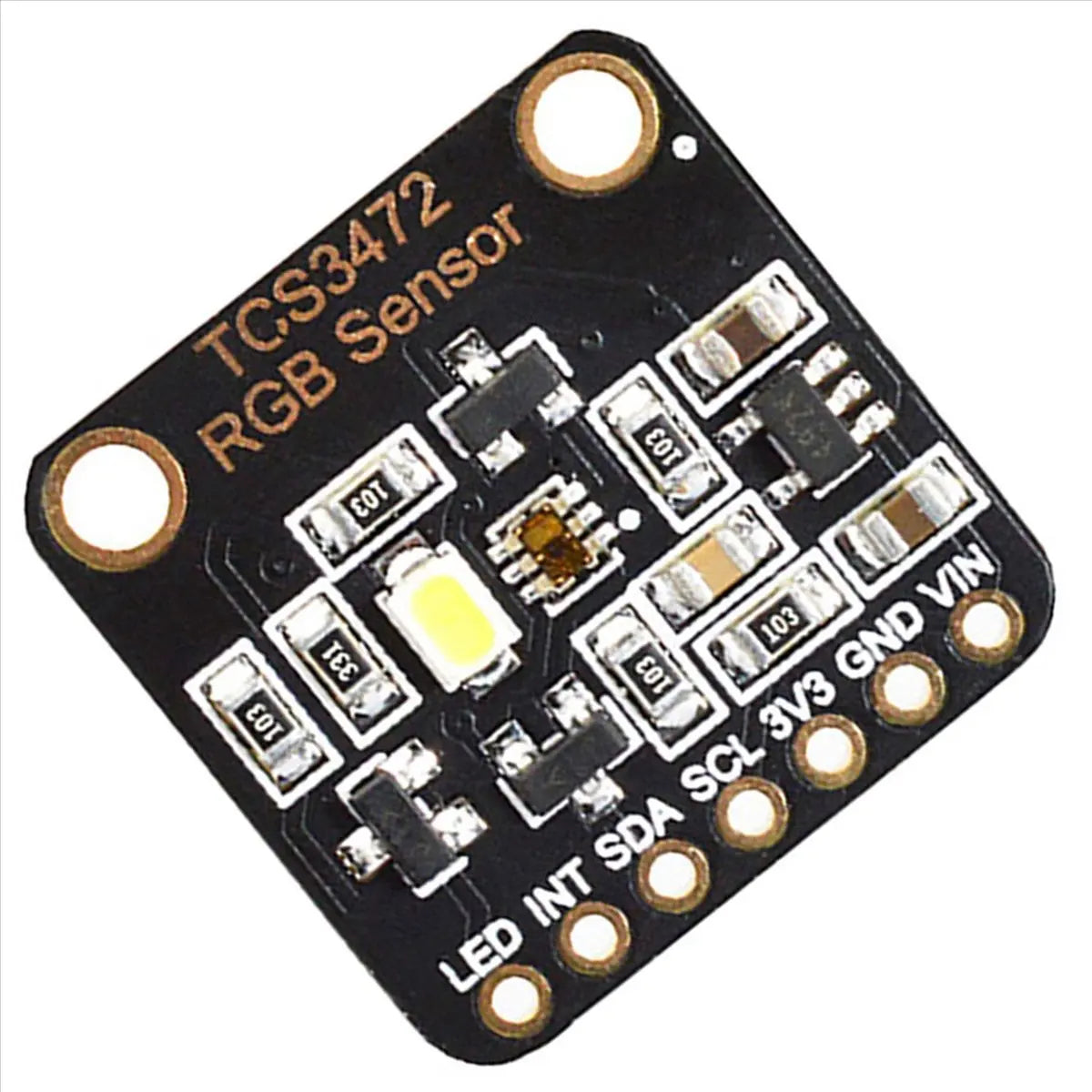

1. This module is a color sensor based on AMS's TCS3472XFN color light digitizer. The sensor provides digital output of red, green, blue (RGB) and clear light sensing values.
2. The integrated infrared blocking filter can minimize the infrared spectral components of the incident light, and can accurately measure the color.
3. It has high sensitivity, wide dynamic range and infrared positive filter.
4. Minimize the effects of IR and UV spectral components to produce accurate color measurements. And with ambient light intensity detection and shieldable interrupt.
5. Communication via I2C interface. This design is based on the same design principle and provides design designs (square version) to provide users with more options for installation size and environment.

Product parameters:
Working voltage: 3.3V/5V
Control chip: TCS3472XFN
Communication interface: I2C
Colour:black
Material:abs
Size: 20.5 x 20.5mm

Package Contents:

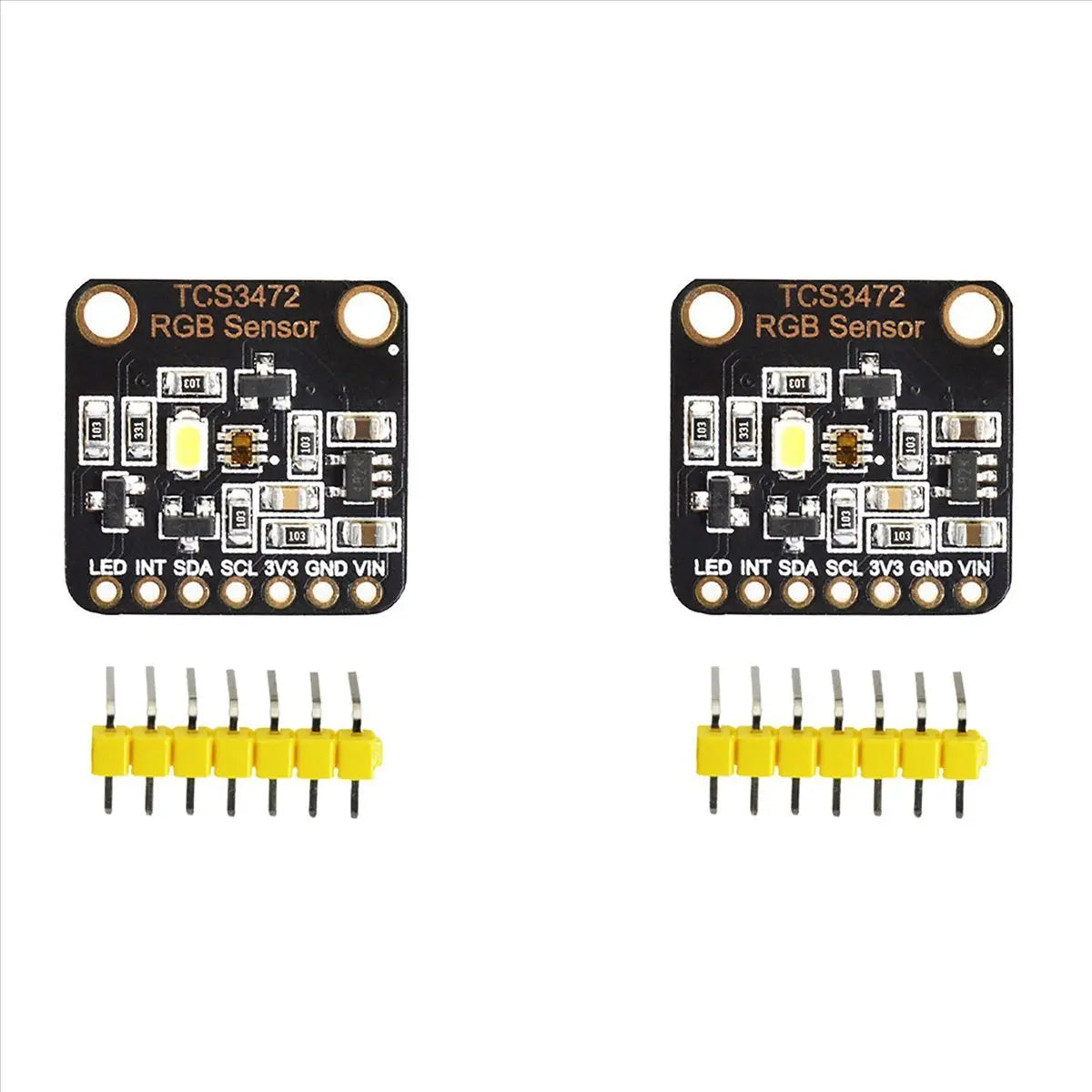

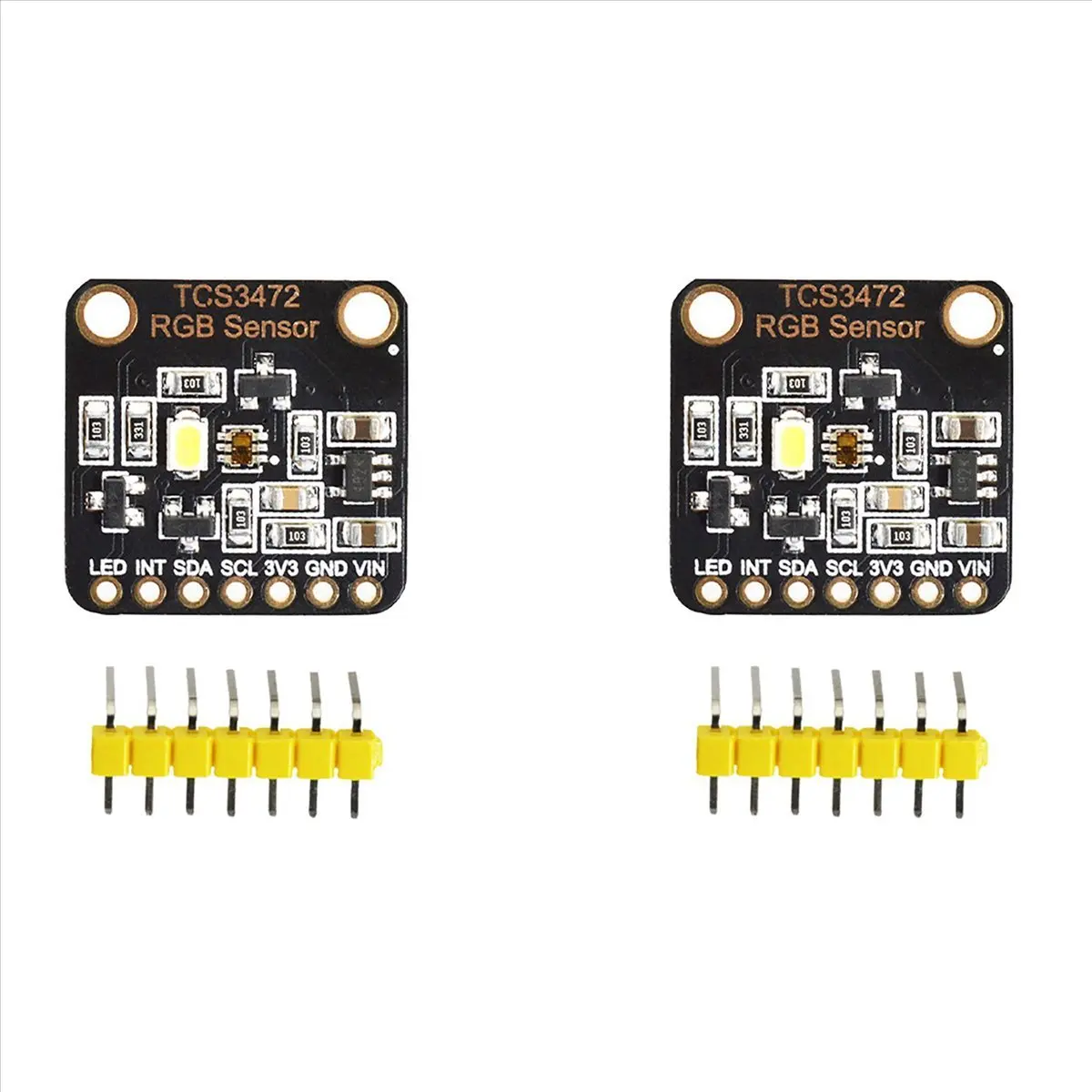

2 * RGB sensor

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
