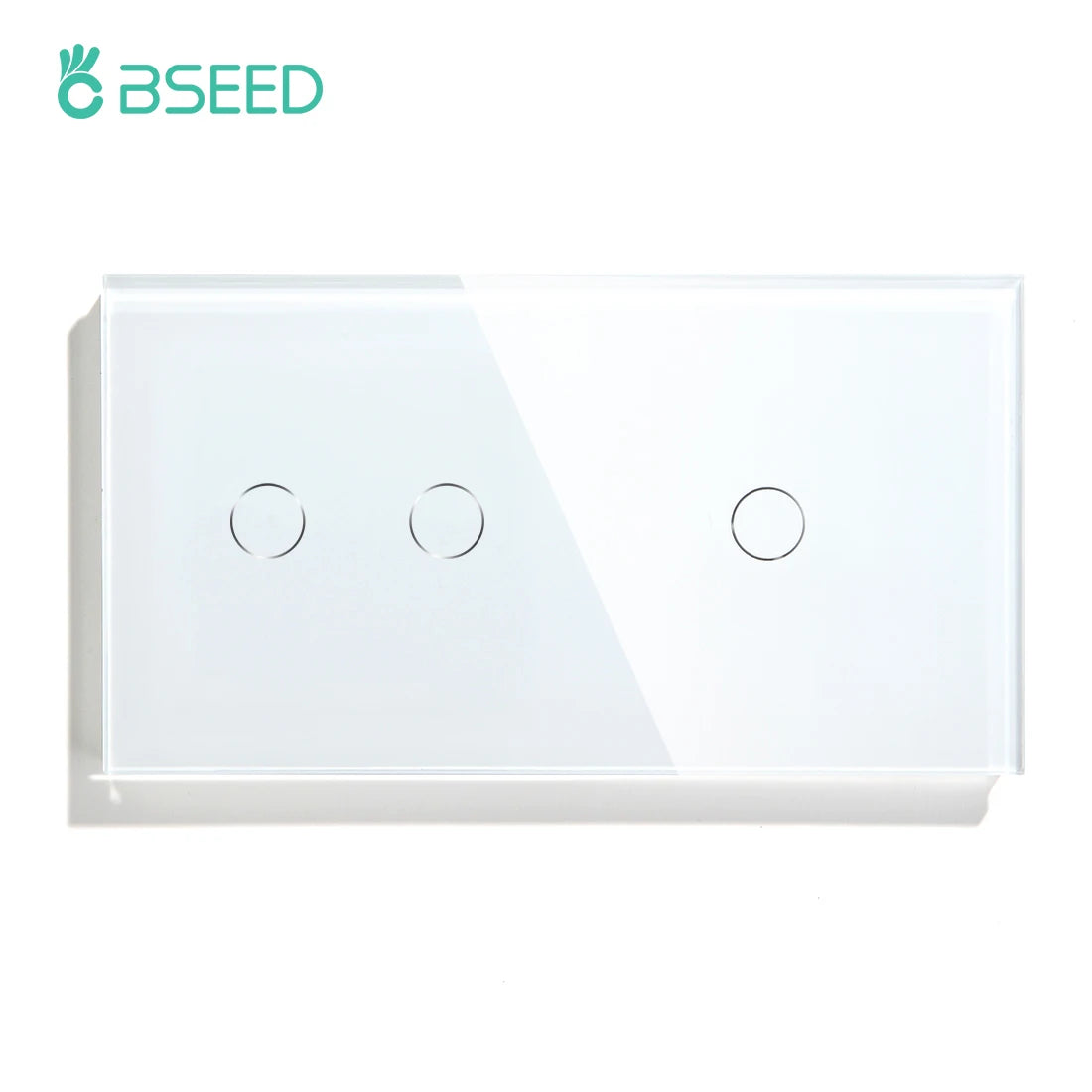

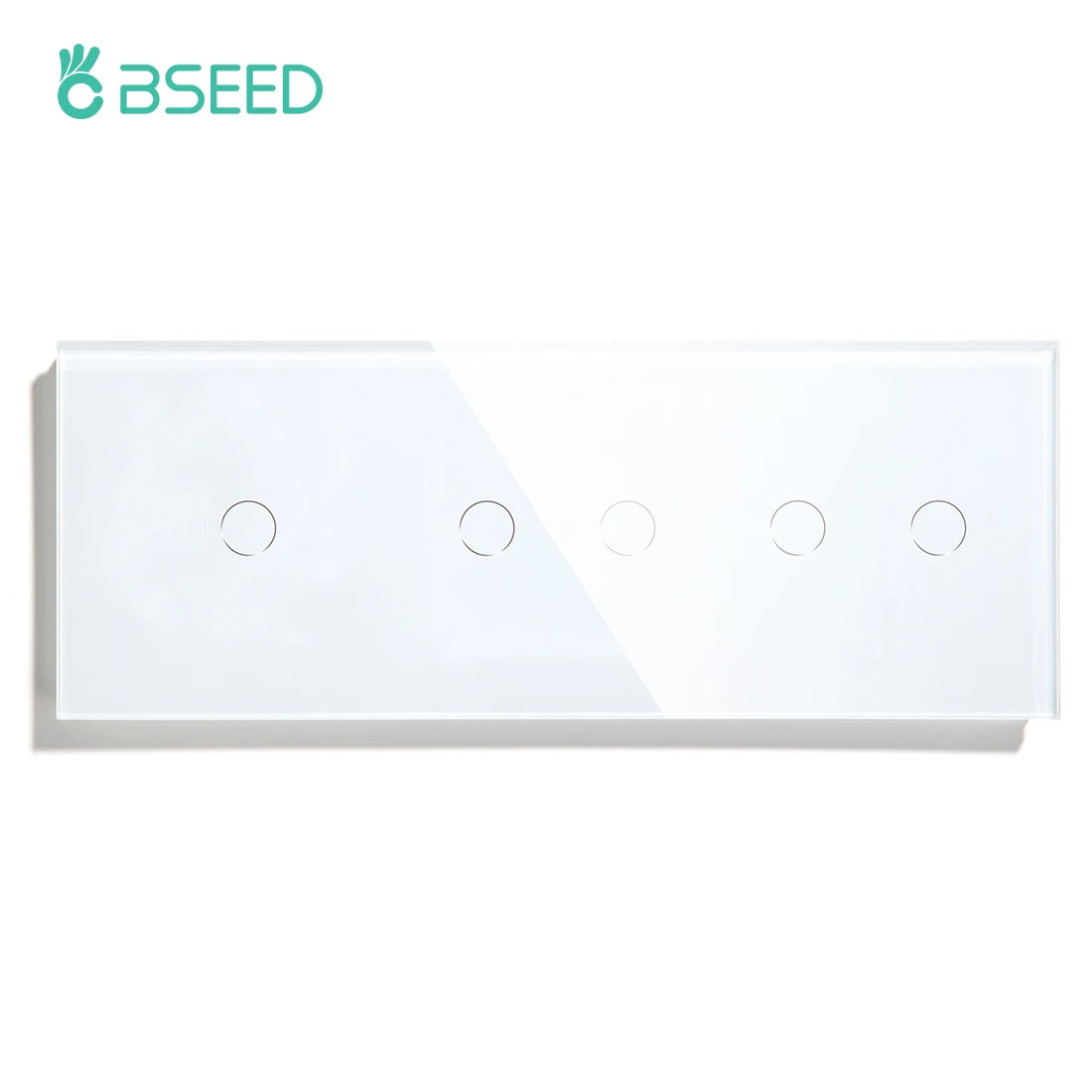

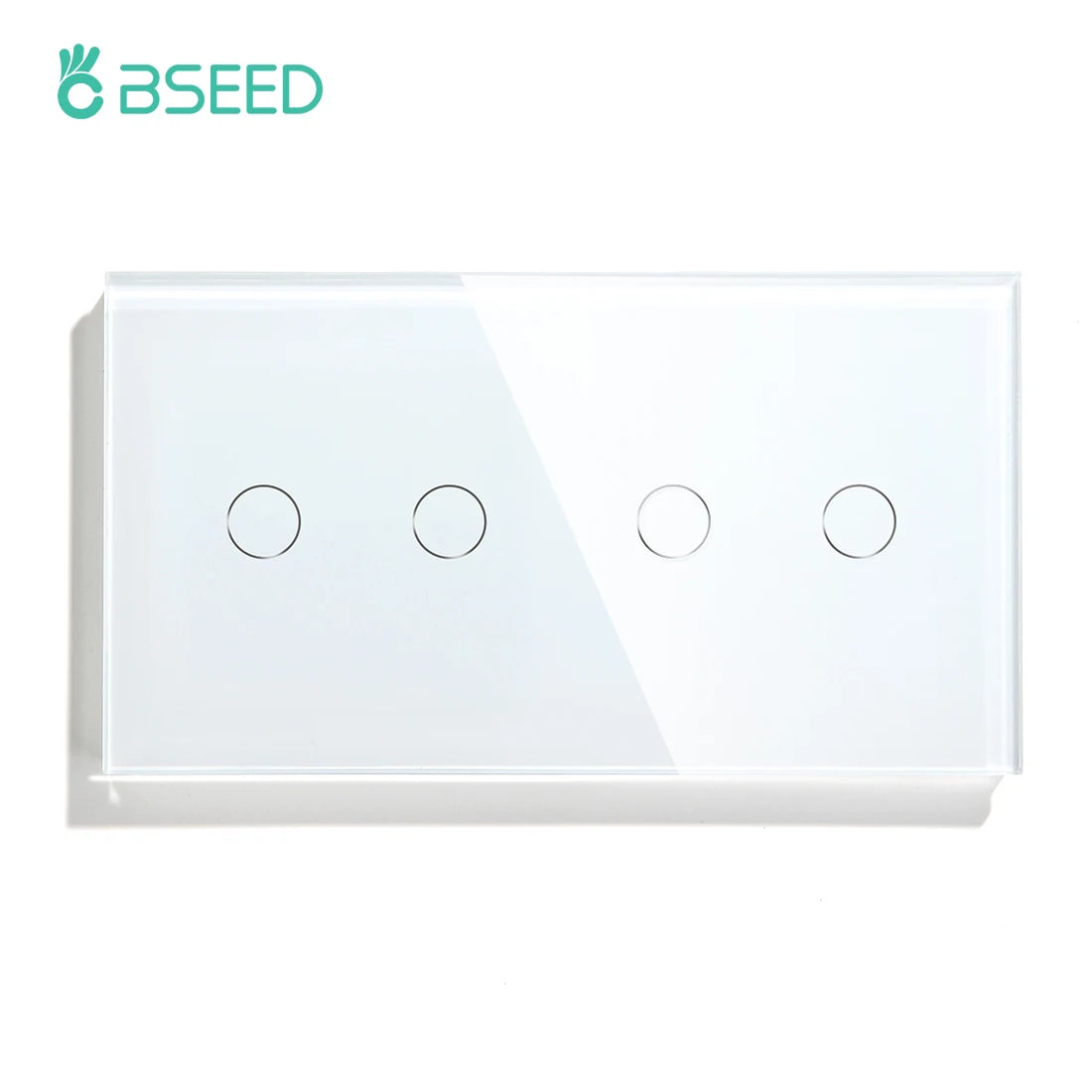

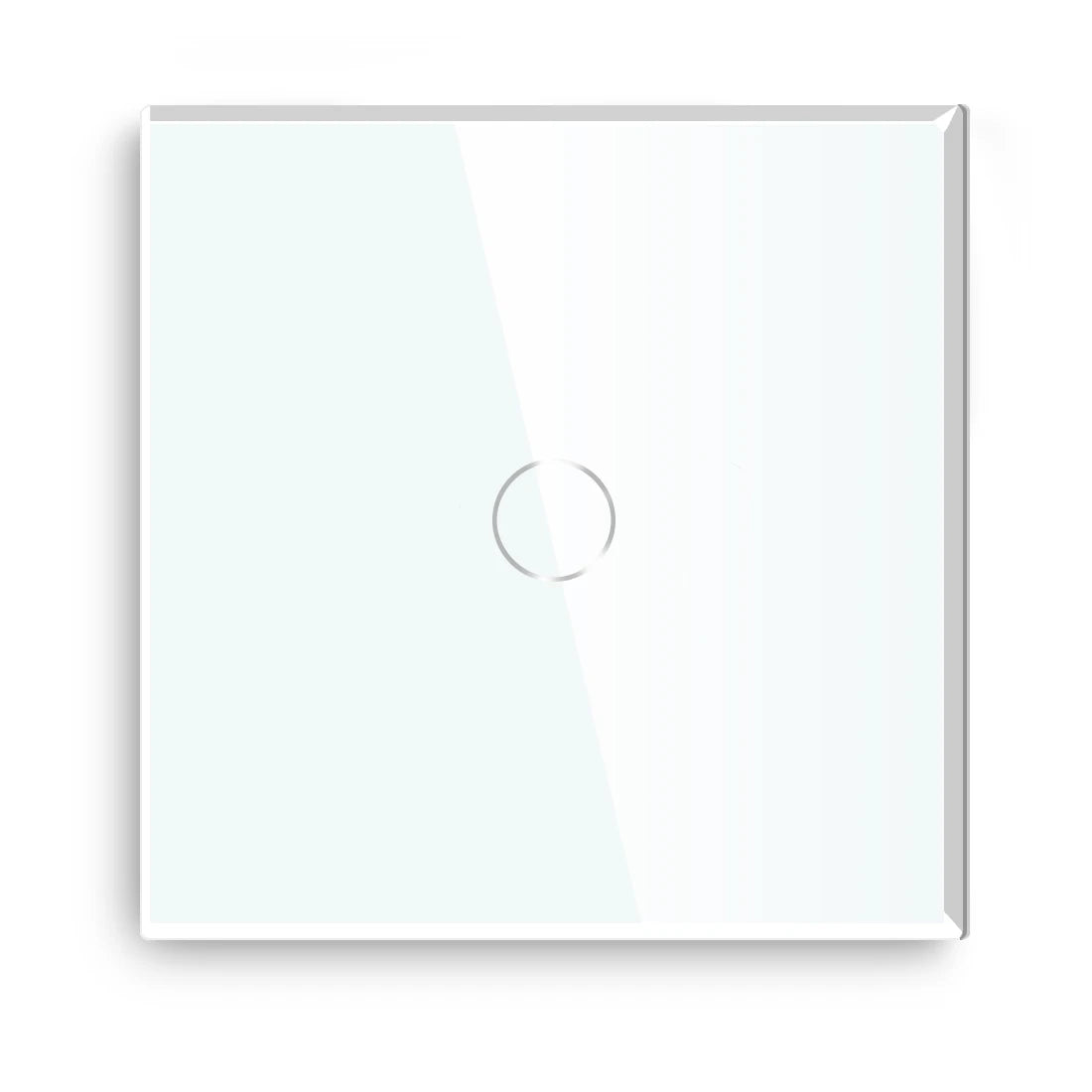

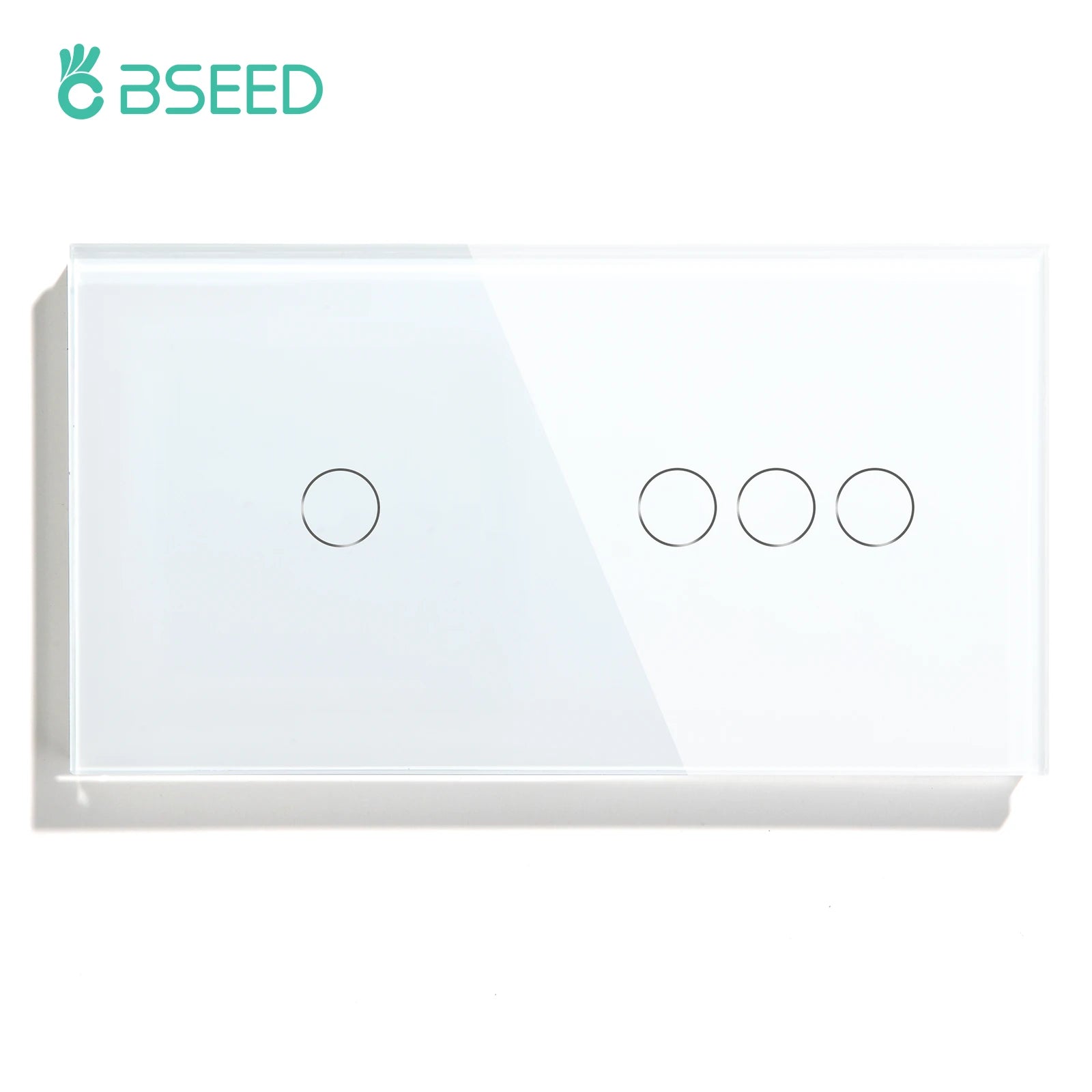

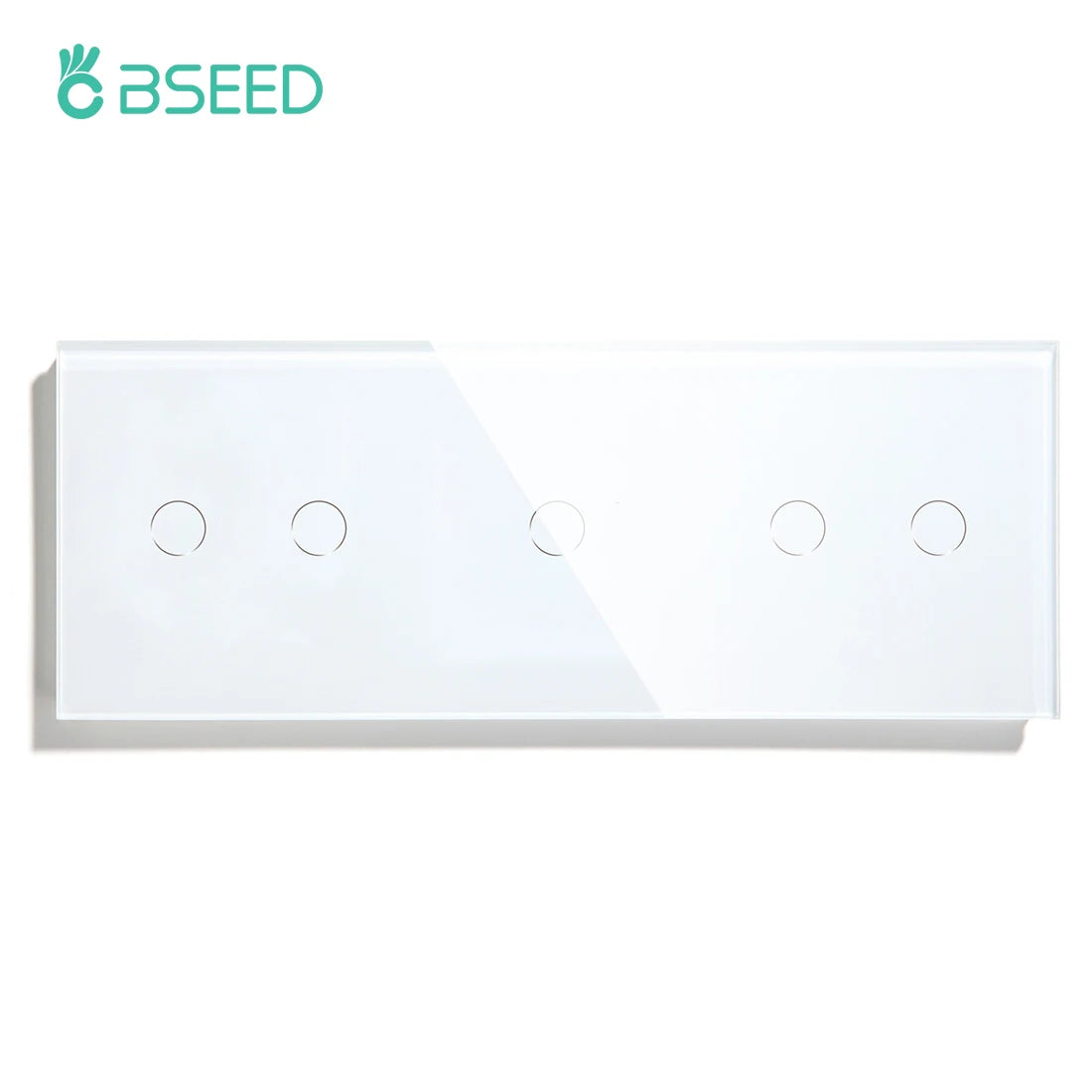

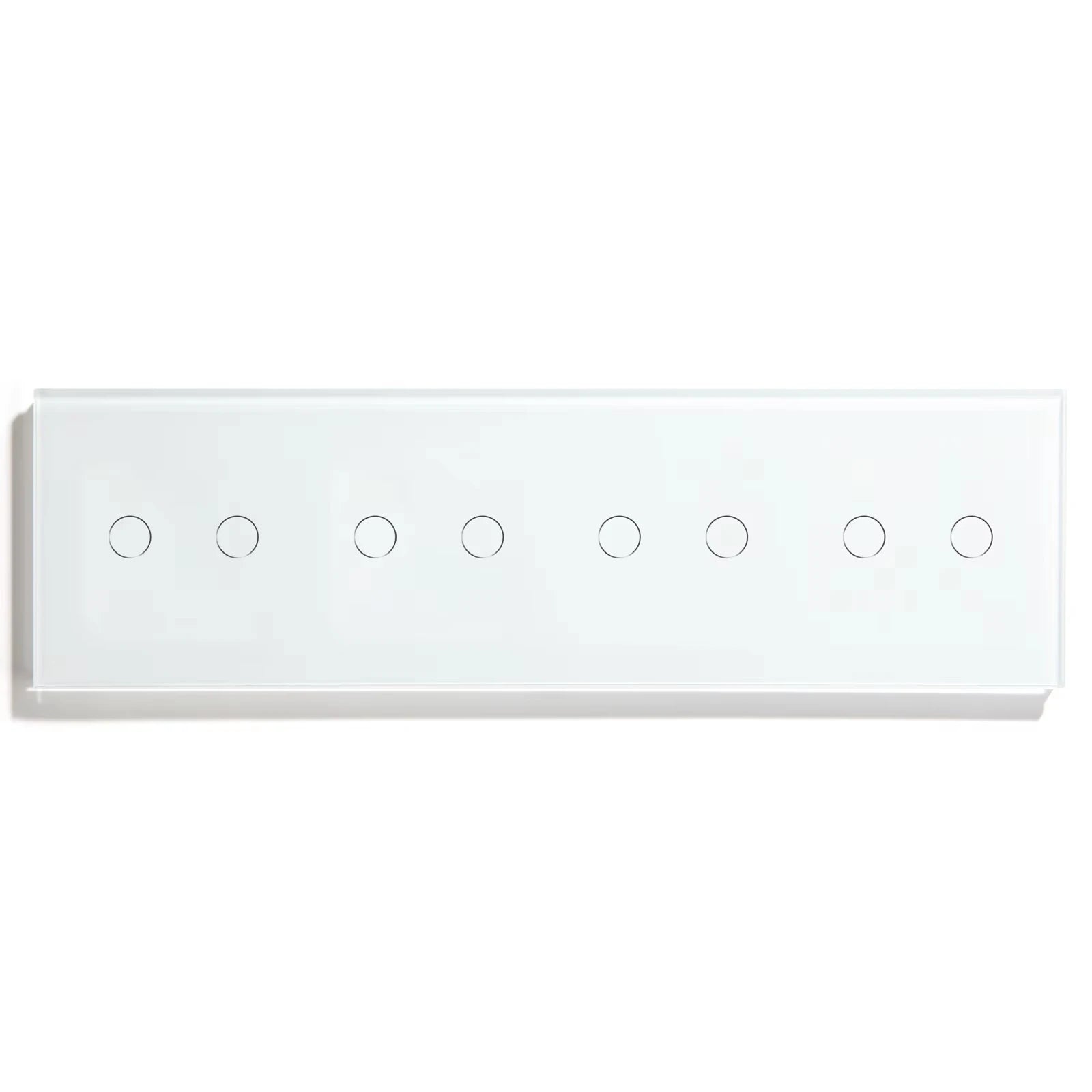

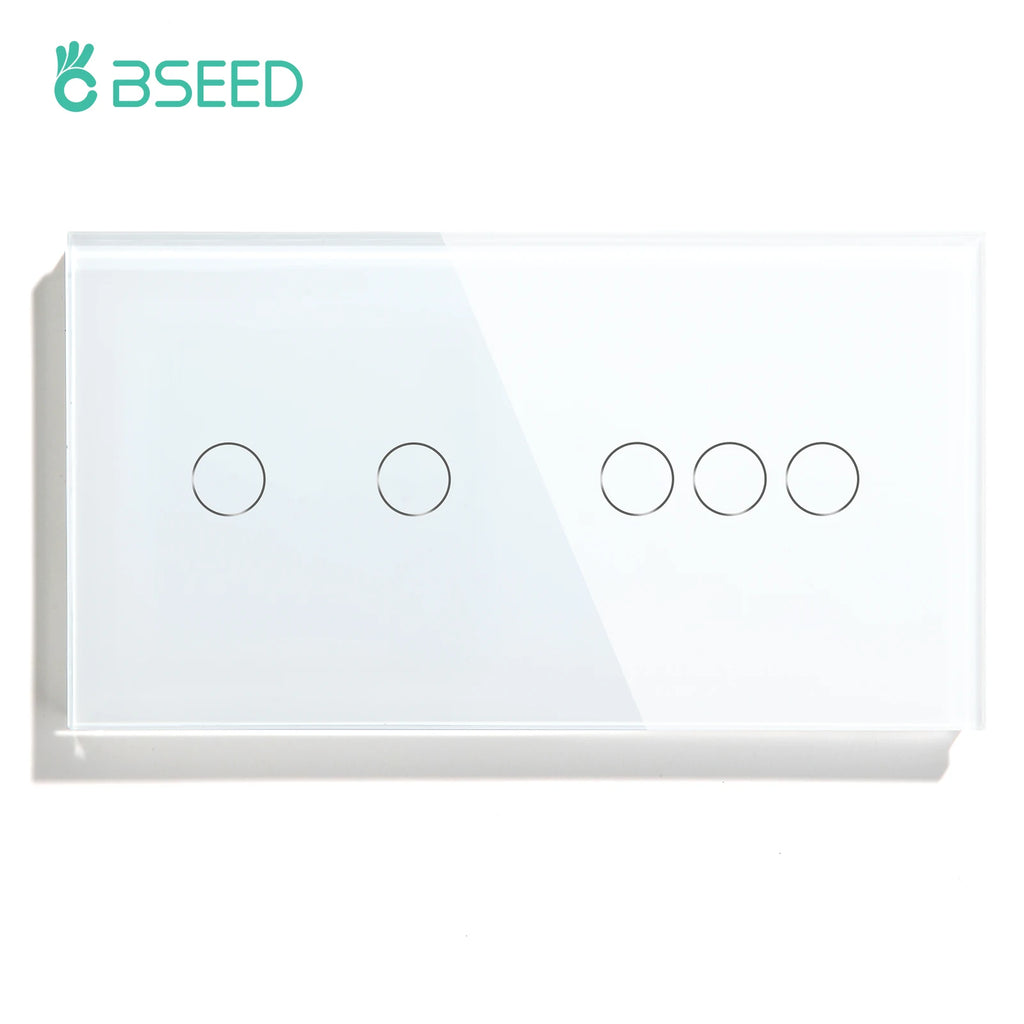

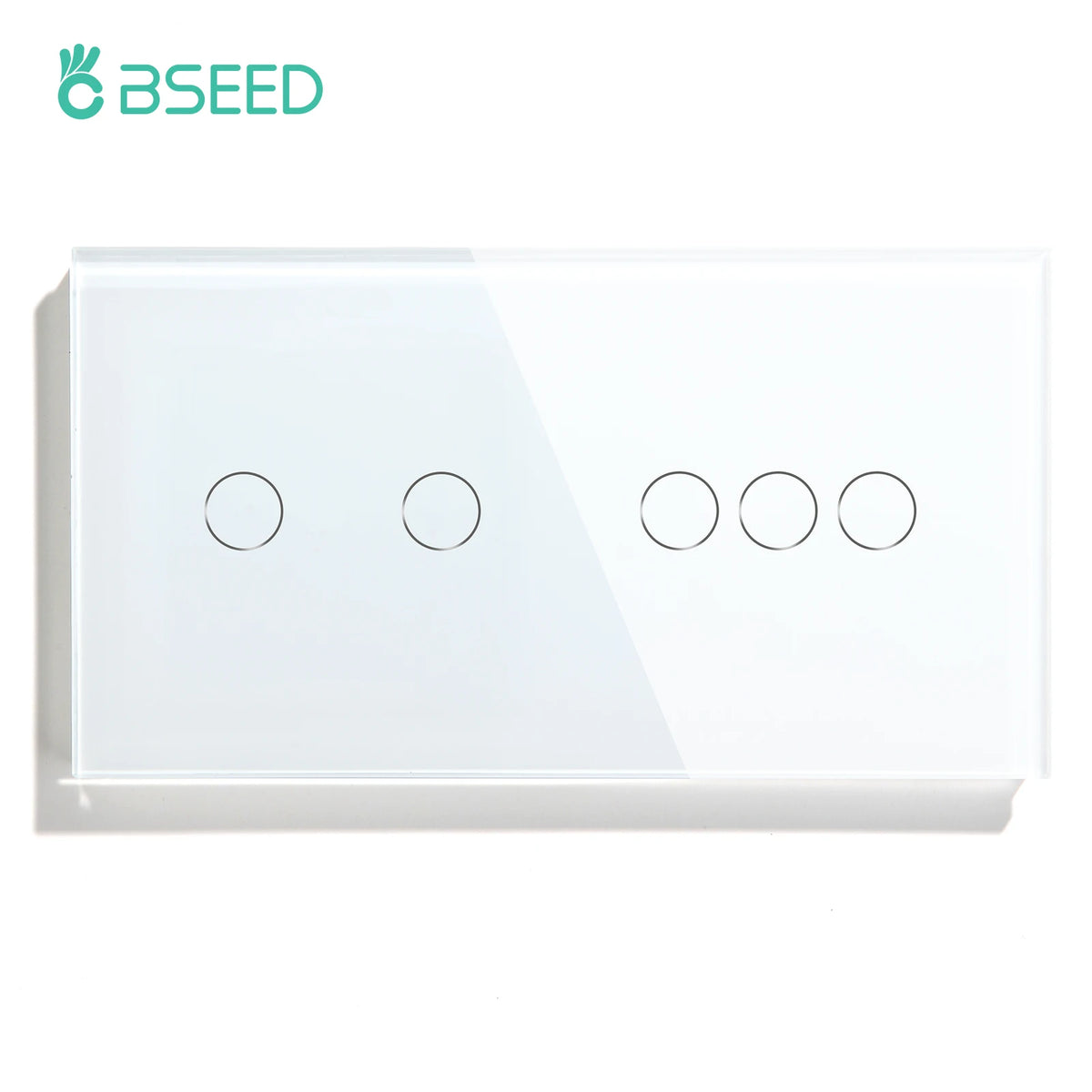

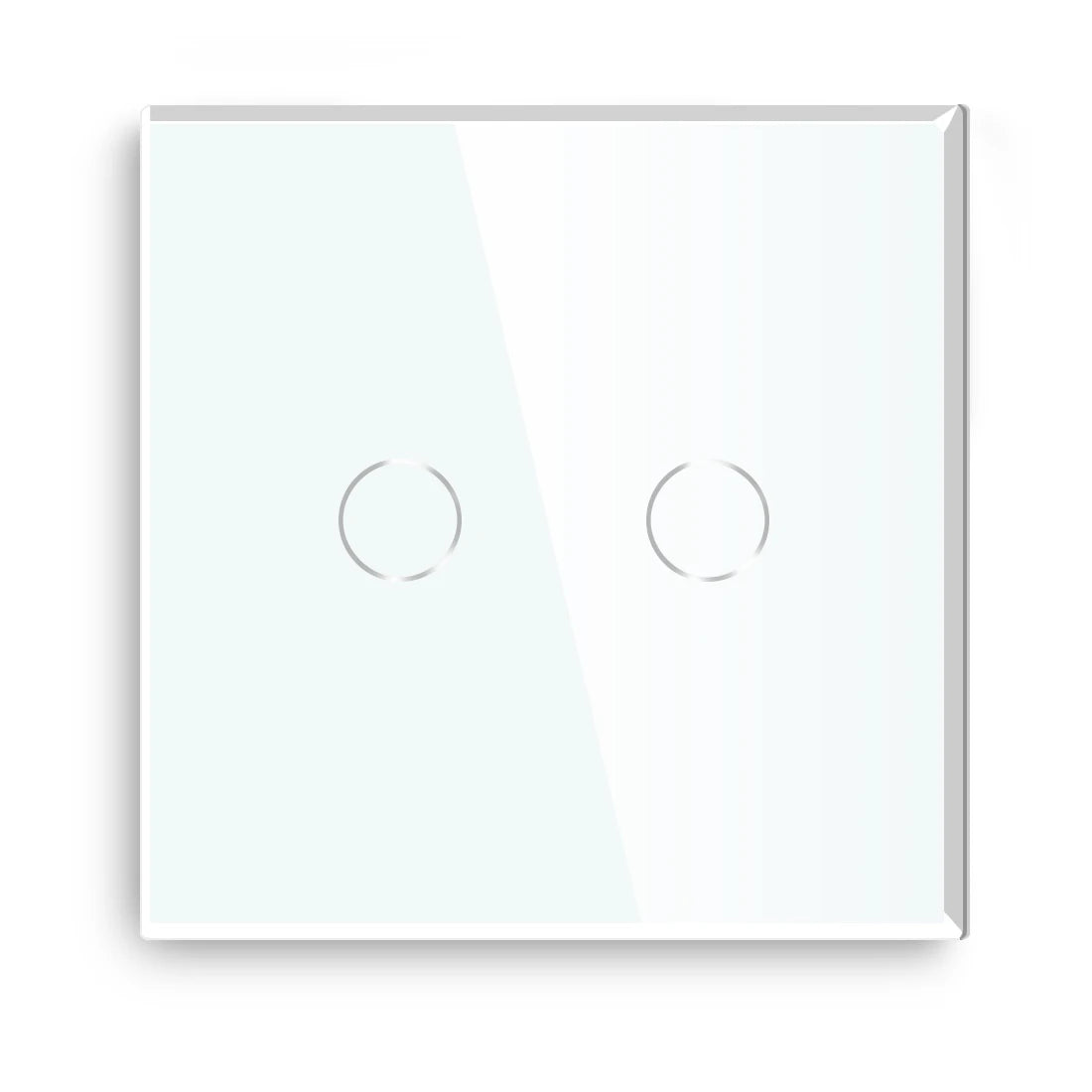

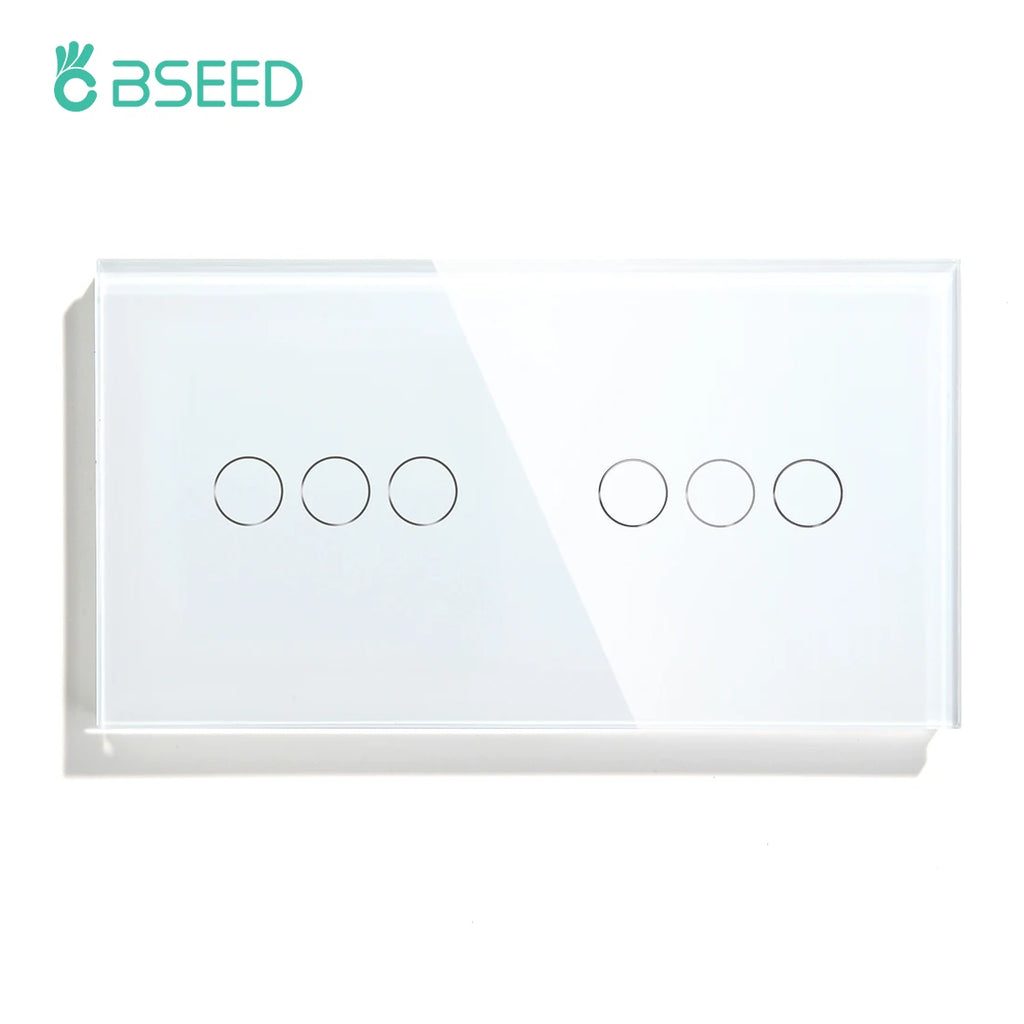

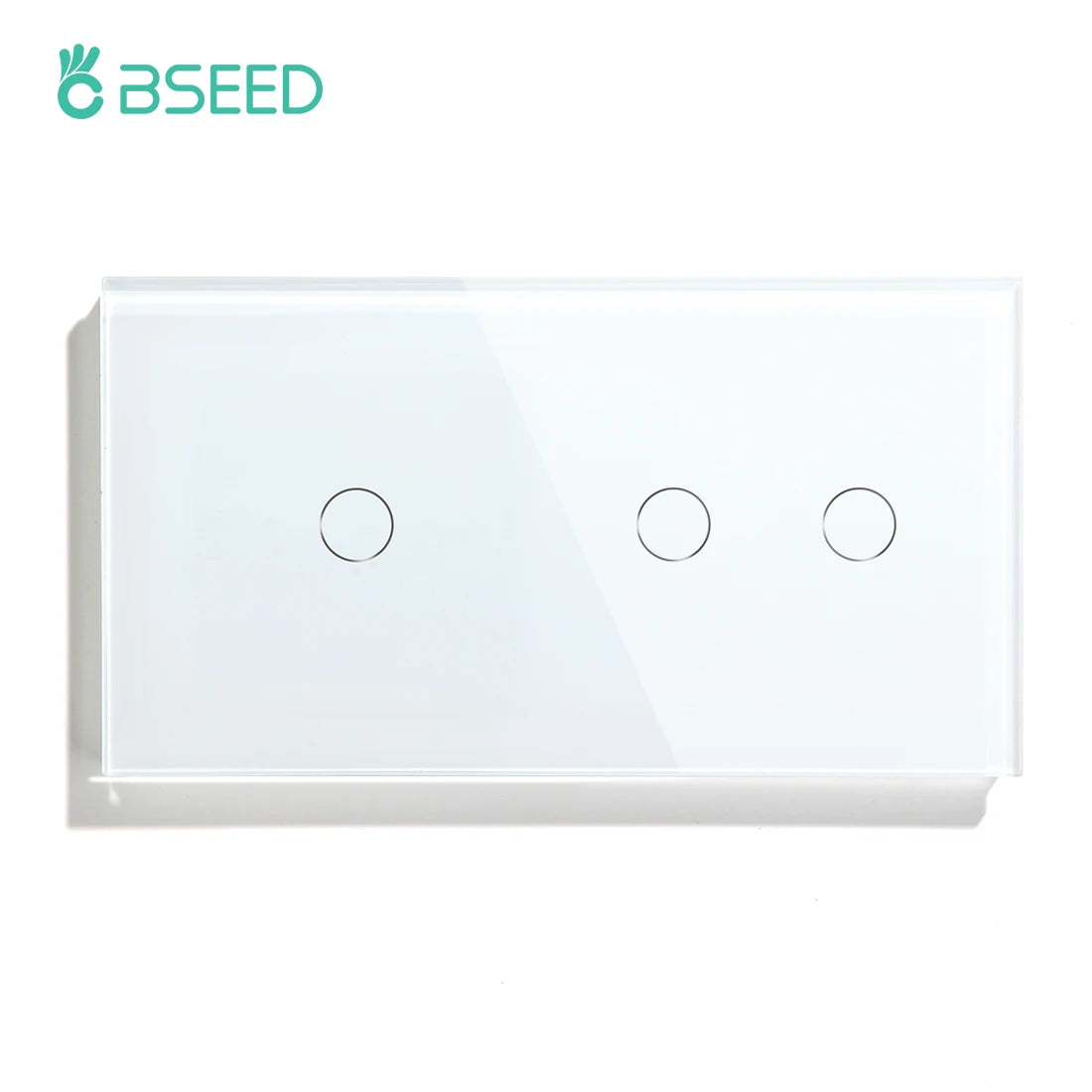

BSEED 1/2/3Gang Touch Switch Double Light Switch Triple Sensor Switch 1Way EU Standard Glass Panel Blue Back Light White Series
3G 3G Switch / EU standard
$119.93
Sale price
$119.93
Regular price
$0.00
Skip to product information
BSEED 1/2/3Gang Touch Switch Double Light Switch Triple Sensor Switch 1Way EU Standard Glass Panel Blue Back Light White Series
$119.93
Sale price
$119.93
Regular price
$0.00
Description
SPECIFICATIONS
1Way: Control Light From Only One Position
BackLight: ON-light Blue OFF-Weak Blue
Brand Name: BSEED
Certification: CCC,FCC,ROHS
Color: White
Current: 10A,10A
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Energy Consumption: ≤0.02W
High-concerned chemical: none
Item Type: SWITCHES
Material: Plastic,Glass Panel & Iron Plate & Plastic Switch Module
Origin: Mainland China
Power Load: 3-300W/gang,500W Total
Size: 86/157/228/299*86*35mm
Switch Type: Touch On/Off Switch
Type: EU Standard
Wall Box Type: Round & Square
Warranty: 1Year,1Year
Wiring: Live/Light wires
Working Temperature: -20℃~+70℃
Working. Voltage: 110V-240V AC
BSEED 1/2/3Gang Touch Switch Double Light Switch Triple Sensor Switch 1Way EU Standard Glass Panel Blue Back Light White Series
Features:
1. Super sensitivity-Just need touch it lightly.

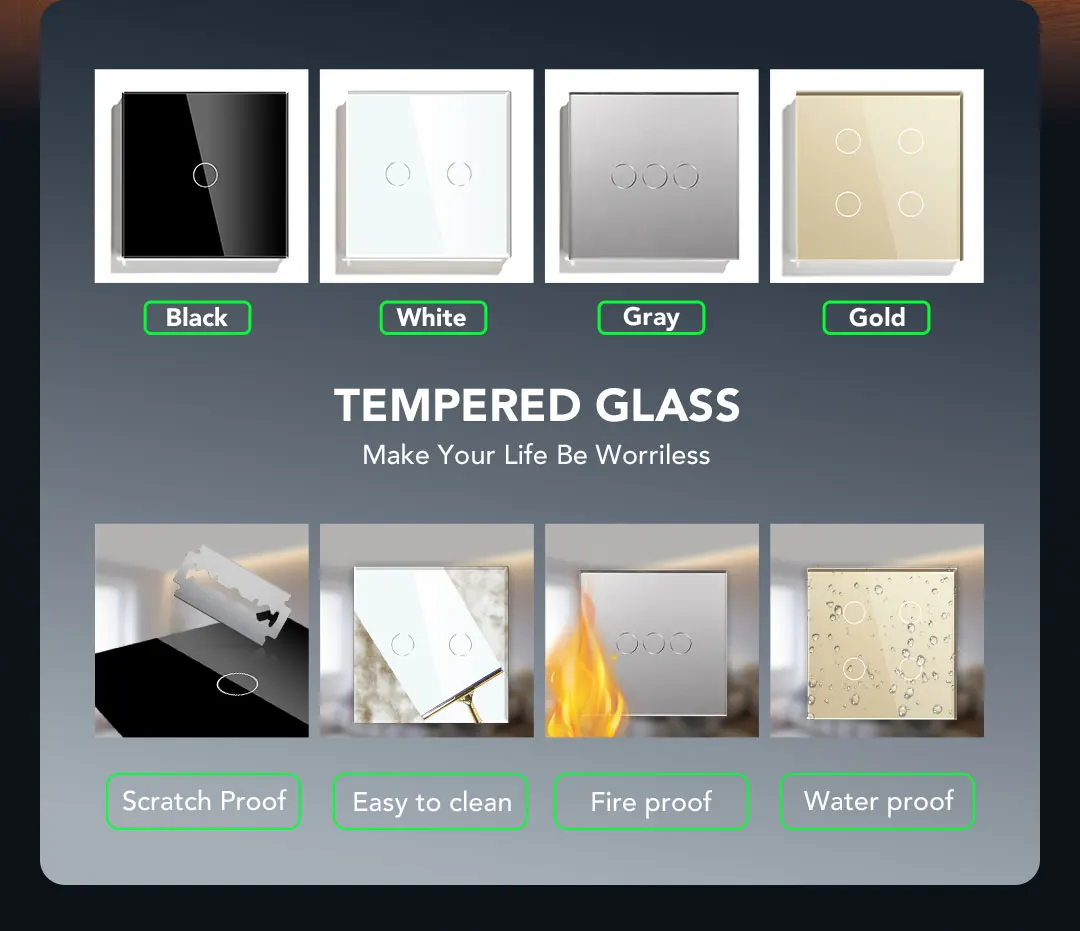

2. Popular Colors are available: Black, White, Gold,Gray
3. The button will glow at night, making it easier to find.
4. Waterproof and Resistance Scratch. Protection Against Electric Shock.
5. Different quality testing during production, to ensure each switch work well before it is delivered to customers.
6. Elegant look, Suited greatly with many modern decor styles. It can be applied to drawing room, bedroom, corridor, kitchen, bathroom, Office and so on.
Product Introduction:
Size :86/157/228 /299x 86 x 35mm
Rated Current: 10A
Rated Voltage: AC 110V-240V (50/60HZ)
Max. Load: 3-300W LED inductive Load，500W Resistive Load
Operating Temp: 20℃ -+70℃
Ambient Humidity: <93%
Certifications: CE, BS, RoHS, GCC, FC
Power Consumption: 0.02W
Wiring :Live/Light Wire
Back Light: ON-light Blue OFF-Weak Blue

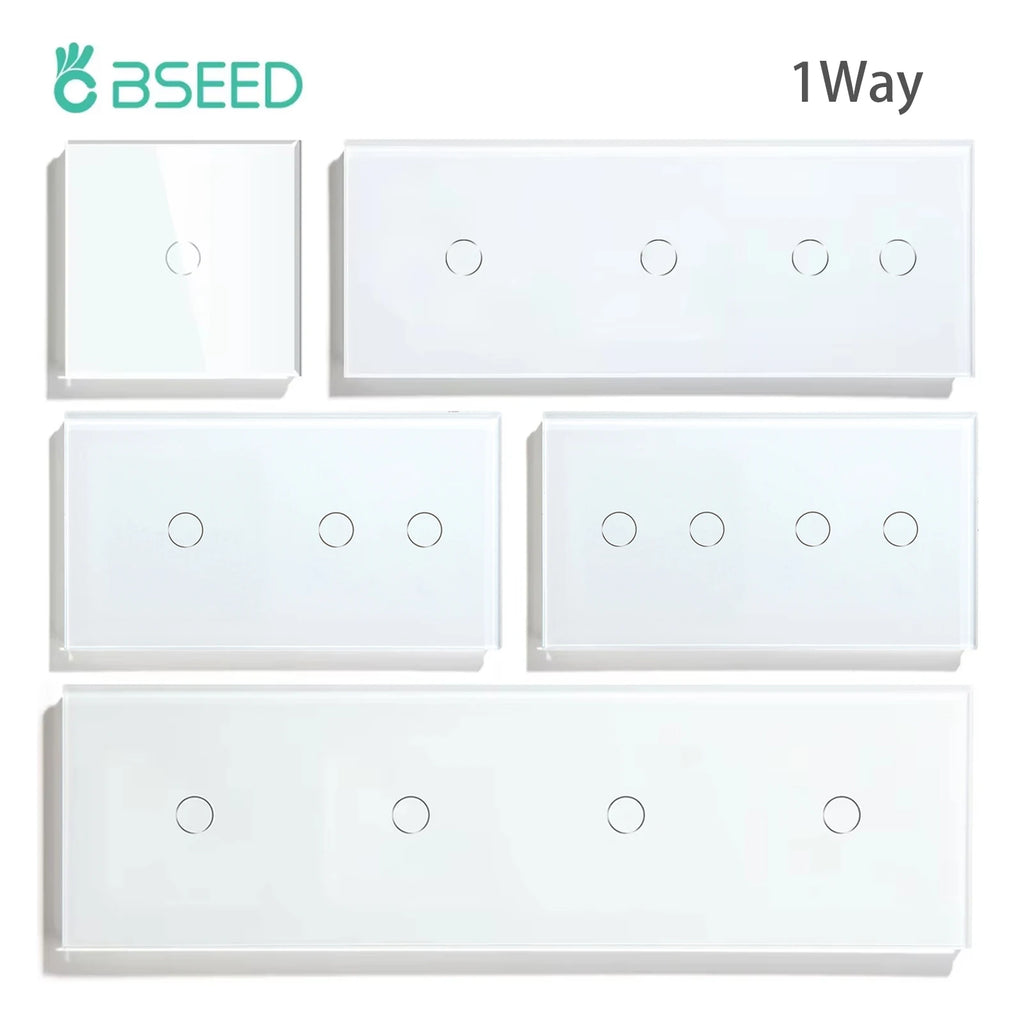

1Way:Control Light From Only One Place
WIFI:No wifi function
Dimmer Function :No
Moduel shape:Round
Wall Box Type:Round & Square
Warranty:1Year
FAQ:

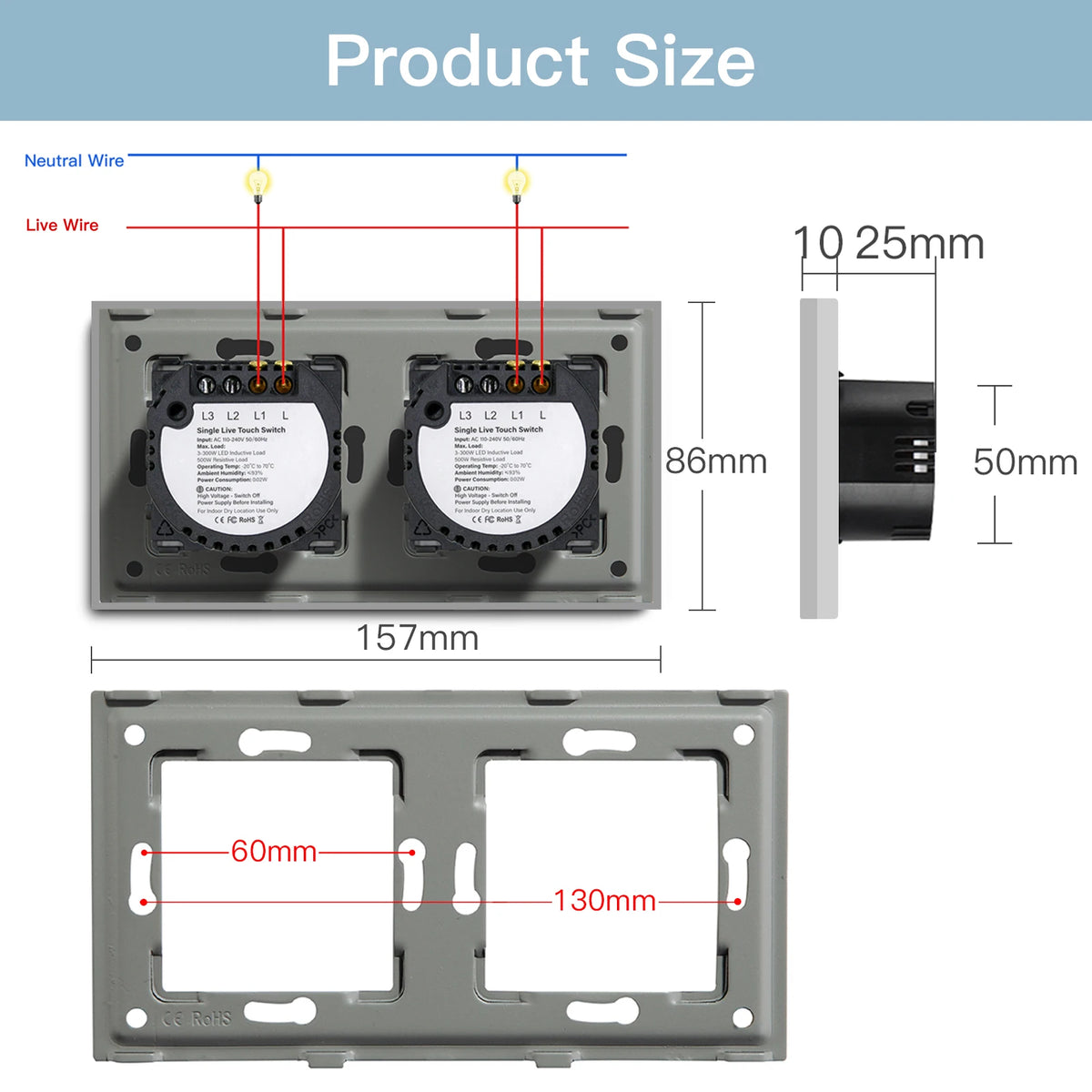

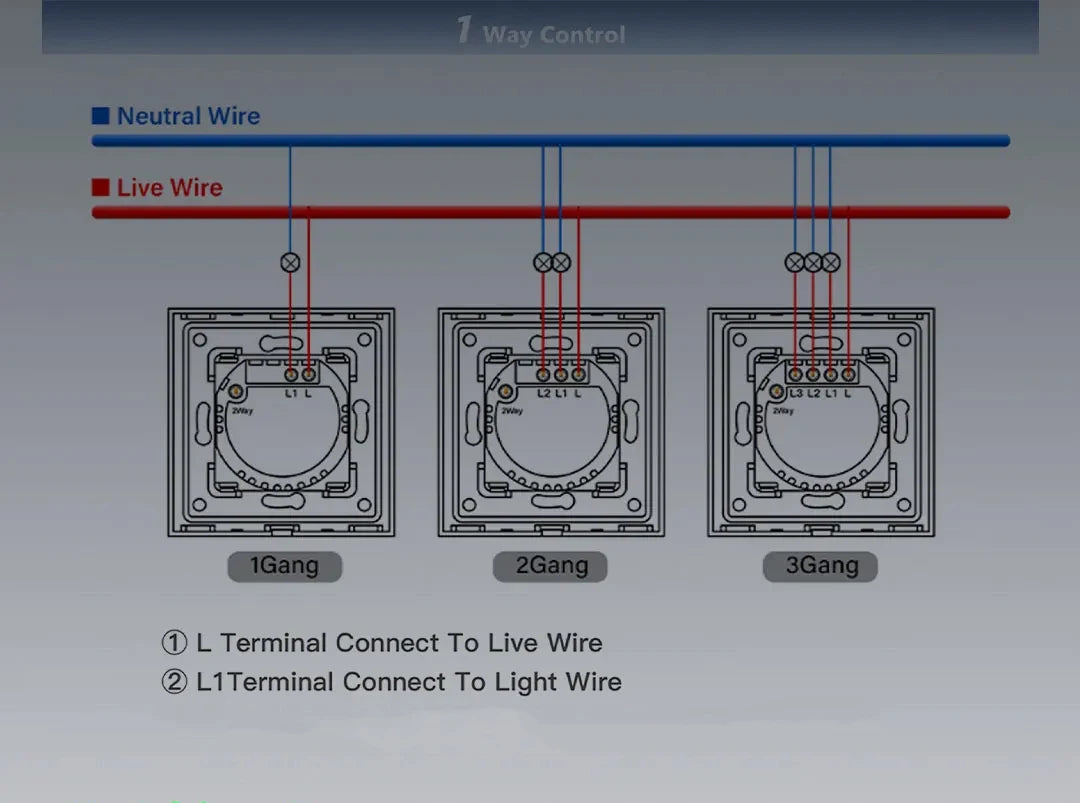

Q: Do i need to install neutral wire for your switch ?
A:Our switch doesn't need to connect neutral wire.
Q:Is your Switch Sizes Suitable Suitable for our Country?

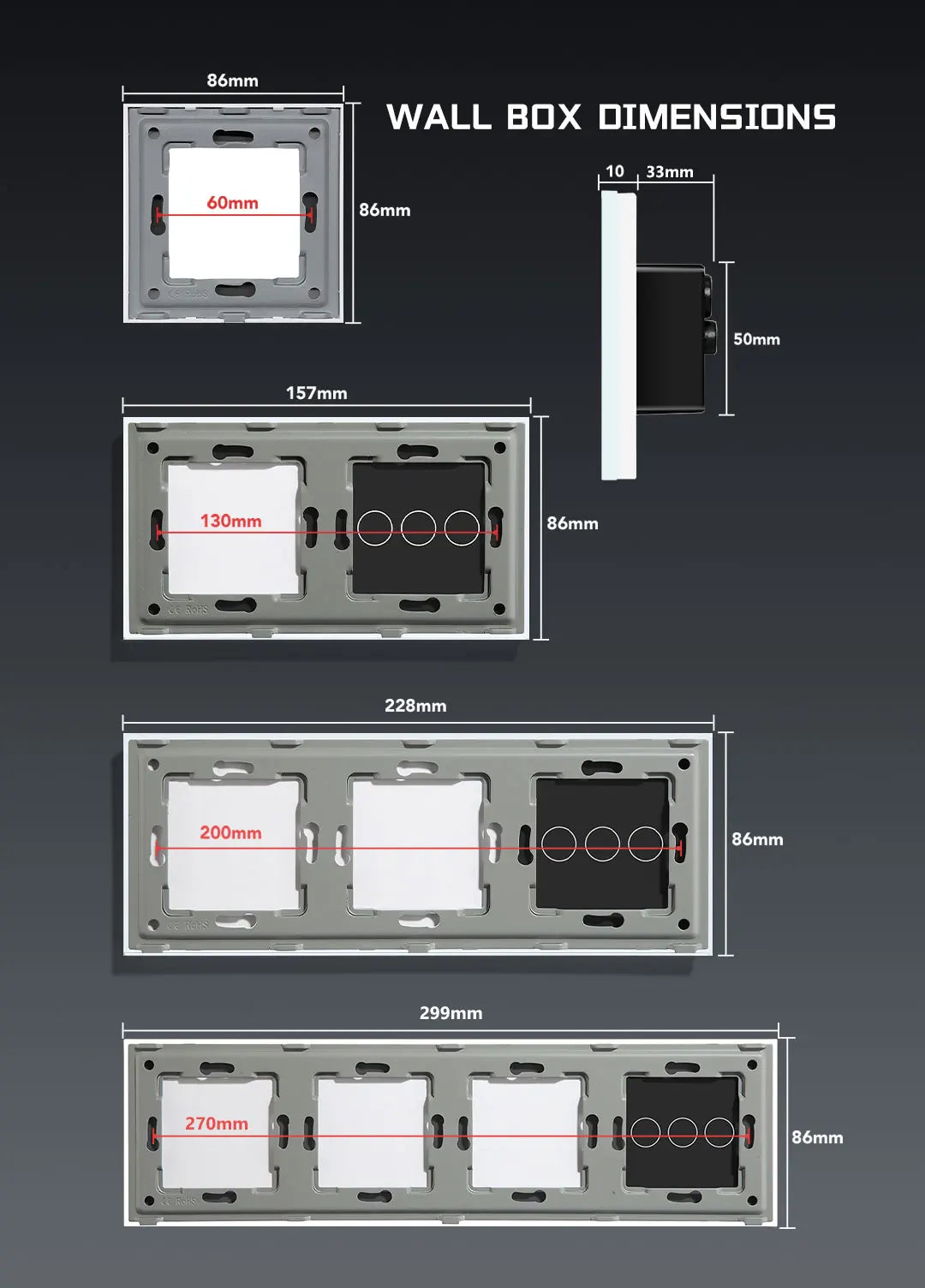

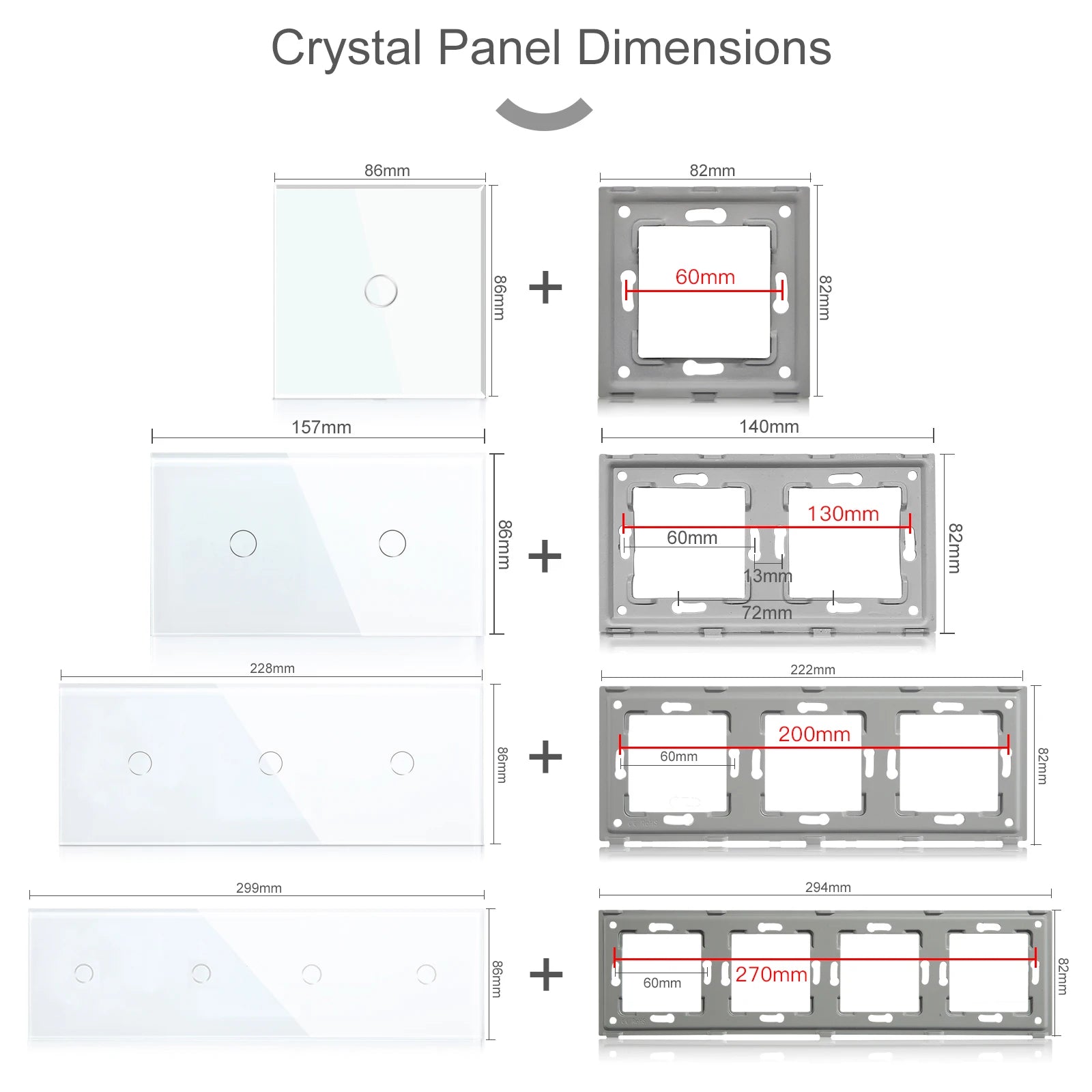

A:Our switch is EU Standard, You can check the panel dimension in the description picture as below.
Q: Which Type of Wall Box should i install for those switch and socket ?
A:Our switch and socket are suitable for both Round & Square wall box ,the relative required wall box sizes for each type of panels have been indicated in details in description picture as below .
Q:Can i Control the Switch from 2 or 3 places ?
A:No,This is just 1way switch , if you want to control same light from 2 or 3 switches, please select "2way Series" among “Touch Switches & Sockets” in the catalog.

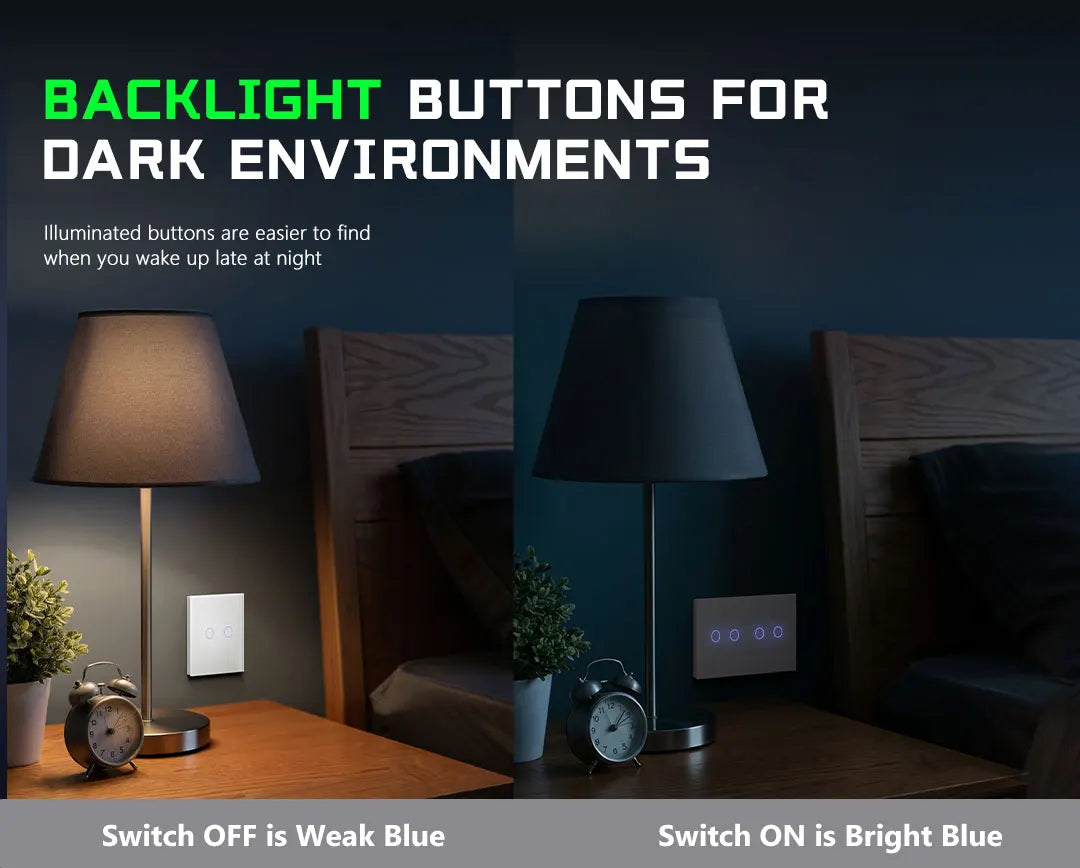

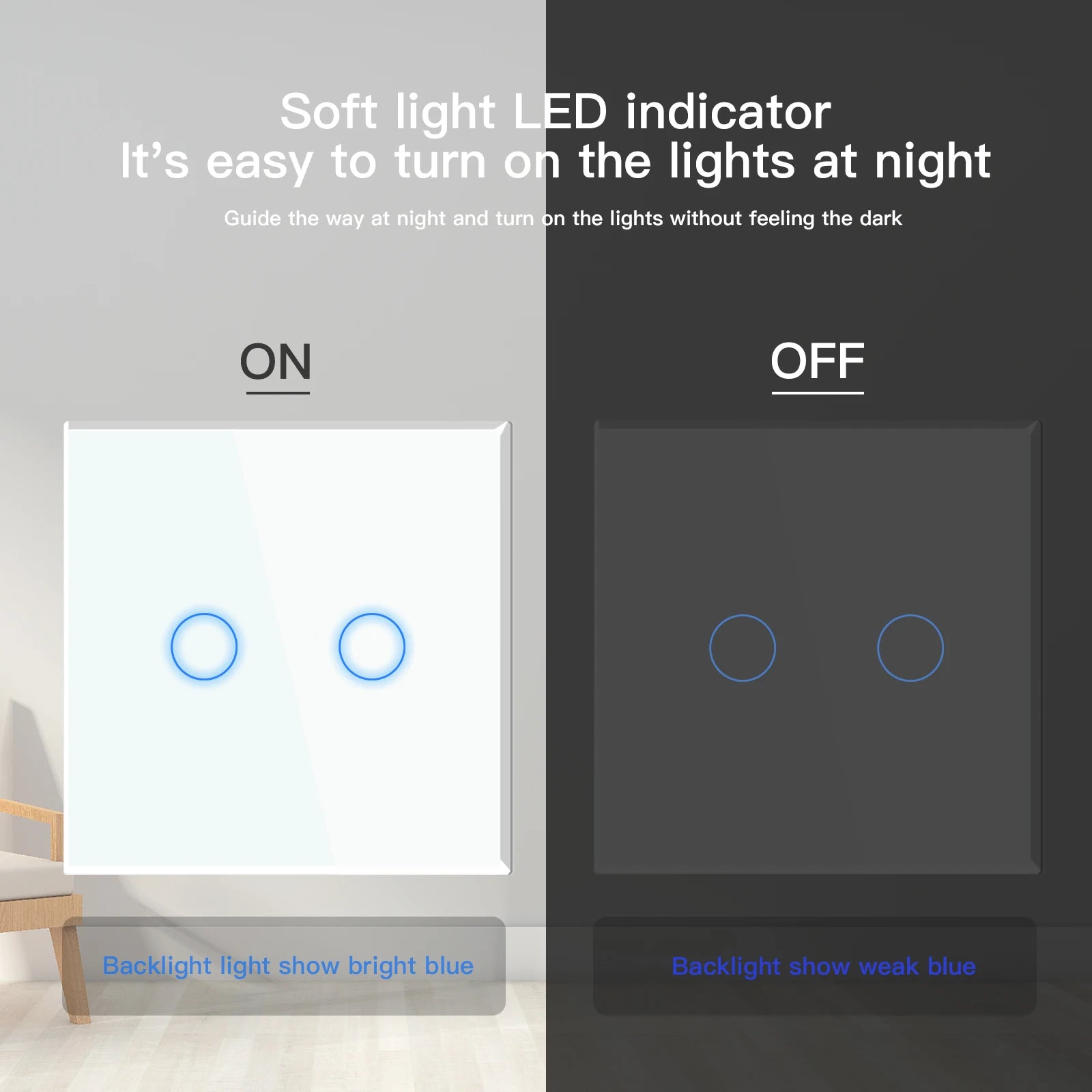

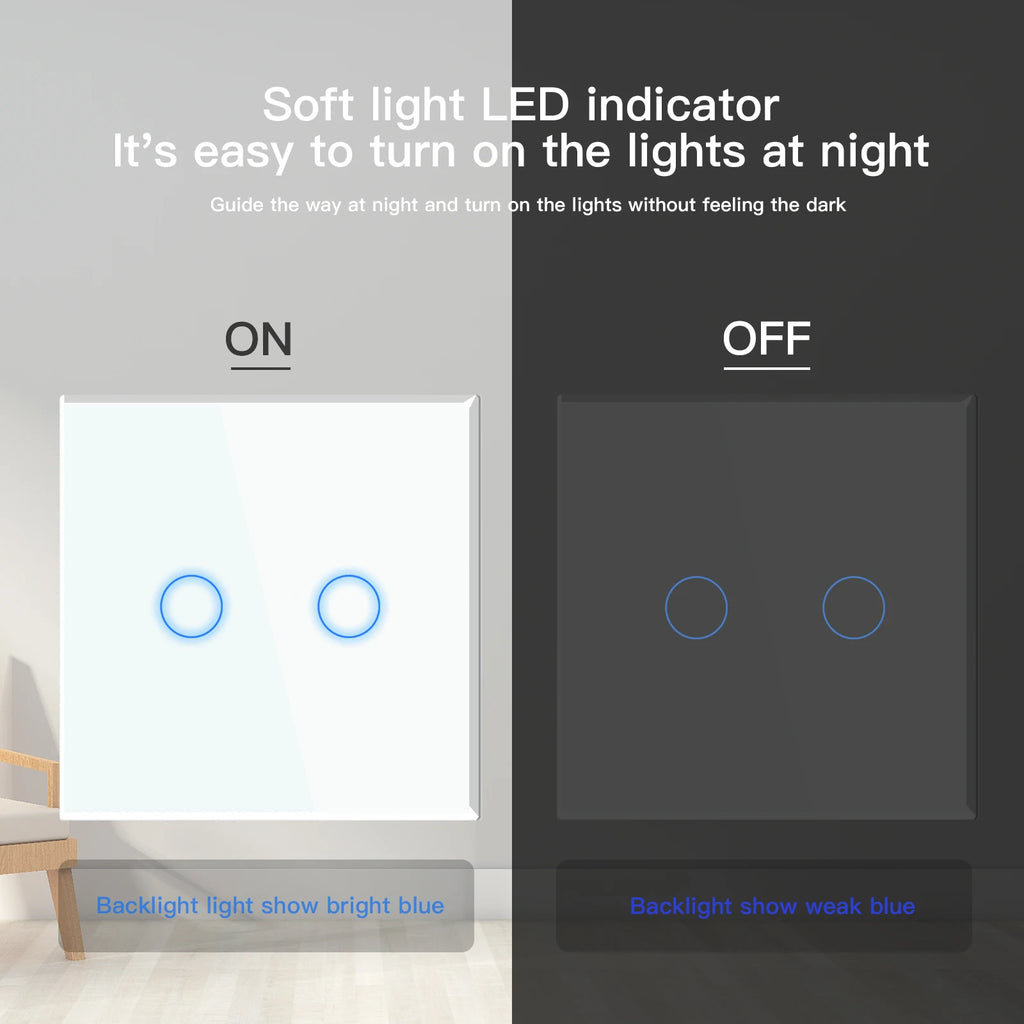

Q: Does your touch light switch have a backlight?
A:The blue backlight will be on when the wiring is successful. Allowing you to notice Our touch switch clearly in the dark.

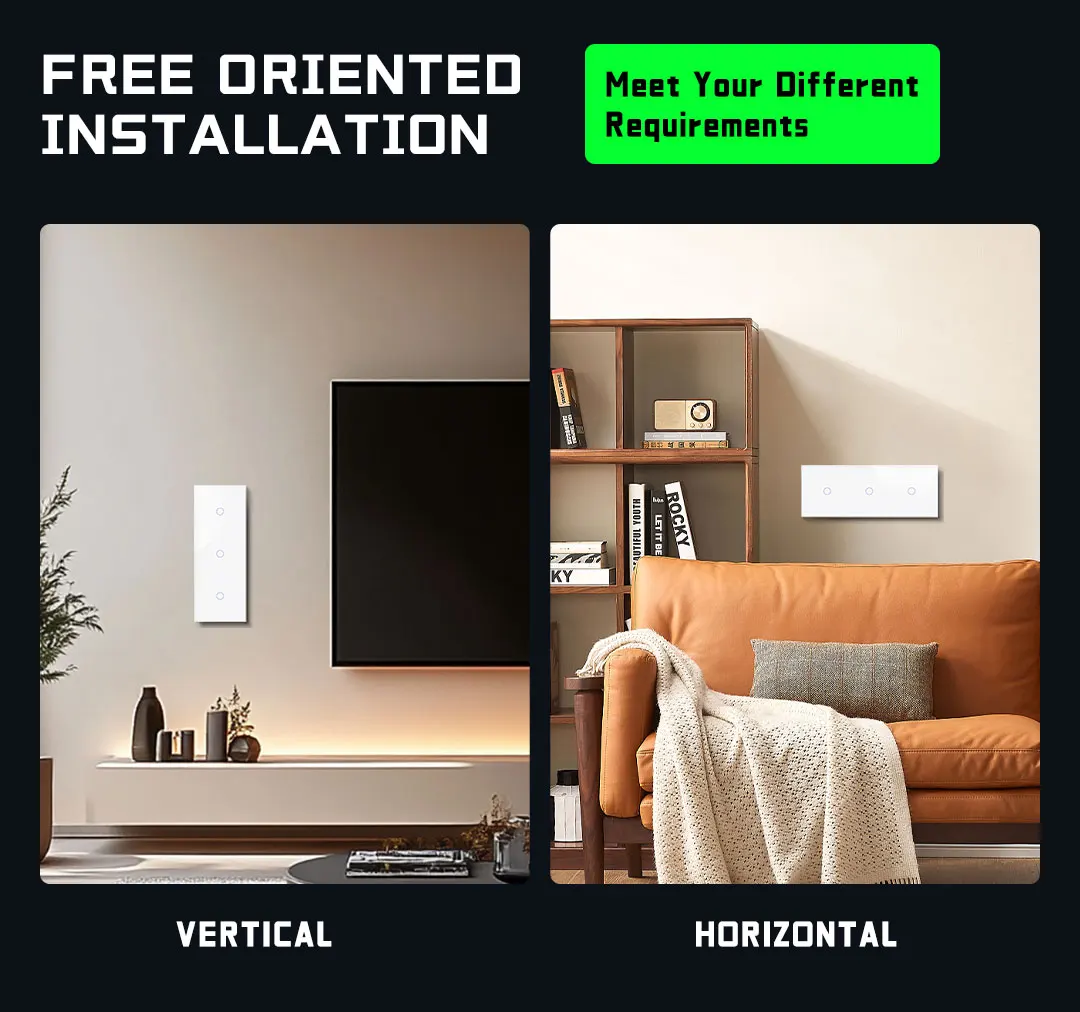

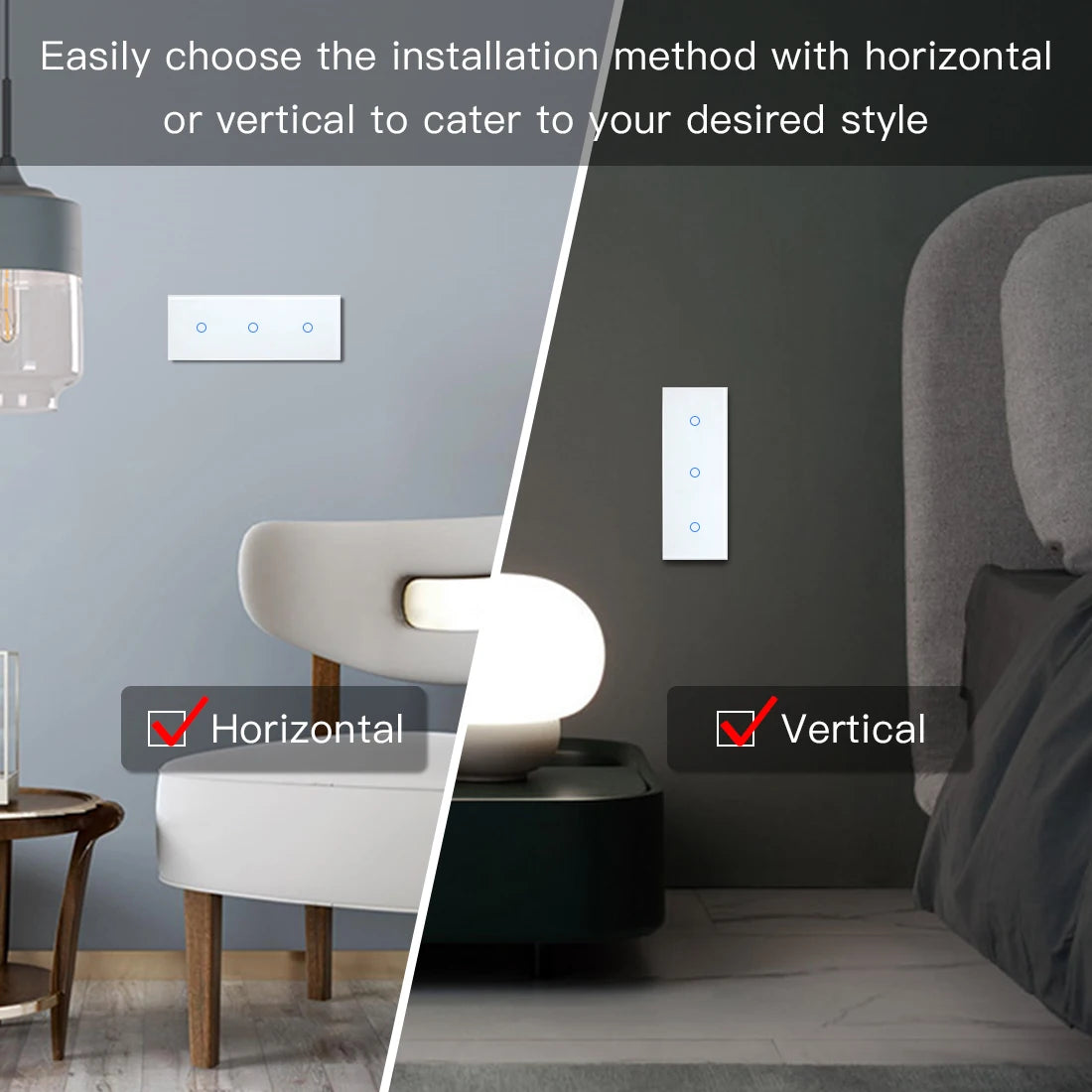

Q: Does our switches can install by vertically for 157mm/228mm glass panels？
A:Yes, You can install it Vertically as you need .
