SPECIFICATIONS

BSIDE Model: O7/O9

Band Width: O7:25MHz/O9:50MHz

Battery Included: Yes

Brand Name: BSIDE

Capacitance: Yes.

Certification: CE,FCC,RoHS

DC/AC Current: Yes.

DC/AC voltage: Yes.

DIY Supplies: Electrical

Digital Channels: 2

Display: 3.98-inch TFT full-view color screen display.

Display Range: 6000 counts

Display Resolution: 480*320

Display Size: 3.0 - 4.9 Inches

Flexible Current Clamp Measuring: Yes.(Less than 6000A)

Handheld Oscilloscope: Yes.

Handheld Oscilloscopes: Yes.

High-concerned chemical: none

IS Battery Demountable: No

Model Number: BSIDE O7/O9 Oscilloscope Digital Multimeter Signal Generator

Origin: Mainland China

Power: 18650*2(Built-in Battery)

Professional Digital Multimeter: Yes.

Real Time Sampling Rate: 208MSa/s

Resistance: Yes.

Semi-finishedproduct: No

Signal Generator: Yes.

Size: 216.6*84.5*36.0mm

True RMS: Yes.

Voltage Detector: Yes.

Weight: 384g

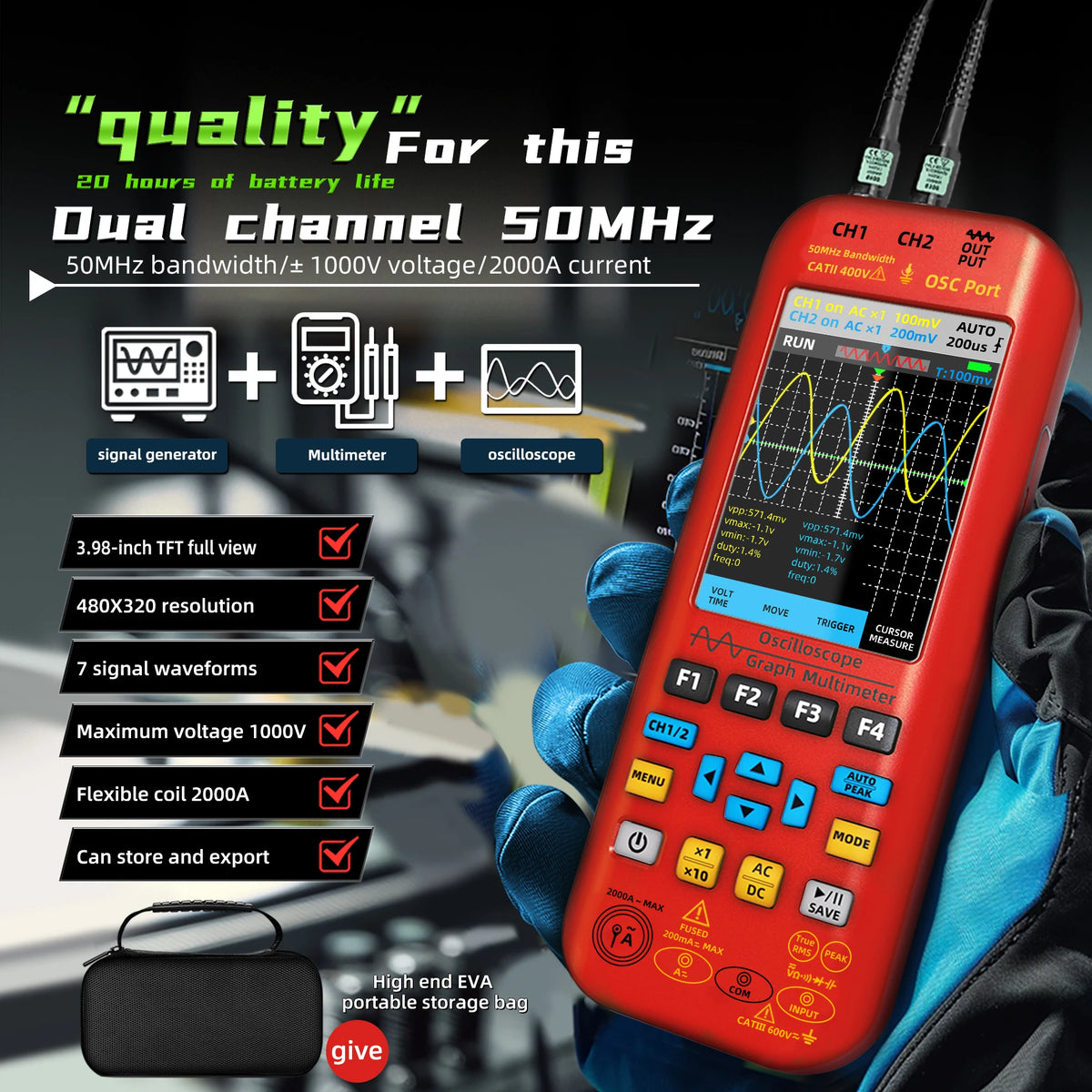

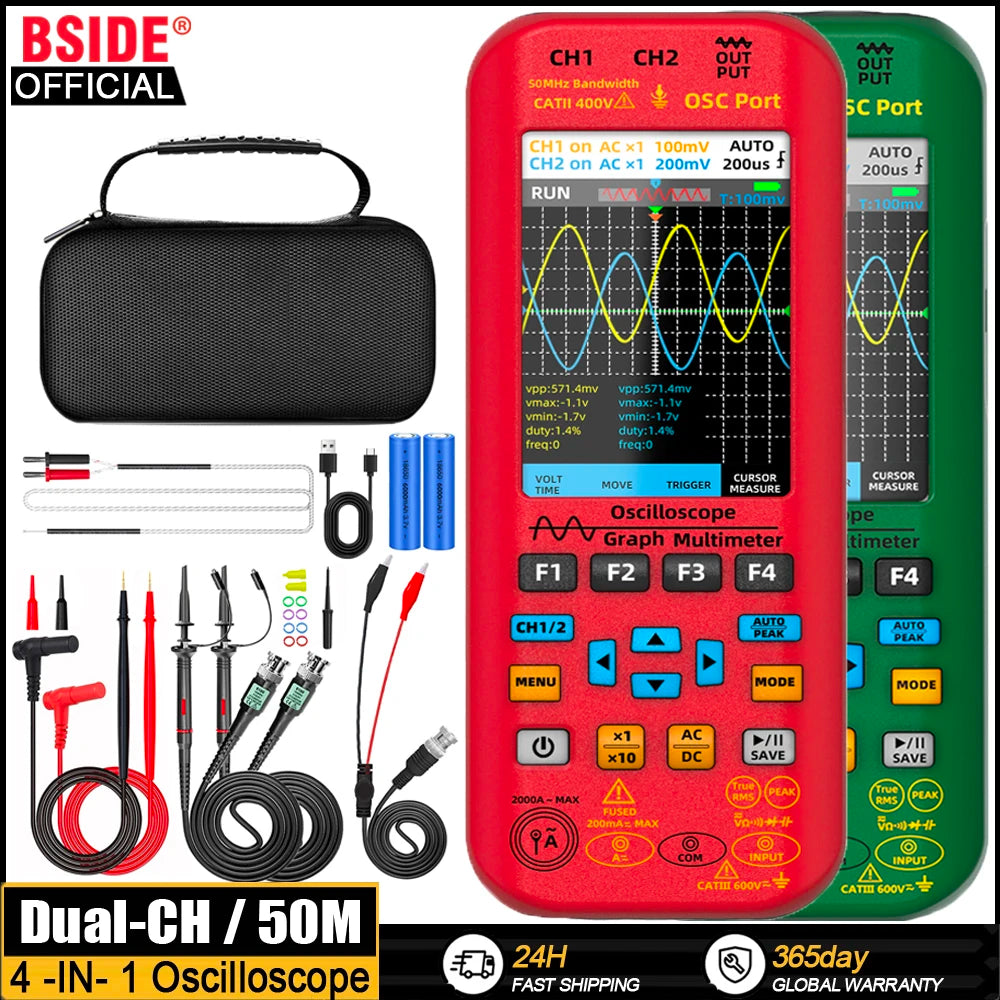

BSIDE 4-IN-1 Professional Digital Oscilloscope Multimeter Dual Channel 25MHz Bandwidth AC DC Voltage Current OHM Multifunction Teste

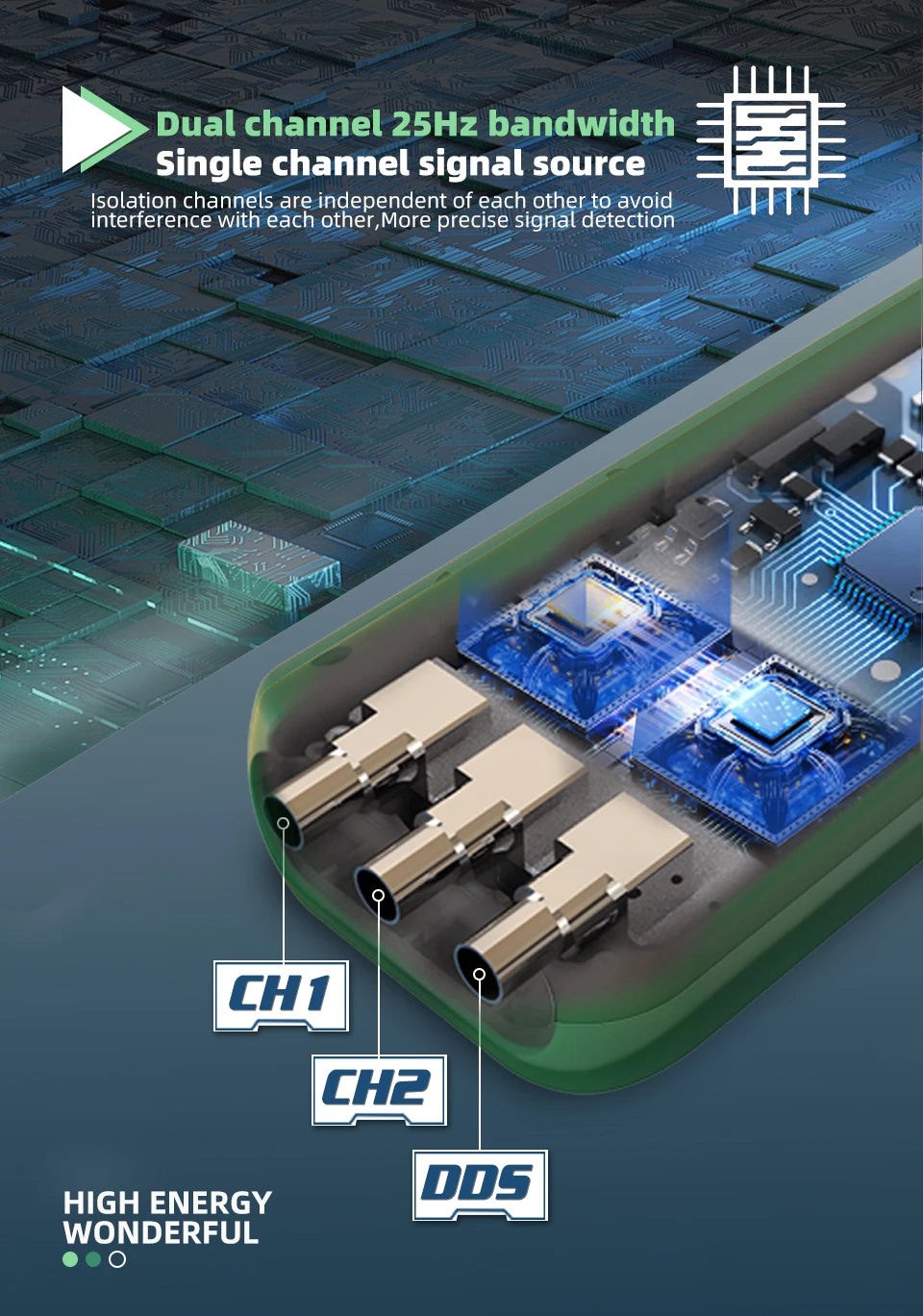

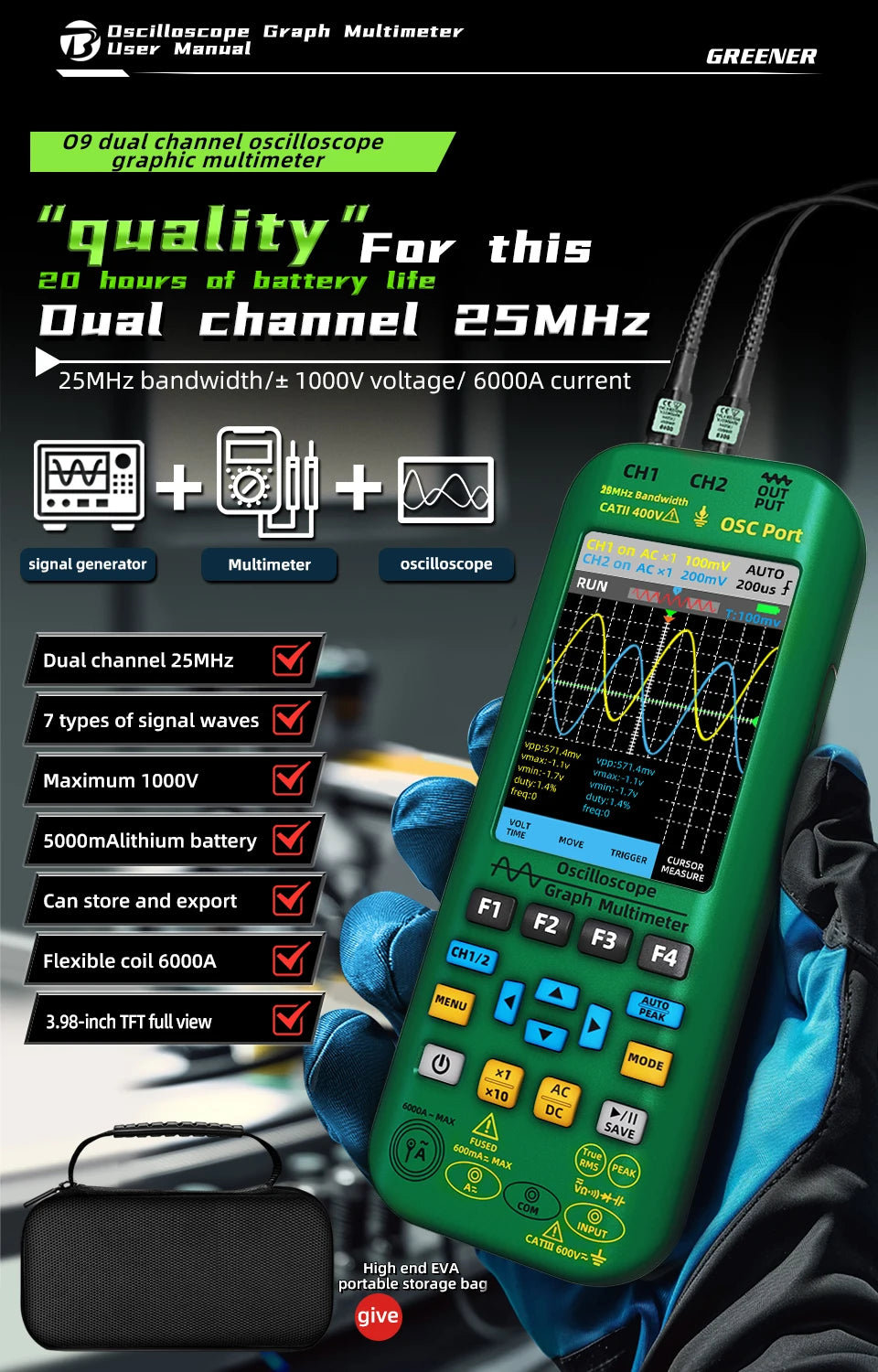

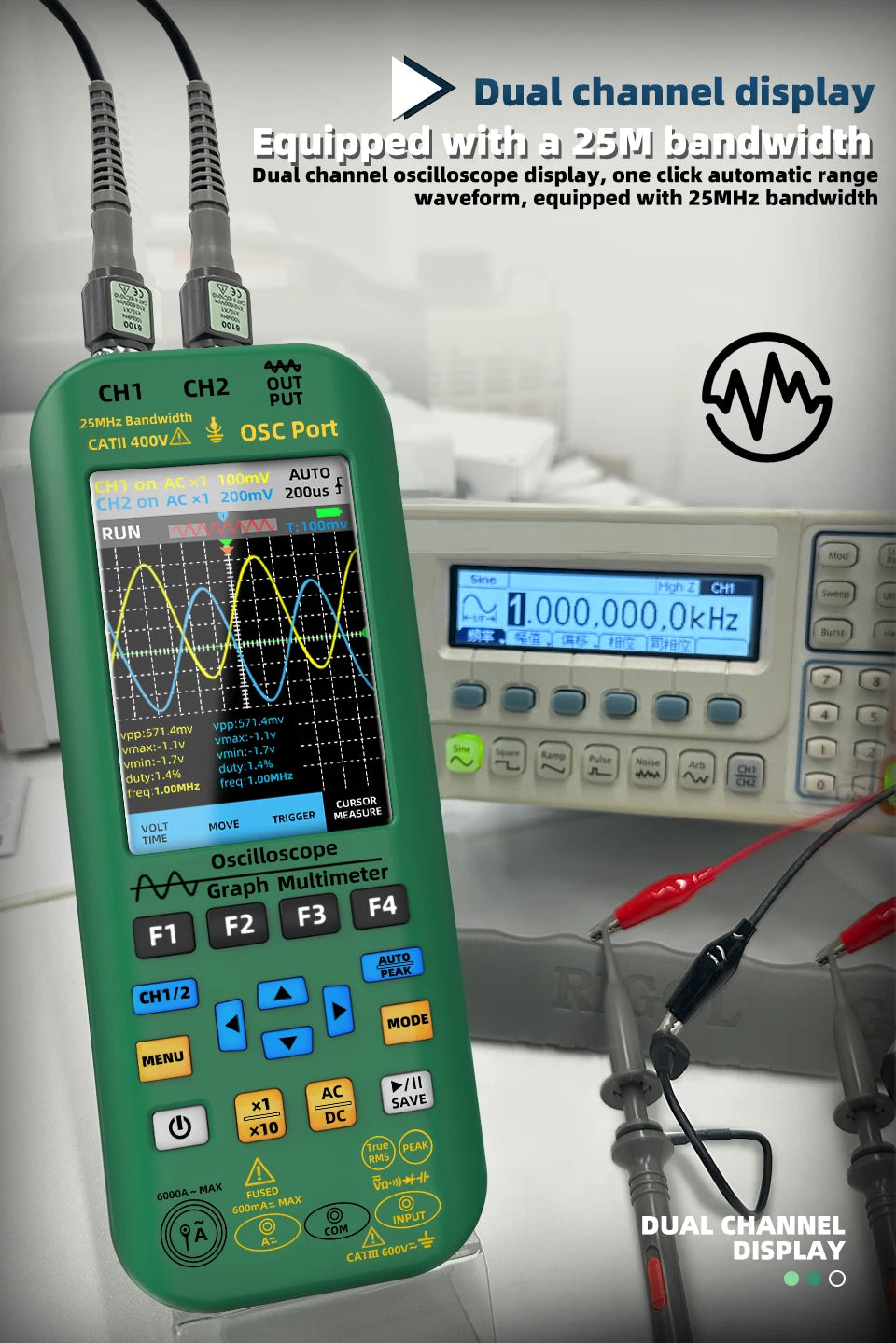

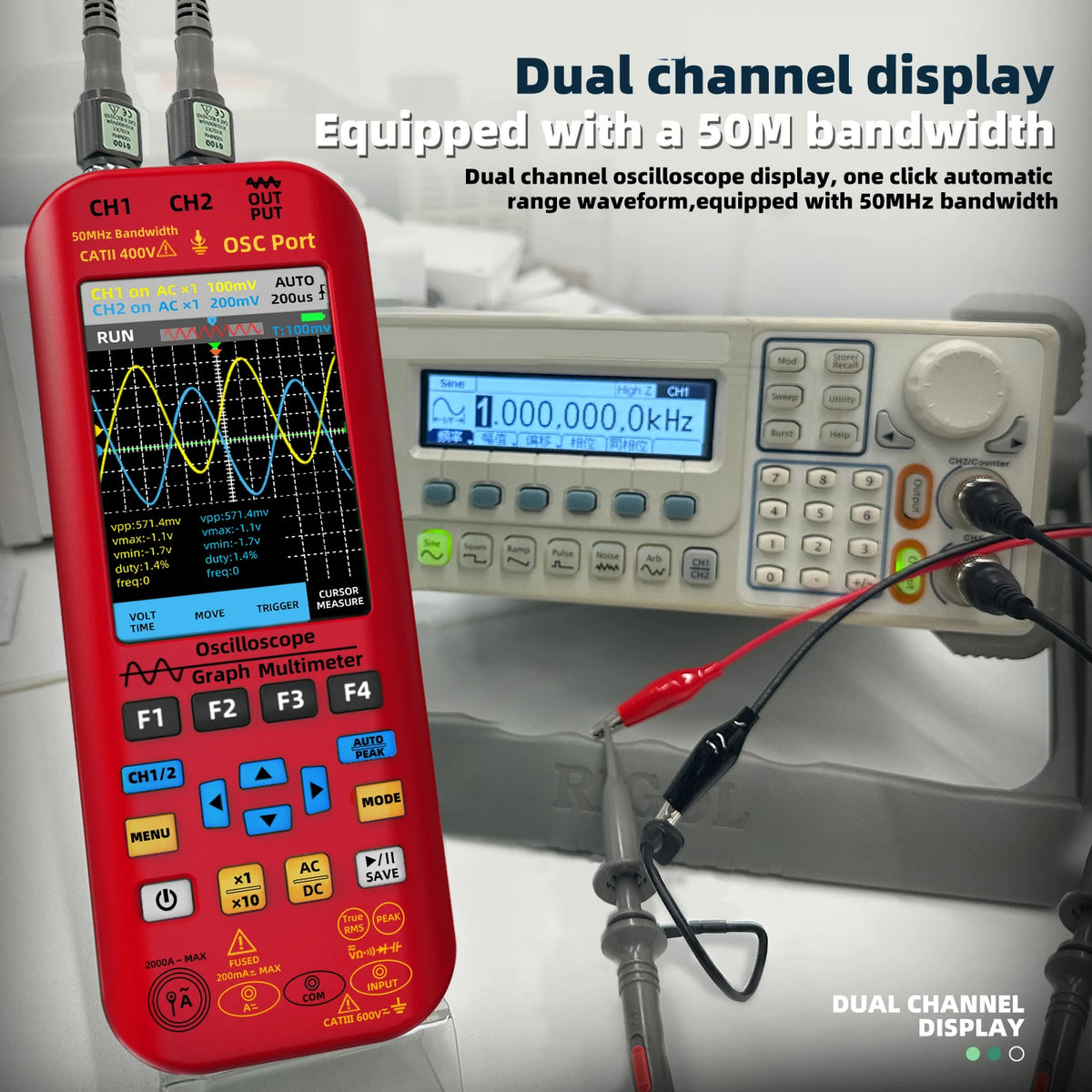

BSIDE O7/O9 NEW Portable Oscilloscope adopts FPGA+MCU+ADC hardware architecture, Dual-channel with a sampling rate of 208MS/s, 25Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V.

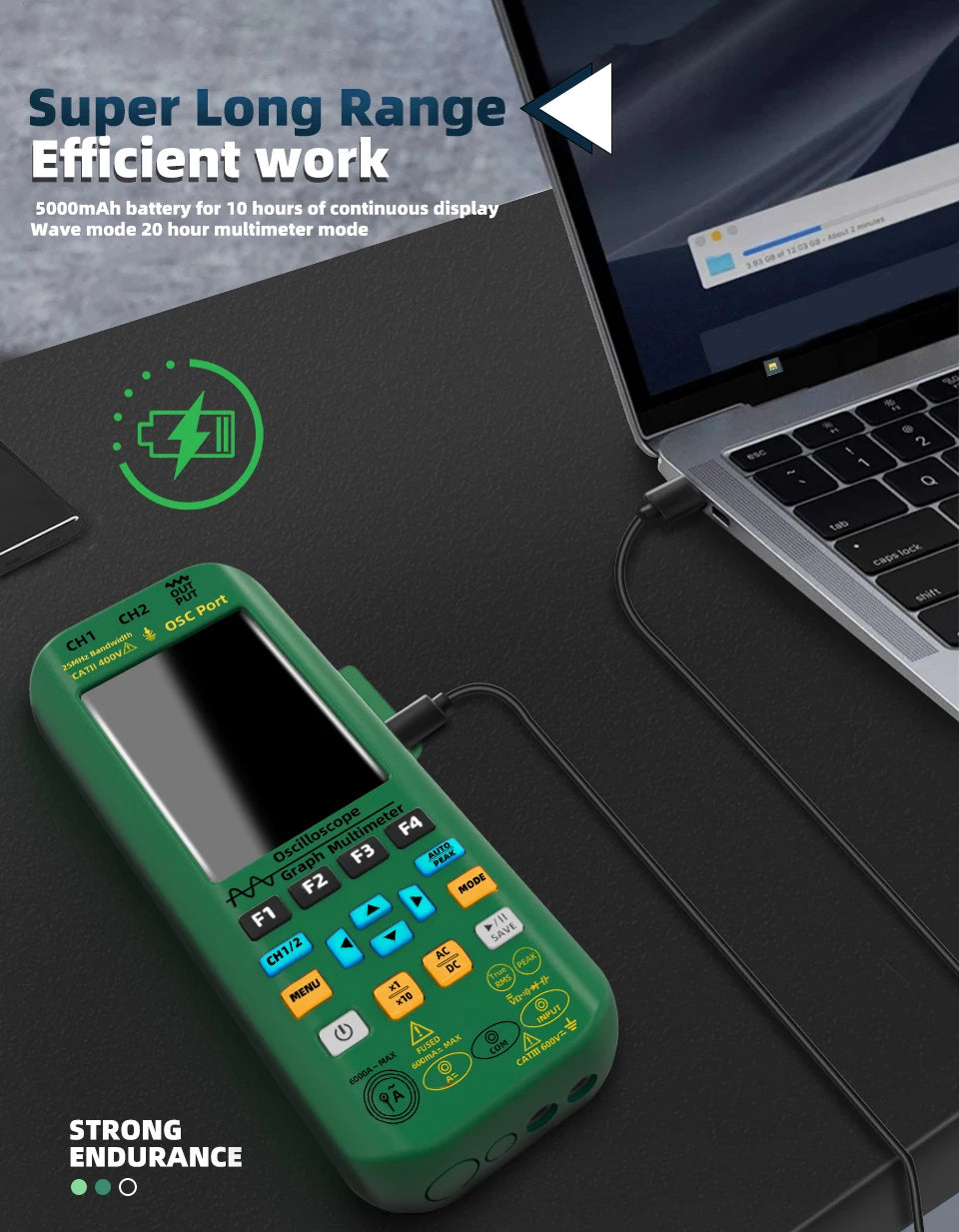

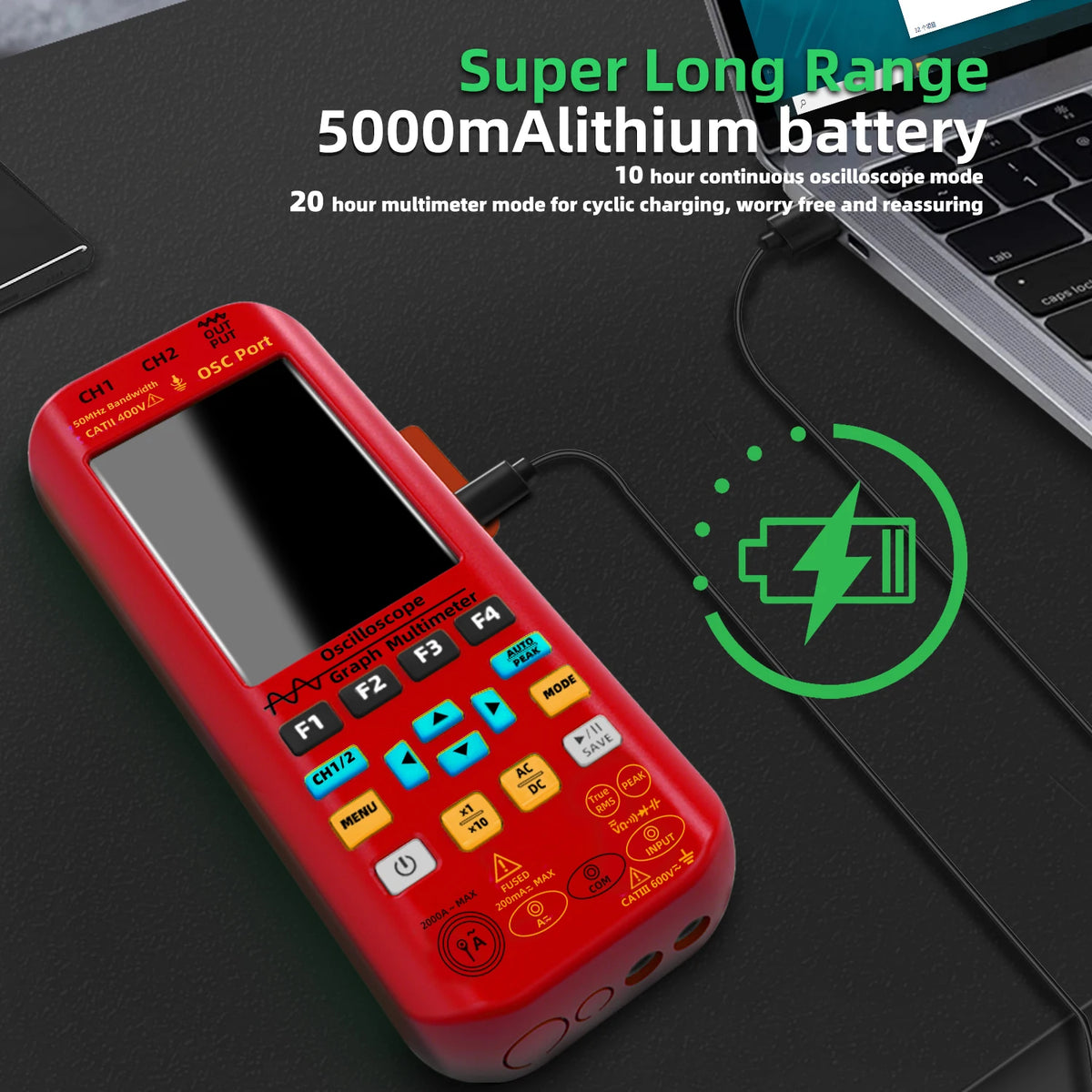

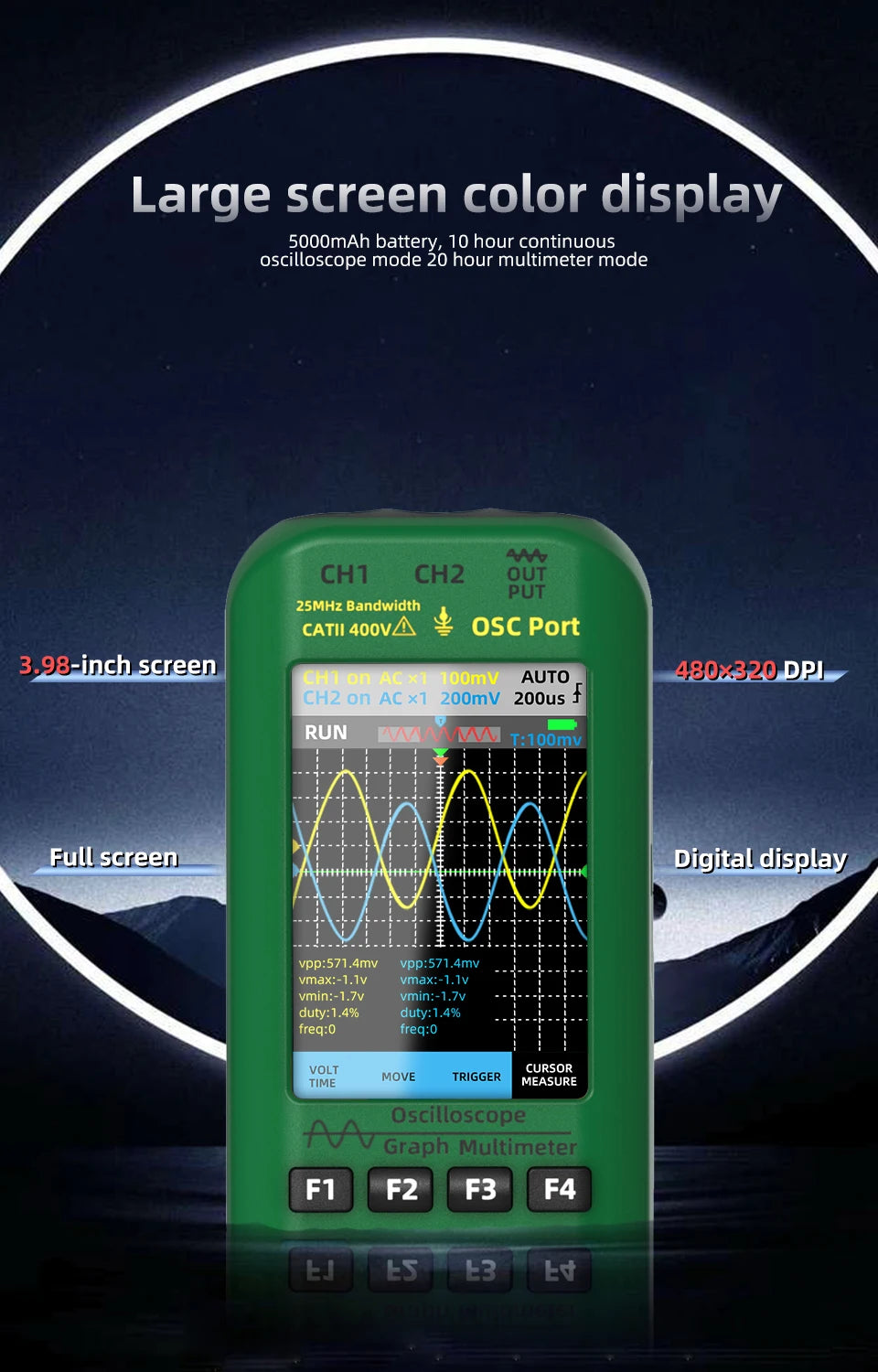

Using a 3.98 inch 480*320px resolution high-definition TFT display screen with a built-in 5000mAh rechargeable lithium battery（18650 battery*2）, the Standby for 10 H in Oscilloscope mode and 24 H in Multimeter mode.

Can be used with Flexible current clamp. It can test 6000A current.

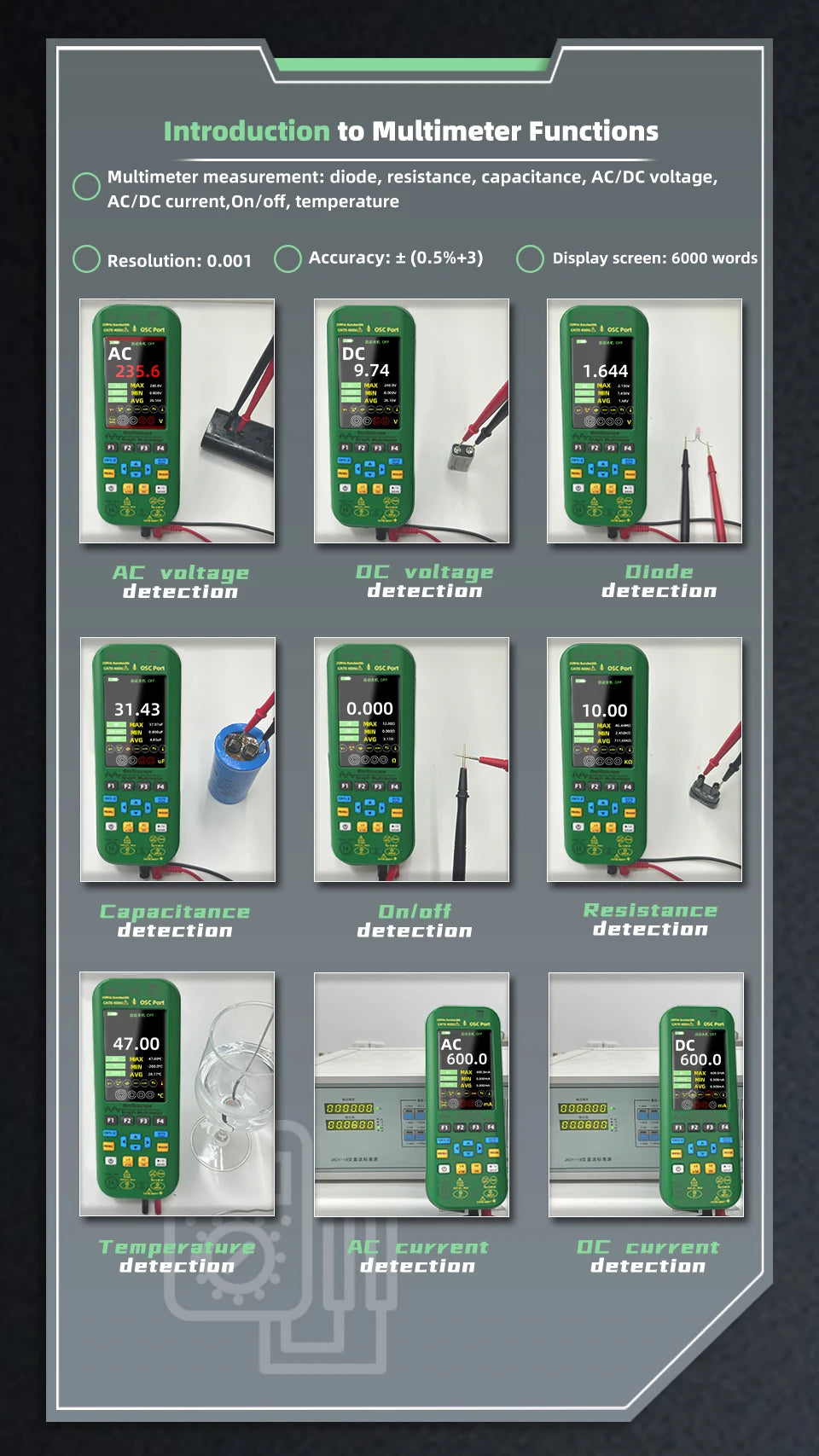

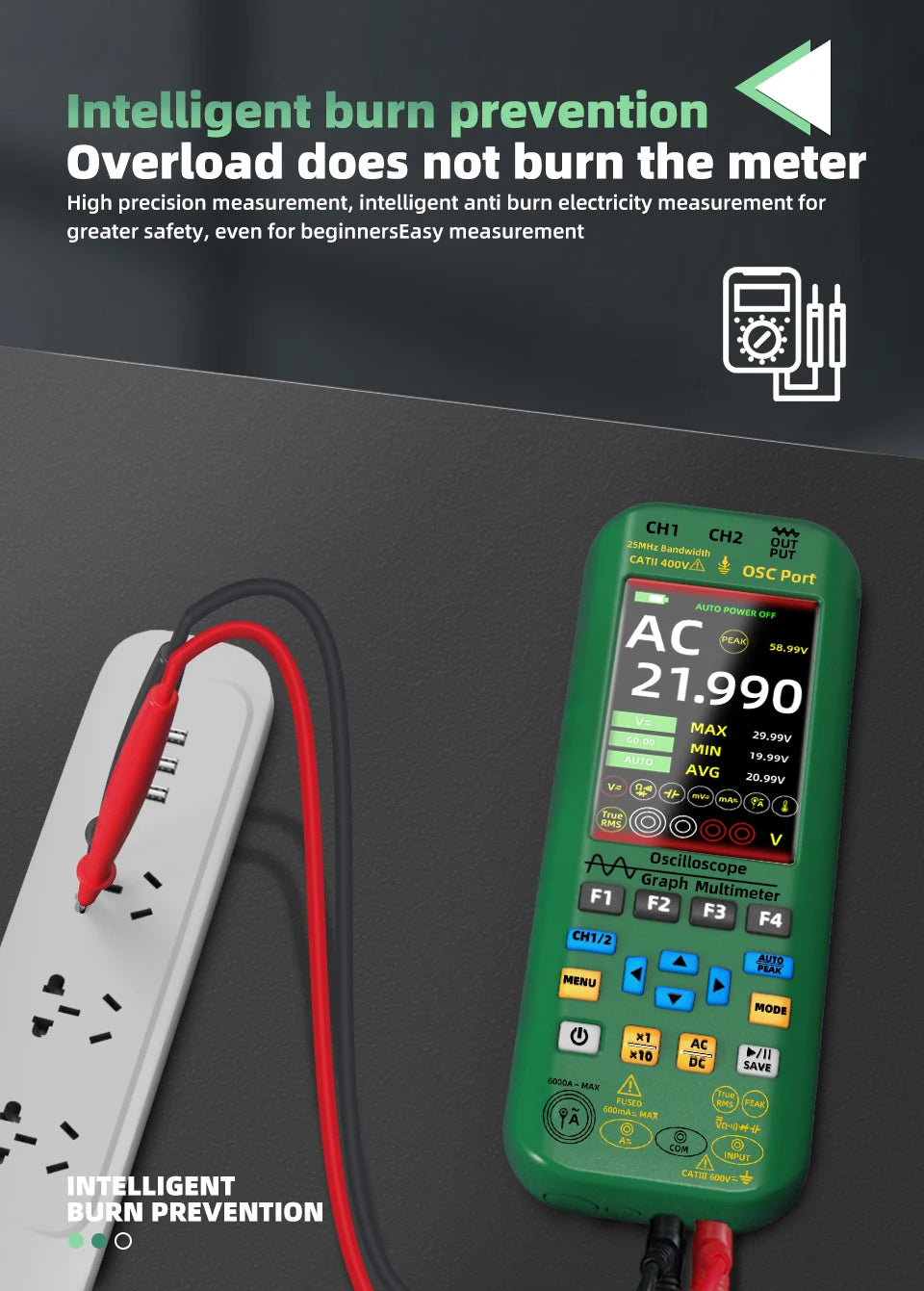

The digital multimeter mode has 6000 Digit, True-RMS, Supports AC/DC Voltage、Current、Temperature、Capacitance、Resistance、Diode、NVC、Continuity other measurement functions. Properties such as auto power off, low battery alert, etc.

Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.

Product Introduction:

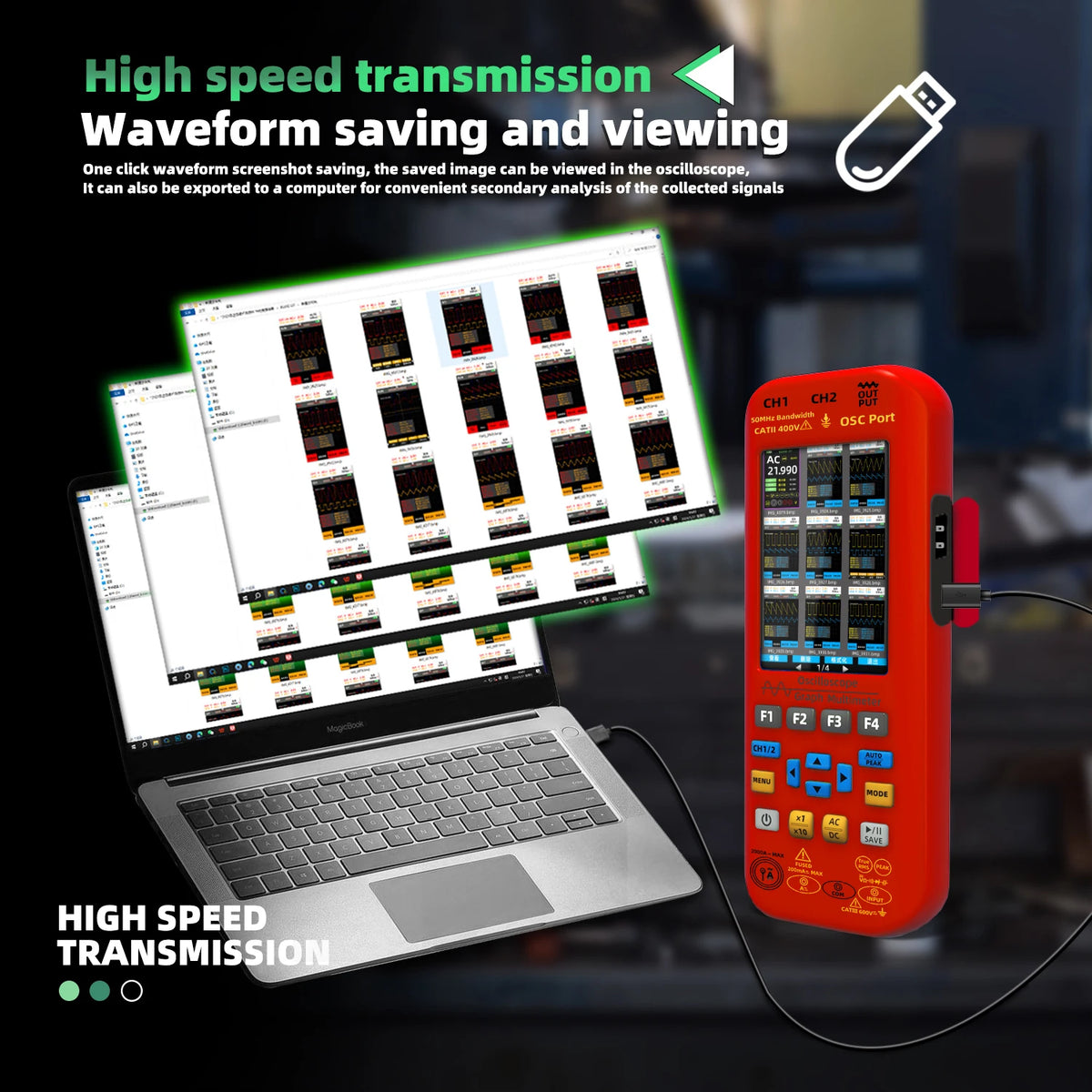

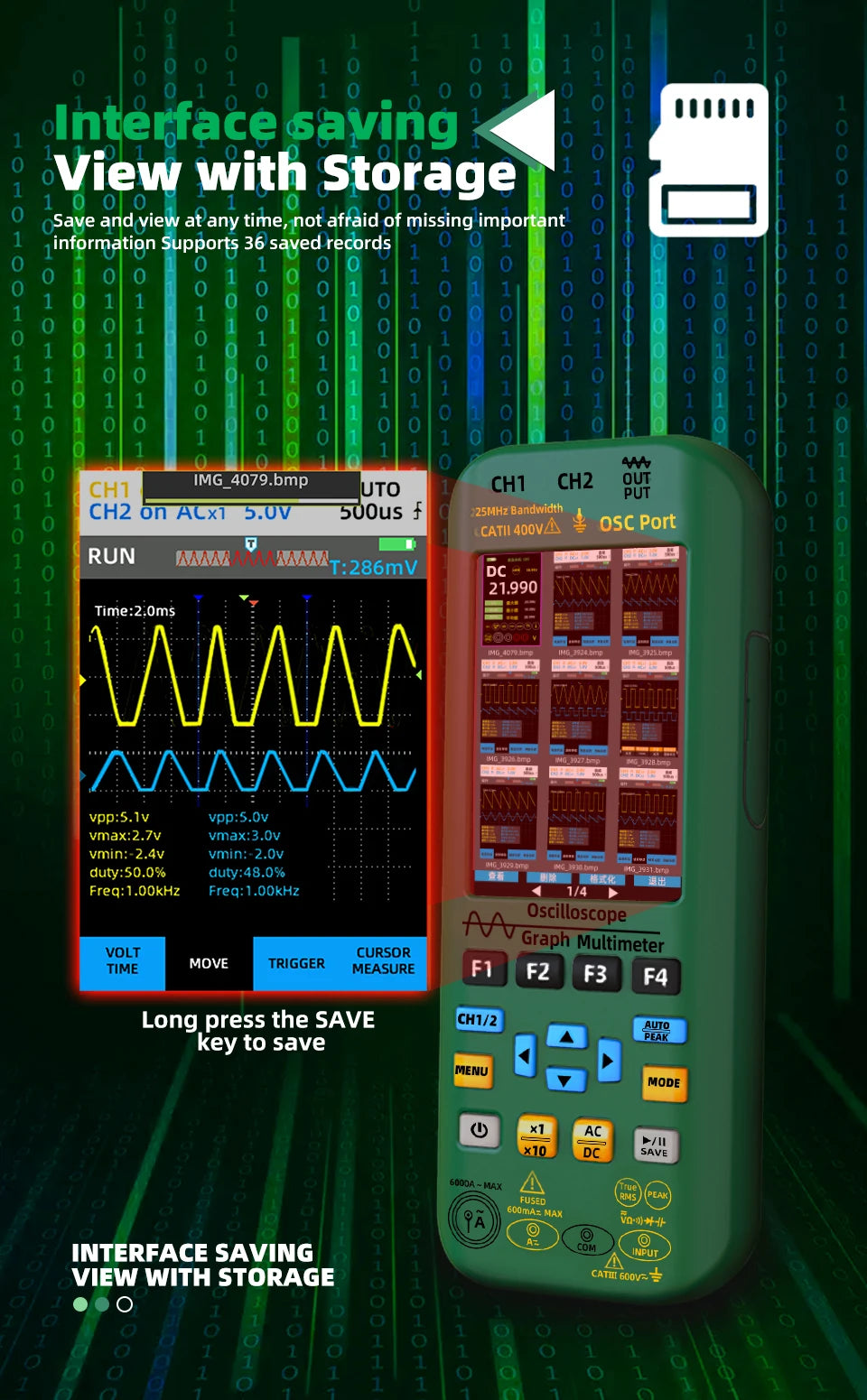

[Data Storage and Export]: The data of this graphic oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.

[Rechargeable]: The handheld oscilloscope multimeter comes with a rechargeable battery and charging cable, ensuring that you never have to worry about running out of power during the measurement.

[Carrying case]: The digital oscilloscope multimeter comes with a high-quality EVA carrying case, which is perfect for use on the go.

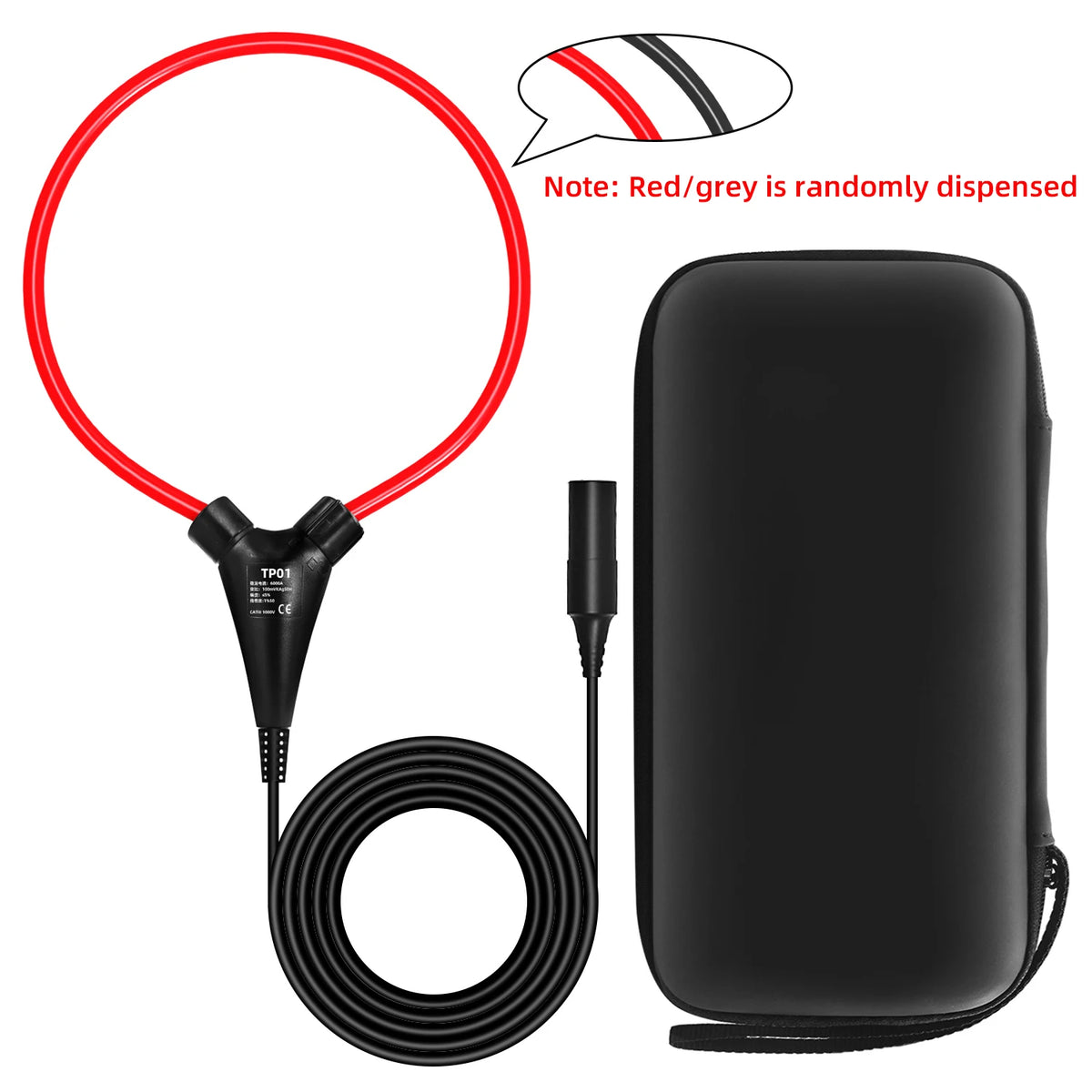

If you need BSIDE TP01 Flexible Current Clamp（MAX-6000A ; Suitable for O1X, O7, O9）,

Please order at this link:

https://www.aliexpress.com/item/1005008227777921.html

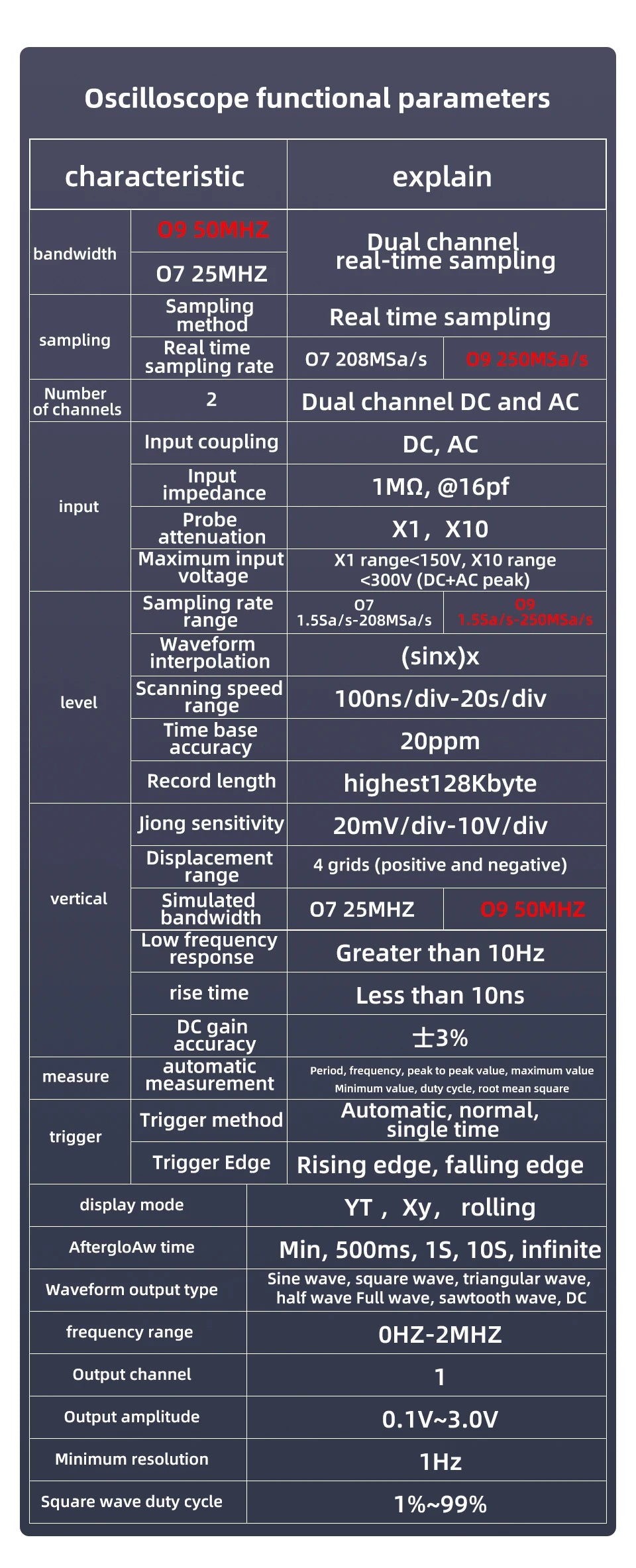

Specification:

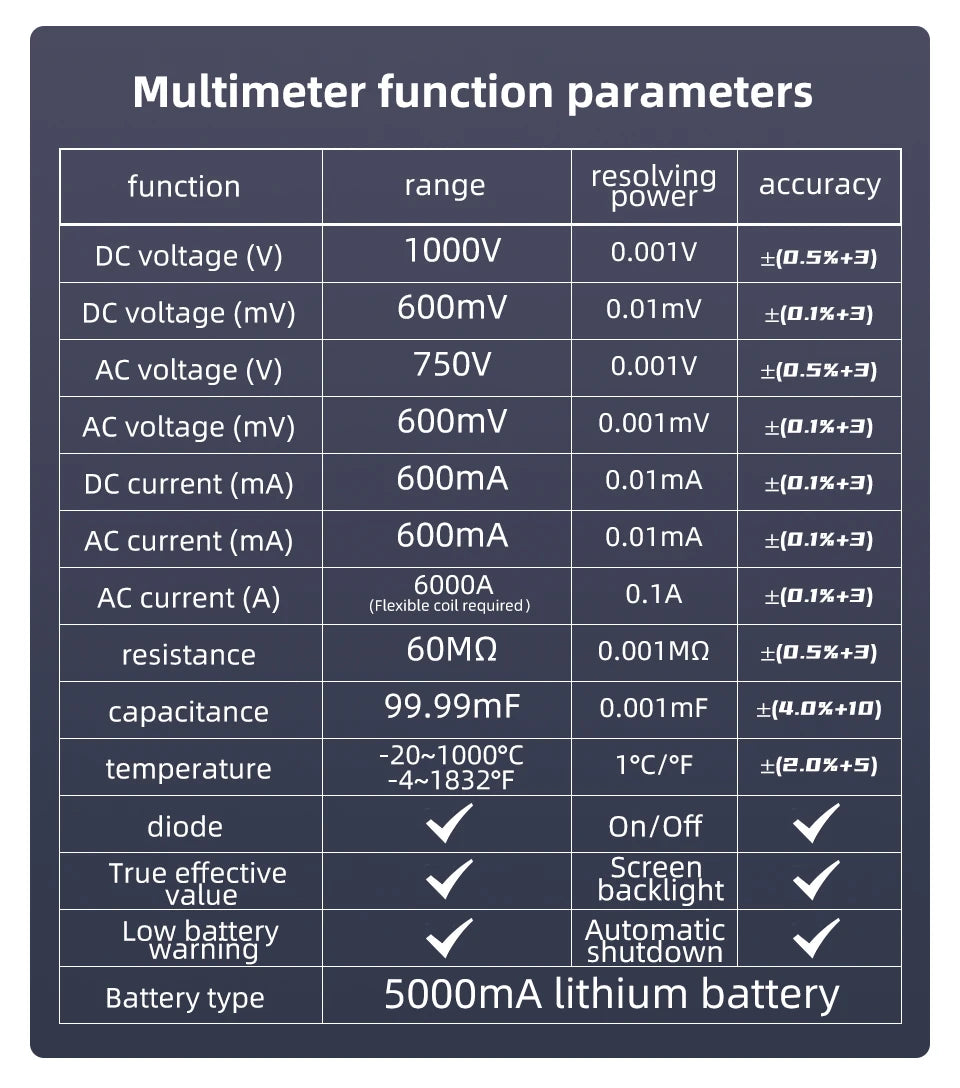

Maximum display: 6000counts(O7) / 20000counts(O9)

Screen size: 3.9 inches.

Bandwidth: 25MHz(O7) / 50MHz(O9)

Real-time scan rate: 208MSa/s(O7) / 250MSa/s(O9)

Input impedance: 1MΩ

Maximum Input Voltage: ×1 Range<150V, ×10 Range<300V (DC+AC Peak)

Horizontal seconds range: 100ns/div -20s/div

Vertical sensitivity: 20mV/div -10V/div

DC voltage: 60mV 0.01mV ± (1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±（0.8%+3）; 600V/1000V 0.1V/0.1V ±（1%+5）

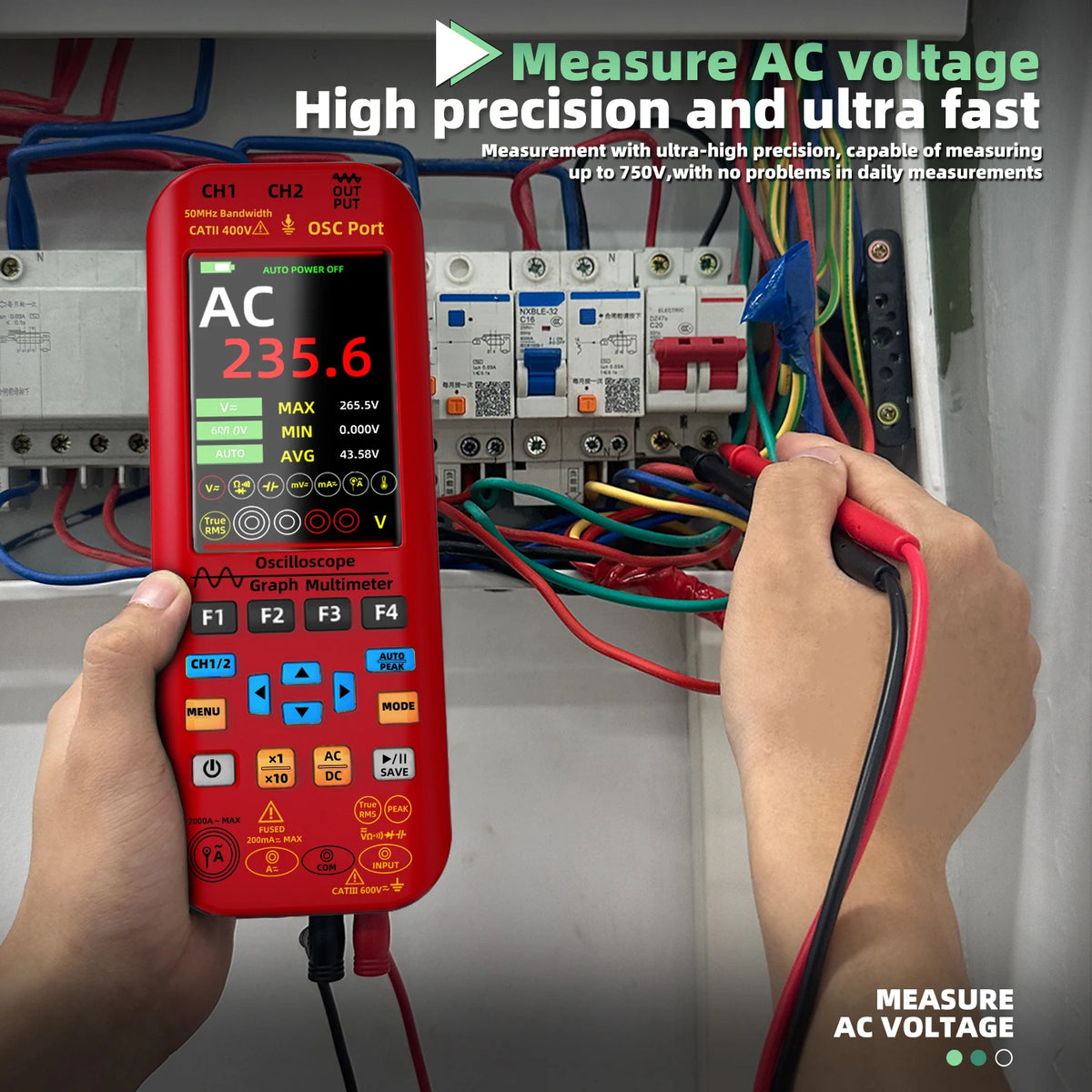

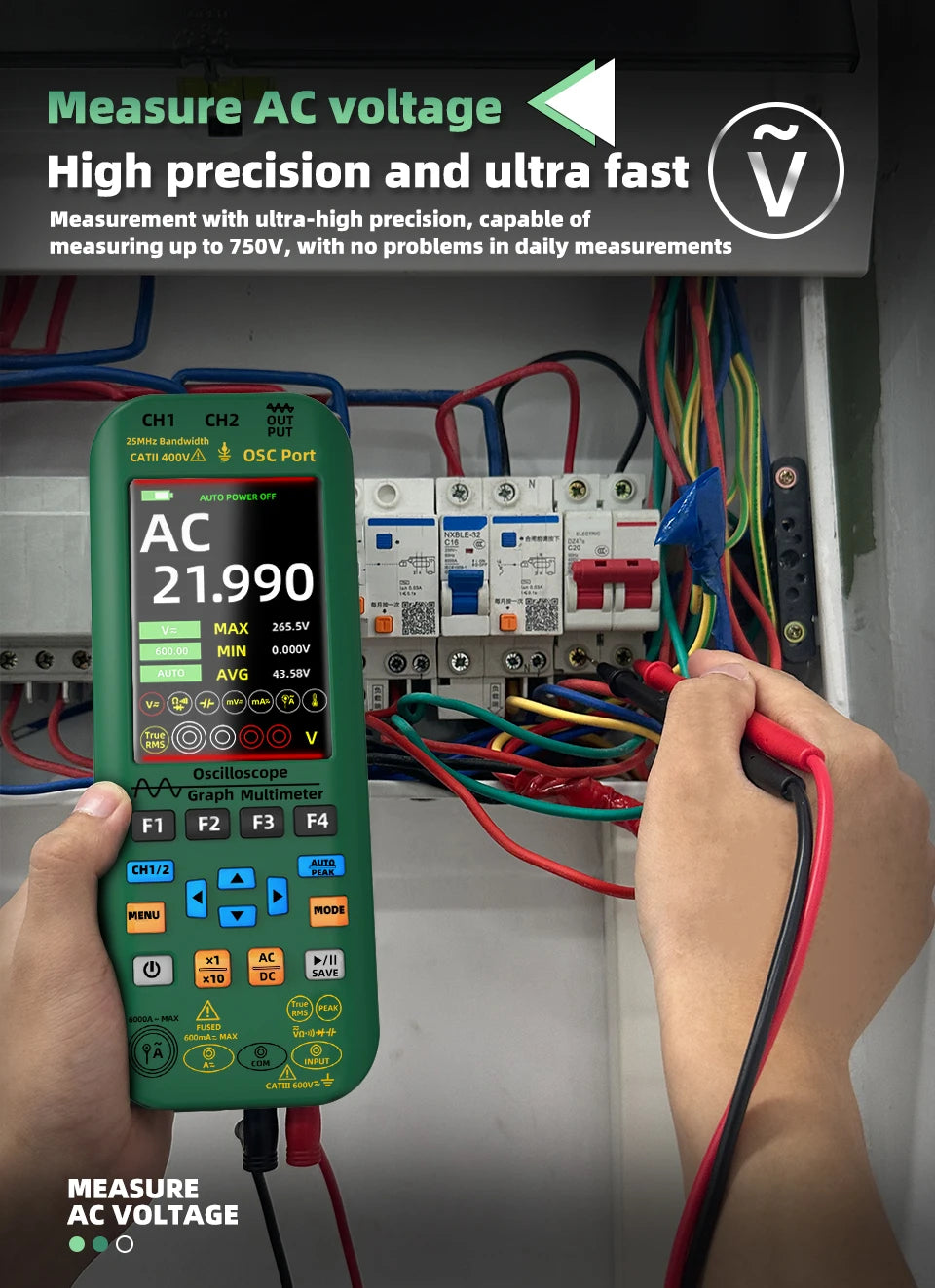

AC voltage: 60mV 0.01mV ± (1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±（1%+3）; 600V 0.1V ±（1.2%+5）; 750V 1V ±（1.2%+5）

DC current: 60mA/600mA 0.01mA/0.1mA ±(1%+3)

AC Current: 60mA/600mA 0.01mA/0.1mA ±(1.2%+5)

Flexible Current Clamp AC Current: 600A/6000A 0.1A/1A ±(1%+5)

Resistance: 600Ω 0.1Ω ± (1.2% + 5); 6K Ω/60K Ω/600K Ω 0.001K Ω/0.01K Ω/0.1KΩ ±（1.0% + 3）; 6MΩ 0.001MΩ ±（1.2% + 5）; 60MΩ 0.01MΩ ±（1.5% + 5）

Capacitance: 999.9nF/9.999 μF/999.9 μF 0.1nF/0.001 μF/0.1 μF ± (4.5% + 5); 99.99mF 0.01mF ±（5.0%+10）

Temperature: -20~1000°C/-4~1832°F 1°C/1°F ±(2.5% + 5)

Diode: Yes

Continuity: Yes

Power supply: 18650 battery*2 (rechargeable)

Size: 216.6x84.5x36mm

Weight: 384g

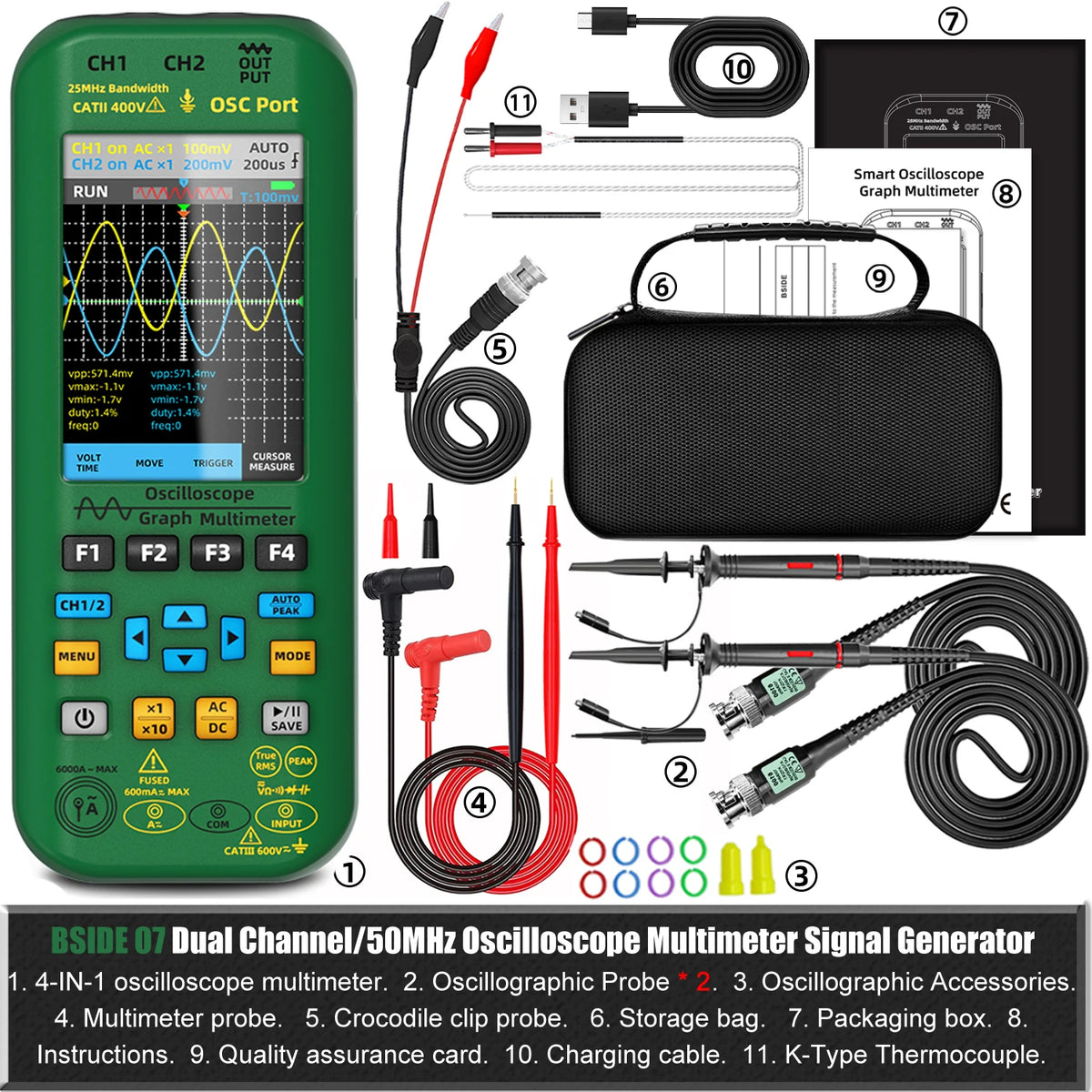

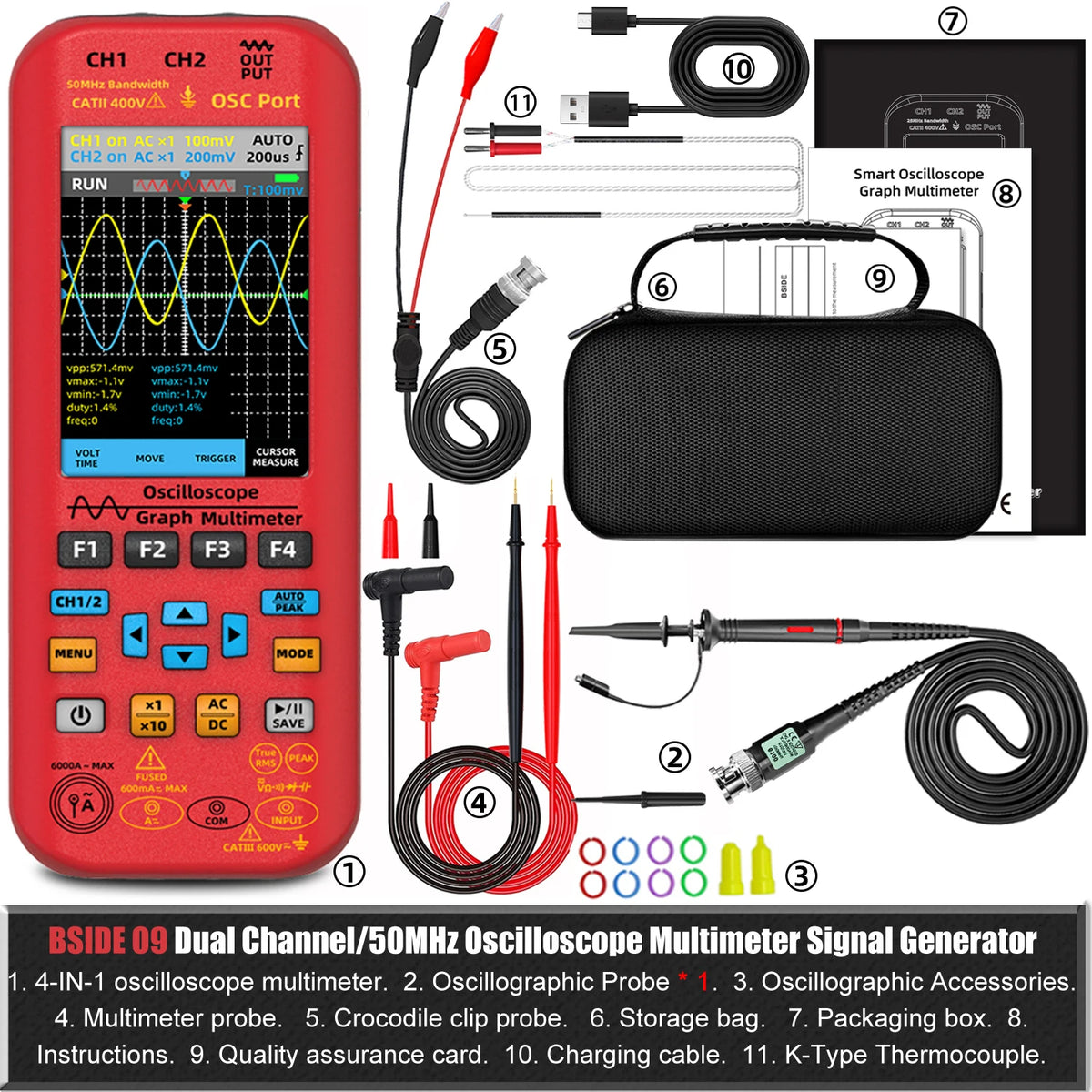

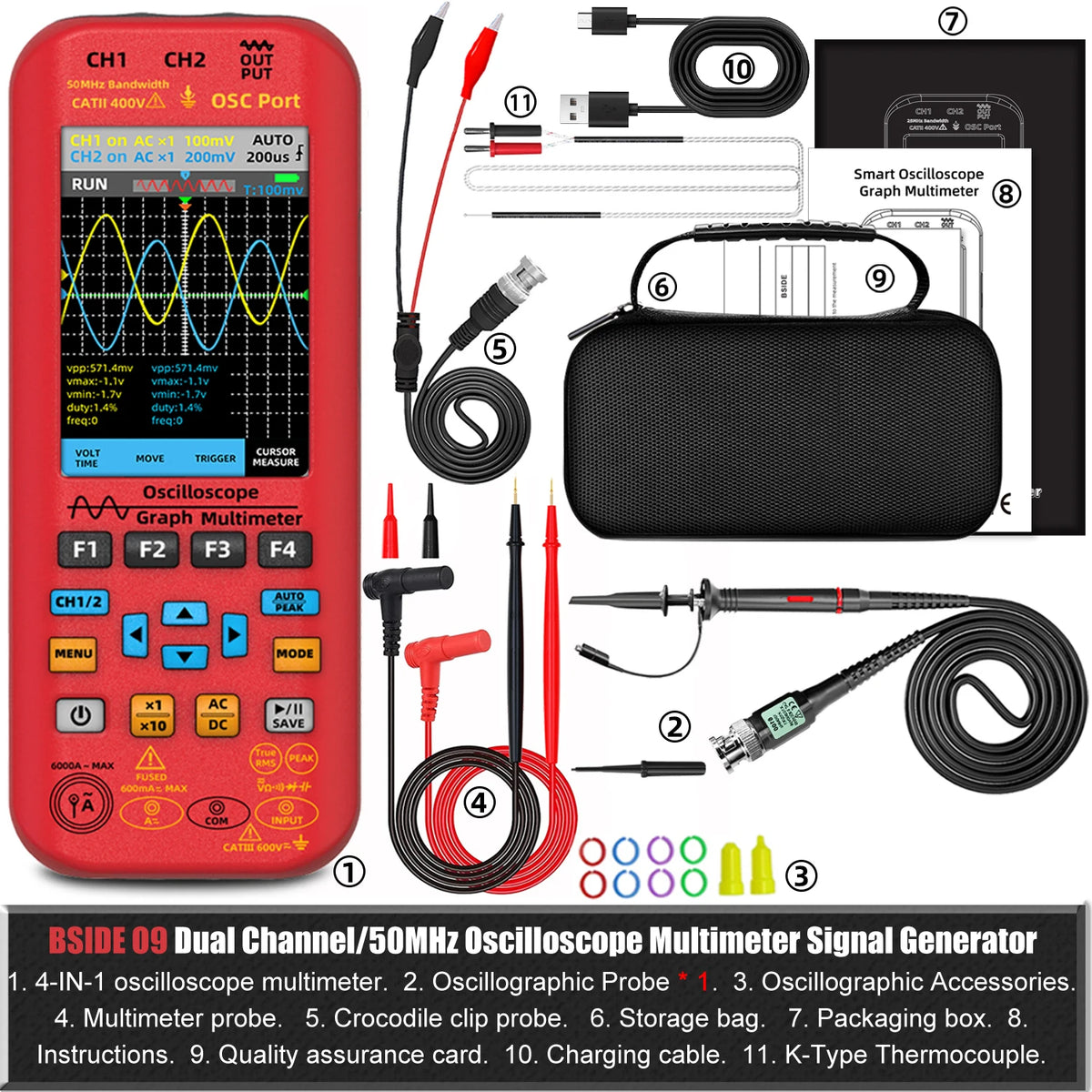

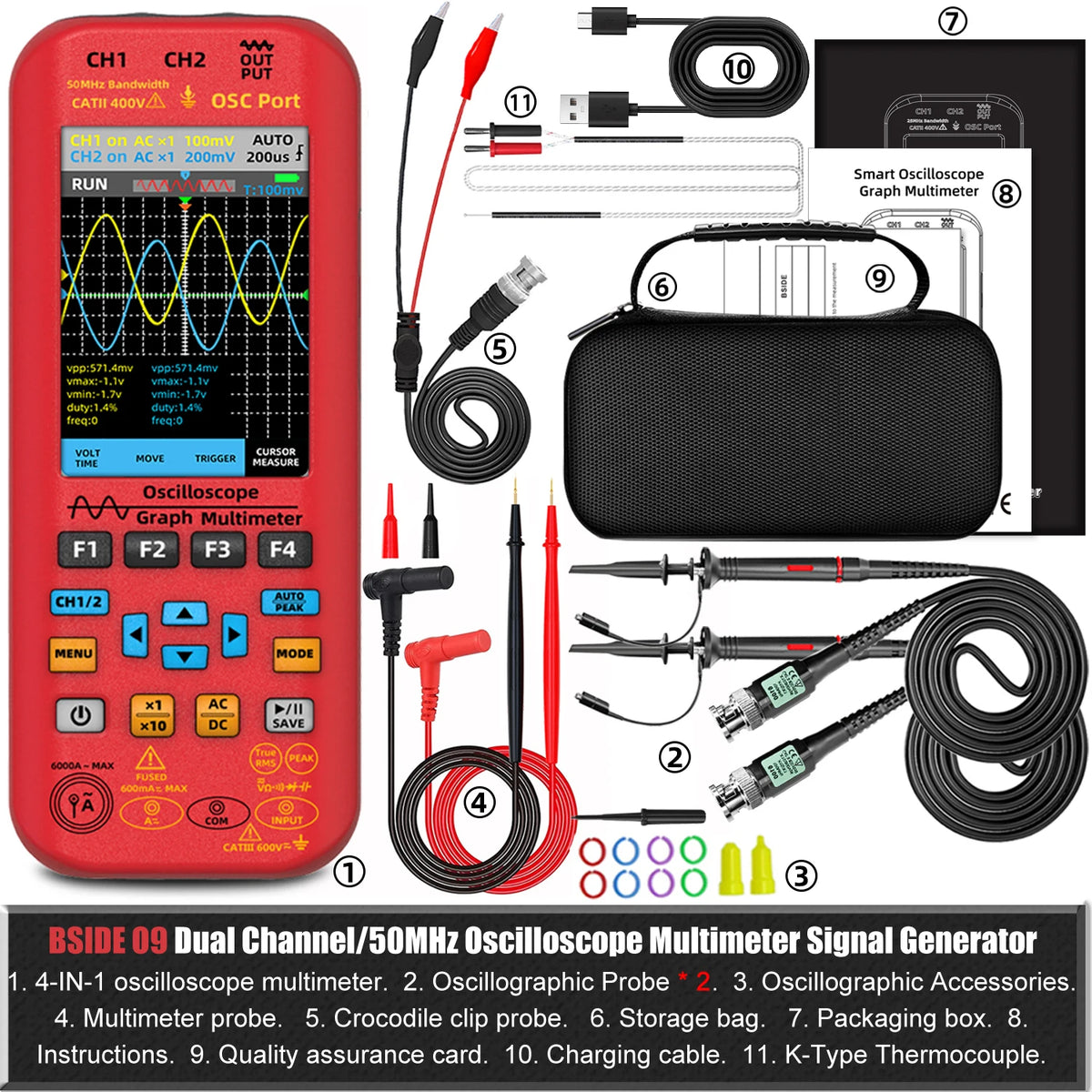

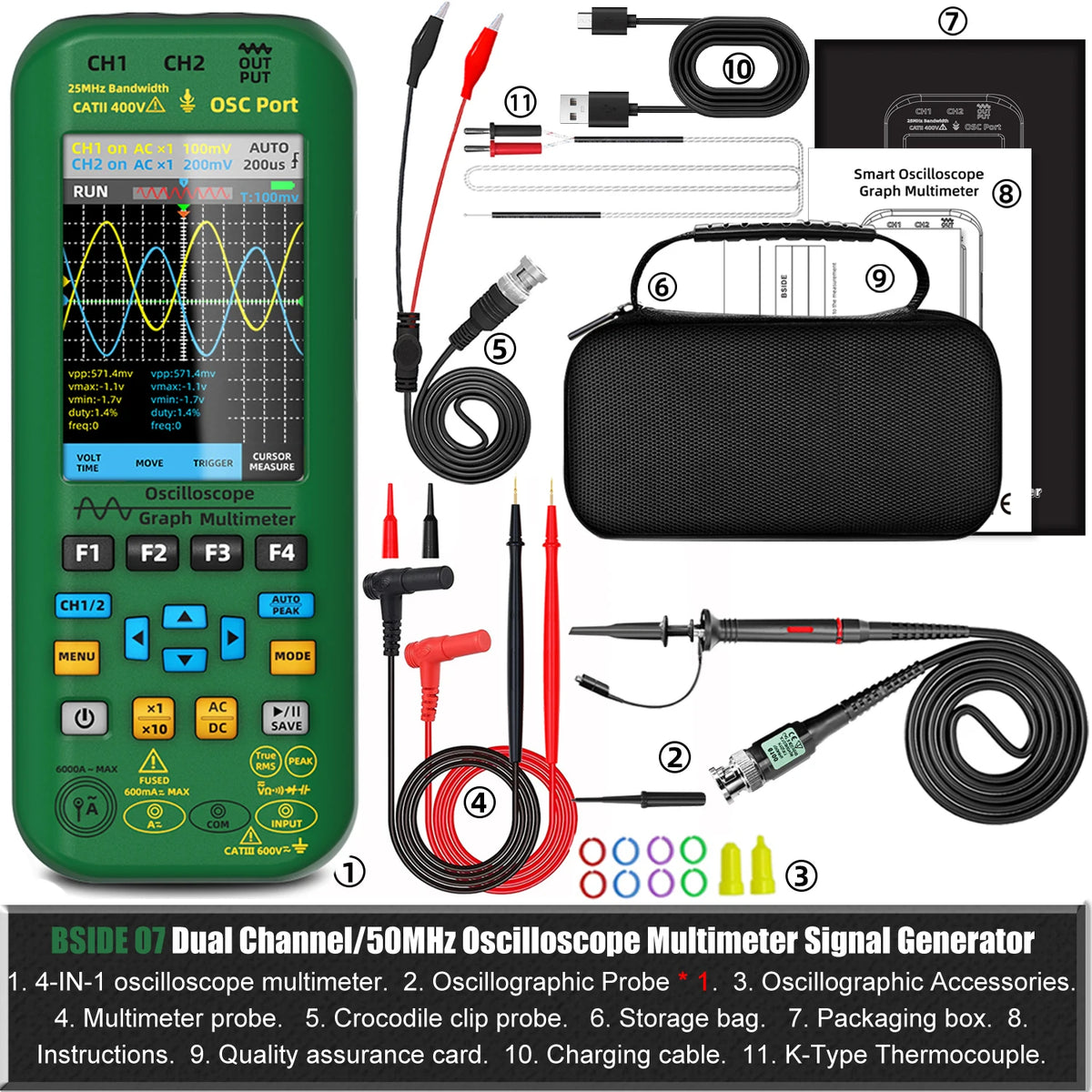

Package includes:

1 x Handheld Oscilloscope Multimeter

1 x EVA suitcase

1 x oscilloscope probe

1 x Oscilloscope Accessory

1 x multimeter pen

1 x Crocodile Clip

1 x box

1 x charging cable

1 x Instruction Manual

1 x Warranty Card

1 x charging cable

1 x User Manual

1 x K-Type Thermocouple
