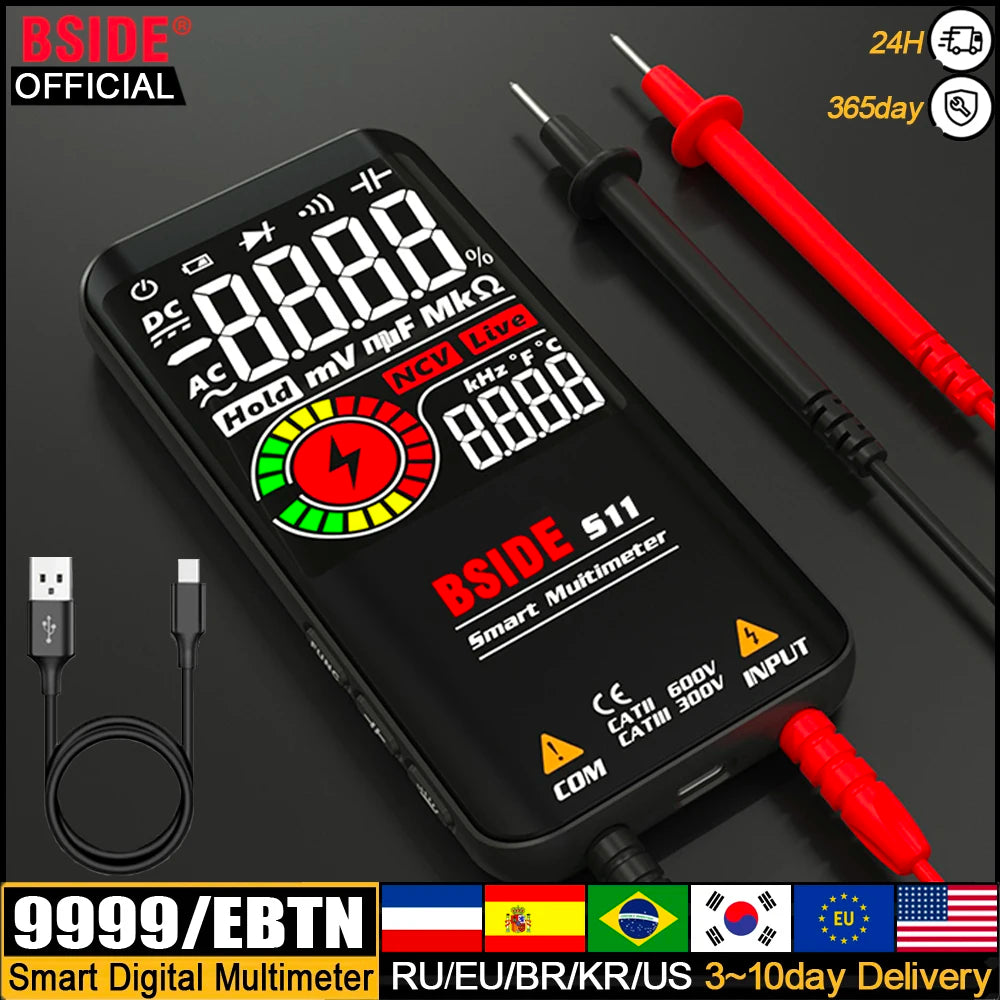

BSIDE Profesional Digital Multimeter Smart 9999 EMF Multitester DC AC Voltage Capacitor Ohm Diode Live Electric Tester USB charg
S11-Lithium Battery / Brazil
$113.00
Sale price
$113.00
Regular price
$0.00
Skip to product information
BSIDE Profesional Digital Multimeter Smart 9999 EMF Multitester DC AC Voltage Capacitor Ohm Diode Live Electric Tester USB charg
$113.00
Sale price
$113.00
Regular price
$0.00
Description
SPECIFICATIONS
A10 Power: Built-in 750mA Lithium Battery.
AC Current: N/A
AC Voltage: 0V ~ 620V
BSIDE Model: S11
Battery Included: Yes
Brand Name: BSIDE
Capacitance: Yes.
Certification: CE,FCC,RoHS
Continuity: Yes.
DC Current: N/A
DC Voltage: 0V ~ 620V
DC/AC Voltage: Yes.
DIY Supplies: Electrical

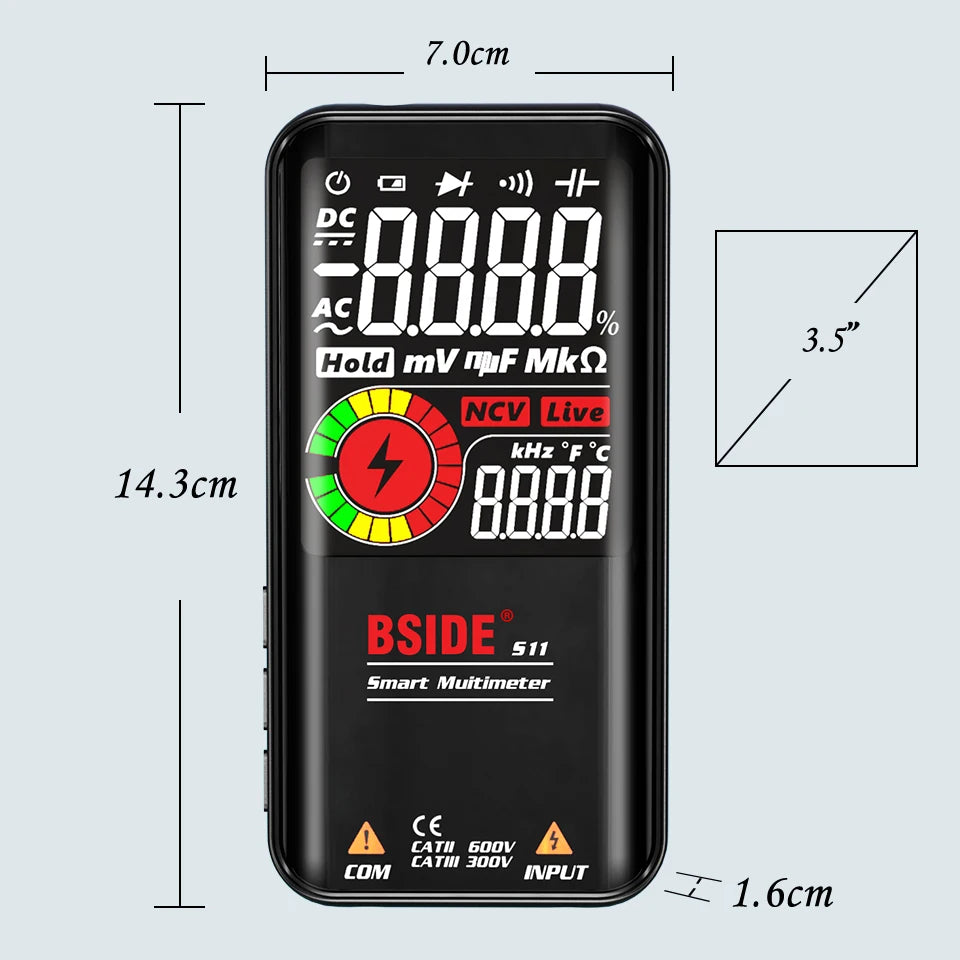

Dimensions: 147*85*4.2mm
Diode: Yes.
Display: 9999 counts
Display Type: Digital Display
Duty Cycle: Yes.
EMF detection: Yes.(S20)
Frequency: Yes.
High-concerned chemical: none
Is Smart Device: Yes
Live Check: Yes.
Measuring Capacitance Range: 99.99mF
Measuring Inductance Range: N/A
Measuring Resistance Range: 60M Ohm
Model Number: BSIDE S10 A10 S11 S20 Digital Multimeter
Operating Mode: Auto Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Resistance: Yes.
S10 Power: 1.5V (AAA) x 2.(Not included)
S11/S20 Power: Built-in 800mA Lithium Battery.
Screen: 3.5 inch / 3.2 inch
V-Alert(non-contact voltage detection): Yes.
BSIDE S10/A10/S11/S20 Profesional Digital Multimeter USB charging Smart 9999 EMF Multitester DC AC Voltage Capacitor Ohm Diode Live test Electric Tester.
Order Notice:

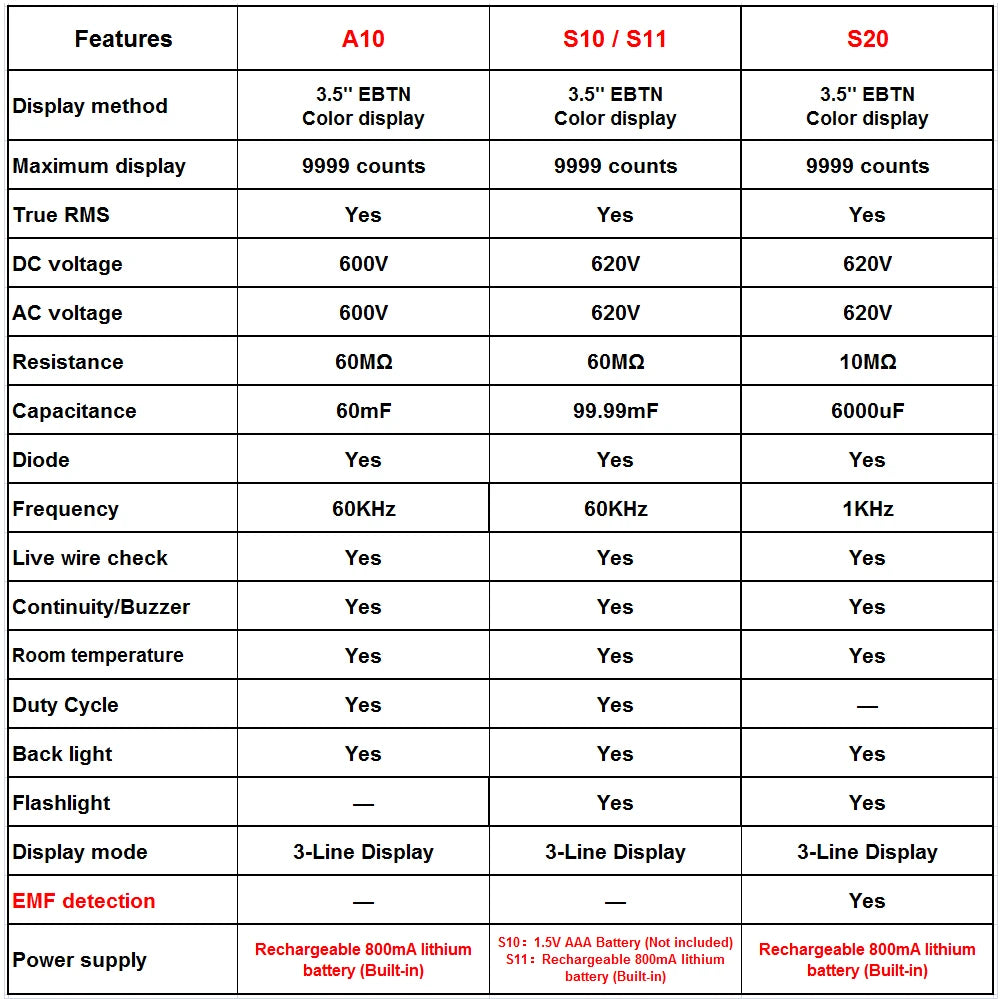

The A10 product is currently the most cost-effective smart multimeter with a built-in rechargeable lithium battery on the market.
The test parameters of S10/S11 are exactly the same, the difference is: S10 uses 1.5V AAA battery power supply（Not included）; S11 built-in 800mA rechargeable lithium battery.
The S20 product is the highest version of the series, adding EMF detection function.

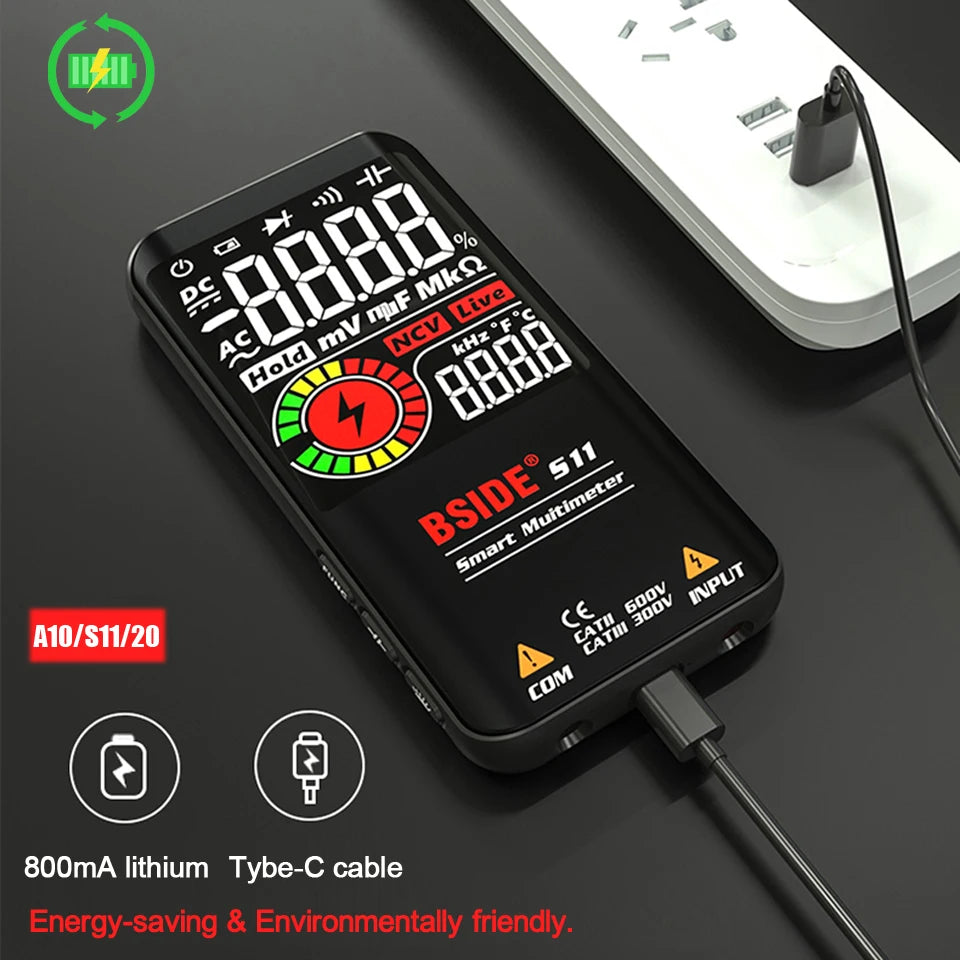

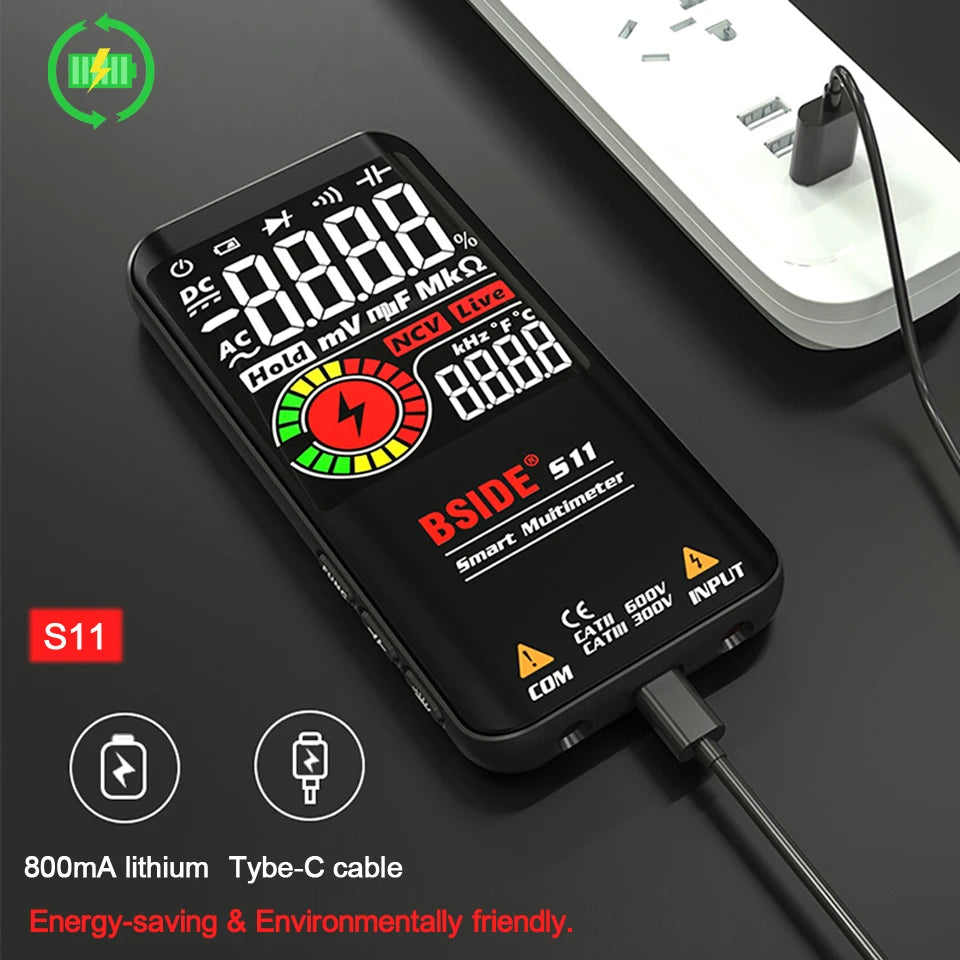

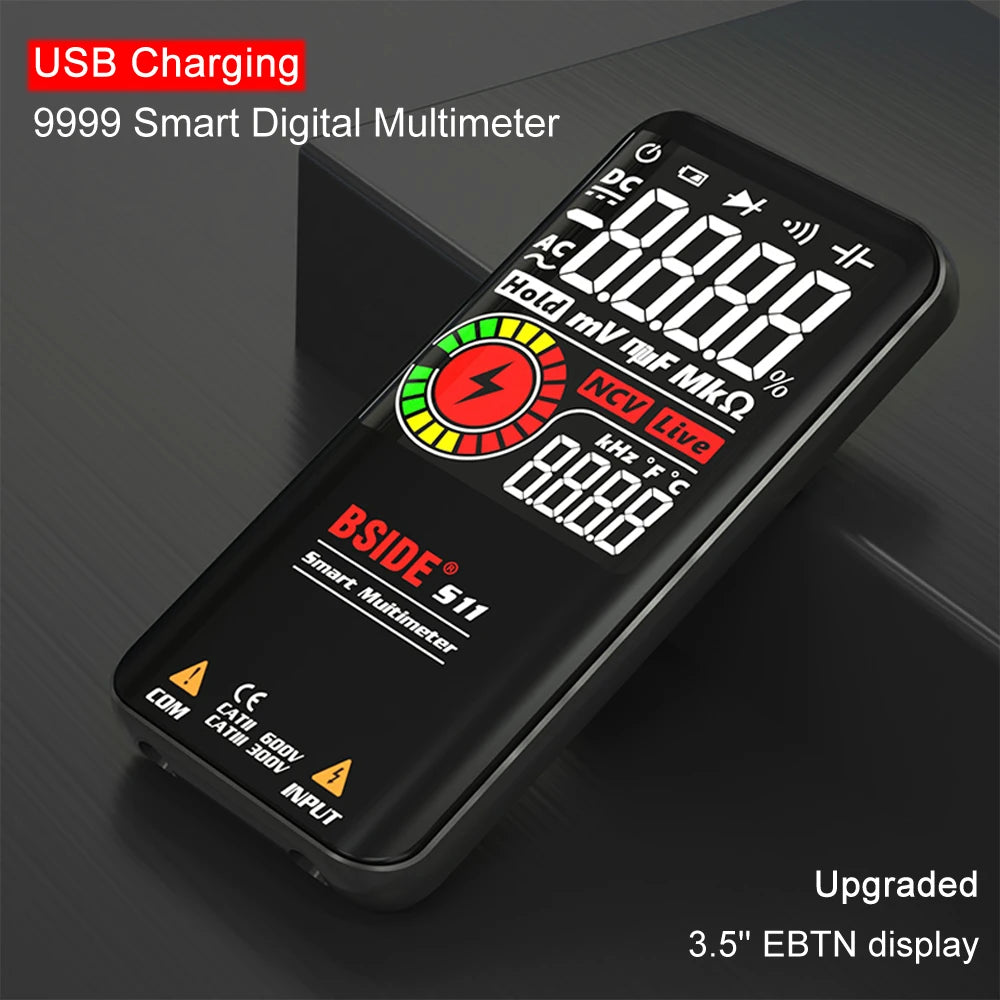

USB charging design - energy saving and environmental protection.

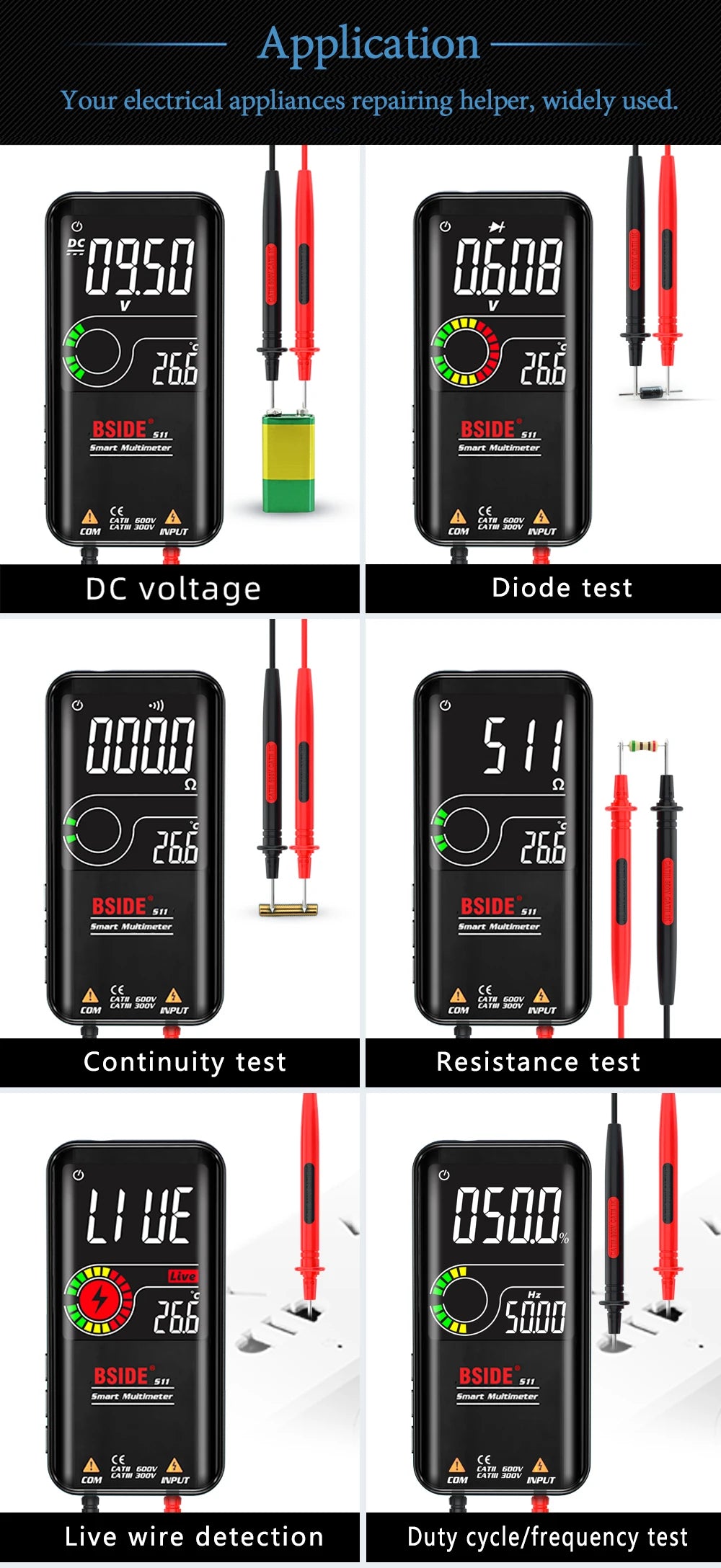

Fully functional - wide range of application scenarios.

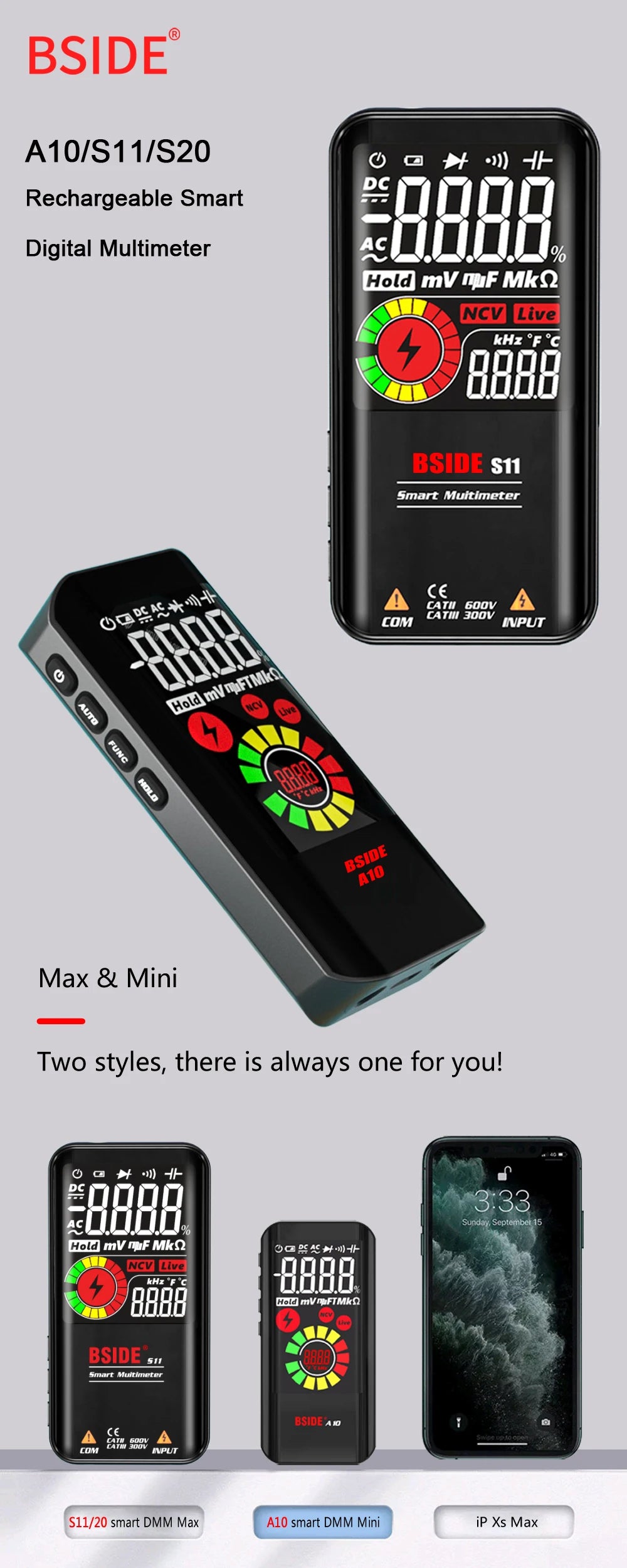

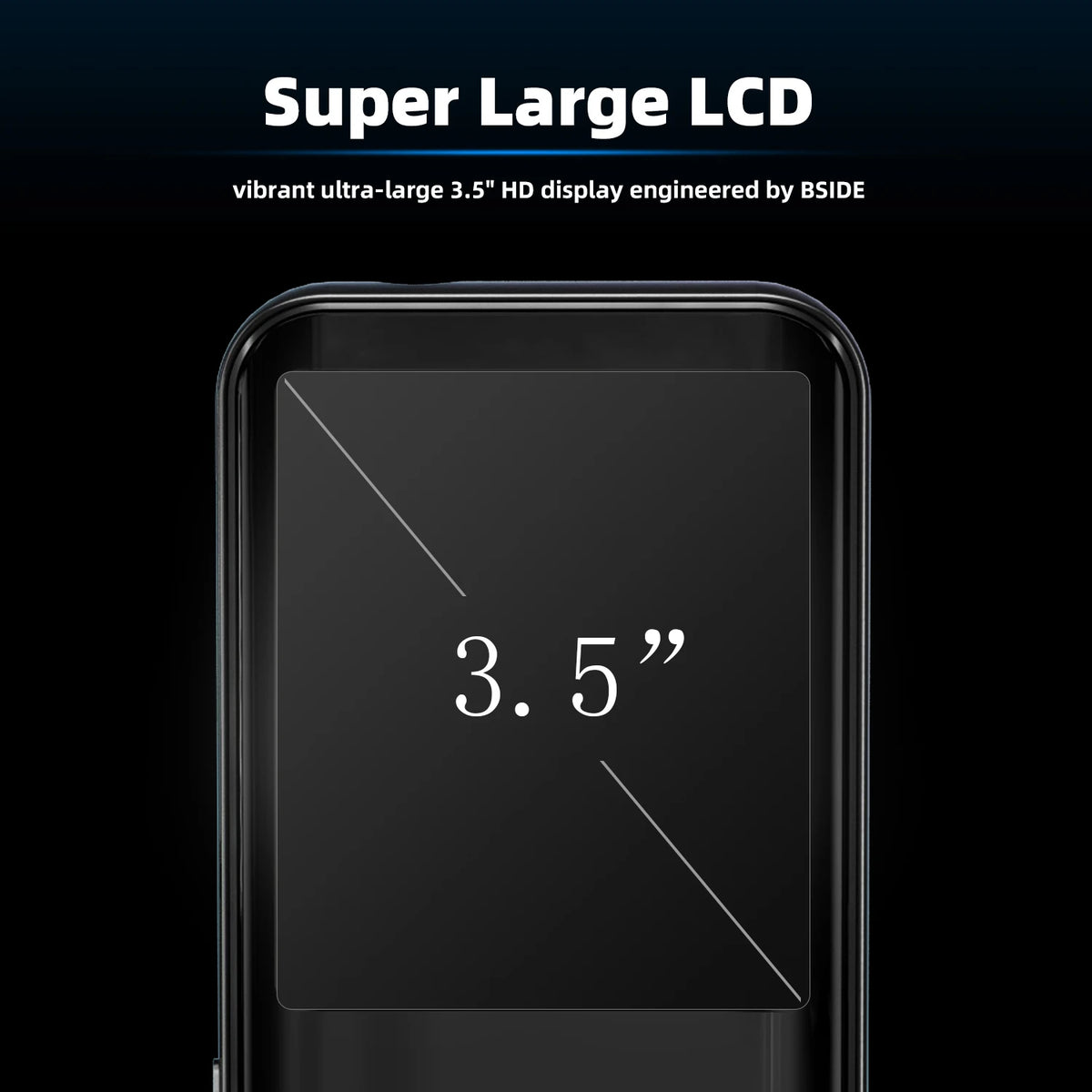

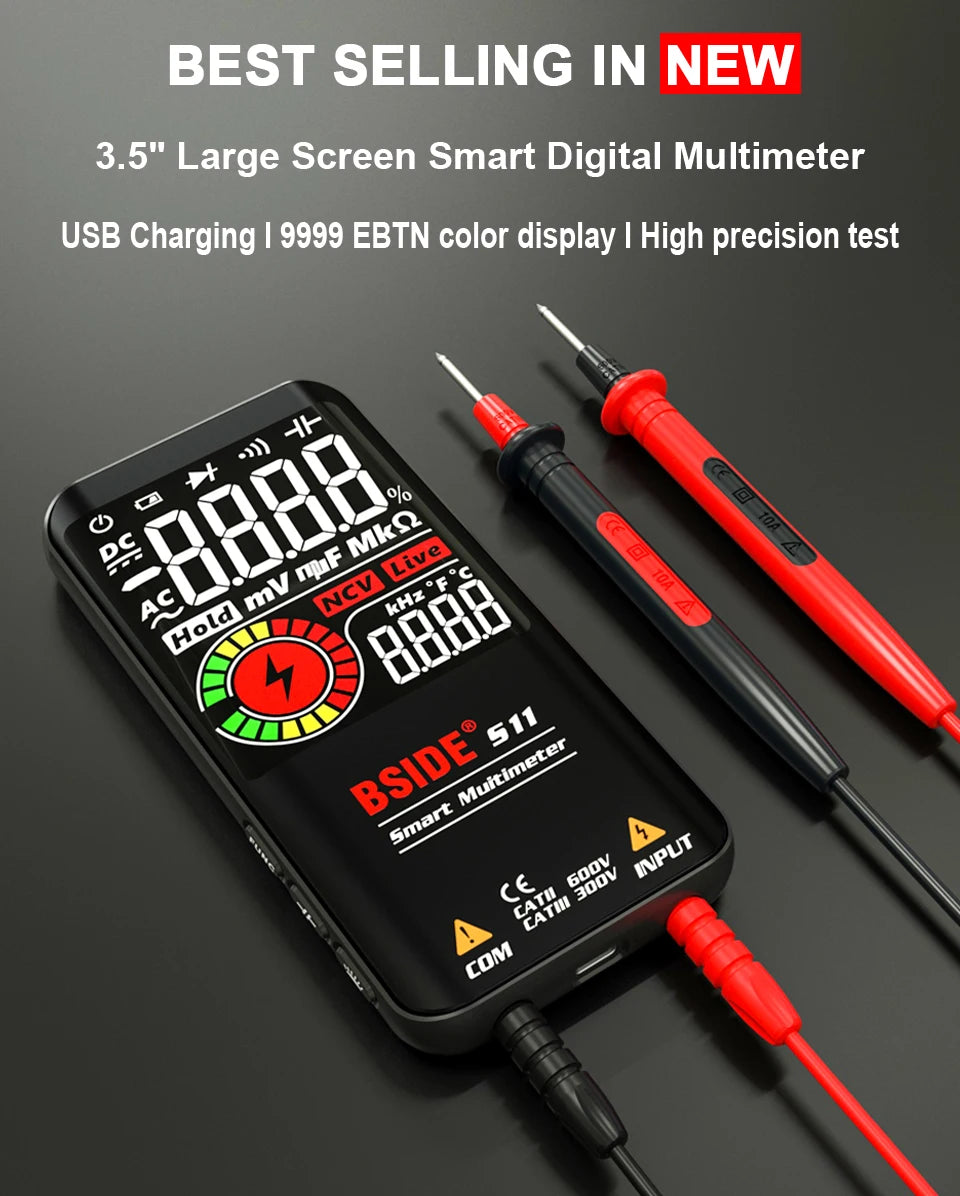

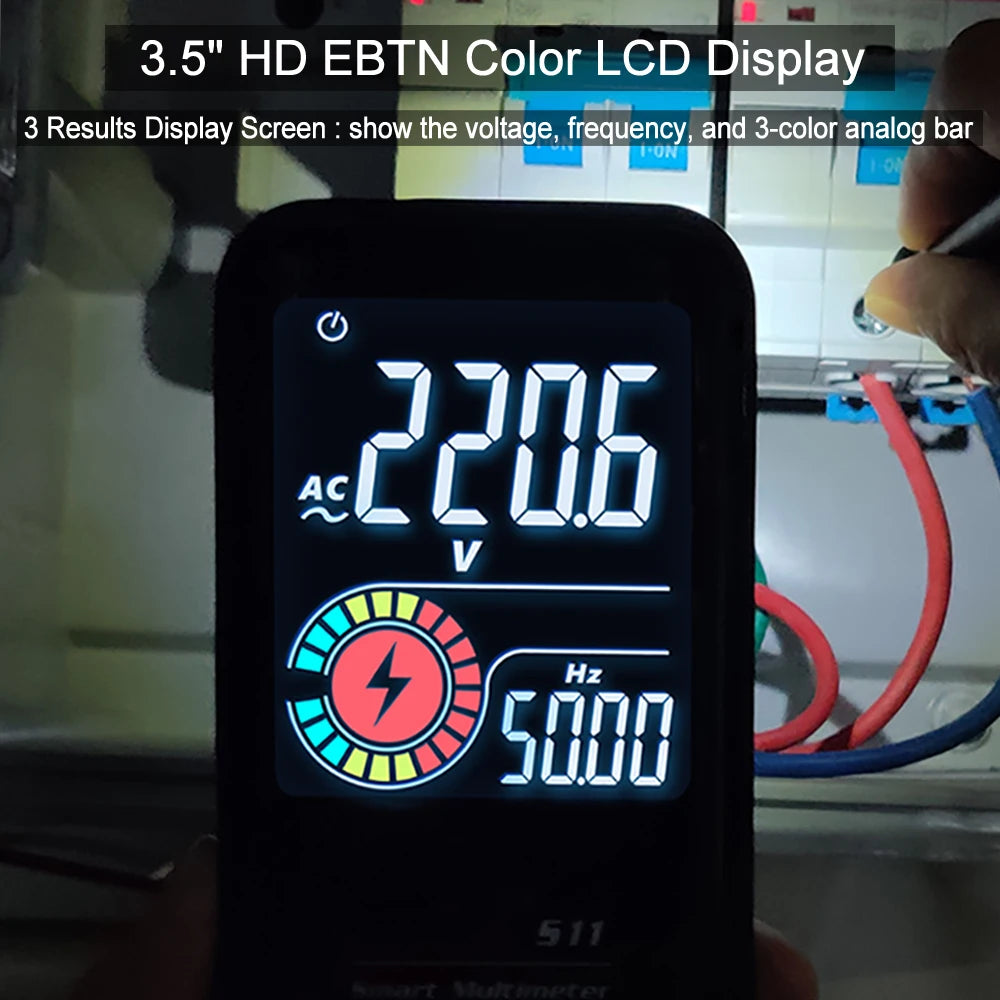

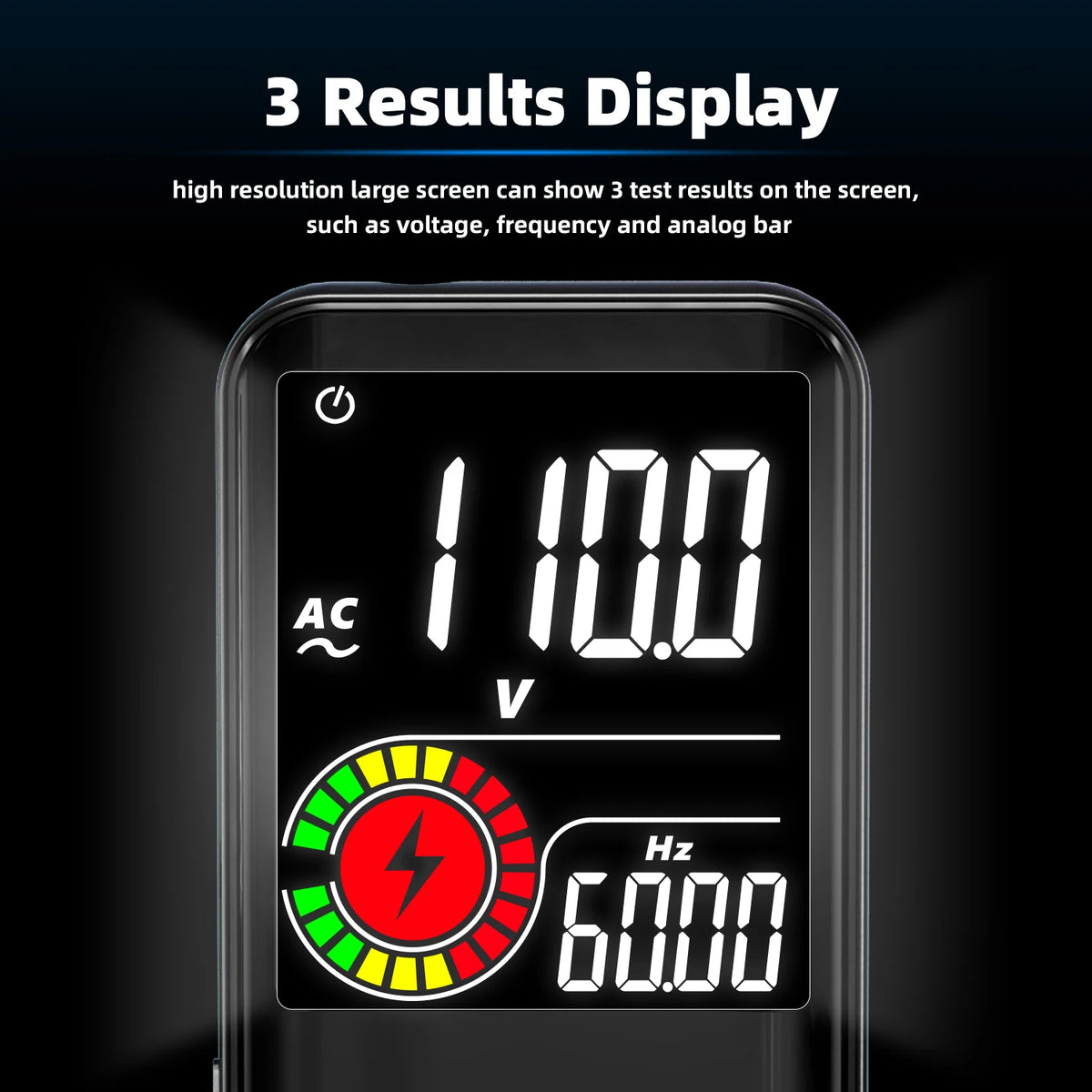

Upgraded version - 3.5'' large screen high-definition EBTN display
No visual limitations/Solve industry pain points.

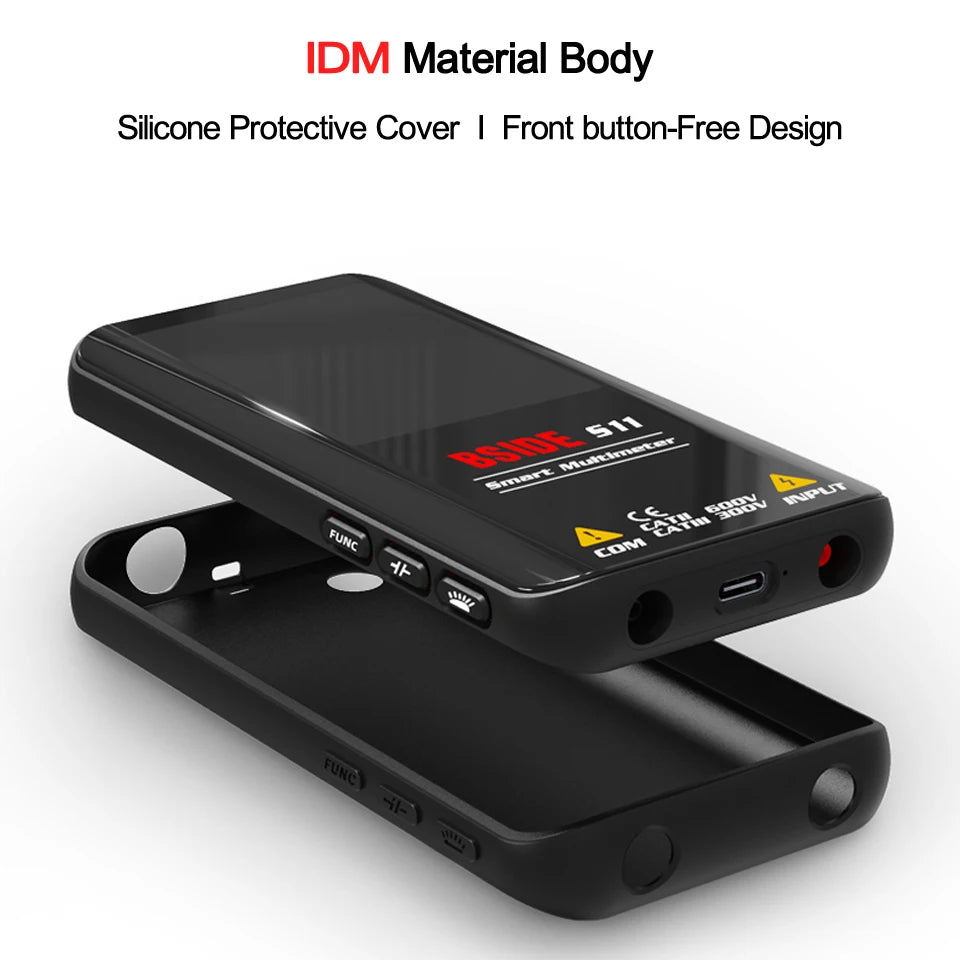

IDM Material Body.

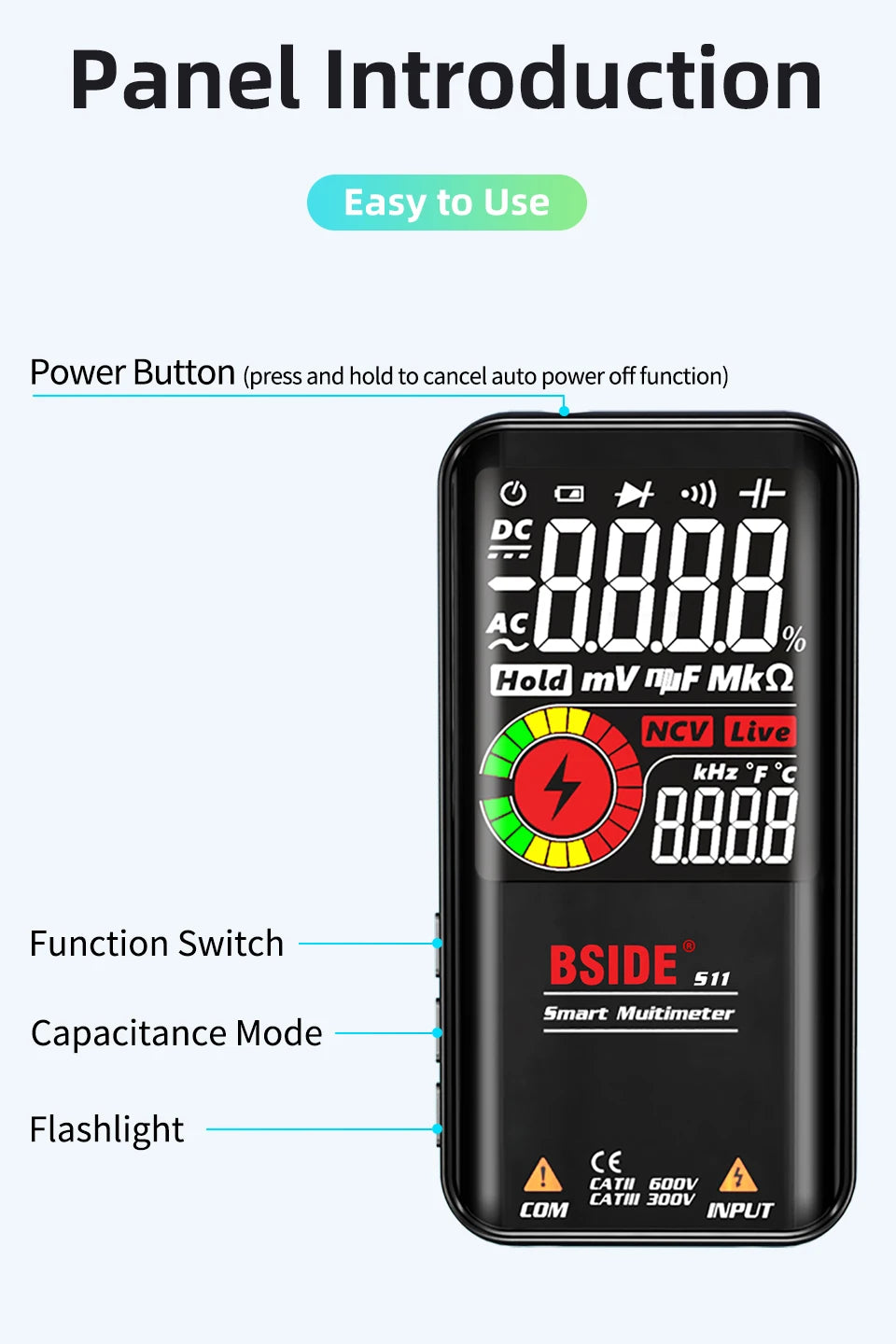

Silicone Protective Cover/Front button-Free Design.

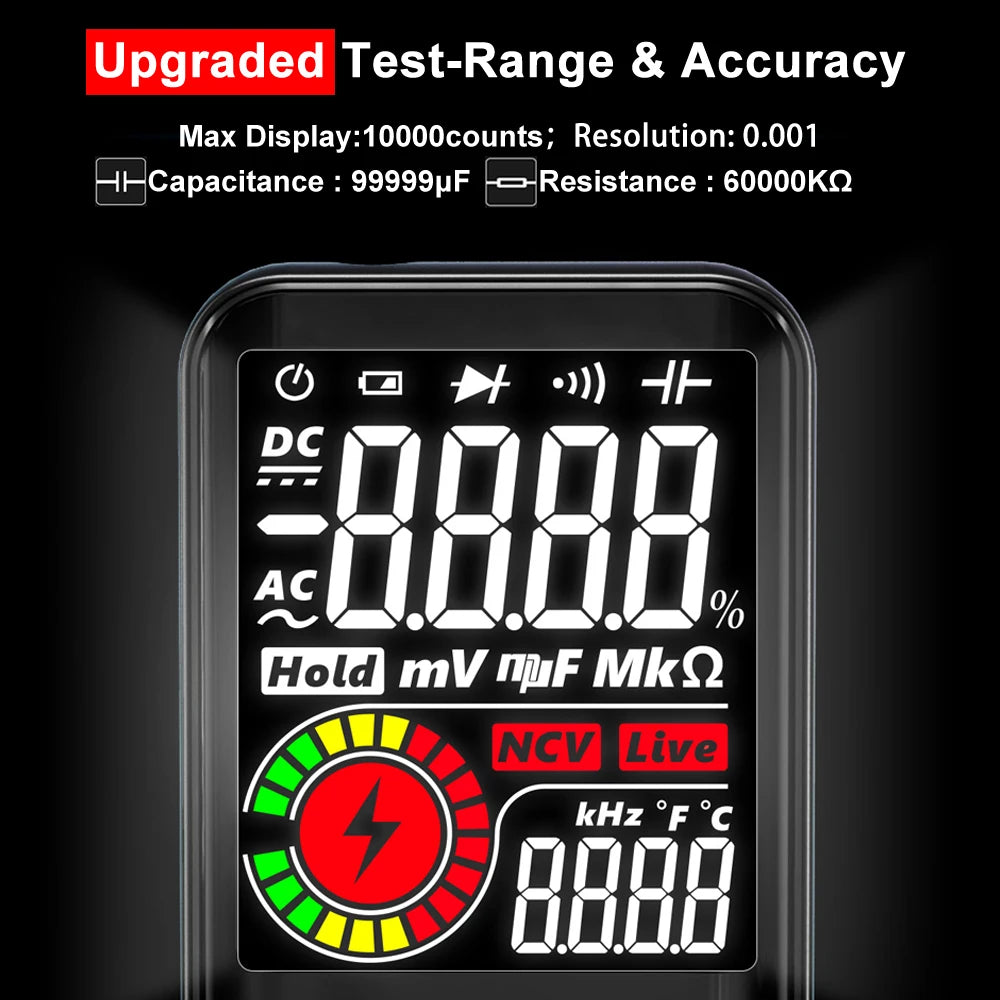

Specifications:

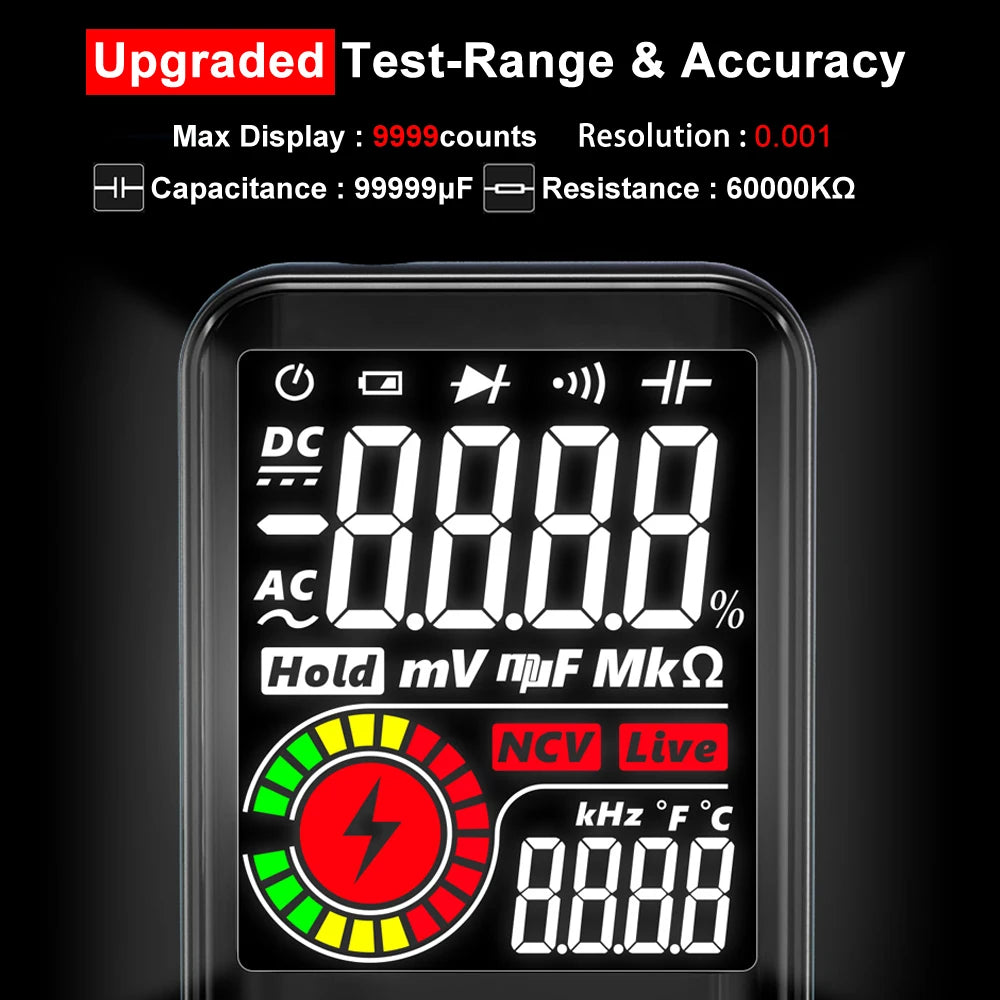

Display: 9999 counts.
Screen: 3.5 inch.
DC Voltage: 0-620V ±(0.5%+3); Resolution: 0.001V.
AC Voltage: 0-620V ±(0.5%+5); Resolution: 0.001V.
Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

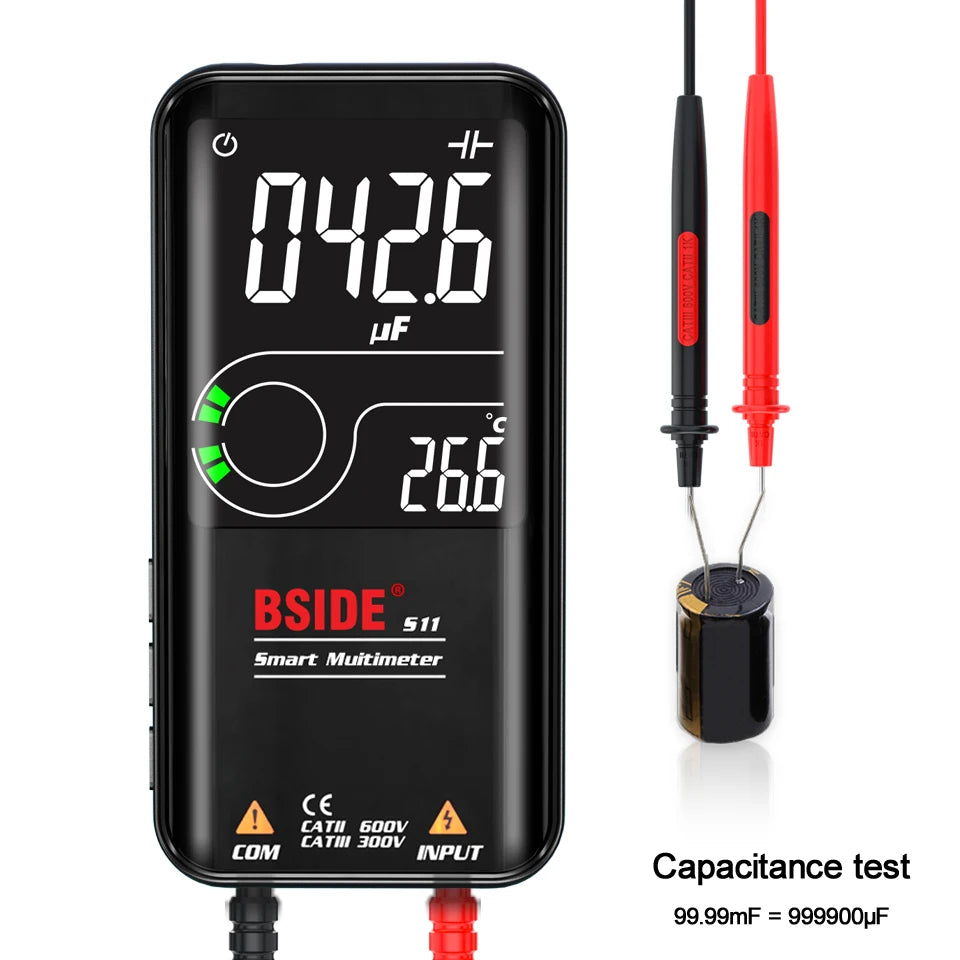

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.
Diode: Auto identify diode if less than 3.0V.

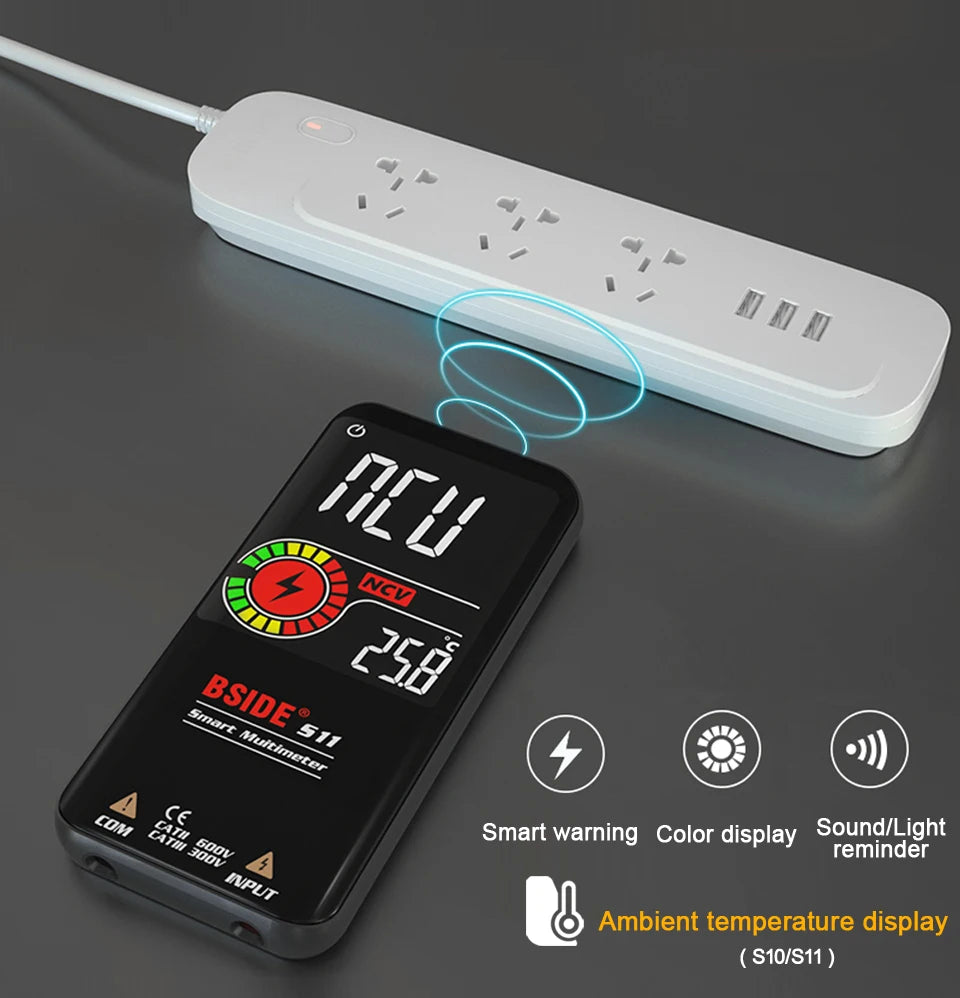

V-Alert(non-contact voltage detection): beep alarm sounds.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 30Ω, the beeper sounds.

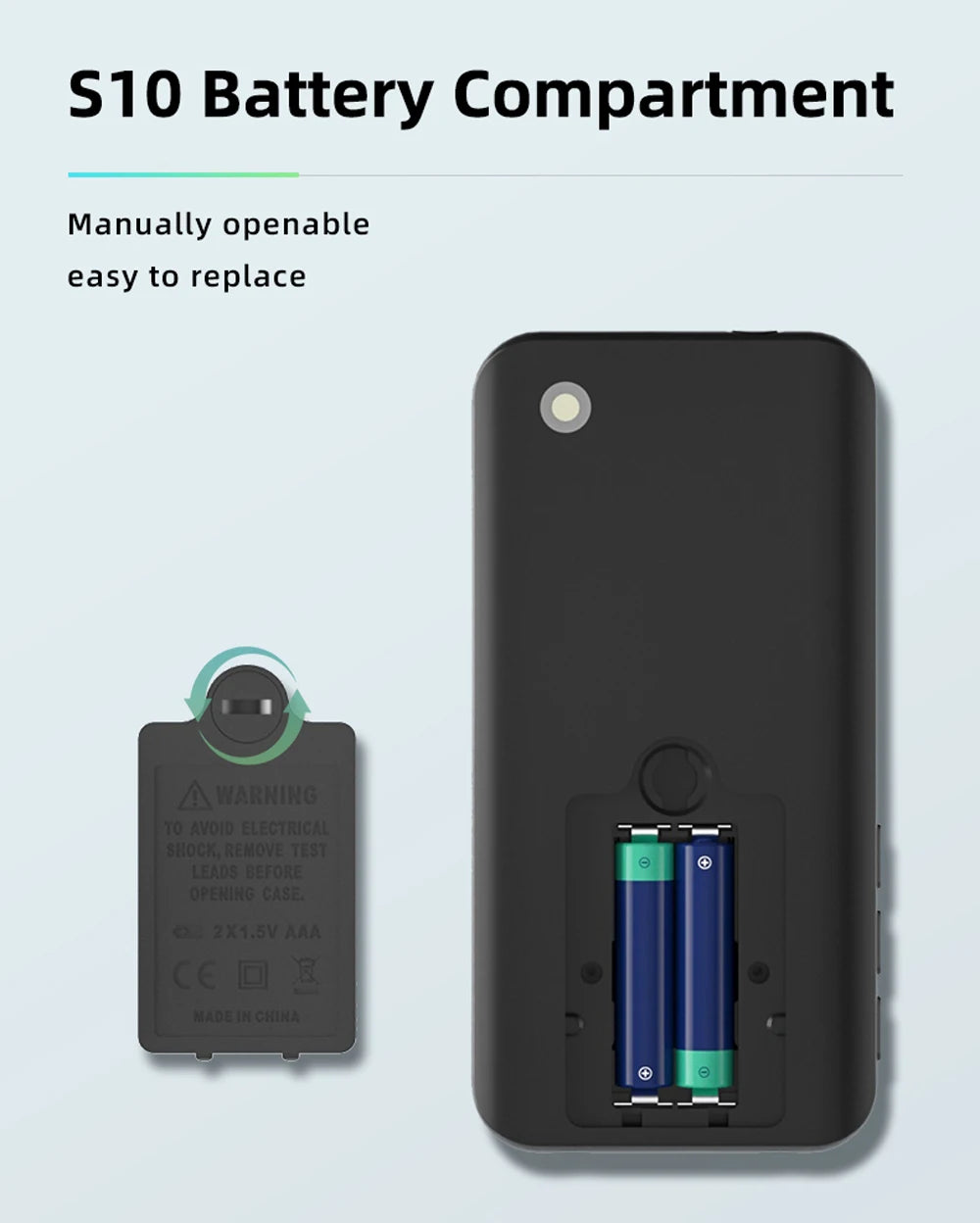

S10 Power: 1.5V (AAA) x 2.
S11 Power: Built-in rechargeable lithium battery.
Package Size: 147*85*42mm.
Package Weight: 180g

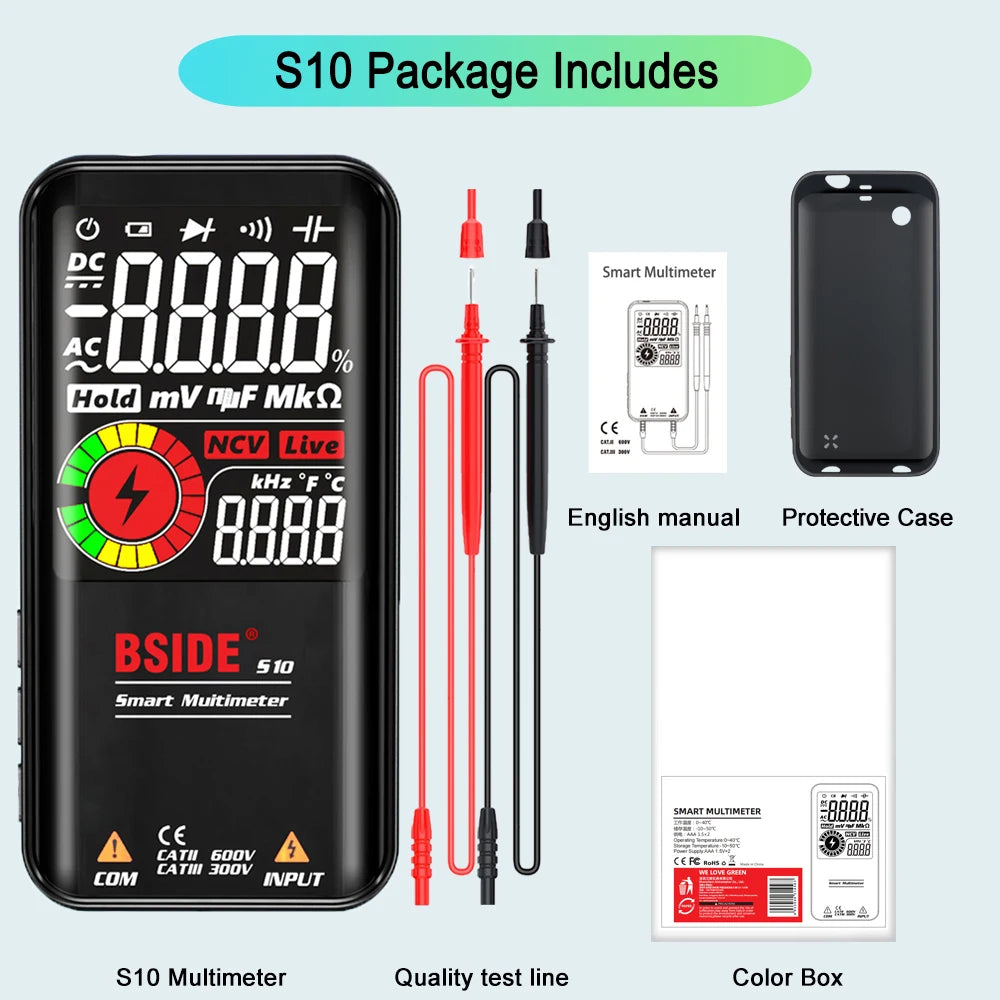

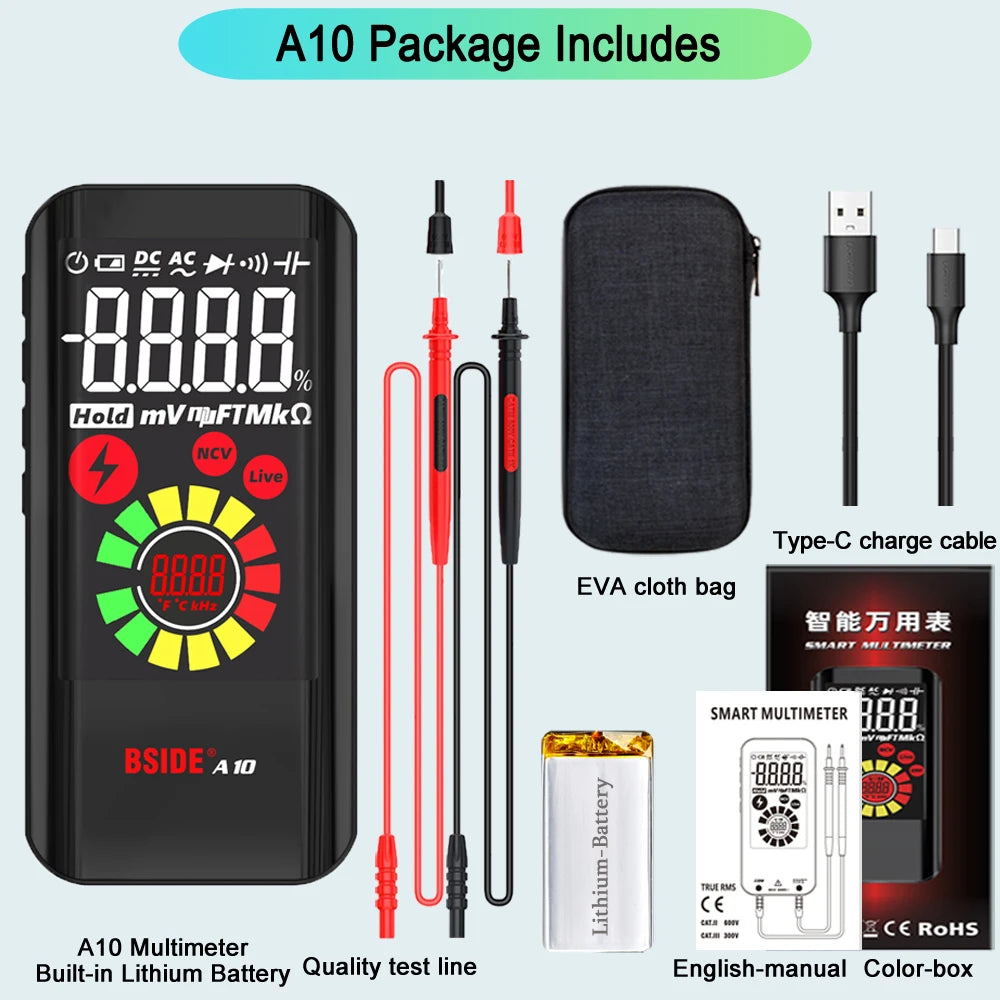

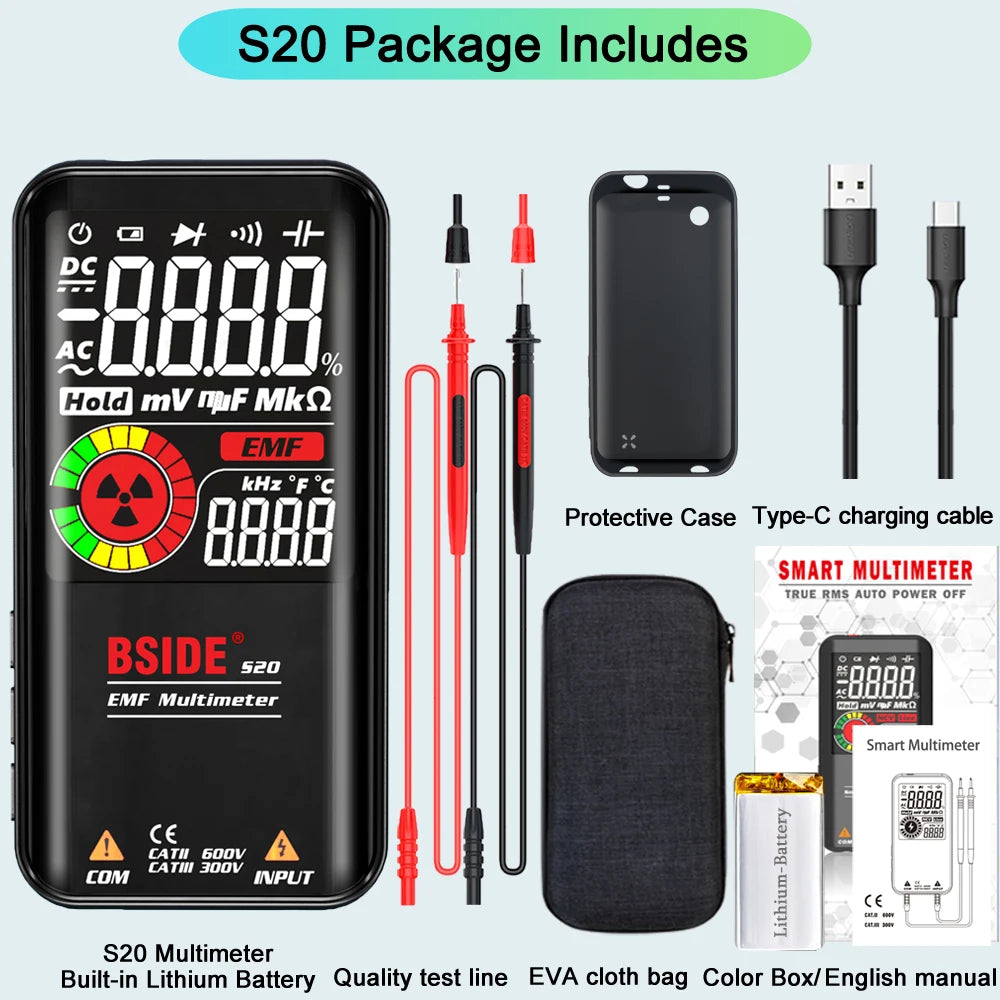

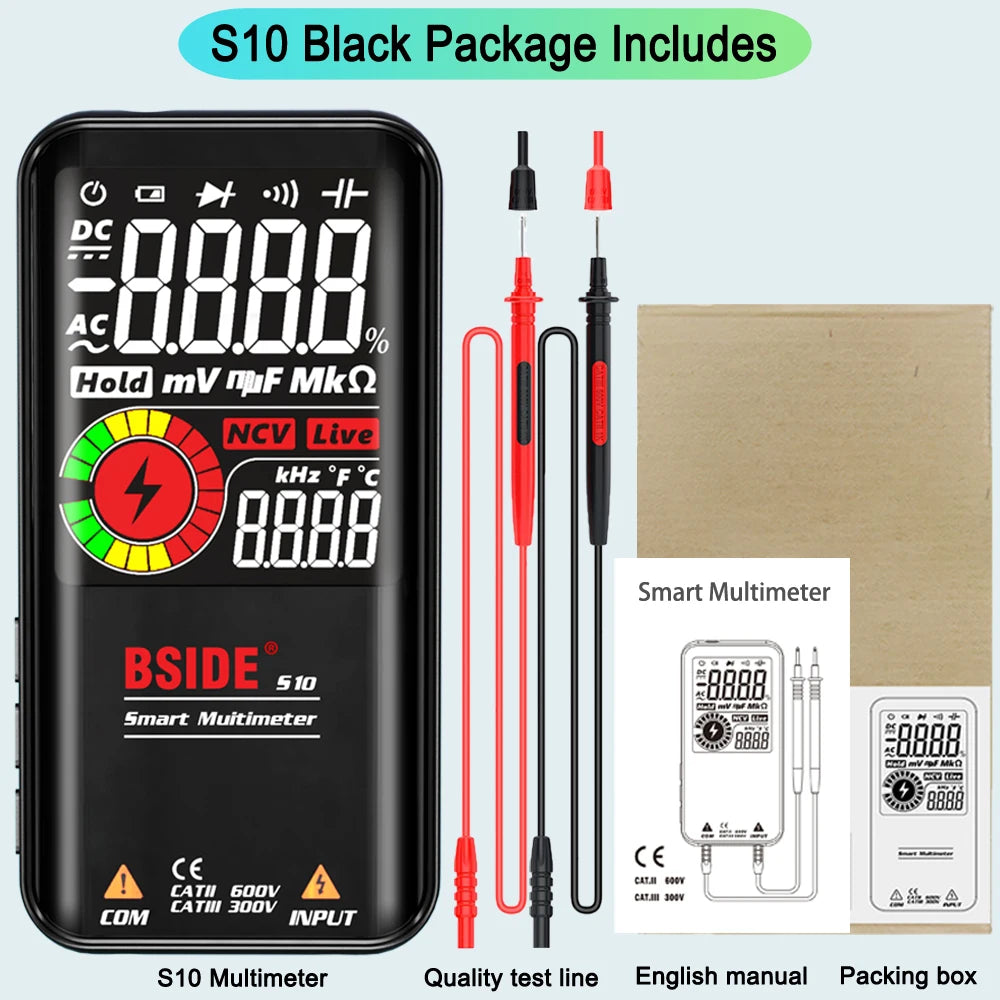

Package Includes:
1 * Multimeter. 1 * Test Lead. 1 * English user Manual. 1 * Packing Box.
1 * Protective shell.（S11/S20） 1 * USB charging cable.（A10/S11/S20）
1 * EVA portable cloth bag.（A10/S11/S20）
