SPECIFICATIONS

Brand Name: Aideepen

Choice: yes

EAN Code: Buck Converter

Feature: DC-DC step-down power supply module 3A adjustable step-down module

High-concerned chemical: none

Model Number: DC-DC

Origin: Mainland China

Output Current: 3A MAX

Output Frequency: Buck Converter

Output Type: SINGLE

Product Name: DC-DC Buck Converter Step Power Supply Module

Size: Mini Buck Converter

Type: DC/DC Converters,5V 12V 3A Voltage Regulator,Step Down Buck Converter Power module

Weight: Mini Buck Converter

is_customized: Yes

Features：

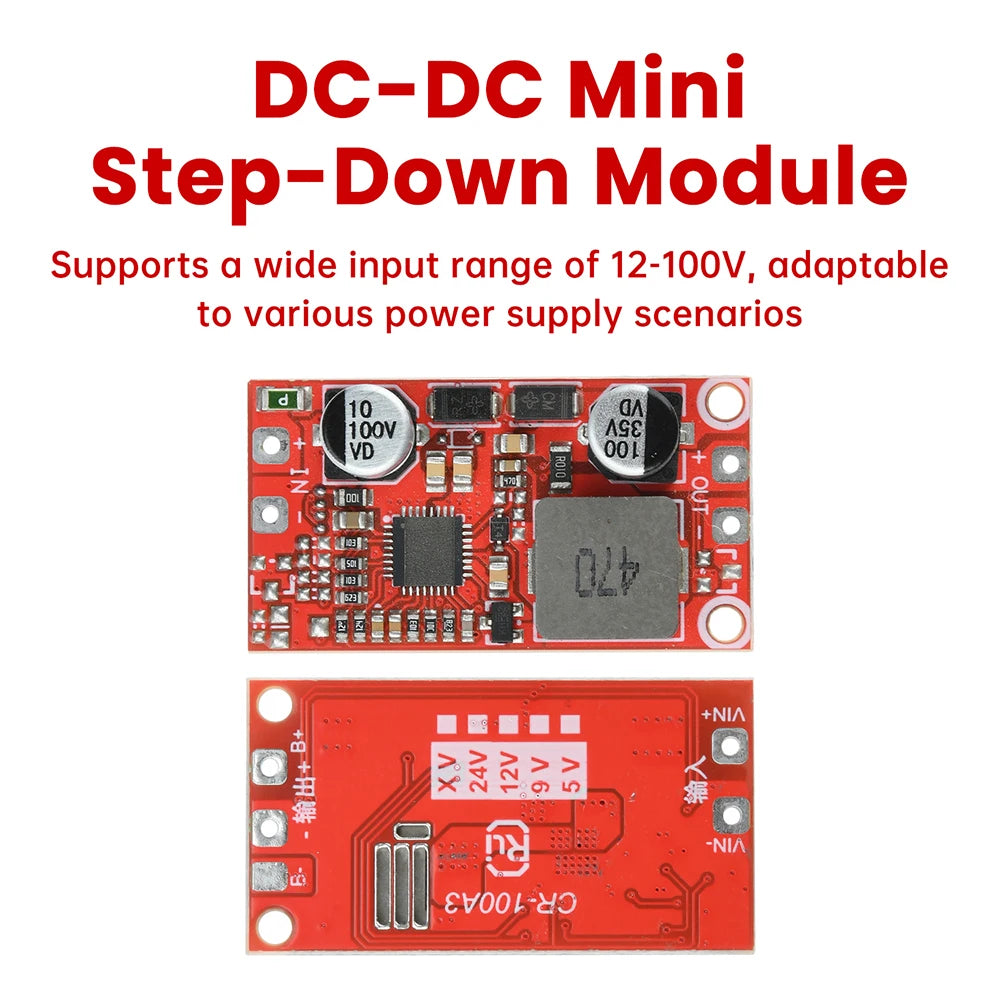

1. Wide Input Voltage: Supports 12-100V wide-range input, suitable for diverse power scenarios

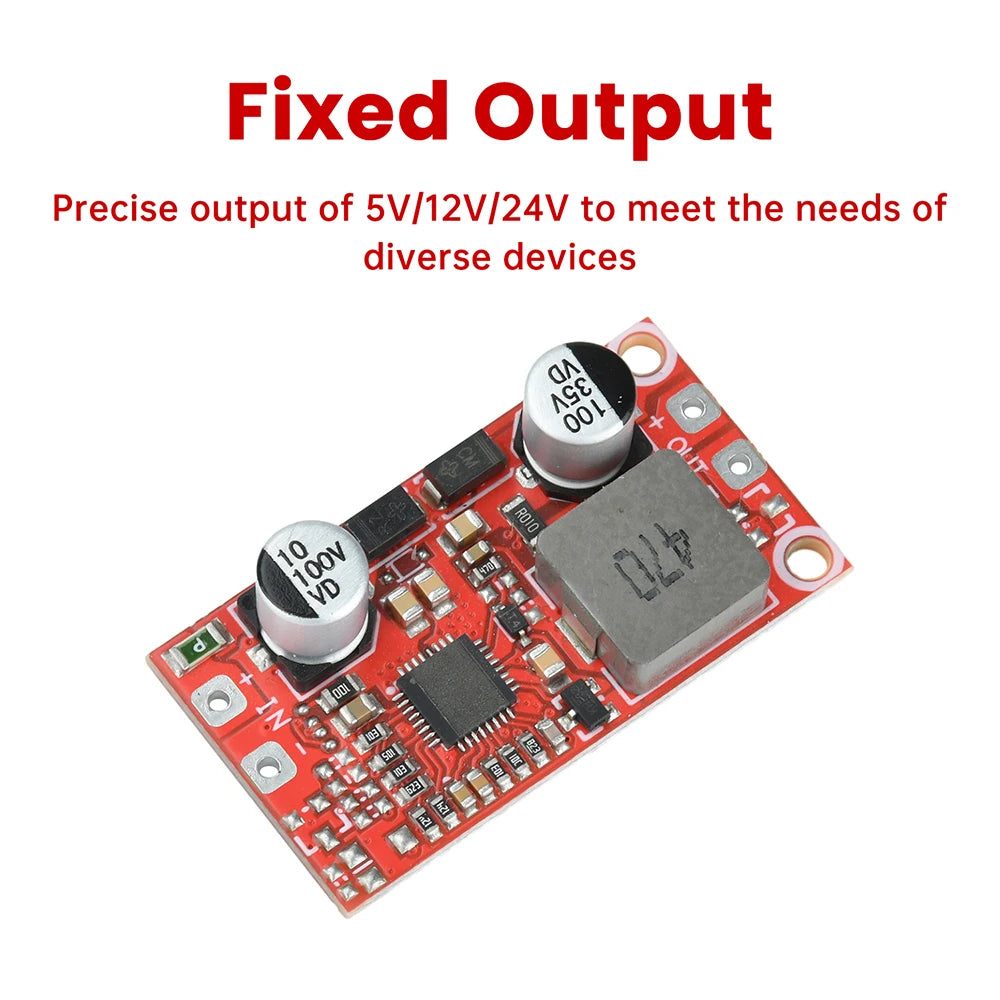

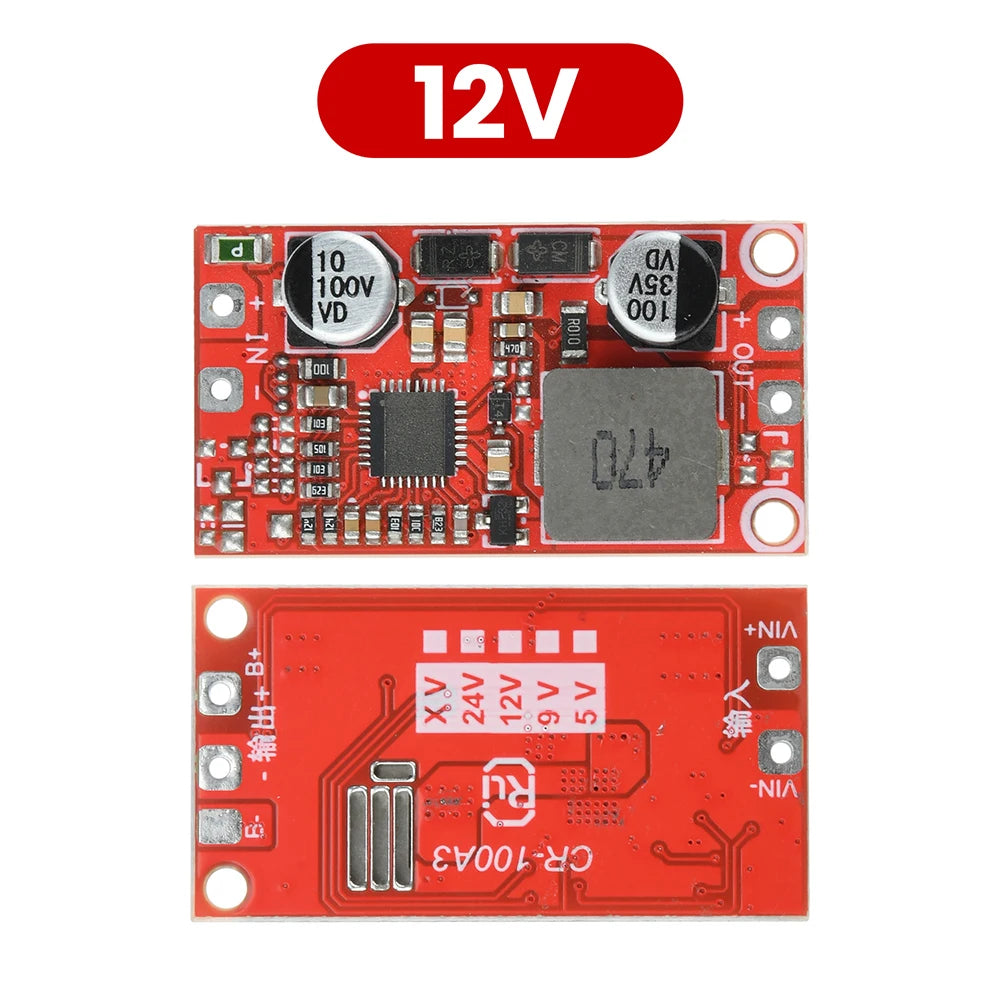

2. Fixed Output: Precisely outputs 5V/12V/24V to meet varied device requirements

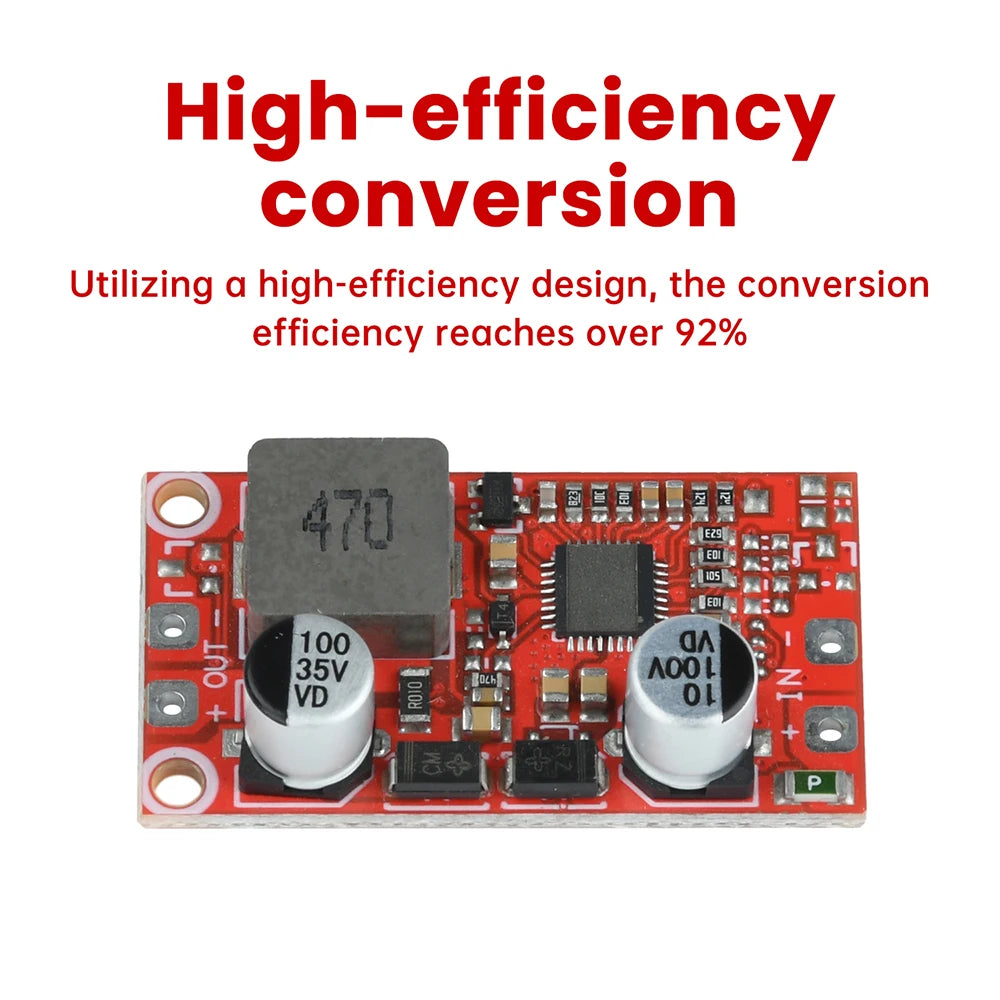

3. High-Efficiency Conversion: Utilizes efficient design with conversion efficiency exceeding 92%

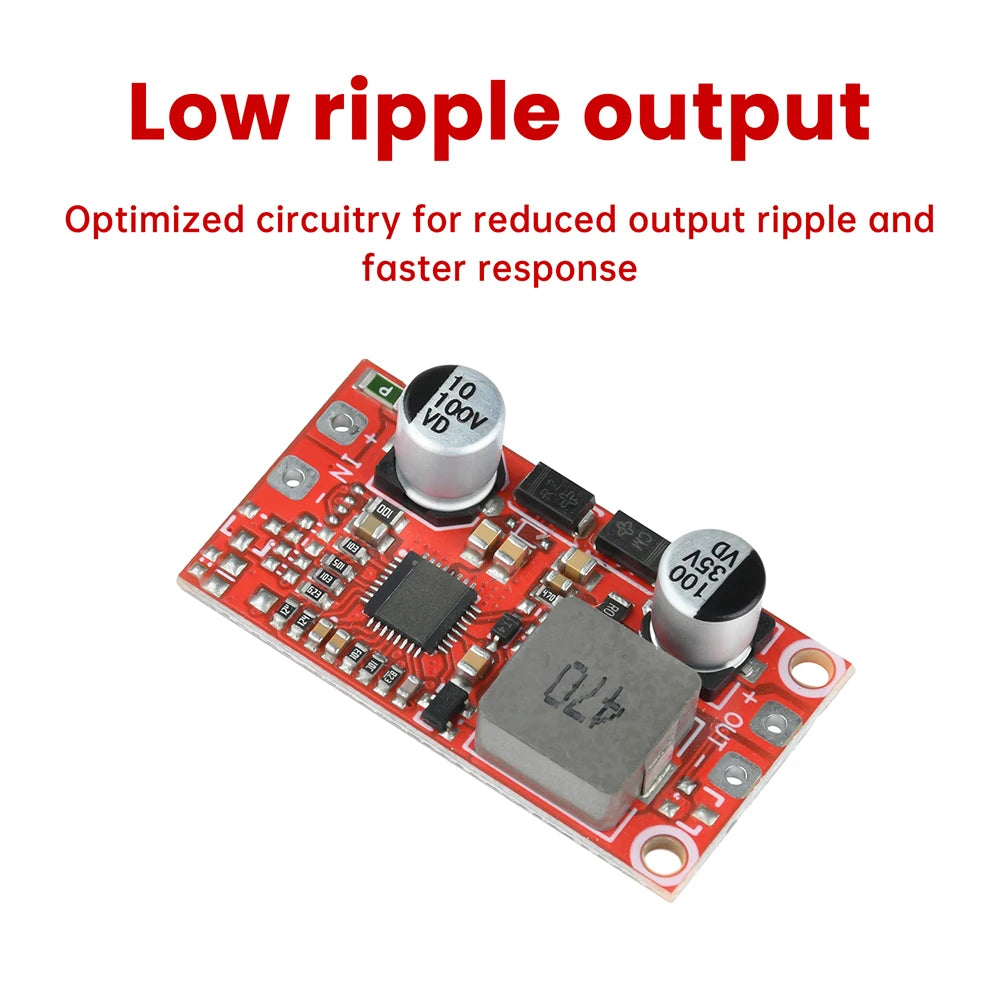

4. Low-Ripple Output: Optimized circuitry reduces output ripple for faster response

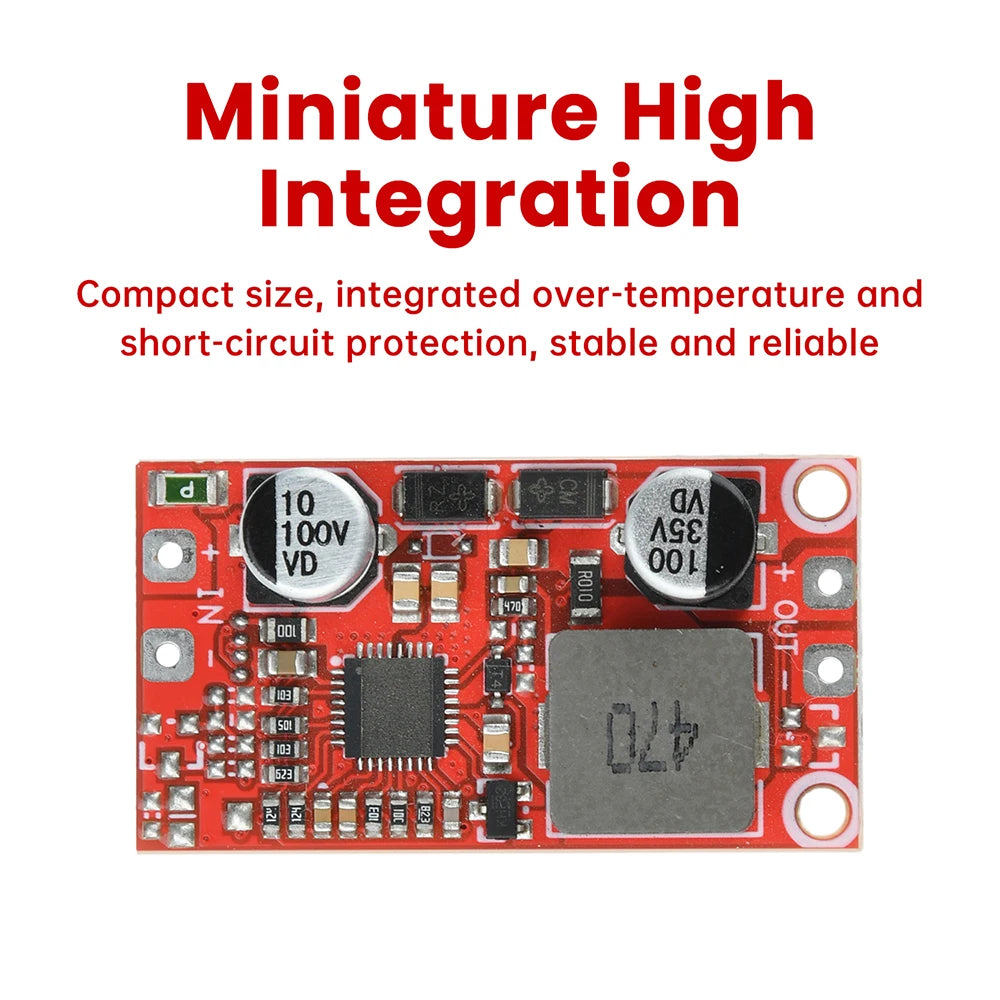

5. Miniature High-Integration: Compact size with integrated over-temperature and short-circuit protection for stable reliability

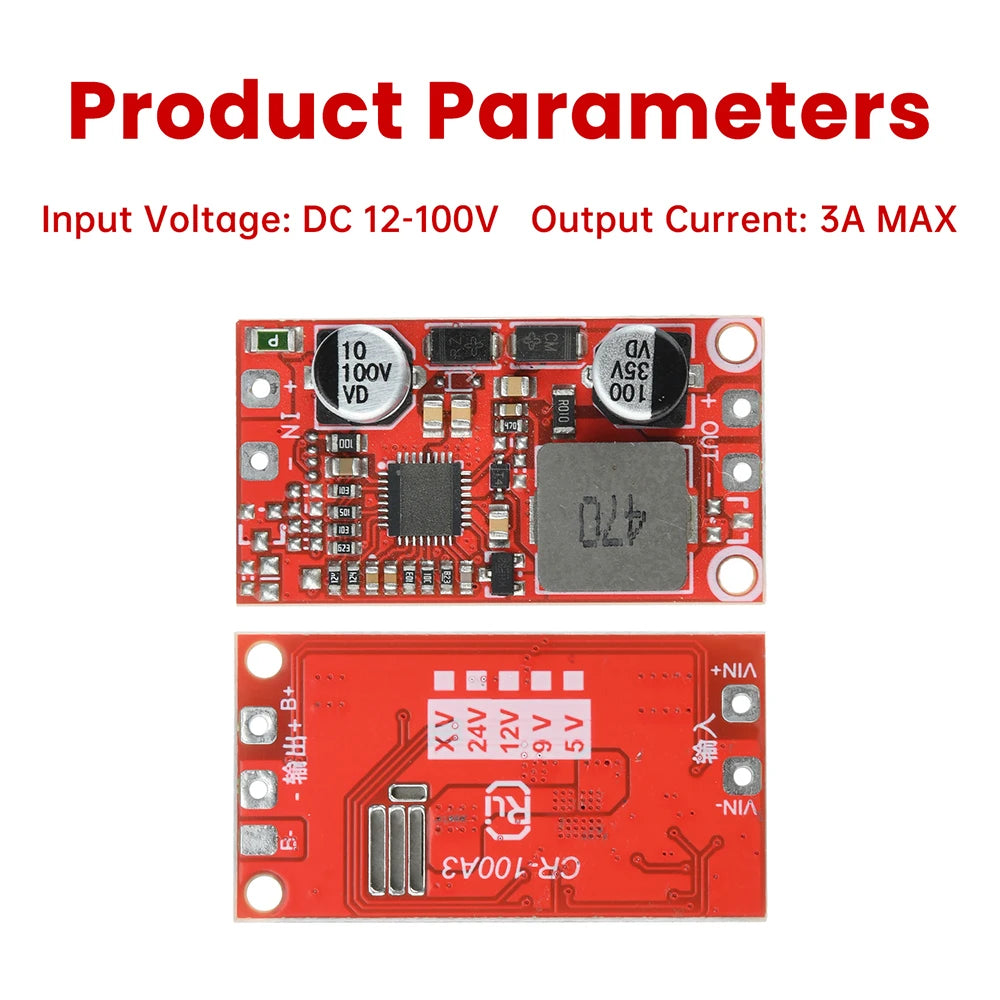

Specifications：

Input Voltage: DC 12-100V

Output Current: 3A MAX

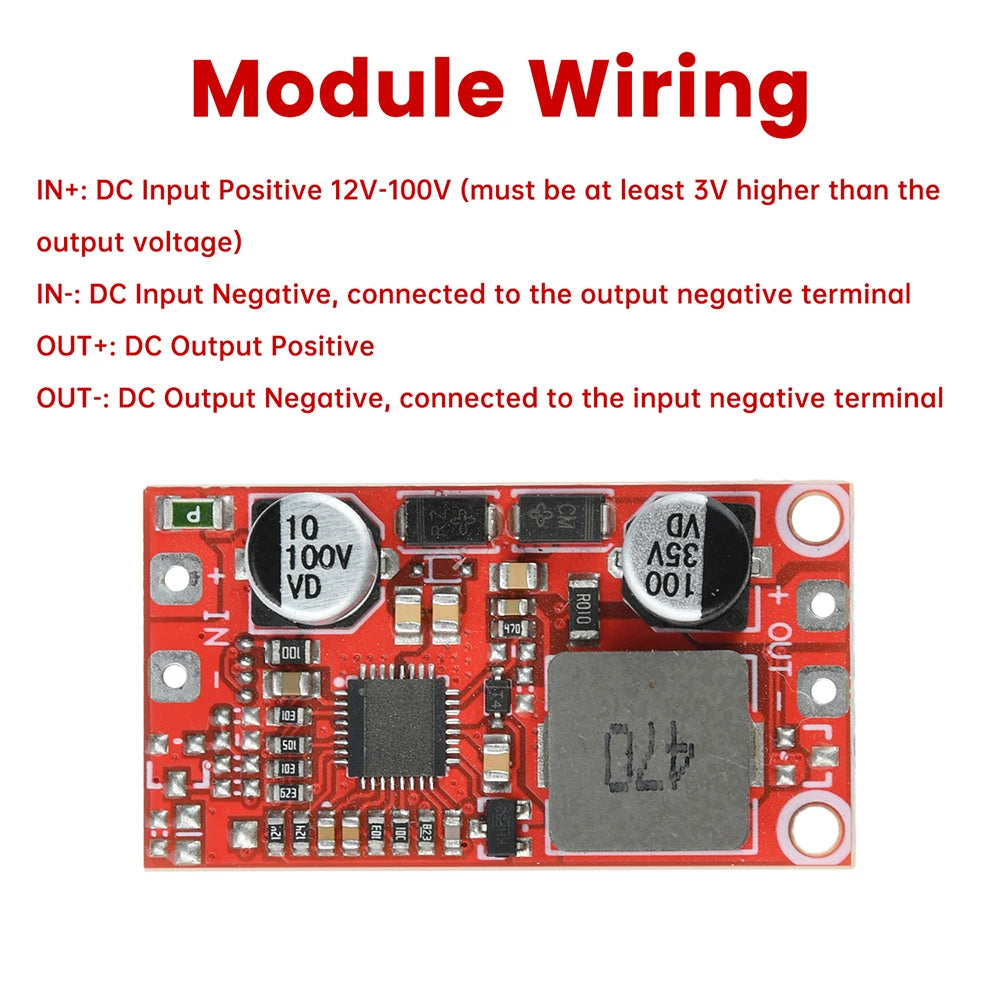

Module Wiring：

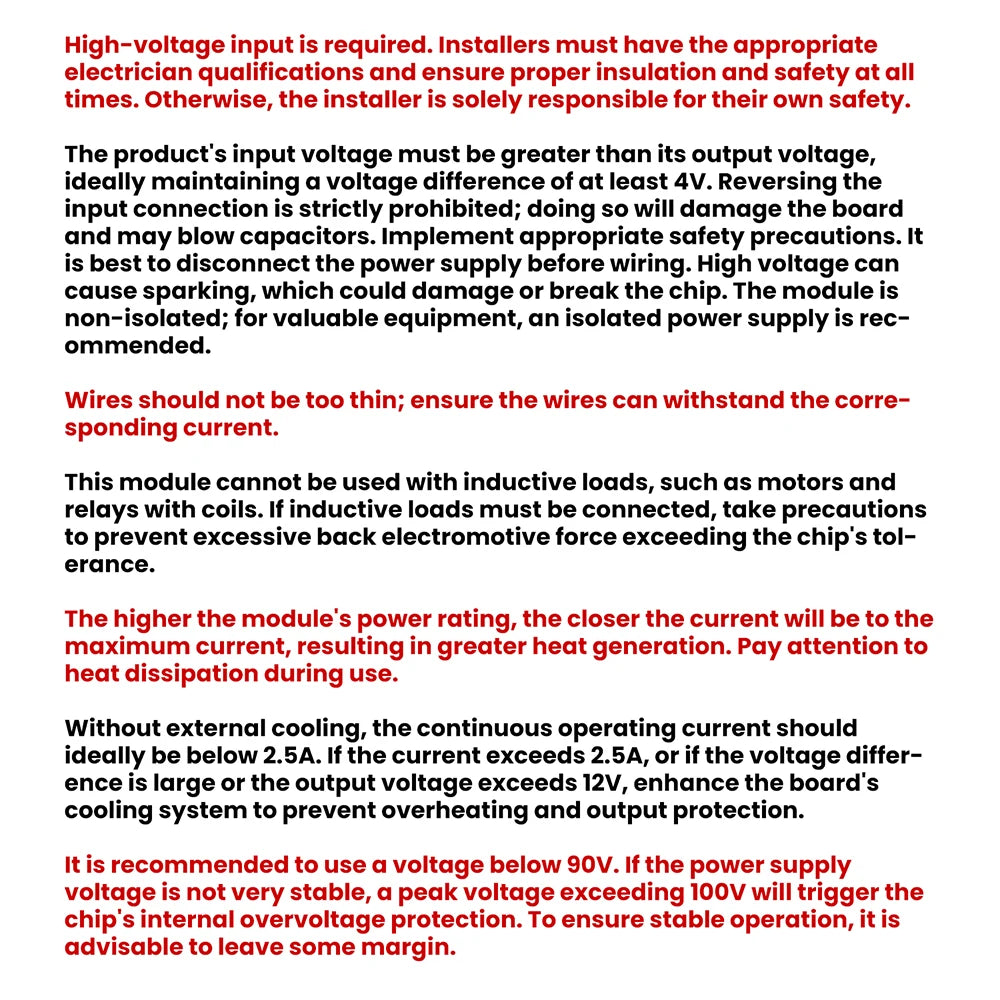

IN+: DC input positive terminal 12V-100V (must exceed output voltage by at least 3V)

IN-: DC input negative terminal, connected to output negative terminal

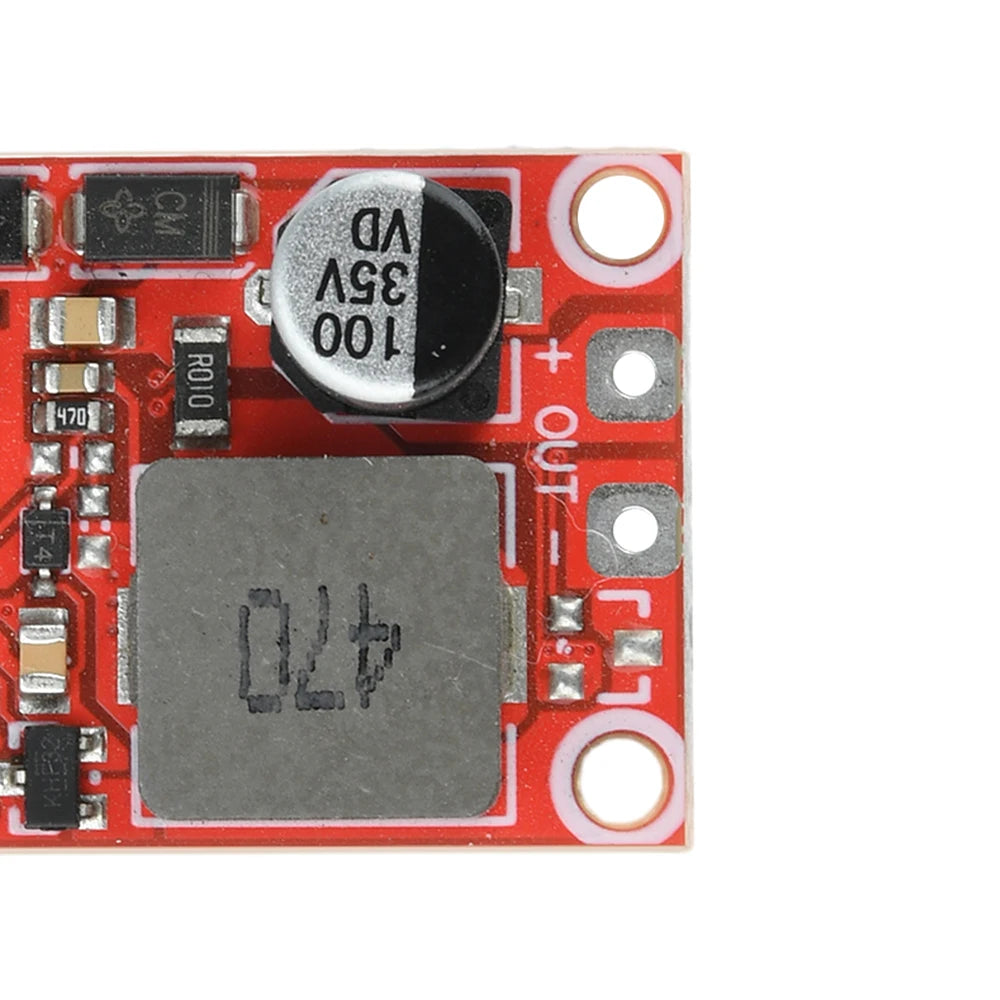

OUT+: DC output positive terminal

OUT-: DC output negative terminal, connected to input negative terminal

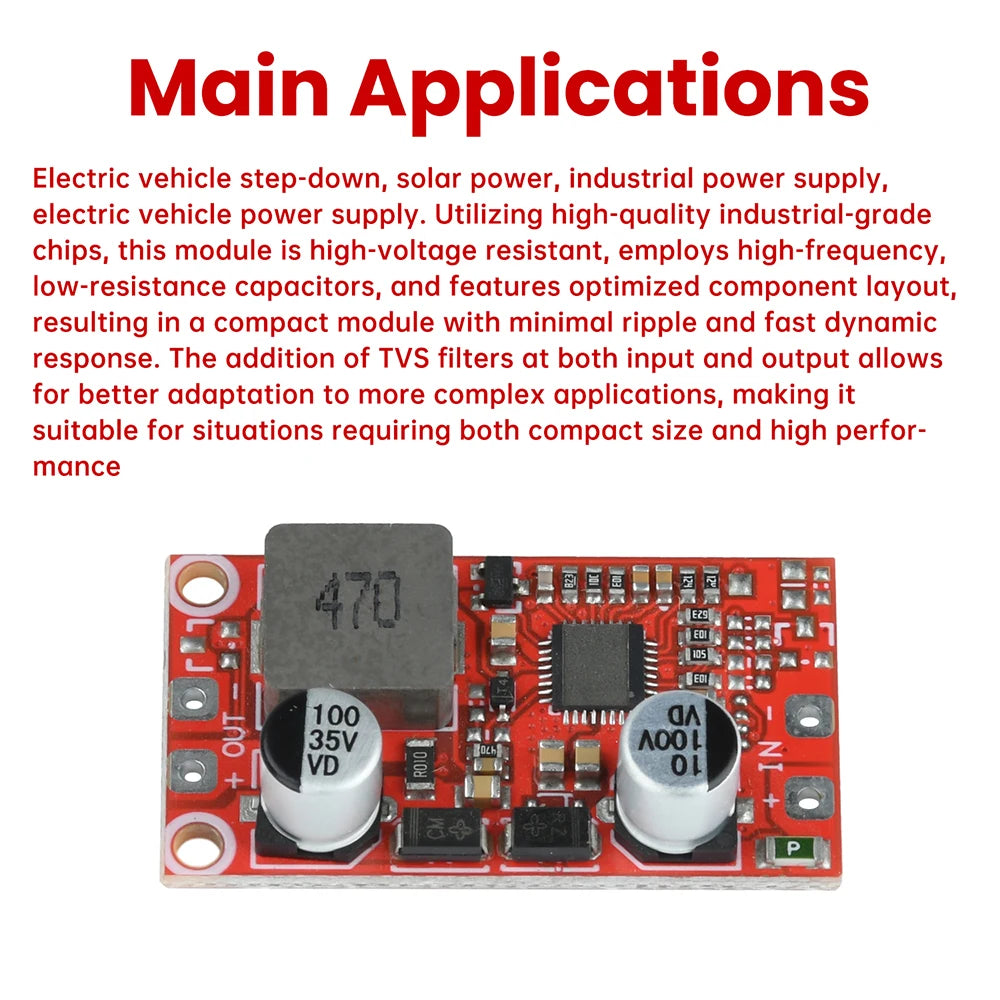

Primary Applications：

Electric vehicle voltage reduction, solar power, industrial power supply, electric vehicle power source

Features industrial-grade superior chips with high-voltage tolerance, high-frequency low-resistance capacitors, and optimized component layout. Achieves low ripple in a compact form factor with fast output dynamic response. Incorporates TVS protection on both input/output, enabling adaptation to complex applications. Ideal for scenarios demanding compact size and high-performance power solutions.

Package list:

Module*1
