SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Compatible Audio & Video Equipment Style: Amplifier

Electronic: Yes

High-concerned chemical: none

Origin: Mainland China

Specification 1: BW16 Development board

Specification 2: BW16 bluetooth module

Specification 3: BW16 module

Specification 4: BW16 KIT

Specification 5: BW16

Type: IR

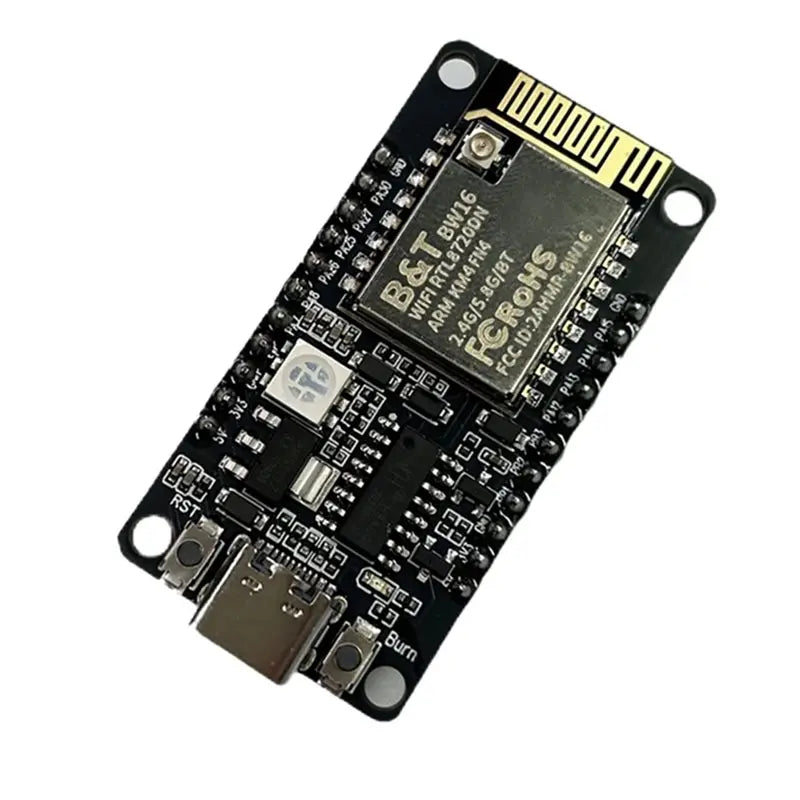

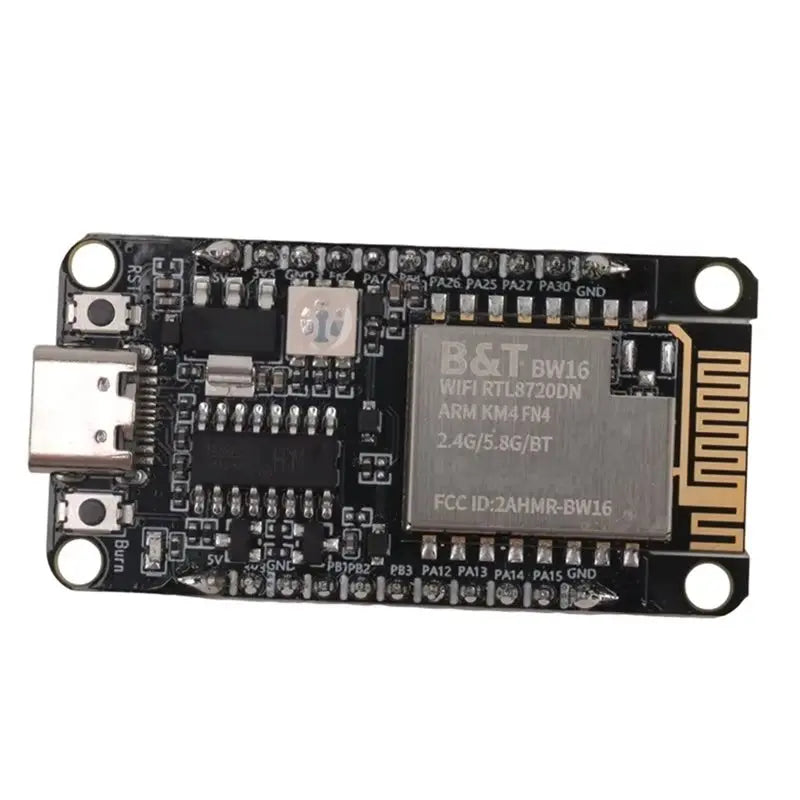

BW16 Bluetooth Module Dual-Band Wifi & BLE 5.0 Iot Board RTL8720DN Nodemcu Serial Port To Wifi

Characteristic

Supports 802.11a/B/g/n,2.4GHz or 5GHz.

Support HT20 and HT40 mode.

Supports low-power Beacon listening mode, low-power receiver mode, and low-power suspension mode.

Built-in AES / DES / SHA hardware engine.

Supports TrustZone-M and secure startup.

Support SWD to debug port access protection and disable mode.

BLE 5.0 is supported.

Bluetooth supports high power mode (7dBm, sharing the same PA with Wi-Fi).

Wi-Fi and Bluetooth share the same antenna.

Supports the STA/AP/STA + AP operation mode.

Simple Config (apps) that support Android and IOS Wi-Fi one-click Network allocation.

Supports Bluetooth-assisted network distribution.

Supports local serial port upgrades and remote firmware upgrades (FOTA).

Supports secondary development and programming in Linux and Windowenvironments.

Supports Arduino development.
Color: Black
Material: Plastic+Metal

Package Contents:
1*BW16 module
1*Antenna
1*cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
