Description

SPECIFICATIONS

Brand Name: NONE

Cable Sleeve Material: TPU / PVC

Certification: CE,FCC,RoHS,UL

Choice: yes

Contact Plating: Gold Plated (Au)

Contact Resistance: ≤5mΩ

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Housing Material: Nickel-Plated Brass

Ingress Protection Rating: IP67 Dustproof & Waterproof

Insulation Resistance: ≥100MΩ

Item Model: M12-RJ45-Panel

M12 Coding Type: A-Code, D-Code, X-Code

M12 Connector Gender: Male Pin / Female Socket

Origin: Mainland China

Outlet Style: Straight Outlet, Angled Side Outlet

Pin Count: 4Pin, 8Pin

Product Name: M12 to RJ45 Panel Feedthrough Adapter

Temp Range: -40℃ ~ +85℃

Voltage: none

电压: 1V 2V 4V 5V 12V 12V 等或自定义

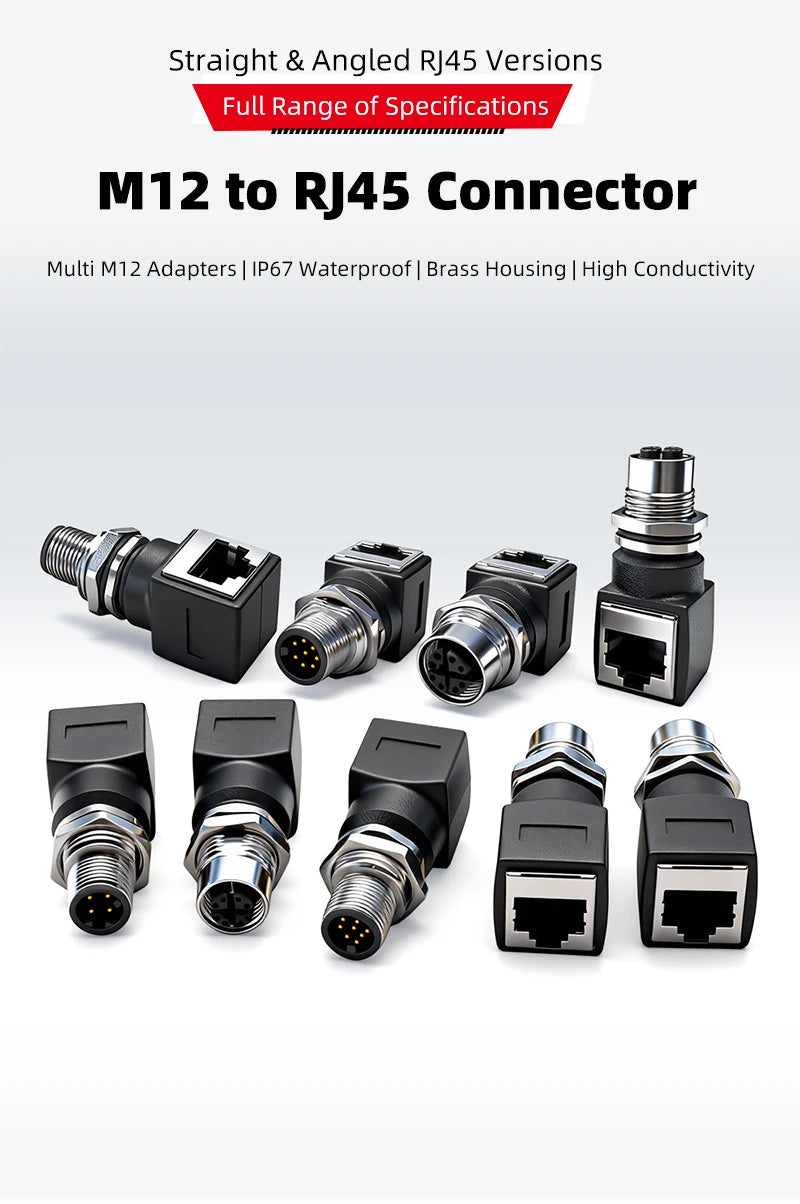

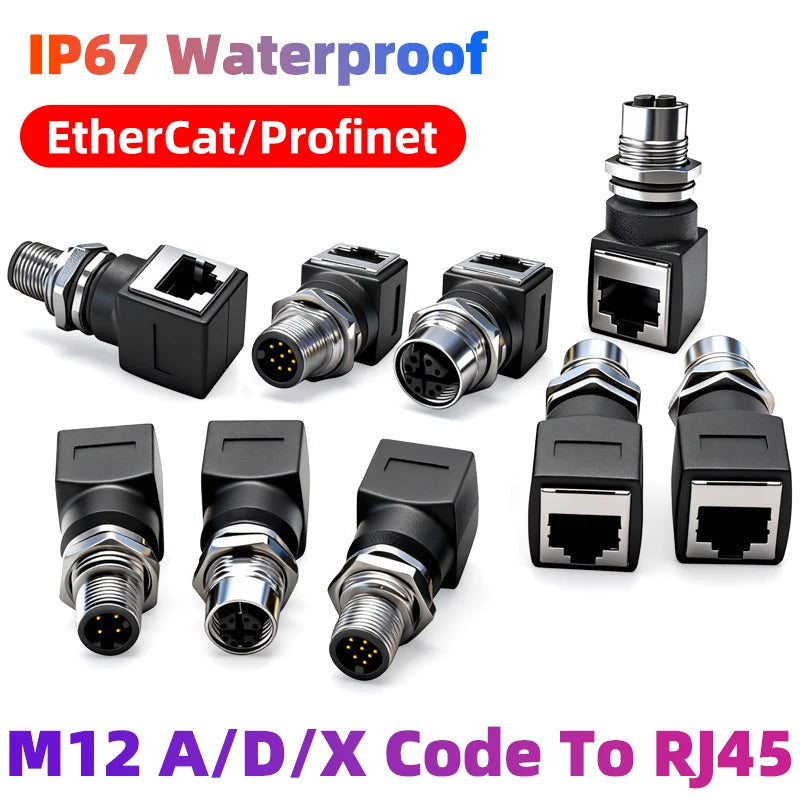

M12 to RJ45 Panel Mount Connector | Straight & Angled RJ45 Jack

Industrial Ethernet Adapter, IP67 Waterproof, A/D/X-Code 4Pin/8Pin In Stock
Full Range of Specifications, Small Batch Customization Available

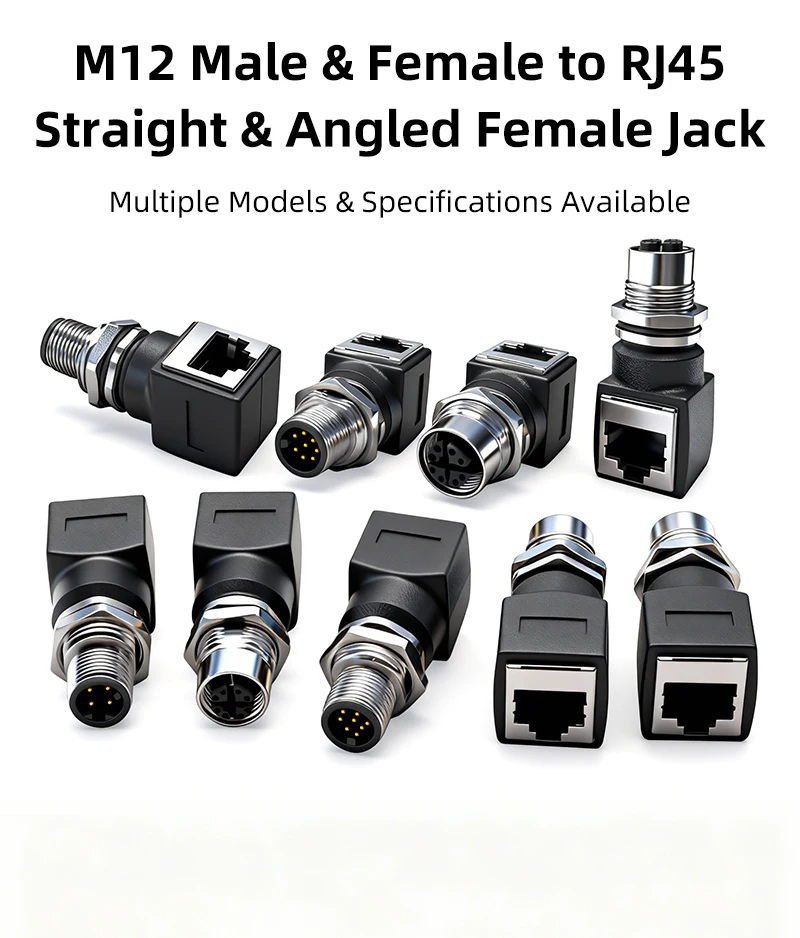

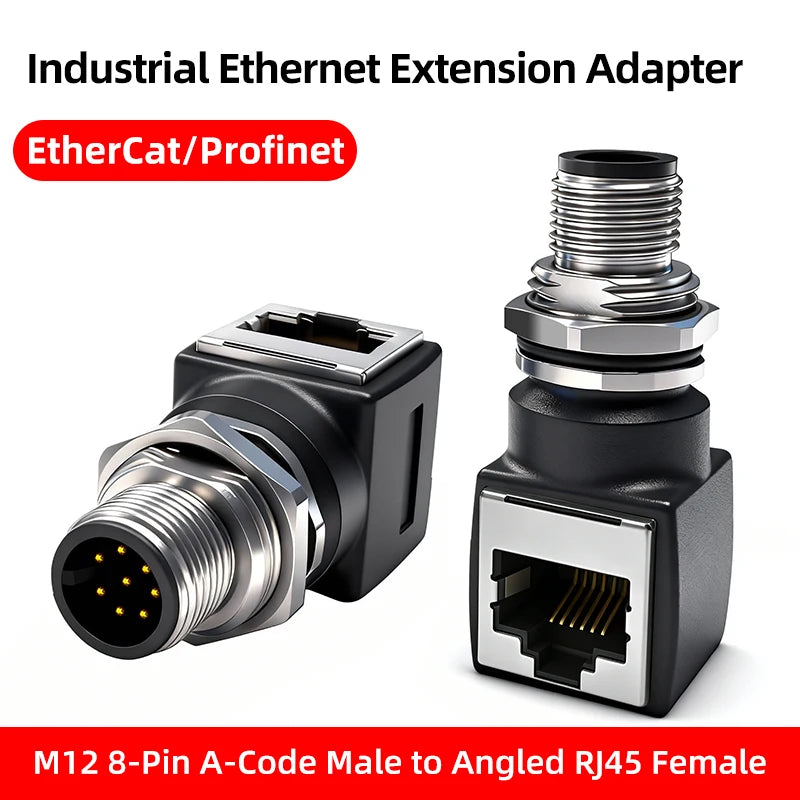

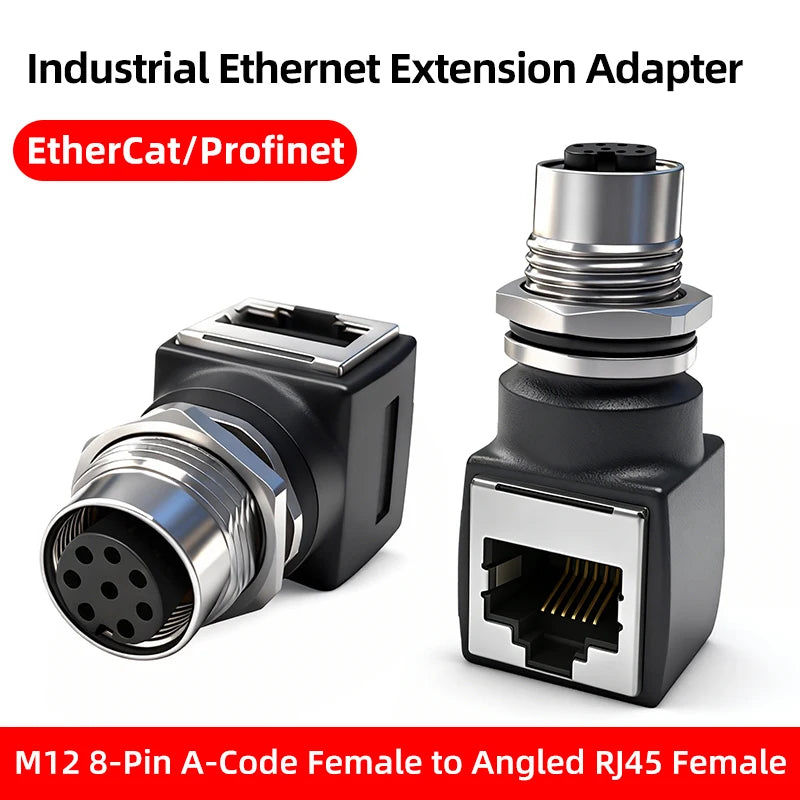

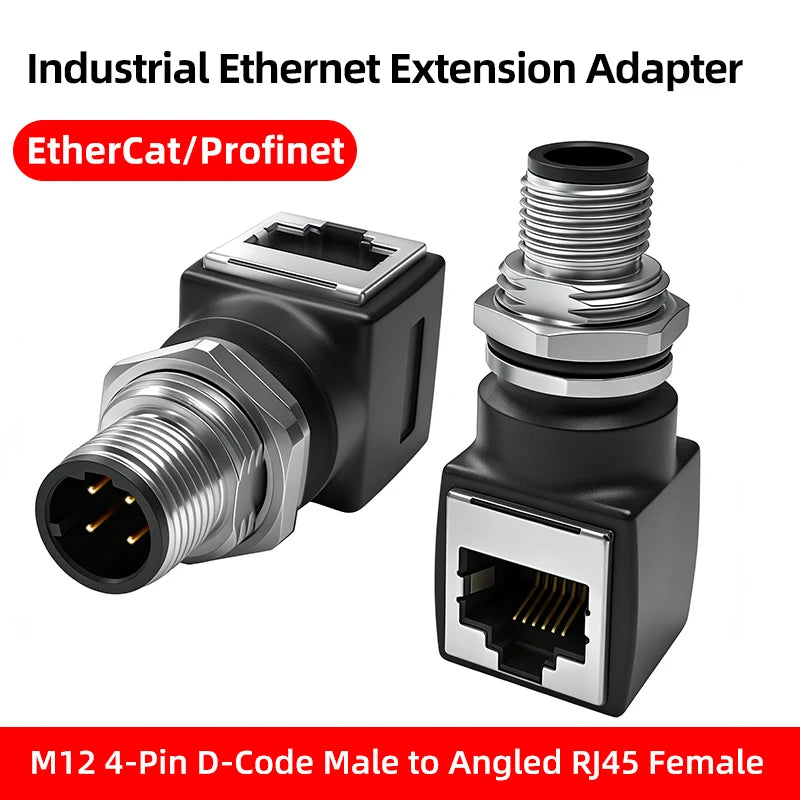

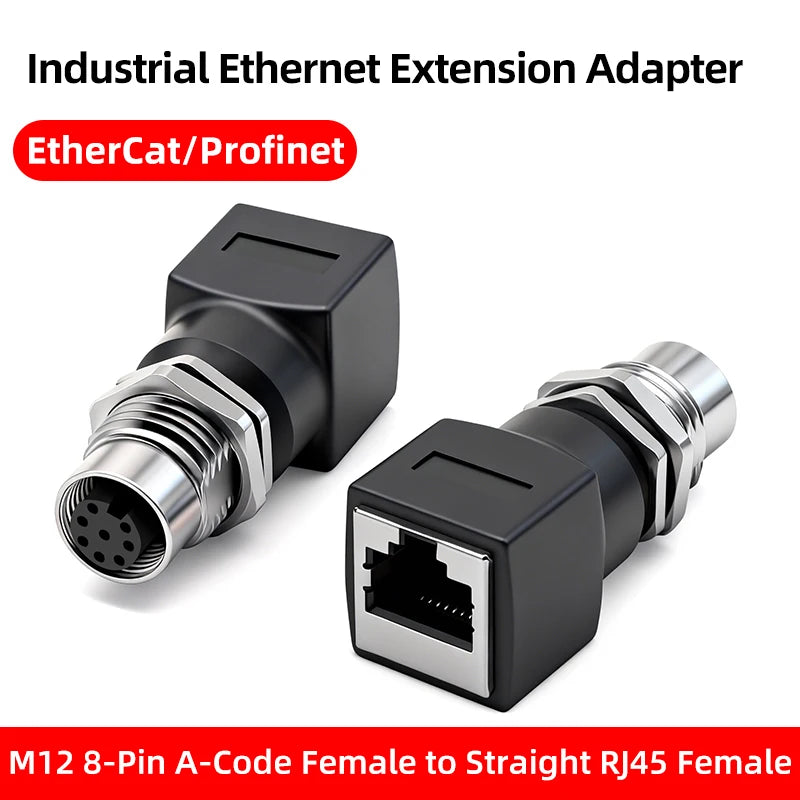

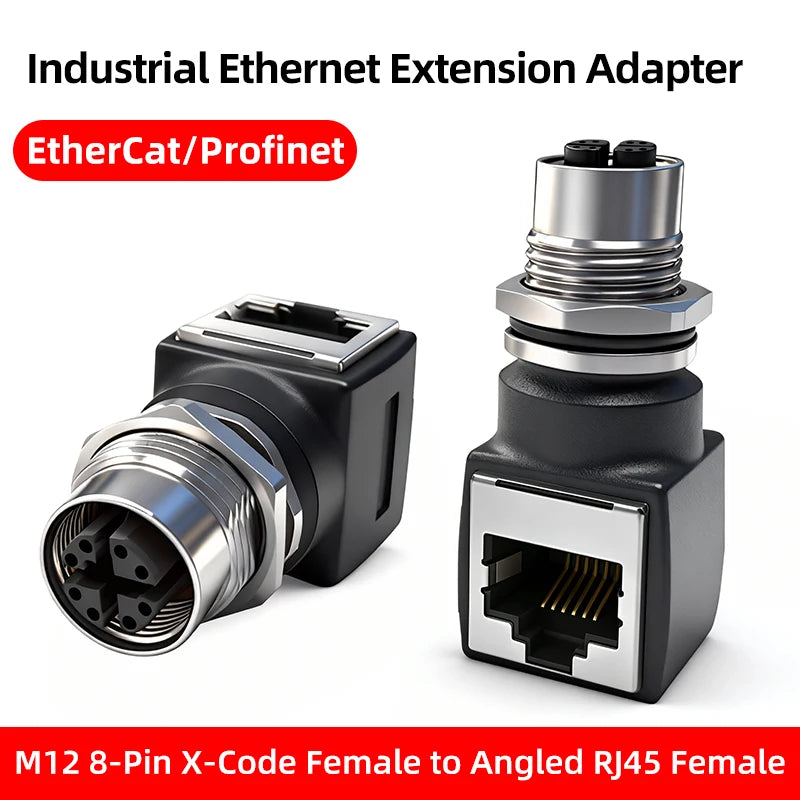

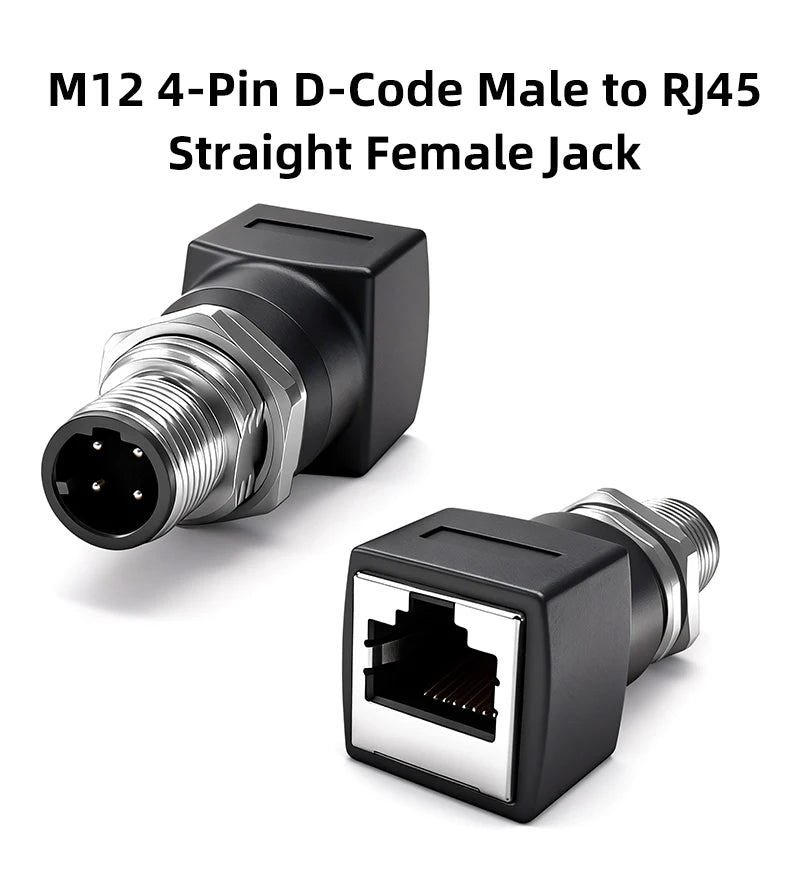

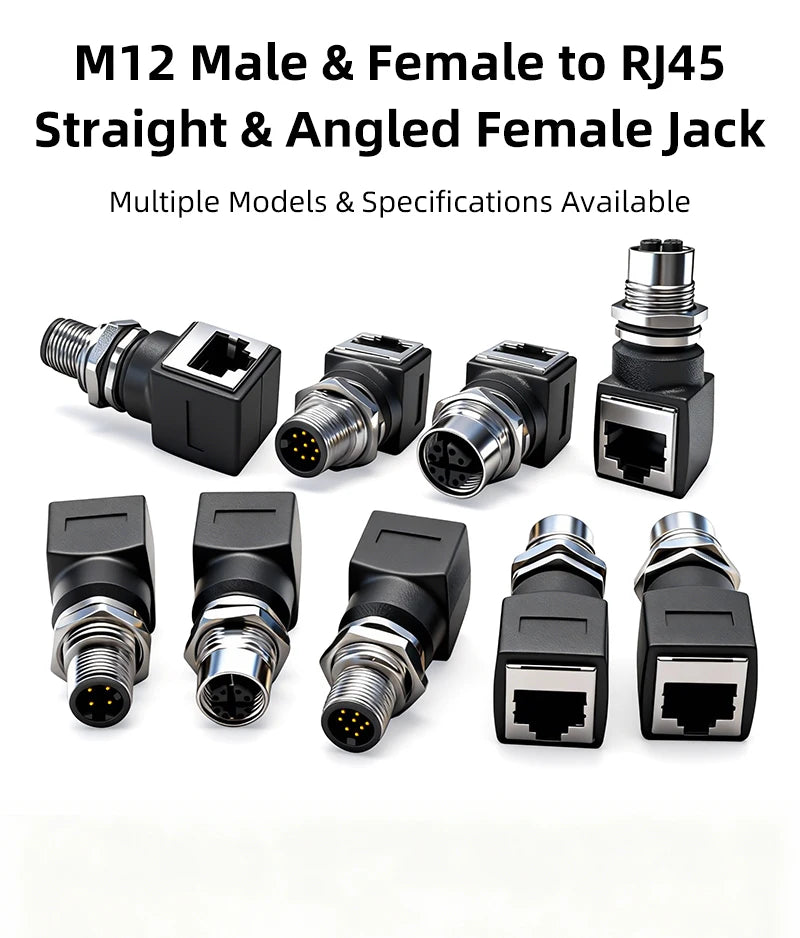

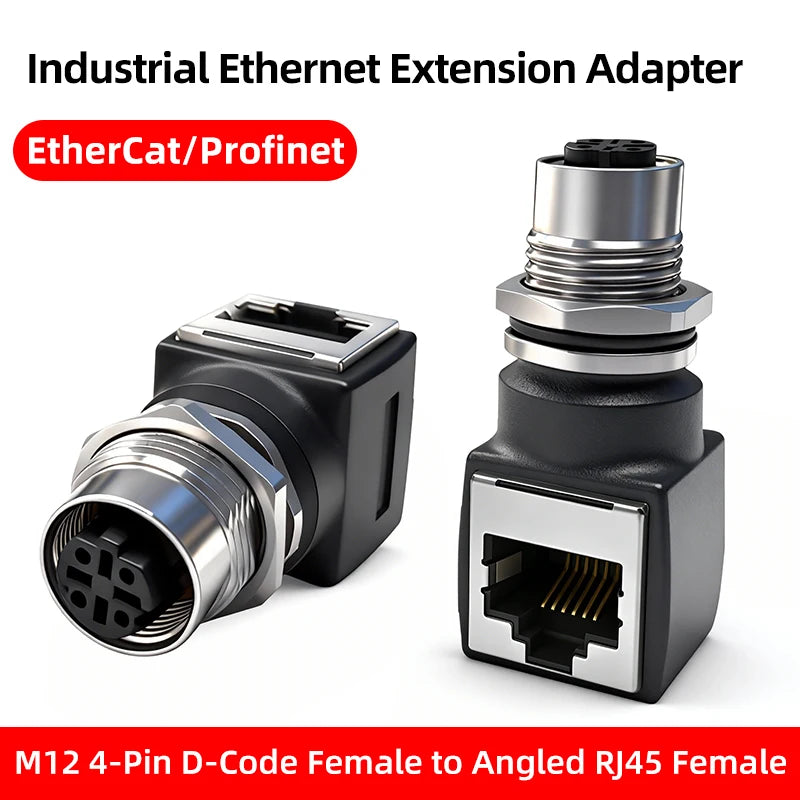

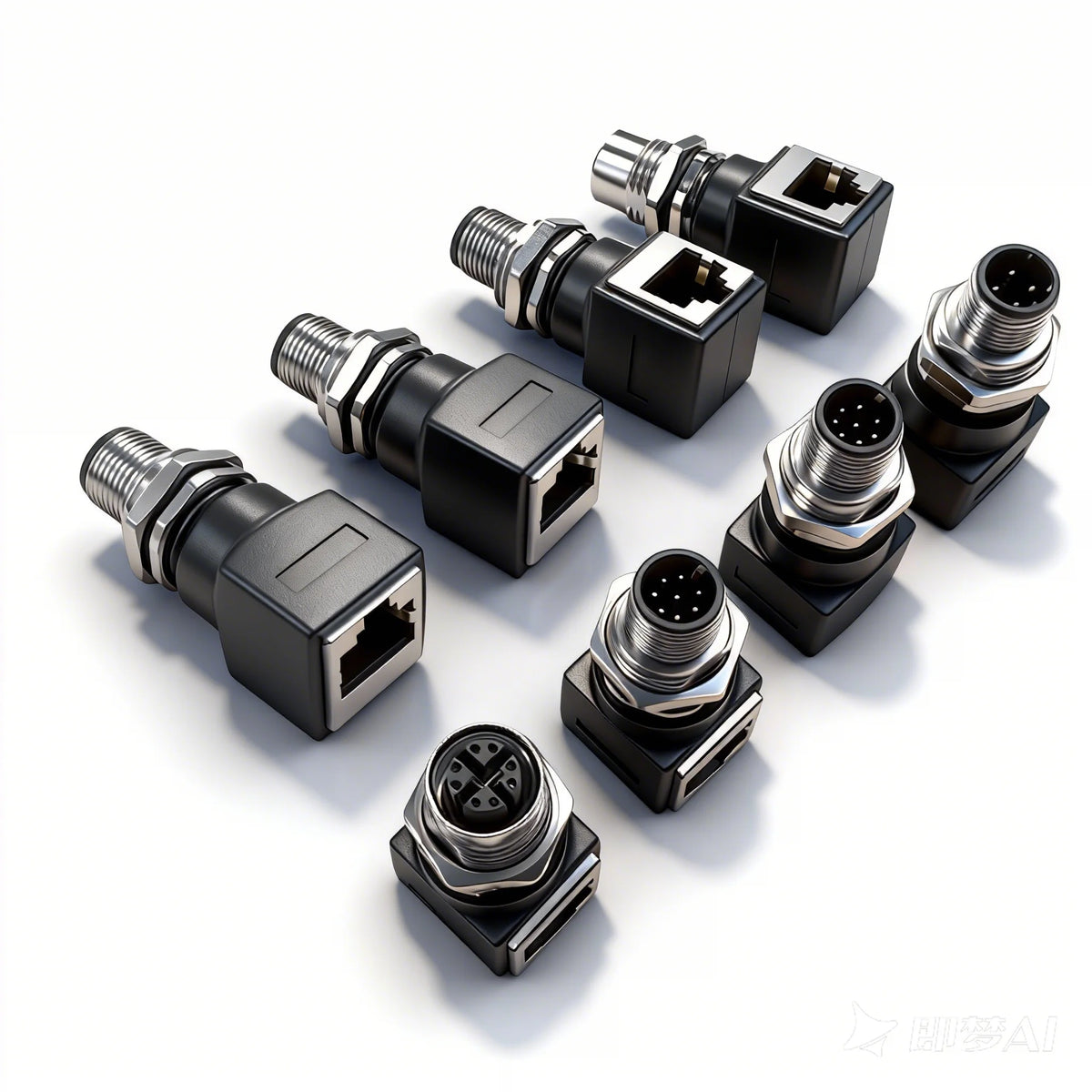

M12 Male & Female to RJ45 Industrial Ethernet Adapter

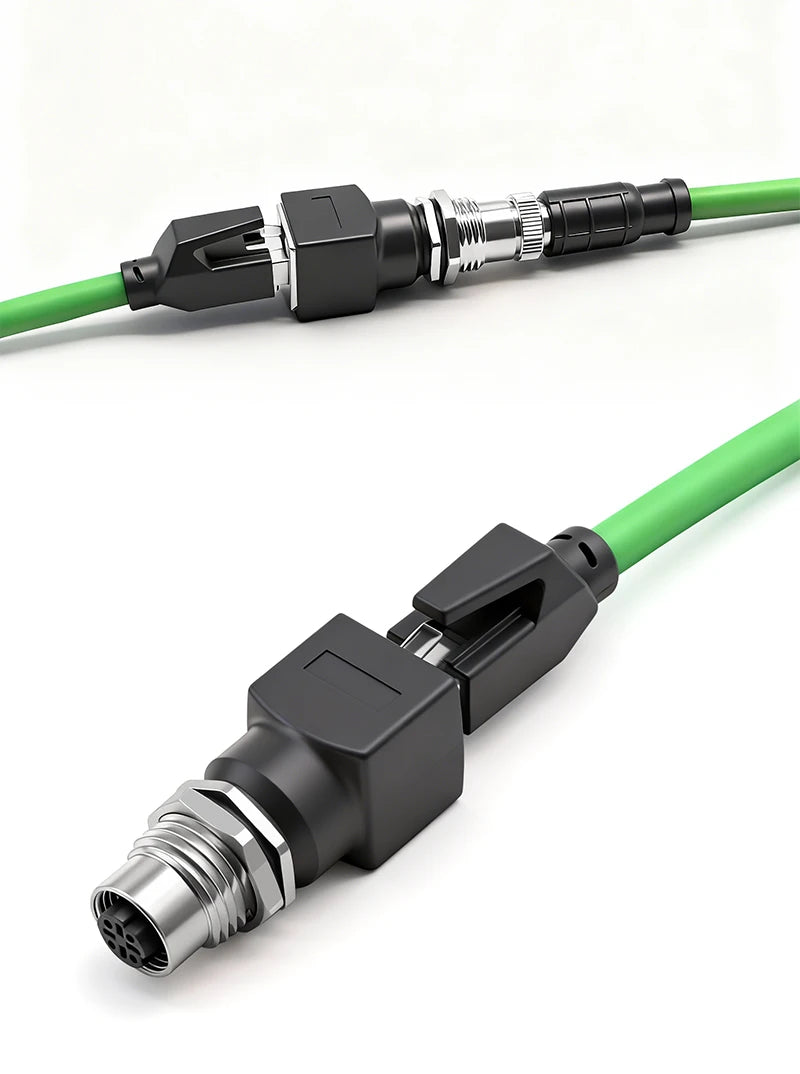

Our M12 to RJ45 panel feedthrough adapter converts M12 industrial fieldbus interface to standard RJ45 Ethernet port, widely compatible with EtherCat, Profinet, industrial cameras, servo drives and automation equipment.

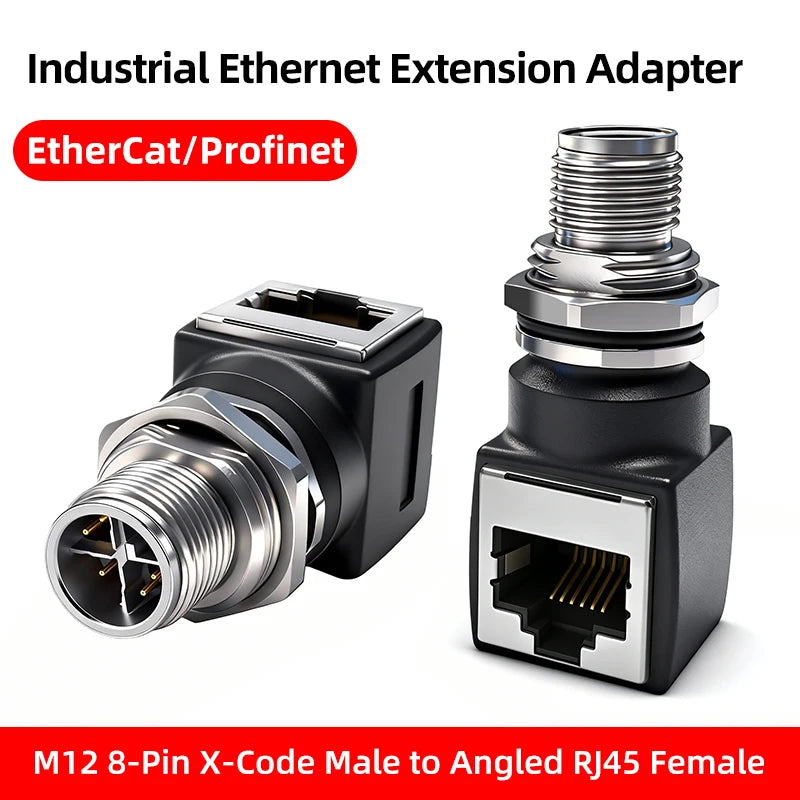

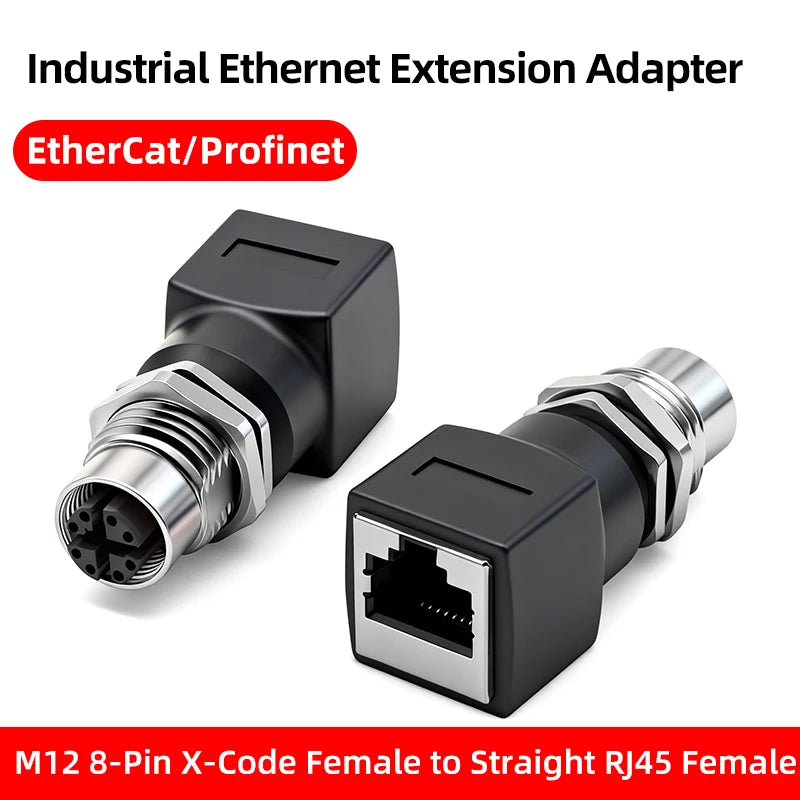

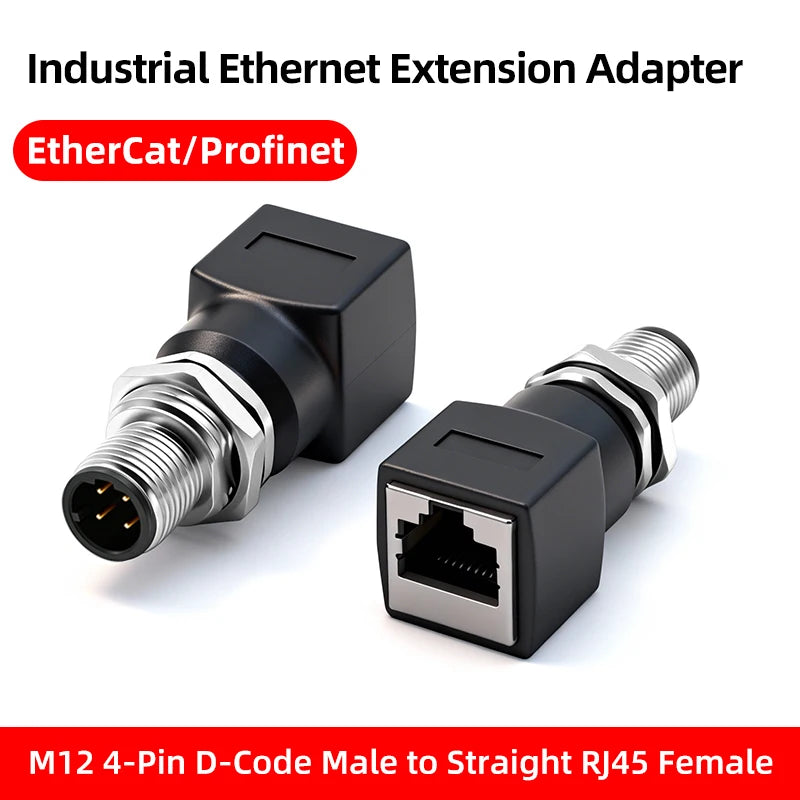

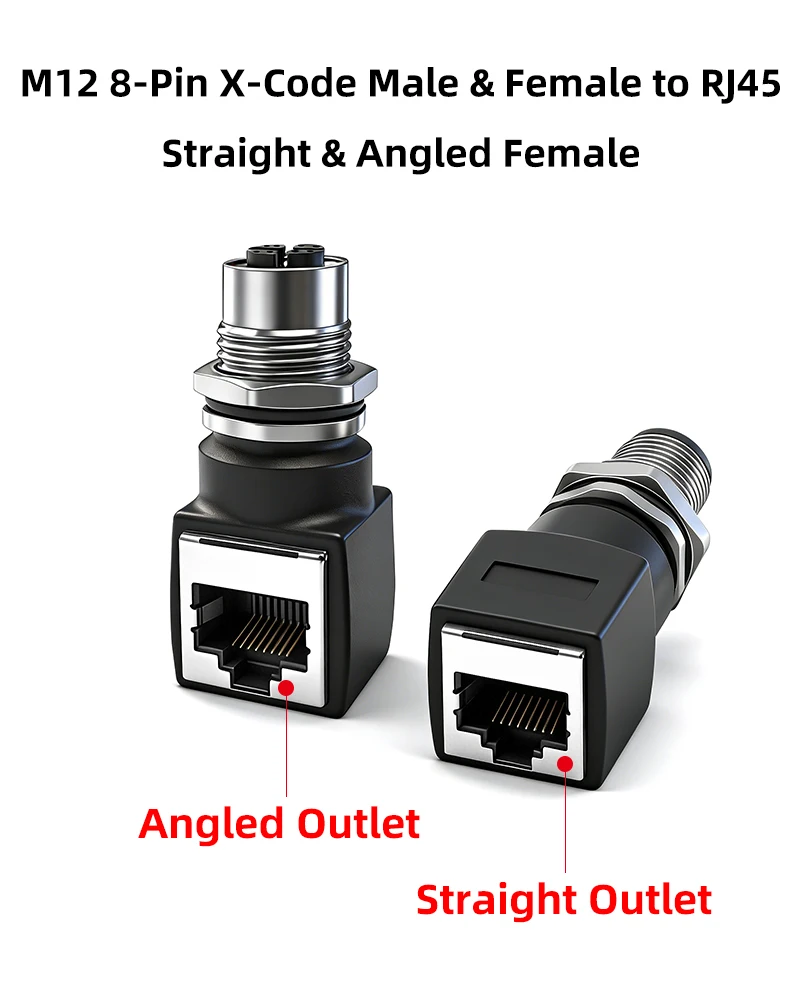

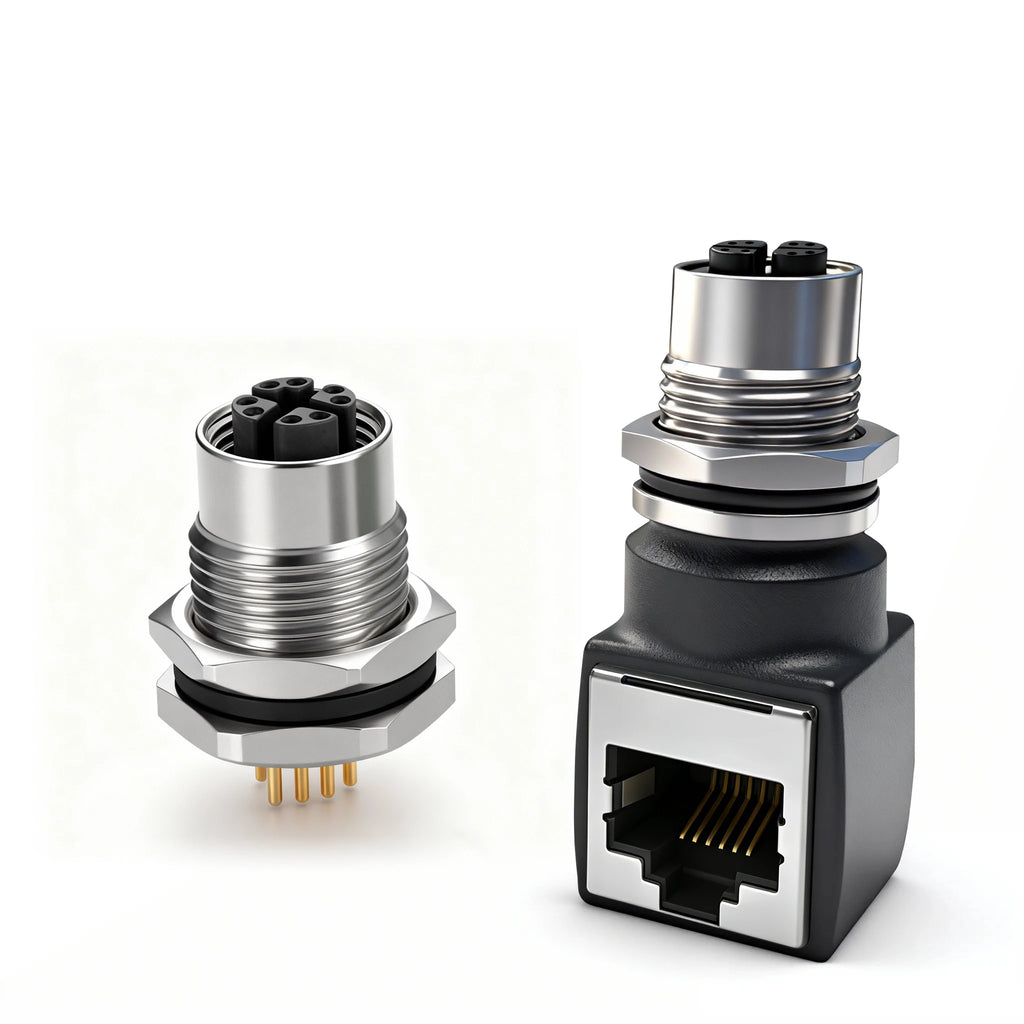

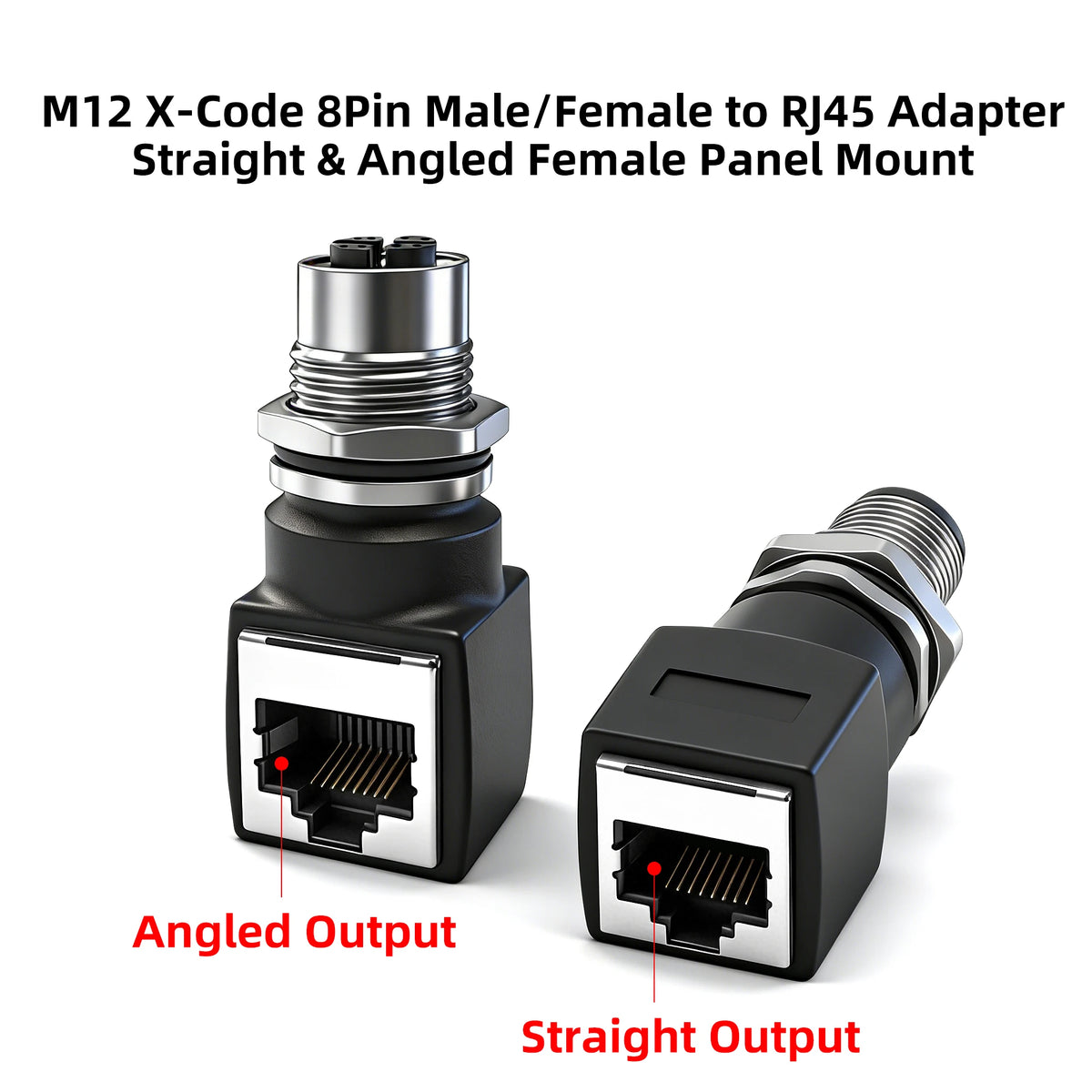

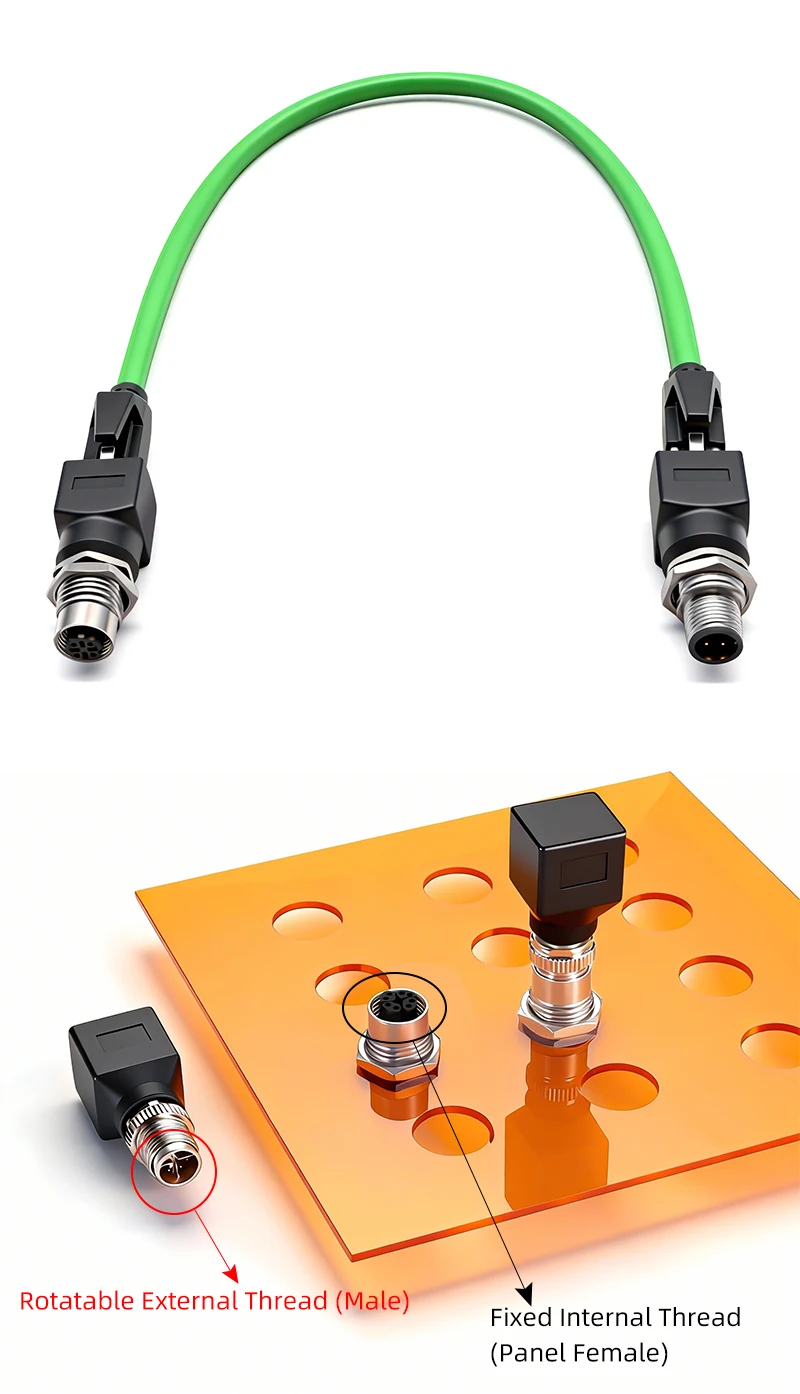

Available in A-Code, D-Code, X-Code, 4Pin & 8Pin variants, with two outlet types: Straight Outlet and Angled Outlet. The M12 male features rotatable external thread, while panel female adopts fixed internal thread for stable panel installation.
M12 RJ45 panel mount, M12 X-code 8pin, M12 D-code 4pin, industrial Ethernet connector, EtherCat M12 adapter, IP67 M12 feedthrough

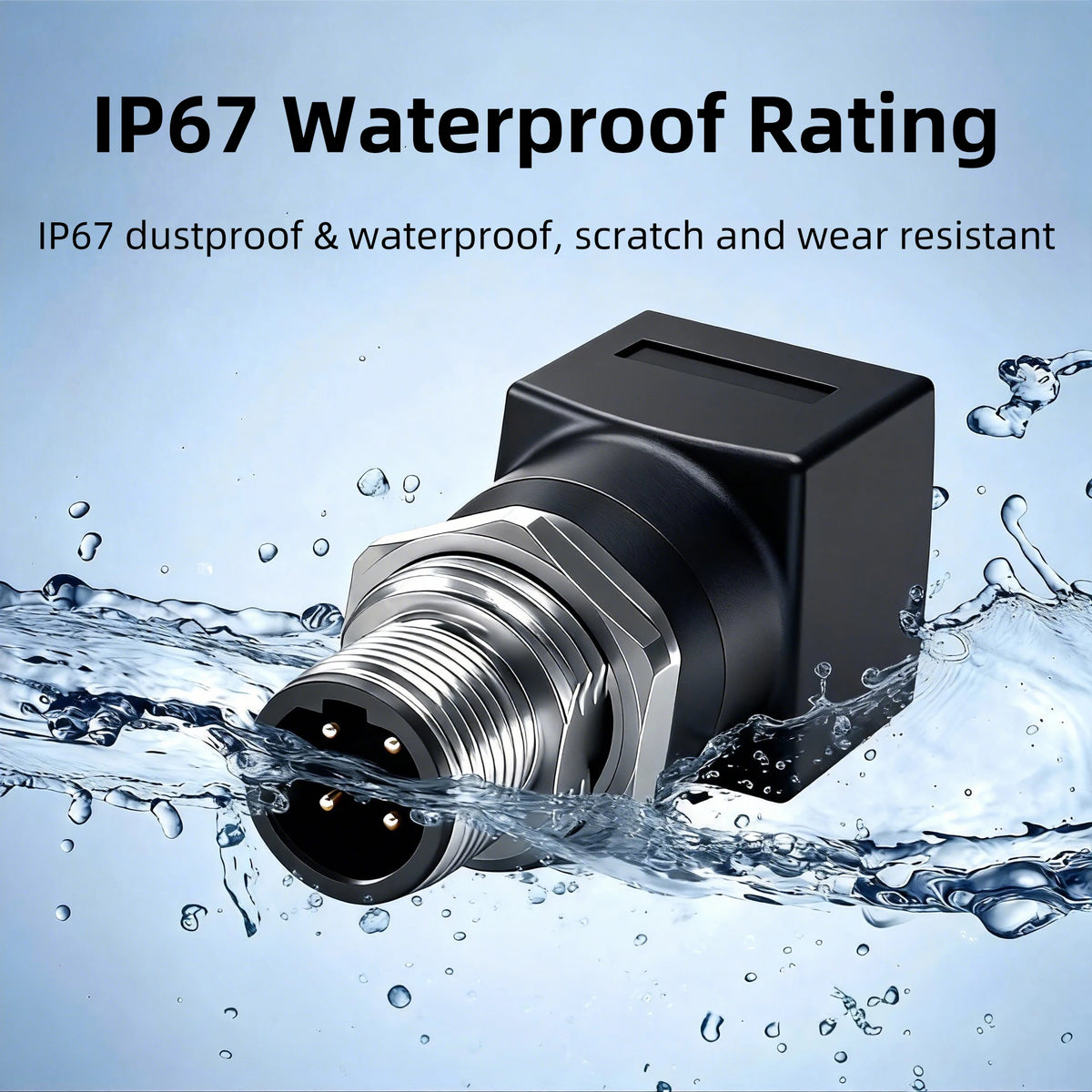

IP67 Waterproof & Dustproof

IP67 ingress protection grade, sealed fluororubber silicone gasket, stable performance in harsh workshop, outdoor and wet industrial environments.

Nickel-Plated Brass Housing

Machined nickel-plated brass shell, anti-corrosion, wear-resistant, high mechanical strength, long service life.

Gold-Plated Contact, Excellent Conductivity

Pin contacts made of brass & phosphor bronze with gold plating, ultra-low contact resistance ≤5mΩ, stable gigabit signal transmission for X-code 8pin.

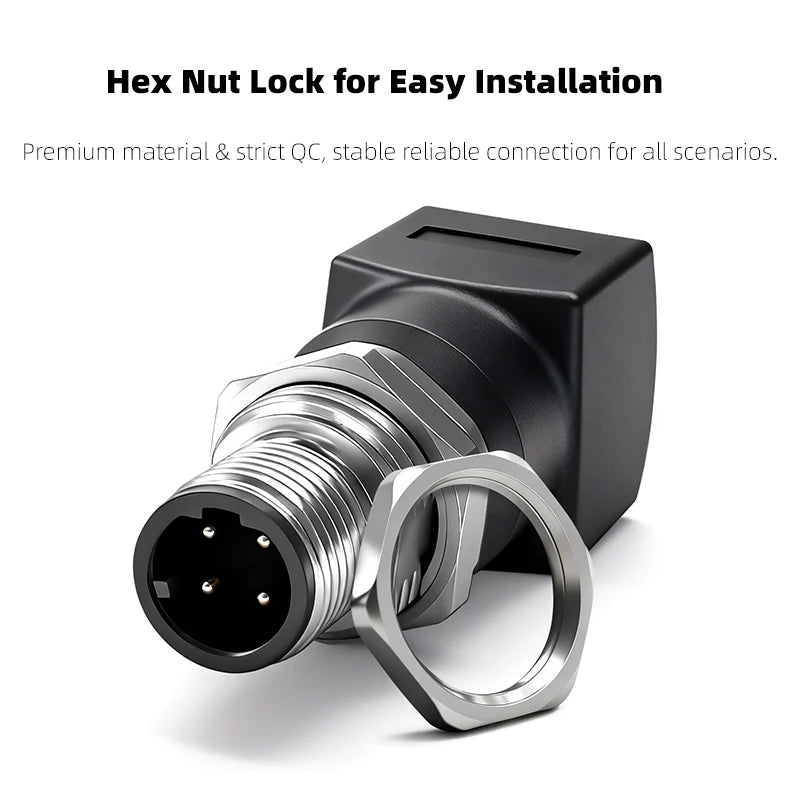

Standard M12 Thread Locking

M12 screw locking structure, recommended torque 0.4Nm, max torque 0.8Nm, tight connection without loose signal drop.

Multiple Models & Custom Support

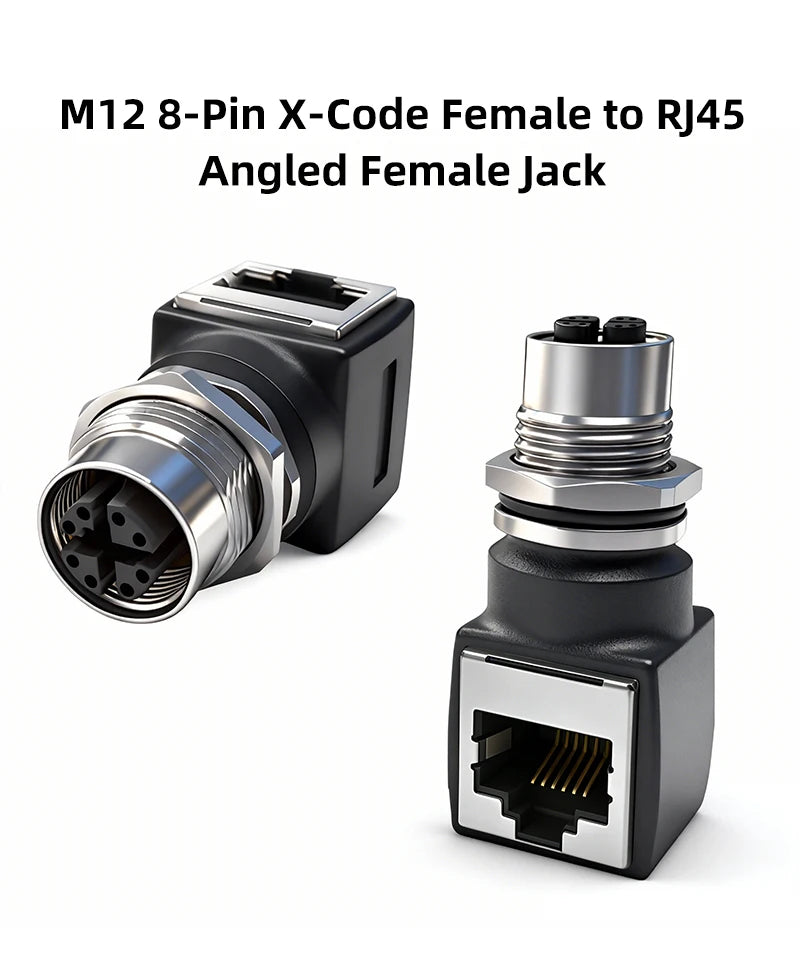

In stock: 4Pin A/D-Code, 8Pin A/X-Code, straight & angled RJ45 female jack; small batch OEM/ODM customization supported for special demands.

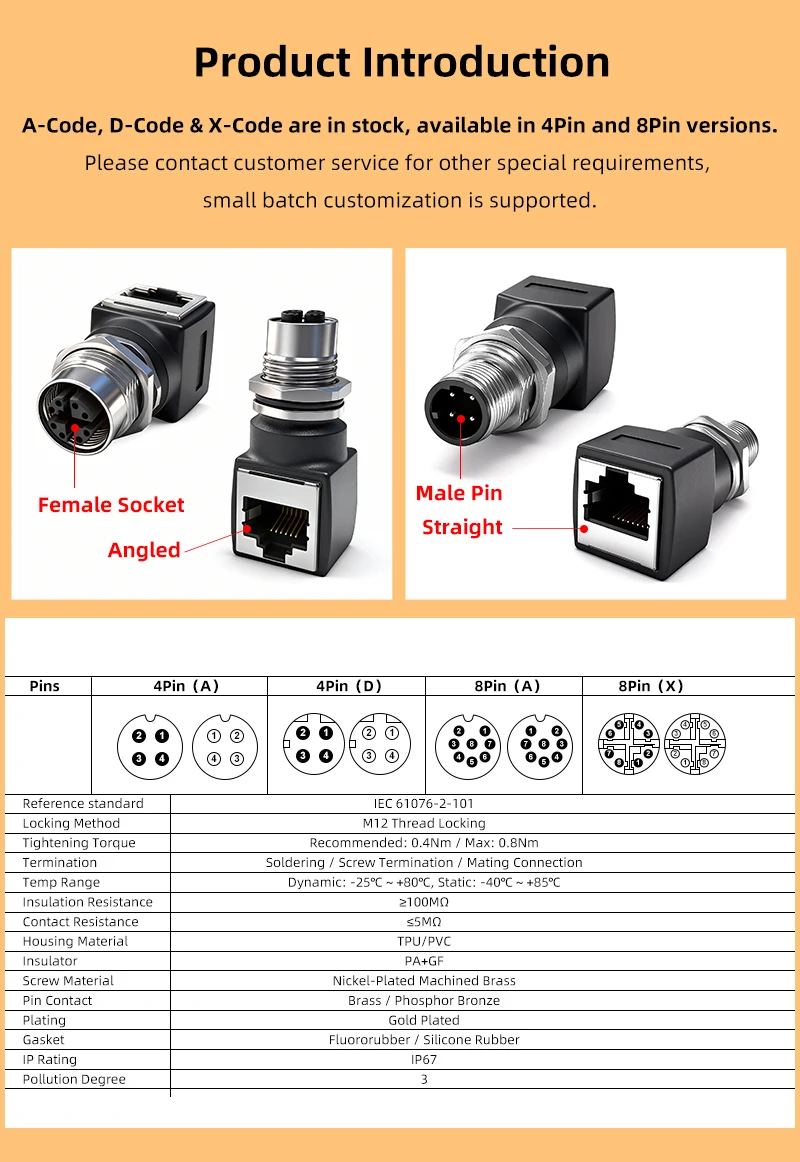

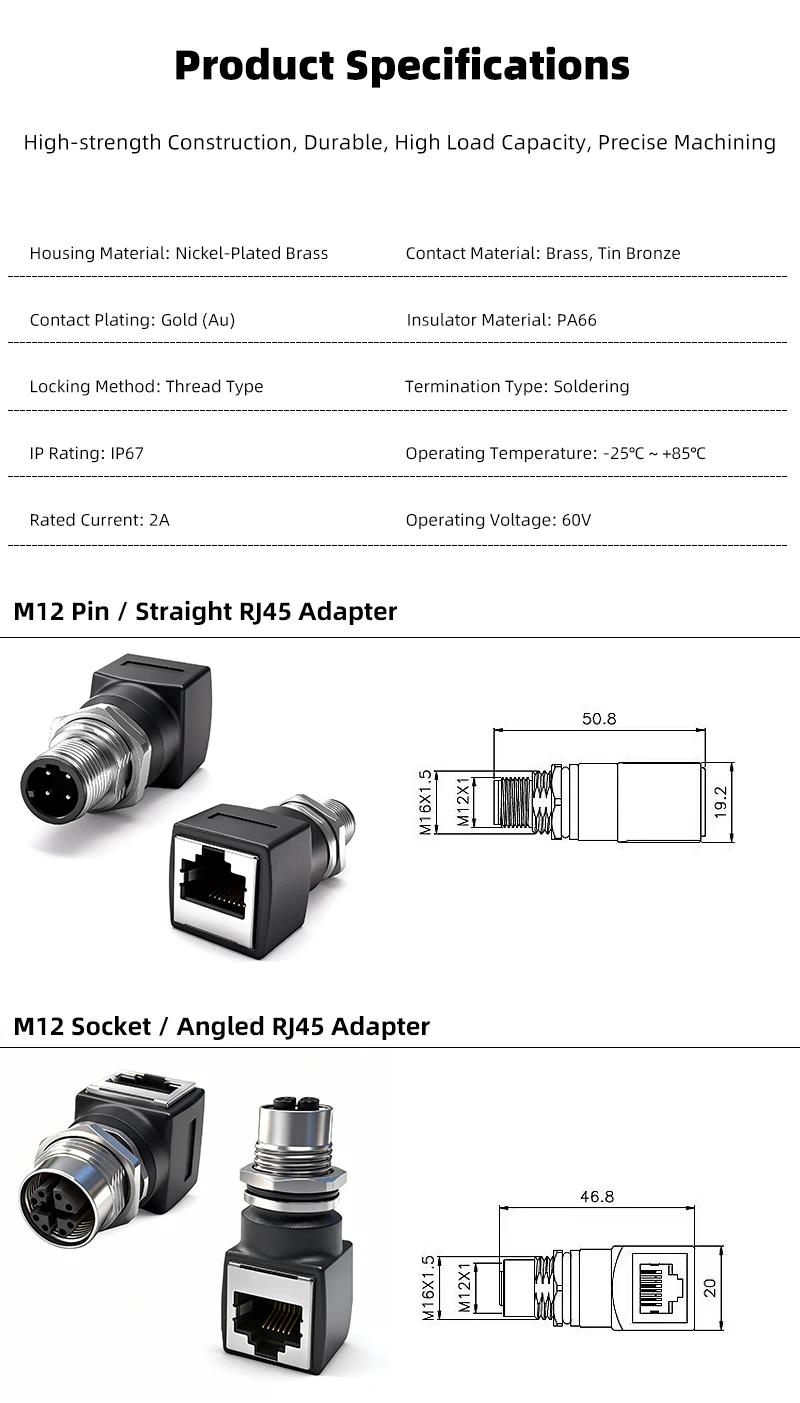

Reference Standard: IEC 61076-2-101
Locking Method: M12 Thread Locking
Tightening Torque: Recommended: 0.4Nm / Max: 0.8Nm
Termination Type: Soldering / Screw Termination / Mating Connection
Operating Temp Range: Dynamic: -25℃ ~ +80℃; Static: -40℃ ~ +85℃
Insulation Resistance: ≥100 MΩ
Contact Resistance: ≤5 mΩ
Housing Material: TPU / PVC, Nickel-Plated Machined Brass
Insulator Material: PA66+GF (PA66 with Glass Fiber)
Pin Contact Material: Brass / Phosphor Bronze
Contact Plating: Gold Plated (Au)
Sealing Gasket: Fluororubber / Silicone Rubber
IP Rating: IP67 Waterproof & Dustproof
Pollution Degree: 3
Rated Current: 2A
Operating Voltage: 60V
