SPECIFICATIONS

Brand Name: U-Angel-1988

Compatible Drone Brand: ProDrone

Drones Accessories Type: GPS

Electrified: No

High-concerned chemical: none

Model Number: BZ-251

Origin: Mainland China

Package: No

Size: BZ-181

Weight: BZ-121

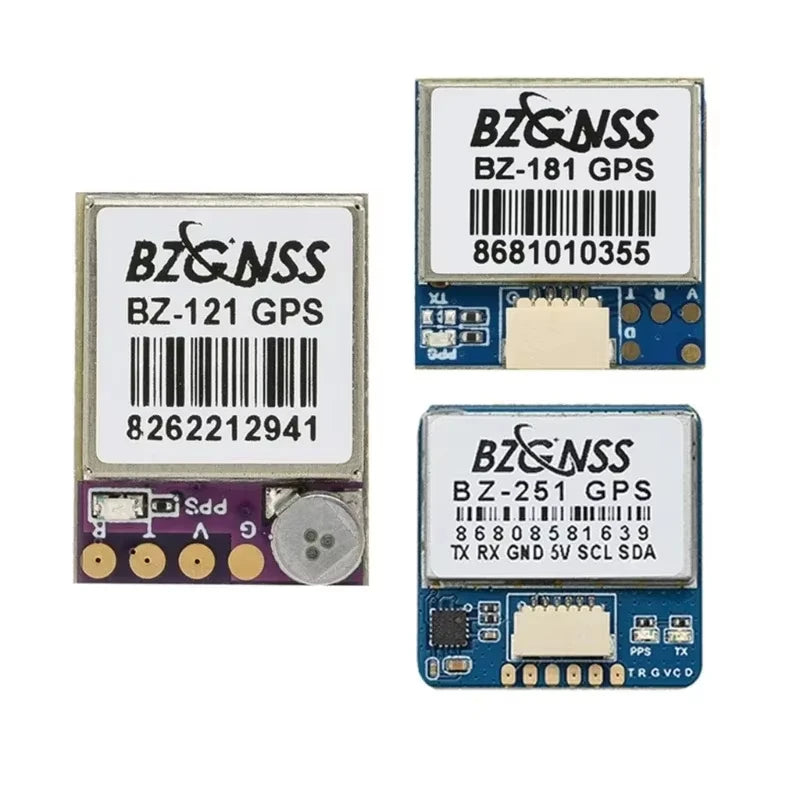

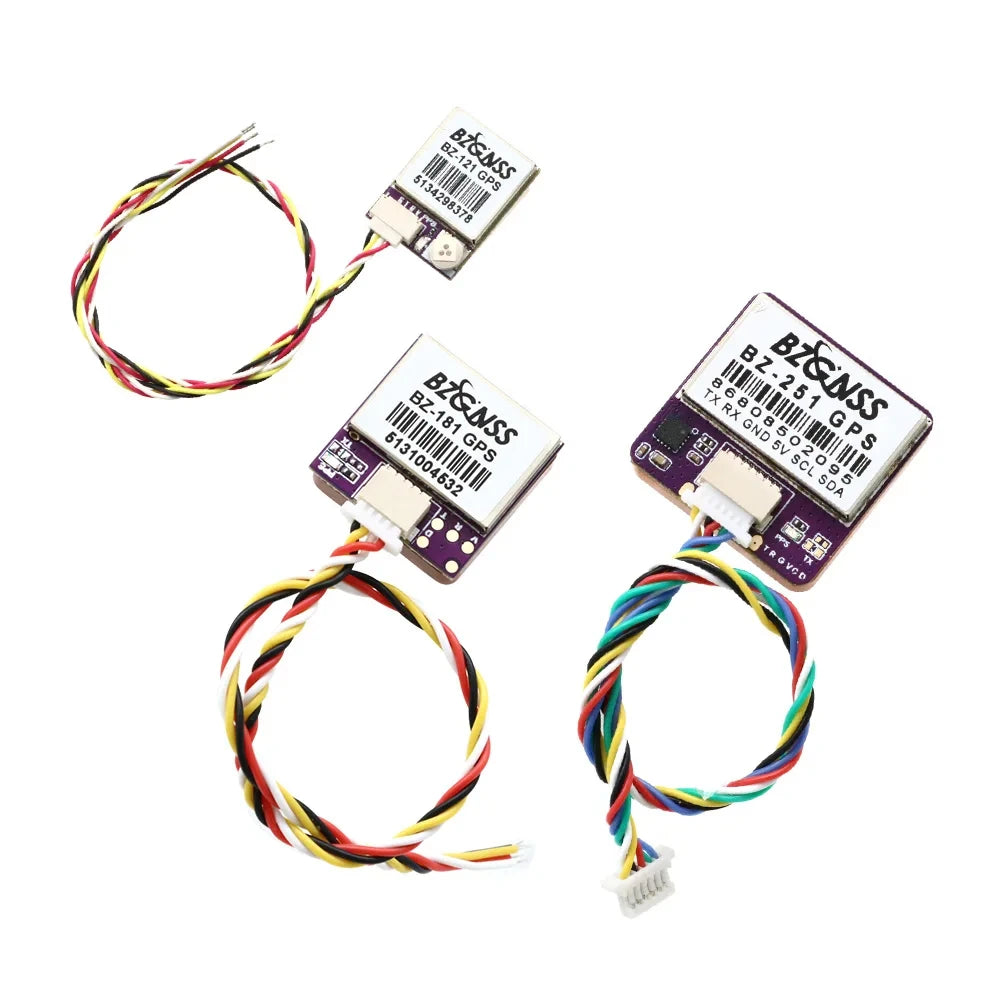

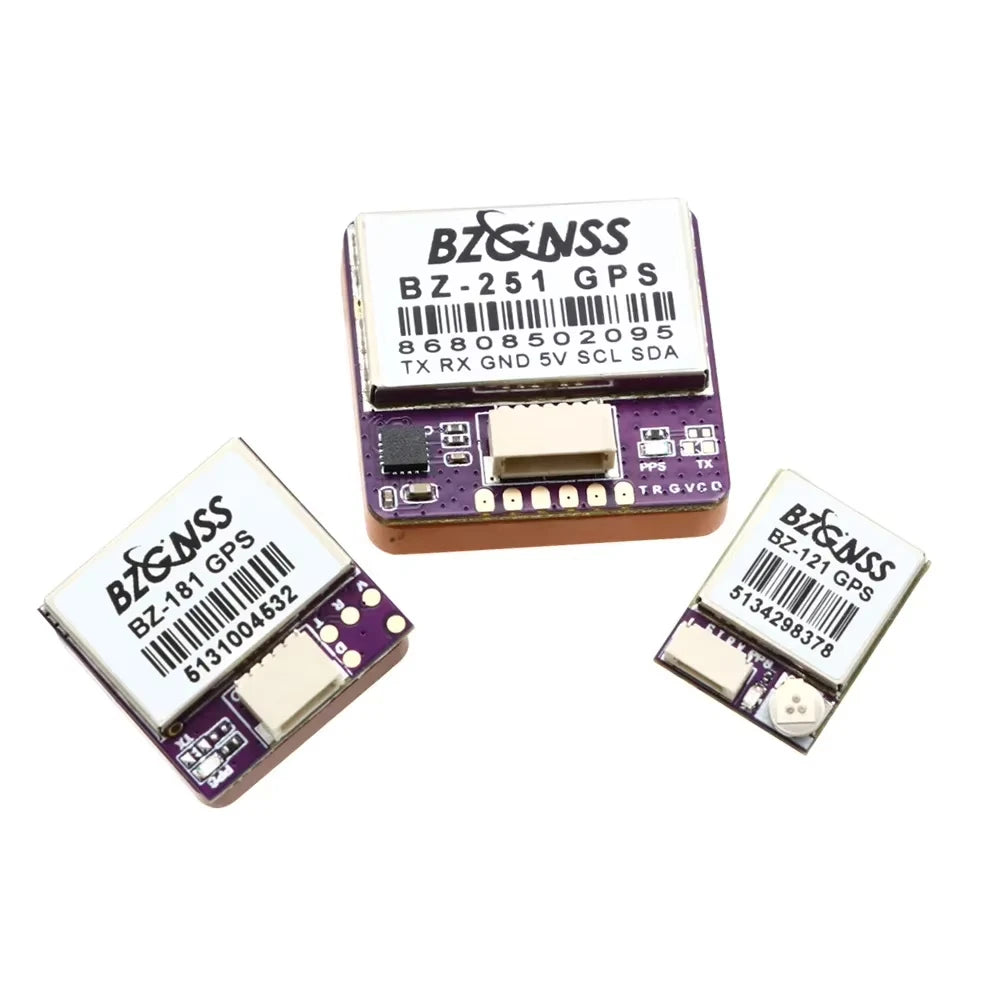

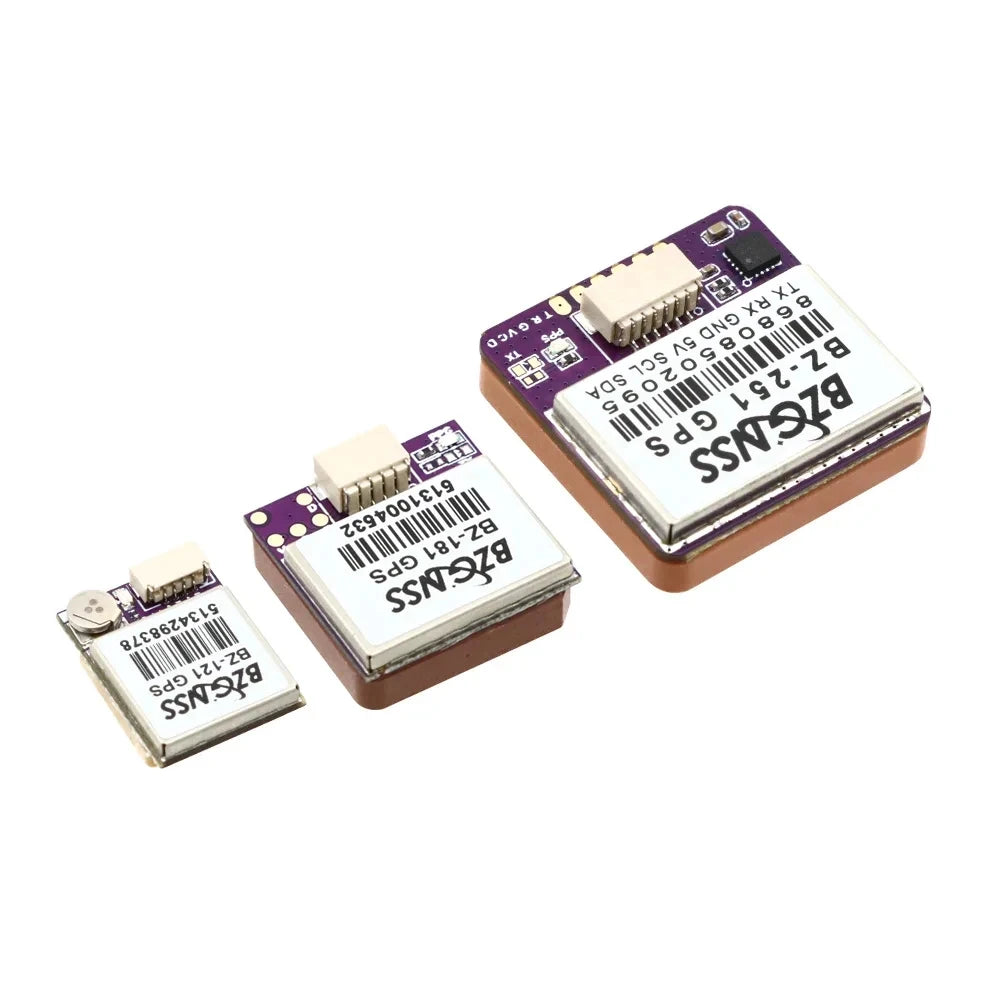

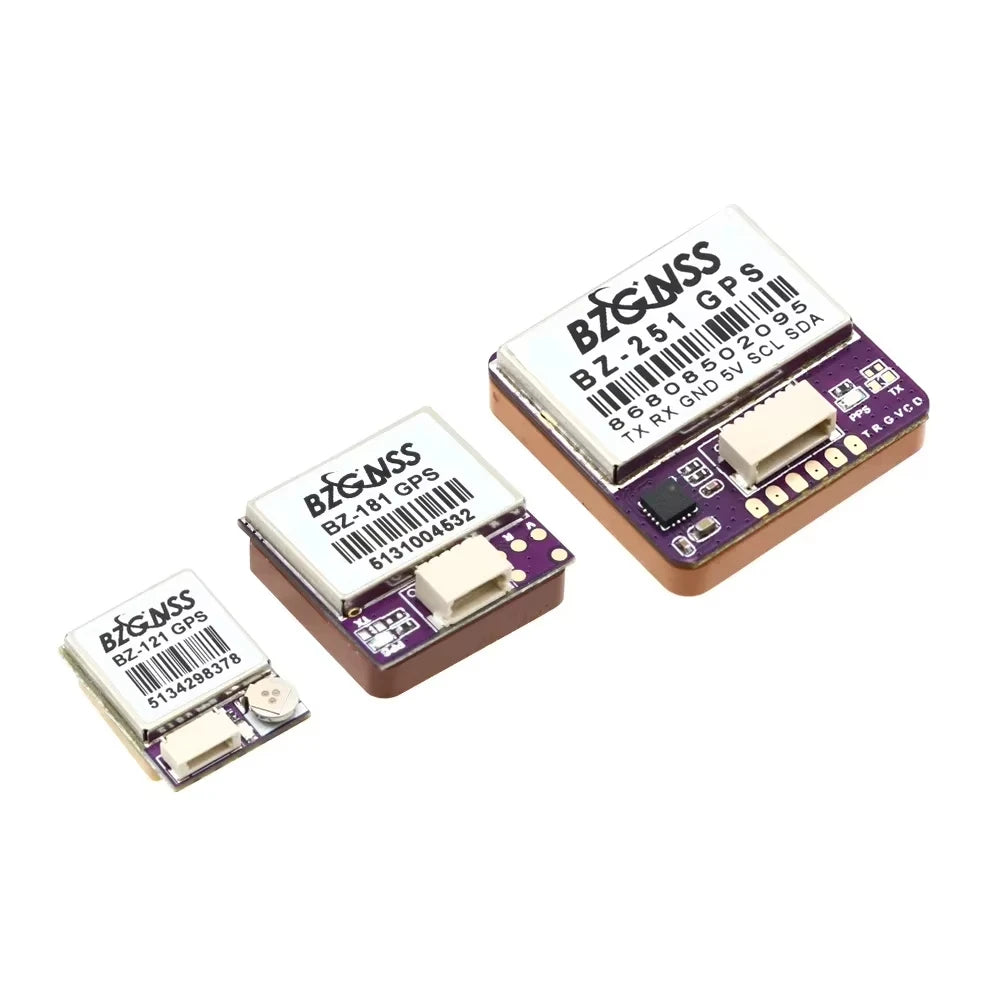

BZGNSS BZ-251 BZ-181 BZ-121 GPS Module Dual Protocol FPV Return Hover F7 F4 Flight Control Fixed Wing Return Rescue Drone Parts

Parameters:

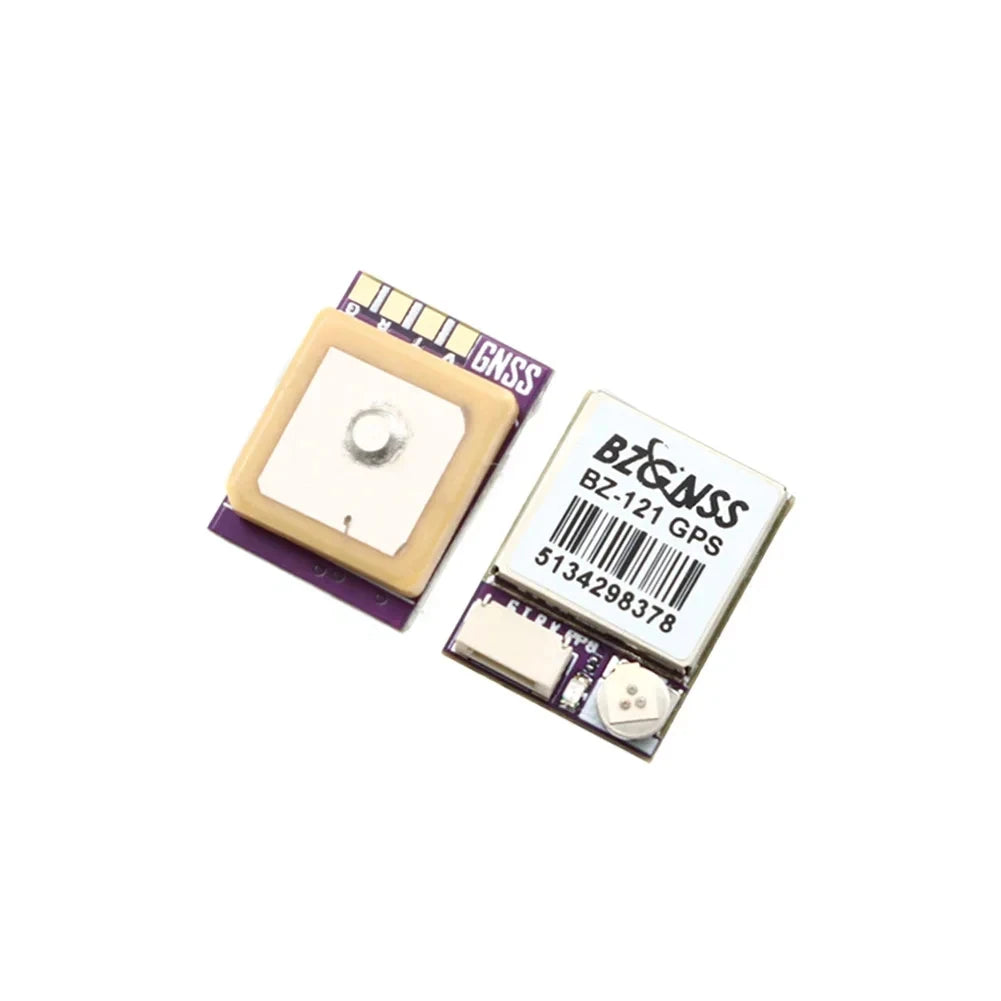

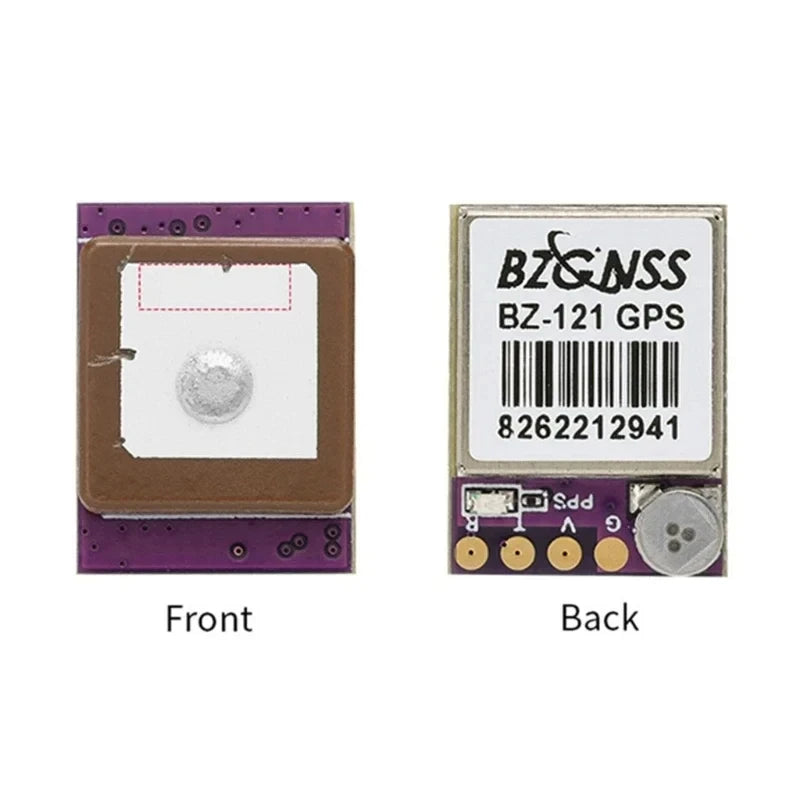

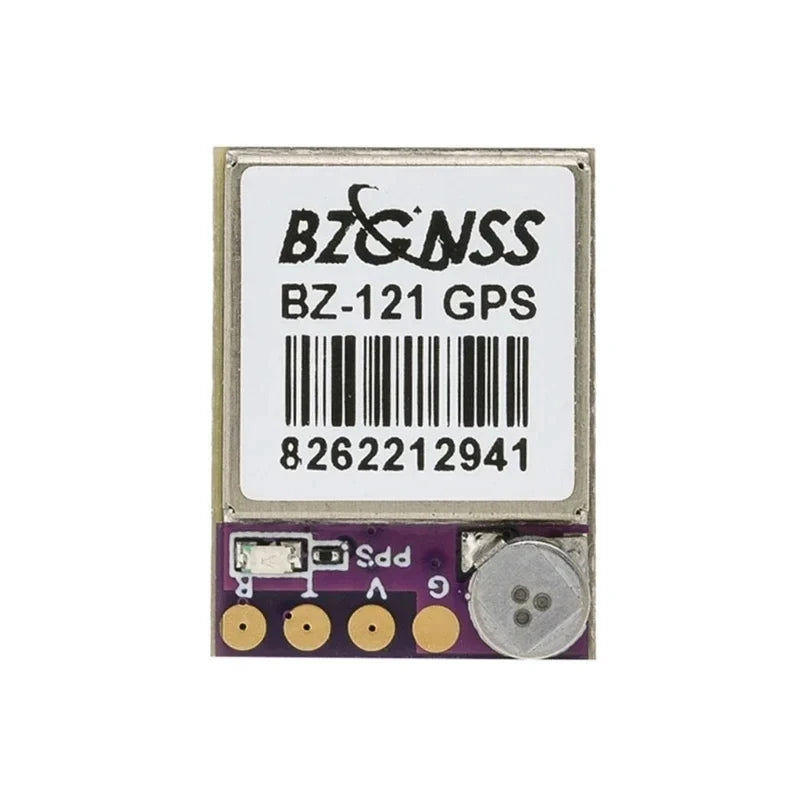

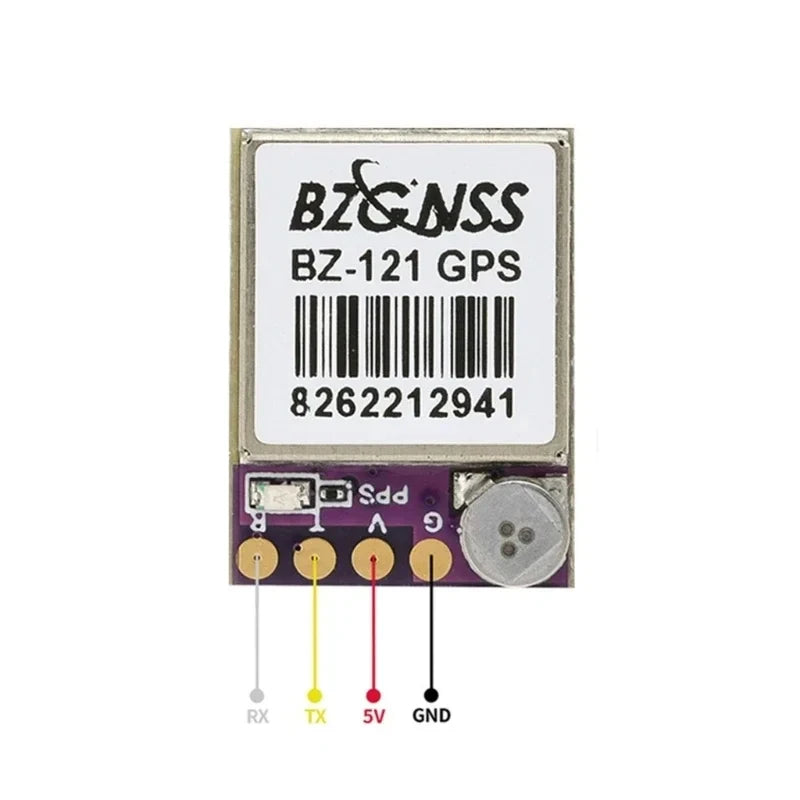

BZ-121

Chip:u-blox M10050(Ten Generation Chip)

Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)

FLASH:Supported

Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1

Power:5V

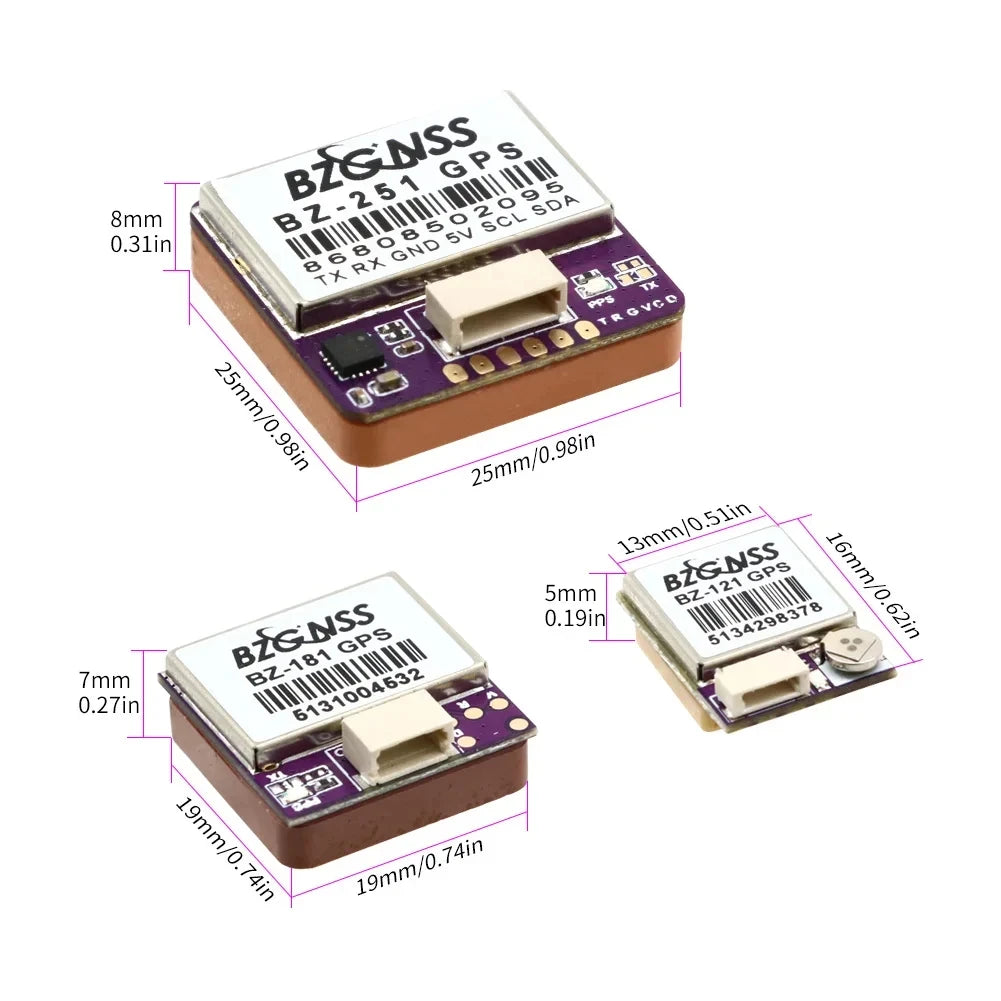

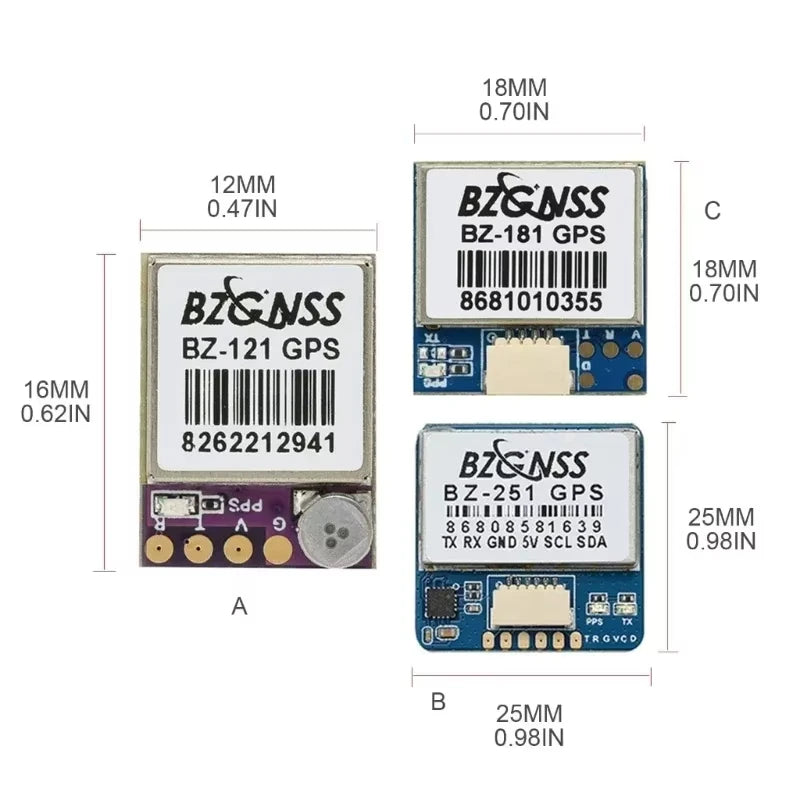

Size:12x16x4.5mm

Interface:PCB Pad

Weight:2.2g

Antenna:Ultrathin Ceramic Antenna (oil spraying process, prevent scratching and oxidation)

Receiving channels:72 search channels

Baud rate:115200dps

Output Protocol:NMEA / UBLOX (Dual protocol)

Output Frequency:1Hz-10Hz. Default 10Hz

Speed accuracy:0.05m/s

Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)

Receiving Sensitivity:Trace-162dBm / Capture -160dBm

Dynamic characteristics:

Altitude:50000m

Speed:500m/s

Acceleration:4G

Operating temperature:-40°C~+85°C

Storage temperature:-40°C~+105°C

Indicator light:PPS lamp - the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning

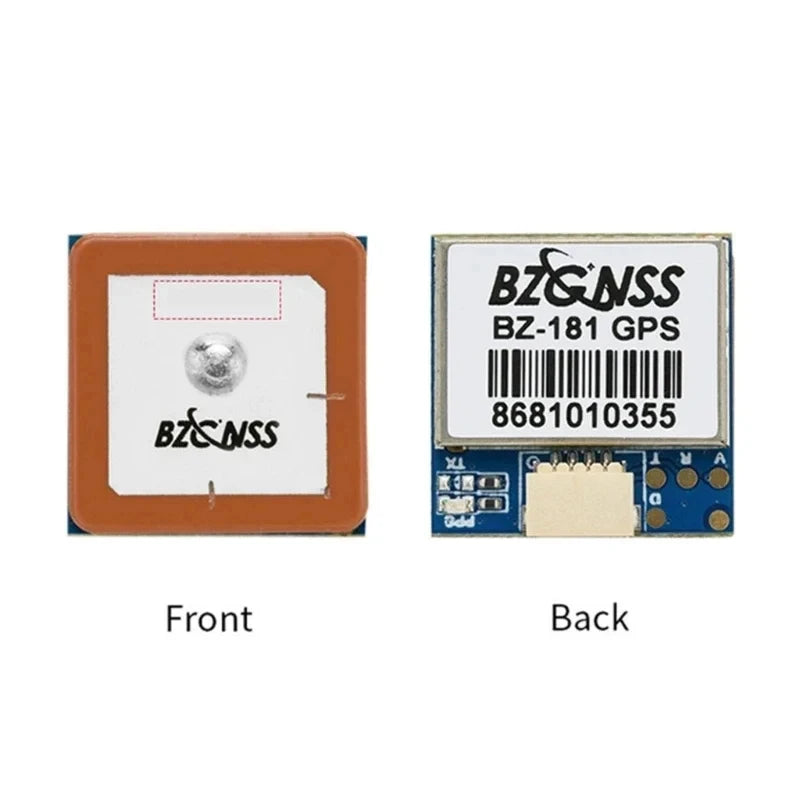

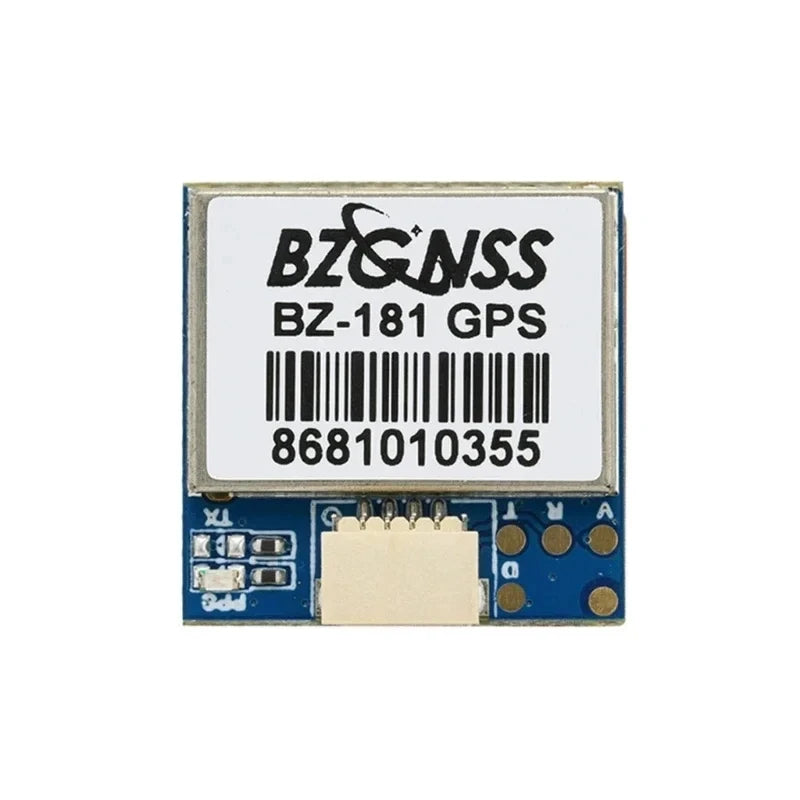

BZ-181

Chip:u-blox M10050(Ten Generation Chip)

Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)

FLASH:Supported

Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1

Power:5V

Size:18x18x4.8mm(Thinnest point)

18x18x6mm(Including thickness of terminal block)

Interface:SH1.0 4Pin

Weight:6.9g

Antenna:Ultrathin Ceramic Antenna / Standard Ceramic Antenna

Receiving channels:72 search channels

Baud rate:115200dps

Output Protocol:NMEA / UBLOX (Dual protocol)

Output Frequency:1Hz-10Hz. Default 10Hz

Speed accuracy:0.05m/s

Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)

Receiving Sensitivity:Trace-162dBm / Capture -160dBm

Dynamic characteristics:

Altitude:50000m

Speed:500m/s

Acceleration:4G

Operating temperature:-40°C~+85°C

Storage temperature:-40°C~+105°C

Indicator light:PPS lamp - the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning

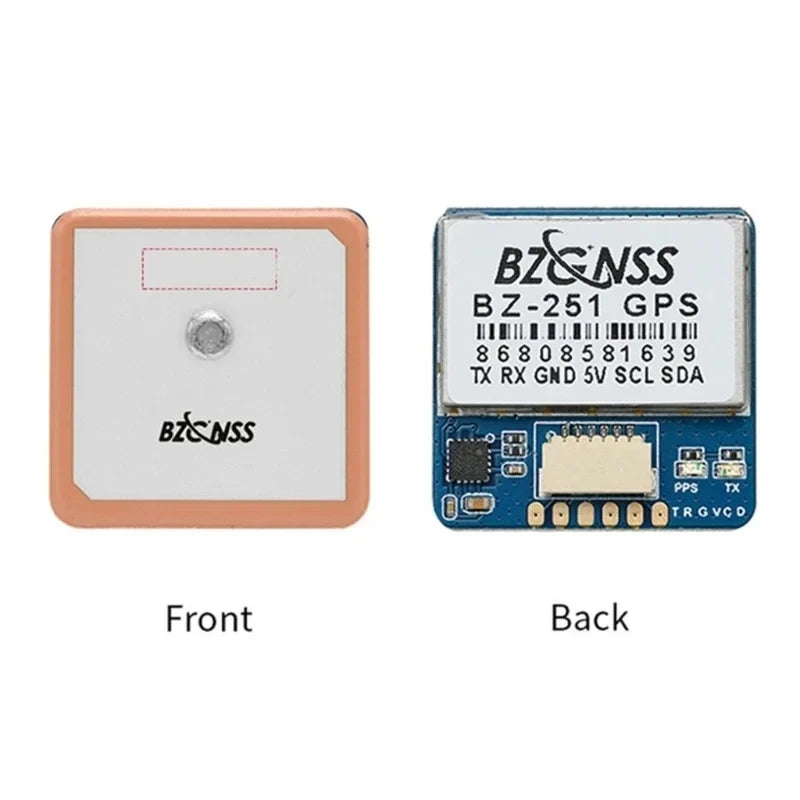

BZ-251

Chip:u-blox M10050(Ten Generation Chip)

Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)

FLASH:Supported

Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1

Power:5V

Size:25x25x5.4mm(Thinnest point)

25x25x6mm(Including thickness of terminal block)

Interface:SH1.0 6Pin

Weight:11.6g

Antenna:Ultrathin Ceramic Antenna / Standard Ceramic Antenna

Receiving channels:72 search channels

Compass:QMC5883

Baud rate:115200dps

Output Protocol:NMEA / UBLOX (Dual protocol)

Output Frequency:1Hz-10Hz. Default 10Hz

Speed accuracy:0.05m/s

Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)

Receiving Sensitivity:Trace-162dBm / Capture -160dBm

Dynamic characteristics:

Altitude:50000m

Speed:500m/s

Acceleration:4G

Operating temperature:-40°C~+85'C

Storage temperature:-40°C~+105°C

Indicator light:

The power on red light of the TX light flashes, indicating that there is data output

PPS lamp - the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning

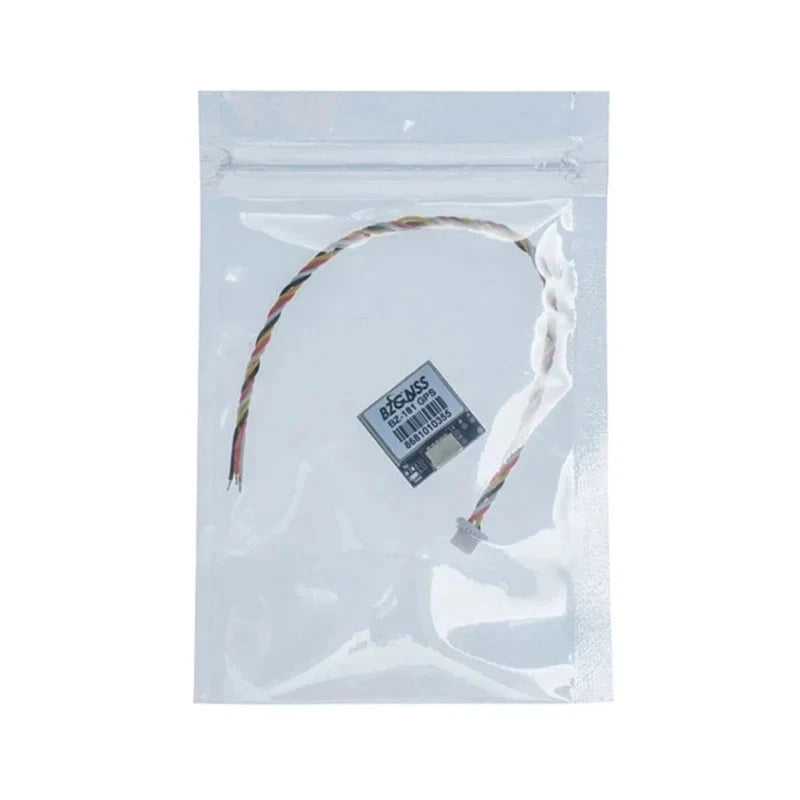

Package Included:

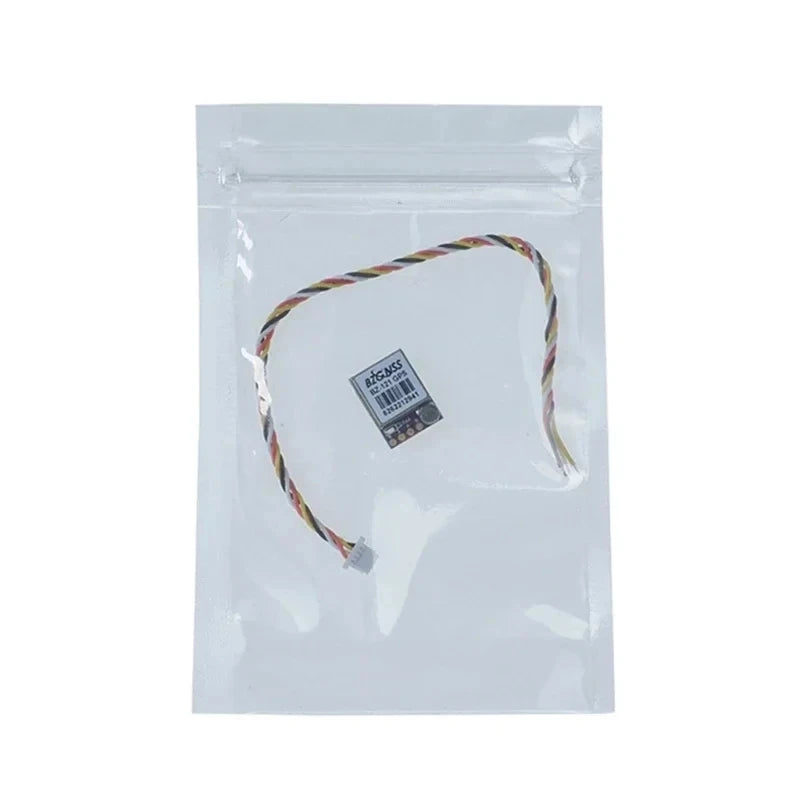

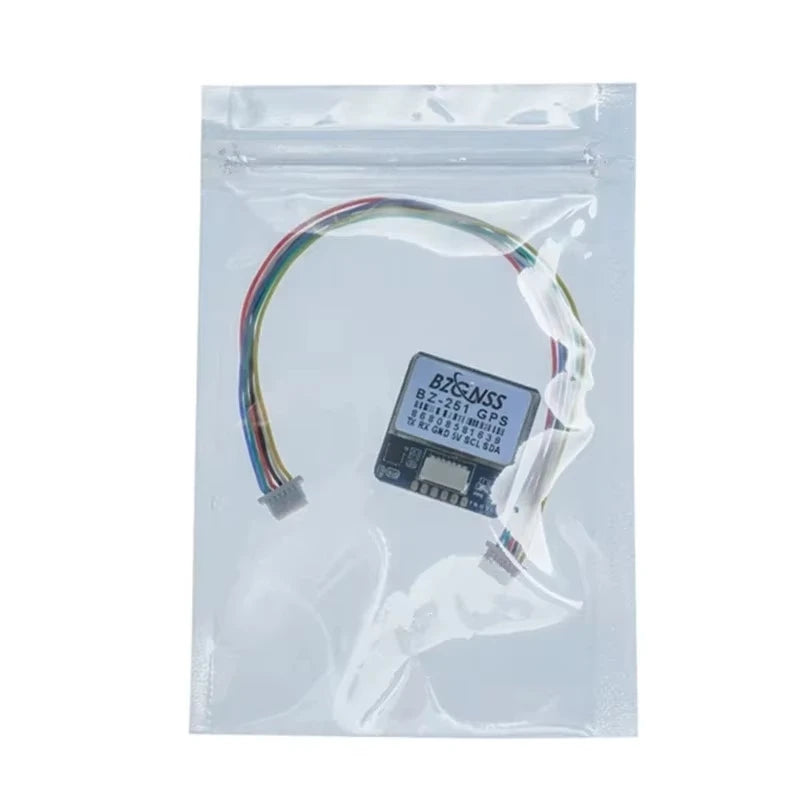

BZGNSS BZ-121 or BZ-181 or BZ-251 GPS x 1(Select according to requirements)
