BZGNSS BZ-251 FPV GPS Module with QMC5883 Compass BN-880 Alternative 5V 115200 10Hz 72CH NMEA UBX for F405 F722 Fixed Wing Drone

BZGNSS BZ-251 FPV GPS Module with QMC5883 Compass BN-880 Alternative 5V 115200 10Hz 72CH NMEA UBX for F405 F722 Fixed Wing Drone

$85.40

$85.40 $0.00

Color BZ GPS 251 BLK 1P BZ GPS 251 BLK 5P BZ GPS 251 BLK 3P BZ GPS 251 BLK 2P

Voltage/Plug TypeNo plug

Description

SPECIFICATIONS

Brand Name: NONE

Chip Solution: Self-Developed R&D GNSS Chip

Choice: yes

Core Advantage: Independent R&D Chip

Crash Resistance: Shock Proof Housing

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Magnetic Design: Magnetic Shield Compass

Material: Composite Material

Model Number: BZ GPS 251 BLK

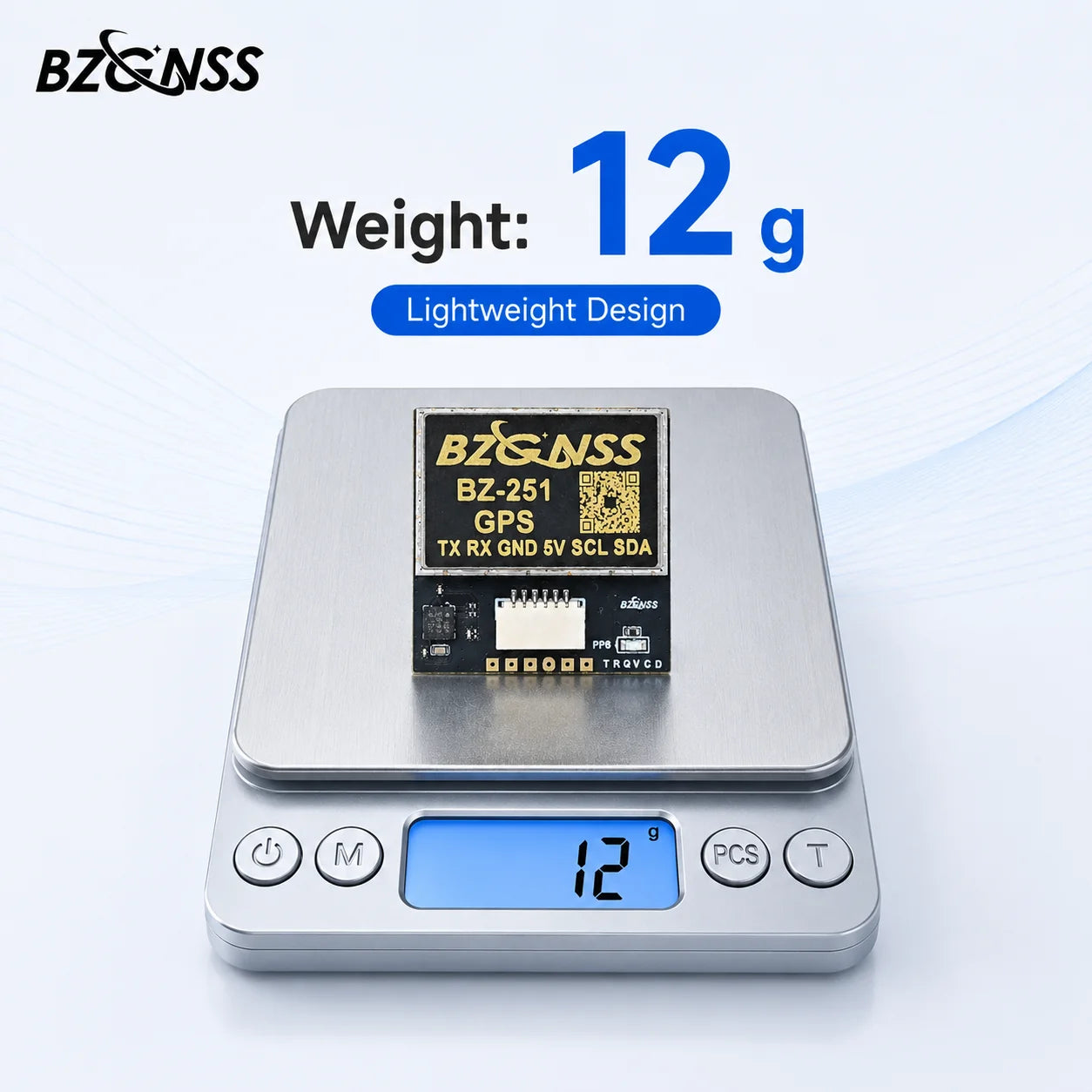

Net Weight: 12Grams

Origin: Mainland China

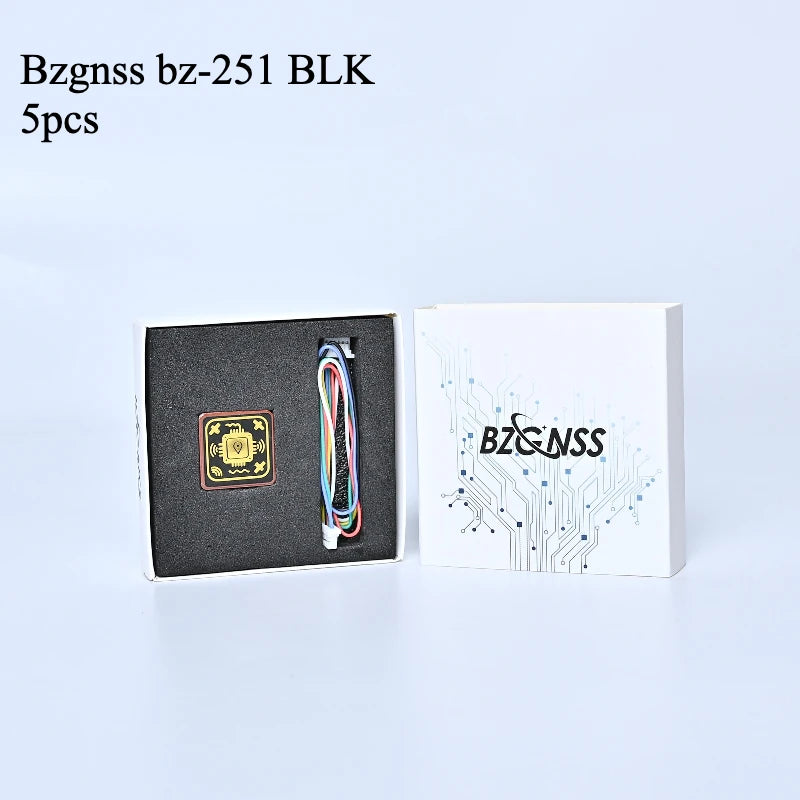

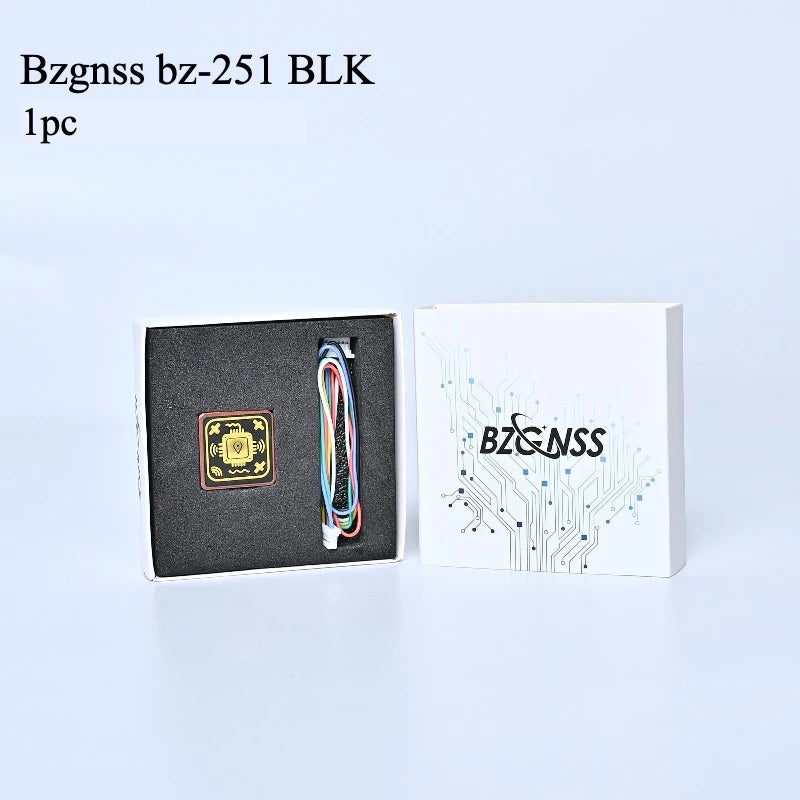

Package Contents: Storage Box + GPS Module

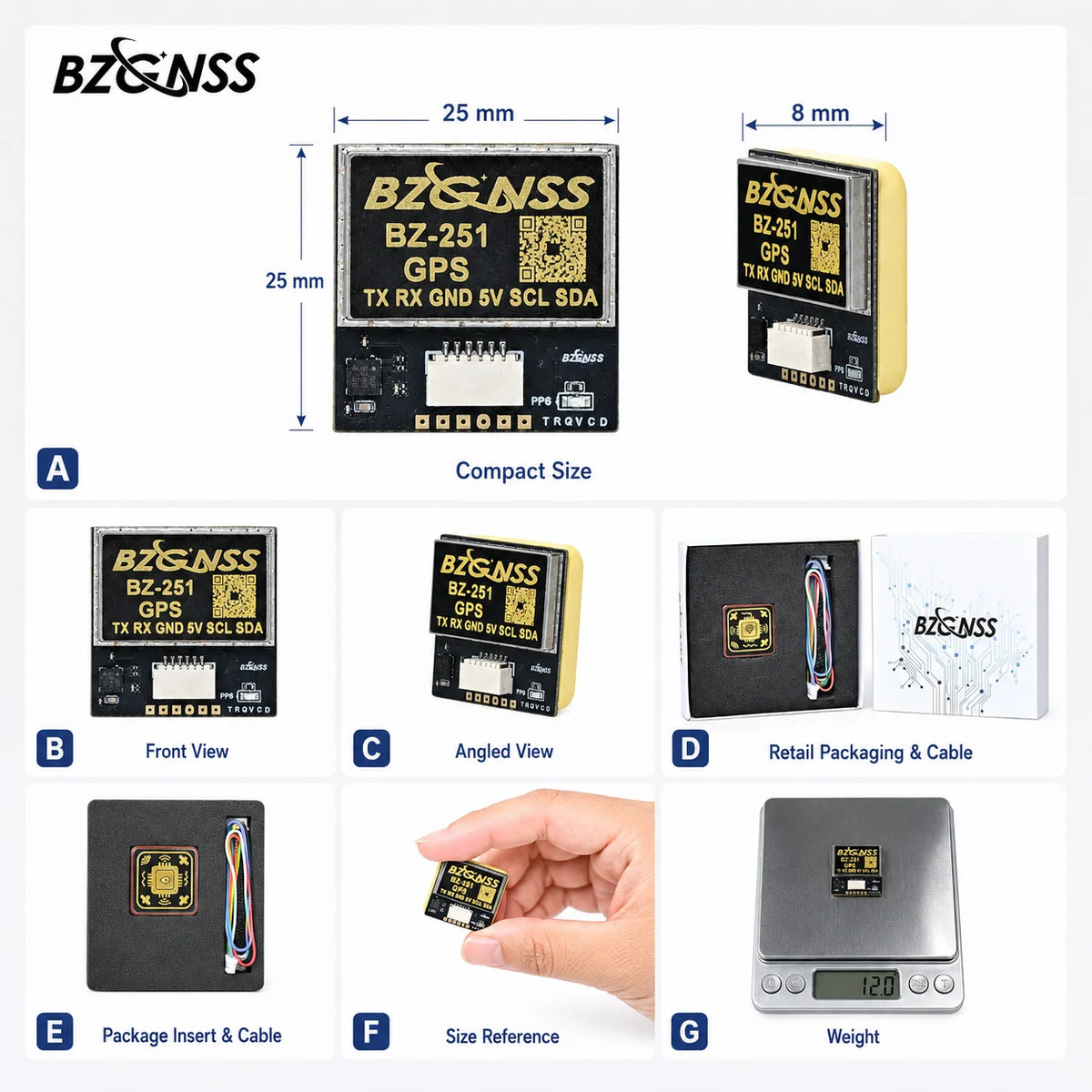

Product Dimension: 25X25X8mm

Quantity: 1 pcs

Recommend Age: 14+y

Satellite System: 5 Constellation Signal

Start Speed: 40s Fast Cold Fix

Technical parameters: KV1100

Tool Supplies: Assembled class

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

Wiring Accessory: 4Pin Twisted Cable

PRODUCT DESCRIPTION

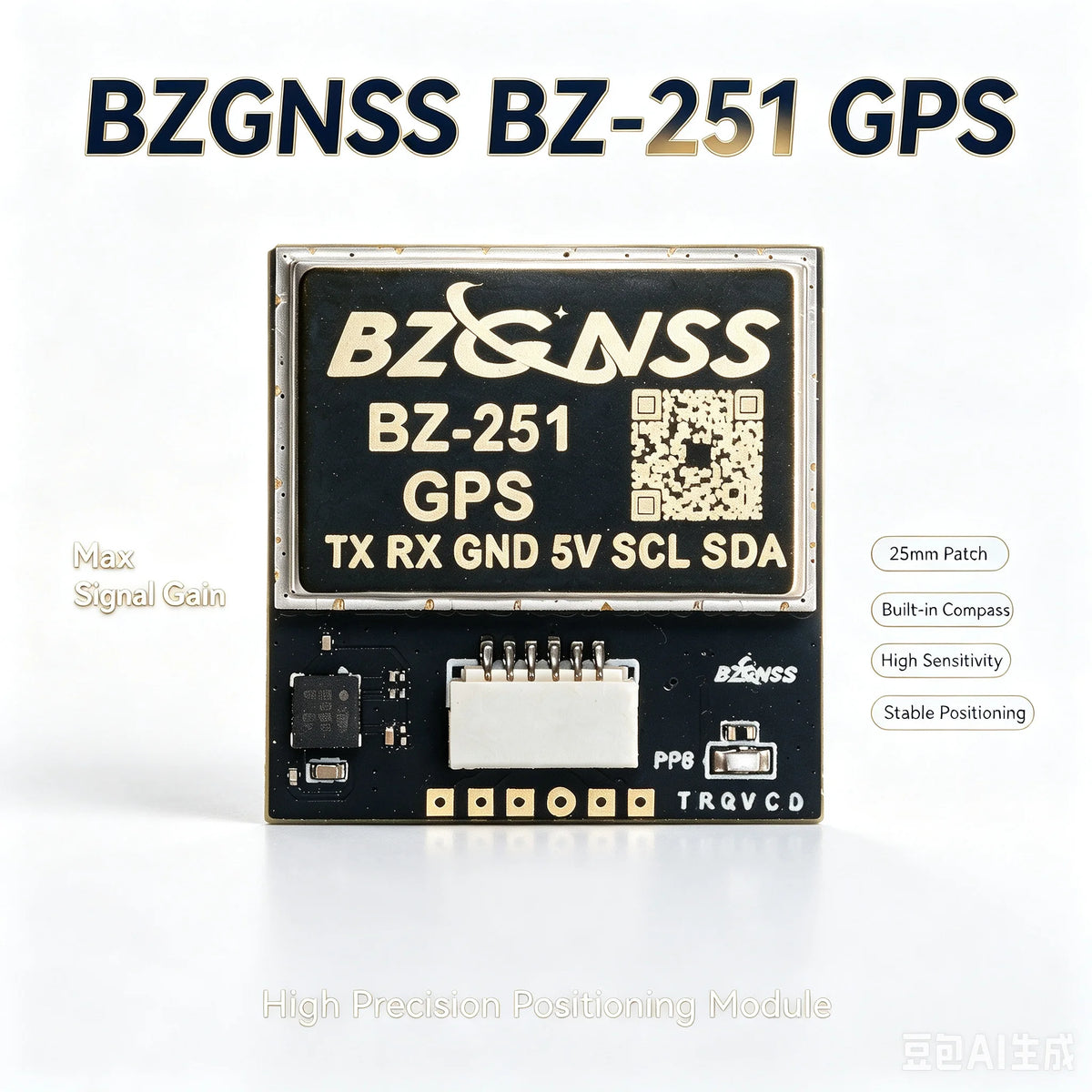

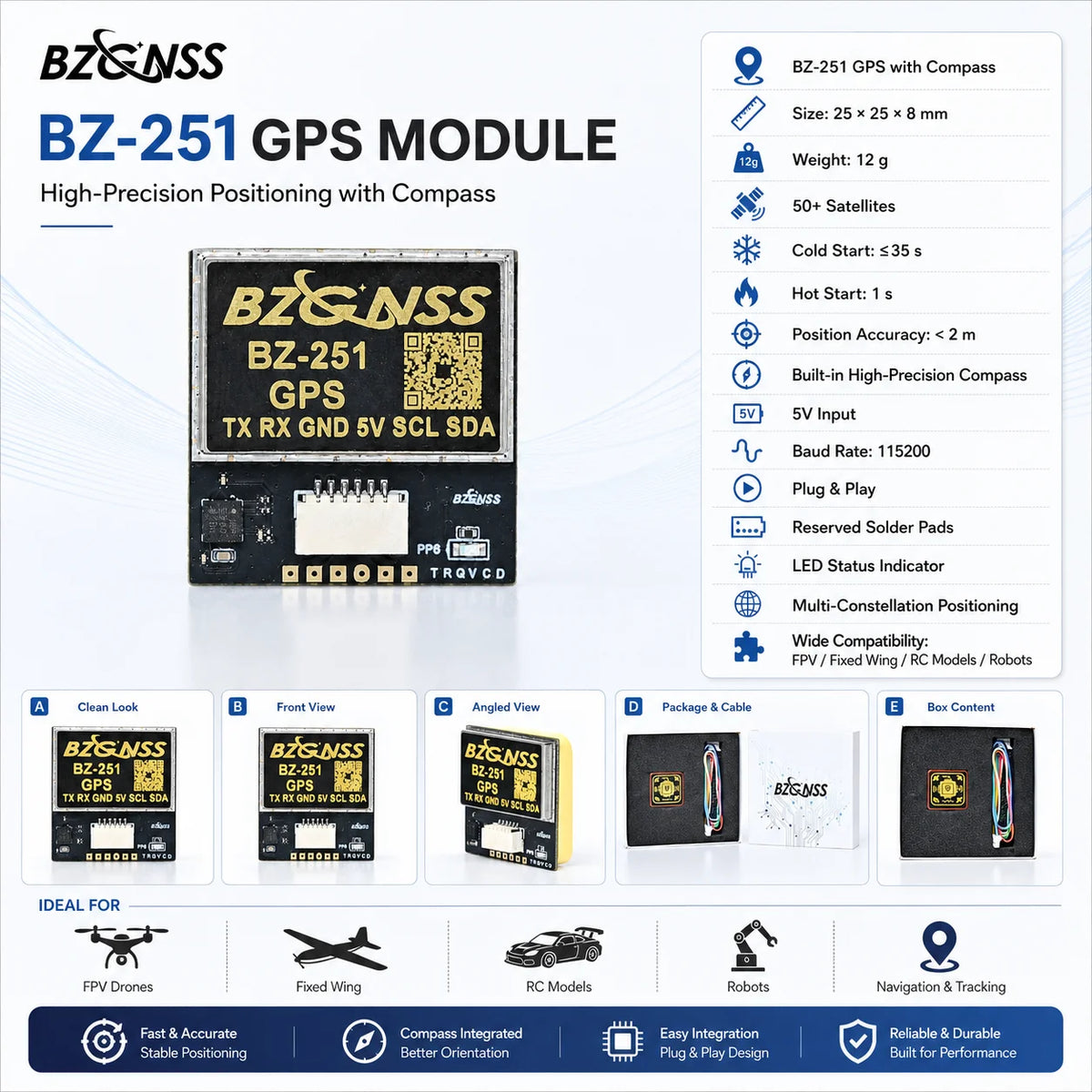

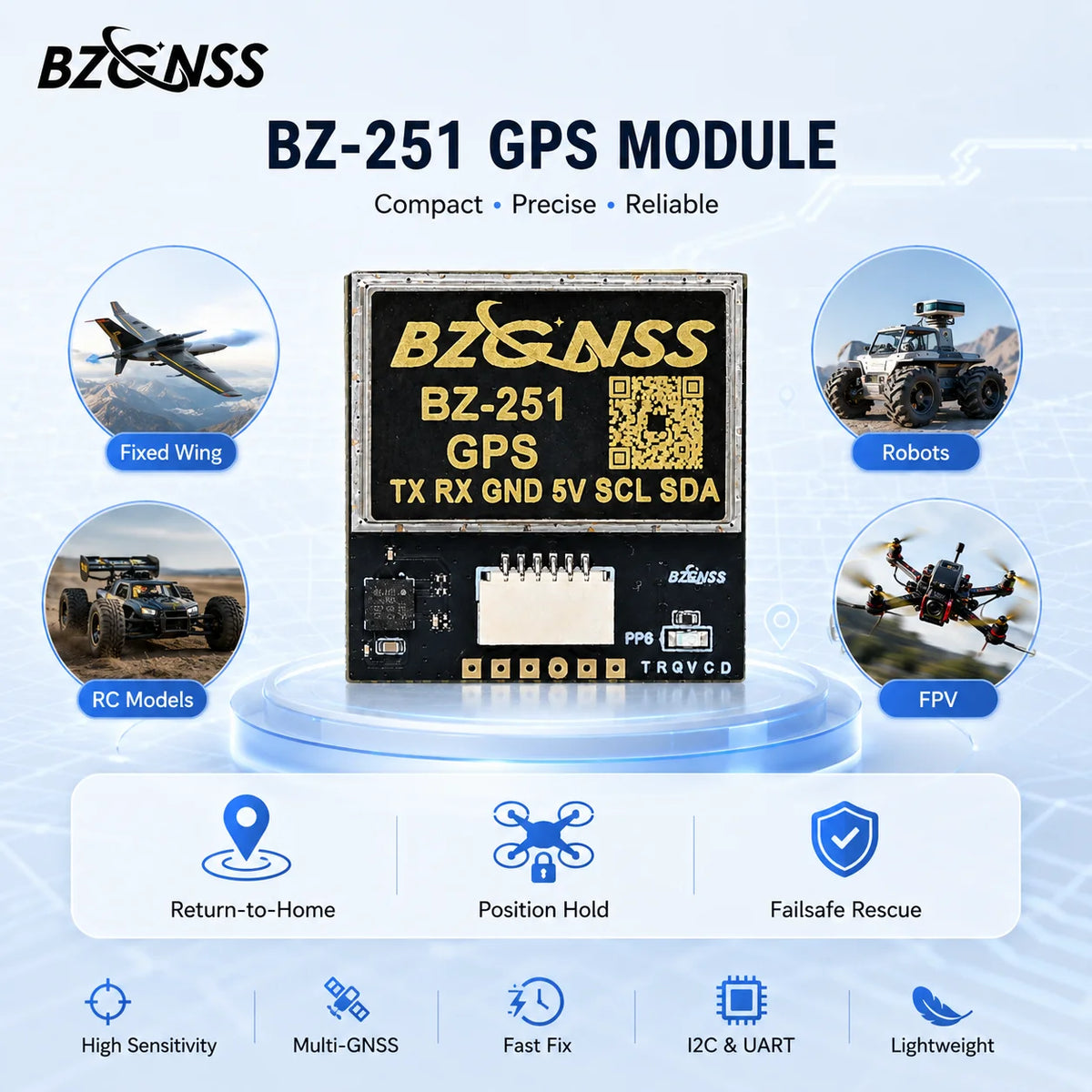

BZGNSS BZ-251 GPS with Built-in Compass - Optimized for Long Range

The BZ-251 is our professional-grade all-in-one GPS+Compass module designed for pilots who demand maximum reliability, especially for long-range FPV and fixed-wing applications. The 25×25×8mm form factor accommodates a larger high-gain ceramic antenna for significantly improved signal reception compared to mini GPS modules, while still maintaining a compact footprint and light weight.

Equipped with our latest customized high-performance chip and new generation integrated signal amplifier, the BZ-251 delivers industry-leading satellite acquisition speeds and rock-solid tracking. With the ability to lock onto 50+ satellites across all major global navigation constellations, you get consistent <2 meter accuracy whether you're flying in open fields, dense urban environments, or along forest edges.

Larger High-Gain Ceramic Antenna

The 25mm size allows for a bigger, more sensitive ceramic antenna that outperforms smaller mini GPS modules:

Stronger Signal Reception: Higher gain for improved satellite tracking at low elevation angles
Better Penetration: More reliable positioning in challenging environments
Long Range Optimized: Maintains solid lock even at extended distances
Stable Tracking: Fewer satellite dropouts during aggressive maneuvers
Faster Acquisition: Larger antenna contributes to faster TTFF times

Built-in High Precision Compass

The integrated factory-calibrated magnetometer provides rock-solid heading data:

No Drift Performance: Stable heading even during long flights and temperature changes
Accurate RTH Direction: Precise return-to-home heading calculation even in strong winds
Wind Drift Resistance: Combined GPS+compass data enables superior wind compensation
Heading Hold Mode: Stable course lock for fixed-wing navigation
Interference Optimized: Compass placement carefully designed to minimize magnetic interference from onboard electronics

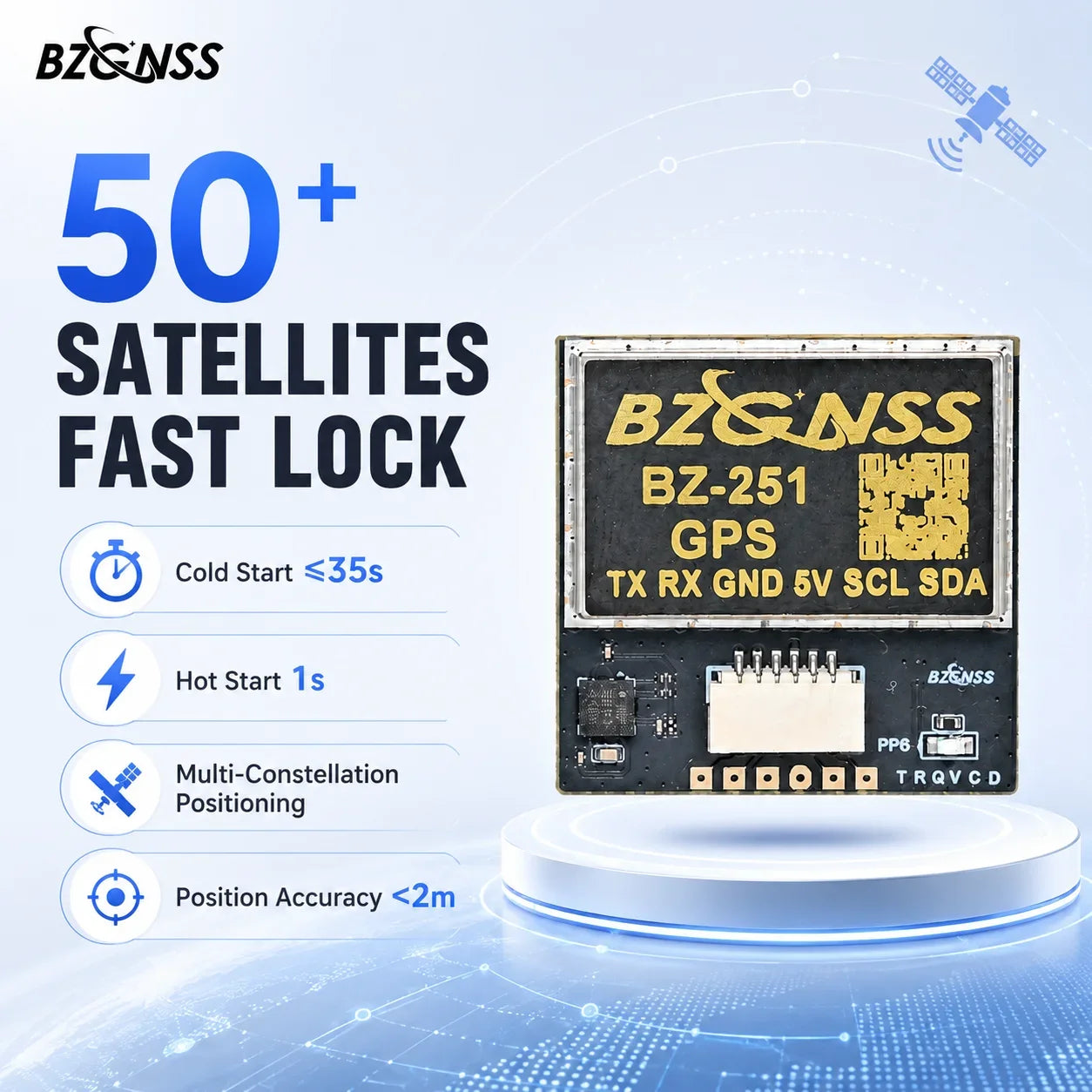

Blazing Fast Satellite Acquisition

Never wait for GPS lock again:

Cold Start: Under 35 seconds from power on to full 3D fix
Hot Start: Under 1 second when almanac data is available
Signal Reacquisition: Instant lock recovery after temporary signal blockage
High Update Rate: 10Hz position updates for smooth, responsive flight control

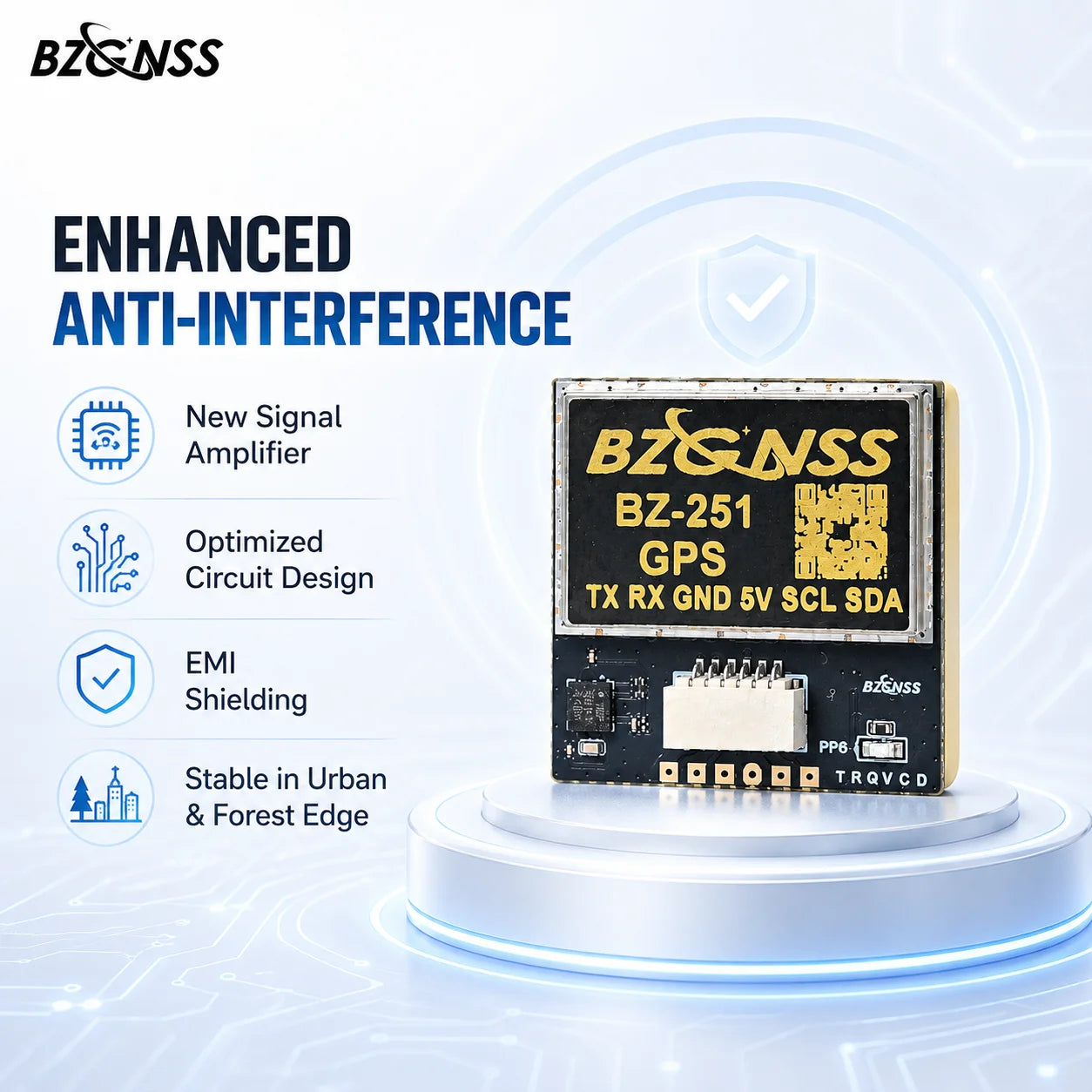

️ Professional Grade Anti-Interference

The BZ-251 features our most comprehensive interference protection:

Built-in Metal EMI Shielding: Completely isolates GPS/compass circuitry from flight controller noise

Optimized PCB Layout: Careful component placement and grounding minimizes internal noise

New Generation Signal Amplifier: Actively boosts weak satellite signals

Power Supply Filtering: Additional LC filtering for clean operation even with noisy BECs

Magnetic Isolation: Compass positioned away from high-current circuits to reduce deviation

VTX/ESC Resistant: Proven to maintain lock even with high-power video transmitters nearby

Full Feature Set for Safe Flying

The integrated GPS+Compass enables all advanced flight modes:

Precision Return-to-Home: Accurate navigation with correct heading back to launch
Rock-Solid Position Hold: Stable hover for aerial photography and surveying
Failsafe Rescue: Reliable position+heading for emergency failsafe activation
Long Range Confidence: Consistent tracking for multi-kilometer flights
Wind Resistance: Superior wind drift compensation
Waypoint Missions: Full autonomous waypoint navigation in INAV/ArduPilot
Cruise Control: Heading hold for relaxed fixed-wing flying
