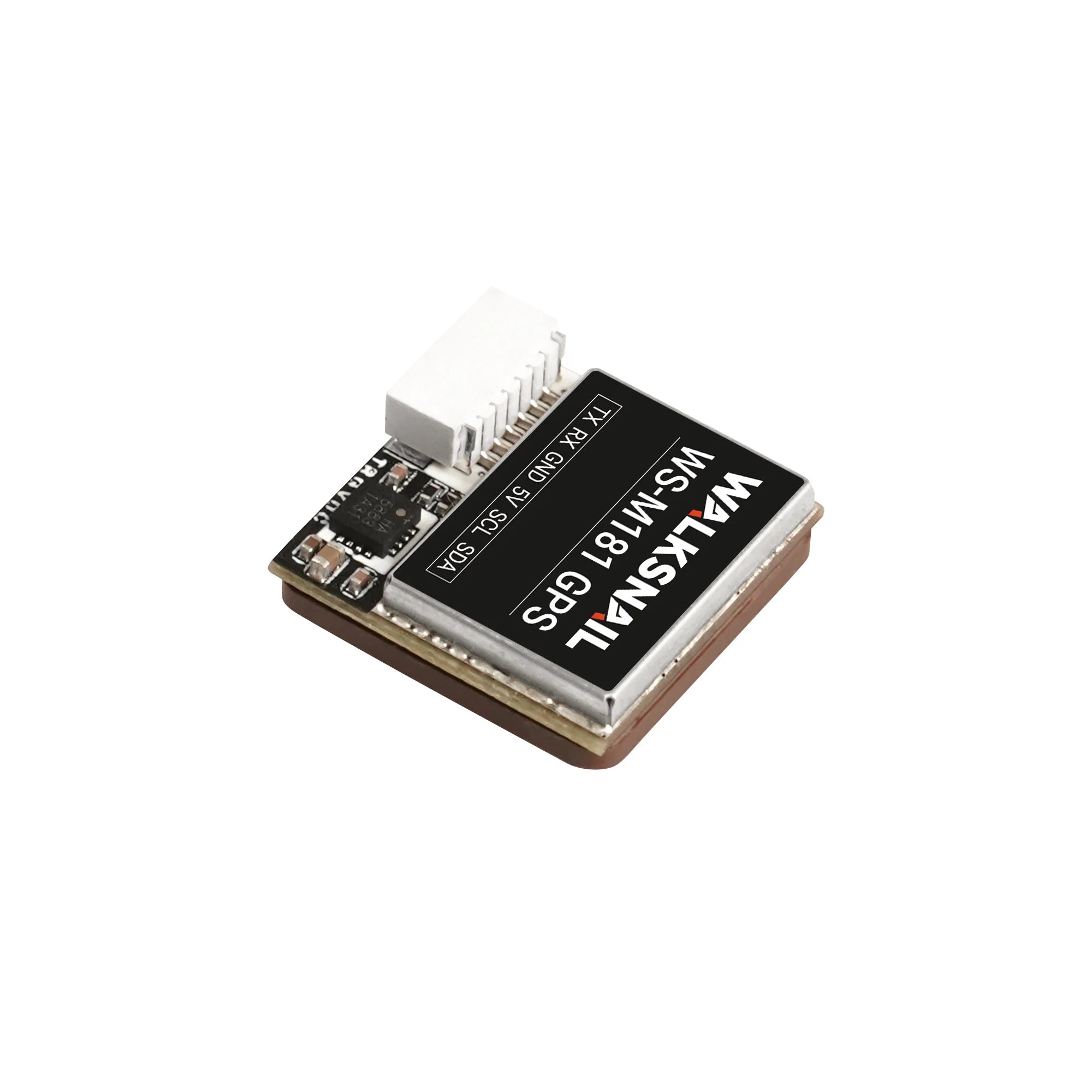

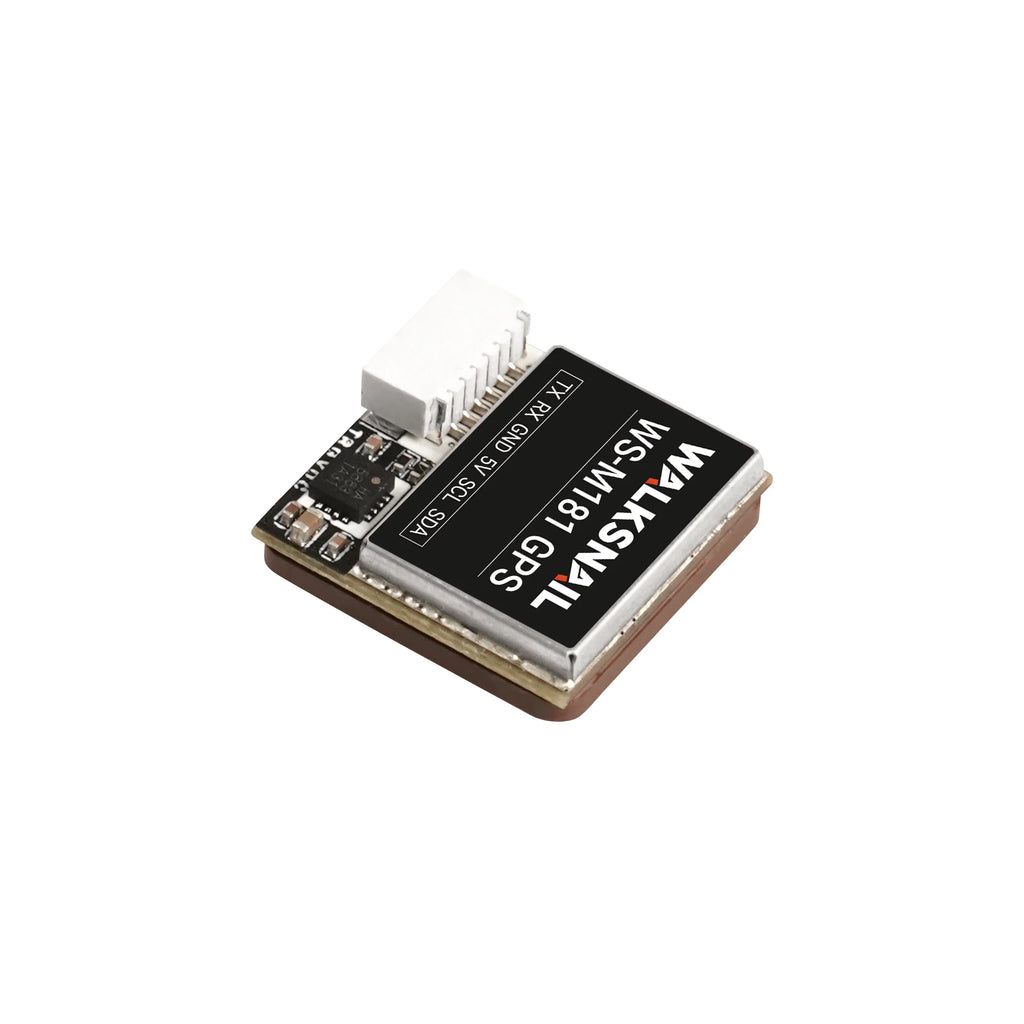

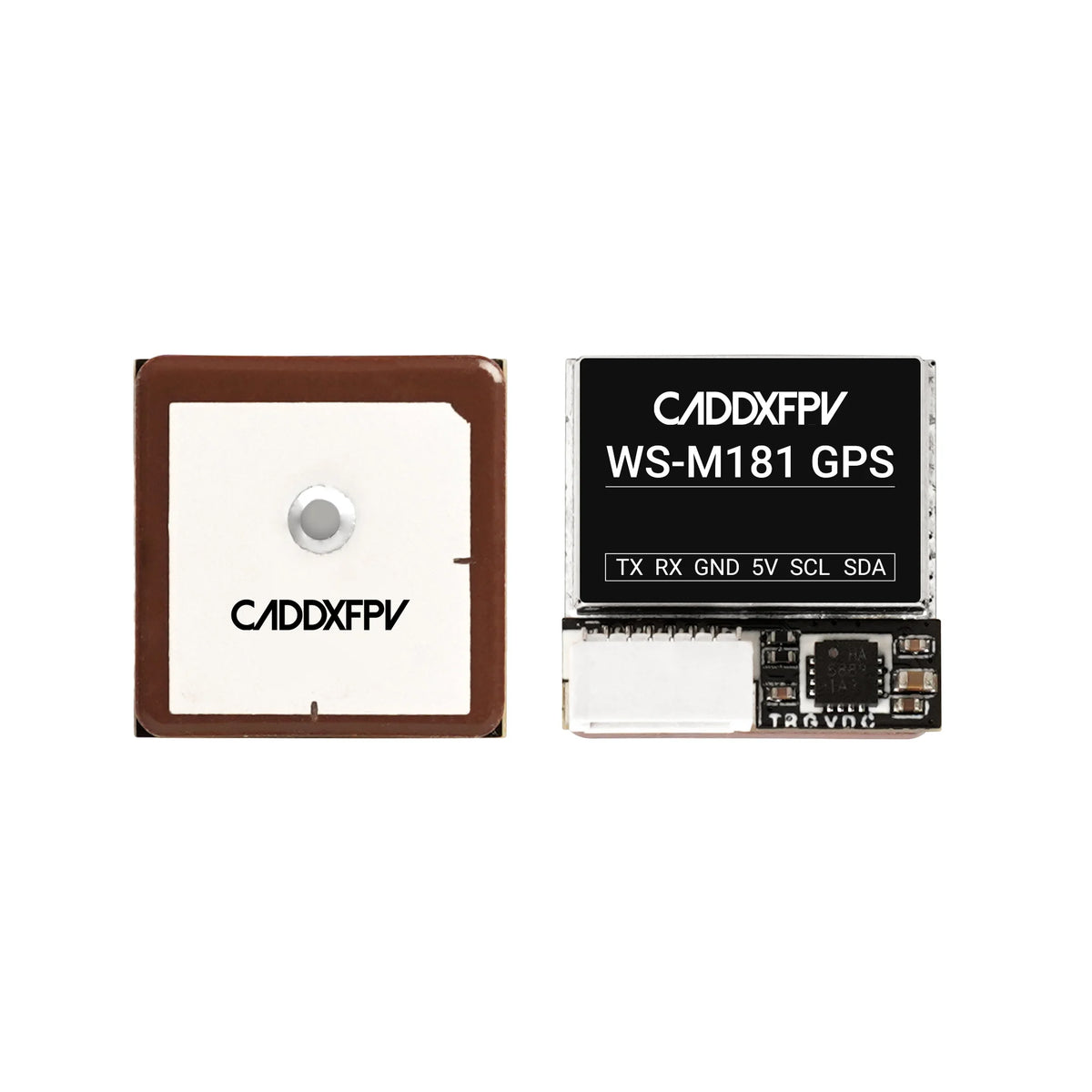

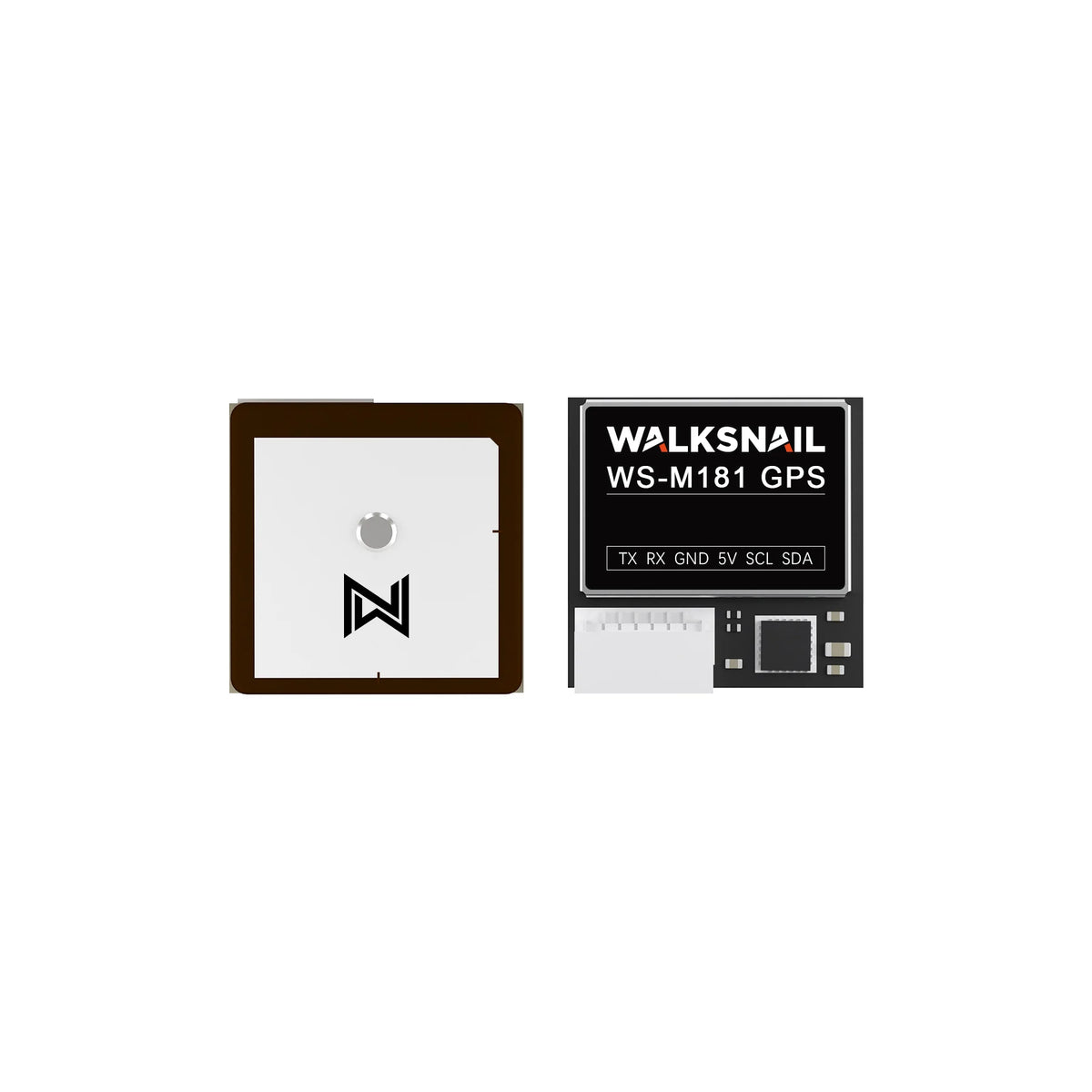

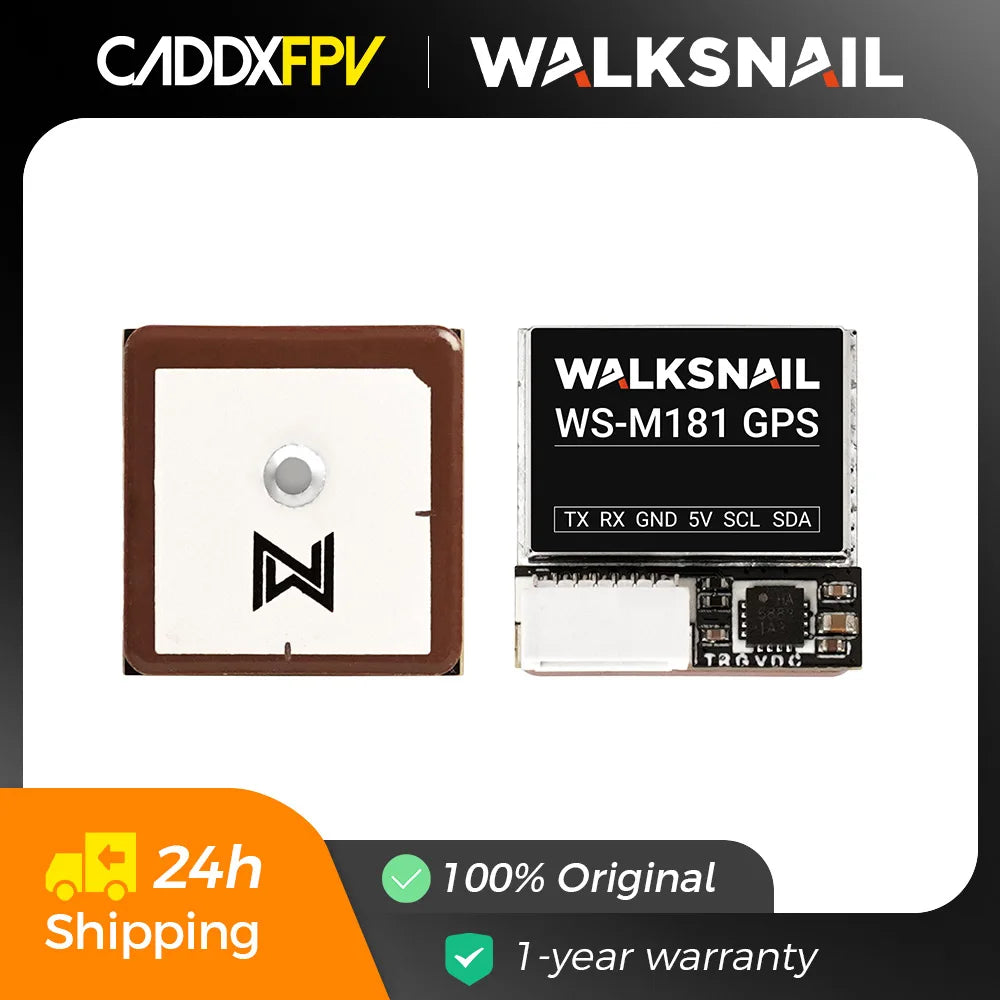

Caddx Walksnail WS-M181 GPS M10 GNSS BUILT-IN QMC5883 Compass Ceramic Antenna for RC Airplane FPV Freestyle Long Range DIY Parts
WS-M181 GPS M10 / China Mainland
$90.68
Sale price
$90.68
Regular price
$0.00
Skip to product information
Caddx Walksnail WS-M181 GPS M10 GNSS BUILT-IN QMC5883 Compass Ceramic Antenna for RC Airplane FPV Freestyle Long Range DIY Parts
$90.68
Sale price
$90.68
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: CADDXFPV
Certification: CE
For Vehicle Type: Airplanes
High-concerned chemical: none
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: EVA
Model Number: Walksnail WS-M181 GPS
Origin: Mainland China
RC Parts & Accs: GPS
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
Bullet Point

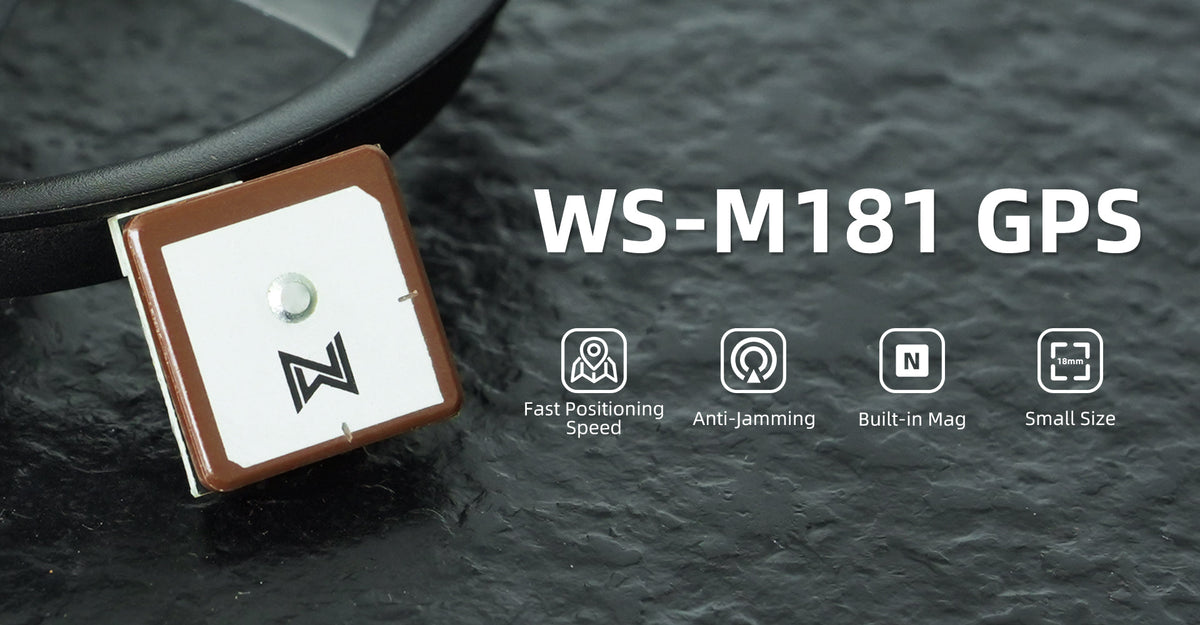

With small size, light weight, fast positioning, and stable connection. It is suitable for FPV, RC airplane, quadcopter and others to enhance the flight experience.
Featuring the u-blox M10 platform UBX-M10050 GNSS chipset and BUILT-IN QMC5883 MAG, the module offers stronger performance and more accurate positioning.

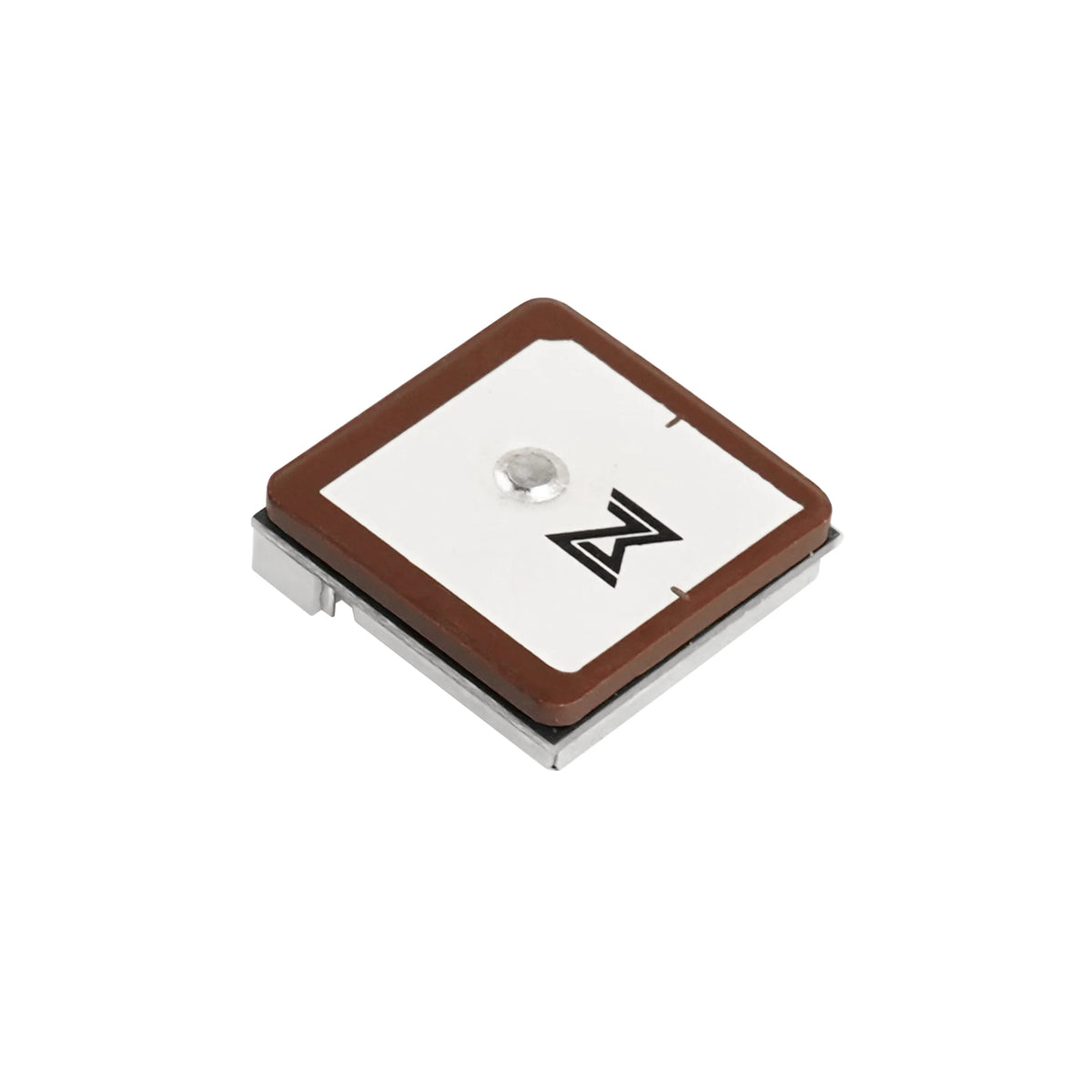

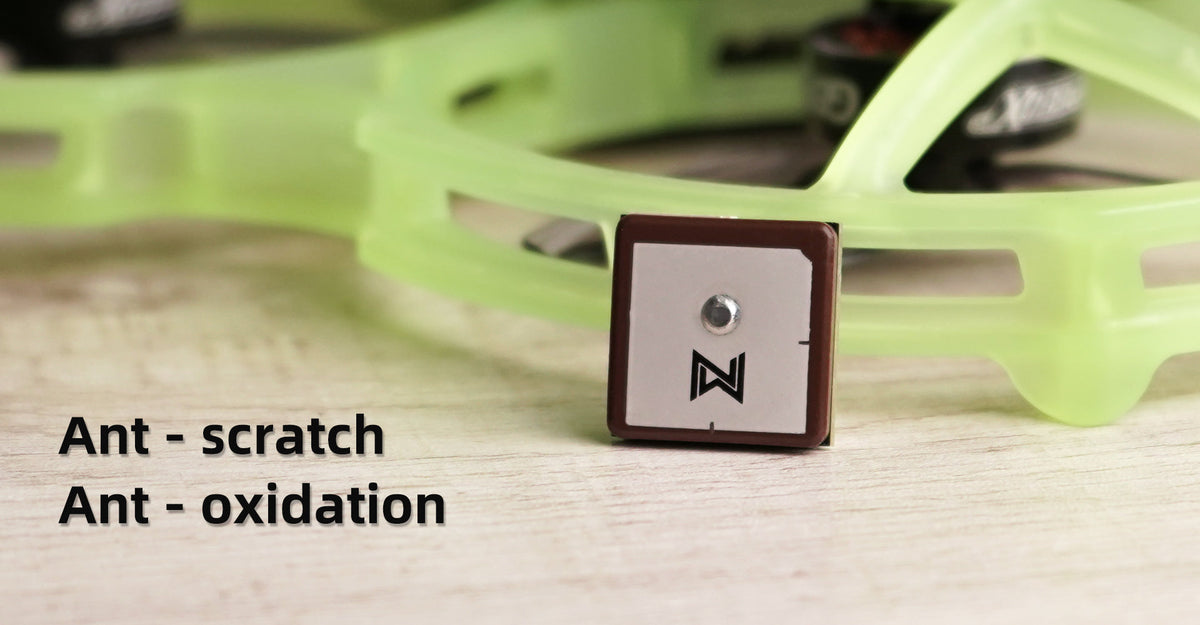

The ultra-thin ceramic antenna uses a special spray painting process to prevent oxidation and scratching, ensuring consistent positioning performance.

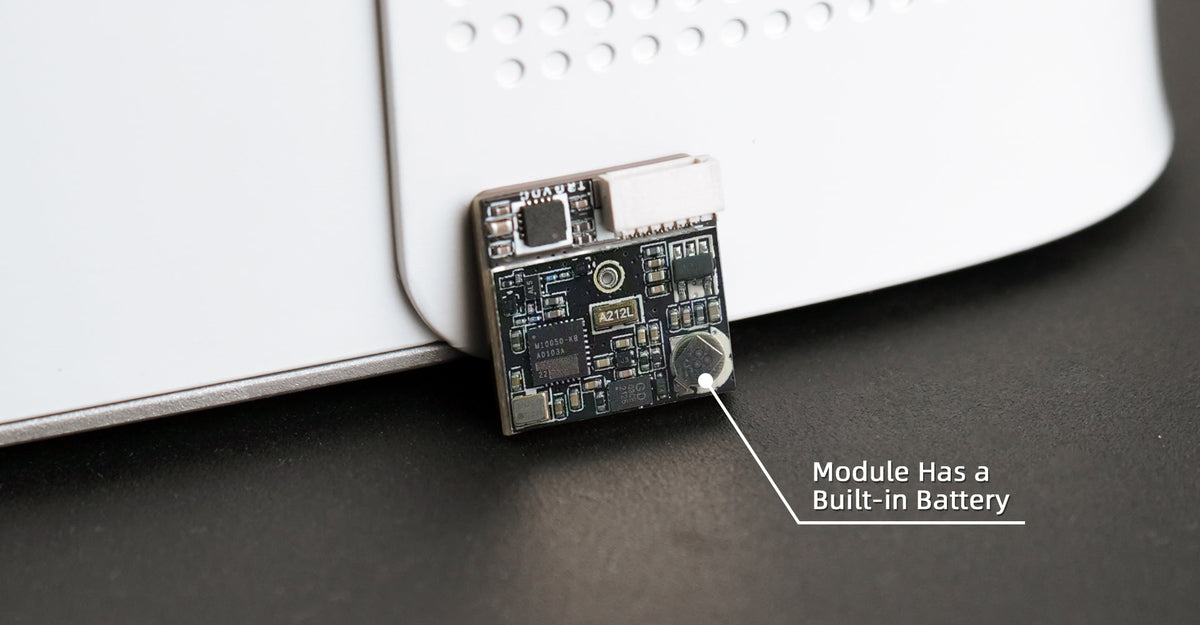

The built-in battery can realize hot start and realize positioning quickly.
It offers six positioning modes, providing more flexible combinations (default GPS + GLONASS + BDS multi-mode positioning).The measured maximum number of search sats can cover 32pcs.
Note:
Because the GPS chip is a new 10th generation chip, the flight controller needs to flash firmware Betaflight 4.3.0 and above, and the firmware below 4.29 uses the NMEA protocol.
Specification |
|
name |
Walksnail WS-M181GPS |
Chip: |
M10 (ten generation chip) |
Frequency: |
GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1 |
Power: |
5V |
Size: |

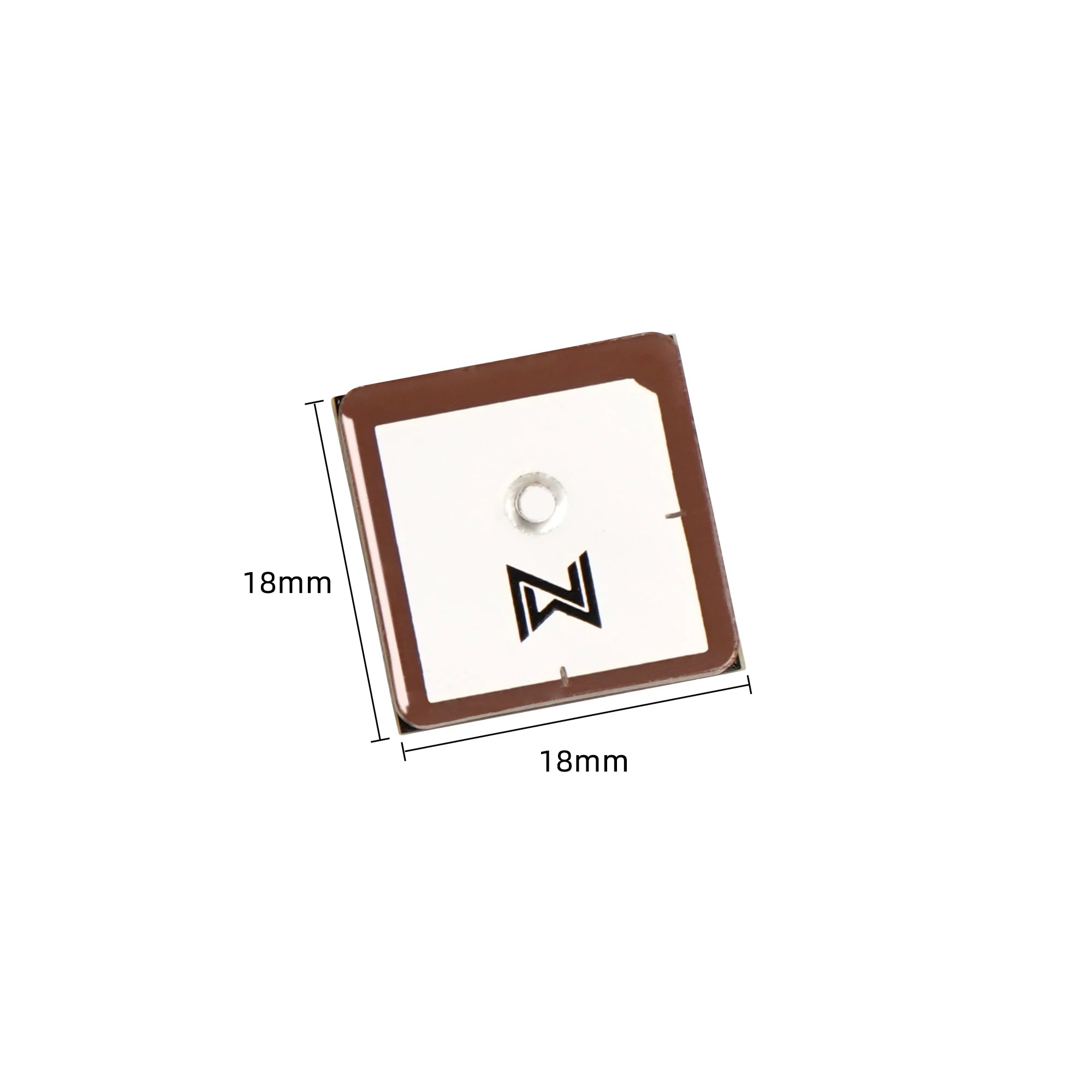

18mm*18mm*4.6mm |
Antenna: |
ceramic antenna (oil spraying process, prevent scratching and oxidation) |
Receiving channels: |
72 search channels |
Compass： |
QMC5883 |
Baud rate: |
115200dps |
Output protocol: |
NMEA UBLOX (dual protocol) |
Output frequency: |
1Hz-10Hz, Default 10Hz |
Speed accuracy: |
0.05m/s |
Horizontal positioning accuracy: |
2D ACC1.5m(open air) |
Receiving sensitivity: |
Trace-162dBm Capture -160dBm |
weight： |
About 4.3g |
Dynamic characteristics: |
|
Altitude: |
50000m |
Speed: |
500m/s |
Acceleration: |
4G |
Operating temperature: |
-40℃-+85℃ |
Storage temperature: |
-40℃-+105℃ |
