SPECIFICATIONS

Brand Name: CALT

Model Number: GHST38-6GXX BML5/C526/P526/CP526/K526

Origin: Mainland China

PCB included: Yes

Weight: 0.2kg

is_customized: Yes

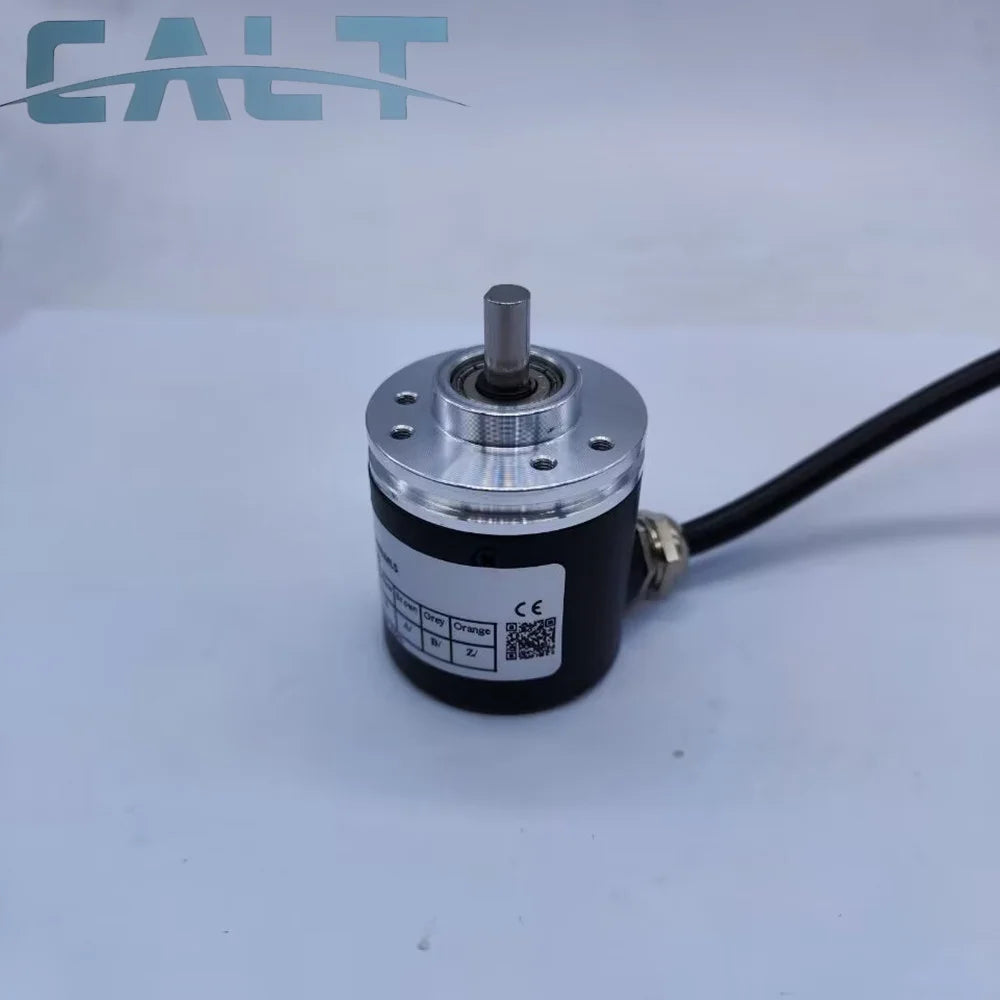

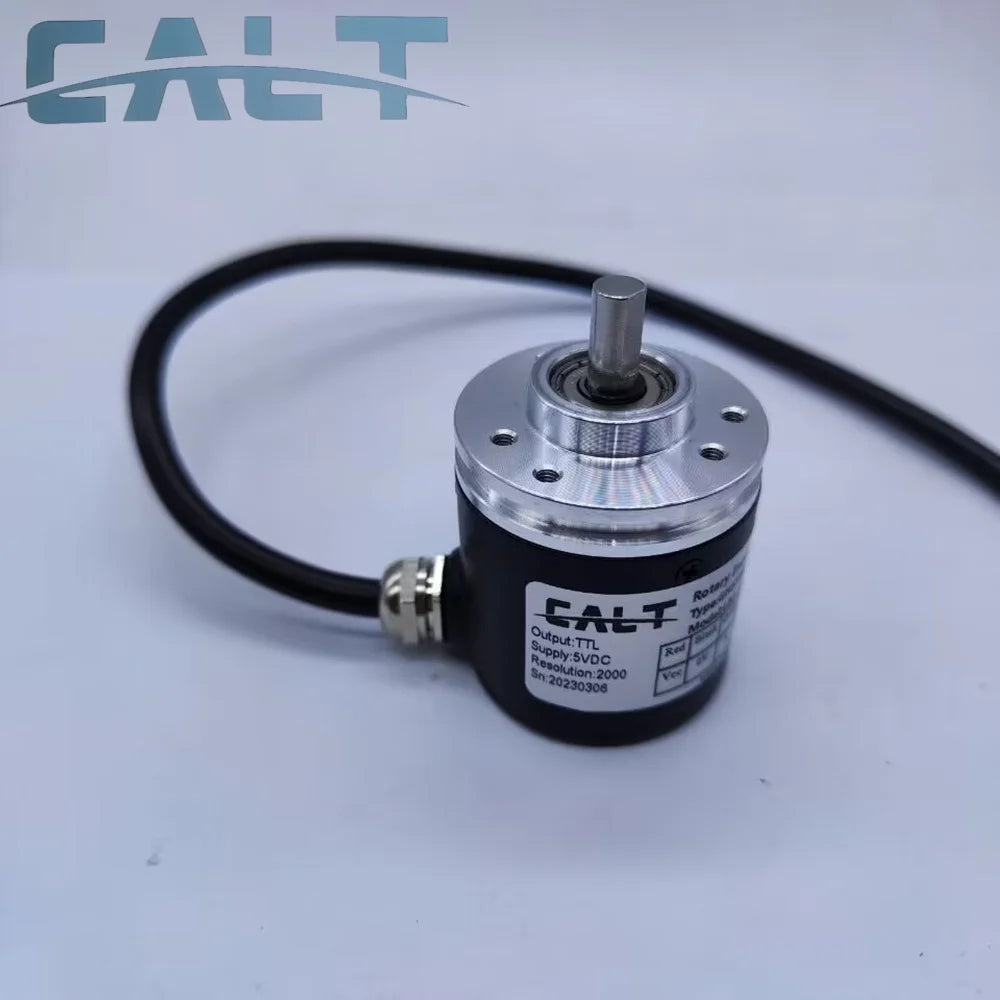

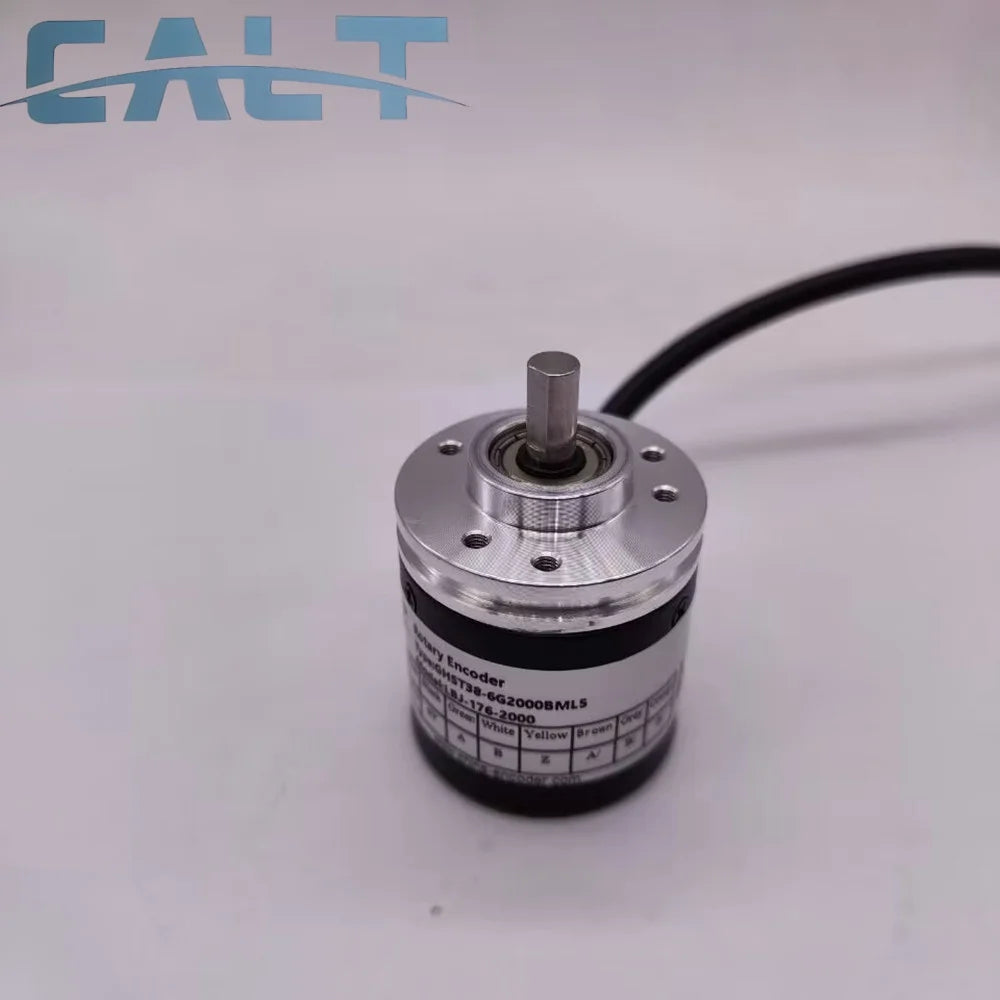

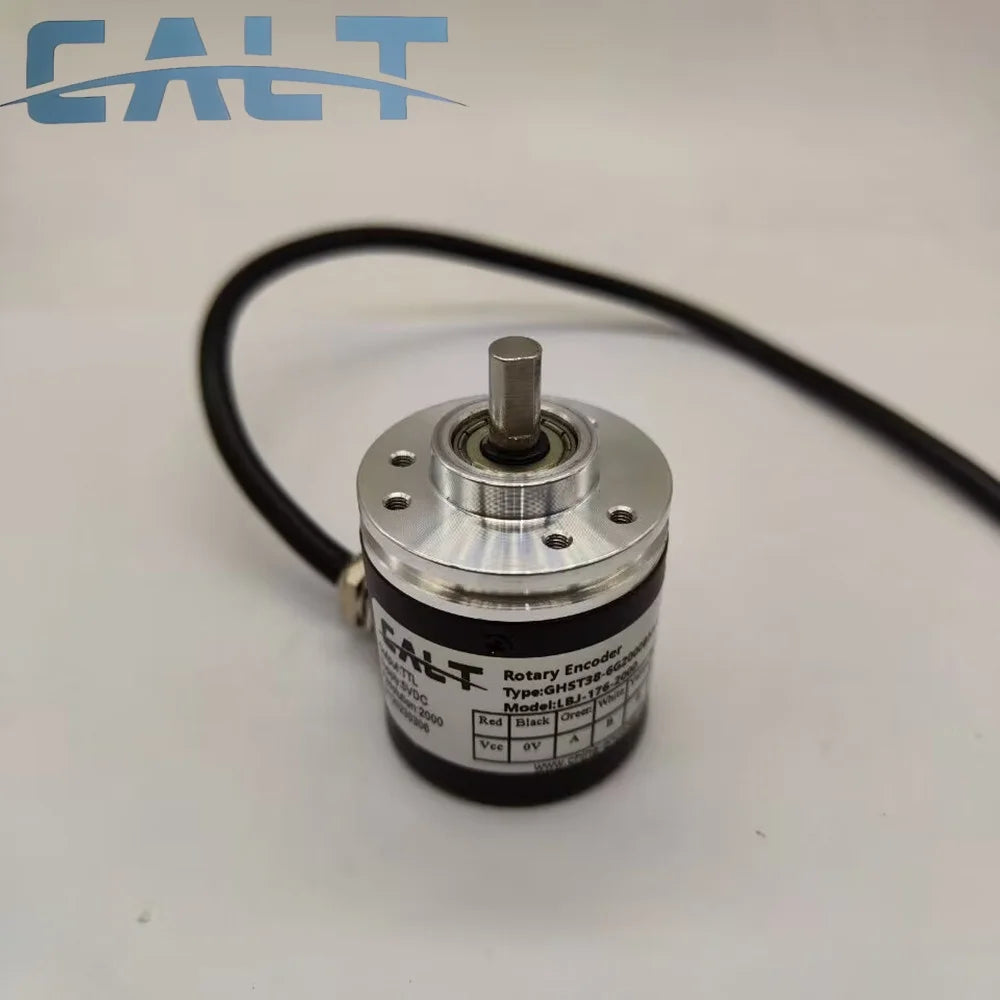

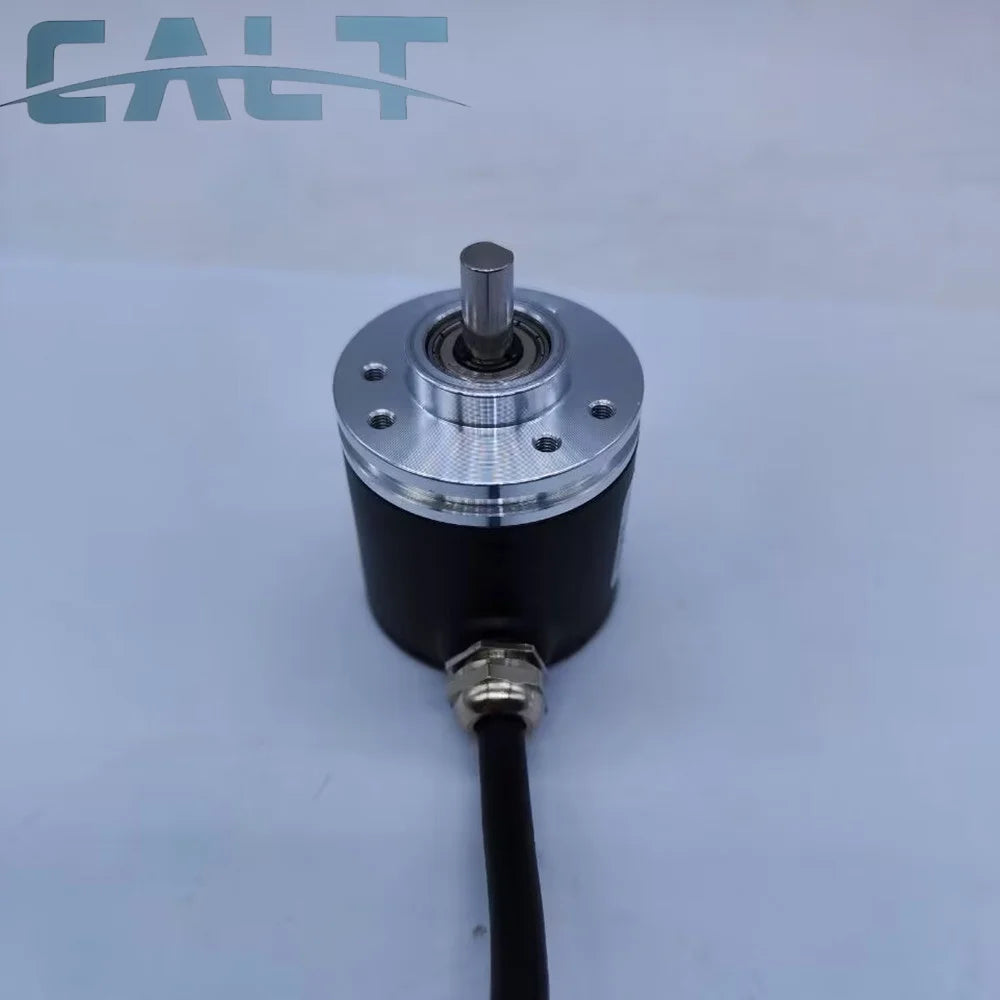

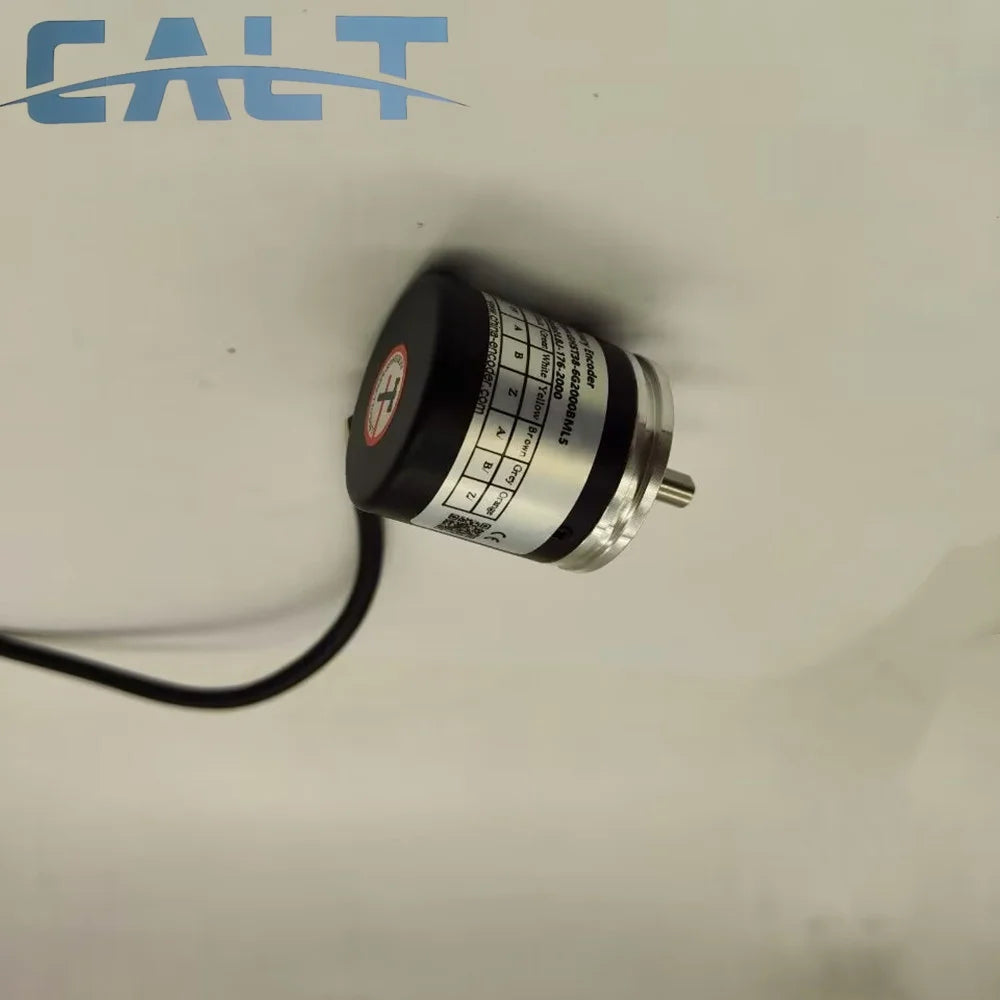

CALT GHST38 38Mm Outer 6Mm Shaft Rotary Encoder Pushpull Line Driver HTL NPN PNP Output For Industrial Automation Control

If there is any conflicting information on the page, please refer to the title as the standard.

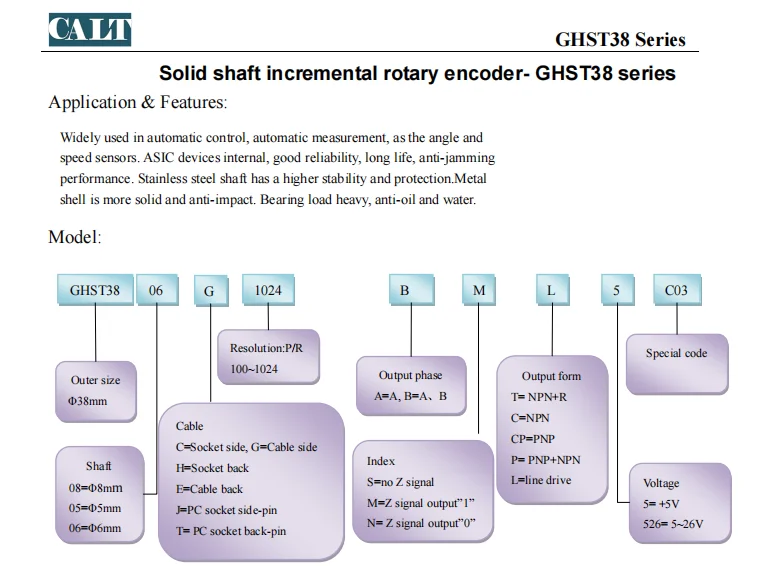

GHST38-6GXX BML5/C526/P526/CP526/K526 This is the model format for this listing, with a 38mm housing. There is an error in the SKU name and we are unable to revise it temporarily. Please be noted.

We are an industrial and trade integrated encoder supplier. Due to the numerous product parameters that cannot be displayed one by one, please contact us if you have any questions,Thank you!

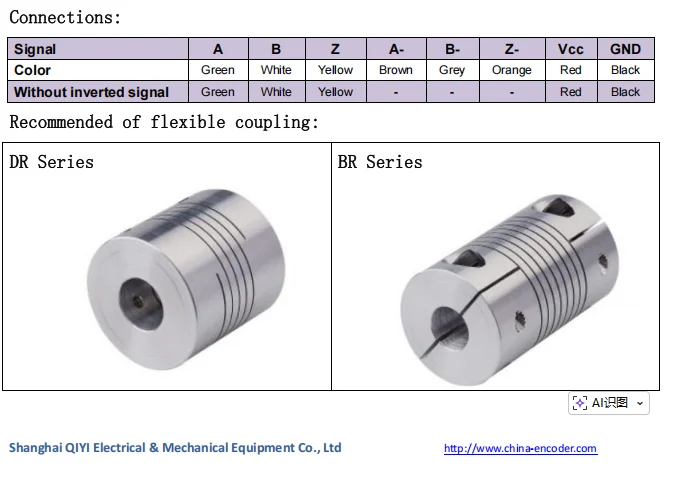

L5 (Line Driver): 5V supply. Signals: AA/, BB/, ZZ/ (6 wires, differential).

K526 (HTL): 5-26V supply. Signals: AA/, BB/, ZZ /(6 wires, differential).

C526 (NPN): 5-26V supply. Signals: A, B, Z (3 wires).

CP526 (PNP): 5-26V supply. Signals: A, B, Z (3 wires).

P526 (Push-Pull): 5-26V supply. Signals: A, B, Z (3 wires).

Regarding the output methods, standard incremental encoders generally include the Z signal. Here are the details for the different models:
