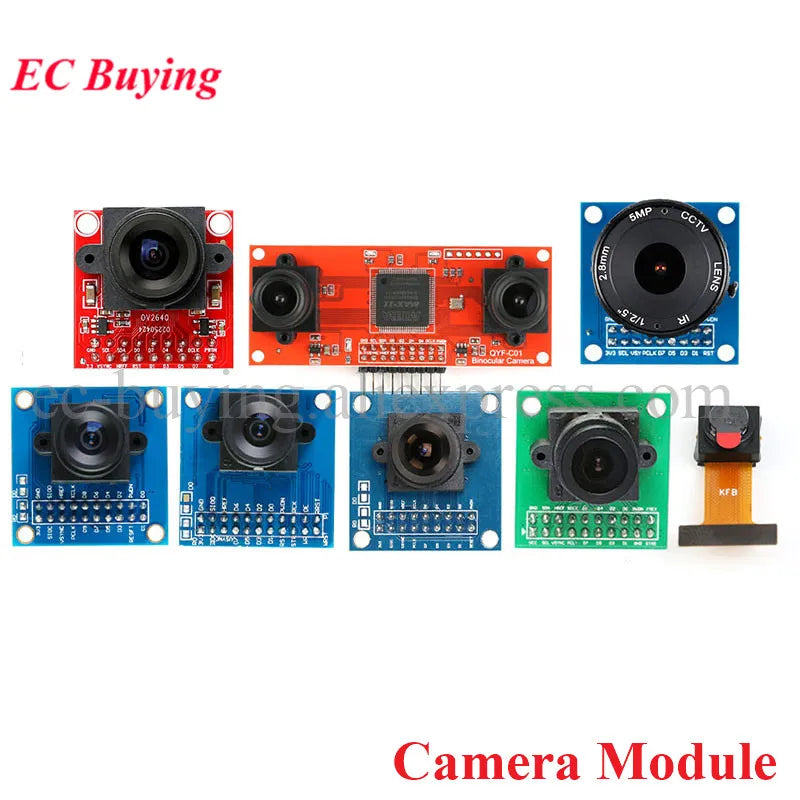

Camera Module OV7670 OV5642 OV7670 with FIFO OV7725 Kit Binocular Camera STM32 Driver for Arduino OV2640 Wide Angle Camera Board

Camera Module OV7670 OV5642 OV7670 with FIFO OV7725 Kit Binocular Camera STM32 Driver for Arduino OV2640 Wide Angle Camera Board

$41.00

$41.00 $0.00

Color OV7670 with FIFO OV7670 Adjustable OV5642 OV7725 OV7670 OV2640 Red board Binocular OV2640 OV7670 1 OV2640 Wide Angle

Description

SPECIFICATIONS

Application: Camera

Brand Name: EC Buying

Condition: New

Dissipation Power: low

High-concerned chemical: none

Operating Temperature: normal

Origin: Mainland China

Package: Module

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: PCB Board

Type: Voltage Regulator

is_customized: Yes

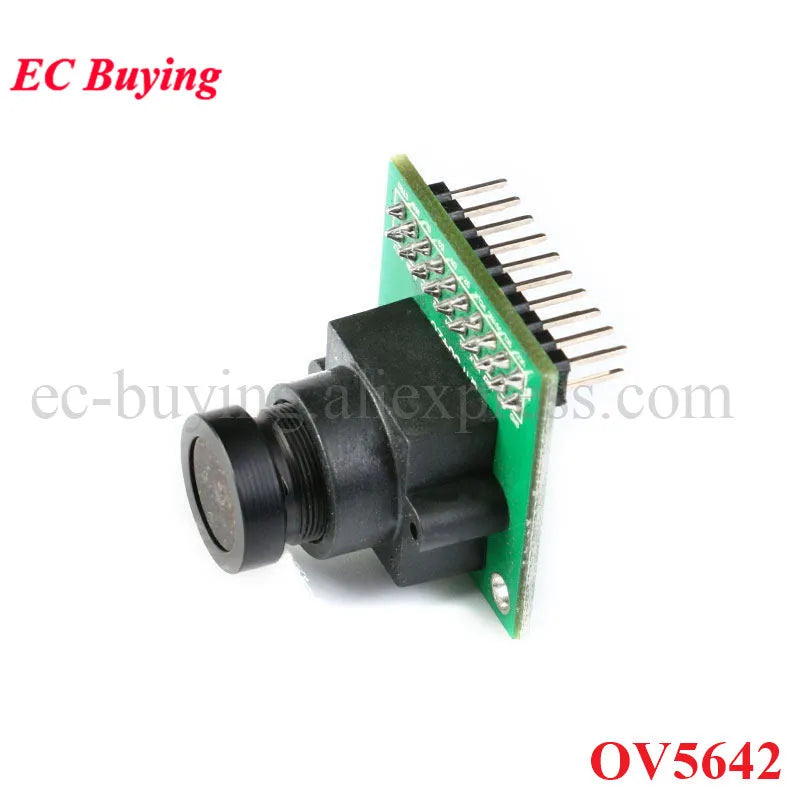

OV5642:

Product Description:

1. Sensor Model: OV5642

2. Sensor pixels: 500 million pixels, supports up to 2592 * 1944 size image output

3. Support RawRGB, RGB (GRB4: 2: 2, RGB565 / 555/444), YUV422, JPEG and other formats of image data output

4. Module integrated 24MHZ active crystal, more convenient to use

5. Optical size 1/4 ", pixel area 1.4 mum x 1.4 mum, sensitivity up to 600mV / Lux-sec

6. The lens selection of high quality and high transmittance 1080P 2.5MM 1/4 wide-angle glass lens plus all-magnesium alloy lens

7. Single power supply work: 3.3V - 5.0V

8. Module size: 3cm x 3cm (+/- 0.5mm), 2 * 10 interface / 2.54 pitch pin

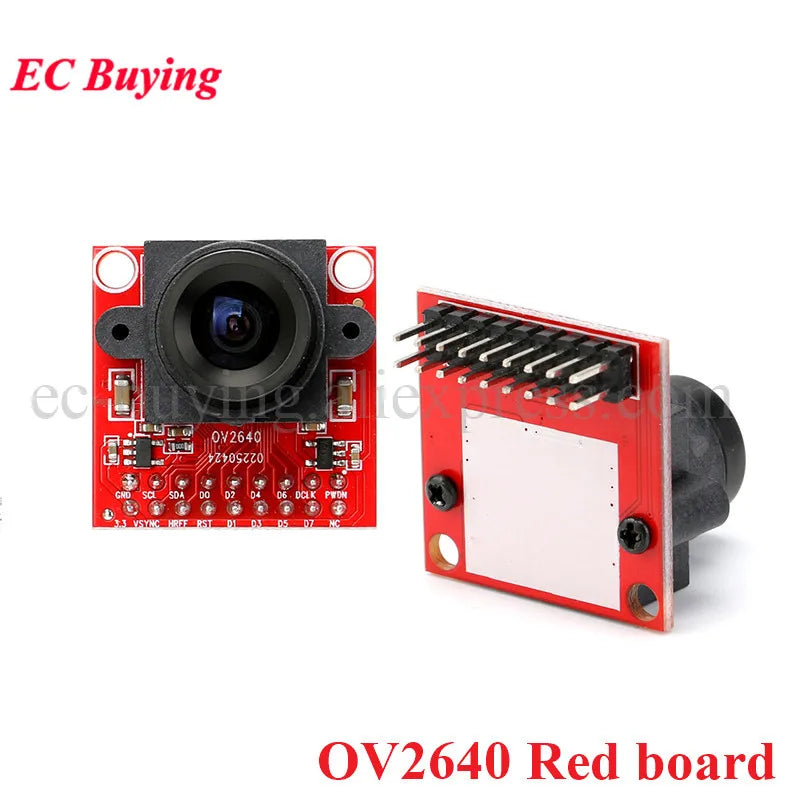

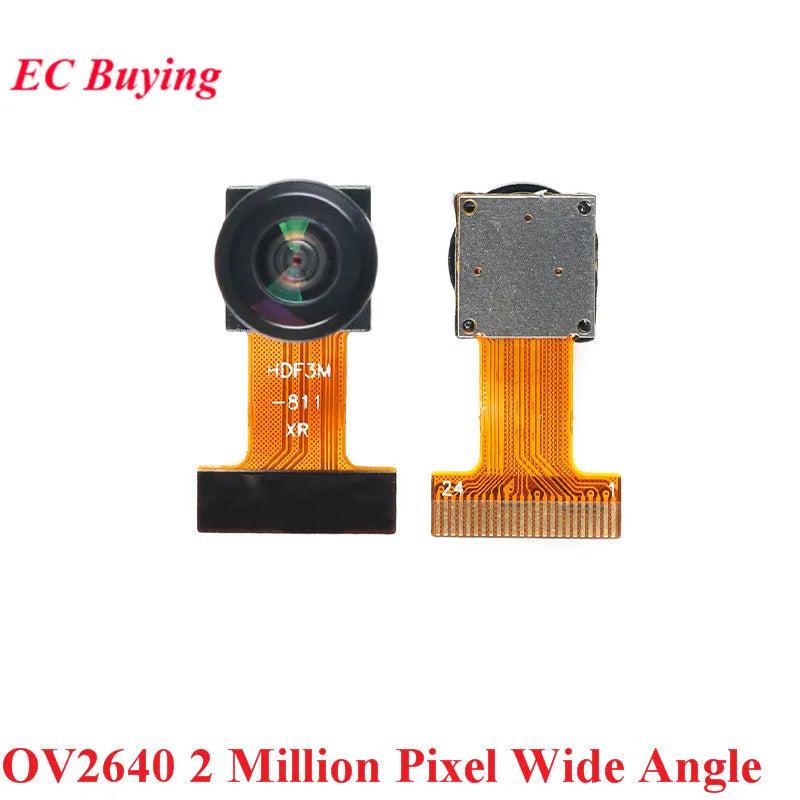

OV2640 RED Board:

Product Features:

High sensitivity, low voltage suitable for embedded applications
Standard SCCB interface, compatible with IIC interface
Supports RawRGB, RGB (GRB4: 2: 2, RGB565 / 555/444), YUV (4: 2: 2) and YCbCr (4: 2: 2) output formats
Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF, and up to 40 * 30 size of the various sizes
Support automatic exposure control, automatic gain, automatic white balance, automatic elimination of light stripes, automatic black level calibration
Support image quality control (color saturation, hue, gamma sharpness ANTI_BLOOM and other settings)
Supports image scaling, pan and window settings
Support image compression, you can output JPEG image data
Comes with embedded microprocessors
Integrated active crystal 12M, no external clock supply
Integrated LDO, only need to provide 3.3V power supply to work properly

Product parameters:

Operating voltage: 3.3V
Product power consumption: 40mA
Maximum pixels: 1600 * 1200 (200W)
Lens focal length: 3.6MM
Lens perspective: 78 deg
Lens aperture: F2.0
Dynamic range: 50 but B
Output format: RGB565 / JPEG / YUV / YCbCr and so on
Control interface: SCCB
IO port level: 2.8V LVTTL, compatible with 3.3V
Product Size: 27 * 27mm
Working temperature: -30 ℃ ~ +70 ℃

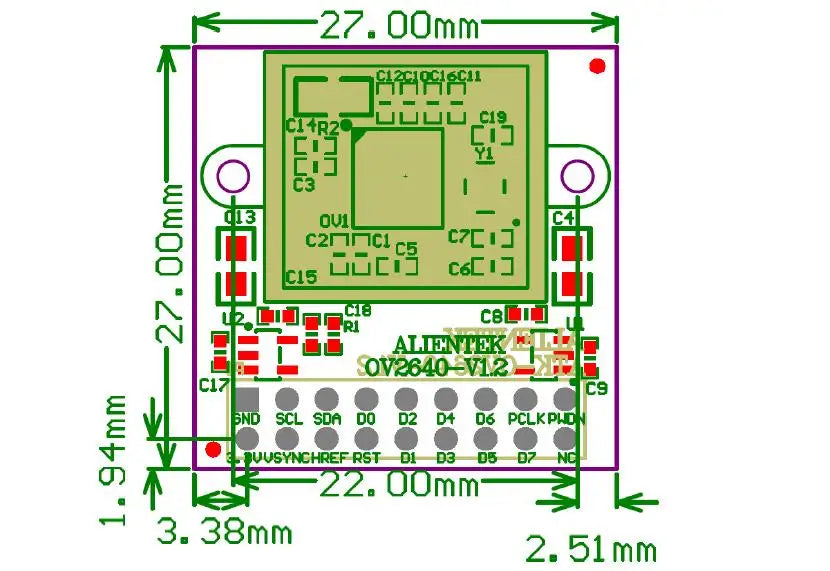

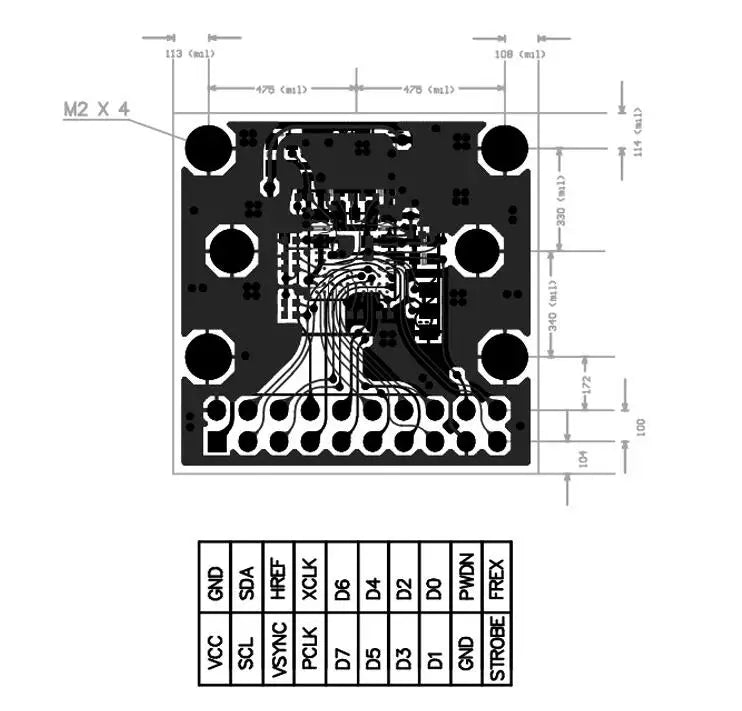

Product Size:

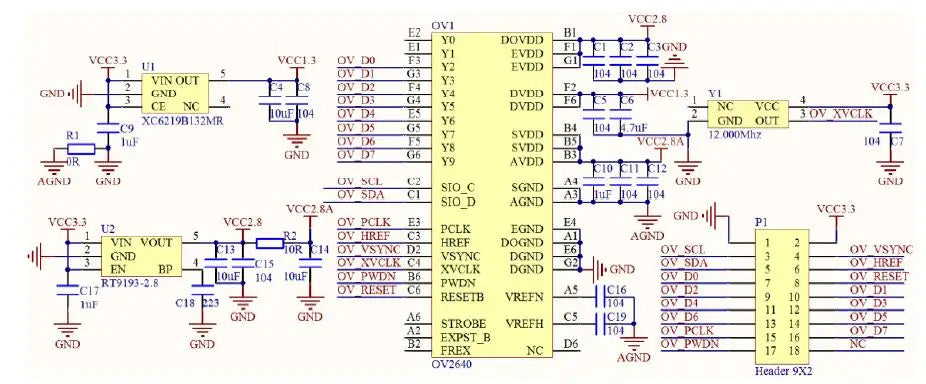

Schematic Diagram：

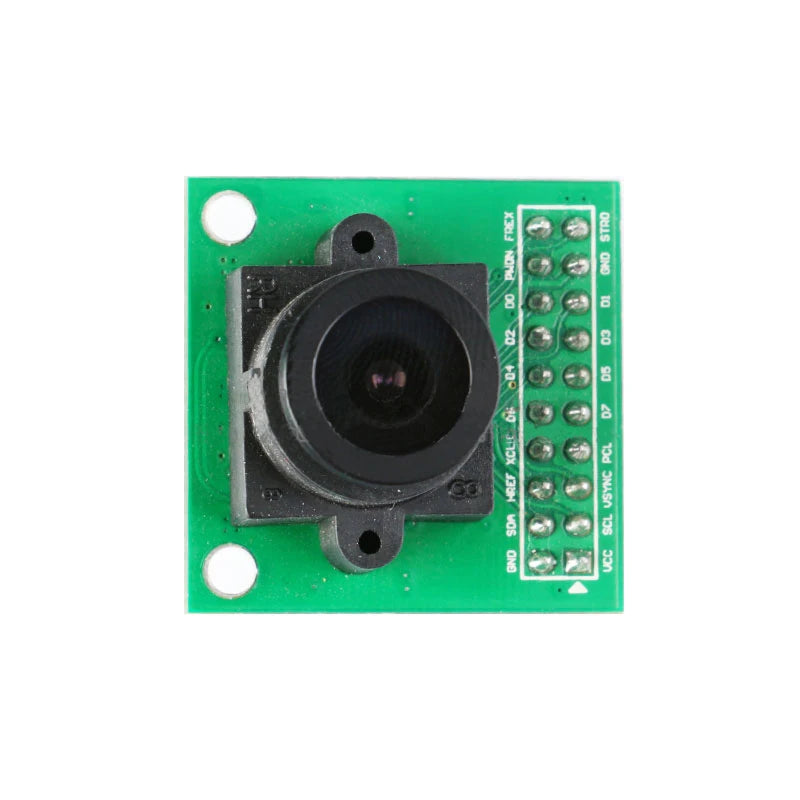

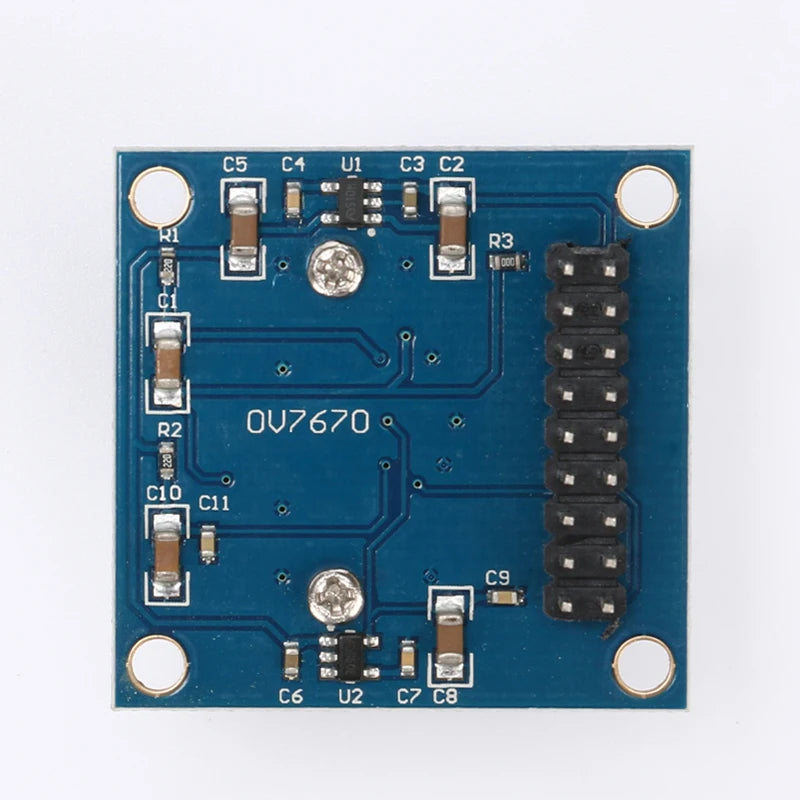

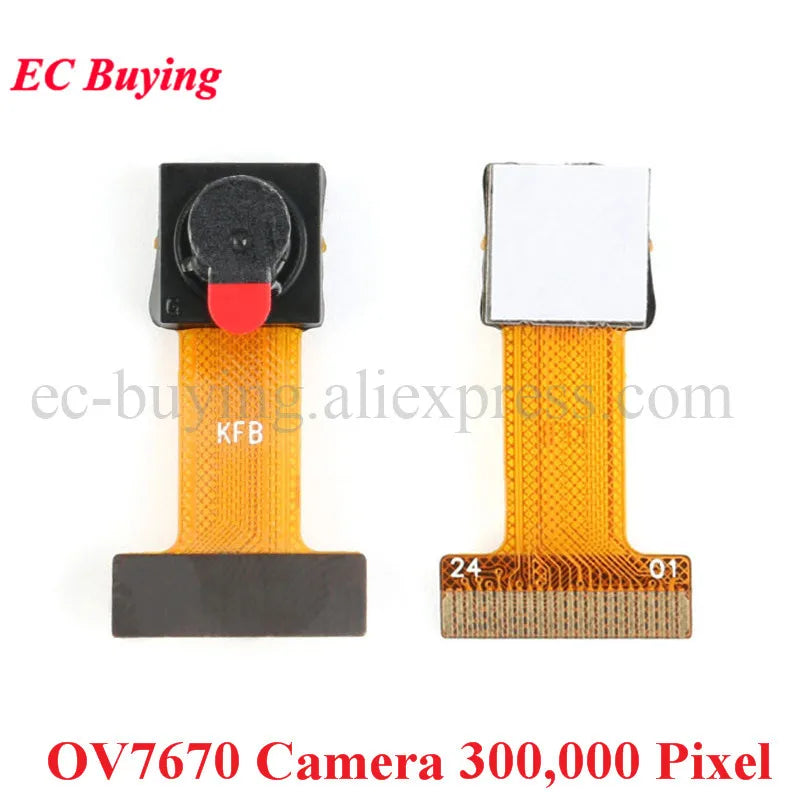

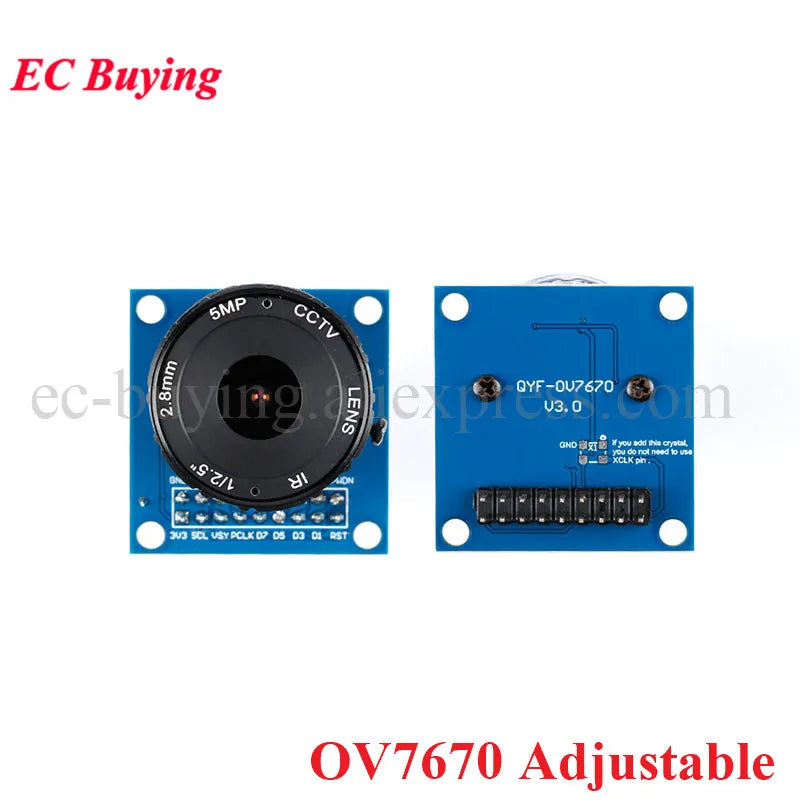

ov7670:

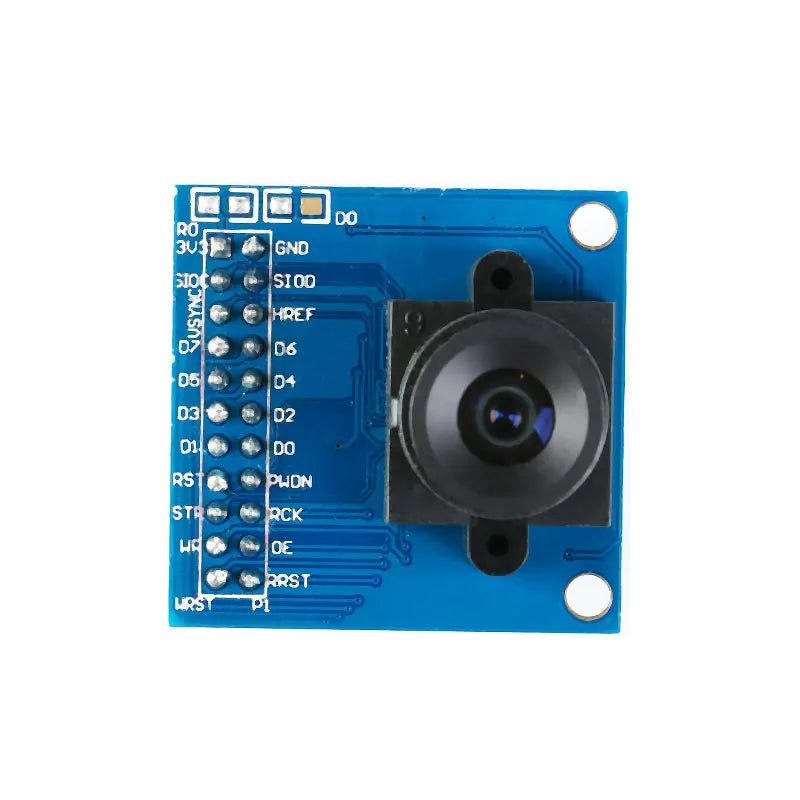

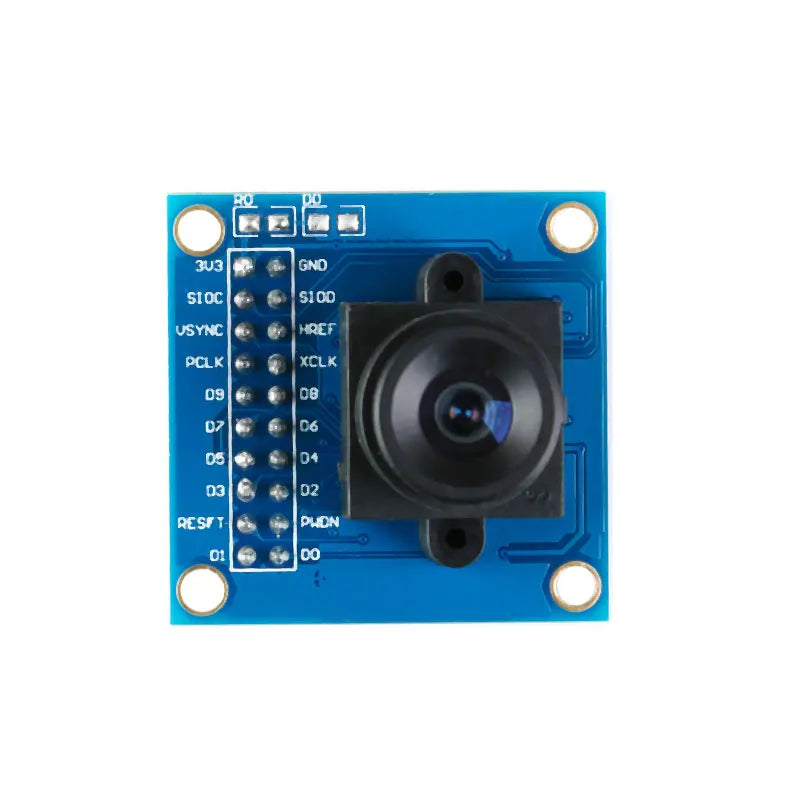

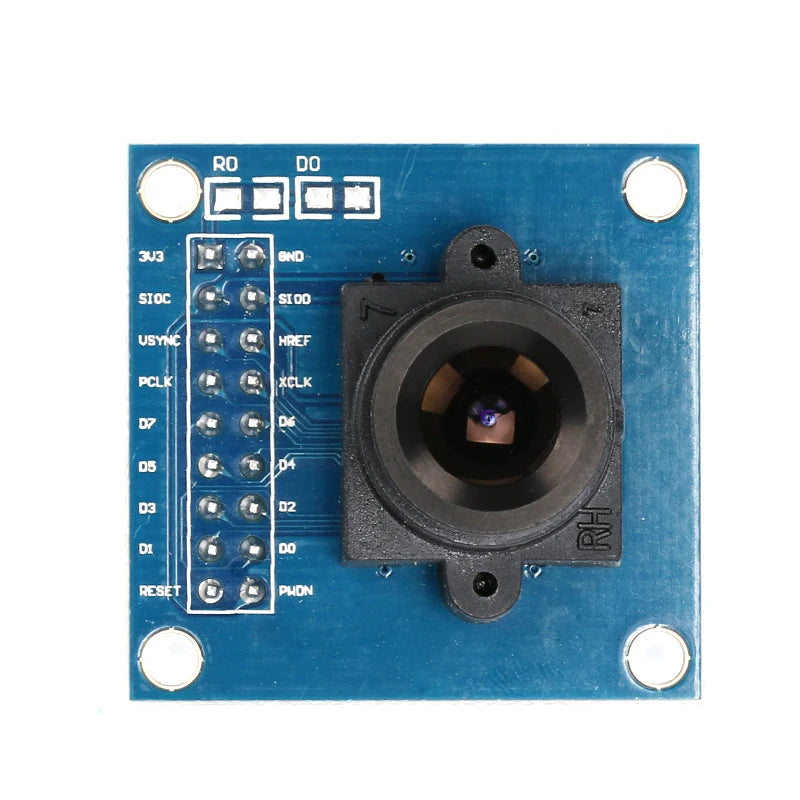

Module pin definition as shown

3V3-----Input power supply voltage (3.3,5V is recommended, but not recommended)

GDN-----grounding point

SIO_C---SCCB interface control clock (Note: some low-level microcontrollers need pull-up control, similar to I2C interface)

SIO_D---SCCB interface serial data input (output) end (Note: some low-level microcontrollers need pull-up control, similar to I2C interface)

VSYNC---frame sync signal (output signal)

HREF----line sync signal (output signal)

PCLK----Pixel Clock (Output Signal)

D0-D7---data port (output signal)

RESTE---Reset port (normal use pull high)

PWDN----Power consumption selection mode (normal use pull low)

The OV7670 image sensor is small in size and low in operating voltage, providing all the features of a single VGA camera and image processor. Through the SCCB bus control, it is possible to output 8-bit influence data of various resolutions such as full frame, sub-sampling, and window. The product's VGA image is up to 30 frames per second. Users have complete control over image quality, data format and transmission. All image processing functions including gamma curve, white balance, saturation, chrominance, etc. can be programmed via the SCCB interface.

High sensitivity for low illumination applications
Low voltage for embedded applications
Standard SCCB interface, compatible with I2C interface
RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
Supports VGA, CIF, and various sizes from CIF to 40x30
VarioPixel subsampling method
Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
ISP has noise cancellation and dead point compensation
Support image scaling
Lens loss compensation
50/60Hz automatic detection
Saturation auto adjustment (UV adjustment)
Edge enhancement auto adjustment
Automatic noise reduction

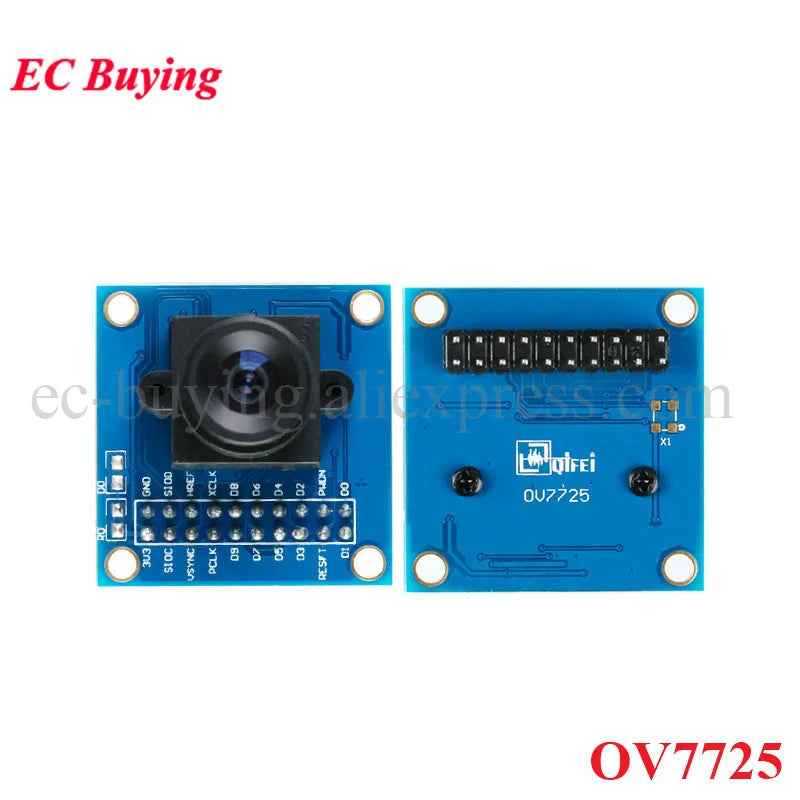

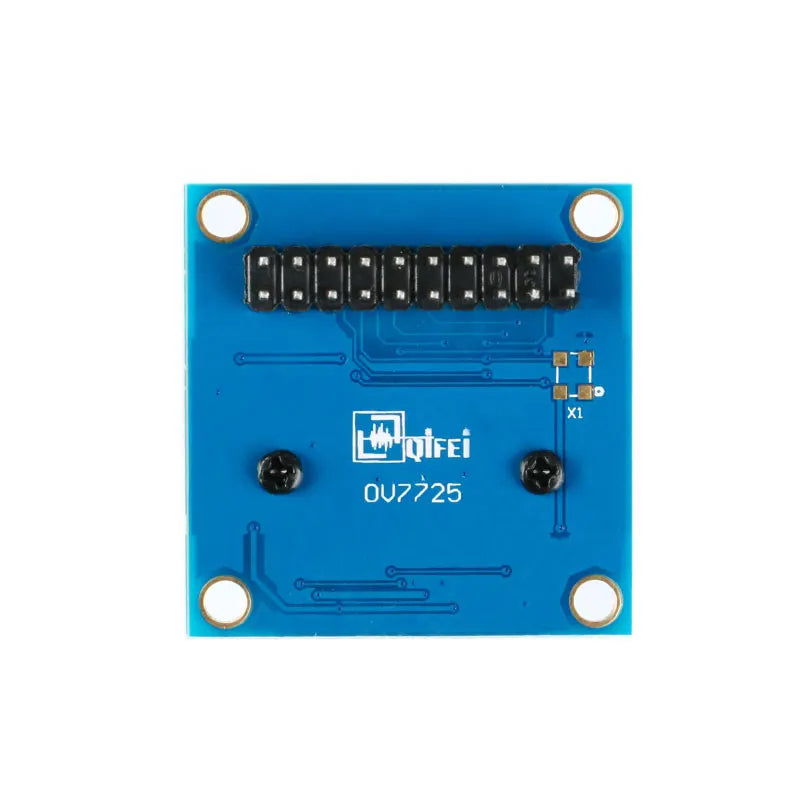

OV7725:

Product Description:

OV7725 is a 30W pixel HD camera
Using infrared filter camera, the visible light band color is better
The indicators are much higher than OV7670, which is a replacement product of OV7670.

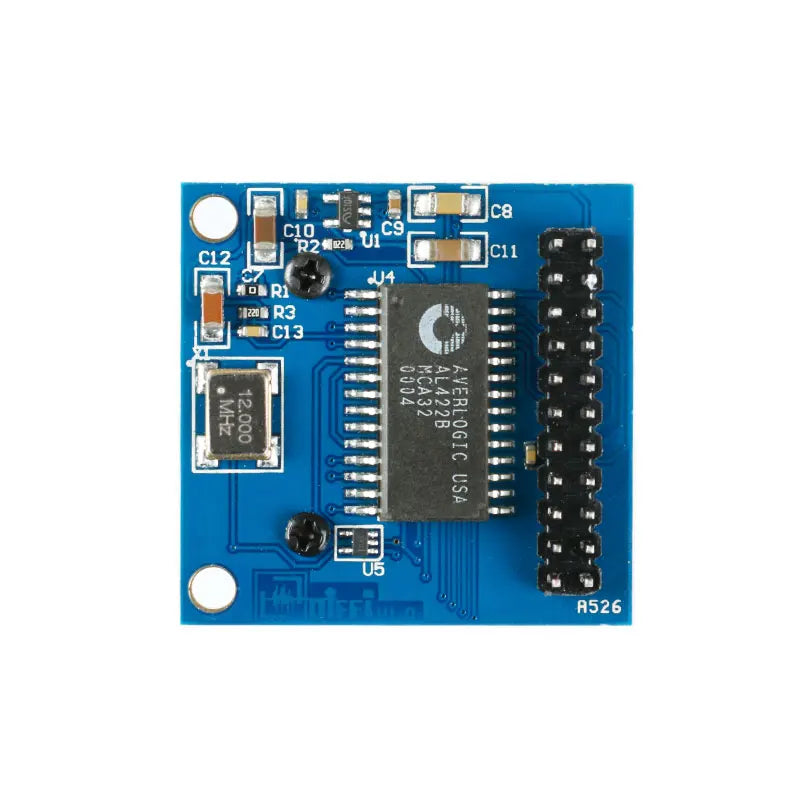

OV7670 with FIFO:

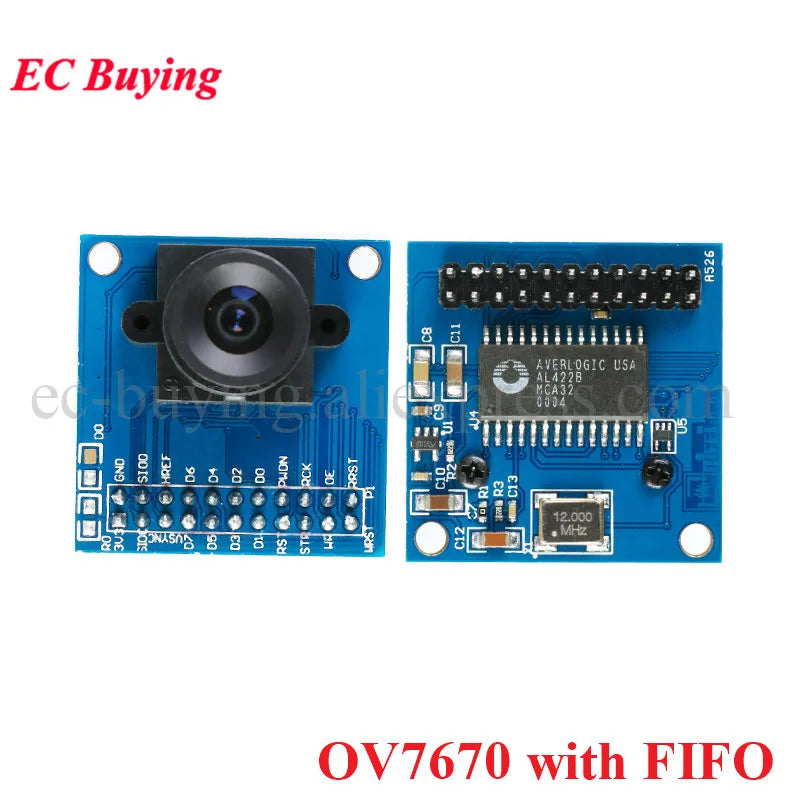

The camera with FIFO has a 3M cache than the one without the tape. The collected data can be temporarily stored in this cache. The image data in the cache can be read during use, thus reducing the speed of the MCU when acquiring image data from the MCU. Requirements. (The routine stores image data in RGB565 mode)

Product description:

The OV7670 has a FIFO module, which is a module with buffer storage space for slow MCUs that can achieve image acquisition control. This module adds a FIFO (first in, first out) memory chip, which also includes a 30w pixel CMOS image sensor chip, a 3.6mm focal length lens and lens mount, and various power supplies required for the onboard CMOS chip. The chip's data file), the board also leads to the control pin and data pin for easy operation and use.

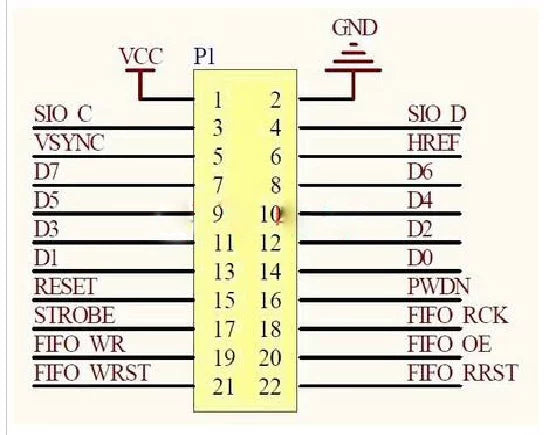

Pin definition:

3V3: Input power supply voltage (3.3, 5V is recommended, but not recommended)

GDN: Grounding point

SIO_C: Control clock of SCCB interface (Note: some low-level microcontrollers need pull-up control, similar to I2C interface)

SIO_D: serial data input (output) of SCCB interface (Note: some low-level microcontrollers require pull-up control, similar to I2C interface)

VSYNC: frame sync signal (output signal)

HREF: Line sync signal (output signal, generally not applicable, used in special cases)

D0-D7: Data port (output signal)

RESTE: Reset port (normal use pull high)

PWDN: Power selection mode (normal use pull low)

STROBE: Photo flash control port (not required for normal use)

FIFO_RCK: FIFO memory read clock control terminal

FIFO_WR_CTR: FIFO write control (1 is to allow CMOS to write to FIFO, 0 is disabled)

FIFO_OE: FIFO shutdown control

FIFO_WRST: FIFO write pointer reset terminal

FIFO_RRST: FIFO read pointer reset terminal

Control Description:

Because the FIFO is used as the data buffer, the data acquisition is very simple, the user only needs to care about how to read it, and does not need to care about how the specific data is collected, so that the control and timing relationship of the CMOS can be reduced or not even concerned. It is possible to achieve image acquisition.

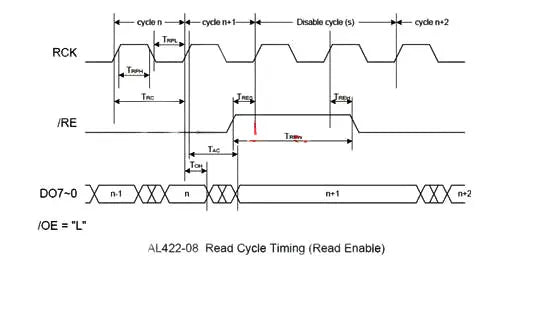

The control timing is as follows:

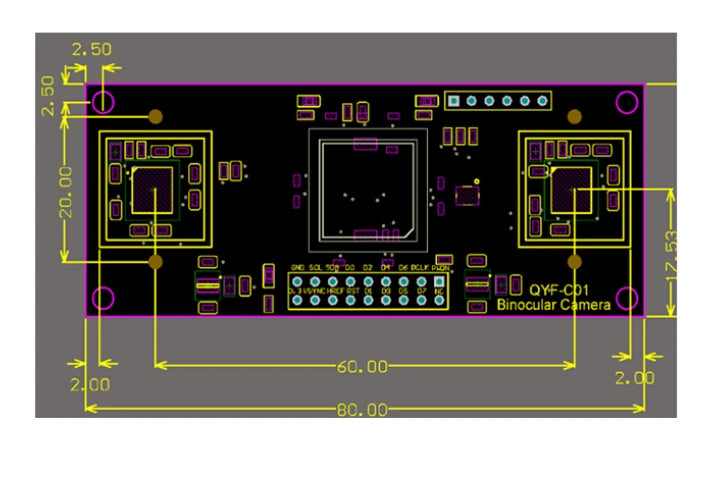

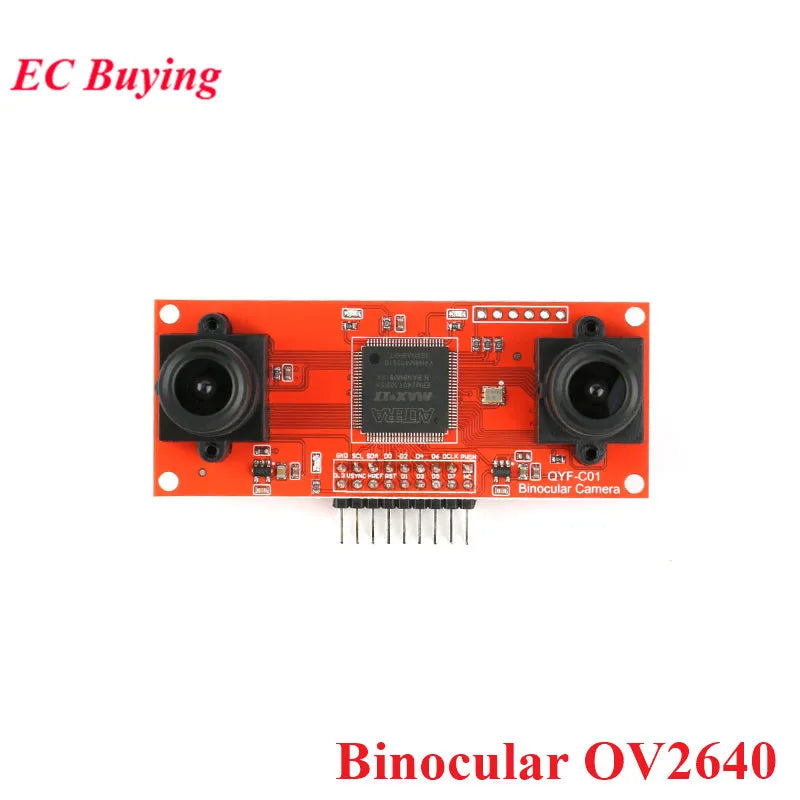

Binocular Camera Module:

Product Introduction

The OV2640 binocular camera module is made with two 1/4-inch OV2640 million HD CMOS sensors. It has high sensitivity, high flexibility, and support for JPEG output. It can work in the same way as binocular camera, and can be applied to many occasions such as binocular ranging, 3D measurement and so on. The camera can be driven by STM32, which is very convenient to use, and the camera configuration can be freely carried out, which greatly increases the flexibility of the application.

Product Features

High sensitivity, low voltage for embedded applications
Standard SCCB interface, compatible with I2C interface
RawRGB, RGB (GRB4: 2: 2, RGB565/555/444)
YUV (4:2:2) and YCbCr (4:2:2) output formats
Built-in embedded microprocessor
Support for image scaling, panning, and window settings
Support image compression to output JPEG image data
Integrated active crystal 12M, no external clock required
Integrated LDO, only need to supply 3.3V to work properly
Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30 size
Support automatic exposure control, automatic gain control, automatic white balance,
Automatically eliminates light streaks and automatic black level calibration. Image quality control includes settings such as color saturation, hue, gamma, and sharpness ANTI_BLOOM.
