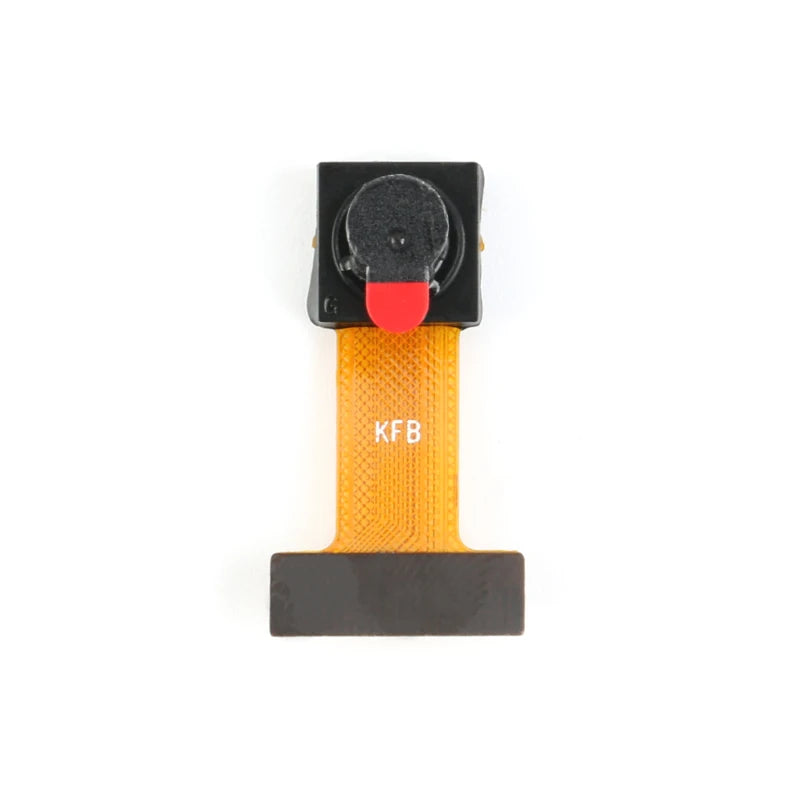

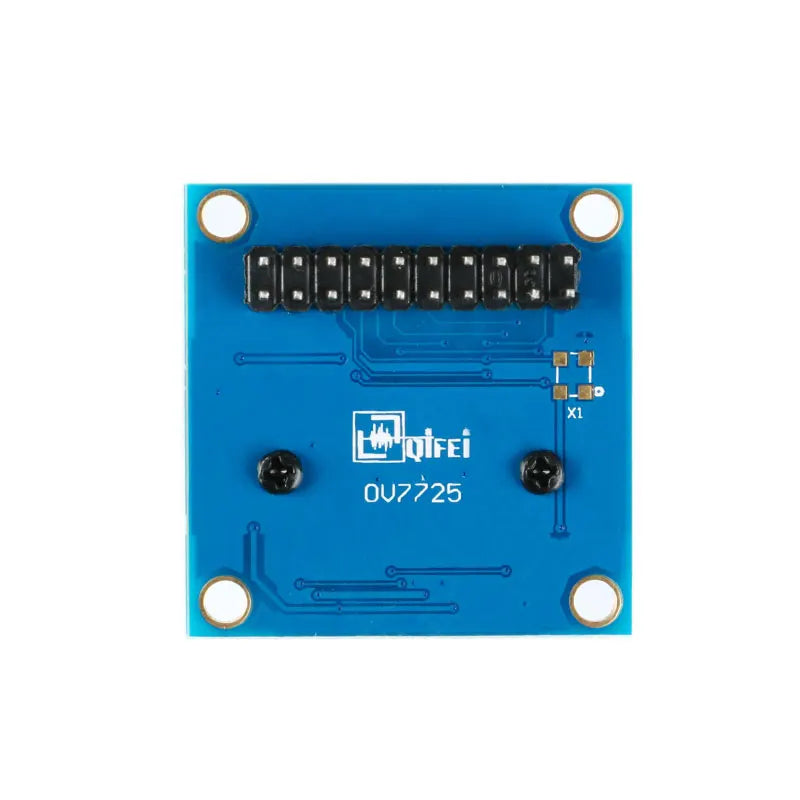

Camera Module OV7670 OV7725 OV5642 OV2640 OV7670 with FIFO CAM Module Image Sensor STM32 Supports VGA CIF JPEG 30W For Arduino

Camera Module OV7670 OV7725 OV5642 OV2640 OV7670 with FIFO CAM Module Image Sensor STM32 Supports VGA CIF JPEG 30W For Arduino

$26.00

$26.00 $0.00

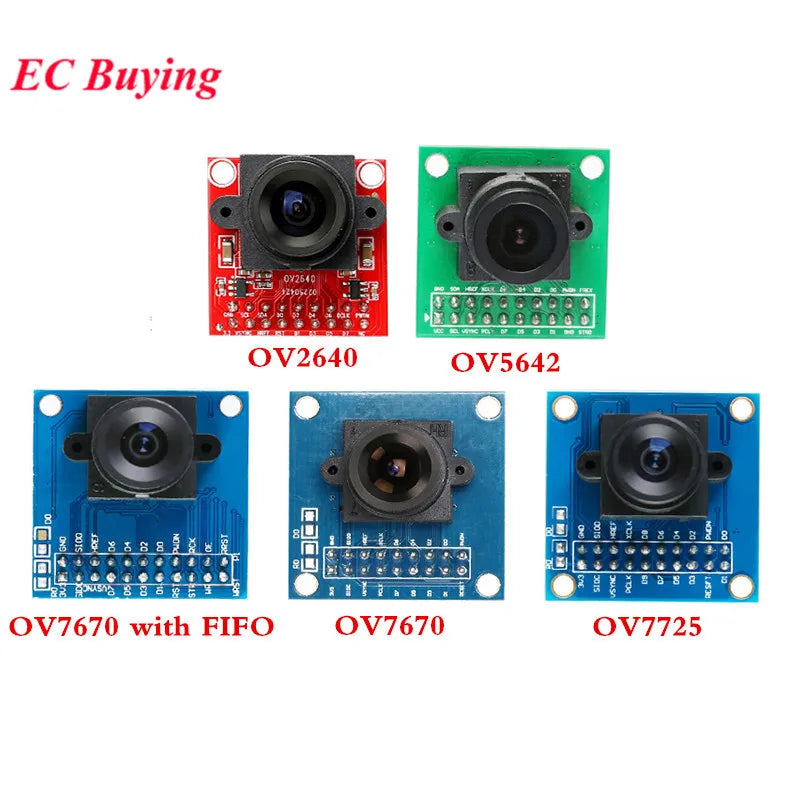

Color OV7725 OV7670 OV7670 Module OV2640 OV7670 with FIFO OV5642

Description

SPECIFICATIONS

Application: Camera

Brand Name: EC Buying

Condition: New

Dissipation Power: low

High-concerned chemical: none

Operating Temperature: normal

Origin: Mainland China

Package: module

Smart Electronics Experiment S: witch And Sensor For Arduino STM32

Supply Voltage: Electronics Experiment

Type: Voltage Regulator

is_customized: Yes

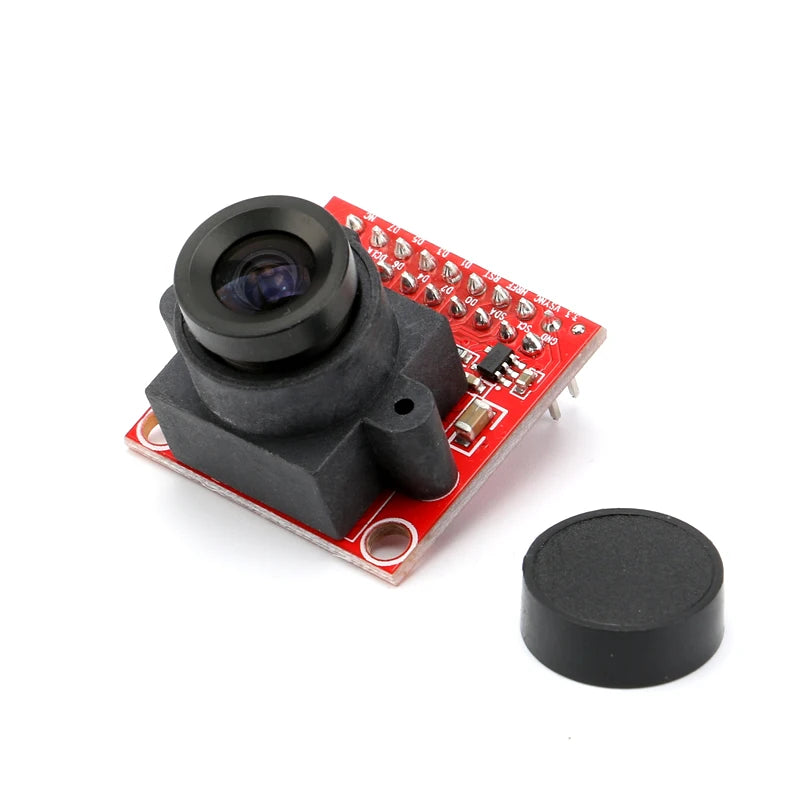

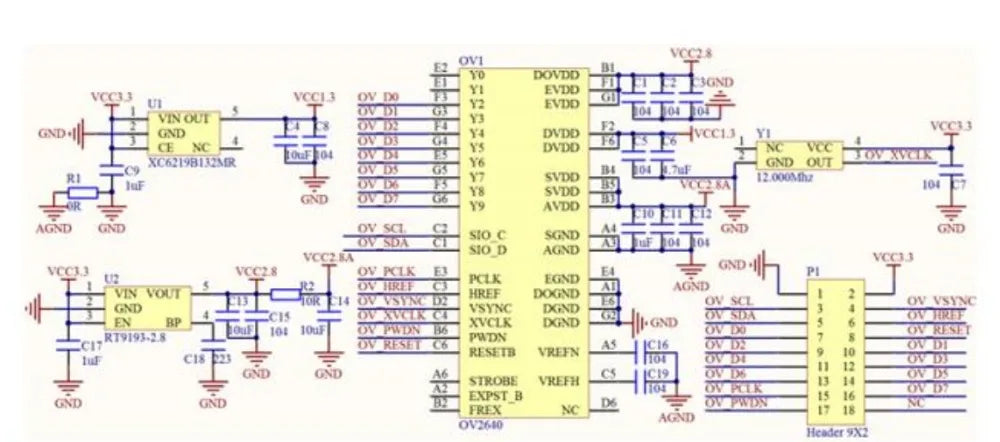

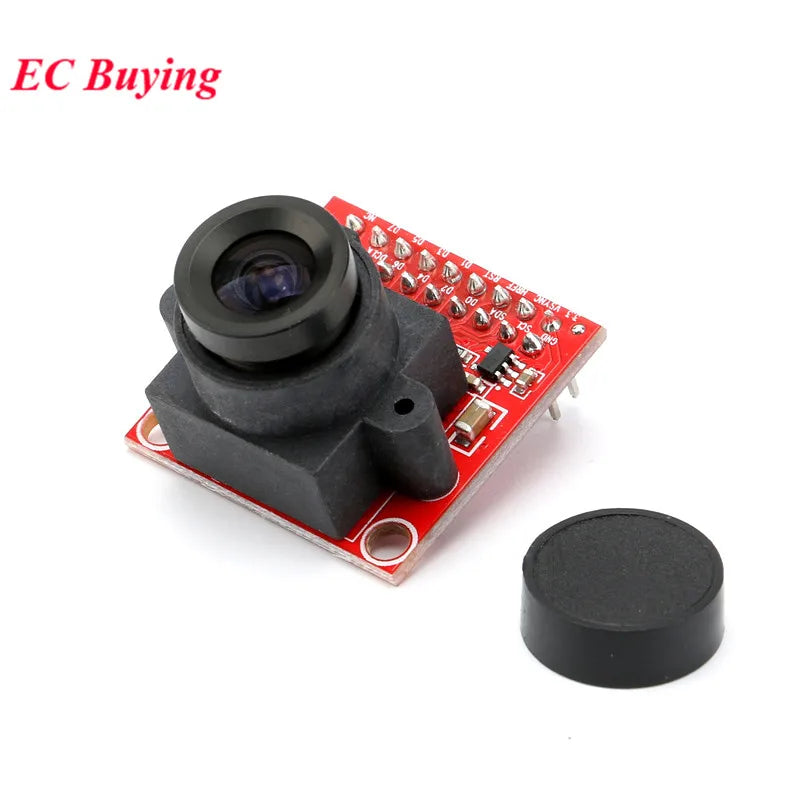

OV2640

200W pixel OV2640 camera module, made with 1/4 inch OV2640 million HD CMOS sensor. High sensitivity, high flexibility, and support for JPEG output. And can support exposure, white balance, chroma, saturation, contrast and many other parameter settings, support JPEG / RGB565 format output, can meet the needs of different occasions.

1. High sensitivity, low voltage suitable for embedded applications

2. Standard SCCB interface, compatible with I2C interface

3. Support RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats

4. Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30 size

5. Support automatic exposure, automatic gain, automatic white balance, automatic elimination of light streaks, automatic black level calibration

6. Support image quality control (color saturation, hue, gamma, sharpness, ANTI_BLOOM, etc.)

7. Support image zoom, pan and window settings

8. Support image compression, you can output JPEG image data

9. Comes with embedded microprocessor

10. Integrated active crystal oscillator 12M, no need to provide external clock

11. Integrated LDO, only need to supply 3.3V to work properly

Product parameters：

1. Working voltage: 3.3V

2. Product power consumption: 40mA

3. MAX pixels: 1600*1200 (200W)

4. Lens focal length: 3.6mm

5. Lens angle of view: 78°

6. Lens aperture: F2.0

7. Dynamic range: 50dB

8. Output format: RGB565/JPEG/YUV/YCbCr, etc.

9. Control Interface: SCCB

10. IO port level: 2.8V LVTTL, compatible with 3.3V

11. Product size: 27*27mm

12. Working temperature: -30 ~ + 70 Degree

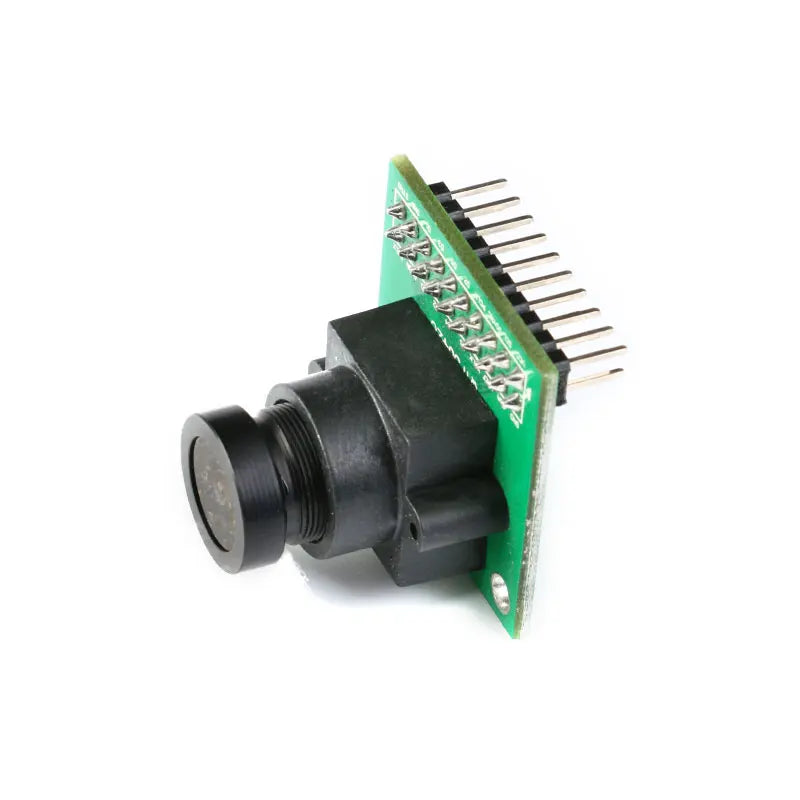

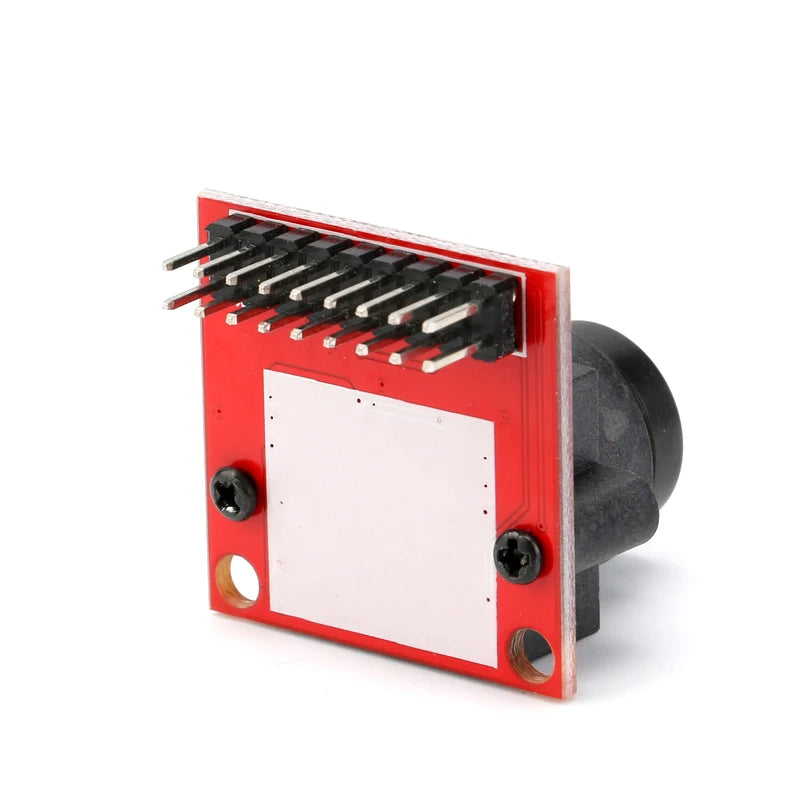

OV5642

Product Description:

1. Sensor model: OV5642

2. Sensor pixel: 5 million pixels, support 2592*1944 size image output

3. Support RawRGB, RGB (GRB4: 2: 2, RGB565/555/444), YUV422, JPEG and other formats image data output

4. The module integrates 24MHZ active crystal oscillator, which is more convenient to use.

5. Optical size 1/4", pixel area 1.4 μm x 1.4 μm, sensitivity up to 600mV/Lux-sec

6. The lens is made of high quality and high light transmittance. 1080P 2.5MM 1/4 wide-angle glass lens plus full magnesium alloy lens

7. Single power supply operation: 3.3V--5.0V

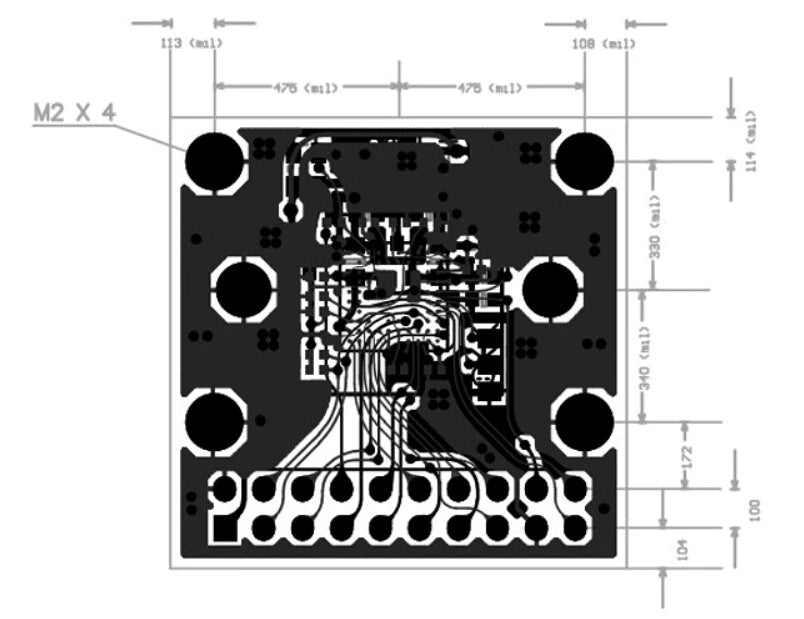

8. Module size: 3cm x 3cm (+/- 0.5mm), 2*10 interface / 2.54 pitch pin header

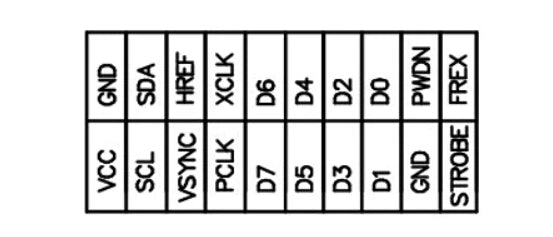

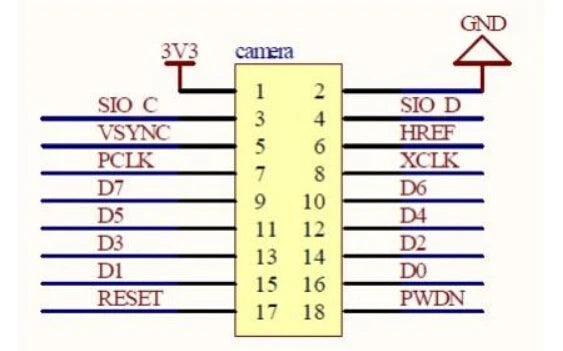

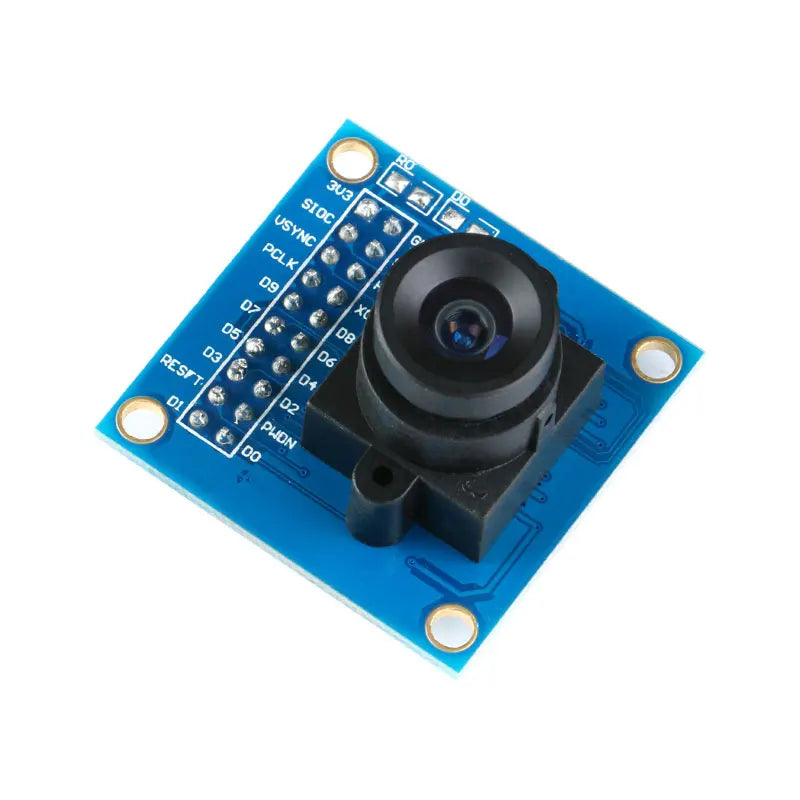

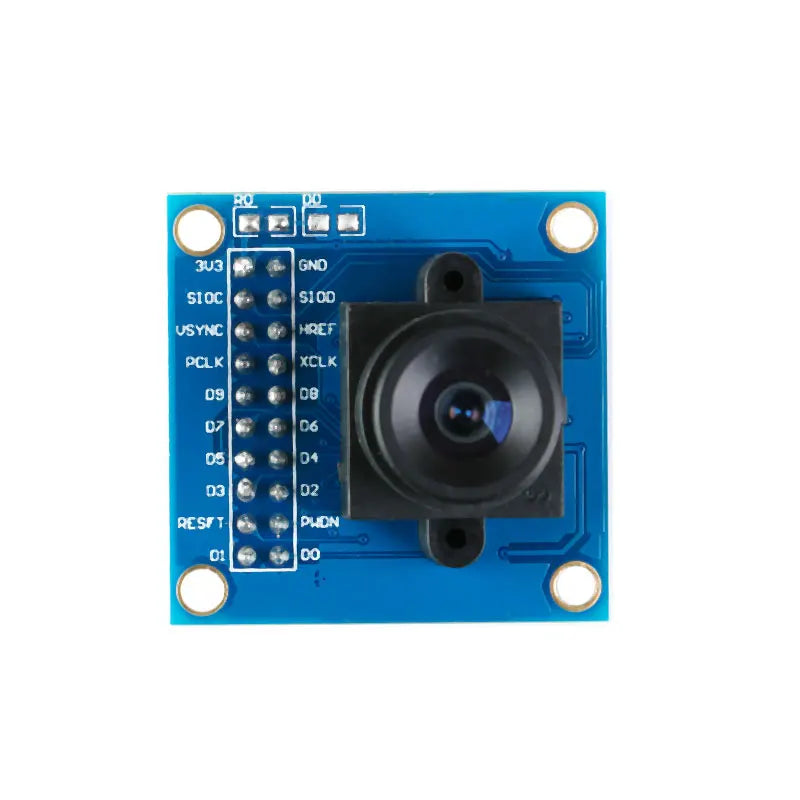

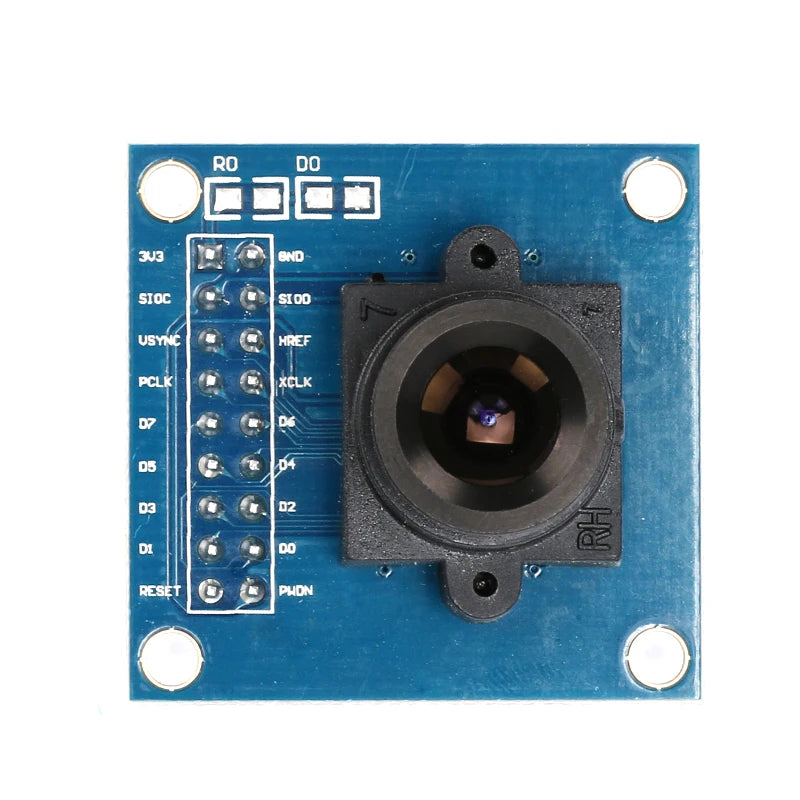

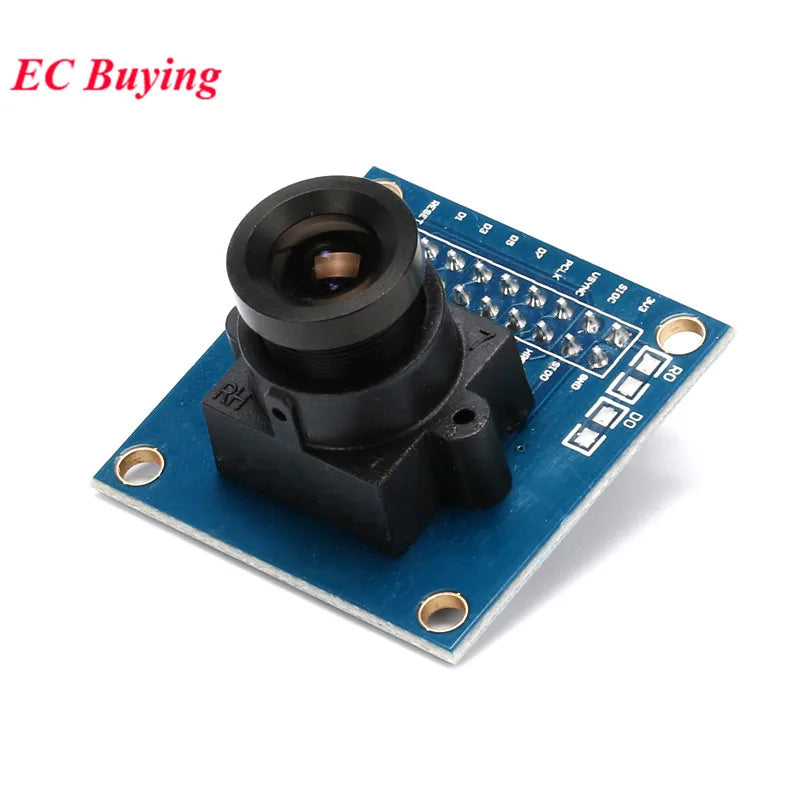

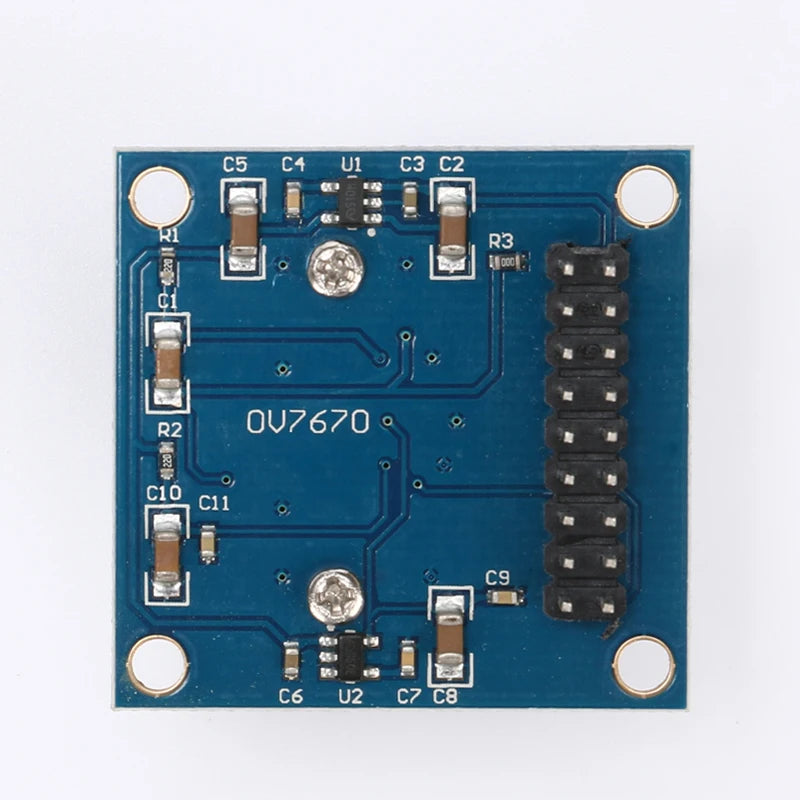

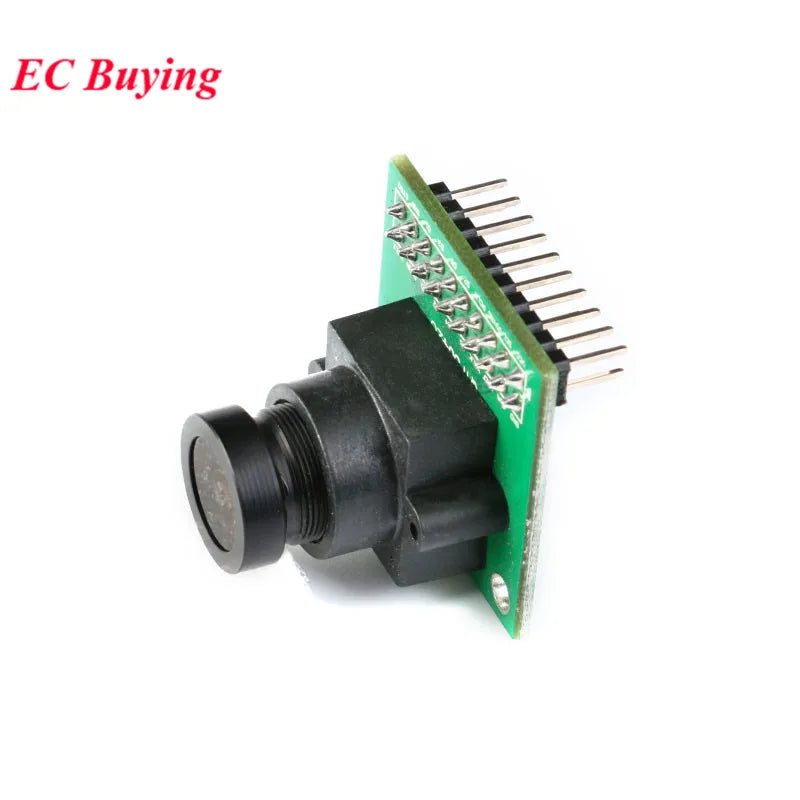

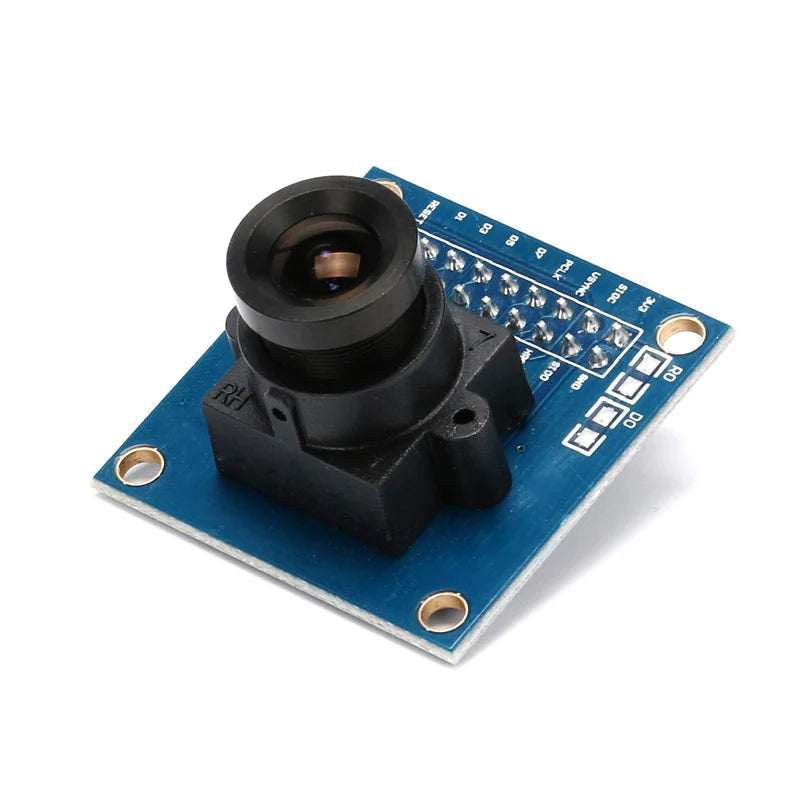

OV7670

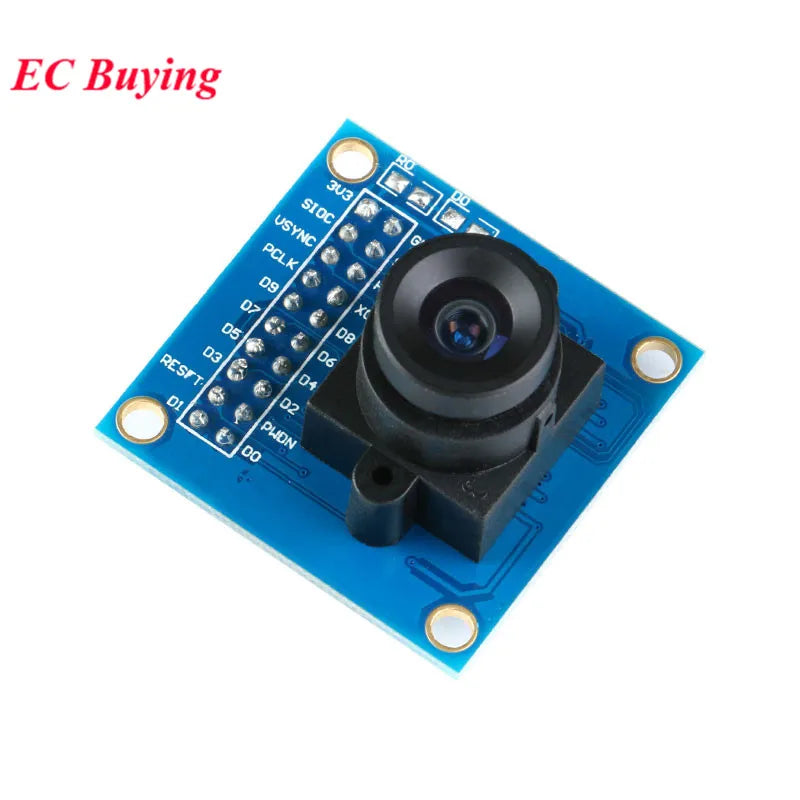

3V3-----Input power supply voltage (3.3,5V is recommended, but not recommended)
GDN-----ground
SIO_C---SCCB interface control clock (Note: some low-level microcontrollers need pull-up control, similar to I2C interface)
SIO_D---SCCB interface serial data input (output) end (Note: some low-level microcontrollers need pull-up control, similar to I2C interface)
VSYNC---frame sync signal (output signal)
HREF----line sync signal (output signal)
PCLK----Pixel Clock (Output Signal)
D0-D7---data port (output signal)
RESTE---Reset port (normal use pull high)
PWDN----Power consumption selection mode (normal use pull low)

● High sensitivity for low illumination applications

● Low voltage for embedded applications

● Standard SCCB interface, compatible with I2C interface

● RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats

● Supports VGA, CIF, and various sizes from CIF to 40x30

●VarioPixel subsampling method

● Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM

●ISP has noise elimination and dead point compensation

● Support image scaling

● Lens loss compensation

●50/60Hz automatic detection

● Saturation automatic adjustment (UV adjustment)

● Edge enhancement auto adjustment

● Automatic noise reduction

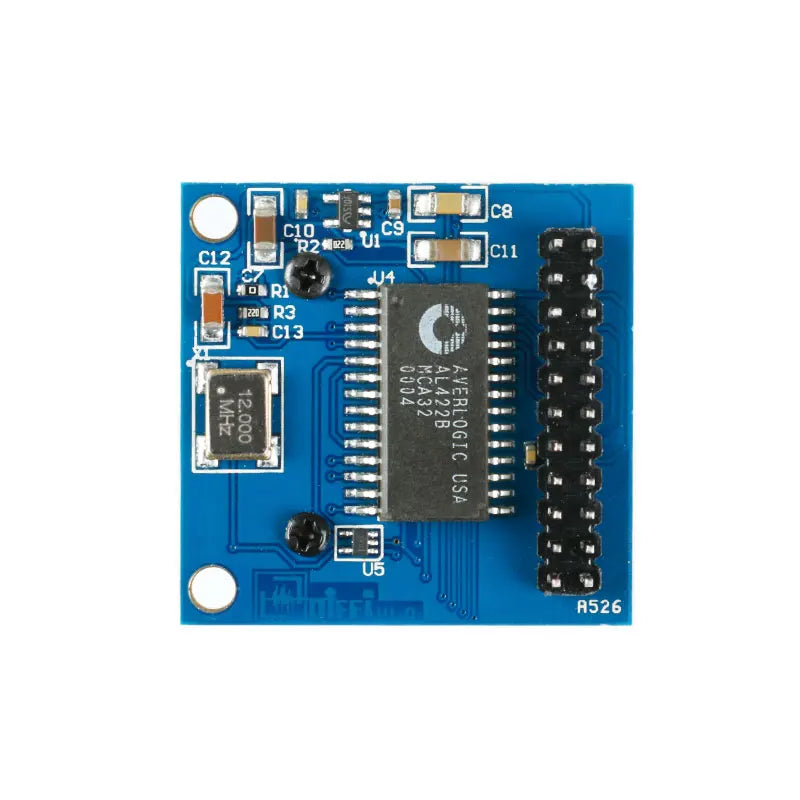

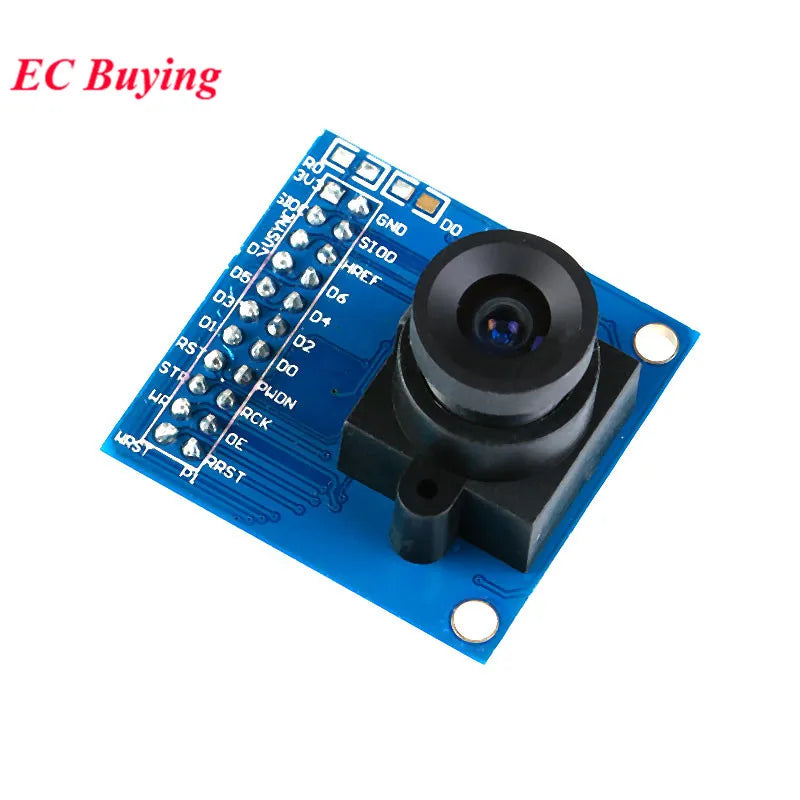

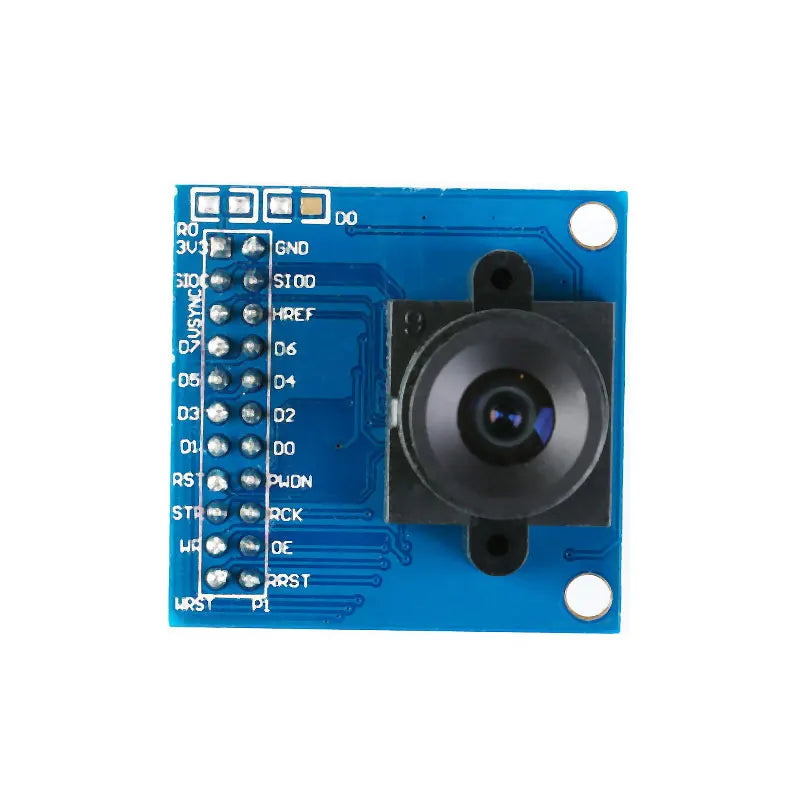

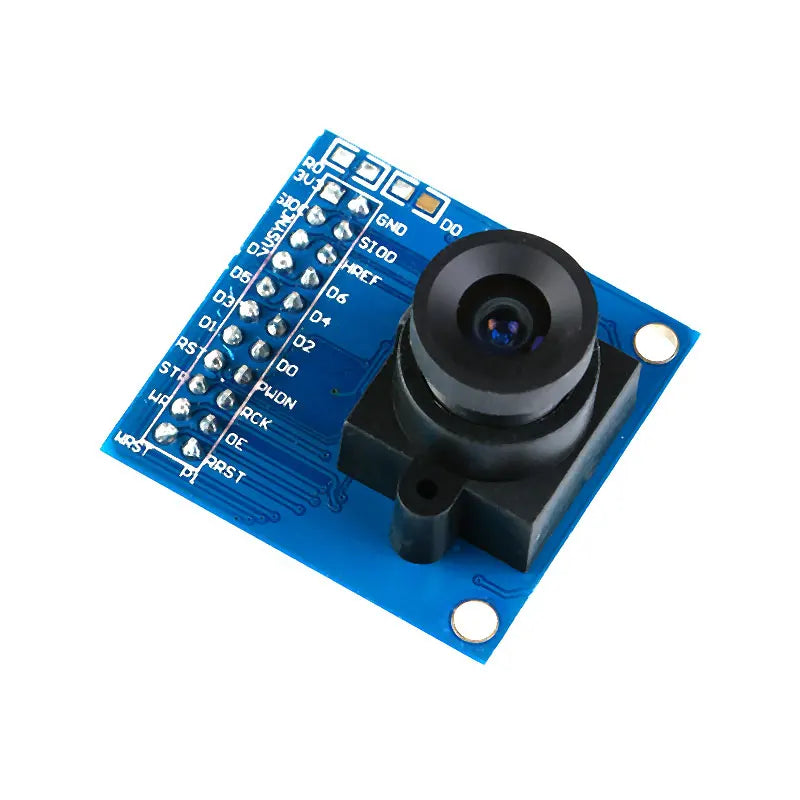

OV7670 with FIFO

The OV7670 has a FIFO module, which is a module with buffer storage space for slow MCUs that can achieve image acquisition control. This module adds a FIFO (first in, first out) memory chip, which also includes a 30w pixel CMOS image sensor chip, a 3.6mm focal length lens and lens mount, and various power supplies required for the onboard CMOS chip. The chip's data file), the board also leads to the control pin and data pin for easy operation and use.

Control Description:

Because the FIFO is used as the data buffer, the data acquisition is very simple, the user only needs to care about how to read it, and does not need to care about how the specific data is collected, so that the control and timing relationship of the CMOS can be reduced or not even concerned. It is possible to achieve image acquisition.

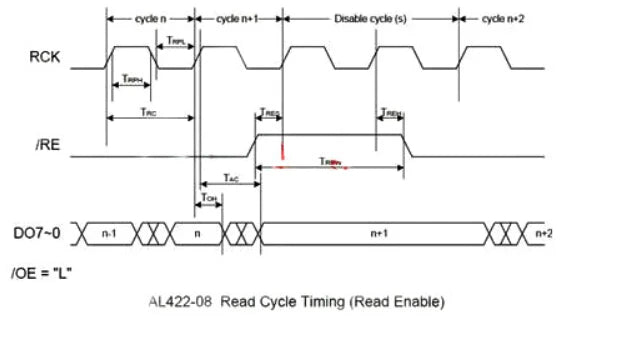

The control timing is as follows:
