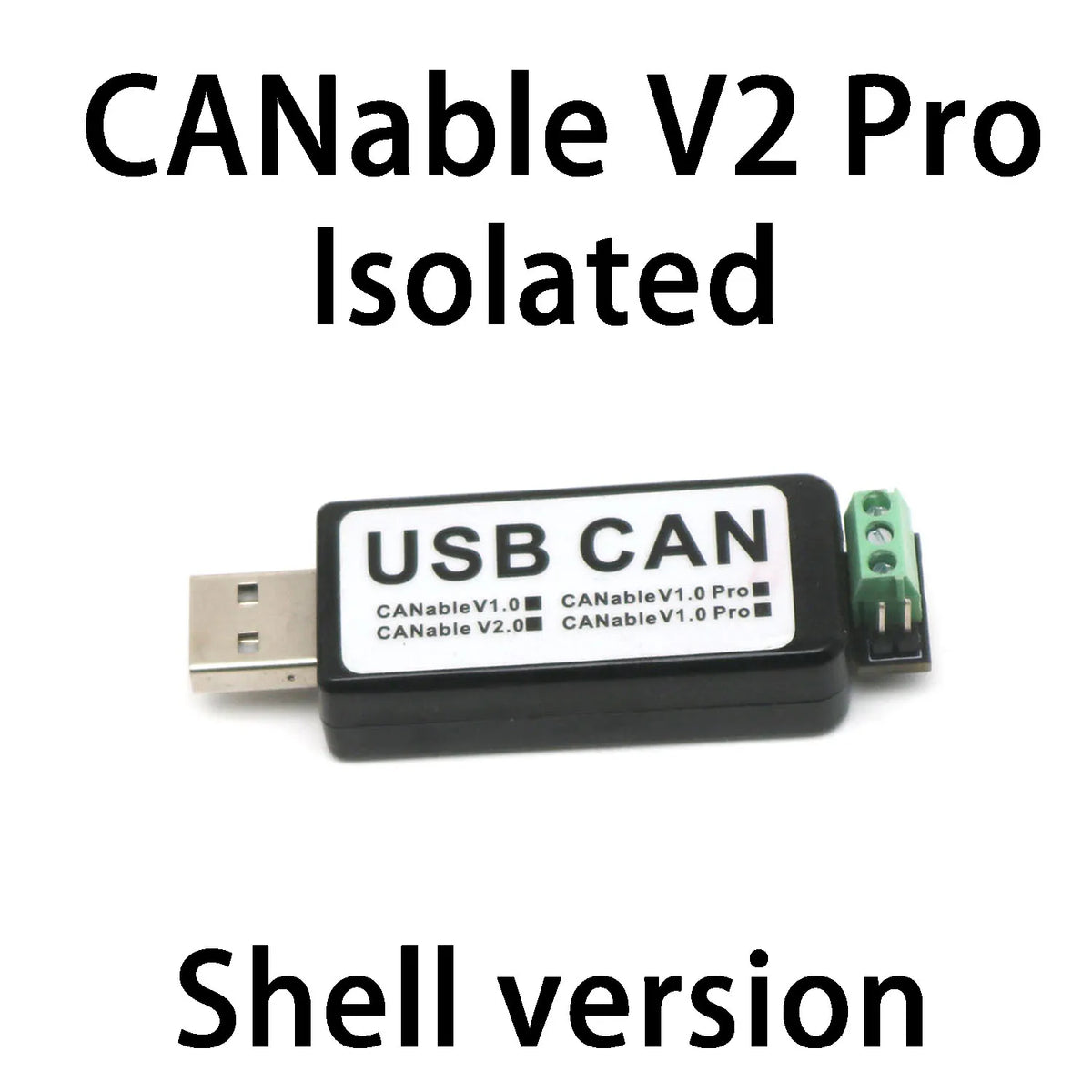

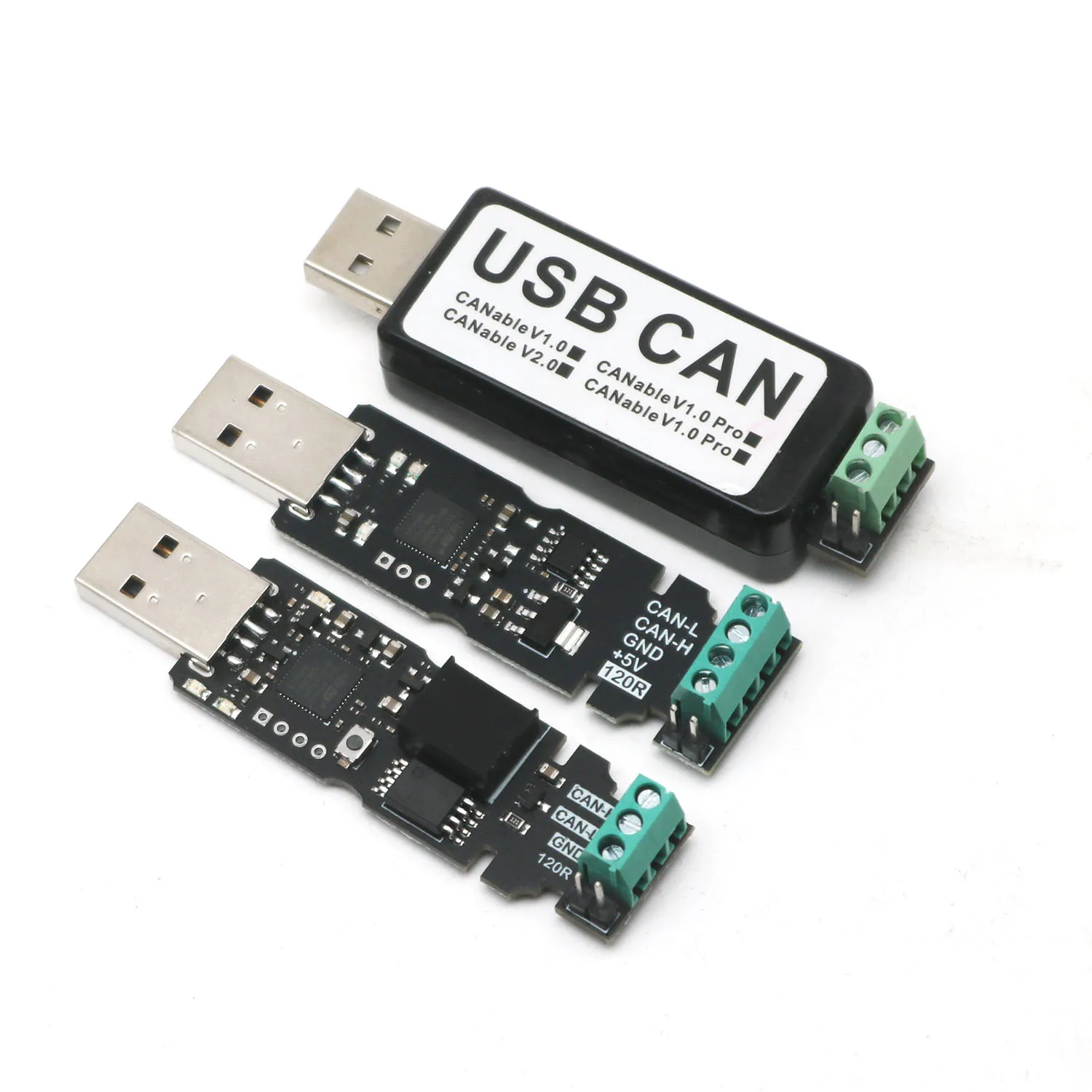

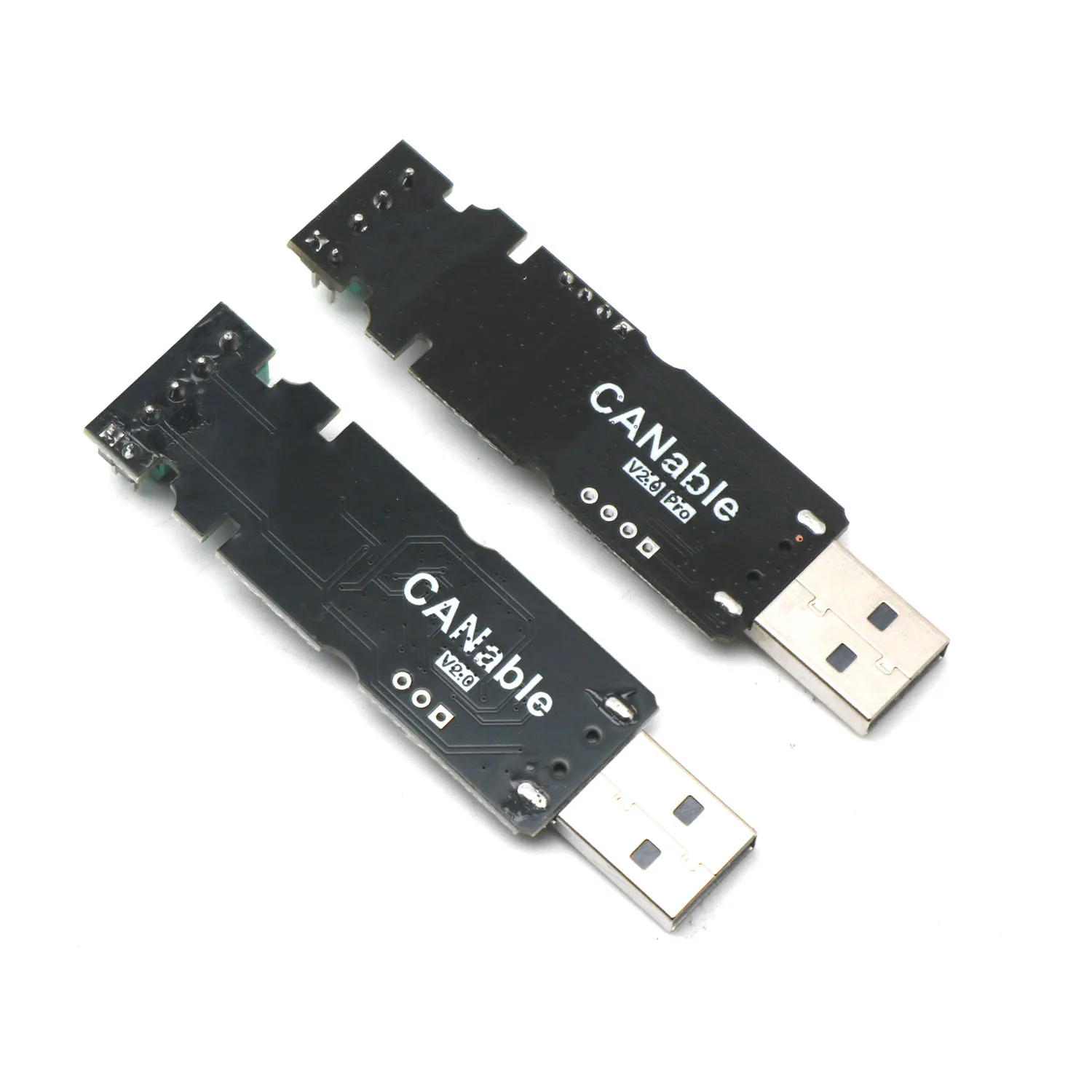

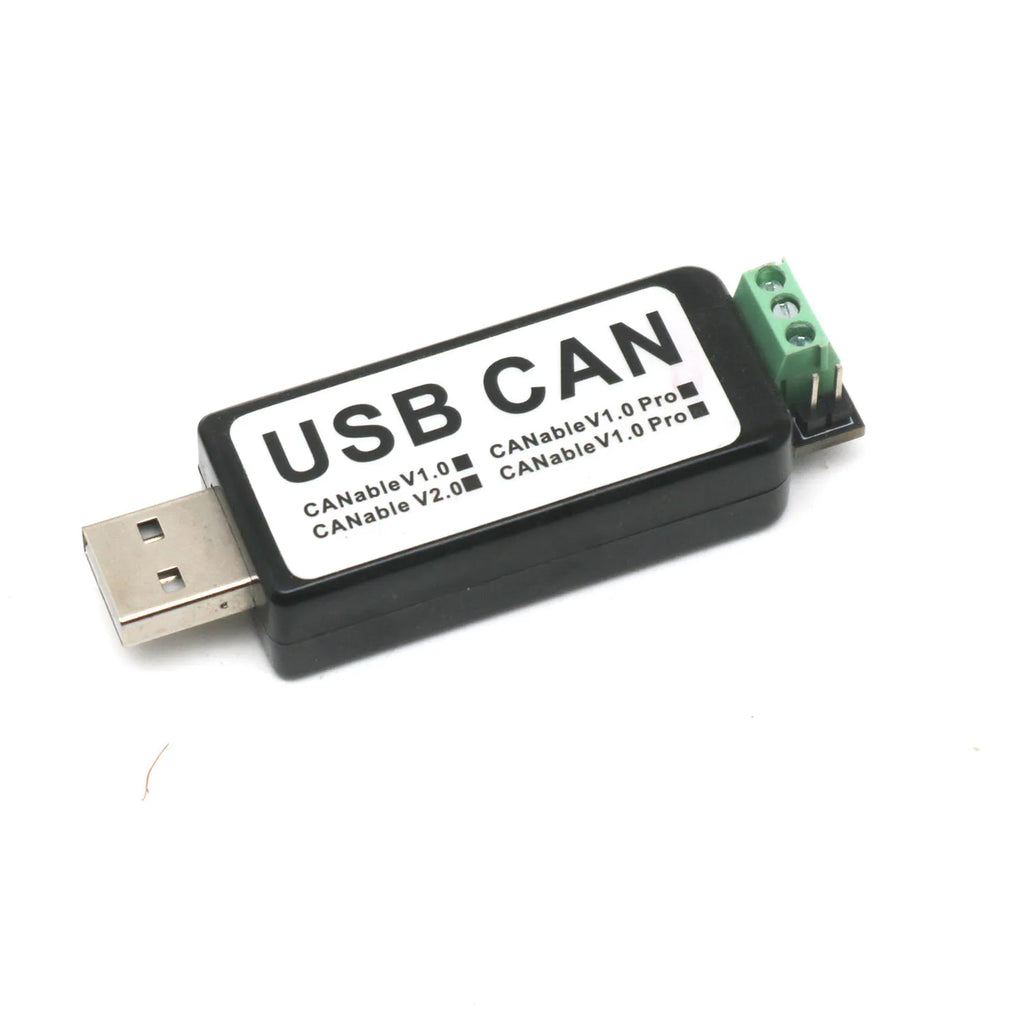

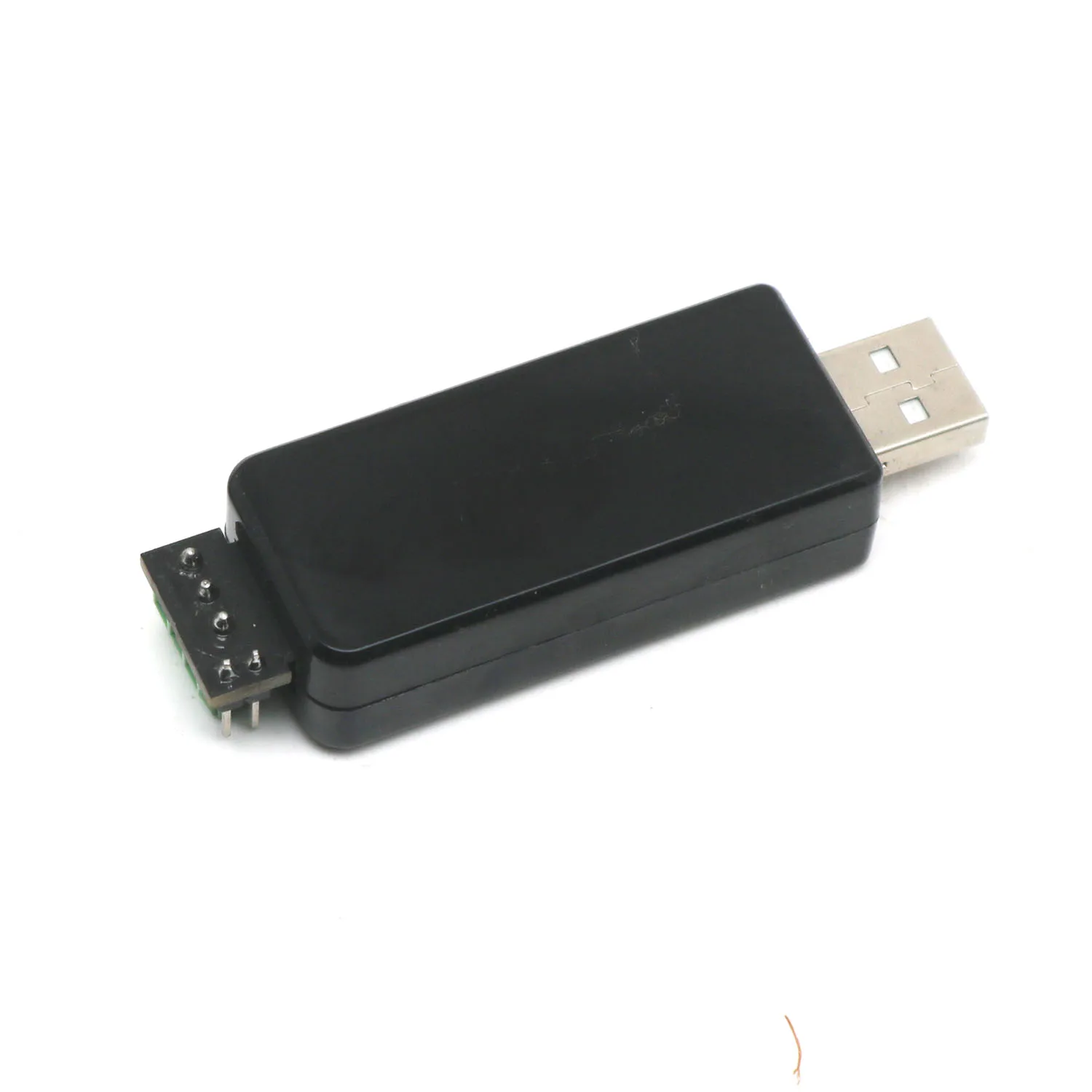

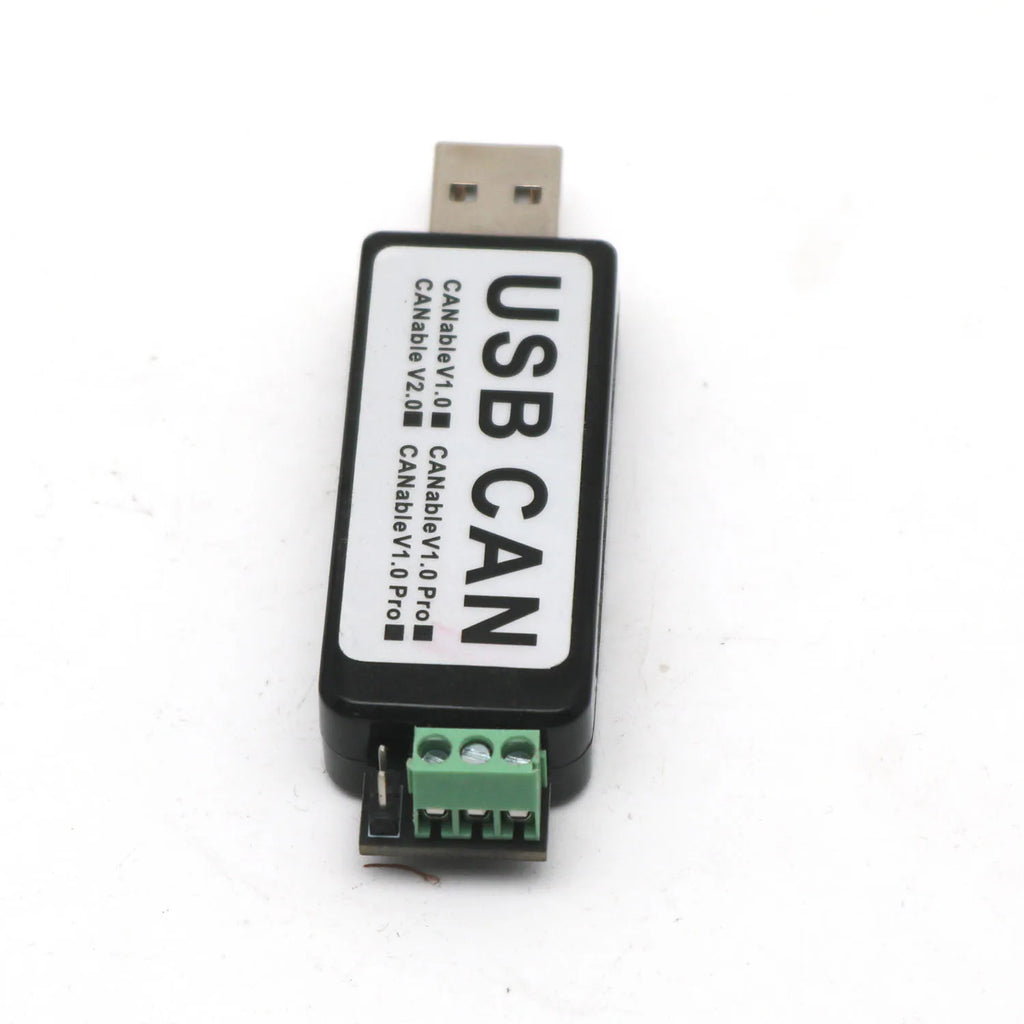

CANable V2.0 USB To CAN Bus Protocol Analysis Converter Transceiver USBCAN Adapter Candlelight CAN-FD SLCAN Firmware Cangaroo

CANable V2.0 USB To CAN Bus Protocol Analysis Converter Transceiver USBCAN Adapter Candlelight CAN-FD SLCAN Firmware Cangaroo

$31.52

$31.52 $0.00

Color CANable V2 CANable V2 Pro CANable V2 W Shell CANable V2 Pro Shell

Description

SPECIFICATIONS

Brand Name: NONE

CANable 2.0 USB CAN: CAN-FD SLCAN firmware

Certification: NONE

Choice: yes

DIY Supplies: Electrical

Data Record: No

Electronic: No

High-concerned chemical: none

Model Number: CANable 2.0 USB CAN

Origin: Mainland China

Output Voltage: Type-C USB 5v

Semi-finishedproduct: Yes

Size: support CAN-FD SLCAN firmware

Style: Cangaroo Software

Type: USB To CAN pro V2

USB To CAN V2: Bus Protocol Analysis

semi_Choice: yes

USB To CAN V2 CANable 2.0 Bus Protocol Analysis Converter Transceiver Adapter support candlelight CAN-FD SLCAN firmware Cangaroo Software

.

link download firmware and Software .thank you

http://115.28.16.44:81/file/4540.rar

isolation and non-isolationdifference between :

Isolation is to isolate the power supply from the ground and the communication signal, with 3KV ESD, effectively protect the equipment, industrial control is recommended to buy an isolated version.

Canable2.0 Does Not Support Pcan, Support Slcan(supports Canfd, But Can Only Be Used With Cangaroo Software), CandleLight.

CANable 2.0 Only Supports Official CandleLight And Slcan (with FD Support) Firmware. CandLight Firmware Has Been Verified And Tested On BUSMASTER, TSMaster, And Cannaroo To Be Very Stable, While Slcan (with FD Support) Firmware Has Also Been Tested On The Latest Version Of Cannaroo To Be Particularly StableThe Default Firmware For Shipping Is SLCAN (supports FD).

Optional enable/disable terminal resistors by toggle switch

Using High-performance ARM STM32G431CBU6 Processor,
