Capacitive contact liquid level detection sensor glue oil level sensor material level proximity switch WKC1204

Capacitive contact liquid level detection sensor glue oil level sensor material level proximity switch WKC1204

$273.06

$273.06 $0.00

Description

SPECIFICATIONS

Brand Name: custom-souring

Material: Metal

Model Number: WKC1204

Origin: Mainland China

Output: Switching Transducer

Quality: A

Theory: Current Sensor

Type: Magnetic Sensor

Use: MAGNETIC SENSOR

is_customized: Yes

Welcome to Winwin ,

We offerPCB,PCB assembly,all kinds of components(LRC and all the parts you need ),

SMT Stencil , Modules,electronic Cables,customzied Sensors .Aluminum heatsink etc

good quality,reasonable prices and stylish designs according to your need ,

We will always make our effort to satisfy with you , looking forward to your contact .

more quanity please contact me to get the special discount !

wish you have a nice shopping .

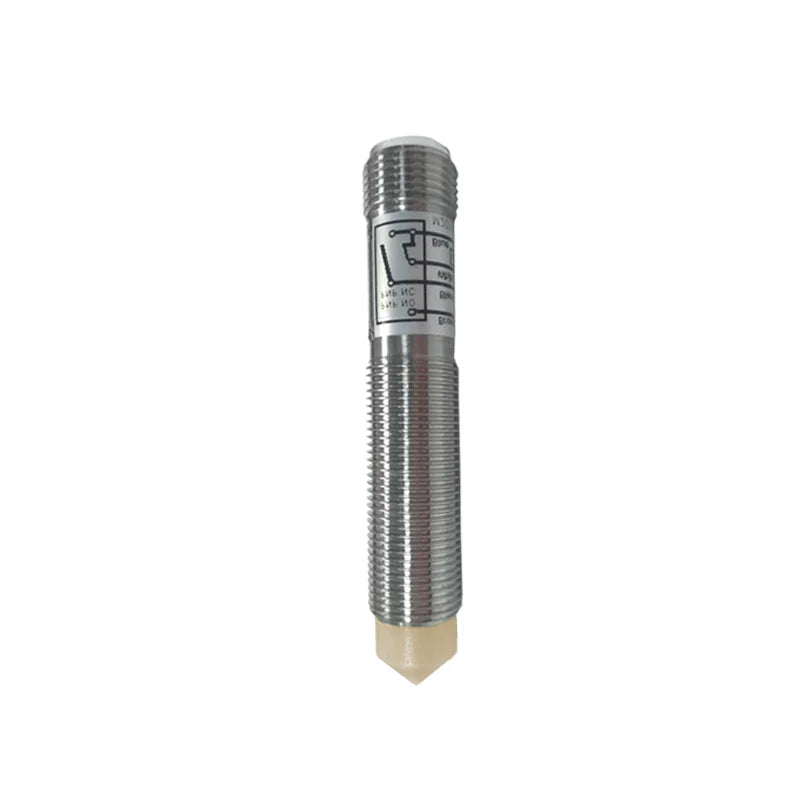

Capacitive contact liquid level detection sensor glue oil level sensor material level proximity switch WKC1204

WKC1204 parameters

Detection distance: contact detection

Protection level: IP65

Output signal: NPN+PNP dual output

Working temperature: -25℃~+75℃

Power supply voltage: DC10-30V

Appearance material: PEEK+304 stainless steel

Maximum output current: 100mA

Detection principle: Capacitive detection

Working power: <0.5W

Detection object: high-viscosity materials, low-corrosive materials

Detection speed: switch output frequency is 50HZ, response speed is 20ms

Protection: extreme reverse protection, overcurrent protection

Setting method: multi-turn precision potentiometer rotation setting

show :

LED output indicator: red: power indicator, green: output indicator

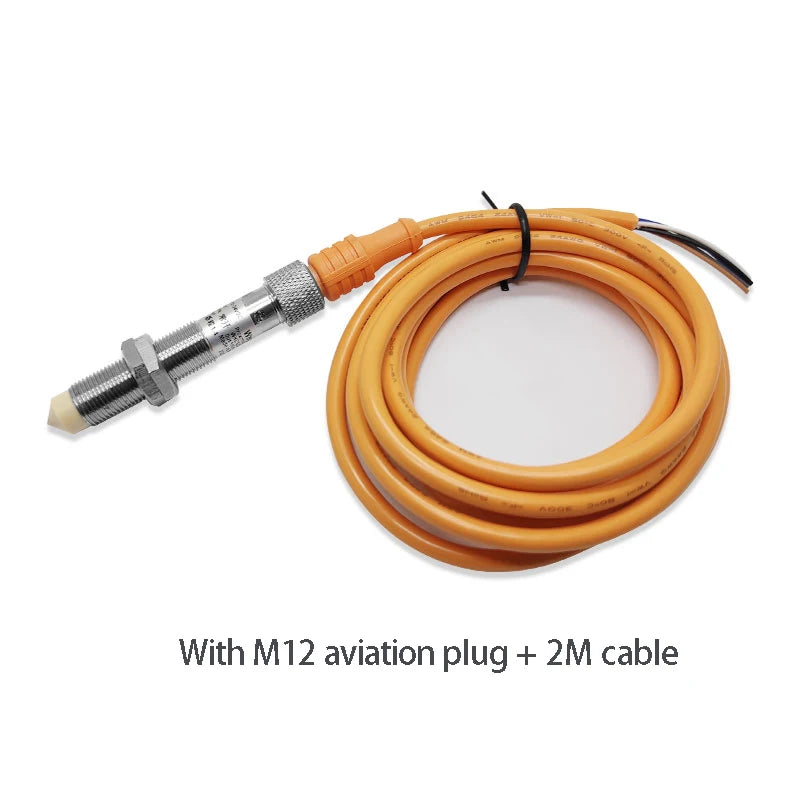

Wire outlet: M12-5 core waterproof aviation connector

Installation method: non-flush installation

Adjustment: Adjustable sensitivity

feature of product

Can detect high viscosity liquids

Designed for level detection of high-viscosity liquids such as glue, lubricating oil/grease, and ink

Capacitive detection: Determine whether there is liquid and distinguish liquid by detecting the size of the liquid's capacitance.

Conical head anti-hanging liquid design: whether it is vertical installation or surface installation, it reduces the appearance of detection head hanging liquid as much as possible

High-strength structure and sealing design: It can resist pressure of 0.3 MPa.

Special circuit design: Even if there are liquid residues, bubbles, and ignorance in the probe part, the appearance of false signals can be avoided by adjusting the sensitivity.

Stability detail design: Add temperature compensation, reverse connection protection, and overvoltage protection to improve reliability. This product can stably detect in the range of low temperature -25°C and high temperature 75C. These detailed designs largely ensure the stability of detection performance.

Material selection: head made of PEEK, shell 304 stainless steel, with general anti-corrosion ability

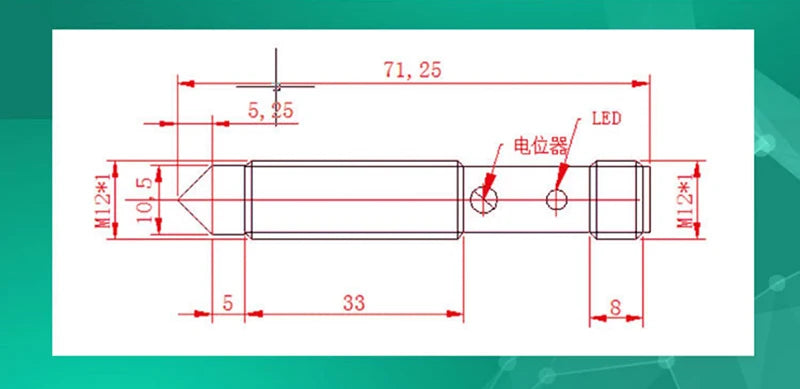

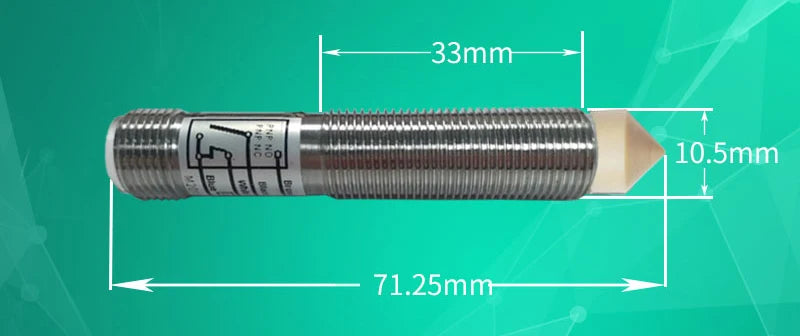

M12*1 standard thread, easy to install.

About debugging

Put the probe in the indicator light and adjust it until the indicator light is on

Sensitivity is adjusted clockwise to increase, counterclockwise to decrease

Wiring:

Brown: positive

Blue: negative electrode

Black: NPN

White: PNP
