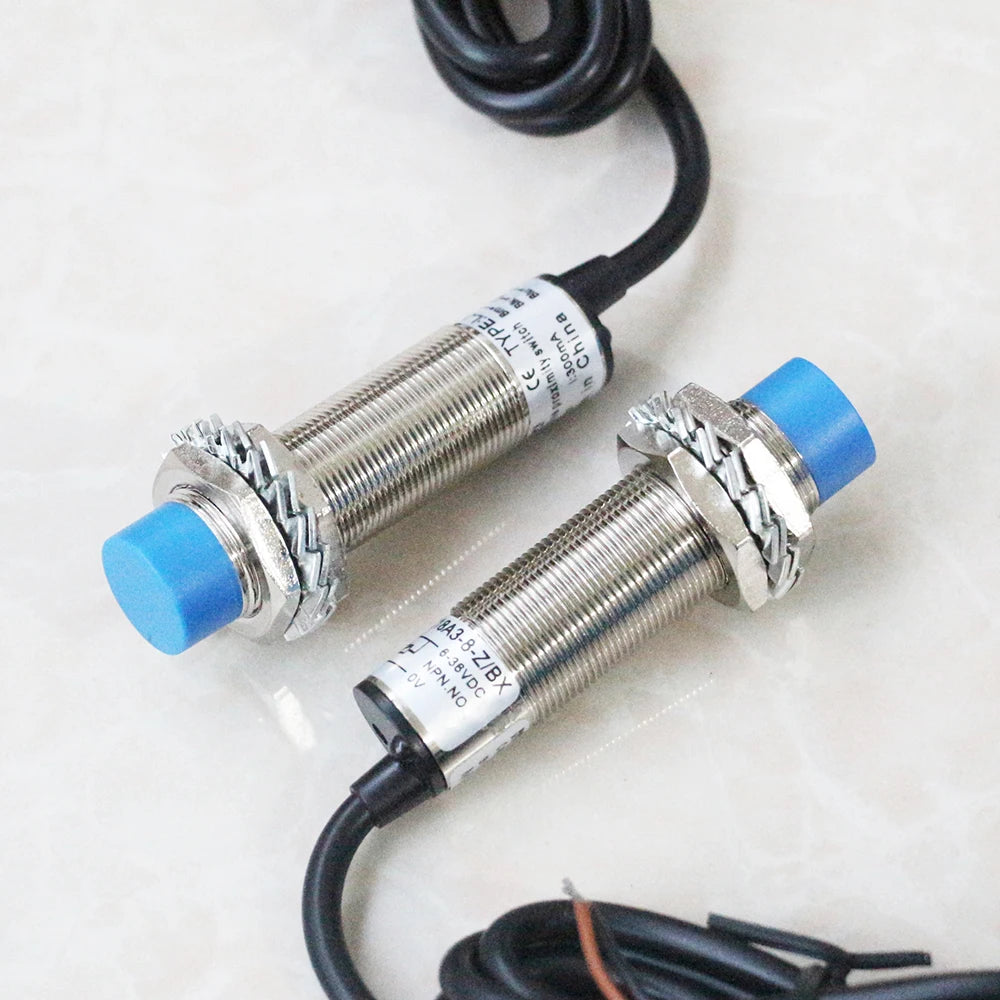

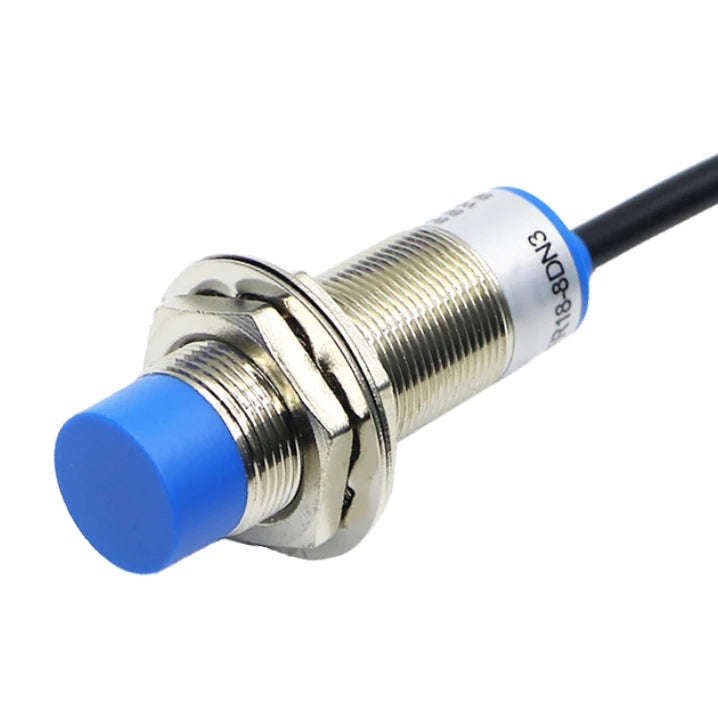

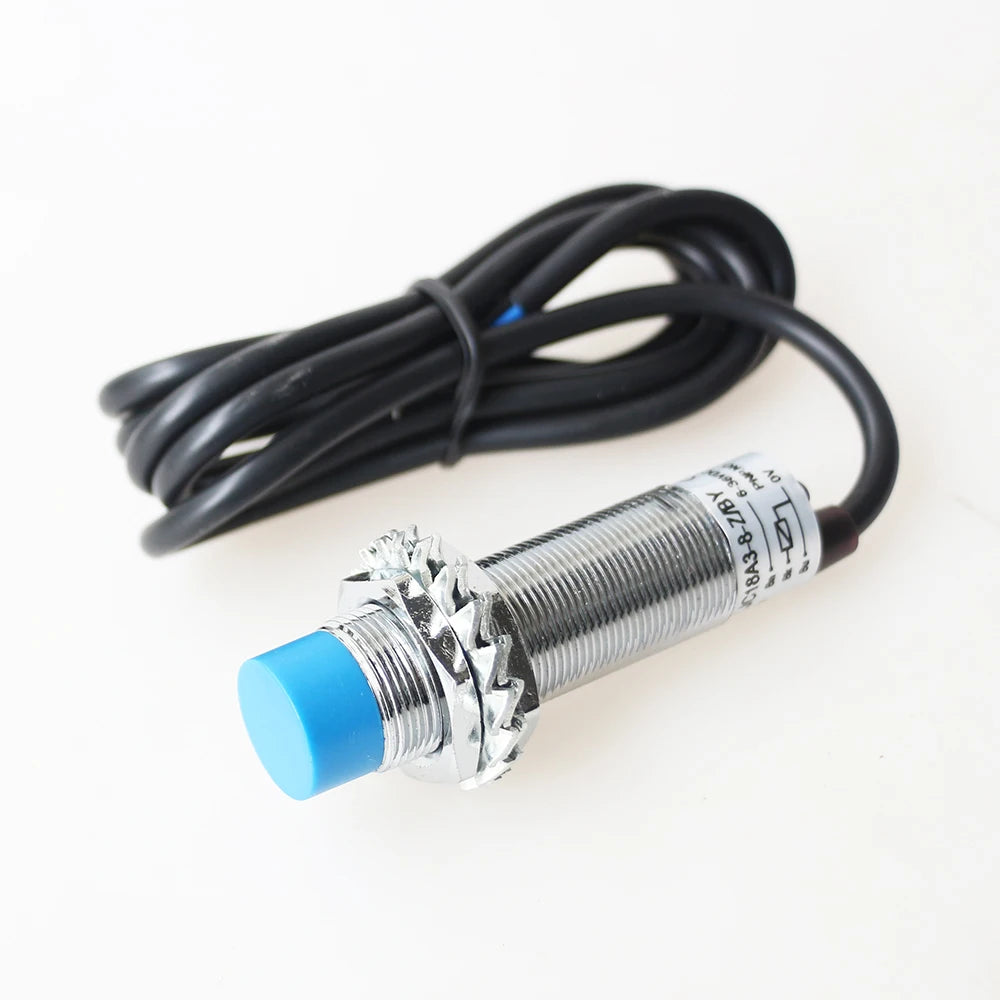

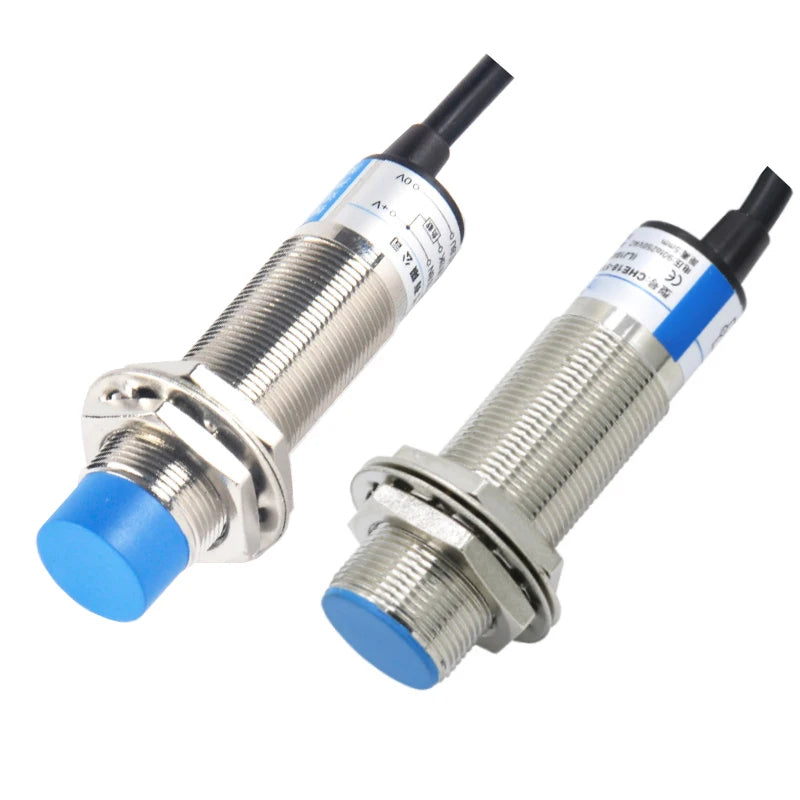

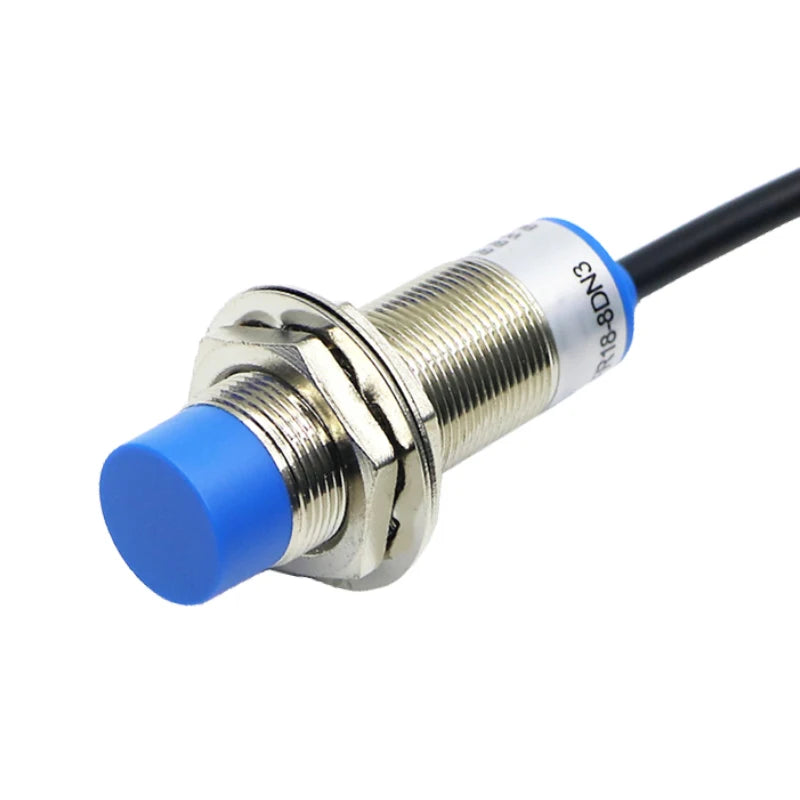

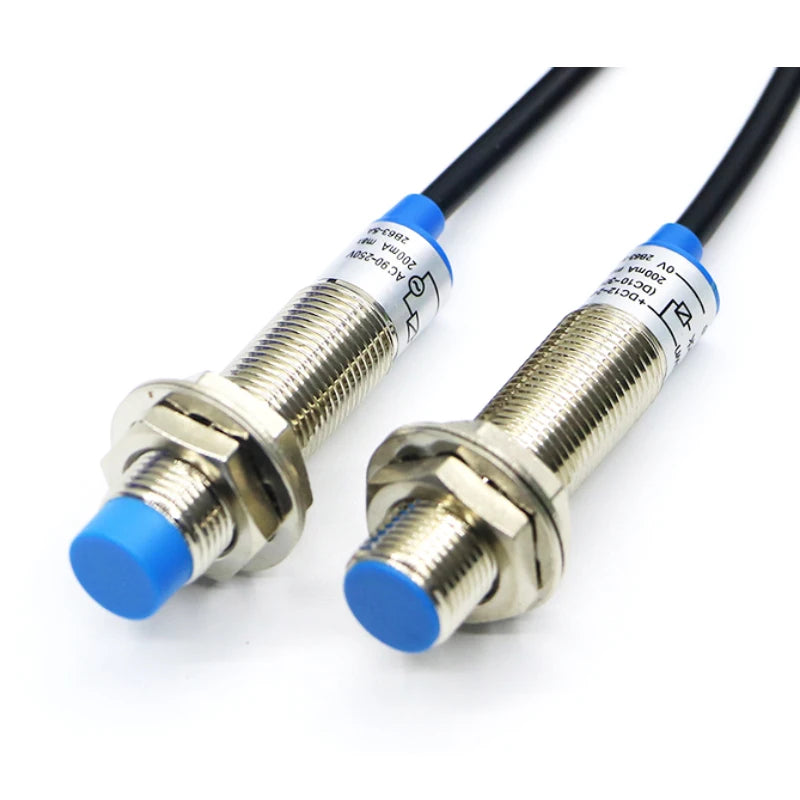

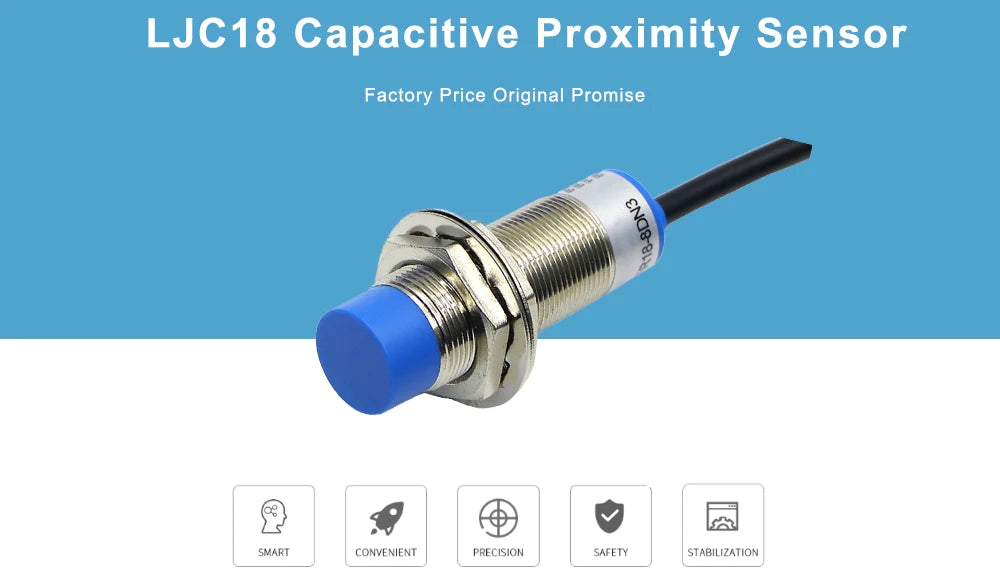

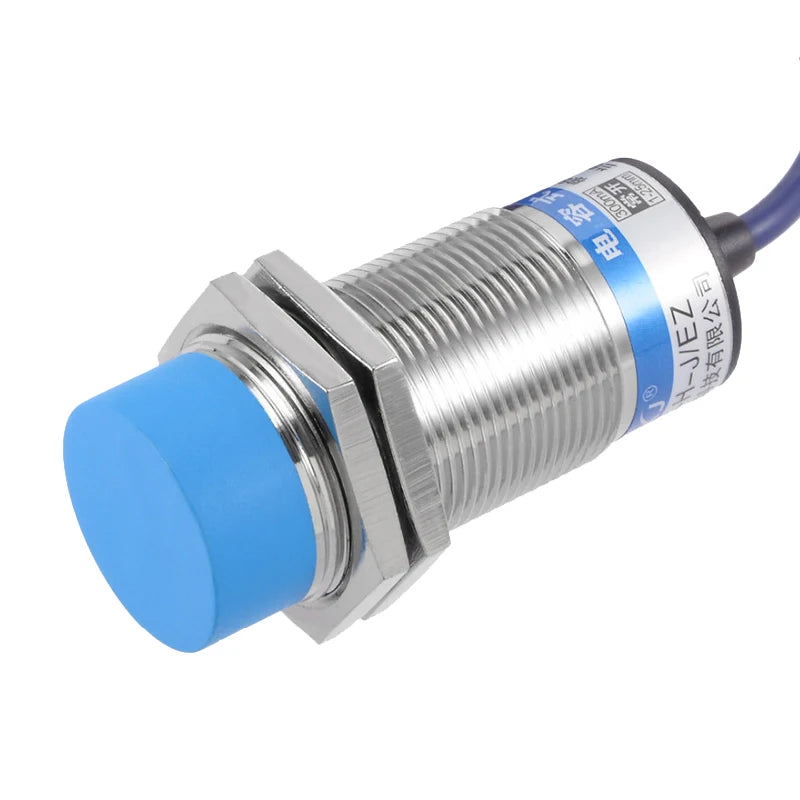

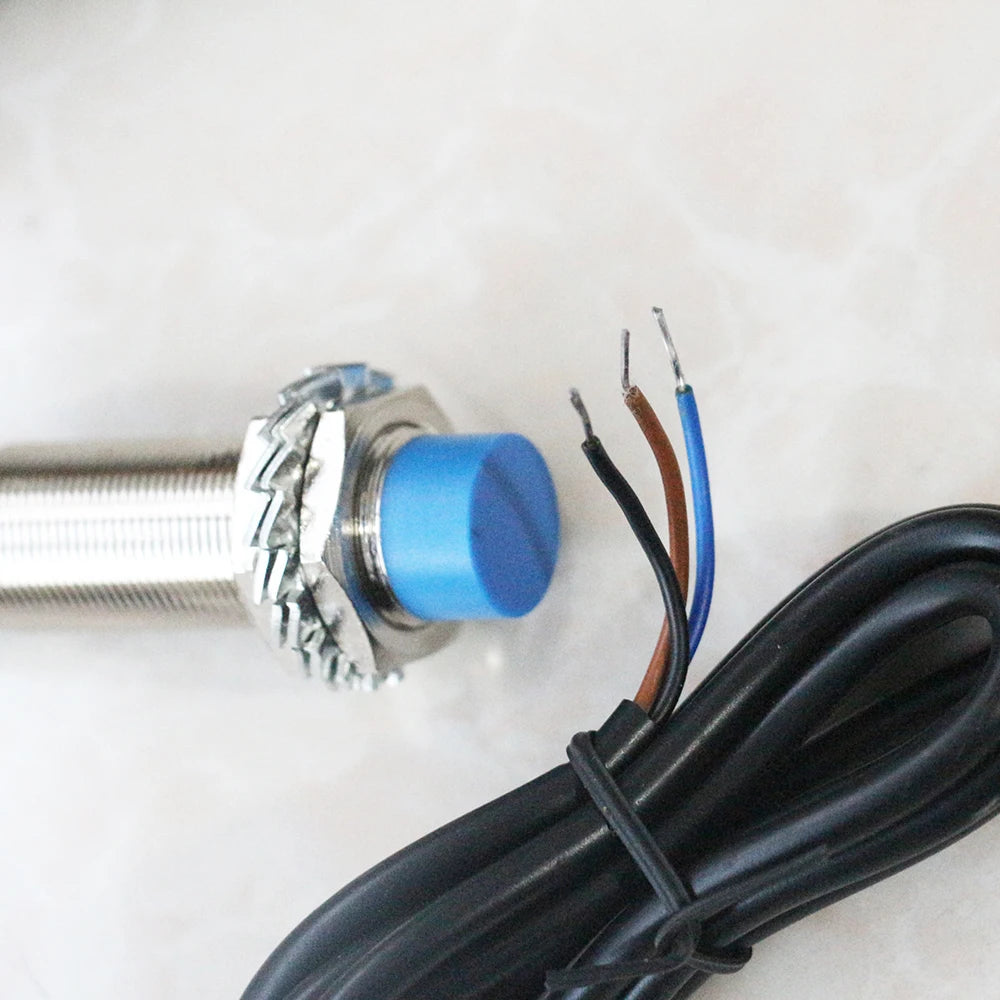

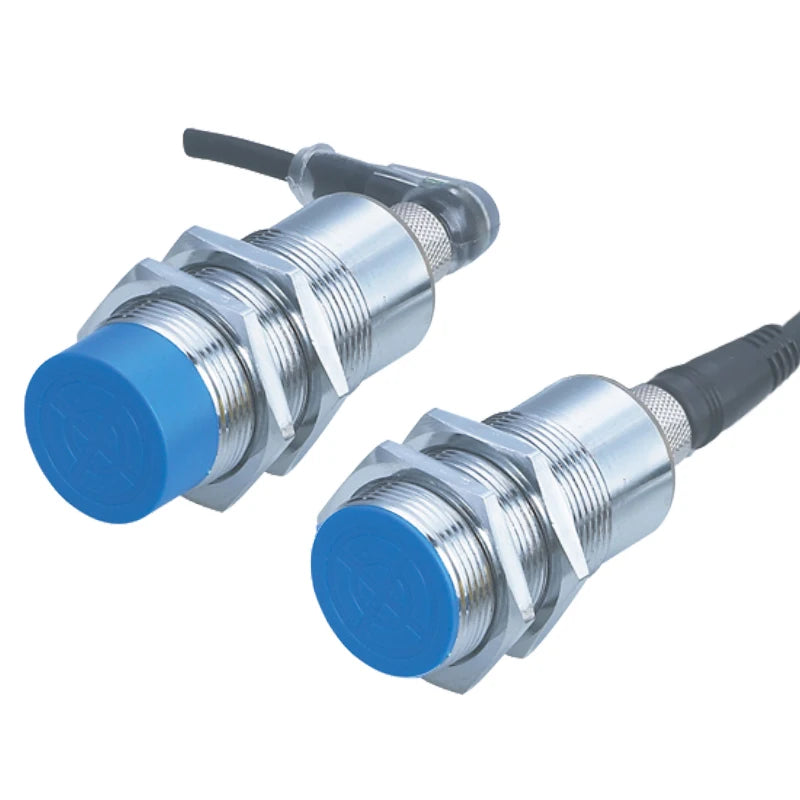

Capacitive Proximity Switch CM18 LJC18 Sn: 8mm DC6-36V AC90-250V NPN PNP NO NC NO+NC Capacity Proximity Sensor

Capacitive Proximity Switch CM18 LJC18 Sn: 8mm DC6-36V AC90-250V NPN PNP NO NC NO+NC Capacity Proximity Sensor

$30.20

$30.20 $0.00

ColorSn distance 0-8mm

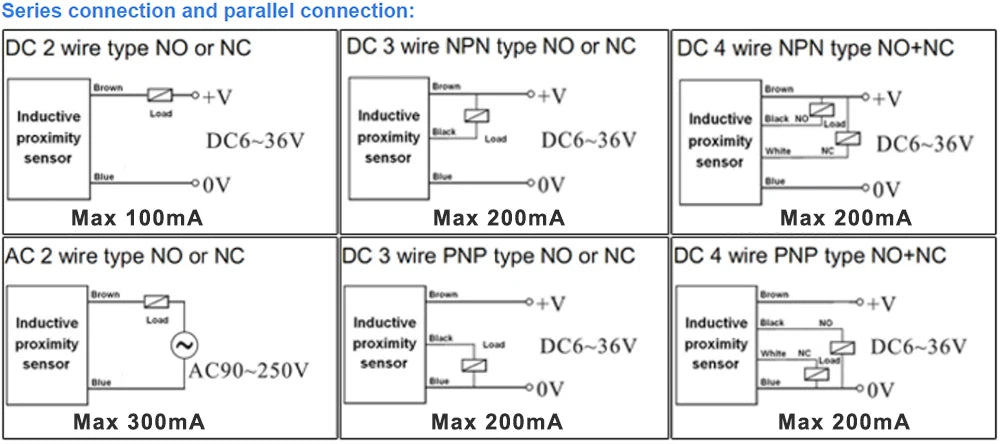

Set Type NPN PNP DC 2-wire AC 90-250V

Dimensions NO plus NC NC NO

Description

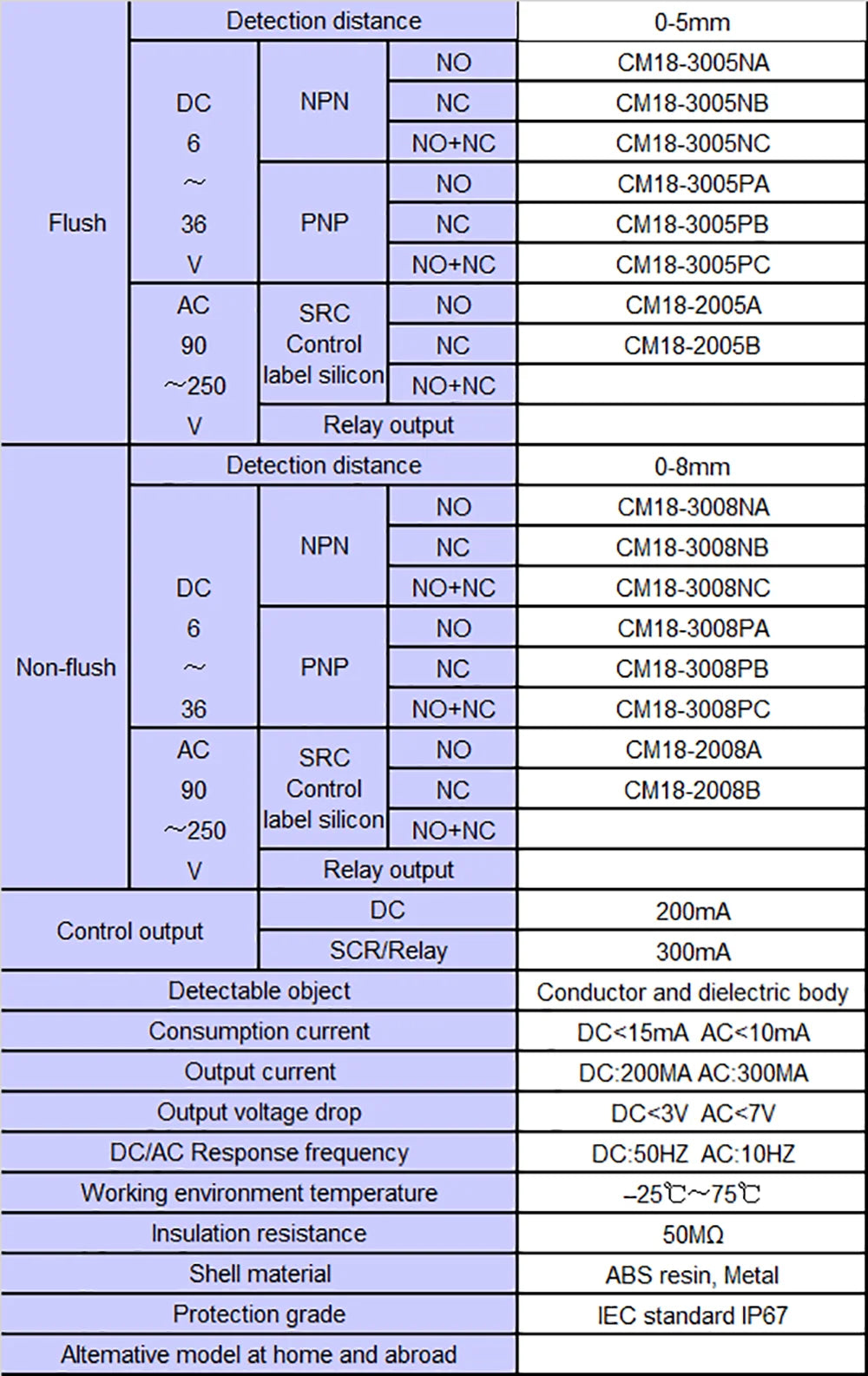

SPECIFICATIONS

Brand Name: NONE

Consumption current: DC<15mA, AC<10mA

DC/AC Response frequency: DC:50HZ AC:10HZ

Detectable object: Conductor and dielectric body

Insulation resistance: 50Mohm

Model Number: CM18 / LJC18

Origin: Mainland China

Output current: DC:200MA AC:300MA

Output voltage drop: DC<3V, AC<7V

Product: capacitive proximity Sensor

Protection grade: IEC standard IP67

Shell material: Metal

Sn distance: 0-5mm(flush) / 0-8mm(non-flush)

Working environment temperature: -25C to 75C

is_customized: No

Type	Size code	Photo	Detection object	Detection distance	Link

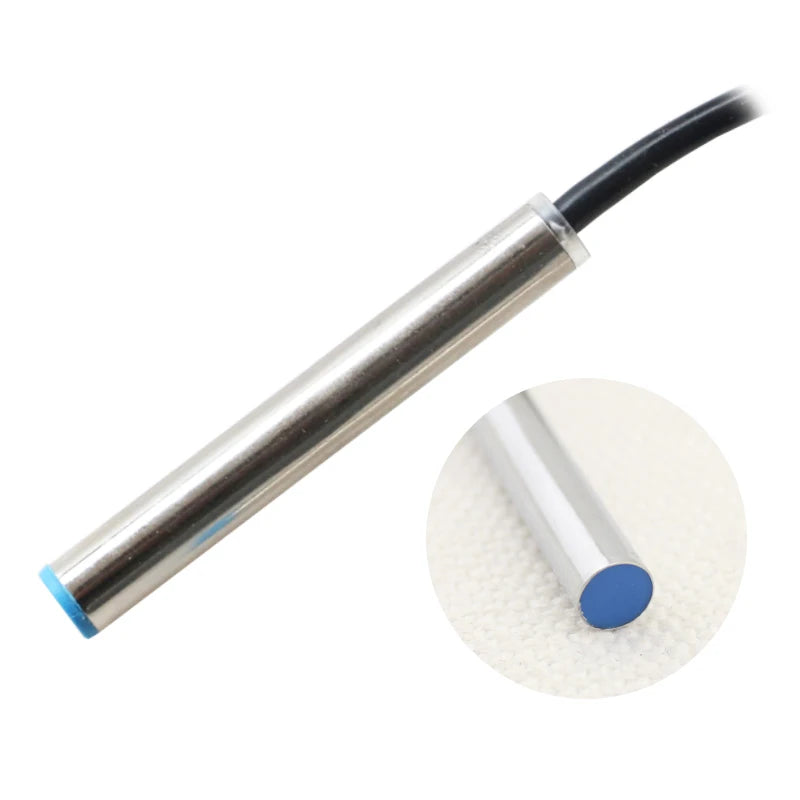

Inductive	M6		Metal only	1mm	Press
	M8			1mm/2mm	Press
	M12			2mm/4mm	Press
	M18			5mm/8mm	Press
	M30			10mm/15mm	Press

Type	Size code	Photo	Detection object	Detection distance	Link

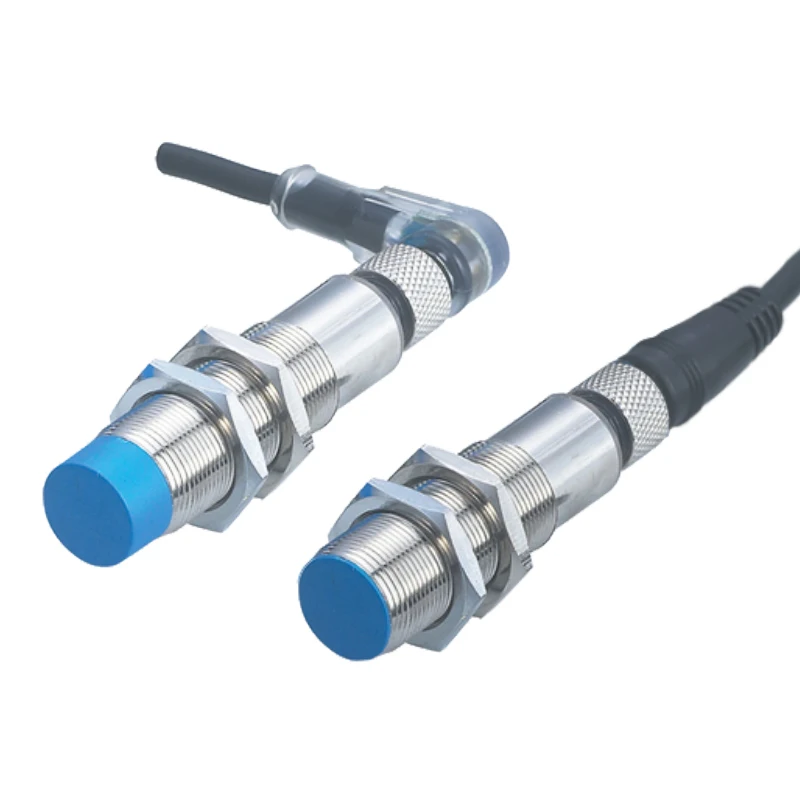

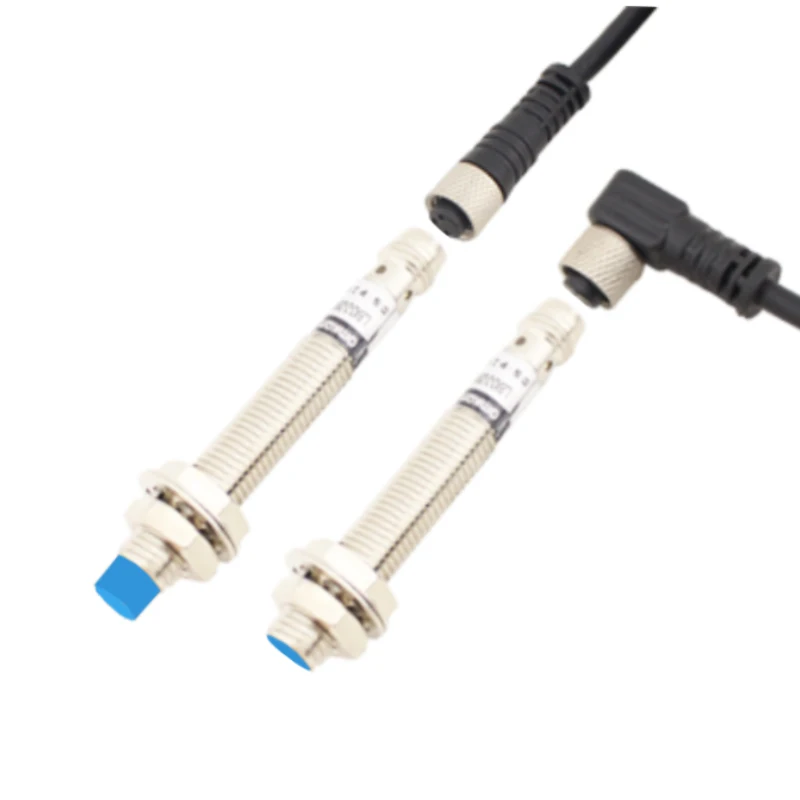

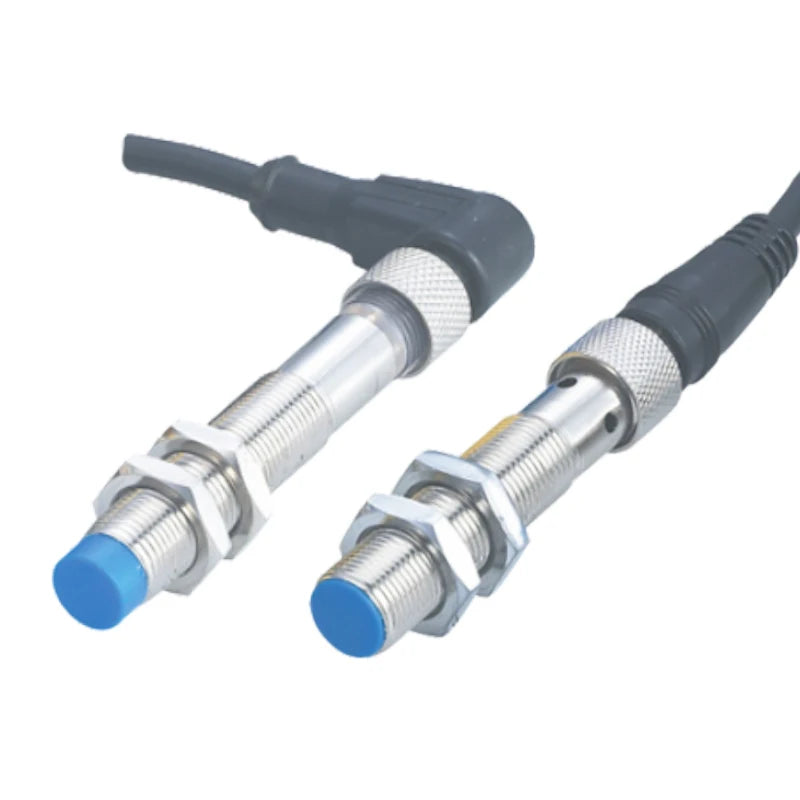

Inductive (Plug-in)	M8		Metal only	1mm/2mm	Press
	M12			2mm/4mm	Press
	M18			5mm/8mm	Press
	M30			10mm/15mm	Press

Type	Size code	Photo	Detection object	Detection distance	Link
Capacitive	M12		Not limited to conductors, liquids or powders that can be insulated, etc.	0-4mm (adjustable)	Press
	M18			0-8mm (adjustable)	Press

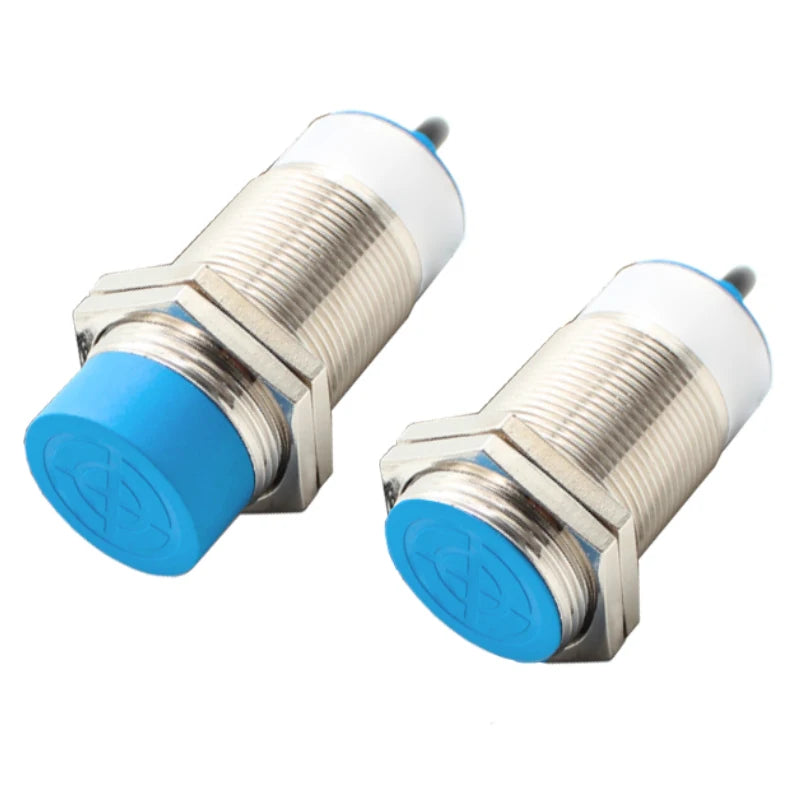

	M30			0-15mm (adjustable)	Press

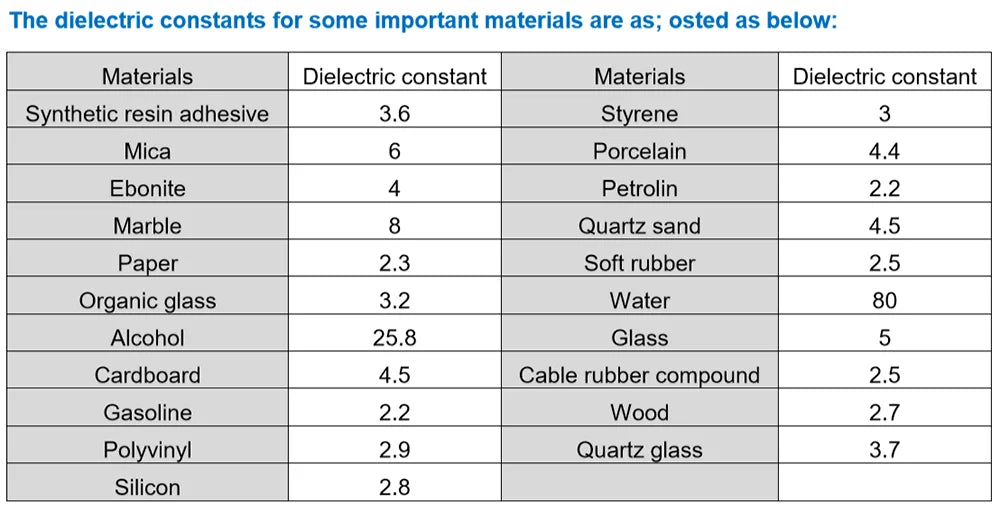

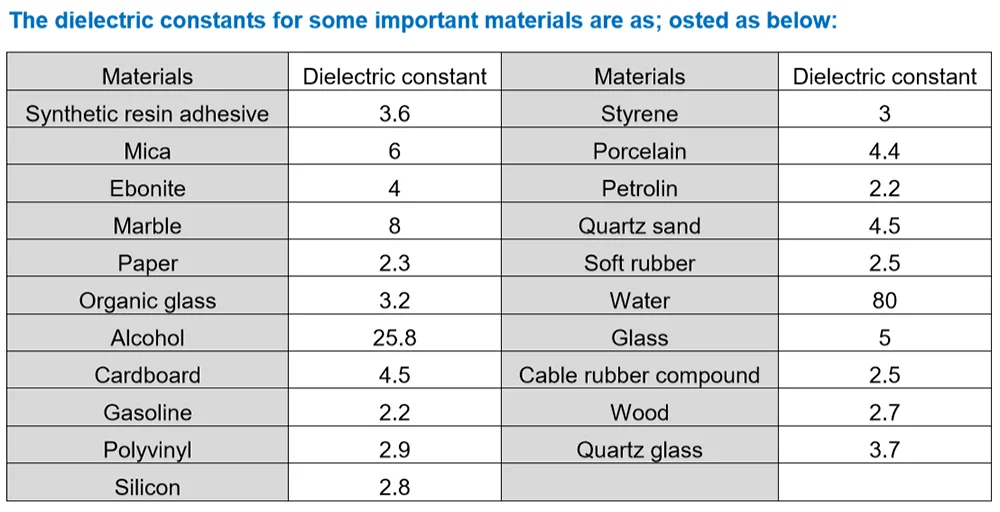

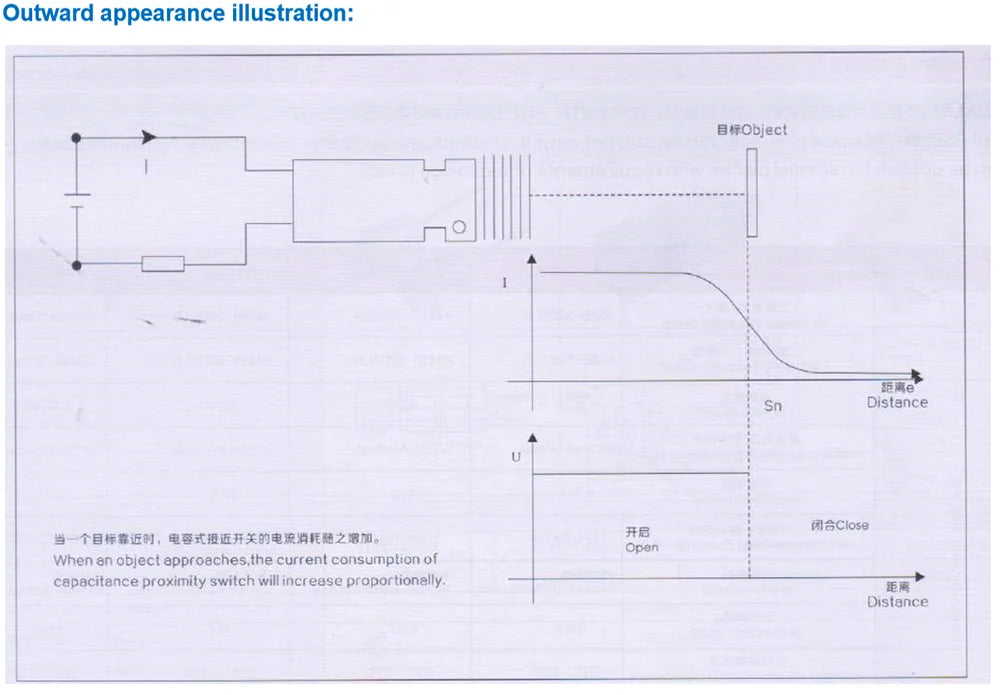

Capacitive proximity switches are usually measured by one plate of the capacitor, and the other plate is the shell of the switch. This enclosure is usually grounded or connected to the enclosure of the device during the measurement. When an object moves to the proximity switch, regardless of whether it is a conductor or not, due to its proximity, the dielectric constant of the capacitor is always changed, so that the capacitance changes and the state of the circuit connected to the measuring head also occurs. Change, which can control the switch on or off. The objects detected by this proximity switch are not limited to conductors, liquids or powders that can be insulated.
