SPECIFICATIONS

Description

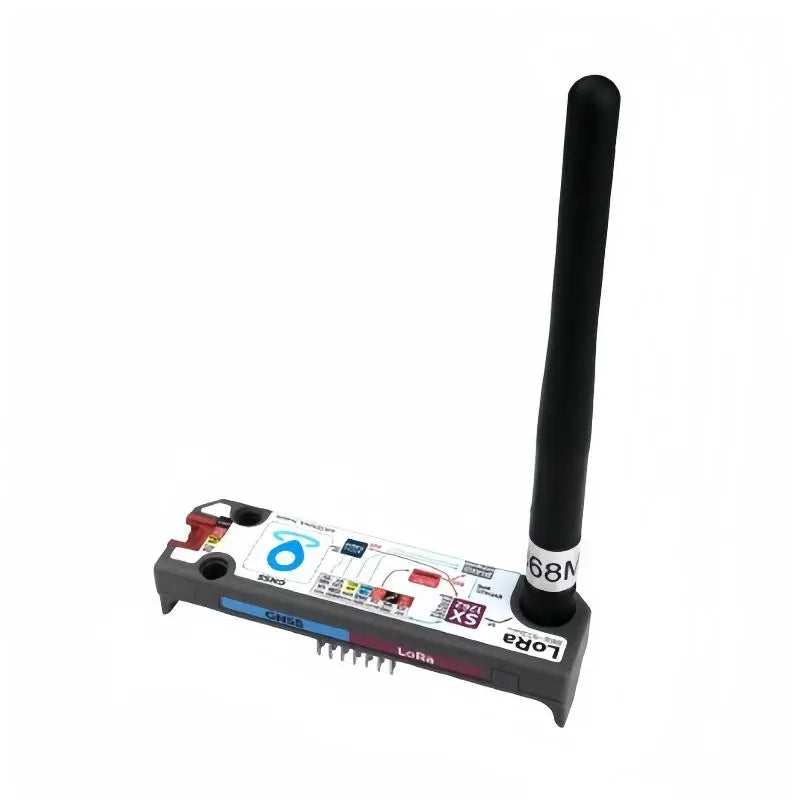

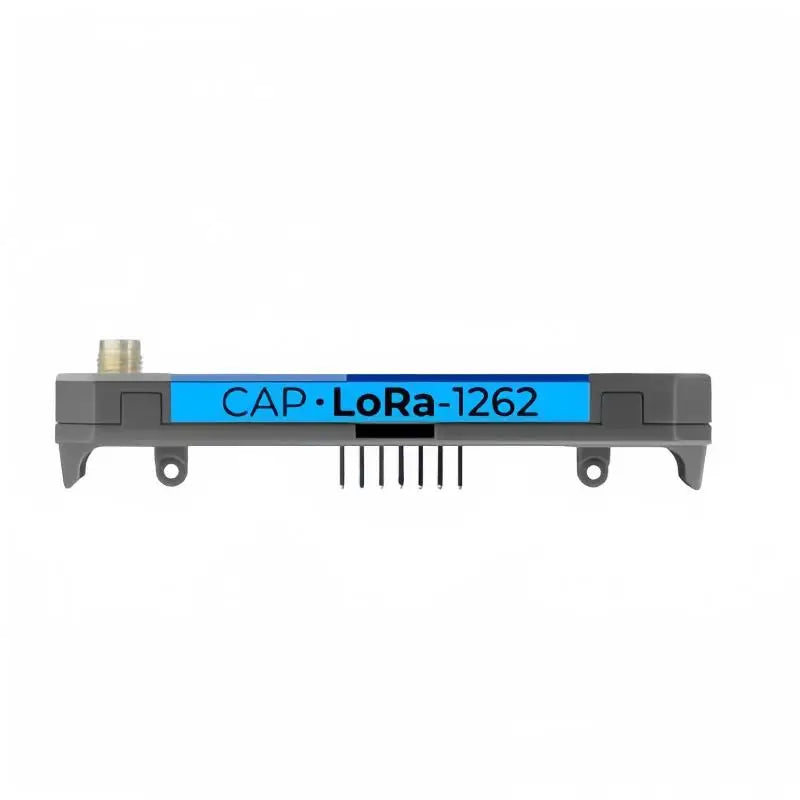

M5Stack Cap LoRa-1262 for Cardputer Adv SX1262 LoRa Module Frequency 868 to 923 MHz SMA Antenna Support GNSS Global Positioning

Features

Integrates LoRa modulation technology and GNSS global positioning system

Operating frequency: 868 ~ 923 MHz

Supports FSK, GFSK, MSK, GMSK, LoRa, and OOK modulation modes

LoRa receiving sensitivity: down to -147 dBm (LoRa low data rate mode)

LoRa maximum transmission power: +20 dBm

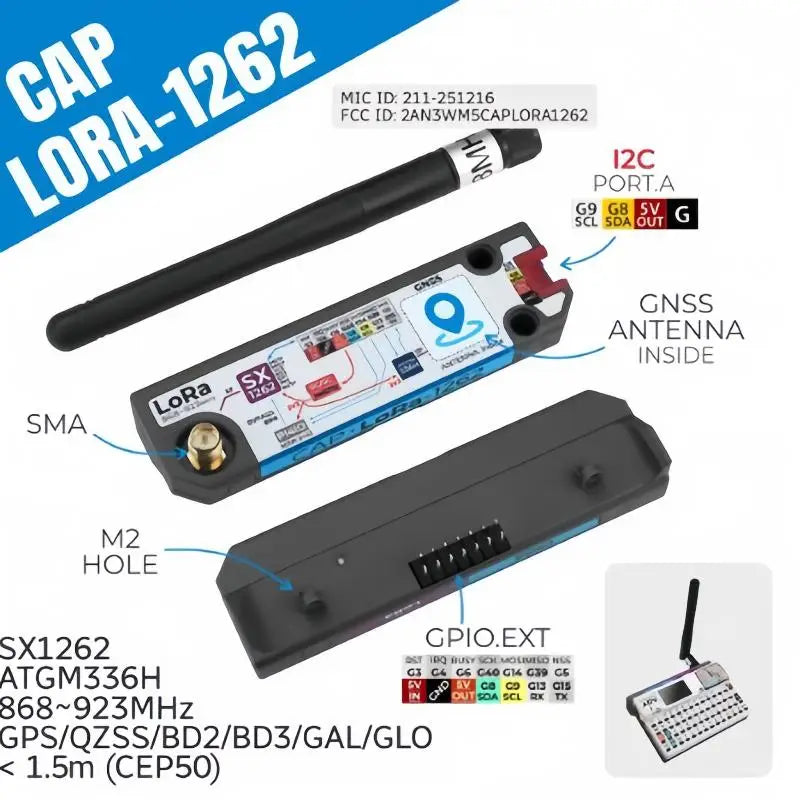

External SMA antenna interface for LoRa, built-in ceramic antenna for GPS

Positioning supports multiple satellite systems (GPS / QZSS / BD2 / BD3 / GAL / GLO)

Multi-frequency and multi-system reception

HY2.0-4P expansion interface

Development Platform:

UiFlow2

Applications

Remote data acquisition

Smart cities

Smart homes

Vehicle positioning and

IoT device positioning

Specifications:

Programmable bit rate: up to 300kbps

Communication interface: SPI

Antenna: Size 108 × 9.3mm, interface type SMA (internal screw and internal hole), additional address 3dBi

Power on consumption: 33.1mA

Product size: 84 * 24 * 15.2mm

Material: Plastic+Metal

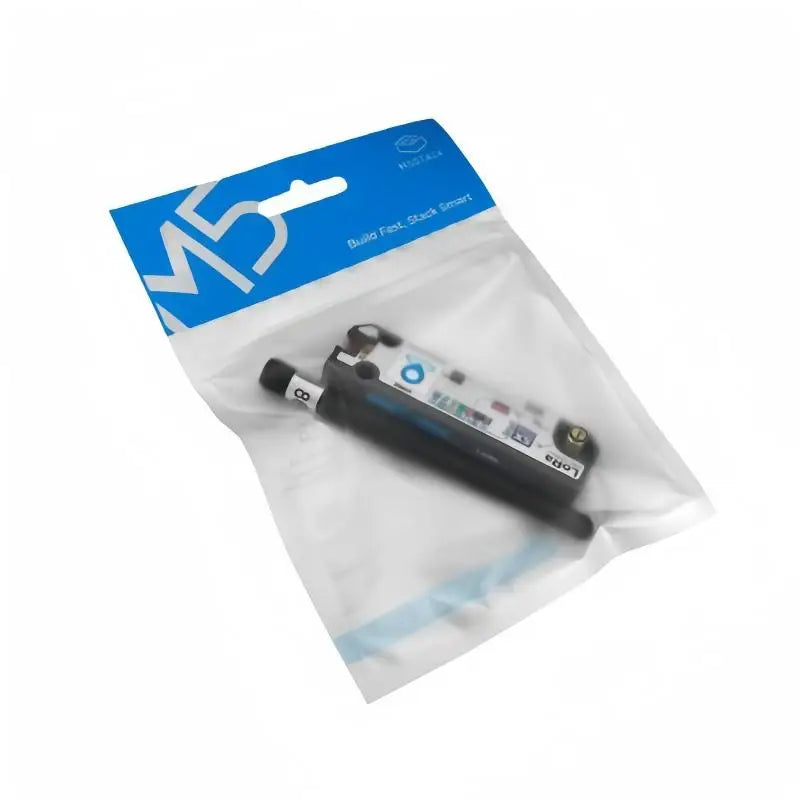

Package Includes

Cardputer Adv not included

1 x Cap LoRa-1262

1 x LoRa Rubber Antenna

Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
