SPECIFICATIONS

Features:
OOTDTY
brand new and high quality
Compact, making products look simple, elegant.
Contact resistance: under normal atmospheric conditions the contact resistance ≤2.5MΩ.
High pressure: AV 750V1 minutes without breakdown and arcing phenomena.
IDC end color press note some wire for fast and accurate wire, the module is equipped with a dust cover for , shelter dust and dirt.
IDC: cable can be connected via the 22 ~ 26AWG, card access number can be repeated ≥200 times.
Insulation resistance: under normal atmospheric conditions Insulation resistance ≥1000MΩ.
RJ45 interface terminal: gold 3μ ''.
Repeat the plug and socket mating cycles ≥750 times.
Terminal Material: Bronze.
The device is suitable for connection and communication between the work area outlet to achieve signal transmission.
The plastic body material: PC PBT fire rating of UL 94-V0.

Specifications:
CAT6
90 degrees wire
Material: Flame-retardant PC bronze contact with PCB
Technology: Assembly
Scope: cabling weak building home improvement project
Packing size: approx.10x10cm/3.94x3.94in

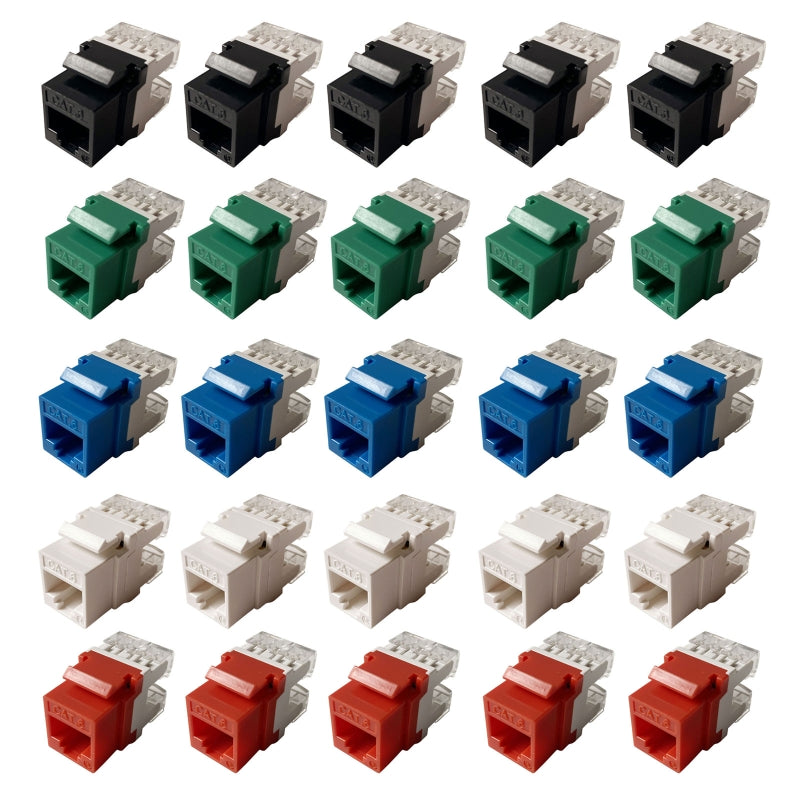

Color: white, black, green, red, blue（optional)

Package Includes:
5 x CAT6 Modules

Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
