SPECIFICATIONS

Brand Name: cojxu

Certification: NONE

High-concerned chemical: none

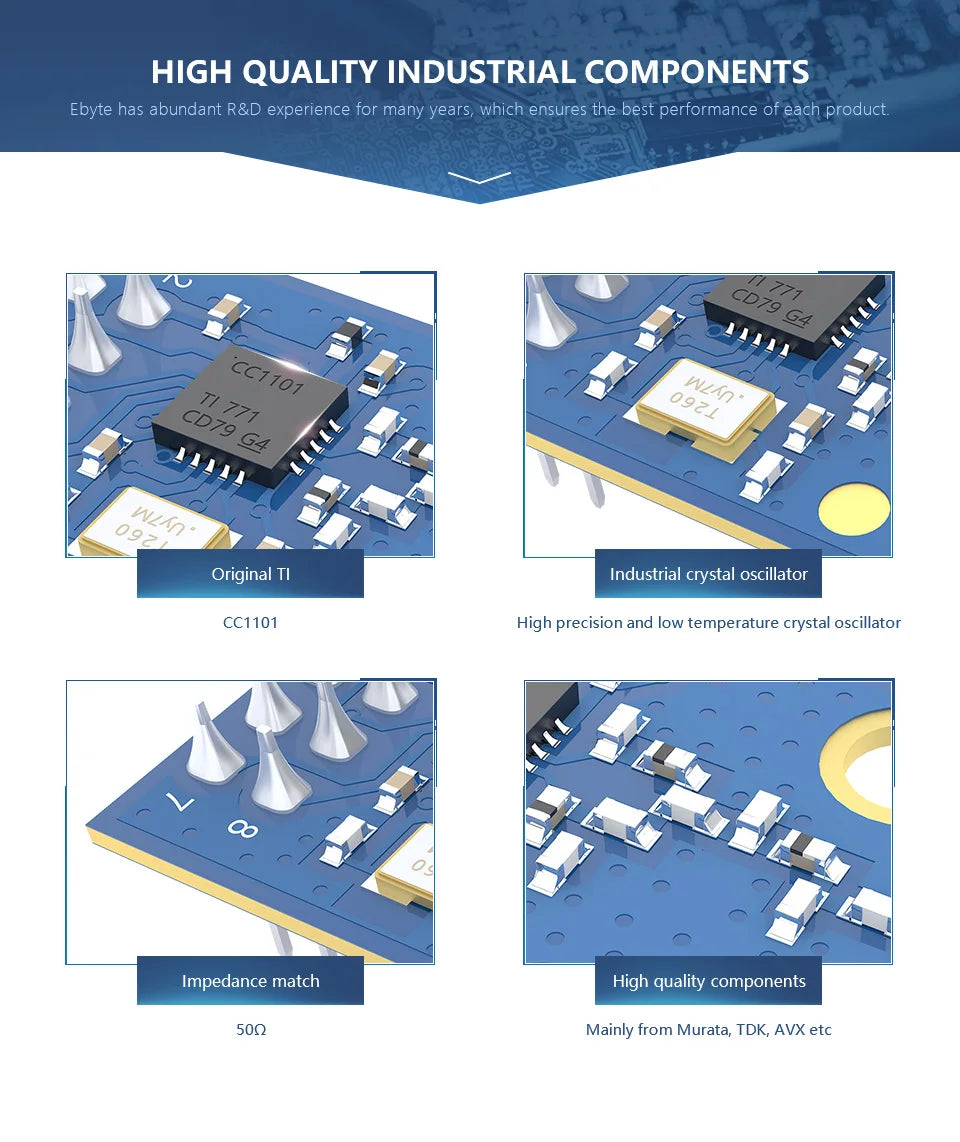

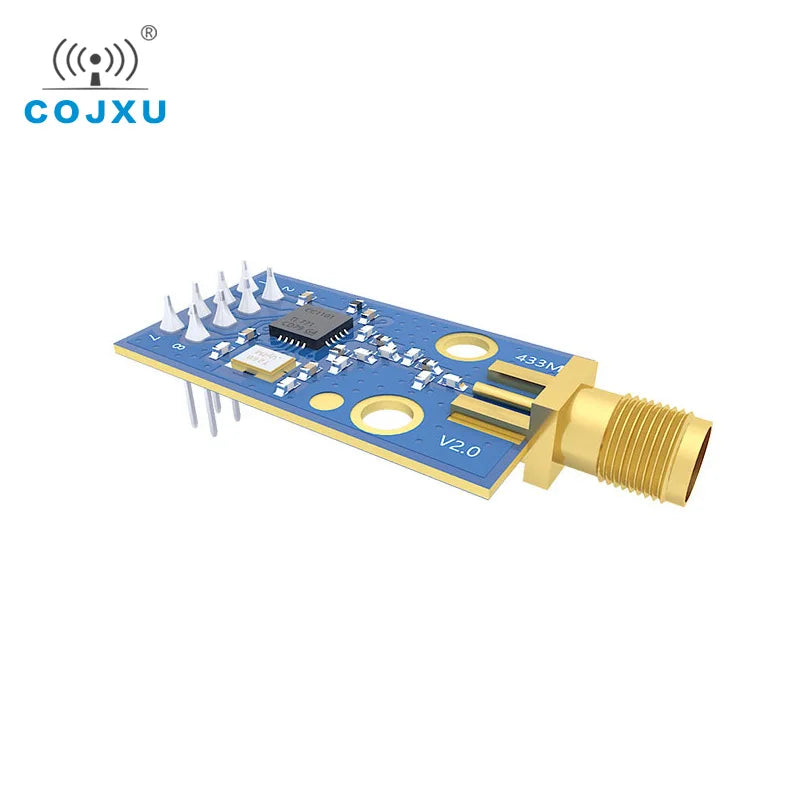

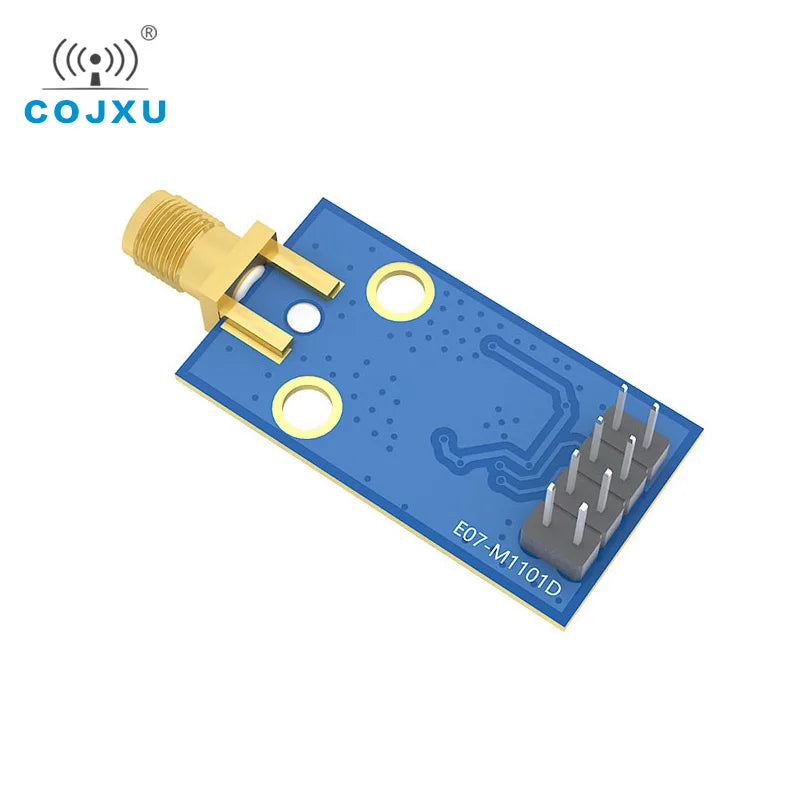

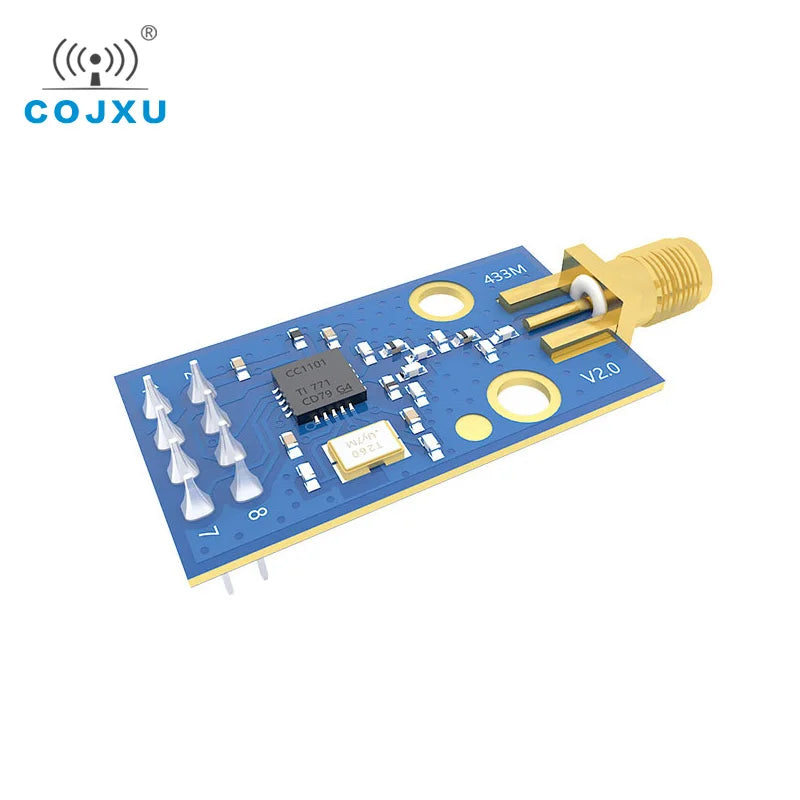

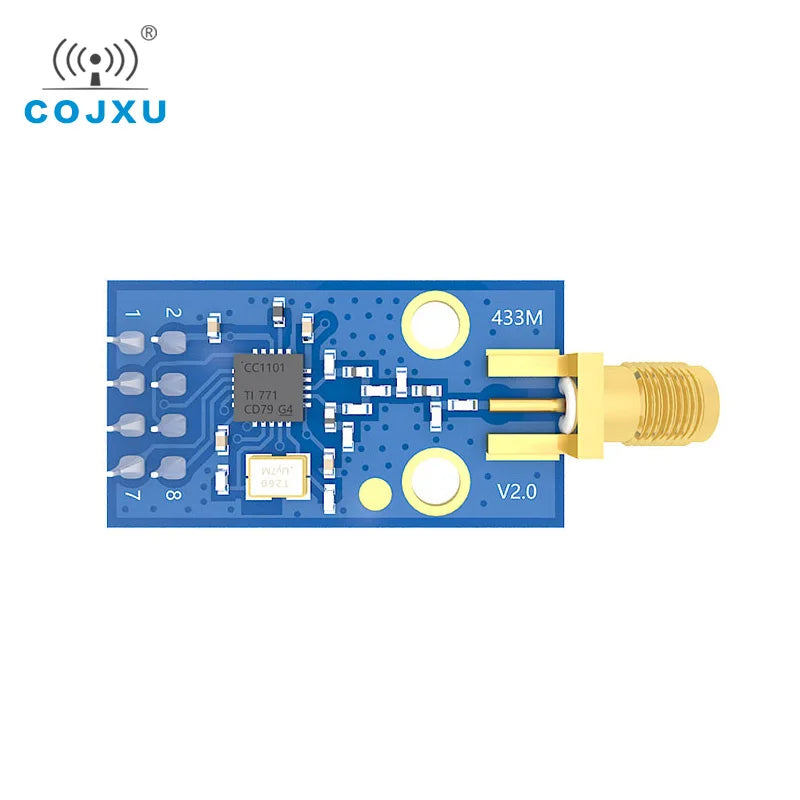

Model Number: E07-M1101D-SMA

Origin: Mainland China

Port Number: 1

Working Frequency: 387~464 MHz

Download Files:
DEMO:
https://www.cdebyte.com/Uploadfiles/Files/2022-1-12/20221121045535761.zip
PCB:
https://www.cdebyte.com/Uploadfiles/Files/2022-1-12/20221121041184307.zip
User Manual:
https://www.cdebyte.com/pdf-down.aspx?id=1341

RF Parameter	Value	Remark
Working frequency	387~464 MHz	Default: 433MHz (26MHz oscillator)
Transmitting power	10 dBm	Max. Power (10mW)
Receiving sensitivity	-108 dBm	Air data rate: 0.6kbps
Air data rate	0.6k~500kbps	Default: 0.6kbps
Test distance	600m	In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 0.6kbps

Hardware Parameter	Value	Remark
Size	15 * 30 mm	Without SMA-K
Antenna type	SMA-K
Communication interface	SPI
Package	DIP

Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	1.8	3.3	3.6	V
Communication level	1.8	3.3	3.6	V
Transmitting current	27	29	32	mA	10dBm(10mW)
Receiving current	16	18	20	mA
Sleep current	0.3	0.6	2.1	μA
Operating temperature	-40	20	+85	℃
Operating humidity	10	60	90	%
Storage temperature	-40	20	+125	℃
