CC1101 433M 10mW Wireless Sender Transceiver Receiver Module NRF905/SX1212/SI4432 data transmission/transceiver
$59.36
Sale price
$59.36
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Condition: New
Dissipation Power: 10mW
High-concerned chemical: none
Origin: Mainland China
Supply Voltage: 1.8V-3.6V
Type: Voltage Regulator

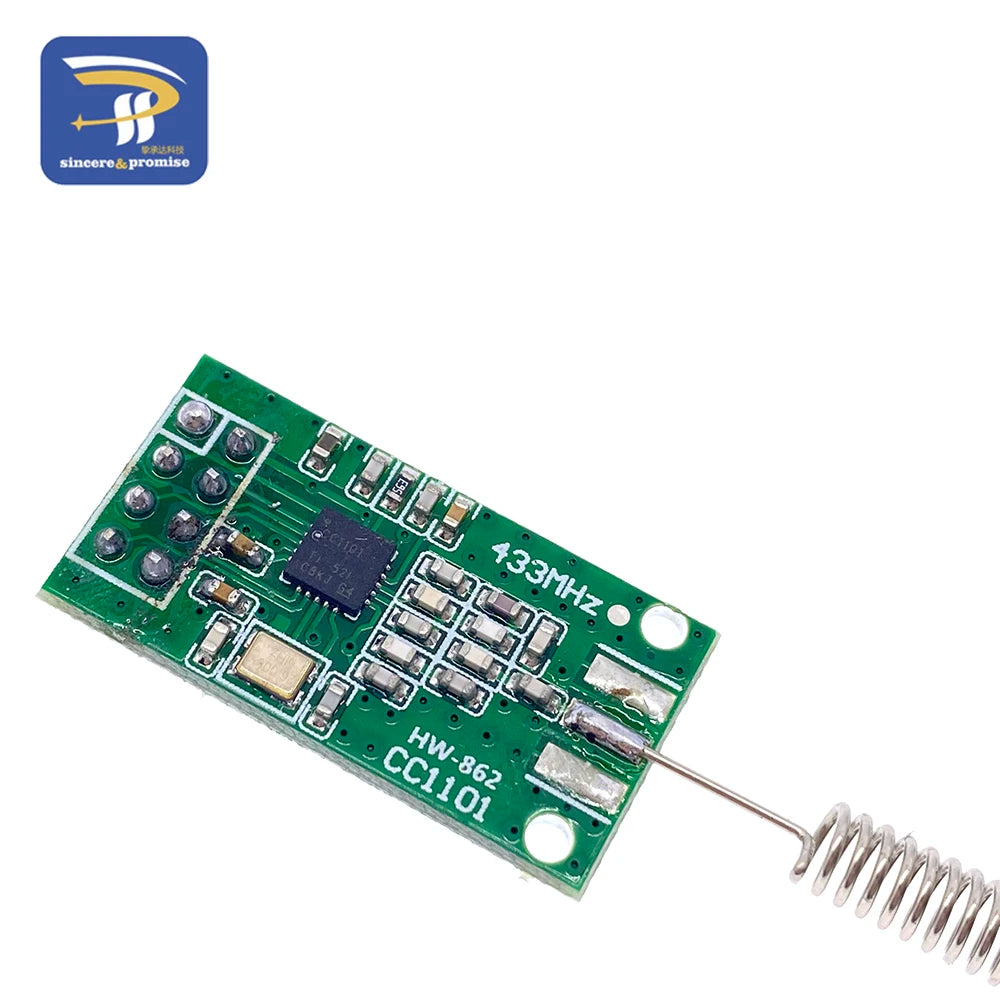

CC1101 Green Product Introduction:
The product uses the chip CC1101, which can be widely used in IoT, industrial control, medical treatment, security alarm, data acquisition, smart home, water and electricity meter reading and other occasions.
Product parameters:
(1) Receiving sensitivity: -116dBm/0.6kbps
(2) Working temperature: -30℃～85℃.
(3) Working voltage: DC1.9～3.6V.
(4) Communication distance: 380 meters.
(5) Maximum power: 10mW.
(6) Center frequency: 433MHZ.
(7) The open transmission distance is 300 meters to 500 meters.
(8) Color: green.

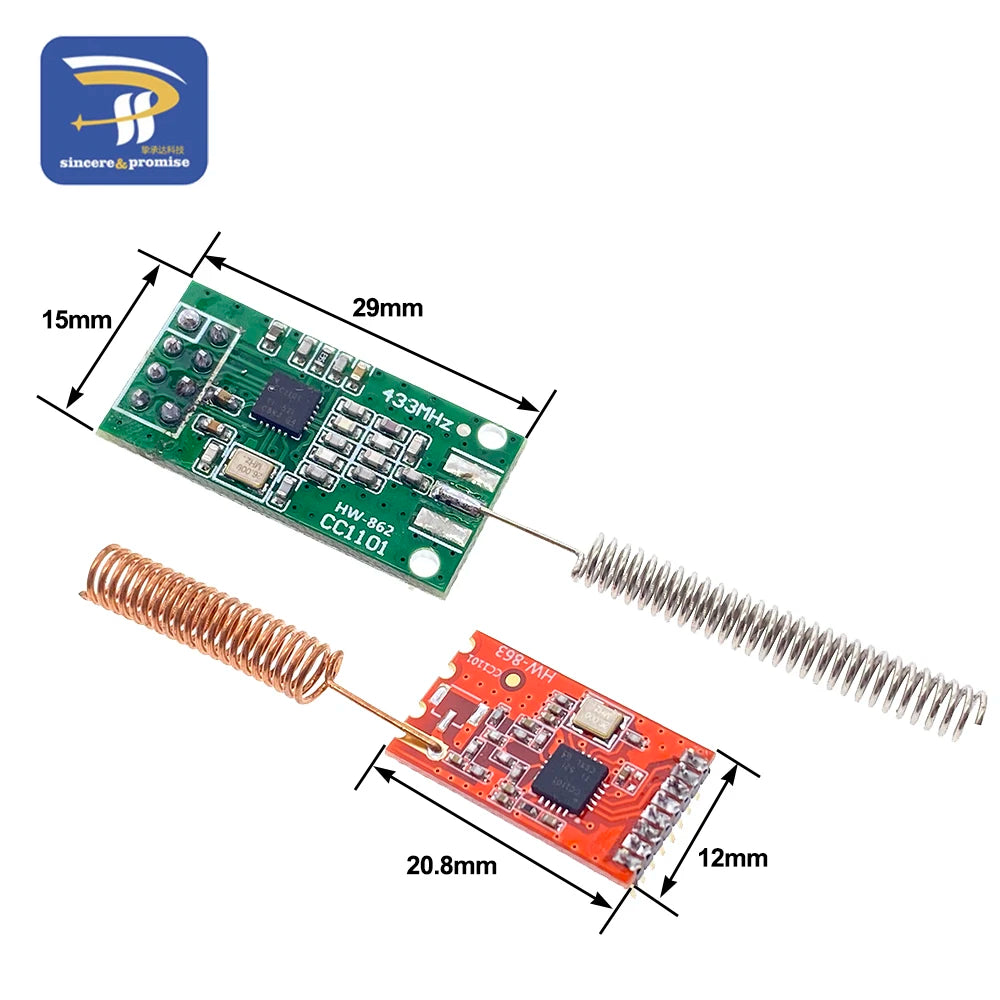

(9) Total product length: 68.00mm (including antenna)
Features:
(1) Using SPI interface.
(2) Wireless wake-up function; support low-power electric carbon wave activation function, wirelessly wake up devices in low-power sleep states.
(3) Low current consumption: 15.6mA in receiving mode, less than 0.5uA in sleep mode.

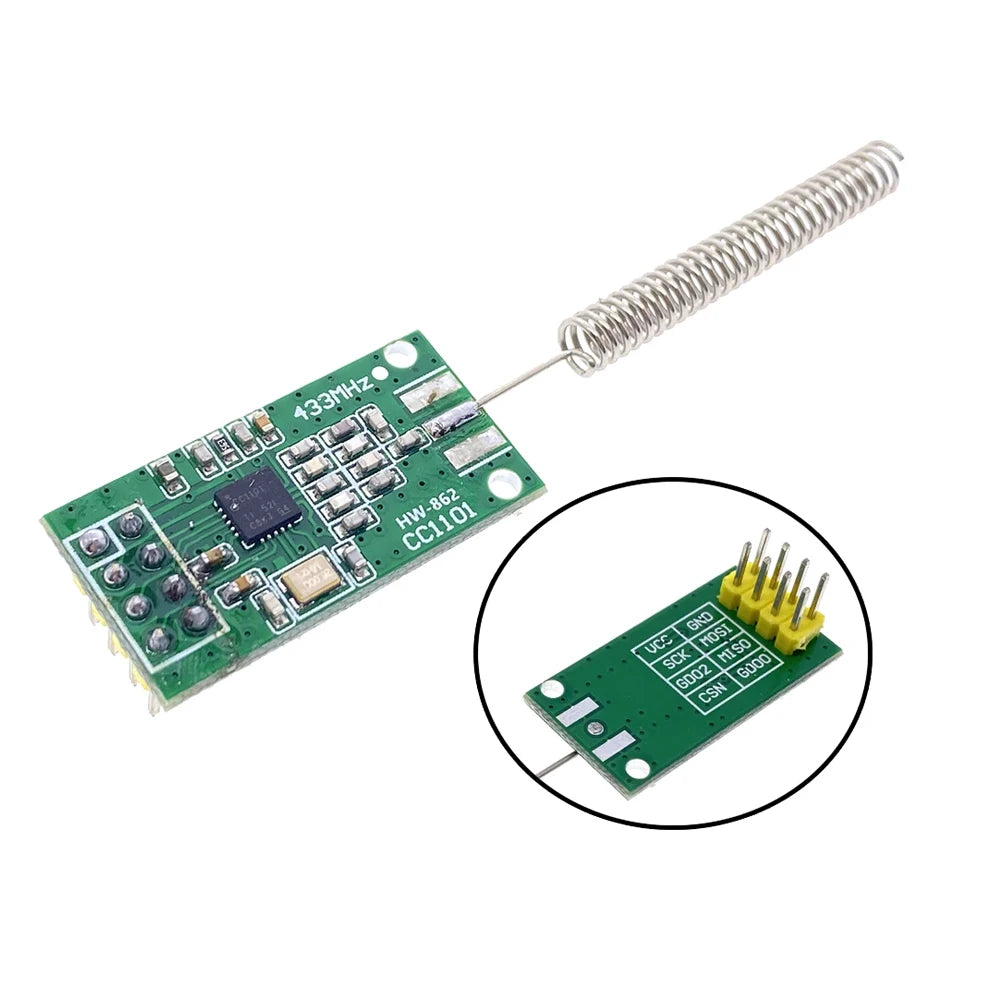

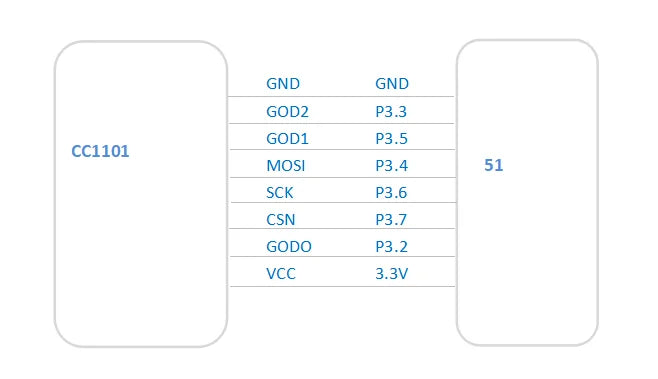

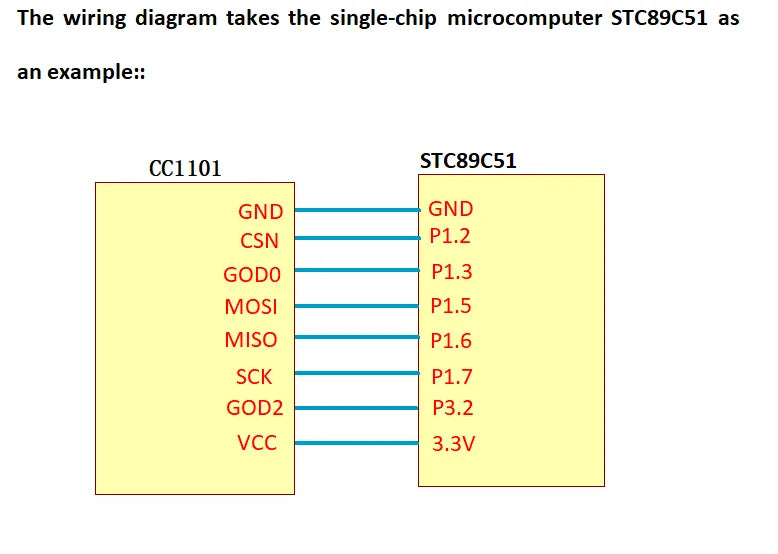

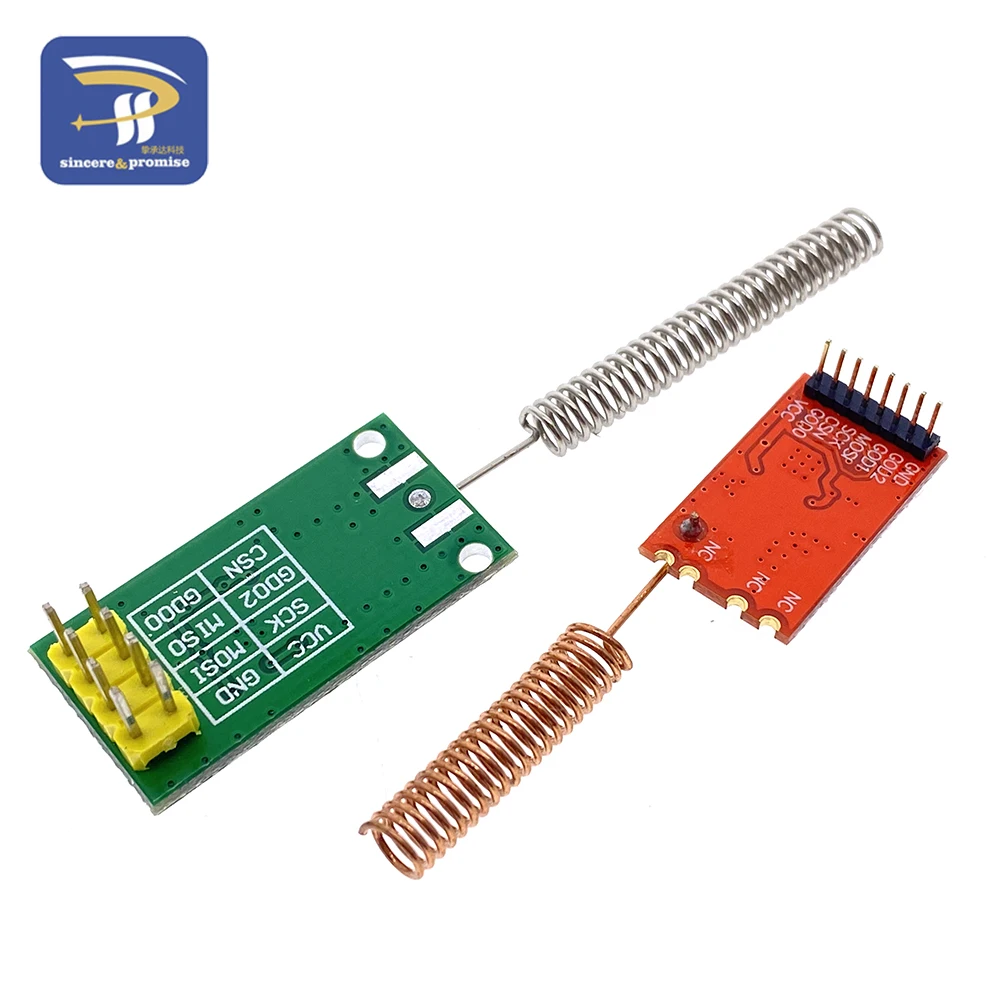

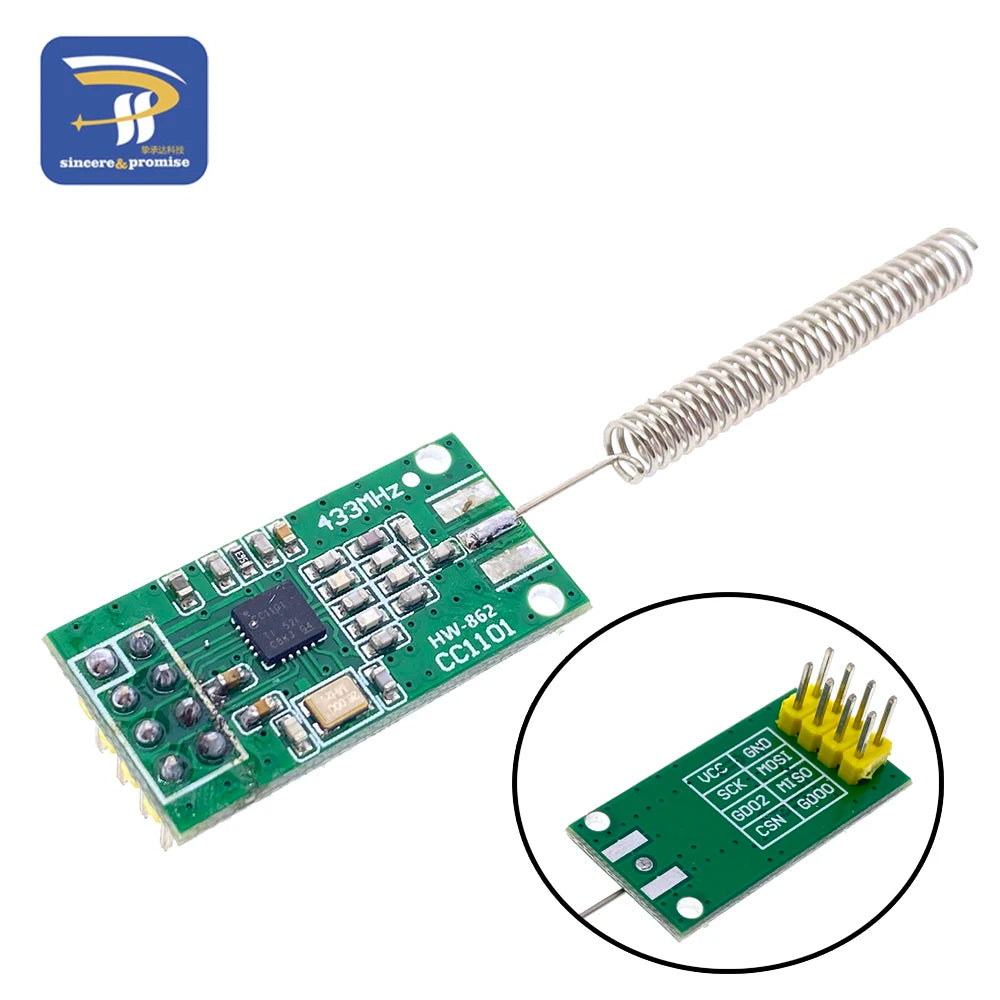

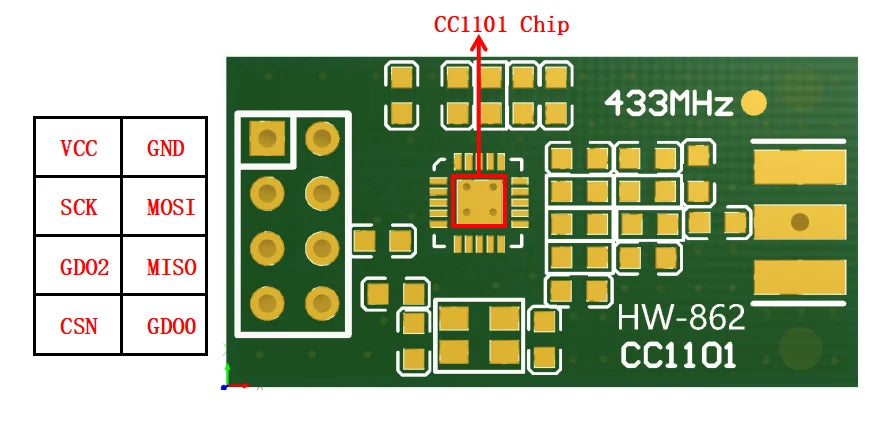

Pin function:
(1) GND: The negative pole of the power supply.
(2) VCC: Positive power supply.
(3) CSN: Module chip select pin, used to start a SPI communication.
(4) SCK: Module SPI bus clock.
(5) MOSI: Module SPI data input pin.
(6) MISO: module SPI data output pin.
(7) GDO0: Module information output pin.
(8) GDO2: Module information output pin.

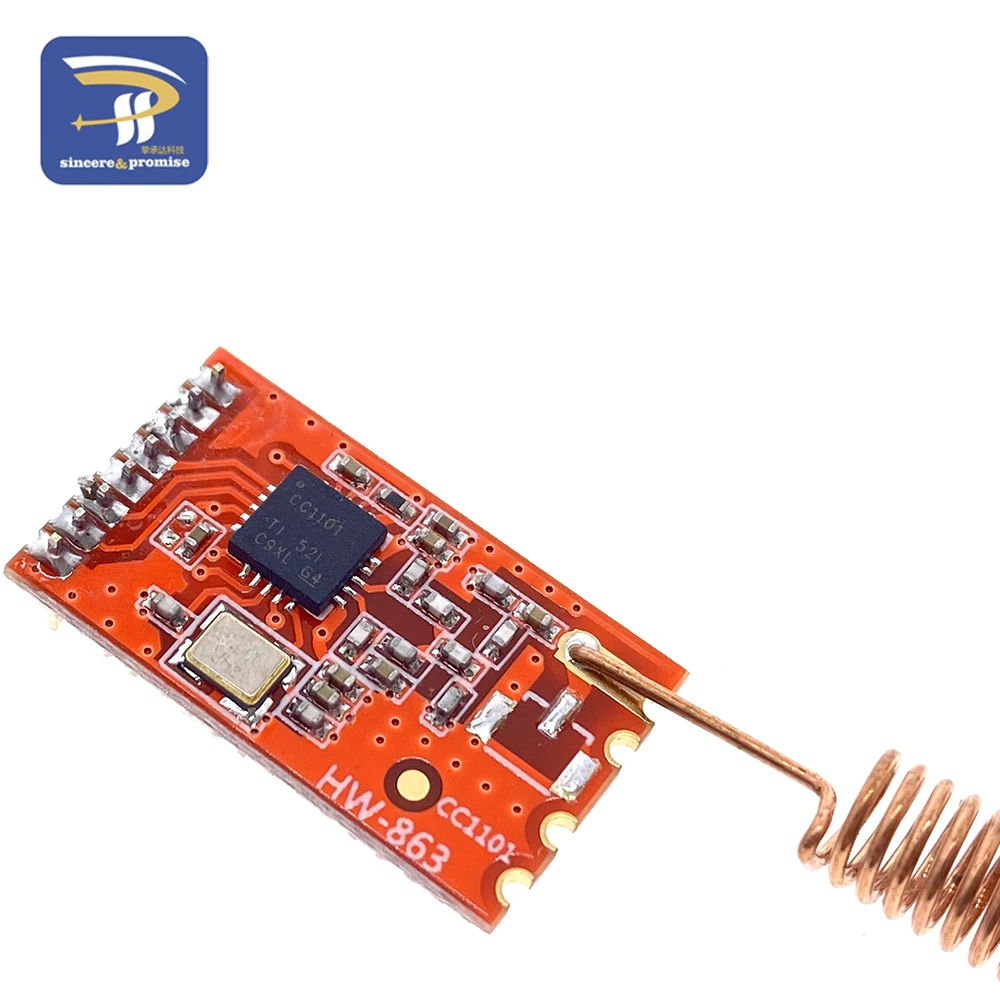

CC1101 Red Product Description:
