SPECIFICATIONS

M5Stack Cardboard ADV Multifunctional Extension Accessories Introduction

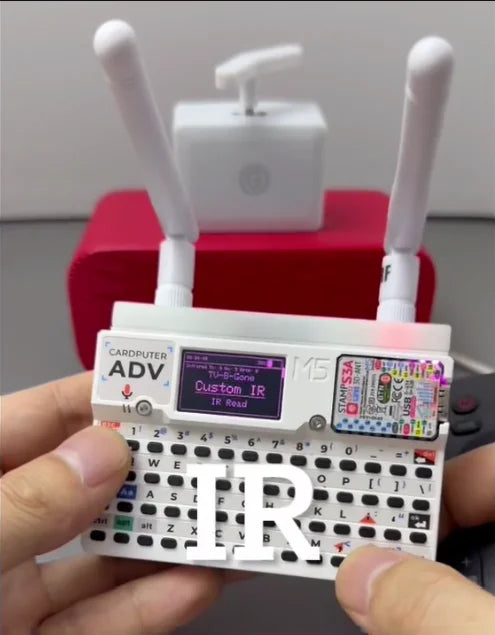

This is a multi-functional expansion accessory for M5Stack Cardboard ADV, integrating CC1101, NRF24L01, 3 infrared transmitter tubes and 1 infrared receiver tube, which can be used for wireless communication testing, infrared remote control learning and transmission, hardware development and other scenarios.

The accessories integrate the CC1101 wireless module, 2.4GHz wireless module and infrared transceiver function, which is more convenient to use and reduces the trouble of external modules and wiring.

Main function
Integrated CC1101 wireless module can be used for sub-GHz wireless communication testing and development.
2. Integrated NRF24L01 2.4GHz wireless module, suitable for short-range wireless communication applications.
Equipped with three infrared emission tubes, the emission angle is wider and the intensity is higher, which can improve the distance and success rate of infrared remote control.
Equipped with an infrared receiver, it can be used for infrared signal reception, learning, and analysis.
5, for M5Stack Cardboard ADV.
6, can be used with Bruce firmware.

Bruce Firmware Instructions
To use this accessory in Bruce firmware, you need to modify the pin configuration file first.

Operation steps:

1. Enter in Bruce firmware: Files > WebUI

2. Open the WebUI file management page, select the connection method and enter the configuration modification interface through the corresponding Internet Protocol Address.

3, found and modified: brucePins

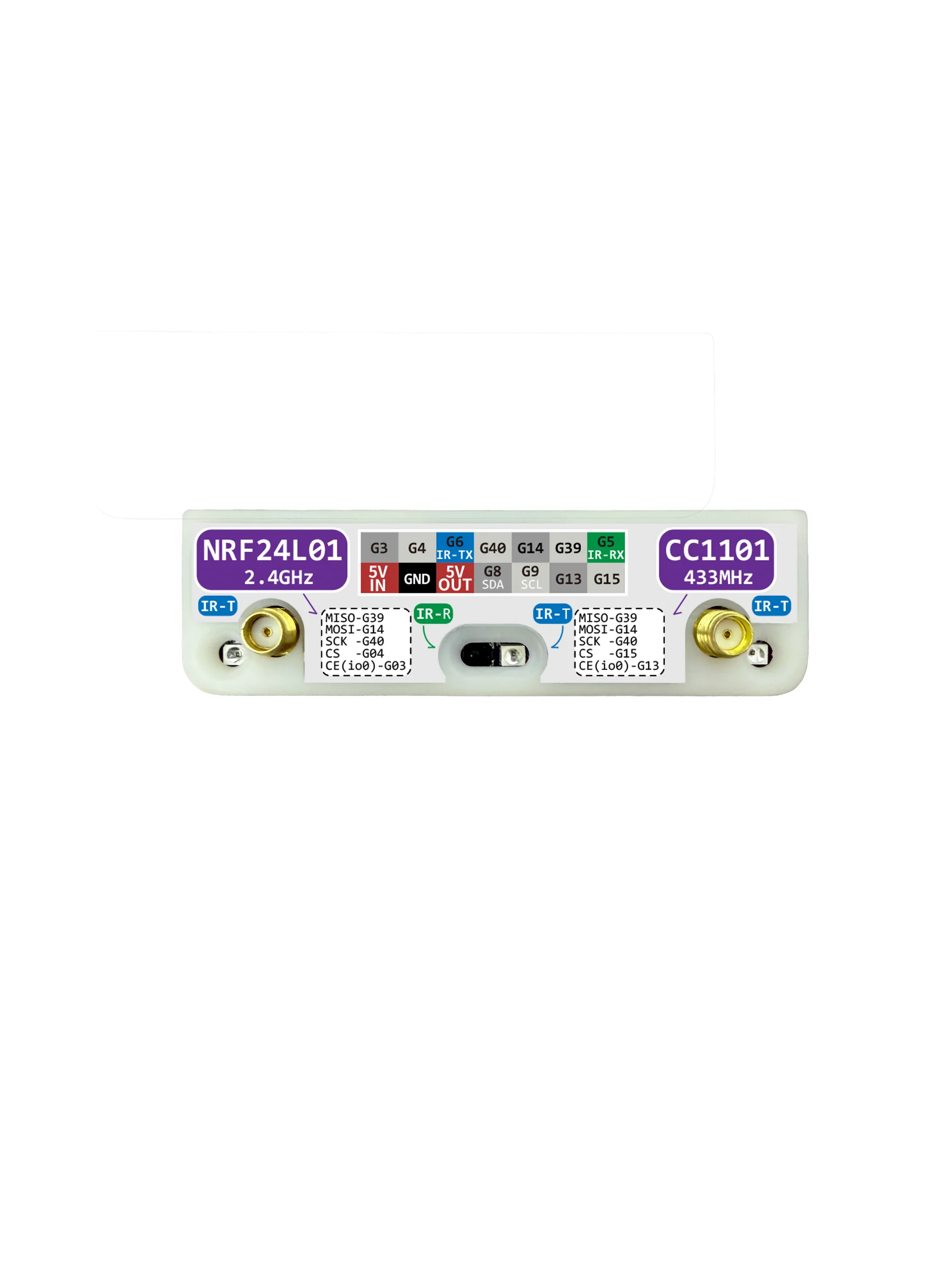

4. According to the actual pin configuration of this product, modify the corresponding settings.

5. Restart the device after saving to make the configuration take effect.

Precautions
1. Please confirm that the installation direction of the accessories is correct before use.
2. It is recommended to restart the device after modifying brucePins.
3. If the CC1101, NRF24L01 or infrared functions cannot be used, please check whether the pin configuration is correct first.
4, wireless related functions please use in a legal compliance environment.

Packing List:

1x module

2X antenna
1Xshell

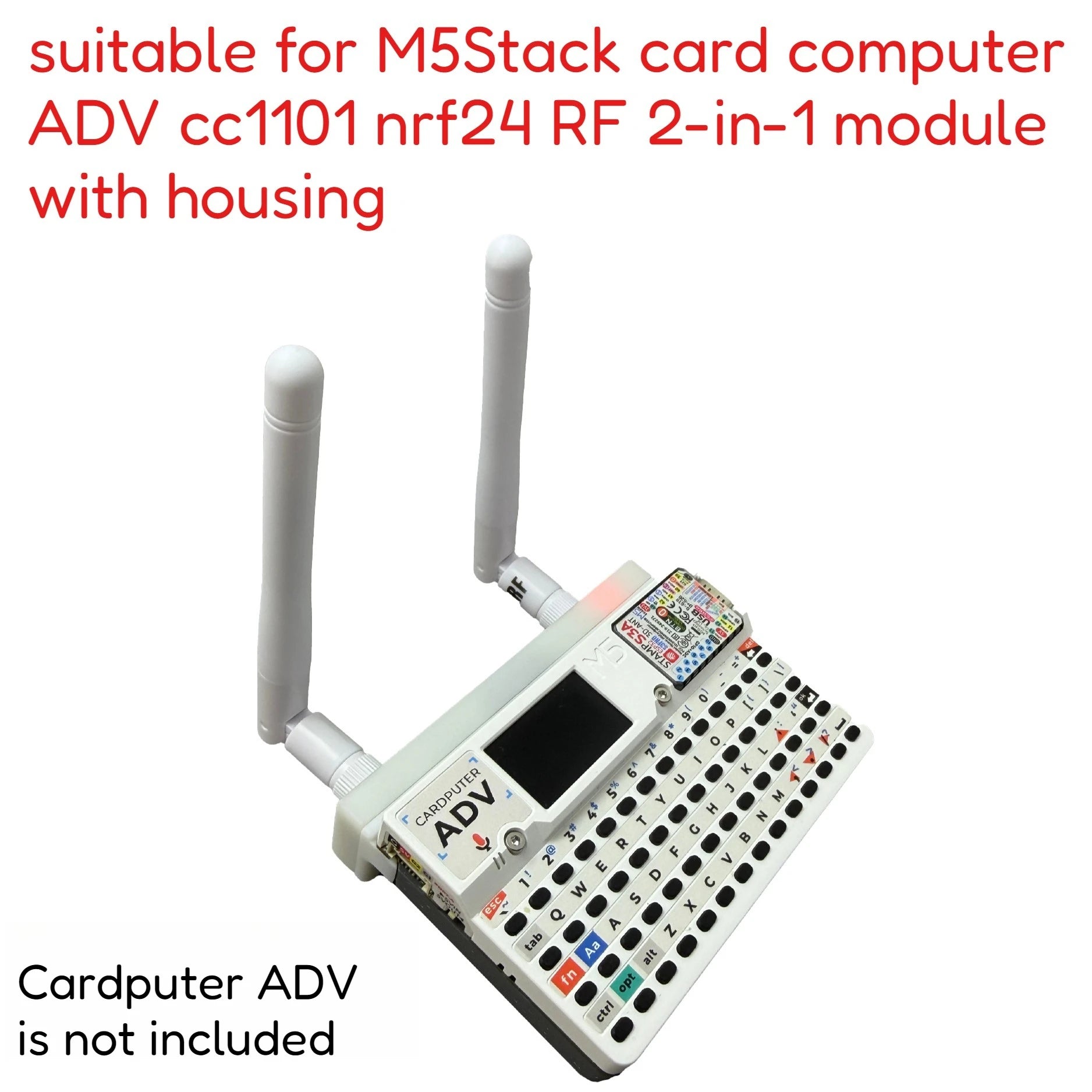

Cardputer ADV is not included
